slide1

Riyadh Philanthropic Society For Science

Prince Sultan College For Woman

Dept. of Computer & Information Sciences

CS 340

Introduction to Database Systems

Chapter 6: The Relational Algebra and Relational Calculus

slide2

T1(SSN, NO_OF_DEPTS) ESSN COUNT DEPENDENT_NAME (DEPENDENT)

T2  NO_OF_DEPS>1 (T1)

RESULT pLNAME, FNAME (T2 * EMPLOYEE)

  • Examples of Queries in Relational Algebra
  • Query 5: list the names of all employees with two or more
  • dependents.

Chapter 6: The Relational Algebra and Relational Calculus

42

slide3

ALL_EMPS pSSN (EMPLOYEE)

EMPS_WITH_DEPS(SSN) pESSN (DEPENDENT)

EMPS_WITHOUT_DEPS (ALL_EMP - EMP_WITH_DEPS)

RESULT pLNAME, FNAME (EMPS_WITHOUT_DEPS * EMPLOYEE)

  • Examples of Queries in Relational Algebra
  • Query 6: Retrieve the names of employees who have no dependents.

Chapter 6: The Relational Algebra and Relational Calculus

43

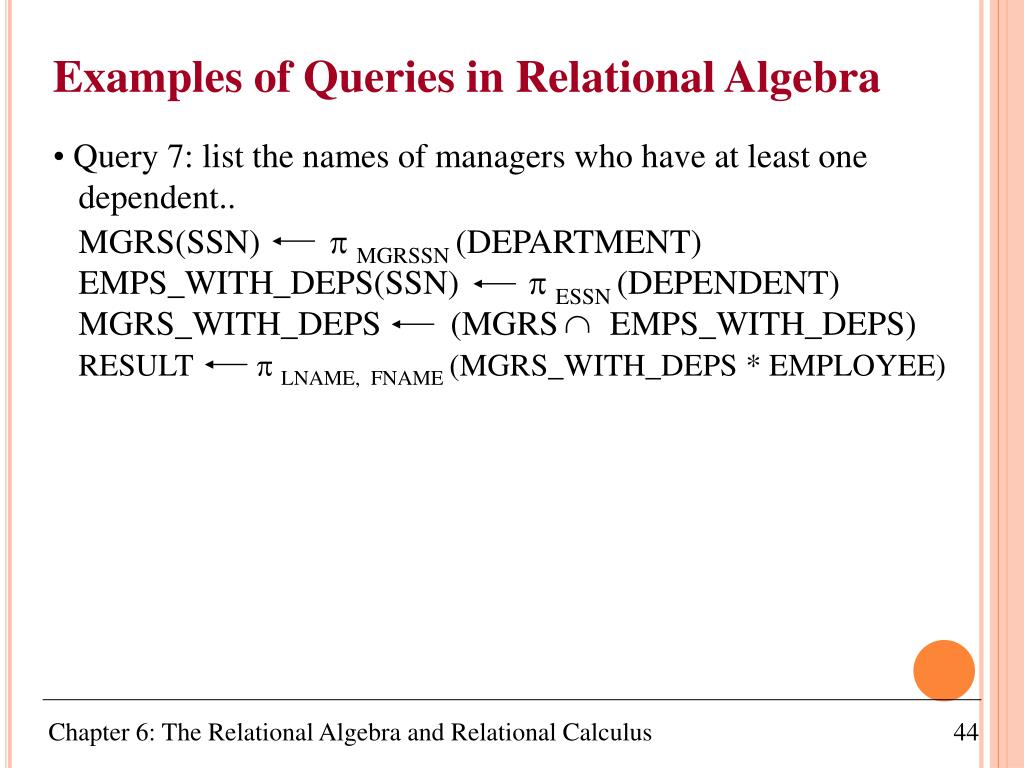

slide4

MGRS(SSN) pMGRSSN (DEPARTMENT)

EMPS_WITH_DEPS(SSN) pESSN (DEPENDENT)

MGRS_WITH_DEPS (MGRS EMPS_WITH_DEPS)

RESULT pLNAME, FNAME (MGRS_WITH_DEPS * EMPLOYEE)

  • Examples of Queries in Relational Algebra
  • Query 7: list the names of managers who have at least one
  • dependent..

Chapter 6: The Relational Algebra and Relational Calculus

44

slide5

Example Queries Using Existential Quantifier

  • Query 3: find the name of each employee who works on some
  • project controlled by the department number 5.
  • Query 4: list the names of managers who have at least one
  • dependent.

Q3: {e.LNAME, e.FNAME | EMPLOYEE(e) AND((x)(w)

(PROJECT(x) AND WORKS_ON(w) AND x.DNUM=5 AND

w.ESSN=e.SSN AND x.PNUMBER=w.PNO))}

Q4: {e.LNAME, e.FNAME | EMPLOYEE(e) AND ((d) (p)

(DEPARTMENT(d) AND DEPENDENT(p) AND

e.SSN=d.MGRSSN AND p.ESSN=e.SSN))}

Chapter 6: The Relational Algebra and Relational Calculus

49

slide6

Example Queries Using Existential Quantifier

  • Query 5: find the names of employees who have no dependents.
  • Query 6: Make a list of project numbers for projects that involve an
  • employee whose last name is ‘Smith’, either as a worker or as a
  • manager of the controlling department for the project.

Q5: {e.LNAME, e.FNAME | EMPLOYEE(e) AND (NOT (d)

(DEPENDENT(d) AND e.SSN=d.ESSN))}

Q6: {p.PNUMBER | PROJECT(p) AND (((e)(w)

(EMPLOYEE(e) AND WORKS_ON(w) AND w.PNO=p.PNUMBER

AND e.LNAME=‘Smith’ AND e.SSN=w.ESSN))

or

((m)(d)(EMPLOYEE(m) AND DEPARTMENT(d) AND

p.DNUM=d.DNUMBER AND d.MGRSSN=m.SSN AND

m.LNAME=‘Smith’)))}

Chapter 6: The Relational Algebra and Relational Calculus

50
