testing and commissioning procedure
TESTING AND COMMISSIONING PROCEDURE
  • WHY
  • All equipments after erection / assembly on site, should be tested in order to check that its future operation will not be at risk.
  • Provide a base to evaluate the equipment at its inception and to monitor the performance of physical asset during its economic life.
  • “Nothing should be taken for granted and no connection should be assumed to be correct until it has been tested and proved”
testing and commissioning procedure contd

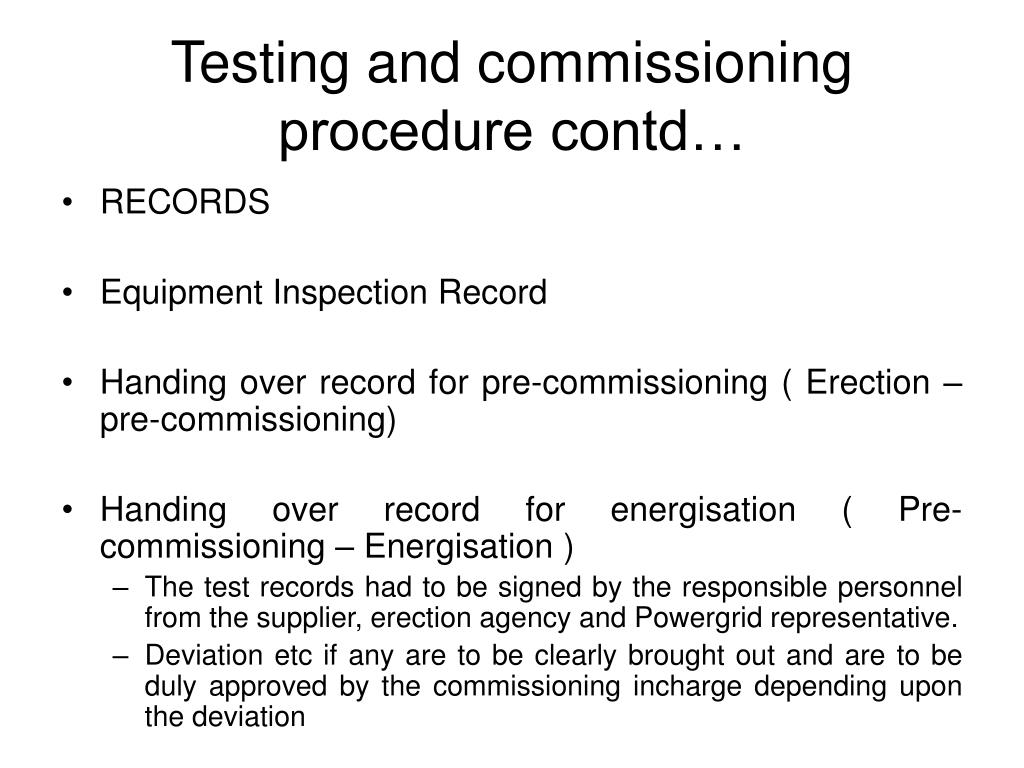

Testing and commissioning procedure contd…
  • RECORDS
  • Equipment Inspection Record
  • Handing over record for pre-commissioning ( Erection – pre-commissioning)
  • Handing over record for energisation ( Pre-commissioning – Energisation )
    • The test records had to be signed by the responsible personnel from the supplier, erection agency and Powergrid representative.
    • Deviation etc if any are to be clearly brought out and are to be duly approved by the commissioning incharge depending upon the deviation
testing and commissioning procedure contd3

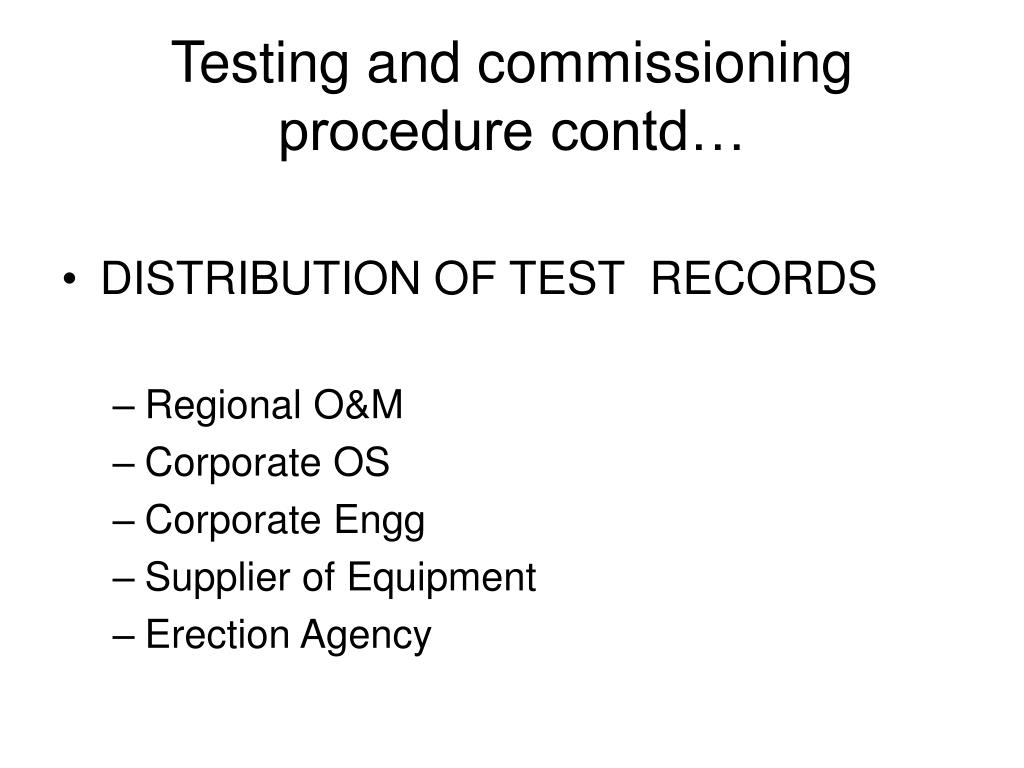

Testing and commissioning procedure contd…
  • DISTRIBUTION OF TEST RECORDS
    • Regional O&M
    • Corporate OS
    • Corporate Engg
    • Supplier of Equipment
    • Erection Agency
energisation

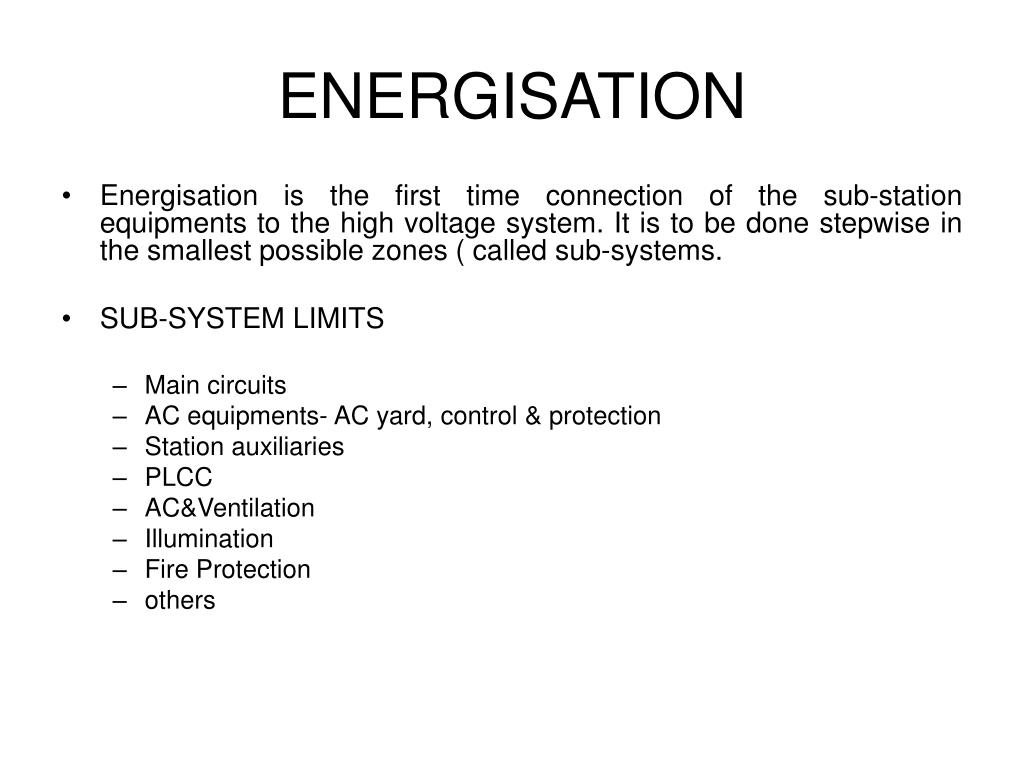

ENERGISATION
  • Energisation is the first time connection of the sub-station equipments to the high voltage system. It is to be done stepwise in the smallest possible zones ( called sub-systems.
  • SUB-SYSTEM LIMITS
    • Main circuits
    • AC equipments- AC yard, control & protection
    • Station auxiliaries
    • PLCC
    • AC&Ventilation
    • Illumination
    • Fire Protection
    • others
overall procedure
OVERALL PROCEDURE
  • Instruction for the work and supervision is given by the test leader
  • All switching and all operational activities will be executed by the regular shift personnel.
  • Ascertain that the sub-system to be energised is ready for operation and has been properly handed over in writing
  • Before proceeding check & obtain confirmation from CPCC/RLDC
  • Energisation is executed by closure of the CB
  • Inspection as well as instrument readings are taken.
  • When the whole system has been energised including the AC line it will be kept in this state for ” 8 ” hours or more.
safety procedure

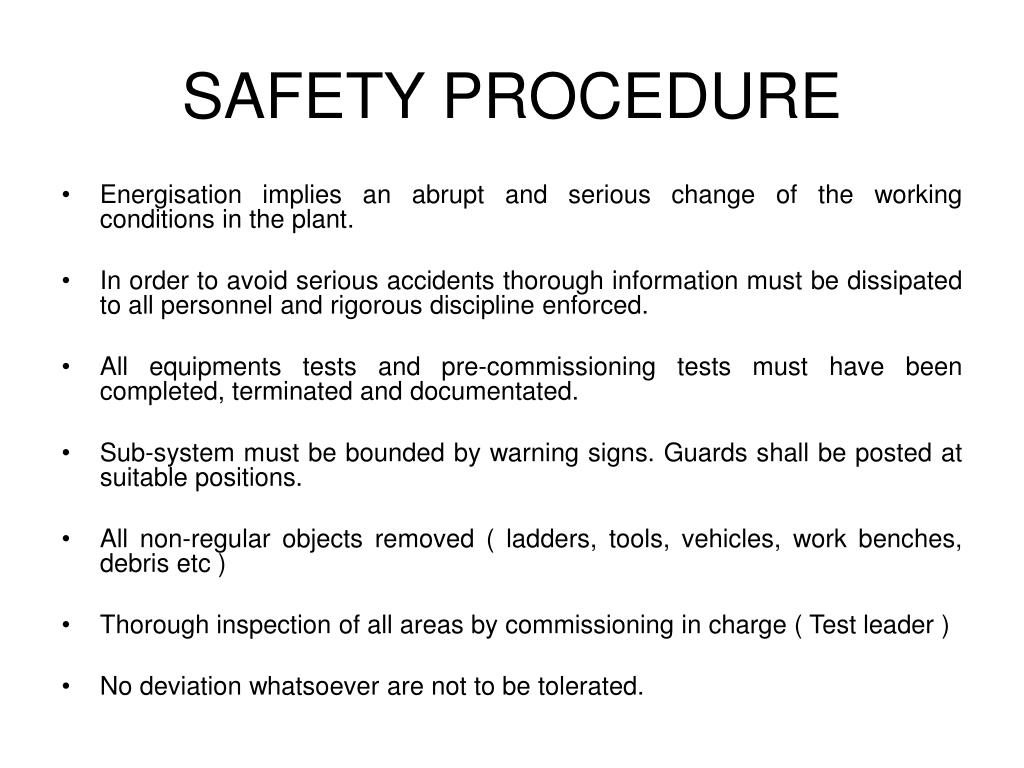

SAFETY PROCEDURE
  • Energisation implies an abrupt and serious change of the working conditions in the plant.
  • In order to avoid serious accidents thorough information must be dissipated to all personnel and rigorous discipline enforced.
  • All equipments tests and pre-commissioning tests must have been completed, terminated and documentated.
  • Sub-system must be bounded by warning signs. Guards shall be posted at suitable positions.
  • All non-regular objects removed ( ladders, tools, vehicles, work benches, debris etc )
  • Thorough inspection of all areas by commissioning in charge ( Test leader )
  • No deviation whatsoever are not to be tolerated.
