Presentation Transcript
slide3

MAIBEC

MAINE + QUEBEC

MAI NE + QUEBEC

What Others Want To Be

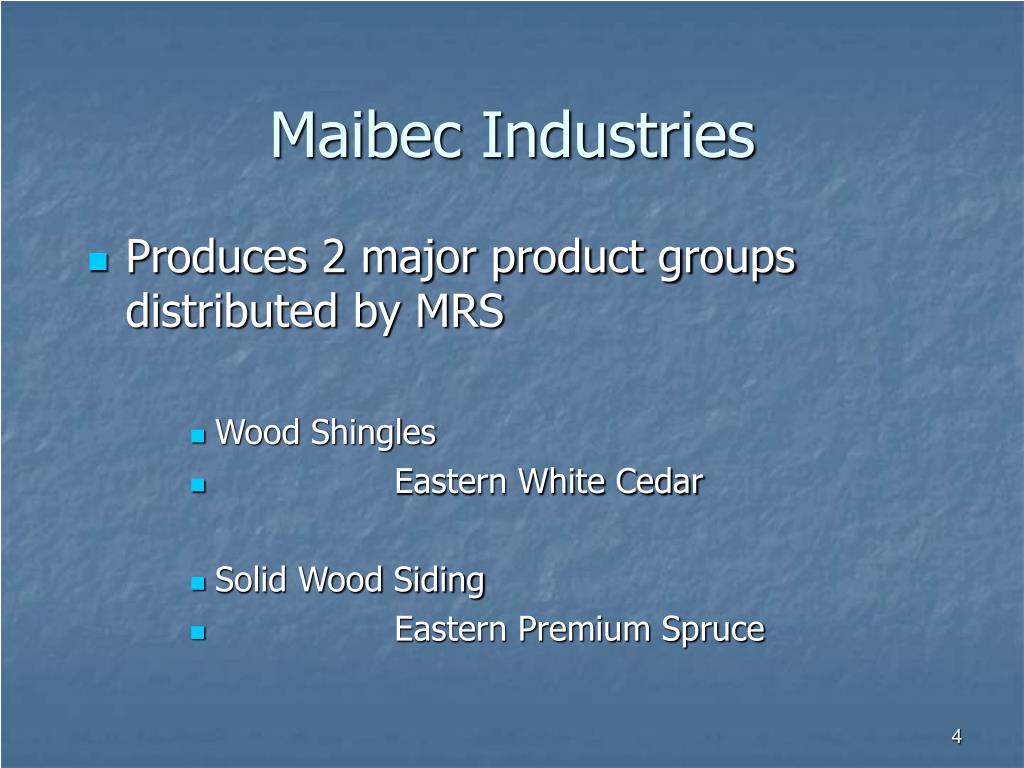

maibec industries
Maibec Industries
  • Produces 2 major product groups distributed by MRS
      • Wood Shingles
      • Eastern White Cedar
      • Solid Wood Siding
      • Eastern Premium Spruce
slide6

When you want wood,buy wood!

  • WOOD…
  • Natural
  • Renewable
  • Sustainable
  • MAIBEC SIDING…
  • Beautiful
  • Durable
  • Low Maintenance

We’ll guarantee it!

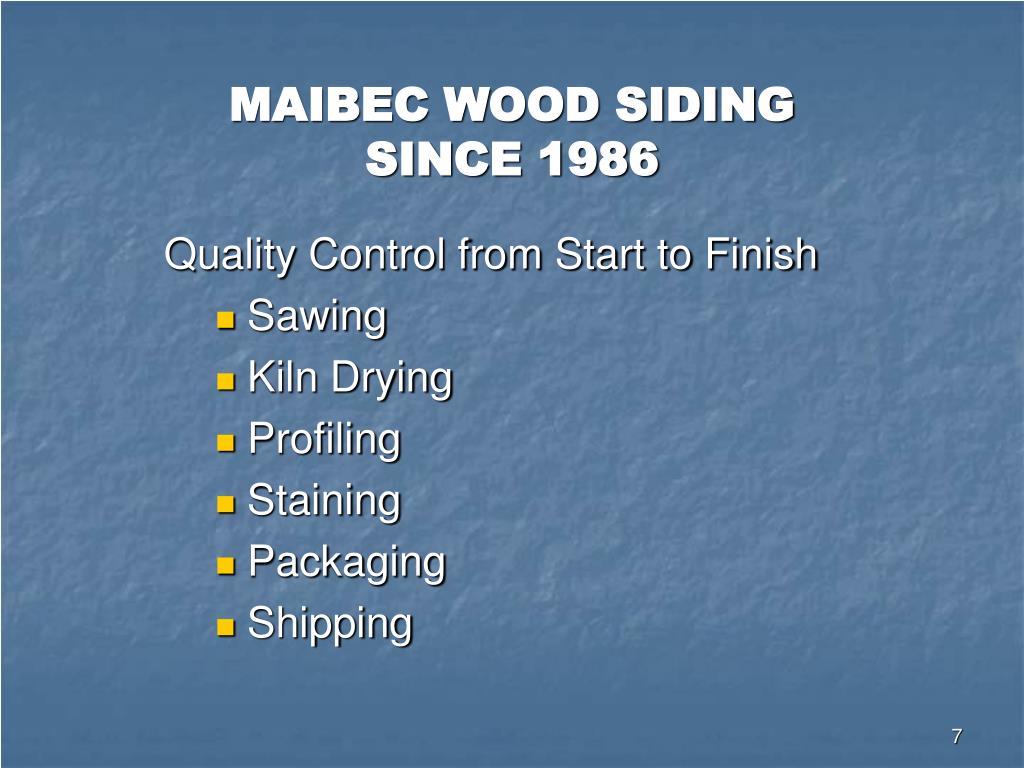

slide7

MAIBEC WOOD SIDING SINCE 1986

Quality Control from Start to Finish

  • Sawing
  • Kiln Drying
  • Profiling
  • Staining
  • Packaging
  • Shipping
slide8

SPF (Spruce-Pine-Fir)A DURABLE SUBSTRATE

  • In House Lumber Manufacturing
    • Maibec premium siding grade
  • Optimal Drying in Specie Specific Kilns
    • Consistent moisture content

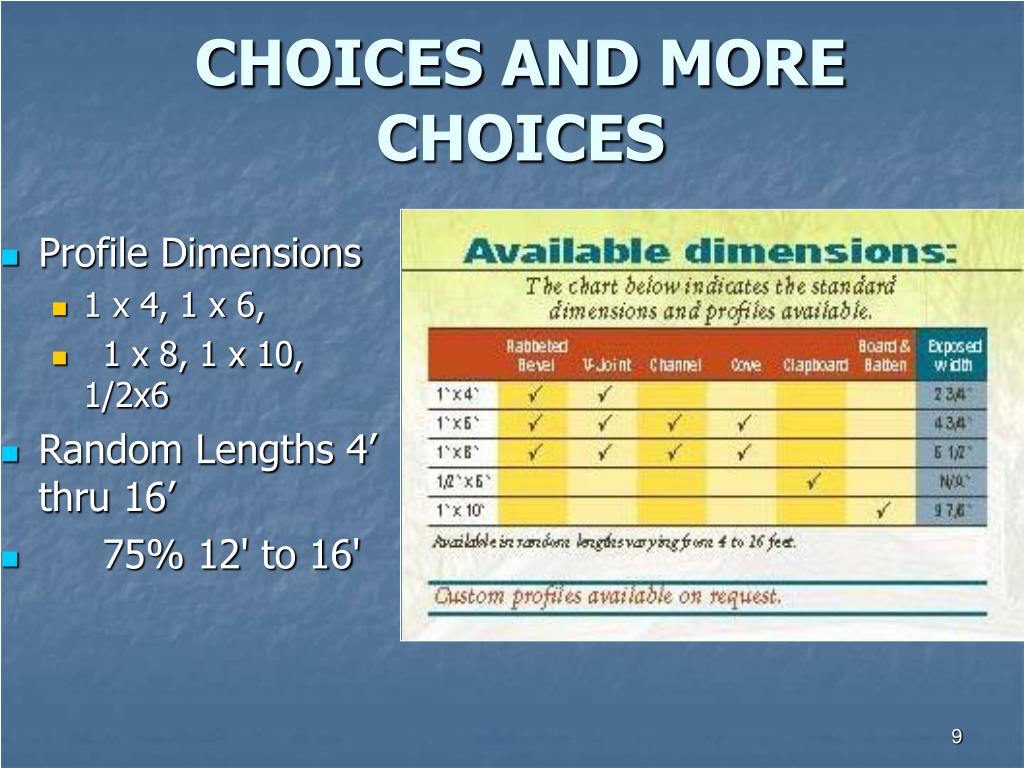

choices and more choices
Profile Dimensions

1 x 4, 1 x 6,

1 x 8, 1 x 10, 1/2x6

Random Lengths 4’ thru 16’

75% 12' to 16'

CHOICES AND MORE CHOICES
maibec s got you covered
MAIBEC’S got you covered

Profile Selection

(smooth or rough face)

  • 1/2x6 Clapboard

Unfinished or pre-finished with 1 or 2 coats

  • Rabetted Bevel

1x4, 6 & 8 inch widths

Pre-finished only

  • ShipLap V-Joint

1x4, 6 & 8 inch

Pre-finished only

maibec s got you covered11
MAIBEC’S got you covered

Profile Selection

(smooth or rough face)

  • Channel

1x6 & 8 inch widths

Pre-finished only

  • Cove

1x6 & 8 inch widths

Pre-finished only

  • Board & Batten

1x10 boards and 1x2 battens

Pre-finished only

pick a color any color
PICK A COLOR, ANY COLOR
  • Free Samples
  • Flow Coat Application
  • Oven Dried
  • Cabot Factory Finish Stain
  • Unlimited Choice of Colors
  • No Minimum Order

The Cabot Factory Finish Process

3

2

4

1 Controlled temperature and humidity levels stabilize any moisture in

the wood; application conditions are optimal.

2 The siding is fed into the machine applicator and flooded with Cabot

Factory Finish.

3 Pressure rollers spread the coating evenly.

4 High speed brushes drive the stain into all six sides of the wood for

maximum protection. Back-priming reduces shrinking and swelling

and improves the siding durability.

5 Proper spread rates and uniform colour coverage provide a beautiful

finish with the highest outdoor performance standards.

The longevity and performance of any coating is greatly influenced by the method of application.

Cabot Factory Finish is applied under factory-controlled conditions and the most stringent quality control procedures are followed. All six sides of the board, including the butt-ends, are completely covered ensuring the ultimate protection from nature’s elements. The stain is then brushed deep into the surface for maxi-mum penetration and is allowed to dry thoroughly prior to leaving the factory, stabilizing the siding and preventing possible shrinkage. The finished siding arrives at the construction site totally protected from exposure to water and sunlight.

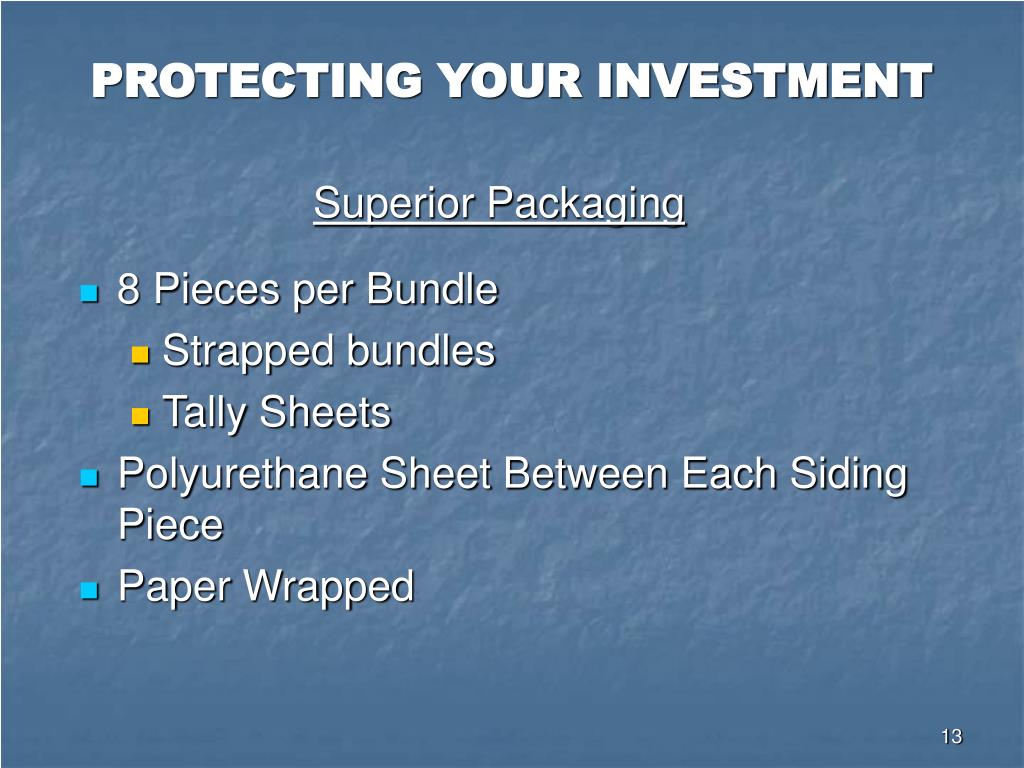

slide13

PROTECTING YOUR INVESTMENT

Superior Packaging

  • 8 Pieces per Bundle
    • Strapped bundles
    • Tally Sheets
  • Polyurethane Sheet Between Each Siding Piece
  • Paper Wrapped
trims mouldings and nails
TRIMS, MOULDINGS, AND NAILS

PRE-FINISHED TRIM PACKAGES

  • 1 x 6 Fascia Board
  • 5/4 x 4 & 5 - Outside/Inside Corner
  • 2 x 2 Inside Corner
  • 5/4 x 7 Skirt Board
  • 2 x 4 Universal I/S O/S Corner Board
  • Other Trim Items & Sizes Available

ACCESSORIES

  • Free Touch Up
  • Color Matched Maze Nails
    • 2“, 2-1/2” and 3" Individual
    • 2" Coil

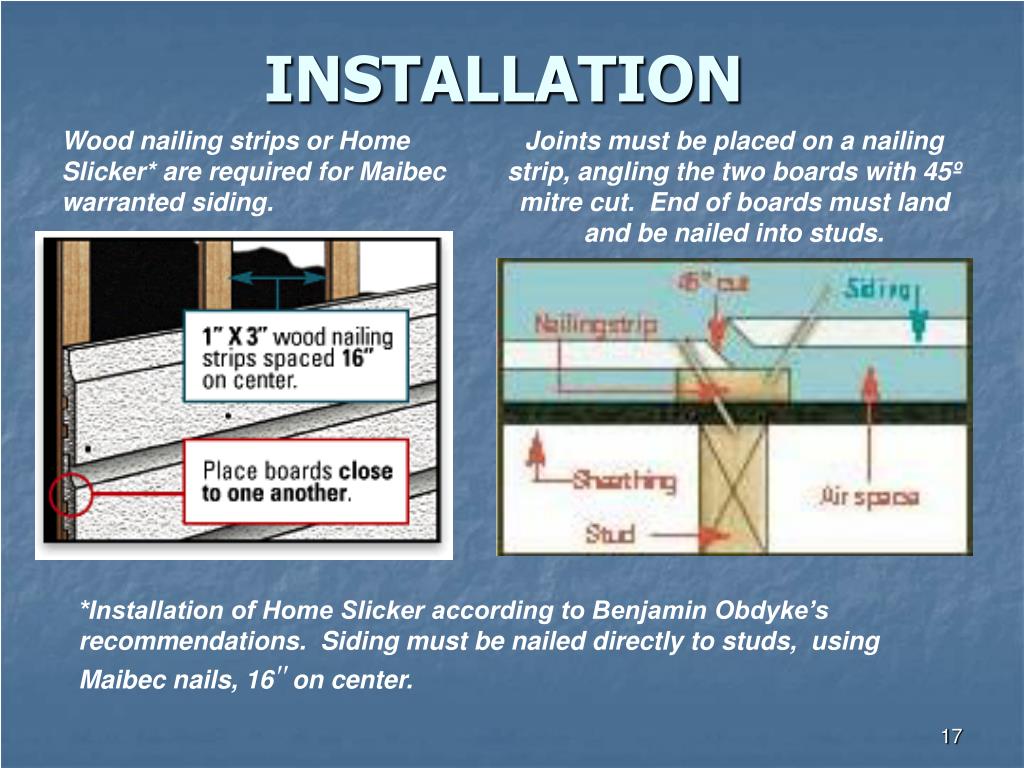

installation
INSTALLATION

Wood nailing strips or Home Slicker* are required for Maibec warranted siding.

Joints must be placed on a nailing strip, angling the two boards with 45º mitre cut. End of boards must land and be nailed into studs.

*Installation of Home Slicker according to Benjamin Obdyke’s recommendations. Siding must be nailed directly to studs, using Maibec nails, 16"on center.

home slicker by benjamin obdyke
Home Slicker™by Benjamin Obdyke
  • -1/4” three-dimensional nylon matrix
    • Thermal break
    • Channels moisture away
    • Class A fire rating
  • Specified by Architects
installation18
INSTALLATION

VERTICAL SIDING

  • Nailing or furring strips need to be installed at a 45º angle. This allows for any moisture build up to flow down the wall.
  • The strips need to be installed at 12" on center to ensure a 16" on center nailing pattern on the siding.

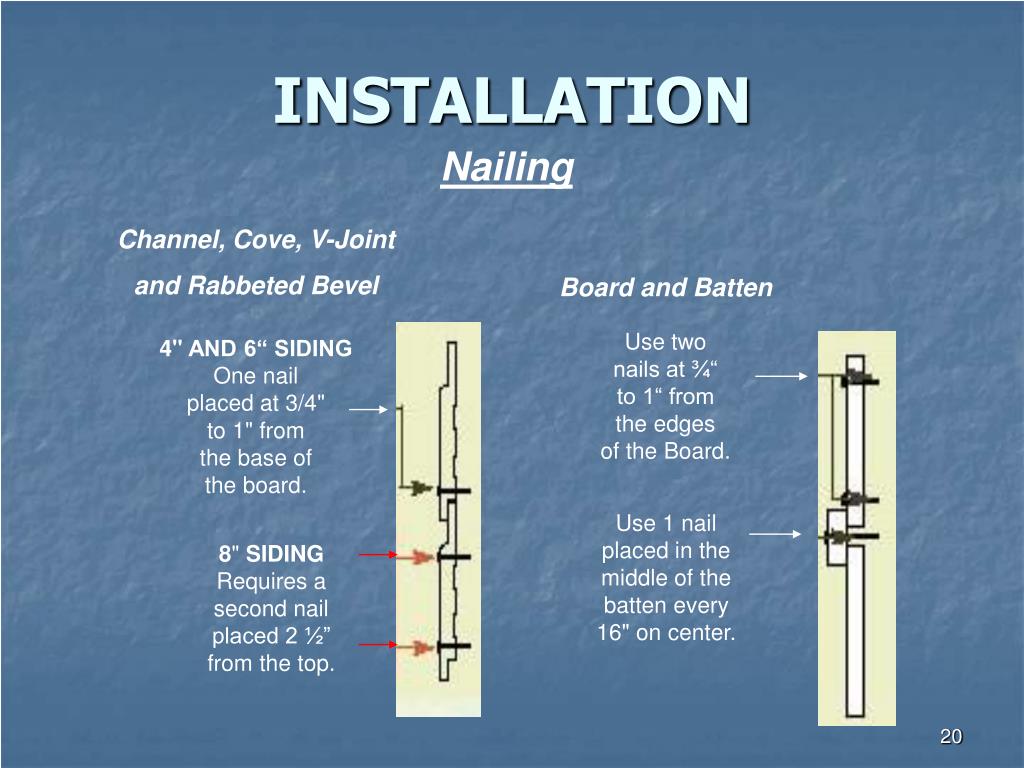

installation19

Channel, Cove, V-Joint

and Rabbeted Bevel

Board and Batten

Use two

nails at ¾“

to 1“ from

the edges

of the Board.

4" AND 6“ SIDING

One nail

placed at 3/4"

to 1" from

the base of

the board.

Use 1 nail

placed in the

middle of the

batten every

16" on center.

8" SIDING

Requires a

second nail

placed 2 ½”

from the top.

INSTALLATION

Nailing

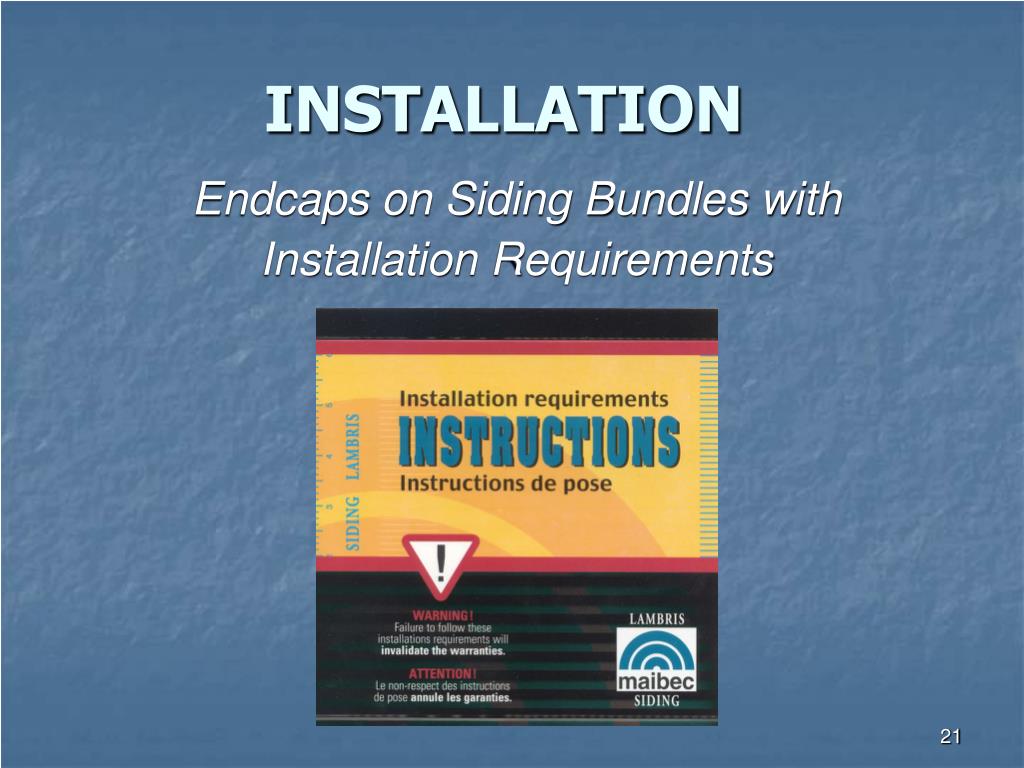

installation20
INSTALLATION

Endcaps on Siding Bundles with

Installation Requirements

slide22

Sample Procedure

  • Not required but recommended by Maibec and MRS
  • Customer must furnish
    • Stain manufacturer of desired color(s)
    • Color, # coats, solid or semi-trans., smooth or rough face
    • Name, address, telephone number and attention _____
  • Customer will receive samples in approximately 1 week
  • When end user approves samples, MRS must receive color # shown on sample label as ‘CEL-0_ _ _ _ _ _ -_ _ ’
  • Customer receives 1 gallon touchup free with 1000 bd. ft. +
  • Maibec will finish shingles without the ‘CEL’ number but MRS’ customer and the end user have no recourse against Maibec and/or MRS regarding color
slide23

Answers to Shingle F.A.Q.

  • Hammer caps are furnished with prefinished nails to prevent chipping finish off head of nails
  • Samples of various profiles and colors are available using the same procedure as the shingles. Shingles will have a CEL # instead of a CEB #
  • Maibec will match any color but will use Cabot Latex Factory Finish stain
  • Maibec will not apply semi-transparent finish to smooth side of any siding product
merchandising
Merchandising
  • Siding/Trim Display Board
    • Siding profiles
    • Trim profiles
    • Samples labeled with siding and trim names and color
  • Siding/Trim Sample Box
    • Siding profiles
    • Trim profiles
    • Samples labeled with siding and trim names and color
  • Literature
  • Website - www.maibec.com
slide25

Factory – StainedSOLID WOOD SIDING

When you want wood,buy wood
