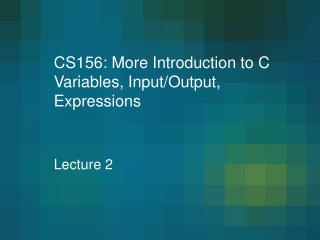

CS156: More Introduction to C Variables, Input/Output, Expressions PowerPoint Presentation
Download Presentation
CS156: More Introduction to C Variables, Input/Output, Expressions

Loading in 2 Seconds...

play fullscreen
1 / 27

CS156: More Introduction to C Variables, Input/Output, Expressions - PowerPoint PPT Presentation


  • 226 Views
  • Uploaded on

CS156: More Introduction to C Variables, Input/Output, Expressions. Lecture 2. Basic C Program Structure. Your simplest C programs will have the following simple structure. /***************************************** * Comment section * ******************************************/

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'CS156: More Introduction to C Variables, Input/Output, Expressions' - niveditha


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
basic c program structure
Basic C Program Structure
  • Your simplest C programs will have the following simple structure.

/*****************************************

* Comment section *

******************************************/

…Preprocessor directives…

…Variable Declarations…

int main( )

{

…Local Variable Declarations…

// Comment

…Executable Statements…

return 0;

}

Lecture 2: More Introduction to C

c elements comments
C Elements: Comments
  • Comments are used to document the functionality of a piece of code.
  • Comments are ignored by the compiler.
    • In-line comments - // comment
    • Multi line comments - /* … */
  • You should use block comments at the top of all your .c files to document its purpose, its use, and the functions it contains.

/*****************************************

* Author: CS155 Instructor *

* Purpose: Demo of first program *

* Inputs: none ** Outputs: prints Hello World

* Functions: main *

******************************************/

Lecture 2: More Introduction to C

slide4

Careful!!

  • Just like in Java, /* comments */ can't be nested.
  • Example below: inner comment /* ignored, so outer comment close with first */ then trouble with the latter */

Lecture 2: More Introduction to C

c elements include
C Elements: #include
  • The #include <file.h> syntax tells the compiler to include a set of variable and function definitions from another file.
  • A standard library of useful functions exists and is accessed through a set of standard .h files.
    • stdio.h – basic input and output (e.g. printf, scanf )
    • stdlib.h – many utility functions (e.g. rand, malloc, strod )
    • math.h – mathematical functions (e.g. sqrt, pow )

Lecture 2: More Introduction to C

c elements variables
C Elements: Variables
  • A variable is a named placeholder for a piece of information.
  • Each variable has a unique name.
    • Must start with [a-zA-Z_]
    • Should start with [a-zA-Z]
    • Can only contain [a-zA-Z0-9_]
    • Names are case sensitive (e.g. var1, Var1)
  • All variables have an associated type which determines what kind of information it can hold.

Lecture 2: More Introduction to C

data types
Data types

Lecture 2: More Introduction to C

c elements variable declarations
C Elements: Variable Declarations
  • Variables must be declared before they are used. Declarations take the form

DataType name;

    • Examplesint zip_code;

char grade;

  • All variables have an associated scope that determines where in the program they are accessible.
  • Variables declared outside any function are called global variables. They are accessible anywhere.

Lecture 2: More Introduction to C

basic variable types
Basic Variable Types
  • int – an integer type
    • int zip_code; // a zip code
  • float – a floating point type (real number)
    • float friction; // a friction coeff
  • char – a single character
    • char grade; // letter grade: ABCDF

Lecture 2: More Introduction to C

c elements simple expressions
C Elements: Simple Expressions
  • Simple expressions can be formed using the operators
    • a + b – Add
    • a - b – Subtract
    • a * b – Multiply
    • a / b – Divide
    • a % b – Modulus (return remainder)
  • Here a and b can be literals, variables or expressions.
    • e.g. 1.4*2 or var1*3.14 or 2*(var1+2)
    • If a has the value 12 and b = 7, what is a % b

Lecture 2: More Introduction to C

c elements assignment statements
C Elements: Assignment Statements
  • For variables to be useful we must assign them a value.

var = expr;

  • The variable var must be declared before we attempt to assign it a value.
  • Attempting to assign a value to an undeclared variable results in a syntax error. The compiler will notify you of this.

Lecture 2: More Introduction to C

example
Example

/*****************************************

* example2-1.c : a simple program *

******************************************/

#include <stdio.h>

int zip_code; // a global variable

int main()

{

float friction; // local variable for amt of friction

float number; // local variable for calculation

// assign some values

zip_code = 44455;

friction = 0.04;

number = (zip_code * friction) – 3.2;

// print number

printf("The final number was %f\n", number);

return 0;

}

Lecture 2: More Introduction to C

slide13

Input and Output

Lecture 2: More Introduction to C

stdio h printf
stdio.h: printf
  • The printf function allows us to print to the screen.
  • Special formatting symbols allow us to print the values of variables.
    • %d – print an int variable
    • %f – print a float variable
    • %c – print a char variable
  • Special characters can be printed with escape sequences.
    • \n – the newline character
    • \t – the tab character
    • \" – double quote

Lecture 2: More Introduction to C

example 2
Example 2

/*****************************************

* example2-2.c : a printf example *

******************************************/

#include <stdio.h>

int main()

{

float friction;

float number;

int numPeople;

// assign some values

friction = 0.04;

number = friction + 3.2 * 2;

numPeople = 3;

// print number

printf("The final number was %f\n", number);

printf("The value of \"friction\" was %f.\n",friction );

printf("There are %d people here.\n", numPeople );

return 0;

}

Lecture 2: More Introduction to C

expressions and operator precedence
Expressions and Operator Precedence
  • Consider, a + b * c. This expression is ambiguous unless we specify an order for the operations to be performed in.
  • C defines a set of precedence relations for operators.

Highest Precedence – First Evaluated

Lowest Precedence – Last Evaluated

Lecture 2: More Introduction to C

example 3
Example 3

/*****************************************

* example2-3.c : a precedence example *

******************************************/

#include <stdio.h>

int main()

{

// print number

printf("1+2*3 = %d\n", 1+2*3 );

printf("(1+2)*3 = %d\n", (1+2)*3 );

printf("2*3+4*5 = %d\n", 2*3+4*5 );

printf("2*(3+4)*5 = %d\n", 2*(3+4)*5 );

return 0;

}

preisner> ./example2-3

1+2*3 = 7

(1+2)*3 = 9

2*3+4*5 = 26

2*(4+3)*5 = 70

Lecture 2: More Introduction to C

type conversion and division
Type Conversion and Division
  • C automatically converts between types when mixed types are used in an expression. i.e. int →float
    • 3.0 / 1.5 → 2.0 (float)
    • 3 / 1.5 → 3.0 / 1.5 → 2.0 (float)
  • Integer division return the integer part of the result (remainder is discarded). Remember this.
    • 3 / 2 → 1 (int)
    • 21 / 8 → 2 (int)

Lecture 2: More Introduction to C

a brief note about floating point constants
A brief note about floating-point constants

How to confuse your readers:

x = 3. + .4;

Was that .4 or 4? Don’t make me squint to see a leading or trailing decimal point—help me out with a zero:

x = 3.0 + 0.4;

Lecture 2: More Introduction to C

reading input
Reading input
  • Input can be read from the keyboard using scanf.
  • The usage is similar to printf. The formatting symbols are the same.
  • Should first prompt the user for what type of information is expected
    • printf( "Enter a number between 1 and 10: " );

int zipcode;

float weight;

scanf("%d",&zipcode);

scanf("%f",&weight);

scanf("%d %f", &zipcode, &weight);

Lecture 2: More Introduction to C

example reading in from stdin
Example reading in from stdin

/*****************************************

* example2-2b.c : a printf example *

******************************************/

#include <stdio.h>

int main()

{

float friction;

float number;

int numPeople;

// read in some values

printf("Enter the amount of friction: "); // prompt stays on line

scanf("%f", &friction );

printf("Enter the number of people:\n"); // prompt goes to next line

scanf("%d", &numPeople);

// assign some values

number = friction + 3.2 * 2;

// print number

printf("The final number was %f\n", number);

printf("The value of \"friction\" was %f.\n", friction );

printf("There are %d people here.\n", numPeople);

return 0;

}

Lecture 2: More Introduction to C

what is this
What is this &?
  • The value of a variable is stored in a particular place in the computers memory.
  • The variable name is a way of referencing the variable’s value.
  • The & in front of the variable’s name tells the program to use the variable’s address in memory rather than its value.

Lecture 2: More Introduction to C

memory
Memory

9278

9279

9280

9281

9282

9283

9284

9285

9286

Main memory is divided into many memory locations (or cells)

Each memory cell has a numeric address, which uniquely identifies it

Slide from Lewis & Loftus Java Software Solutions

Lecture 2: More Introduction to C

address
Address
  • Each house has an address (like memory does)
  • The person who lives at that address is the value held at that address
  • People may move, but the house and address remain the same (value varies, hence we call them variables)
  • If you want to know who lives at address 0x5FA70, we want the value at the address, so we reference the variable and we’ll get “Mary”
  • If you want to know the address of the house, we use the & to designate we want the address, not the value inside

Slide info from Neil Obremski

Lecture 2: More Introduction to C

scanf reads values in
scanf reads values IN…
  • scanf needs to know where to store them…
    • It reads in what you tell it
    • converts it from whatever base you tell it
    • converts it to whatever type you tell it
    • and puts the result WHERE you tell it
  • Where = address
  • Why doesn’t printf need the address too?

Lecture 2: More Introduction to C

slide26

printf

Lecture 2: More Introduction to C

slide27

scanf

Lecture 2: More Introduction to C
