slide1

Area and the Definite Integral

Tidewater Community College

Mr. Joyner, Dr. Julia Arnold and

Ms. Shirley Brown

using Tan’s 5th edition Applied Calculus for the managerial , life, and social sciences text

slide2

Area and the Definite Integral

Suppose a state’s annual rate of oil consumption each year over a 4-year period is a constant function, such as f(t) = 2, where t is measured in years and f(t) is measured in millions of barrels.

We would graph such a function as:

slide3

Area and the Definite Integral

How could you use the graph to answer the question, “How much oil was used during the four years”?

Answer:

2(4-0) = 8 million barrels

It seems reasonable that the answer is 8 million barrels and this is the same as the area of the rectangle…the area under the “curve.” (Yes, even a straight line is considered a “curve” in mathematics!)

slide4

Area and the Definite Integral

How would you find the area above the x-axis and under the curve f(x) = x from x = 0 to x = 4?

Does it seem reasonable to find the area of the triangle… the area under the “curve.”

slide5

Area and the Definite Integral

Imagine now that our function, f(x) = x, represents the oil consumption of the same state over the same four years.

What was the oil consumption over the four years?

Let’s explore.

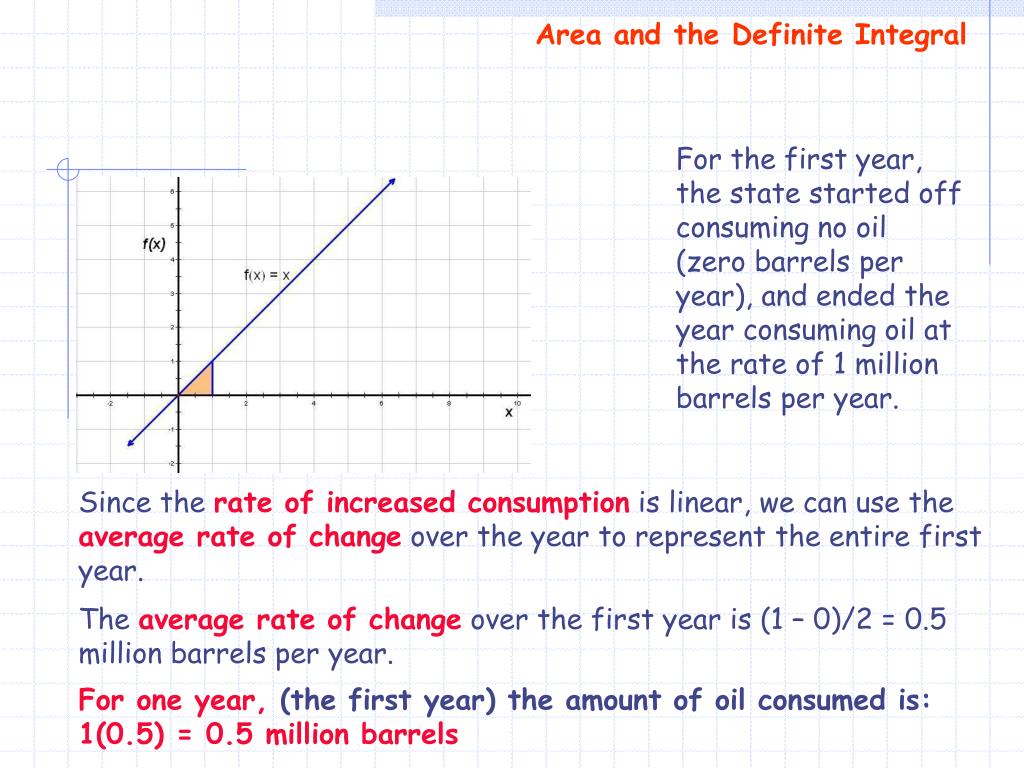

slide6

Area and the Definite Integral

For the first year, the state started off consuming no oil (zero barrels per year), and ended the year consuming oil at the rate of 1 million barrels per year.

Since the rate of increased consumption is linear, we can use the average rate of change over the year to represent the entire first year.

The average rate of change over the first year is (1 – 0)/2 = 0.5 million barrels per year.

For one year, (the first year) the amount of oil consumed is: 1(0.5) = 0.5 million barrels

slide7

Area and the Definite Integral

For the first two years, the state started off consuming no oil and ended the two-year year period consuming oil at the rate of 2 million barrels per year.

Again, since the rate of increased consumption is linear, we can use the average rate of change over the 2 years to represent the entire two-year period.

The average rate of change over the 2-year period is (2 – 0)/2 = 1 million barrels per year.

For two years. the amount of oil consumed is: 2(1) = 2 million barrels.

slide8

Area and the Definite Integral

In a similar fashion we can reason that the total oil consumption is as follows:

Lets compare these values to…

the areas of the right triangles under the curve f(x).

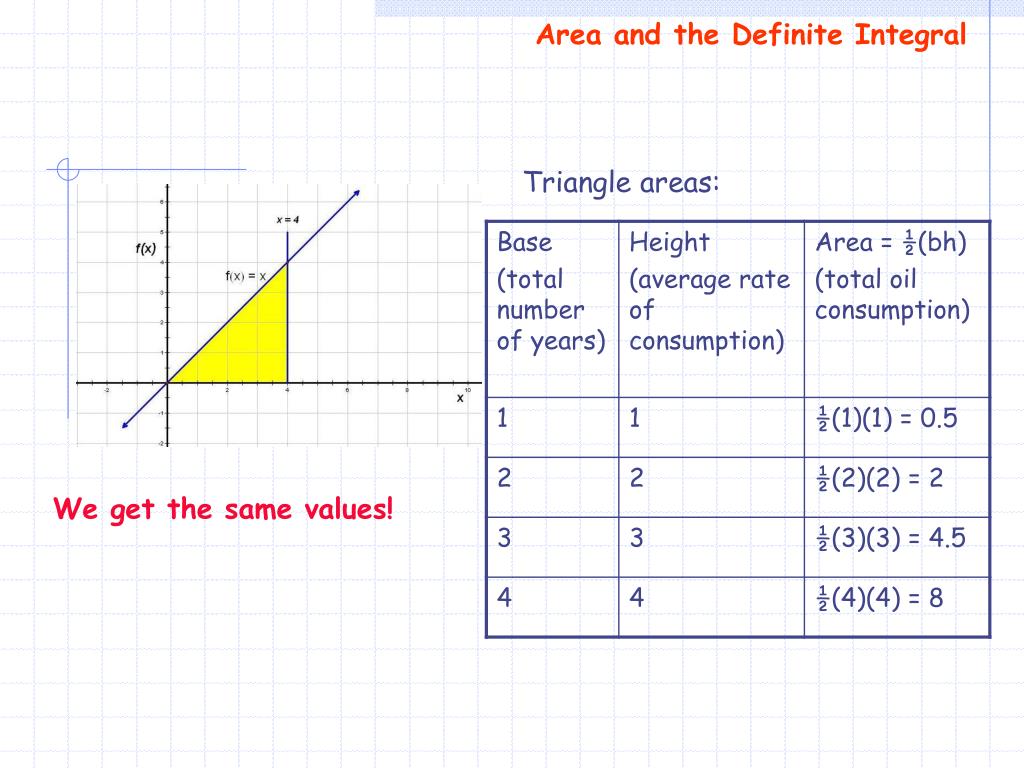

slide9

Area and the Definite Integral

Triangle areas:

We get the same values!

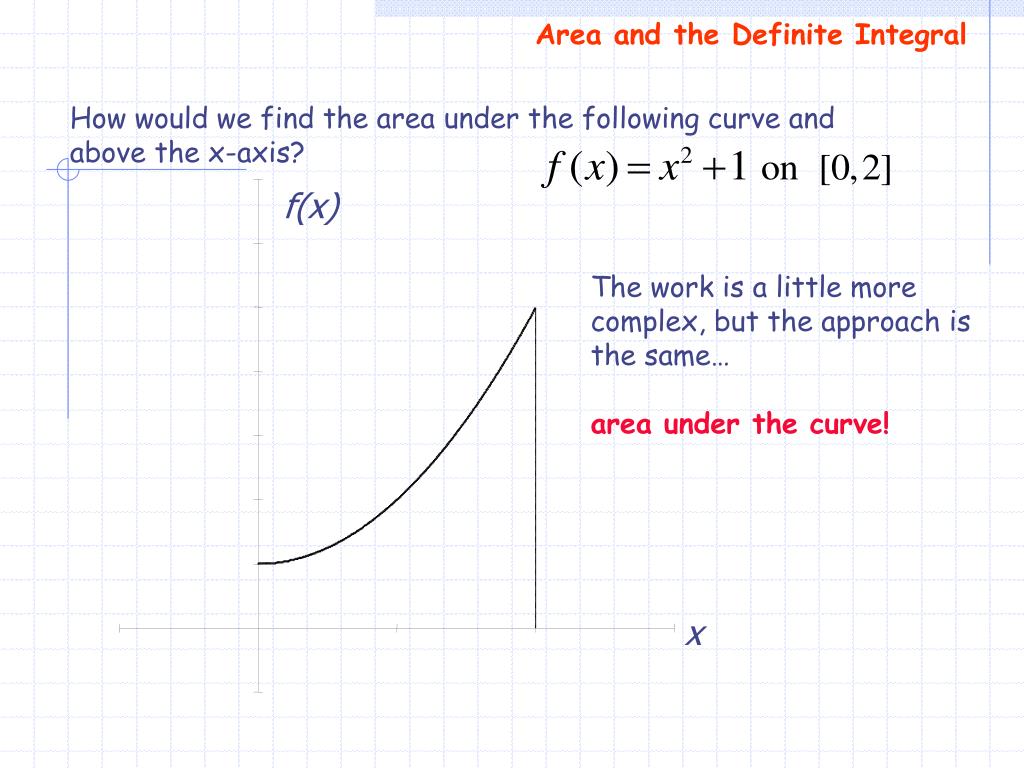

slide10

Area and the Definite Integral

f(x)

x

How would we find the area under the following curve and above the x-axis?

The work is a little more complex, but the approach is the same…

area under the curve!

slide11

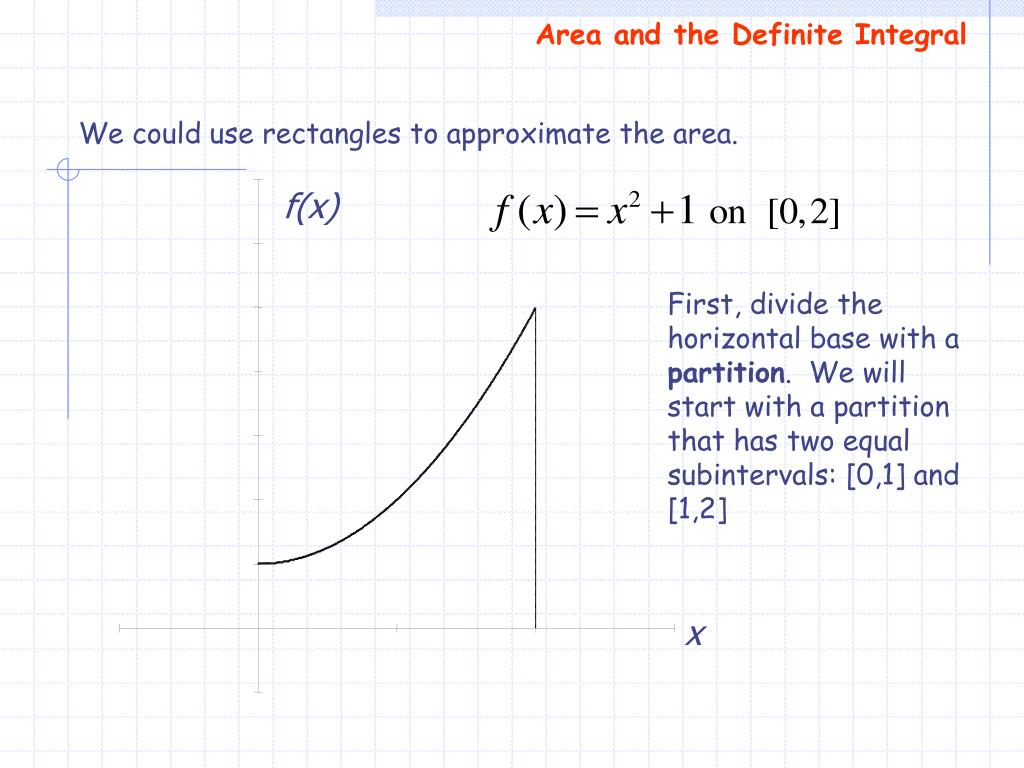

Area and the Definite Integral

f(x)

x

We could use rectangles to approximate the area.

First, divide the horizontal base with a partition. We will start with a partition that has two equal subintervals: [0,1] and [1,2]

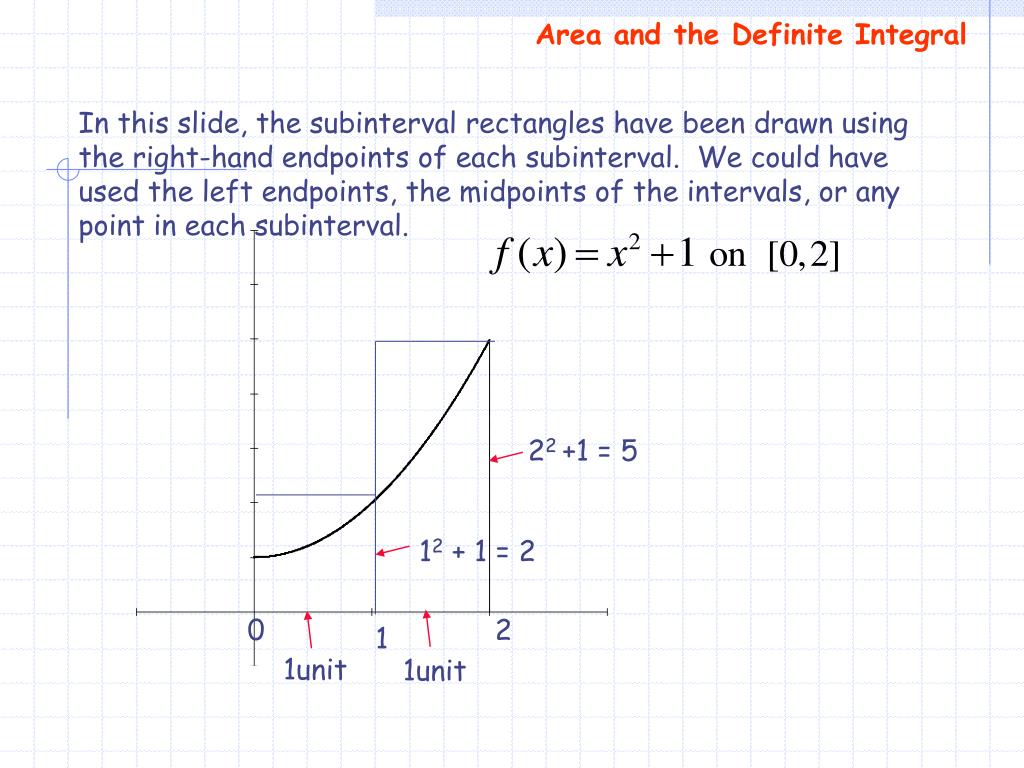

slide12

Area and the Definite Integral

22 +1 = 5

12 + 1 = 2

0

2

1

1unit

1unit

In this slide, the subinterval rectangles have been drawn using the right-hand endpoints of each subinterval. We could have used the left endpoints, the midpoints of the intervals, or any point in each subinterval.

slide13

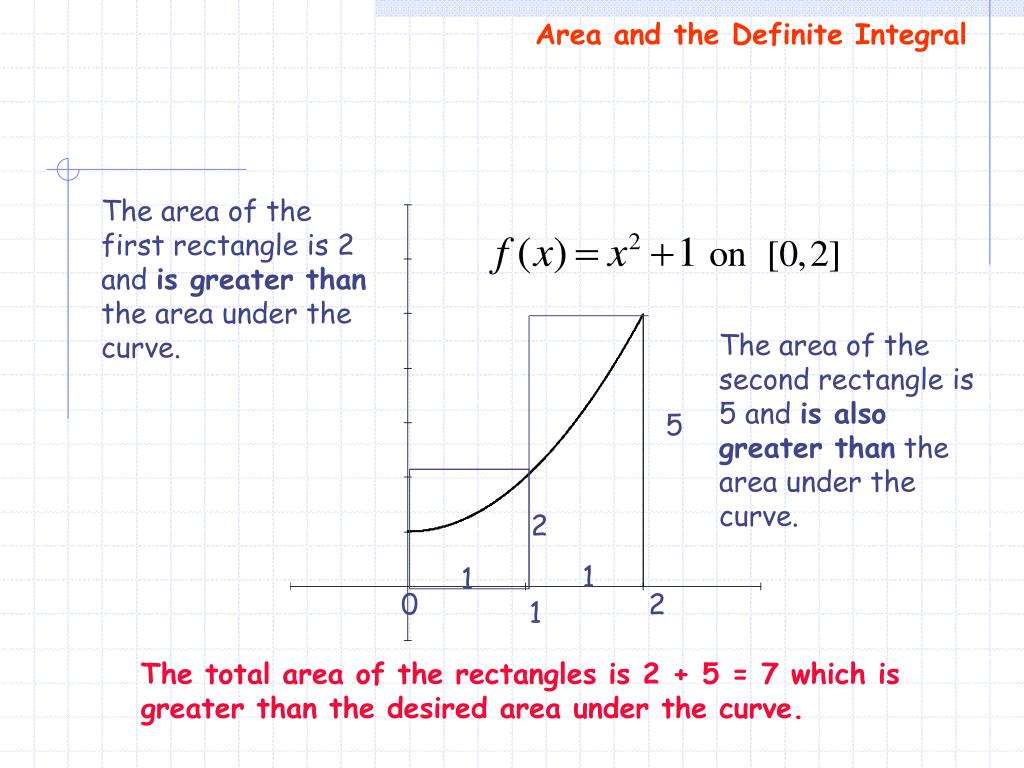

Area and the Definite Integral

The area of the first rectangle is 2 and is greater than the area under the curve.

The area of the second rectangle is 5 and is also greater than the area under the curve.

5

2

1

1

0

2

1

The total area of the rectangles is 2 + 5 = 7 which is greater than the desired area under the curve.

slide14

Area and the Definite Integral

In this slide, let’s draw the rectangles using the left-hand endpoints.

12 +1 = 2

02 + 1 = 1

0

2

1

1unit

1unit

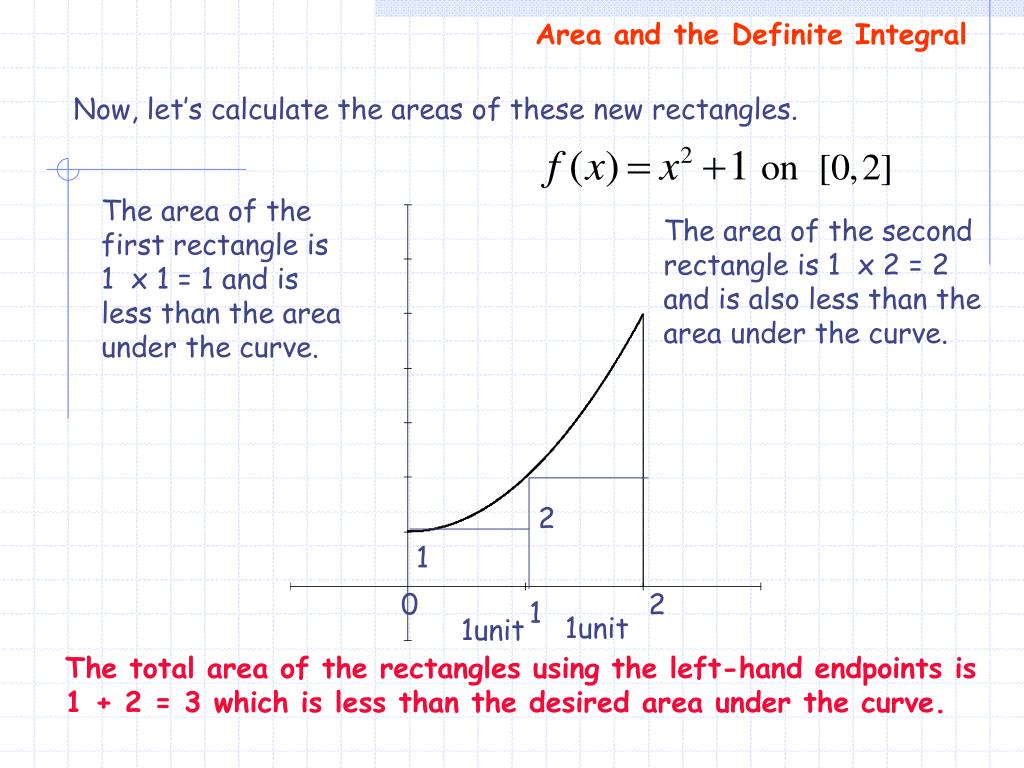

slide15

Area and the Definite Integral

2

1

0

2

1

1unit

1unit

Now, let’s calculate the areas of these new rectangles.

The area of the first rectangle is

1 x 1 = 1 and is less than the area under the curve.

The area of the second rectangle is 1 x 2 = 2 and is also less than the area under the curve.

The total area of the rectangles using the left-hand endpoints is 1 + 2 = 3 which is less than the desired area under the curve.

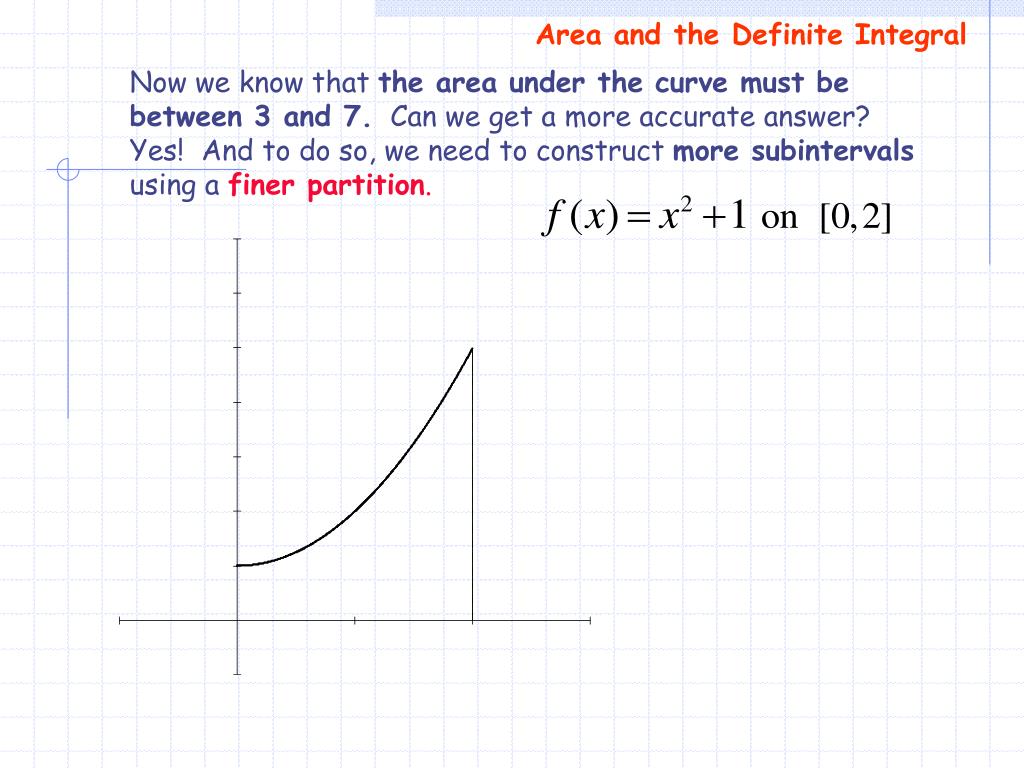

slide16

Area and the Definite Integral

Now we know that the area under the curve must be between 3 and 7. Can we get a more accurate answer? Yes! And to do so, we need to construct more subintervals using a finer partition.

area under a curve

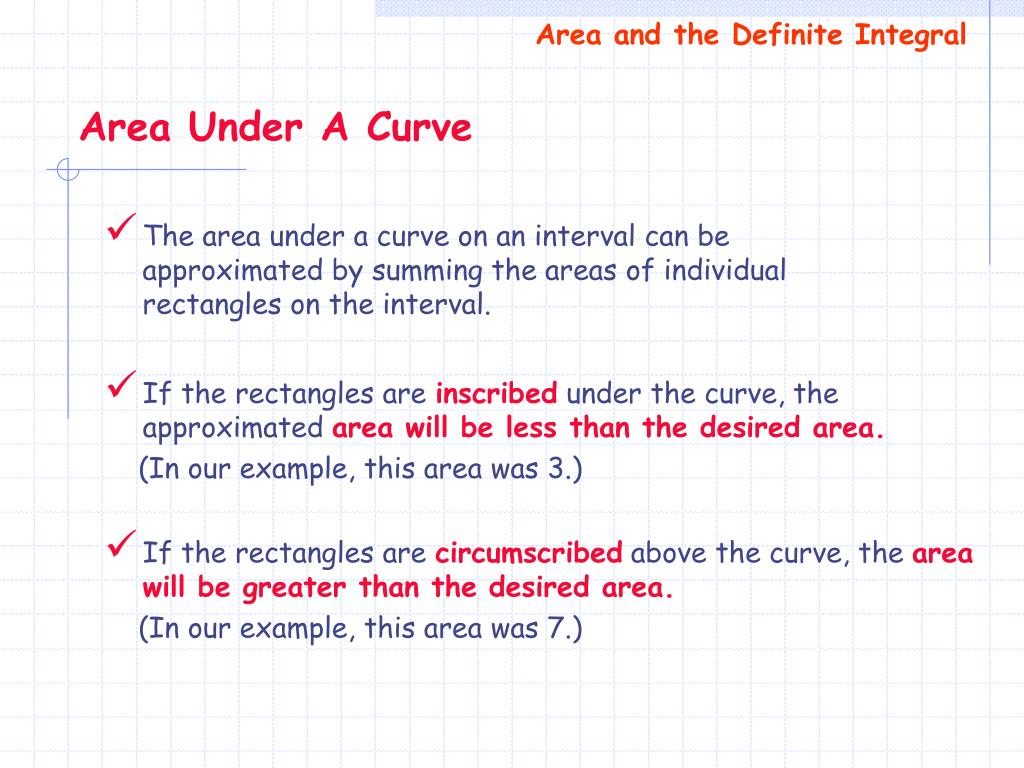

Area and the Definite Integral

Area Under A Curve
  • The area under a curve on an interval can be approximated by summing the areas of individual rectangles on the interval.
  • If the rectangles are inscribed under the curve, the approximated area will be less than the desired area.

(In our example, this area was 3.)

  • If the rectangles are circumscribed above the curve, the area will be greater than the desired area.

(In our example, this area was 7.)

slide18

Area and the Definite Integral

Area Under A Curve

  • By using a finer partition (one with more subintervals), we make each rectangle narrower (increasing their number), and we get an area value that is closer to the true area under the curve.
  • By taking the limit as n (the number of rectangles) approaches infinity, the actual area is approached.
slide19

Area and the Definite Integral

Area Under A Curve

Definition: A sum such as the one below is called a Riemann sum:

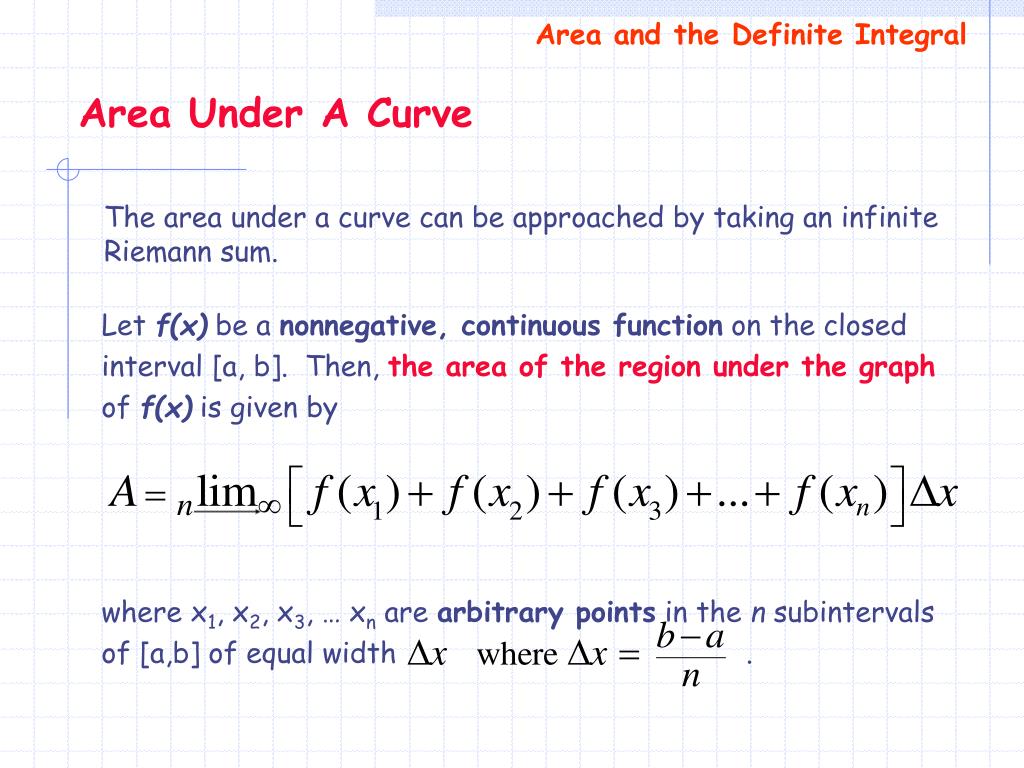

slide20

Area and the Definite Integral

Area Under A Curve

The area under a curve can be approached by taking an infinite Riemann sum.

Let f(x) be a nonnegative, continuous function on the closed interval [a, b]. Then, the area of the region under the graph of f(x) is given by

where x1, x2, x3, … xn are arbitrary points in the n subintervals

of [a,b] of equal width .

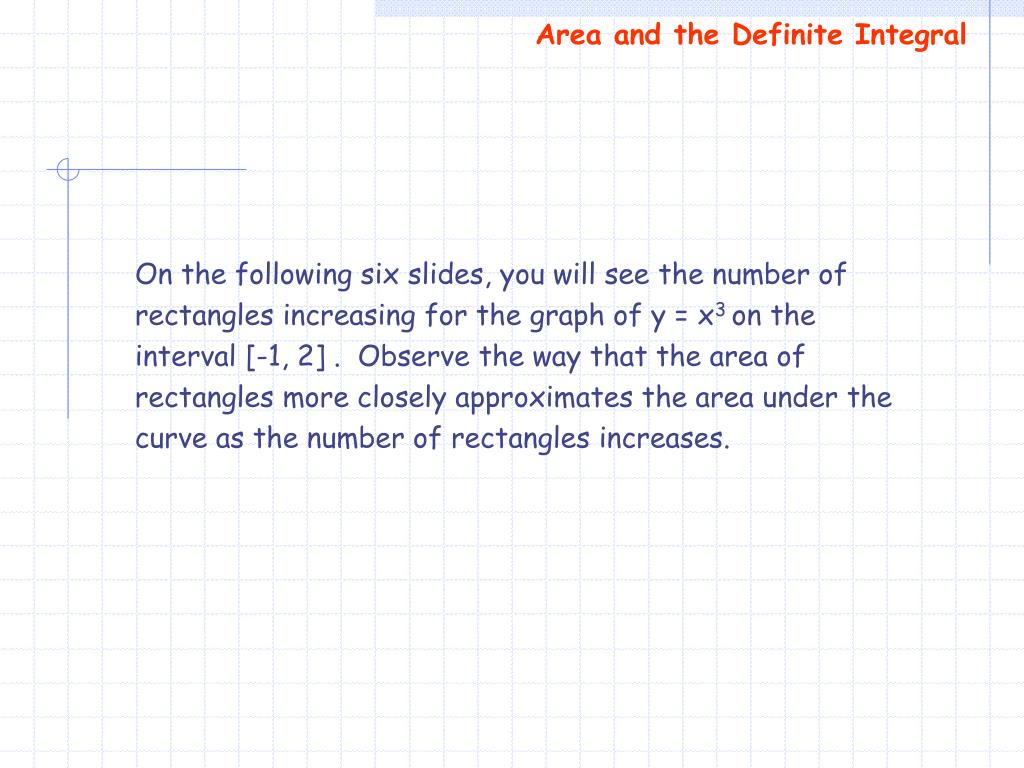

slide21

Area and the Definite Integral

On the following six slides, you will see the number of rectangles increasing for the graph of y = x3 on the interval [-1, 2] . Observe the way that the area of rectangles more closely approximates the area under the curve as the number of rectangles increases.

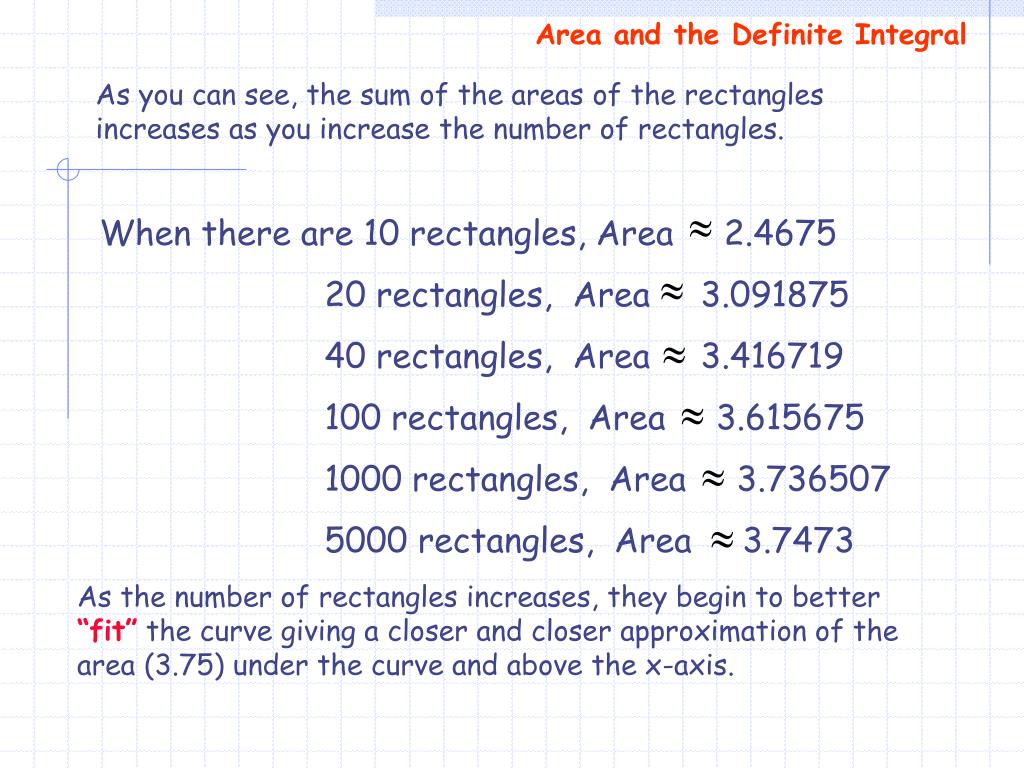

slide28

Area and the Definite Integral

As you can see, the sum of the areas of the rectangles increases as you increase the number of rectangles.

When there are 10 rectangles, Area 2.4675

20 rectangles, Area 3.091875

40 rectangles, Area 3.416719

100 rectangles, Area 3.615675

1000 rectangles, Area 3.736507

5000 rectangles, Area 3.7473

As the number of rectangles increases, they begin to better “fit” the curve giving a closer and closer approximation of the area (3.75) under the curve and above the x-axis.

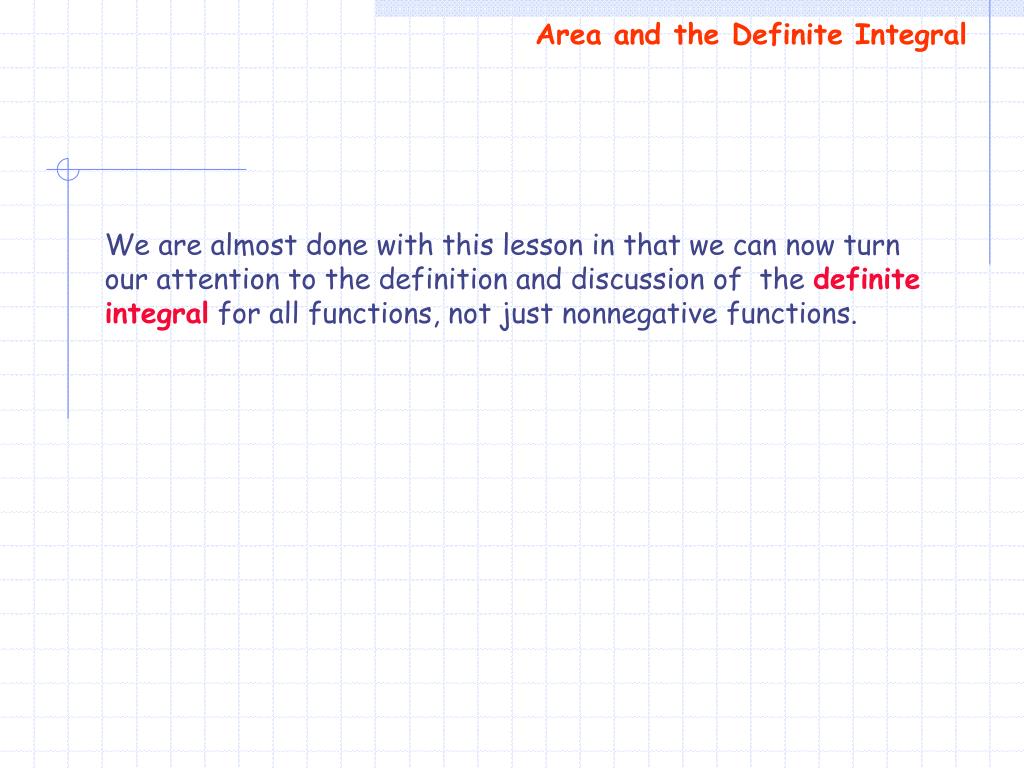

slide29

Area and the Definite Integral

We are almost done with this lesson in that we can now turn our attention to the definition and discussion of the definite integral for all functions, not just nonnegative functions.

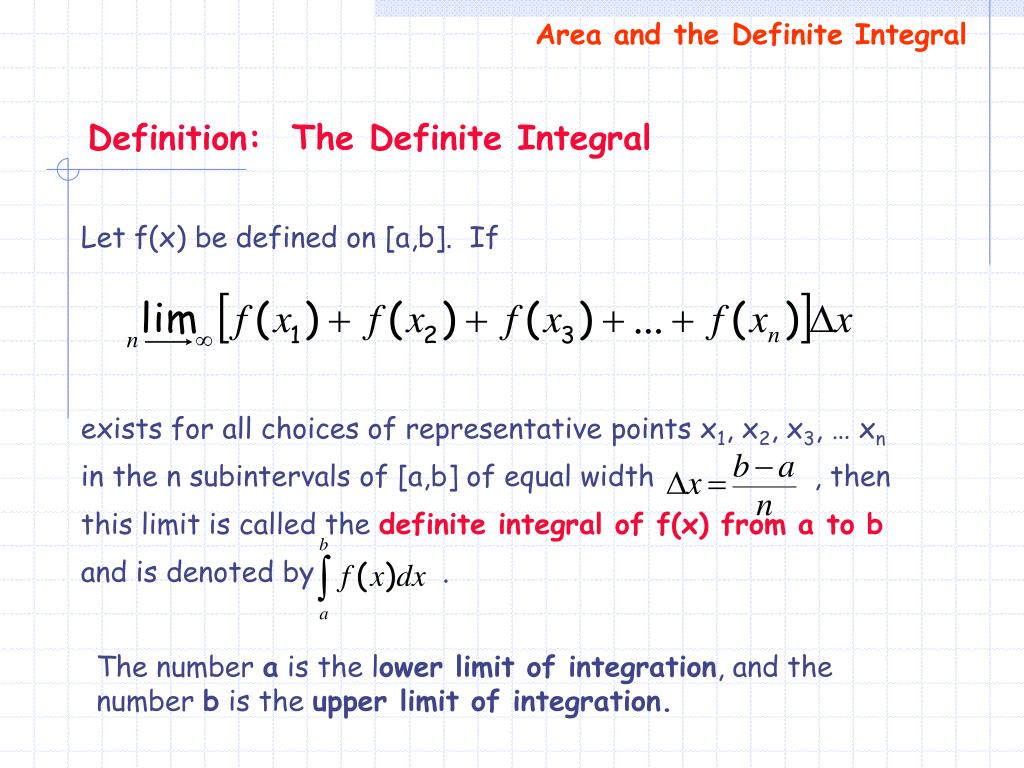

slide30

Area and the Definite Integral

Definition: The Definite Integral

Let f(x) be defined on [a,b]. If

exists for all choices of representative points x1, x2, x3, … xn in the n subintervals of [a,b] of equal width , then this limit is called the definite integral of f(x) from a to b and is denoted by .

The number a is the lower limit of integration, and the number b is the upper limit of integration.

slide31

Area and the Definite Integral

Definition: The Definite Integral

Thus

As long as f(x) is a continuous function on a closed interval, it has a definite integral on that interval. f(x) is said to be integrable when its integral exists.

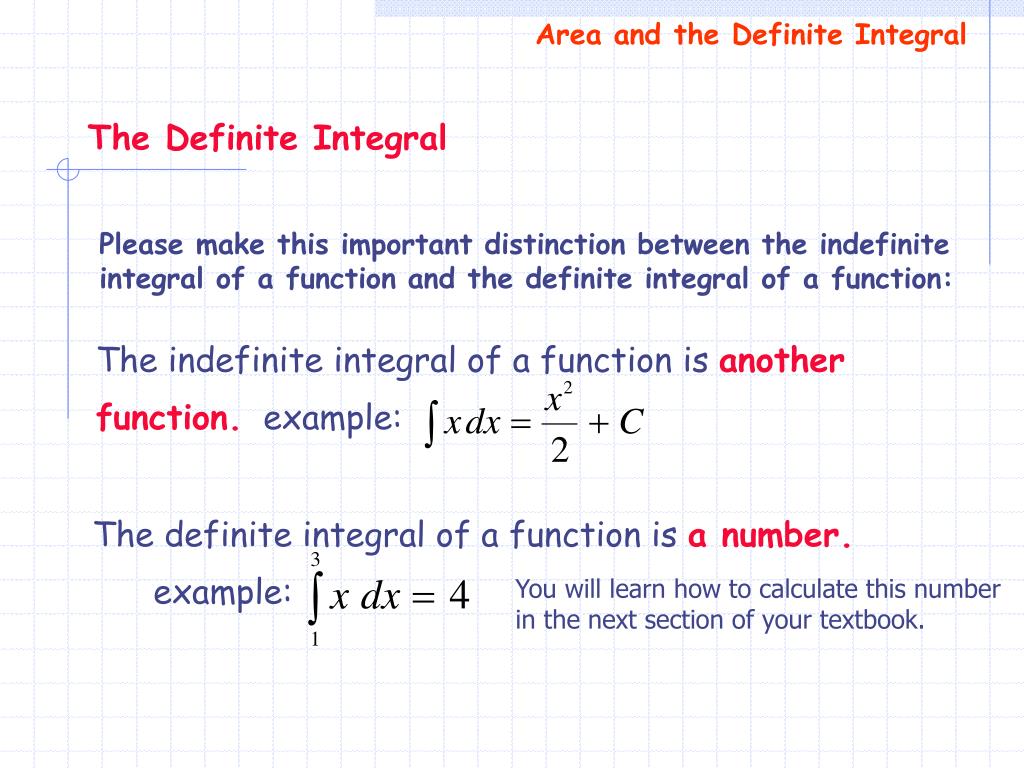

slide32

Area and the Definite Integral

The Definite Integral

Please make this important distinction between the indefinite integral of a function and the definite integral of a function:

The indefinite integral of a function is another function. example:

The definite integral of a function is a number.

example:

You will learn how to calculate this number in the next section of your textbook.

slide33

Area and the Definite Integral

The Definite Integral

Let’s take a quick look at the geometric interpretation of the definite integral, and we’ll be done.

If f(x) is a nonnegative, continuous function on [a, b], then is equal to the area of the region under the graph of f(x) on [a, b].

slide34

Area and the Definite Integral

y

f(x)

x

b

a

The Definite Integral

If f(x) is a nonnegative, continuous function on [a, b],

then is equal to the area of the region under the graph of f(x) on [a, b].

What happens if f(x) is not always nonnegative?

slide35

Area and the Definite Integral

y

f(x)

x

b

a

The Definite Integral

If f(x) is simply a continuous function on [a, b],

then is equal to the area of the region below the graph of f(x) and above the x-axis minus the area of the region above the graph of f(x) and below the x-axis on [a, b].

Area of region 1 –

Area of region 2 +

Area of region 3

slide36

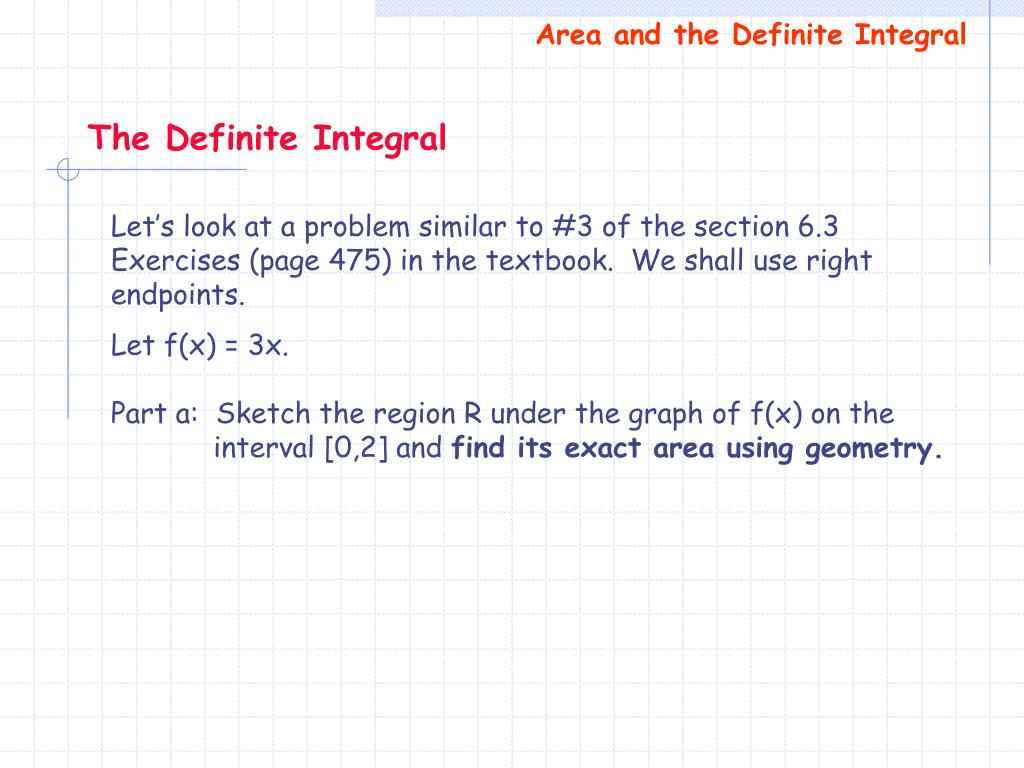

Area and the Definite Integral

The Definite Integral

Let’s look at a problem similar to #3 of the section 6.3 Exercises (page 475) in the textbook. We shall use right endpoints.

Let f(x) = 3x.

Part a: Sketch the region R under the graph of f(x) on the

interval [0,2] and find its exact area using geometry.

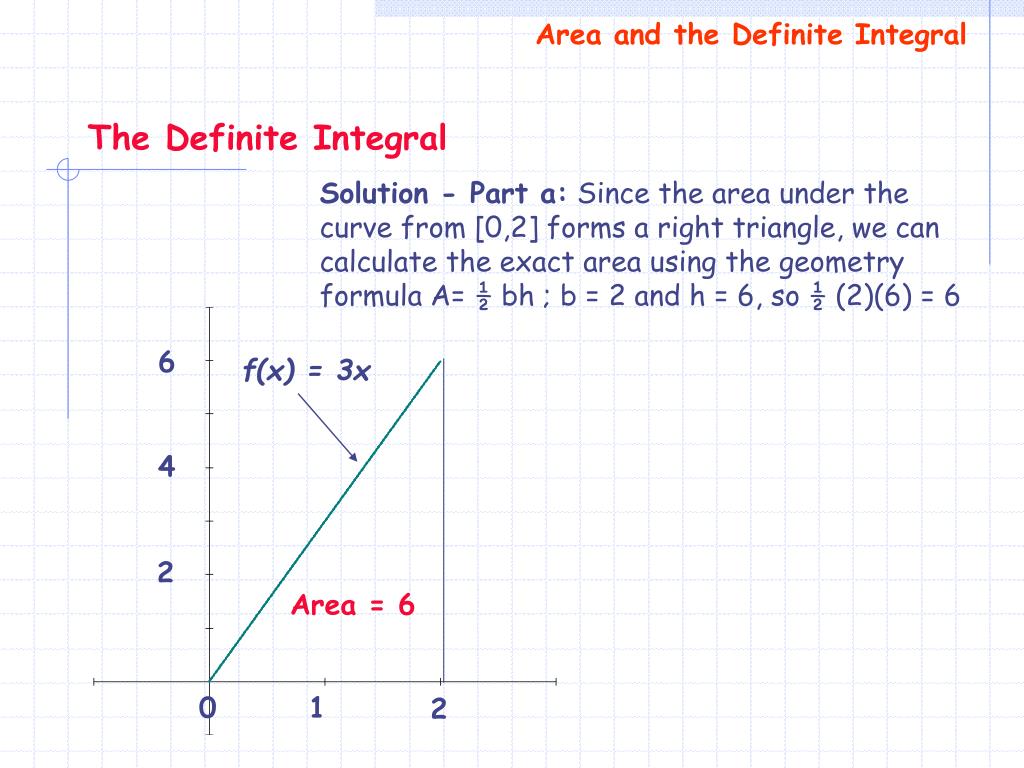

slide37

Area and the Definite Integral

The Definite Integral

Solution - Part a: Since the area under the curve from [0,2] forms a right triangle, we can calculate the exact area using the geometry formula A= ½ bh ; b = 2 and h = 6, so ½ (2)(6) = 6

6

f(x) = 3x

4

2

Area = 6

1

0

2

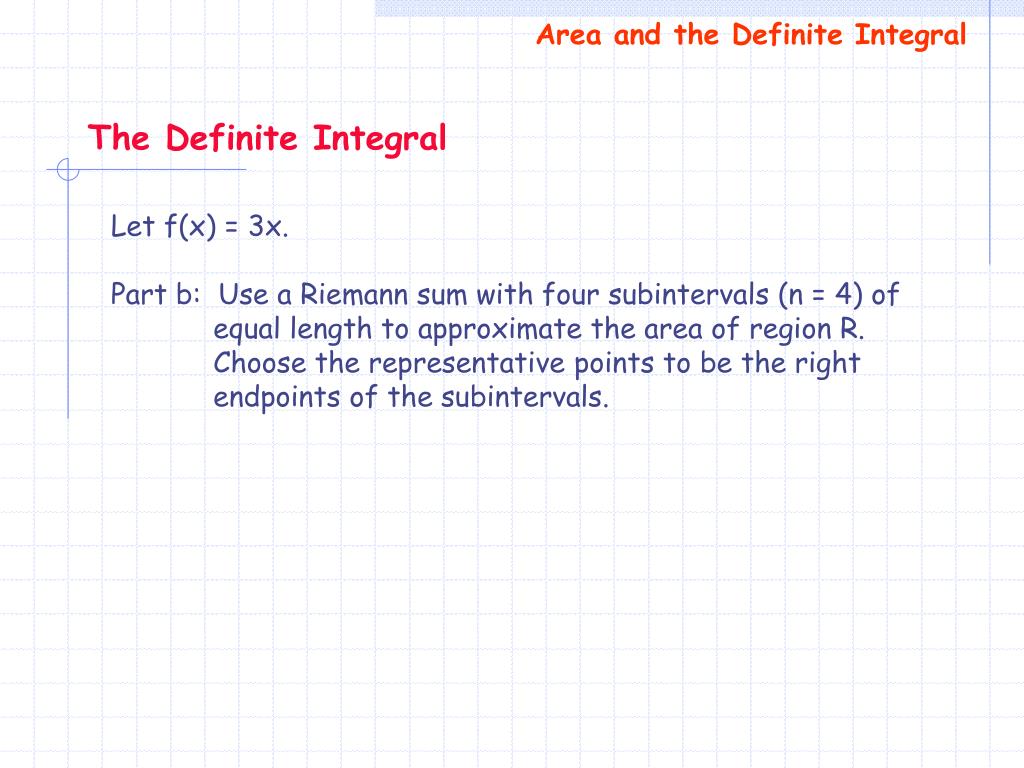

slide38

Area and the Definite Integral

The Definite Integral

Let f(x) = 3x.

Part b: Use a Riemann sum with four subintervals (n = 4) of

equal length to approximate the area of region R.

Choose the representative points to be the right

endpoints of the subintervals.

slide39

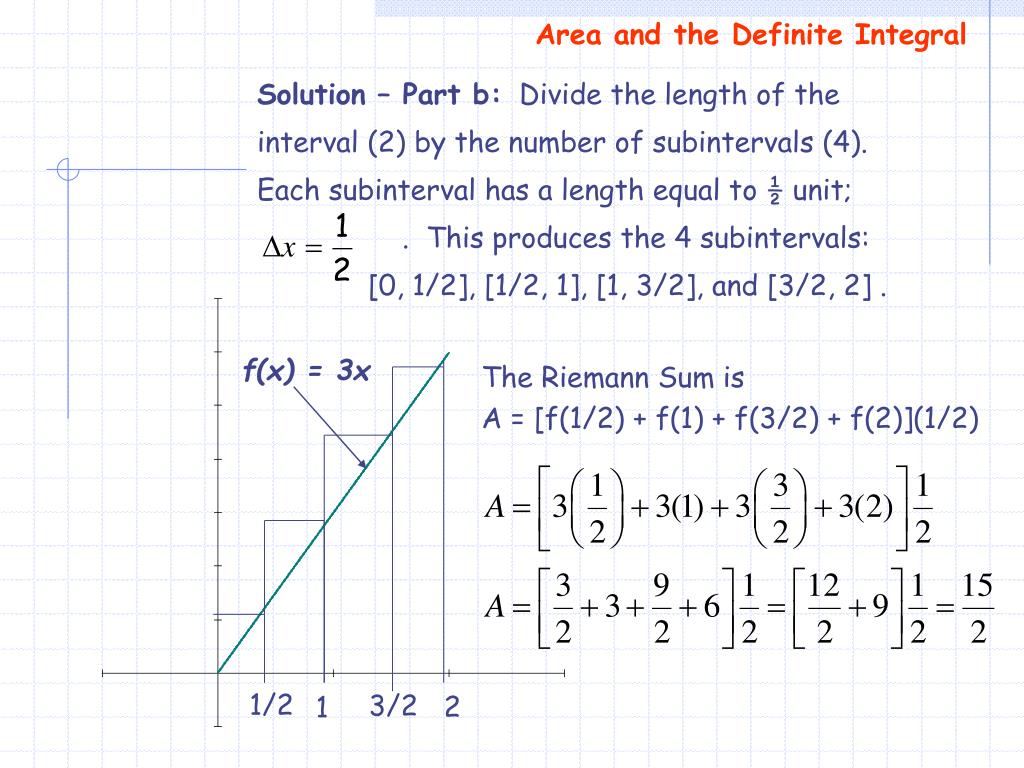

Area and the Definite Integral

f(x) = 3x

1/2

3/2

2

1

Solution – Part b: Divide the length of the interval (2) by the number of subintervals (4). Each subinterval has a length equal to ½ unit;

. This produces the 4 subintervals:

[0, 1/2], [1/2, 1], [1, 3/2], and [3/2, 2] .

The Riemann Sum is

A = [f(1/2) + f(1) + f(3/2) + f(2)](1/2)

slide40

Area and the Definite Integral

The Definite Integral

Let f(x) = 3x.

Part c: Repeat part (b) with eight subintervals (n = 8) of

equal length.

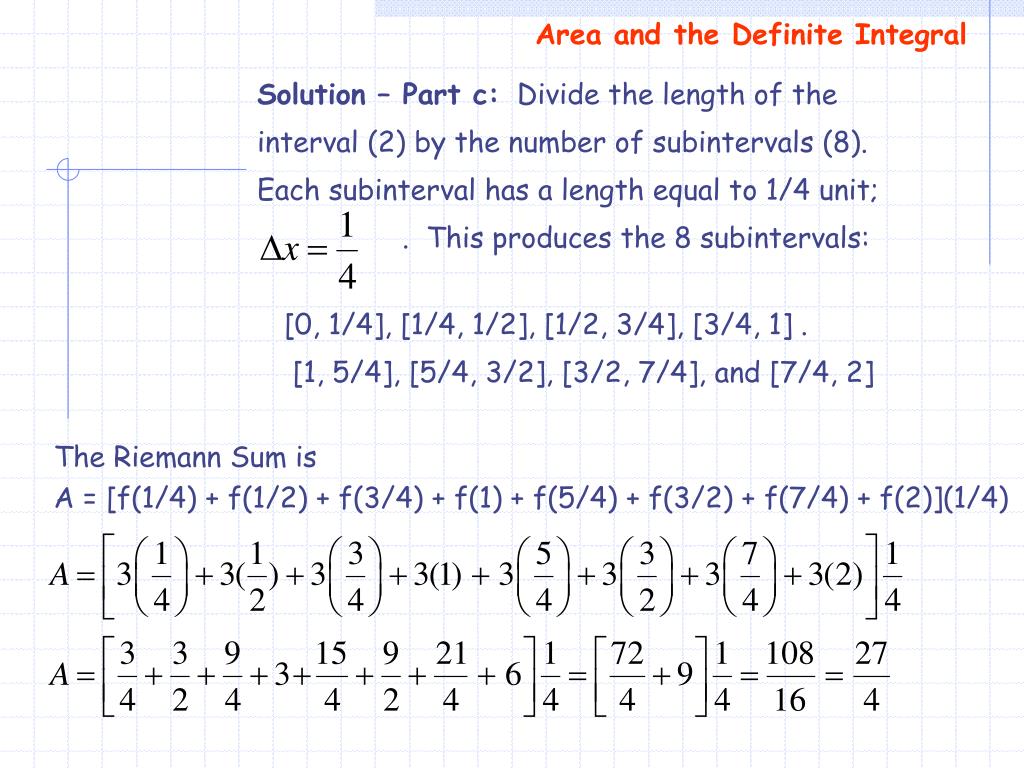

slide41

Area and the Definite Integral

Solution – Part c: Divide the length of the interval (2) by the number of subintervals (8). Each subinterval has a length equal to 1/4 unit;

. This produces the 8 subintervals:

[0, 1/4], [1/4, 1/2], [1/2, 3/4], [3/4, 1] .

[1, 5/4], [5/4, 3/2], [3/2, 7/4], and [7/4, 2]

The Riemann Sum is

A = [f(1/4) + f(1/2) + f(3/4) + f(1) + f(5/4) + f(3/2) + f(7/4) + f(2)](1/4)

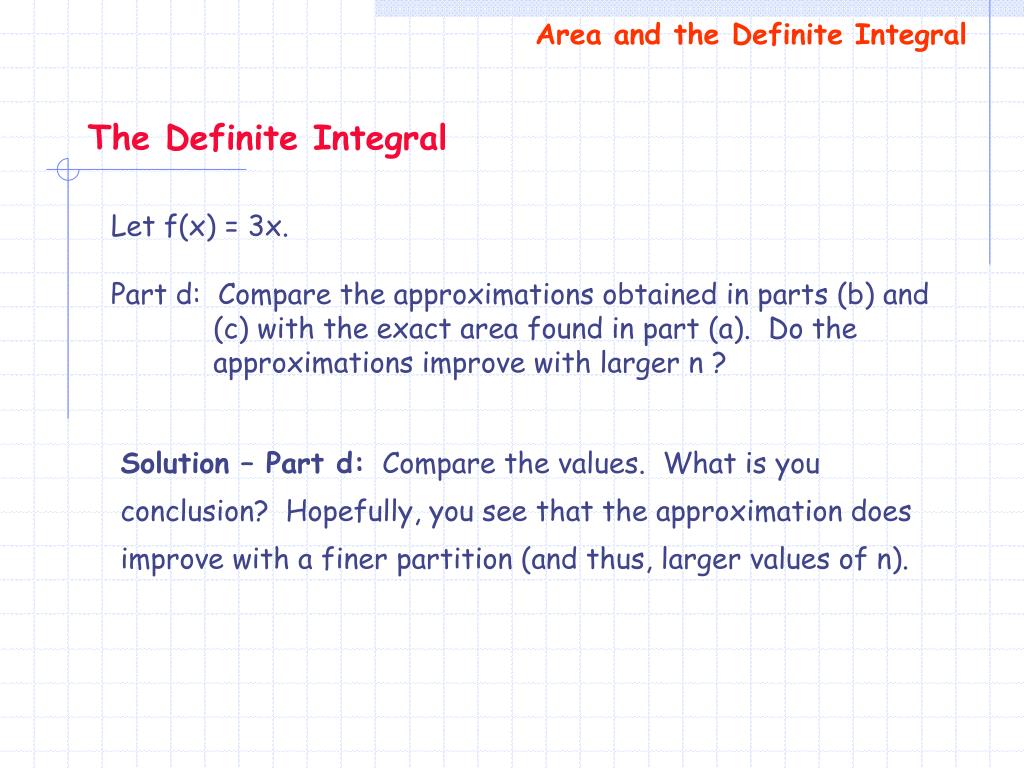

slide42

Area and the Definite Integral

The Definite Integral

Let f(x) = 3x.

Part d: Compare the approximations obtained in parts (b) and

(c) with the exact area found in part (a). Do the

approximations improve with larger n ?

Solution – Part d: Compare the values. What is you conclusion? Hopefully, you see that the approximation does improve with a finer partition (and thus, larger values of n).
