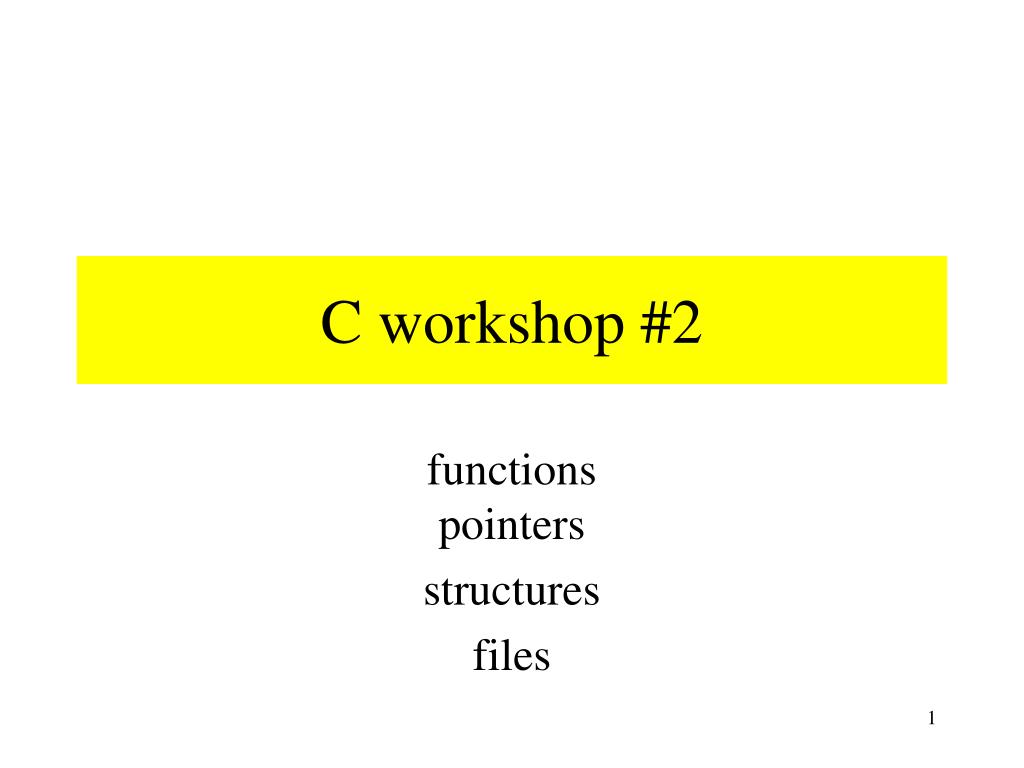

  1. C workshop #2 functionspointers structures files

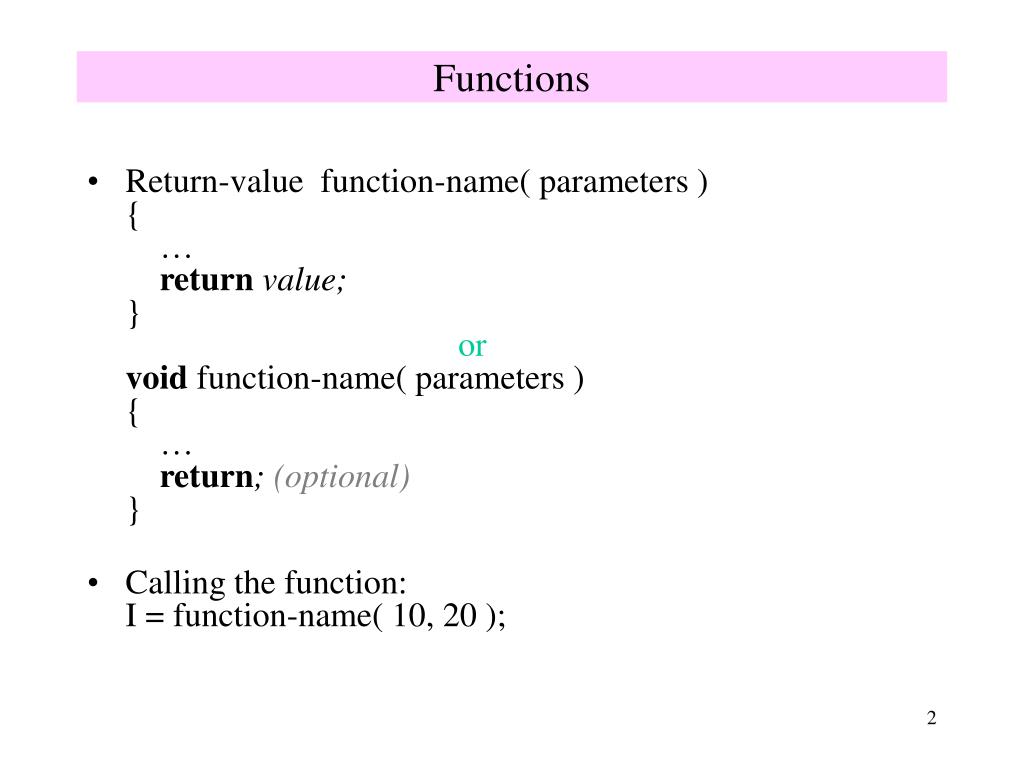

  2. Functions • Return-value function-name( parameters ) { … returnvalue; }orvoid function-name( parameters ) { … return; (optional)} • Calling the function:I = function-name( 10, 20 );

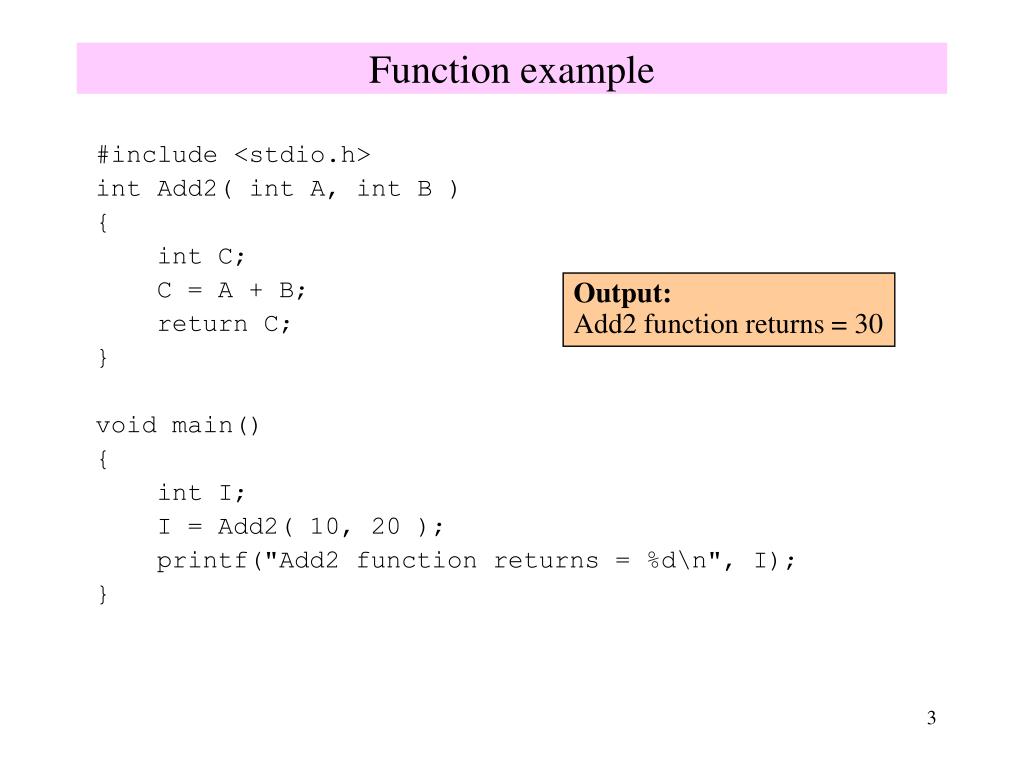

  3. Function example #include <stdio.h> int Add2( int A, int B ) { int C; C = A + B; return C; } void main() { int I; I = Add2( 10, 20 ); printf("Add2 function returns = %d\n", I); } Output: Add2 function returns = 30

  4. Private variables • By default each function has its own private variables #include <stdio.h> int Add2( int A, int B ) { int C; C = A + B; A = 20 return C; } void main() { int A = 0, B = 1, C = 3; A = Add2( 10, 20 ); printf(”A=%d, B=%d, C=%d\n", A,B,C); }

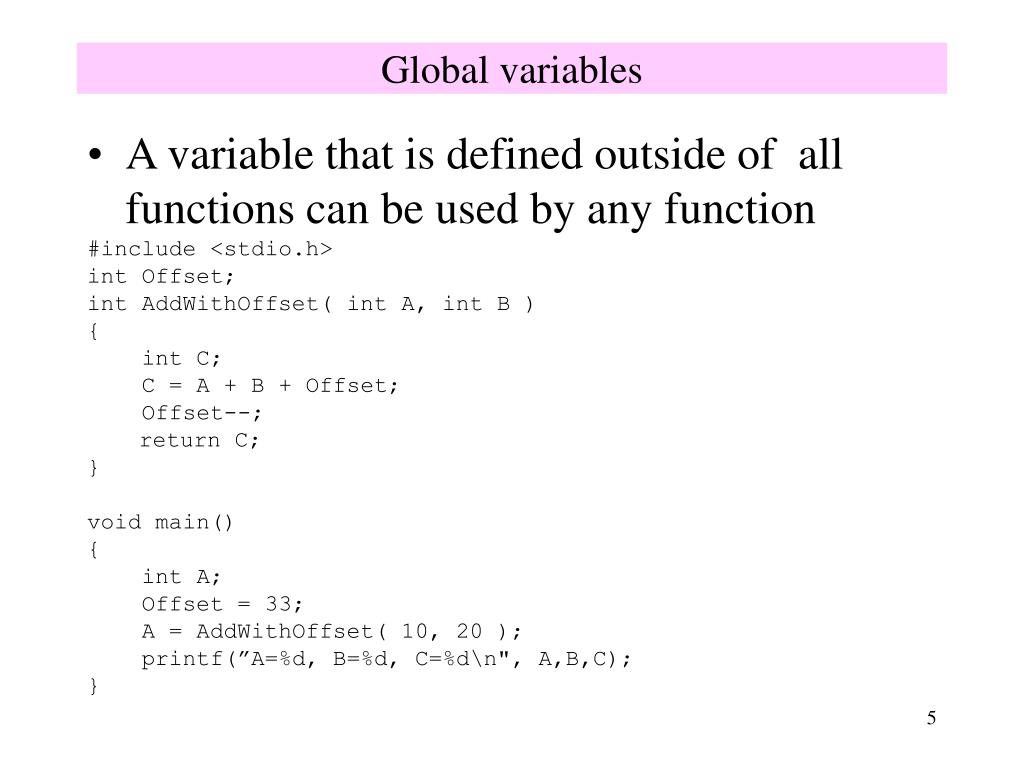

  5. Global variables • A variable that is defined outside of all functions can be used by any function #include <stdio.h> int Offset; int AddWithOffset( int A, int B ) { int C; C = A + B + Offset; Offset--; return C; } void main() { int A; Offset = 33; A = AddWithOffset( 10, 20 ); printf(”A=%d, B=%d, C=%d\n", A,B,C); }

  6. structures • Organize variables under same ‘umbrella’ struct { double Fahrenheit, Celsius; int I; } Temperature; struct { int X,Y; } Point[ 10 ]; • examples Point[I].X = 10; Temperature.Fahrenheit = 10.22; Temperature.I = 10;

  7. #include <stdio.h> void main() { int I; struct { int X,Y; } Point[ 10 ]; for ( I = 0 ; I < 10 ; I++ ) Point[I].X = I; for ( I = 0 ; I < 10 ; I++ ) Point[I].Y = Point[9 - I].X * 100; for ( I = 0 ; I < 10 ; I++ ) printf( "Point %d = (%d,%d)\n", I, Point[I].X, Point[I].Y ); } Output: Point 0 = (0,900) Point 1 = (1,800) Point 2 = (2,700) Point 3 = (3,600) Point 4 = (4,500) Point 5 = (5,400) Point 6 = (6,300) Point 7 = (7,200) Point 8 = (8,100) Point 9 = (9,0)

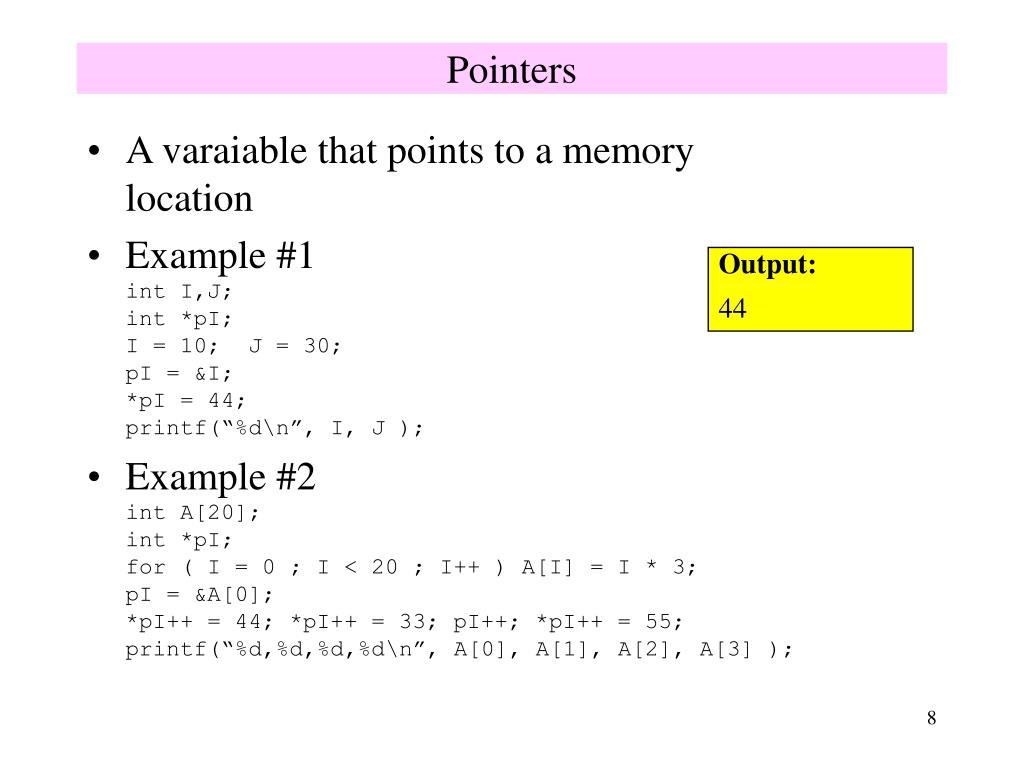

  8. Pointers • A varaiable that points to a memory location • Example #1int I,J;int *pI;I = 10; J = 30;pI = &I;*pI = 44;printf(“%d\n”, I, J ); • Example #2int A[20];int *pI;for ( I = 0 ; I < 20 ; I++ ) A[I] = I * 3; pI = &A[0];*pI++ = 44; *pI++ = 33; pI++; *pI++ = 55; printf(“%d,%d,%d,%d\n”, A[0], A[1], A[2], A[3] ); Output: 44

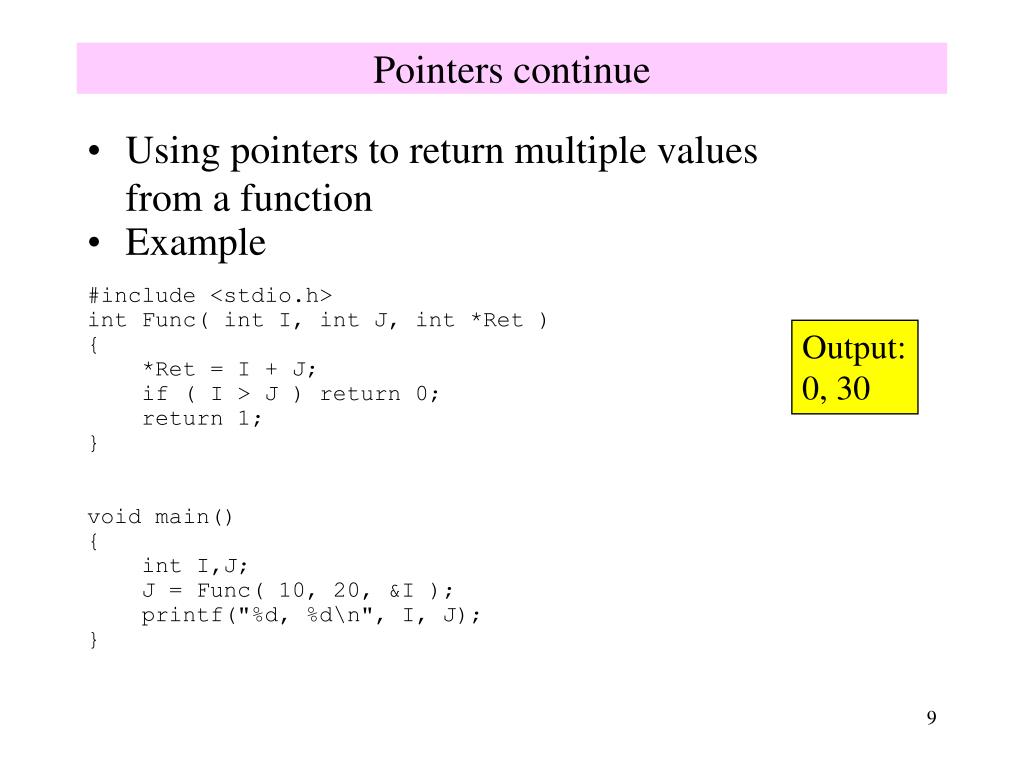

  9. Pointers continue • Using pointers to return multiple values from a function • Example #include <stdio.h> int Func( int I, int J, int *Ret ) { *Ret = I + J; if ( I > J ) return 0; return 1; } void main() { int I,J; J = Func( 10, 20, &I ); printf("%d, %d\n", I, J); } Output: 0, 30

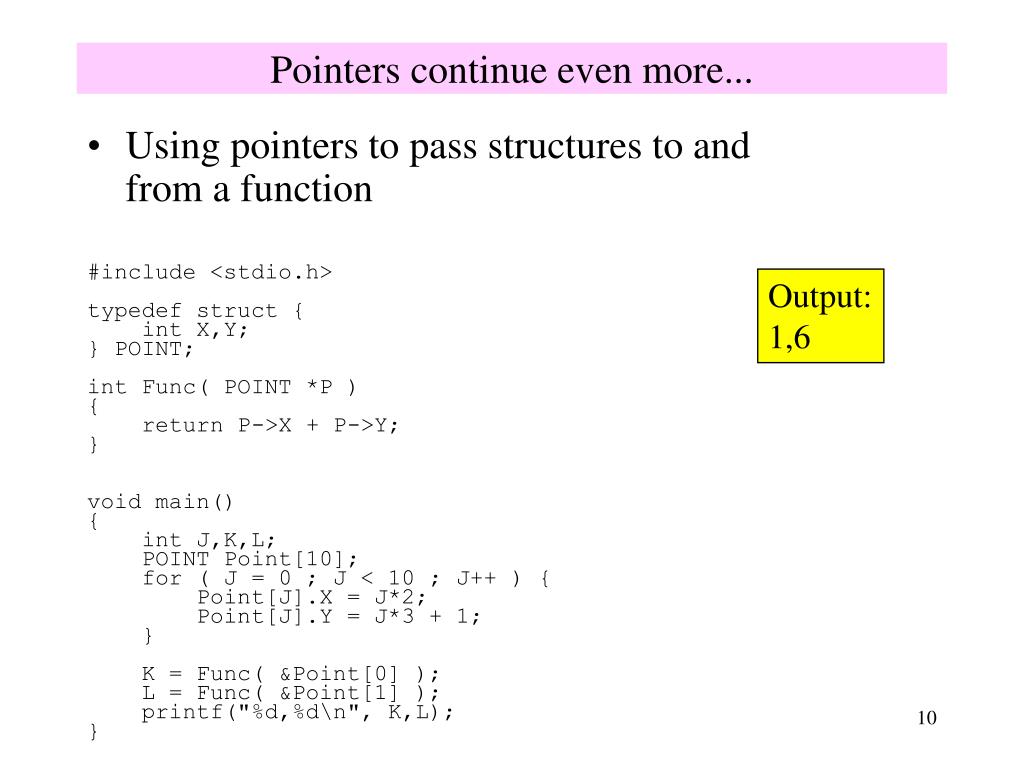

  10. Pointers continue even more... • Using pointers to pass structures to and from a function #include <stdio.h> typedef struct { int X,Y; } POINT; int Func( POINT *P ) { return P->X + P->Y; } void main() { int J,K,L; POINT Point[10]; for ( J = 0 ; J < 10 ; J++ ) { Point[J].X = J*2; Point[J].Y = J*3 + 1; } K = Func( &Point[0] ); L = Func( &Point[1] ); printf("%d,%d\n", K,L); } Output: 1,6

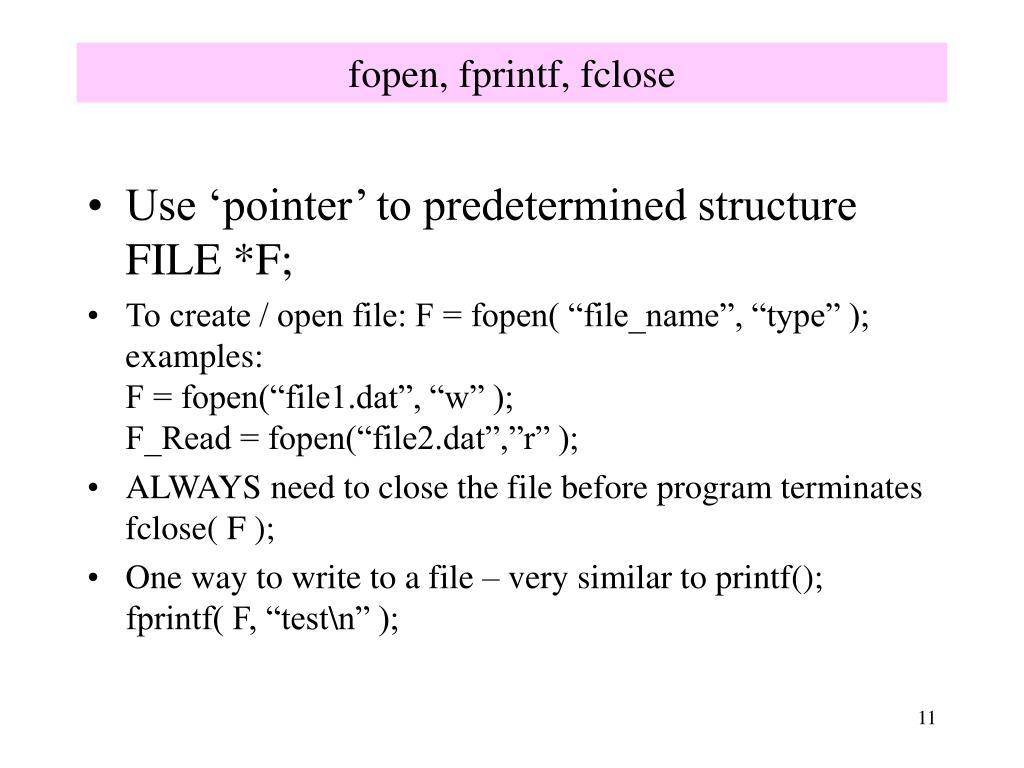

  11. fopen, fprintf, fclose • Use ‘pointer’ to predetermined structureFILE *F; • To create / open file: F = fopen( “file_name”, “type” );examples:F = fopen(“file1.dat”, “w” );F_Read = fopen(“file2.dat”,”r” ); • ALWAYS need to close the file before program terminatesfclose( F ); • One way to write to a file – very similar to printf();fprintf( F, “test\n” );

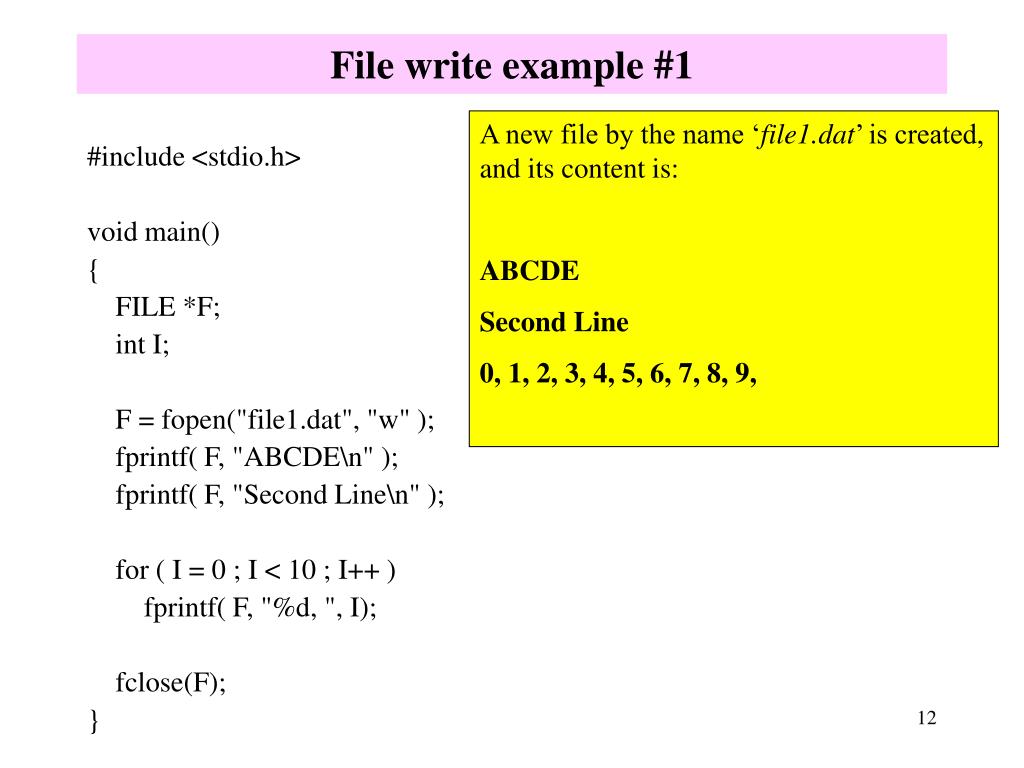

  12. File write example #1 A new file by the name ‘file1.dat’ is created, and its content is: ABCDE Second Line 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, #include <stdio.h> void main() { FILE *F; int I; F = fopen("file1.dat", "w" ); fprintf( F, "ABCDE\n" ); fprintf( F, "Second Line\n" ); for ( I = 0 ; I < 10 ; I++ ) fprintf( F, "%d, ", I); fclose(F); }

  13. File read example #2 The content of the file ‘num10.dat’: 10 20 30 40 99 32 1 999 -22 4423 #include <stdio.h> void main() { FILE *F; int I, J; F = fopen("num10.dat", "rt" ); printf("Reading from the file:\n"); for ( I = 0 ; I < 10 ; I++ ) { fscanf( F, "%d" , &J ); printf( "%d, ", J ); } fclose(F); } Output (on the monitor): Reading from the file: 10, 20, 30, 40, 99, 32, 1, 999, -22, 4423,

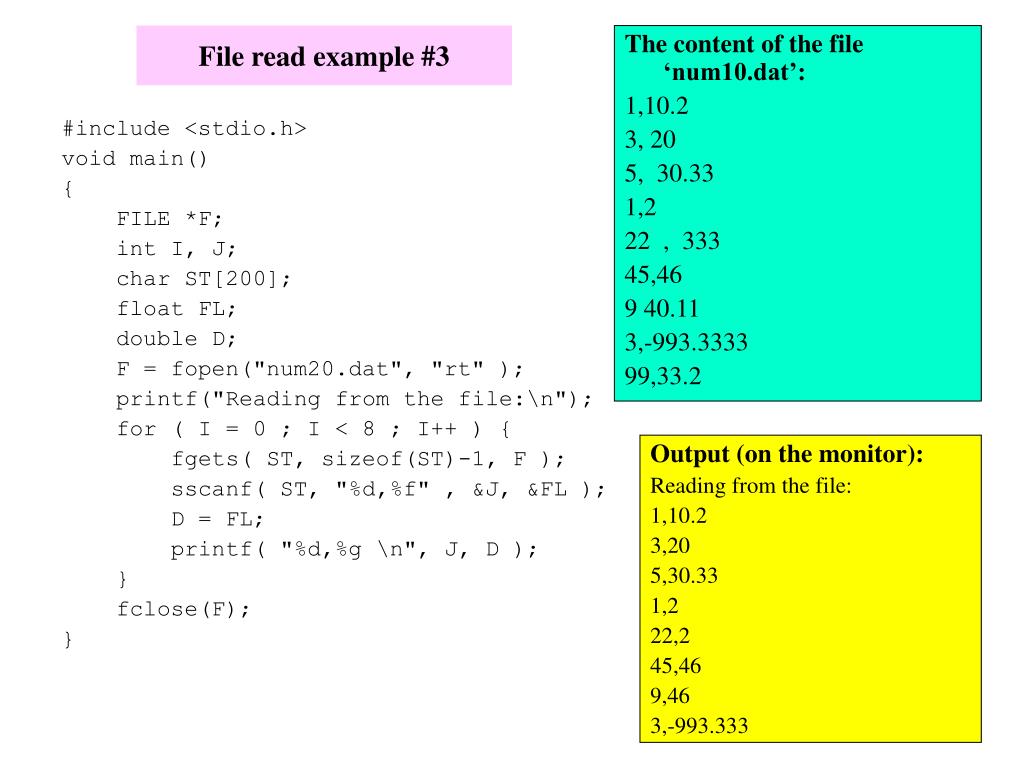

  14. The content of the file ‘num10.dat’: 1,10.2 3, 20 5, 30.33 1,2 22 , 333 45,46 9 40.11 3,-993.3333 99,33.2 Output (on the monitor): Reading from the file: 1,10.2 3,20 5,30.33 1,2 22,2 45,46 9,46 3,-993.333 File read example #3 #include <stdio.h> void main() { FILE *F; int I, J; char ST[200]; float FL; double D; F = fopen("num20.dat", "rt" ); printf("Reading from the file:\n"); for ( I = 0 ; I < 8 ; I++ ) { fgets( ST, sizeof(ST)-1, F ); sscanf( ST, "%d,%f" , &J, &FL ); D = FL; printf( "%d,%g \n", J, D ); } fclose(F); }

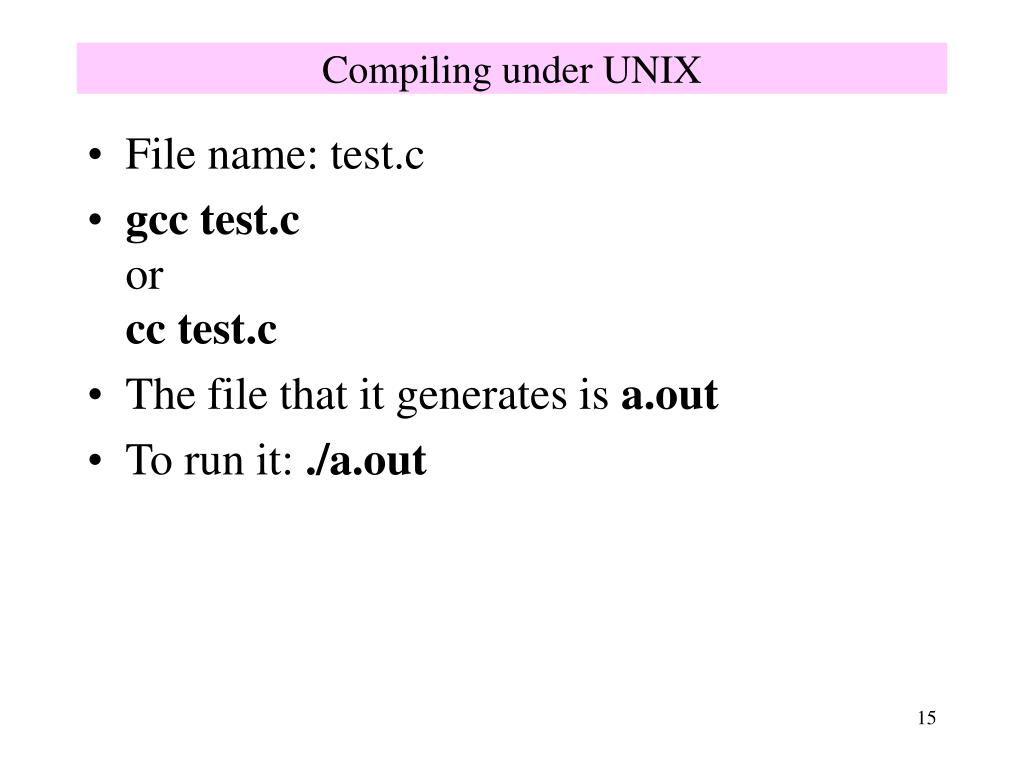

  15. Compiling under UNIX • File name: test.c • gcc test.corcc test.c • The file that it generates is a.out • To run it: ./a.out
