1. Seminar on Vision and Learning University of California, San Diego September 20, 2001 Learning and Recognizing Human Dynamics in Video Sequences Christoph Bregler Presented by : Anand D. Subramaniam Electrical and Computer Engineering Dept., University of California, San Diego

2. Outline • Gait Recognition • The Layering Approach • Layer One - Input Image Sequence • Optical Flow • Layer Two - Coherence Blob Hypothesis • EM Clustering • Layer Three - Simple Dynamical Categories • Kalman Filters • Layer Four - Complex Movement Sequences • Hidden Markov Models • Model training • Simulation results

3. Gait Recognition Running Walking Skipping

4. The Layering Approach Layer 4 Layer 3 Layer 2 Layer 1

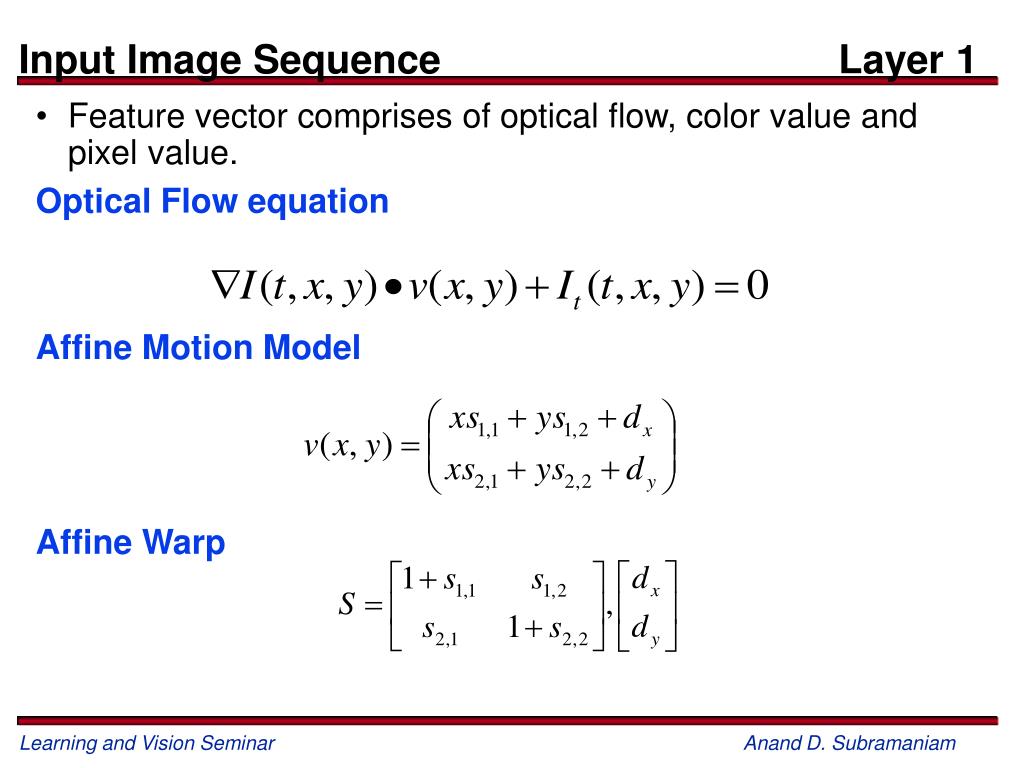

5. Input Image Sequence Layer 1 • Feature vector comprises of optical flow, color value and pixel value. • Optical Flow equation • Affine Motion Model • Affine Warp

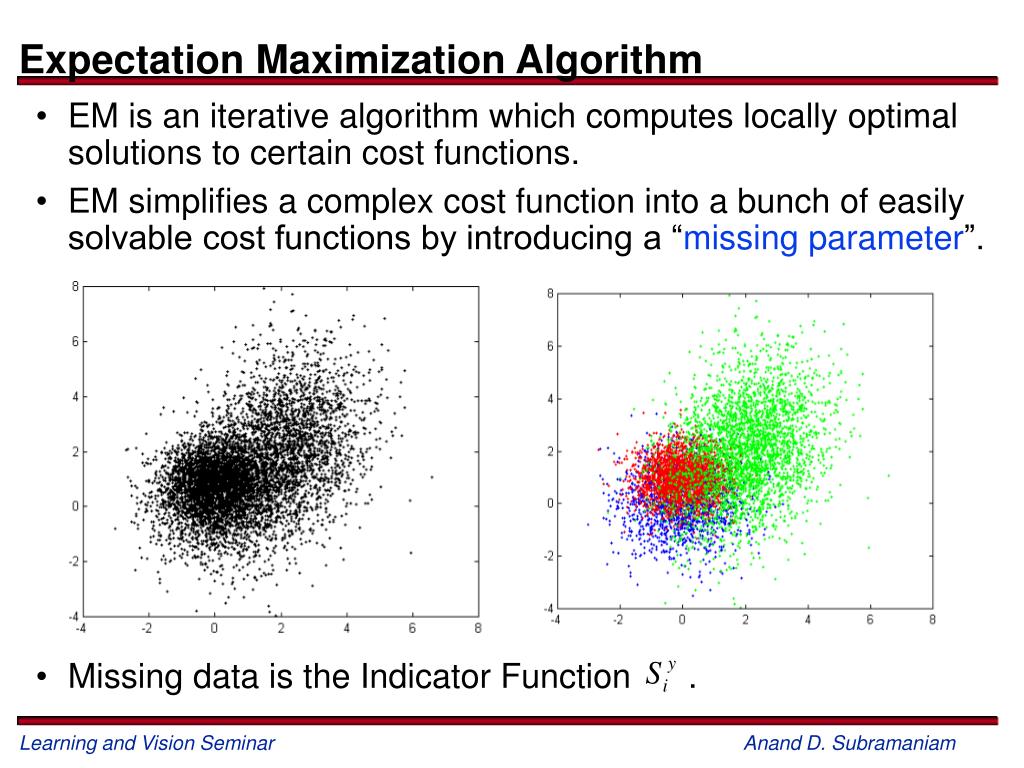

7. Expectation Maximization Algorithm • EM is an iterative algorithm which computes locally optimal solutions to certain cost functions. • EM simplifies a complex cost function into a bunch of easily solvable cost functions by introducing a “missing parameter”. • Missing data is the Indicator Function .

8. Expectation Maximization Algorithm • EM iterates between two steps • E - Step : • Estimate the conditional mean estimate of the missing parameter given the previous estimate of model parameters and the observations. • M - Step : • Re-estimate the model parameters given the soft clustering done by the E - Step. • EM is numerically stable with the likelihood non-decreasing with every iteration. • EM converges to a local optima. • EM has linear convergence.

9. Density Estimation using EM • Gaussian mixture models can be used to model any given probability density function to arbitrary accuracy by using sufficient number of clusters. ( curve fitting using Gaussian kernels) • For a given number of clusters, the EM tries to minimize the Kullback-Leibler divergence measure between the arbitrary pdf and the class of Gaussian mixture models with the given number of clusters.

10. Coherence Blob Hypotheses Layer 2 Likelihood Equation Mixture Model Missing Data Simplified Cost Functions

11. EM Initialization • We need to track the temporal variation of blob parameters in order to initialize the EM for a given frame. • Kalman filters • Recursive EM using Conjugate priors

13. All Roads Lead From Gauss 1809 • “ … since all our measurements and observations are nothing more • than approximations to the truth, the same must be true of all • calculations resting upon them, and the highest aim of all • computations made concerning concrete phenomenon must be to • approximate, as nearly as practicable, to the truth. But this can be • accomplished in no other way than by suitable combination of more • observations than the number absolutely requisite for the determination of • the unknown quantities. This problem can only be properly undertaken • when an approximate knowledge of the orbit has been already attained, • which is afterwards to be corrected so as to satisfy all the observations • in the most accurate manner possible.” • - From Theory of the Motion of the Heavenly Bodies Moving about the Sun in Conic Sections, Gauss, 1809

14. Estimation Basics • Problem statement • Observation Random variable X (Given) • Target Random Variable Y (Unknown) • Joint Probability Density f(x,y) (Given) • What is the best estimate yopt=g(x) which minimizes the expected mean square error between yoptand y? • Answer : Conditional Meang(x) = E(Y|X=x) • Estimate g(x) can be potentially nonlinear and unavailable in closed form. • When X and Y are jointly Gaussian g(x) is linear. • What is the best linear estimate ylin=Wx which minimizes the mean square error ?

15. Wiener Filter 1940 • Wiener-Hopf Solution : W = RYX (Rxx)-1 • Involves Matrix Inversion • Applies only to stationary processes • Not amenable for online recursive implementation.

16. Kalman Filter • The estimate can be obtained recursively. • Can be applied to non-stationary processes. • If measurement noise and process noise are white and Gaussian, then the filter is “optimal”. • Minimum variance unbiased estimate • In the general case, the Kalman filter is the best linear estimator among all linear estimators. STATE SPACE MODEL Process Model : Measurement Model :

17. The Water Tank Problem Process Model : Measurement Model :

18. What does a Kalman filter do ? • The Kalman filter propagates the conditional density in time.

19. How does it do it ? • The Kalman filter iterates between two steps • Time Update (Predict) • Project current state and covariance forward to the next time step, that is, compute the next a priori estimates. • Measurement Update (Correct) • Update the a priori quantities using noisy measurements, that is, compute the a posteriori estimates. • Choose Kk to minimize error covariance

20. Applications Satellite orbit computation GPS Active noise control Tracking

21. The Layering Approach Layer 4 Layer 3 Layer 2 Layer 1

22. Simple Dynamical Categories Layer 3 • A sequence of blobs k(t), k(t+1),…, k(t+d) is grouped into dynamical categories. The group assignment is “soft”. • The dynamical categories are represented with a set of M second order linear dynamical systems. • Each category is certain phase during a gait cycle. • Categories called “movemes” (like “phonemes”). • Dm(t,k) : Probability that a certain blob k(t) belongs to one of the dynamical categories m. • Q(t) = A1m Q(t-2) + A0m Q(t-1) + Bm w • Q(t) is the motion estimate of the specific blob k(t), w is the system noise and Cm= Bm .(Bm)T is the system covariance. • The dynamical systems form states of a Hidden Markov Model.

24. The Model

25. Trellis representation

26. HMM in speech

27. HMM model parameters State Transition Matrix : A Observation state PDF : B Number of states : N Number of Observation levels : M Initial probability distribution : 

28. Three Basic Problems • Given the observation sequence O = O1 O2…OT, and a model , how do we efficiently compute P(O|), the probability of the observation sequence, given the model ? • Given the observation sequence O = O1 O2…OT, and the model , how do we choose a corresponding state sequence Q = q1q2…qT, which best “explains” the observations ? • How do we adjust the model parameters  to maximize P(O|) ? Forward Backward Algorithm Viterbi Algorithm Baum Welch Algorithm

29. How do they work ? Key ideas • Both Forward-Backward algorithm and the Viterbi algorithm solve the associated problem by induction (or recursively). • The induction is a consequence of the Markovity of the model. • The Baum-Welch is exactly the EM algorithm with a different “missing parameter”. • The missing parameter is the state a particular observation belongs to.

30. The Layering Approach Layer 4 Layer 3 Layer 2 Layer 1

31. Complex Movement Sequences Layer 4 • Each dynamical system becomes a state of a Hidden Markov Model. • Different gaits are modeled using different HMM’s. • Paper uses 33 sequences of 5 different subjects performing 3 different gait categories. • Choose that HMM that has the maximum likelihood given the observation. • Number of correct classified gait cycles in the test set varied from 86% to 93%.

32. References • EM Algorithm • A.P. Dempster, N.M. Laird and D.B. Rubin, “Maximum Likelihood from incomplete data via the EM Algorithm”, Journal of the Royal Statistical Society, 39(B),1977. • Richard A. Redner and Homer F. Walker, “Mixture densities, Maximum likelihood and the EM algorithm”, SIAM Review, vol. 26.,No. 2, April 1984. • G.J. McLachlan and T. Krishnan, “EM Algorithm and its extensions”, Wiley and Sons, 1997. • Jeff A. Bilmes, “A Gentle tutorial of the EM algorithm and its application to parameter estimation for Gaussian mixture and Hidden Markov Models”, available on the net.

33. References • Kalman Filter • Anderson, B. D. O. and Moore, J. B. (1979). Optimal Filtering. Prentice-Hall, Englewood Cliffs, NJ. • H. Sorenson, "Kalman Filtering: Theory and Application," IEEE Press, 1985. • Peter Maybeck, Stochastic Models, Estimation, and Control, Volume 1, Academic Press. 1979 • Web site : http://www.cs.unc.edu/~welch/kalman/
