Presentation Transcript
camera obscura
Camera Obscura
  • From the 4th century AD to the early 1700s, the camera obscura or dark chamber or pinhole camera was the only method of taking photographs.
heliographs niepce neeps
Heliographs & Niepce (Neeps)
  • On a summer day in 1827, Joseph NicephoreNiepce made the first photographic image with a camera obscura. Prior to Niepce people just used the camera obscura for viewing or drawing purposes not for making photographs. Joseph NicephoreNiepce'sheliographs or sun prints as they were called were the prototype for the modern photograph, by letting light draw the picture.
niepce
Niepce
  • Niepce placed an engraving onto a metal plate coated in bitumen, and then exposed it to light. The shadowy areas of the engraving blocked light, but the whiter areas permitted light to react with the chemicals on the plate. When Niepce placed the metal plate in a solvent, gradually an image, until then invisible, appeared. However, Niepce's photograph required eight hours of light exposure to create and after appearing would soon fade away.
bitumen of judea
Bitumen of Judea
  • Bitumen of Judea is a type of asphalt that when dissolved into a solution makes a light sensitive varnish.
daguerre dug air
Daguerre (Dug-air)
  • Fellow Frenchman, Louis Daguerre was also experimenting to find a way to capture an image, but it would take him another dozen years before Daguerre was able to reduce exposure time to less than 30 minutes and keep the image from disappearing afterwards.
daguerreotype

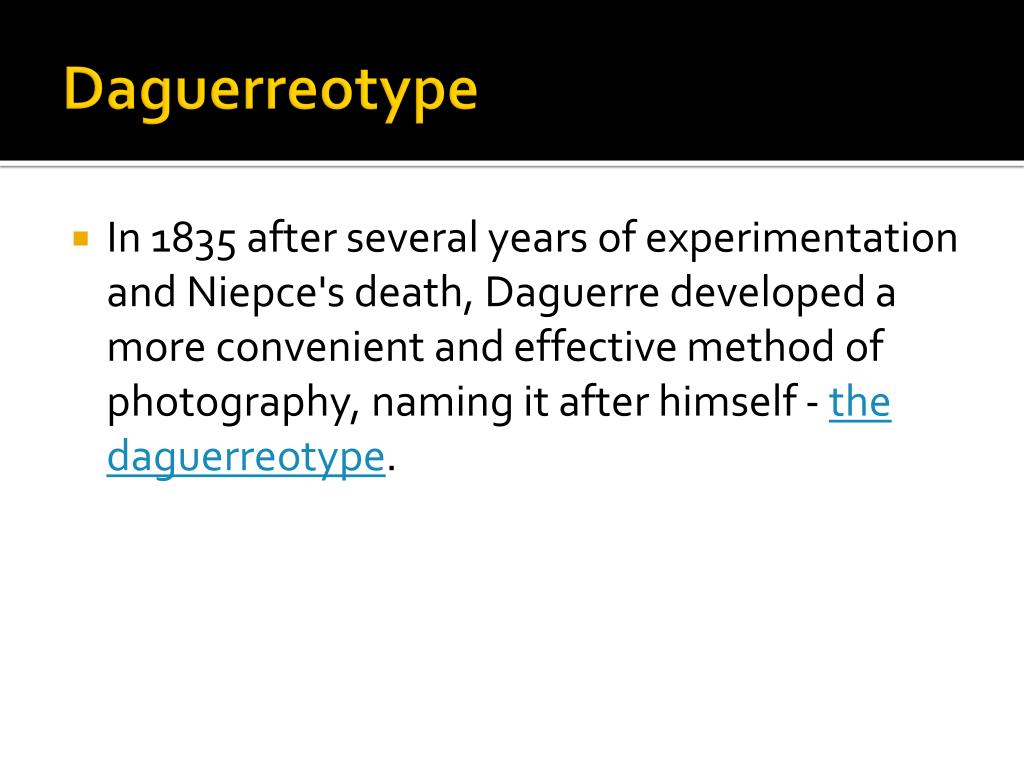

Daguerreotype
  • In 1835 after several years of experimentation and Niepce's death, Daguerre developed a more convenient and effective method of photography, naming it after himself - the daguerreotype.
daguerreotype process
Daguerreotype process
  • Daguerre's process 'fixed' the images onto a sheet of silver-plated copper. He polished the silver and coated it in iodine, creating a surface that was sensitive to light. Then, he put the plate in a camera and exposed it for a few minutes. After the image was painted by light, Daguerre bathed the plate in a solution of silver chloride. This process created a lasting image, one that would not change if exposed to light.
talbot
Talbot
  • The inventor of the first negative from which multiple positive prints were made was Henry Fox Talbot, an English botanist and mathematician and a contemporary of Daguerre.
calotypes talbotypes
Calotypes/Talbotypes
  • Talbot sensitized paper to light with a silver salt solution. He then exposed the paper to light. The background became black, and the subject was rendered in gradations of grey. This was a negative image, and from the paper negative, Talbot made contact prints, reversing the light and shadows to create a detailed picture. In 1841, he perfected this paper-negative process and called it a calotype, Greek for beautiful picture.
tintypes
Tintypes
  • Tintypes, patented in 1856 by Hamilton Smith, were another medium that heralded the birth of photography. A thin sheet of iron was used to provide a base for light-sensitive material, yielding a positive image.
wet collodion process

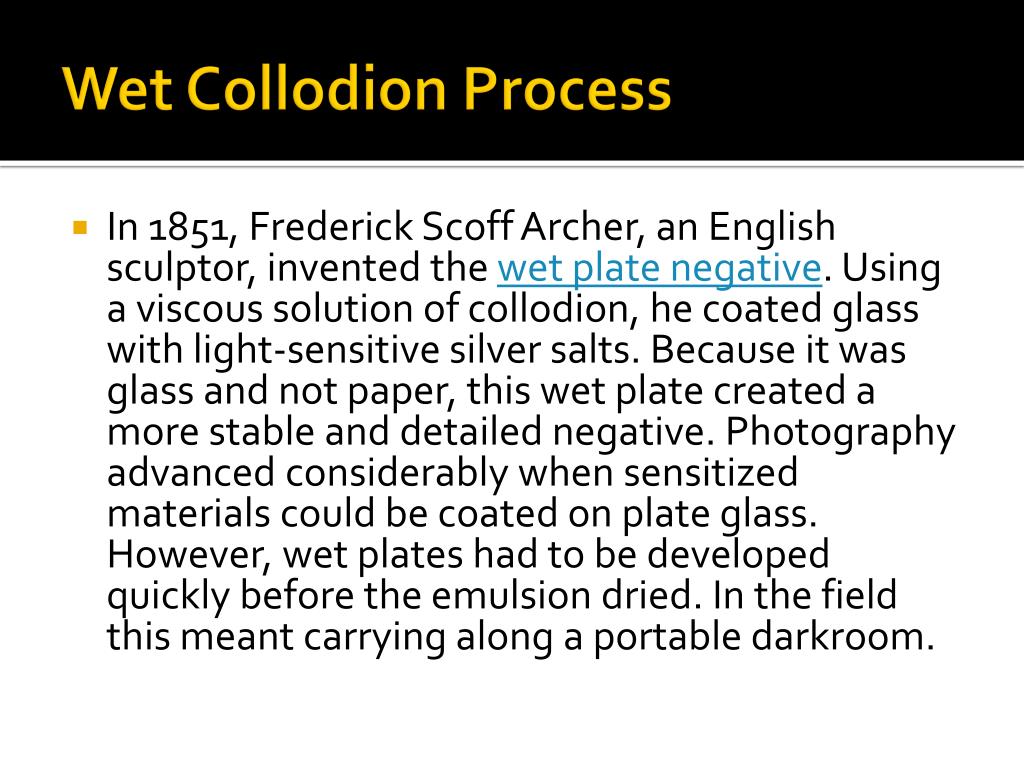

Wet Collodion Process
  • In 1851, Frederick Scoff Archer, an English sculptor, invented the wet plate negative. Using a viscous solution of collodion, he coated glass with light-sensitive silver salts. Because it was glass and not paper, this wet plate created a more stable and detailed negative. Photography advanced considerably when sensitized materials could be coated on plate glass. However, wet plates had to be developed quickly before the emulsion dried. In the field this meant carrying along a portable darkroom.
dry plate negative
Dry-plate Negative
  • In 1879, the dry plate was invented, a glass negative plate with a dried gelatin emulsion. Dry plates could be stored for a period of time. Photographers no longer needed portable darkrooms and could now hire technicians to develop their photographs. Dry processes absorbed light quickly so rapidly that the hand-held camera was now possible.
slide35
Film
  • In 1889, George Eastman invented film with a base that was flexible, unbreakable, and could be rolled. Emulsions coated on a cellulose nitrate film base, such as Eastman's, made the mass-produced box camera a reality.
kodak
Kodak
  • Eastman sold 100-shot box cameras that you would send back to him to process.
  • He would return your prints and a reloaded camera.
  • “You press the button, we do the rest.” was his company’s slogan.
  • This company was trademarked ‘Kodak’
color photos
Color Photos
  • In the early 1940s, commercially viable color films (except Kodachrome, introduced in 1935) were brought to the market. These films used the modern technology of dye-coupled colors in which a chemical process connects the three dye layers together to create an apparent color image.
film s history
Film’s History
  • The first flexible roll films, dating to 1889, were made of cellulose nitrate, which is chemically similar to guncotton (a mild explosive). A nitrate-based film will deteriorate over time, releasing oxidants and acidic gasses. It is also highly flammable. Special storage for this film is required.
35 mm
35-mm
  • Nitrate film is historically important because it allowed for the development of roll films. The first flexible movie films measured 35-mm wide and came in long rolls on a spool. In the mid-1920s, using this technology, 35-mm roll film was developed for the camera. By the late 1920s, medium-format roll film was created. It measured six centimeters wide and had a paper backing making it easy to handle in daylight. This led to the development of the twin-lens-reflex camera in 1929. Nitrate film was produced in sheets (4 x 5-inches) ending the need for fragile glass plates.
1970s
1970s
  • Triacetate film came later and was more stable, flexible, and fireproof. Most films produced up to the 1970s were based on this technology. Since the 1960s, polyester polymers have been used for gelatin base films. The plastic film base is far more stable than cellulose and is not a fire hazard.
today
Today
  • Today, technology has produced film with T-grain emulsions. These films use light-sensitive silver halides (grains) that are T-shaped, thus rendering a much finer grain pattern. Films like this offer greater detail and higher resolution, meaning sharper images.
slide48
ISO
  • Film Speed (ISO) — An arbitrary number placed on film that tells how much light is needed to expose the film to the correct density. Generally, the lower the ISO number, the finer grained and slower a film. ISO means International Standards Organization. This term replaces the old ASA speed indicator. The slower the film, the more light is needed to expose it.
print s history
Print’s History
  • Traditionally, linen rag papers were used as the base for making photographic prints. Prints on this fiber-base paper coated with a gelatin emulsion are quite stable when properly processed. Their stability is enhanced if the print is toned with either sepia (brown tone) or selenium (light, silvery tone).
paper prints

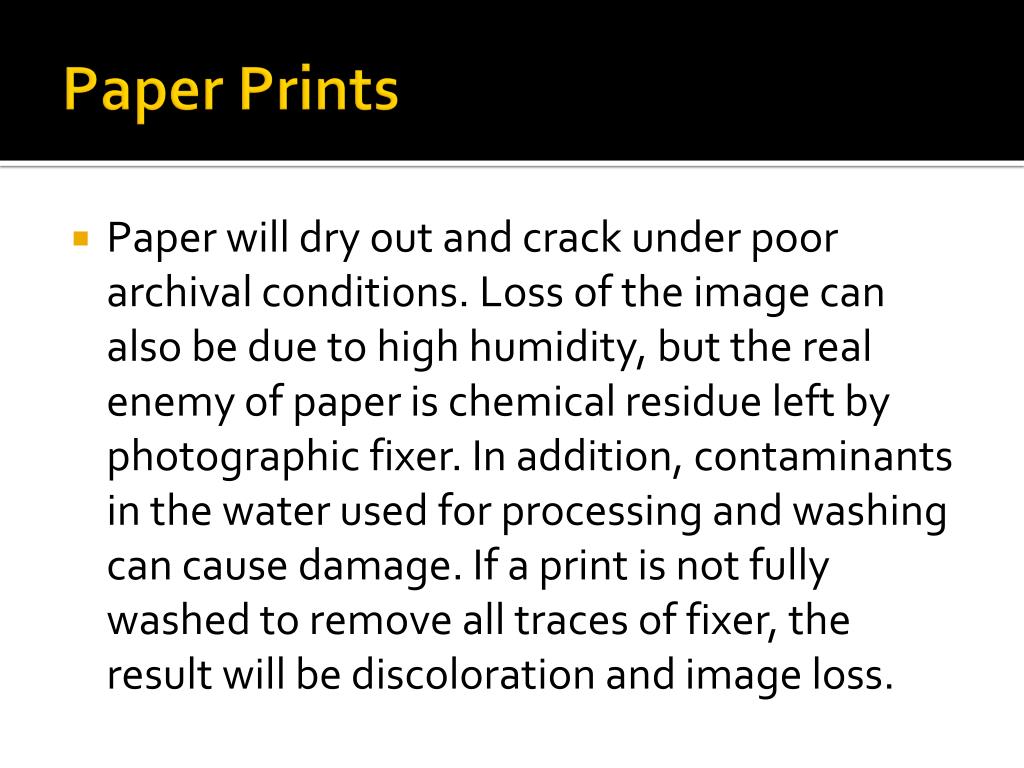

Paper Prints
  • Paper will dry out and crack under poor archival conditions. Loss of the image can also be due to high humidity, but the real enemy of paper is chemical residue left by photographic fixer. In addition, contaminants in the water used for processing and washing can cause damage. If a print is not fully washed to remove all traces of fixer, the result will be discoloration and image loss.
fixer
Fixer
  • Fixer (Hypo)—A chemical, sodium thiosulfate, used to remove residual silver halides (grain) from films and prints when processing them. Fixer "fixes" the remaining silver halides in place on either film or prints. Fixer is also called hypo.
water resistant paper
Water-Resistant Paper
  • The next innovation in photographic papers was resin-coating, or water-resistant paper. The idea is to use normal linen fiber-base paper and coat it with a plastic (polyethylene) material, making the paper water-resistant. The emulsion is placed on a plastic covered base paper. The problem with resin-coated papers is that the image rides on the plastic coating, and is susceptible to fading.
1930 today
1930-today
  • At first color prints were not stable because organic dyes were used to make the color image. The image would literally disappear from the film or paper base as the dyes deteriorate. Kodachrome, dating to the first third of the 20th century, was the first color film to produce prints that could last half a century. Now, new techniques are creating permanent color prints lasting 200 years or more. New printing methods using computer-generated digital images and highly stable pigments, offer permanency for color photographs.
camera s history
Camera’s History
  • By definition a camera is a lightproof object, with a lens, that captures incoming light and directs the light and resulting image towards film (optical camera) or the imaging device (digital camera).
aristotle
Aristotle
  • All camera technology is based on the law of optics first discovered by Aristotle. By the mid-1500s a sketching device for artists, the camera obscura (dark chamber) was common. The camera obscura was a lightproof box with a pinhole (later lens were used) on one side and a translucent screen on the other. This screen was used for tracing by the artists of the inverted image transmitted through the pinhole.
pinhole camera
Pinhole Camera
  • Around 1600, Della Porta reinvented the pinhole camera. Apparently he was the first European to publish any information on the pinhole camera and is sometimes incorrectly credited with its invention.
camera obscura3
Camera Obscura
  • Johannes Kepler was the first person to coin the phrase Camera Obscura in 1604, and in 1609, Kepler further suggested the use of a lens to improve the image projected by a Camera Obscura.
daguerreotype cameras1
Daguerreotype Cameras
  • The earliest cameras used in the daguerreotype process were made by opticians and instrument makers, or sometimes even by the photographers themselves. The most popular cameras utilized a sliding-box design. The lens was placed in the front box. A second, slightly smaller box, slid into the back of the larger box. The focus was controlled by sliding the rear box forward or backwards. A laterally reversed image would be obtained unless the camera was fitted with a mirror or prism to correct this effect. When the sensitized plate was placed in the camera, the lens cap would be removed to start the exposure.
kodak cameras
Kodak Cameras
  • George Eastman. a dry plate manufacturer from Rochester, New York, invented the Kodak camera. For $22.00, an amateur could purchase a camera with enough film for 100 shots. After use, it was sent back to the company, which then processed the film. The ad slogan read, "You press the button, we do the rest." A year later, the delicate paper film was changed to a plastic base, so that photographers could do their own processing.
kodak camera
Kodak Camera
  • Eastman's first simple camera in 1888 was a wooden, light-tight box with a simple lens and shutter that was factory-filled with film. The photographer pushed a button to produce a negative. Once the film was used up, the photographer mailed the camera with the film still in it to the Kodak factory where the film was removed from the camera, processed, and printed. The camera was then reloaded with film and returned.
flash powder
Flash Powder
  • Blitzlichtpulver or flashlight powder was invented in Germany in 1887 by Adolf Miethe and Johannes Gaedicke. Lycopodium powder (the waxy spores from club moss) was used in early flash powder.
flash bulb
Flash Bulb
  • The first modern photoflash bulb or flashbulb was invented by Austrian, Paul Vierkotter. Vierkotter used magnesium-coated wire in an evacuated glass globe. Magnesium-coated wire was soon replaced by aluminum foil in oxygen. On September 23, 1930, the first commercially available photoflash bulb was patented by German, Johannes Ostermeier. These flashbulbs were named the Vacublitz. General Electric made a flashbulb called the Sashalite.
filters
Filters
  • English inventor and manufacturer, Frederick Wratten founded one of the first photographic supply businesses, Wratten and Wainwright in 1878. Wratten and Wainwright manufactured and sold collodion glass plates and gelatin dry plates. In 1878, Wratten invented the "noodling process" of silver-bromide gelatin emulsions before washing. In 1906, Wratten with the assistance of Dr. C.E. Kenneth Mees (E.C.K Mees) invented and produced the first panchromatic plates in England. Wratten is best known for the photographic filters that he invented and are still named after him - Wratten Filters. Eastman Kodak purchased his company in 1912.
35 mm cameras
35-mm Cameras
  • As early as 1905, Oskar Barnack had the idea of reducing the format of film negatives and then enlarging the photographs after they had been exposed. As development manager at Leica, he was able to put his theory into practice. He took an instrument for taking exposure samples for cinema film and turned it into the world's first 35 mm camera: the 'Ur-Leica'.
polaroid cameras
Polaroid Cameras
  • Polaroid photography was invented by Edwin Herbert Land. Land was the American inventor and physicist whose one-step process for developing and printing photos created instant photography. The first Polaroid camera was sold to the public in November, 1948.
single use cameras
Single-Use Cameras
  • Fuji introduced the disposable camera in 1986. We call them disposables but the people who make these cameras want you to know that they're committed to recycling the parts, a message they've attempted to convey by calling their products "single-use cameras."
digital cameras
Digital Cameras
  • In 1984, Canon demonstrated first digital electronic still camera.
