Presentation Transcript

  1. Human chromosome 4 02_13.jpg

  2. 02_15.jpg

  3. 02_15_2.jpg

  4. 1:10,000 02_03.jpg Human chromosome 17 1:6 1:36

  5. Chromosome specific duplication • Known as Low Copy Repeat sequences (LCRs). • Mechanism: Non-Allelic Homologous Recombination (NAHR) Eichler, TIGs 17(11) p661, 2001

  6. Paralogous Sequence similarity due to duplication events.

  7. Human clustered gene family 09_11.jpg • After the segmental duplication event, genes can retain their function, but most either get deactivated, or adapt to a new function. • Highly related in sequence • Transcribed from the same strand

  8. Human Genome Project • Revealed a remarkably complex pattern of both ancient and recent duplications. • One surprising feature is the abundance of large blocks of genomic sequences that share a high sequence homology (>90%) • These blocks, defined as segmental duplications range in size from 1kb to few of hundreds of kb. • Include both exonic and intronic sequences. Eichler, TIGs 17(11) p661, 2001

  9. Human Genome Project • Unlike tandem duplications, segmental duplications are interspersed throughout the genome. • A similar genomic architecture has not been observed in invertebrates genomes. • Species divergence between humans and apes or old world monkeys. • The human genome has undergone numerous segmental duplications during the past 35 Myr. • Duplicative transposition: duplication and transposition of a genomic block of material from one chromosomal region to another. These are the segmental duplications Eichler, TIGs 17(11) p661, 2001

  10. Pattern of segmental duplication in the human genome Based on the April 2003 version of the human genome: • ~5-6% of the human genome has been duplicated in recent times. • There are inter-chromosomal and intra-chromosomal duplications. • ~ 390 duplication hubs Zhang et al. Mol Bio and Evol 22(1) p135

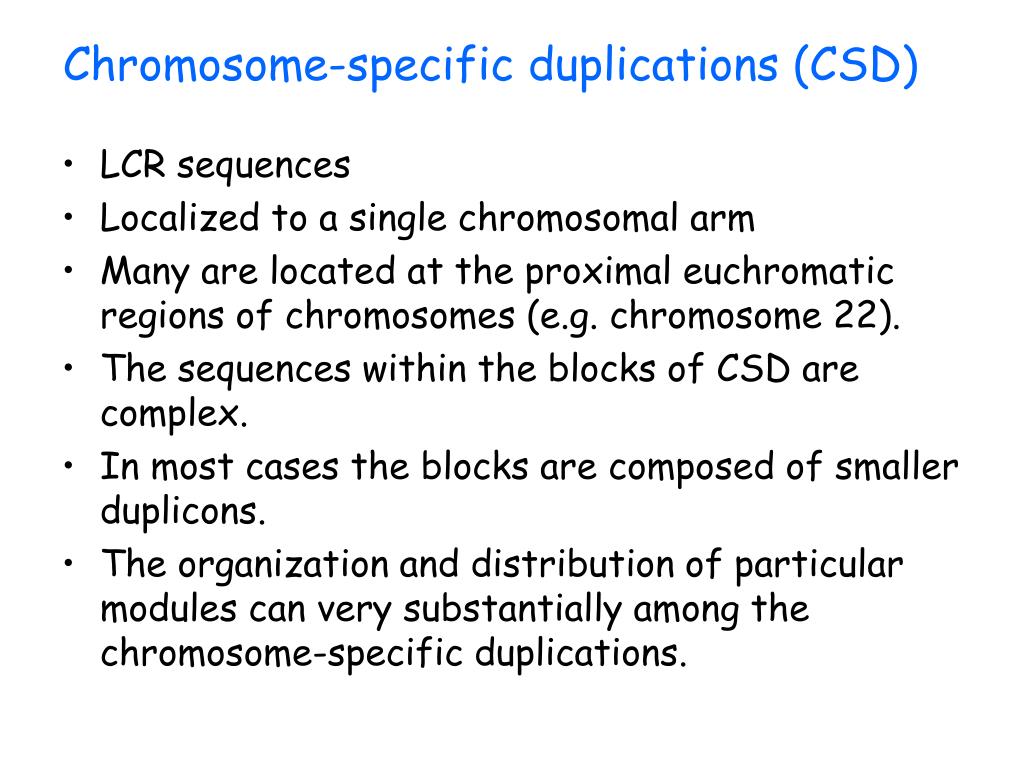

  11. Chromosome-specific duplications (CSD) • LCR sequences • Localized to a single chromosomal arm • Many are located at the proximal euchromatic regions of chromosomes (e.g. chromosome 22). • The sequences within the blocks of CSD are complex. • In most cases the blocks are composed of smaller duplicons. • The organization and distribution of particular modules can very substantially among the chromosome-specific duplications.

  12. 12_12.jpg >90% of the chromosome specific duplications occur within the first 10 Mb of the long arm of chromosome 22

  13. One duplication hub in 2p11 (750kb; 10-20 million years ago)

  14. Mosaic structure of segmental duplication • Different combination and copy number • Recent emerging gene families Eichler, TIGs 17(11) p661, 2001

  15. Trans-chromosomal duplications

  16. 17p dosage changes convey phenotypes • Charcot-Marie-Tooth disease type 1A (CMT1A) and hereditary neuropathy with liability to pressure palsies (HNPP) are dys-myelinating peripheral neuropathies that results from an altered dosage of PMP22. • CMT1A results from heterozygous duplication of a 1.4 Mb segment that includes the PMP22 gene. • Whereas HNPP results from a heterozygous deletion of the same genomic interval. • The two diseases have dominant inheritance with germ line mutations • There are also sporadic cases. Lupski and Stankiwicz, Plos Genetics 2005 p49

  17. Recurrent rearrangements in proximal 17p PMP22 Duplicated- green Deleted -red Lupski and Stankiwicz, Plos Genetics 2005 p49

  18. 17p dosage changes convey phenotypes • Sensitivity to PMP22 dosage: rare point mutations in non-duplicated patients leading to gain of function in CMT1A patients. • Loss of function in HNPP non-deleted patients are consistent with the hypothesis. • Animal models that O.E. PM22 re-capitulated the CMT1A phenotpye. • The vast majority of unrelated CMT1A patients, as well as sporadic cases have the same size duplication. • This common duplication has recurrent breakpoints that map to low copy repeats (LCRs) called CMT1A-REP. The duplicon is a 24 kb in length. • Similarly, HNPP patients have a common deletion with recurrent breakpoints that map to CMT1A-REP. • The mechanism was shown to be non-allelic homologous recombination (NHAR) between direct oriented LCRs as substrates. • CMT1A and HNPP are alternative products of a NAHR utilizing CMT1A-REPs as recombination substrates. Lupski and Stankiwicz, Plos Genetics 2005 p49

  19. copy-number variation (CNV) • A type of variation that has not been included in genetic studies until recently, because it requires different detection methods, and that has only recently gained attention for its possibly important contribution to human phenotypic diversity and disease susceptibility • It is defined as gain or loss of genomic segments—from over 1 kb up to several megabases—compared to a reference genome.

  20. Copy number variations (CNVs) • CGH –significantly higher resolution revealed genetic variability which was not previously anticipated (99.9% identity).
