系統程式 Introduction
Related Courses Operating System Computer Programming Compiler System Programming Introduction to Computer Science SW HW Introduction to Digital System Data structure Algorithm Computer Architecture and Organization
An Overview • System software? • System software vs. application software: System software are usually related to the architecture of the machine on which they are to run. • Some aspects of system software do not directly depend on its host machine. • Simplified Instructional Computer (SIC)

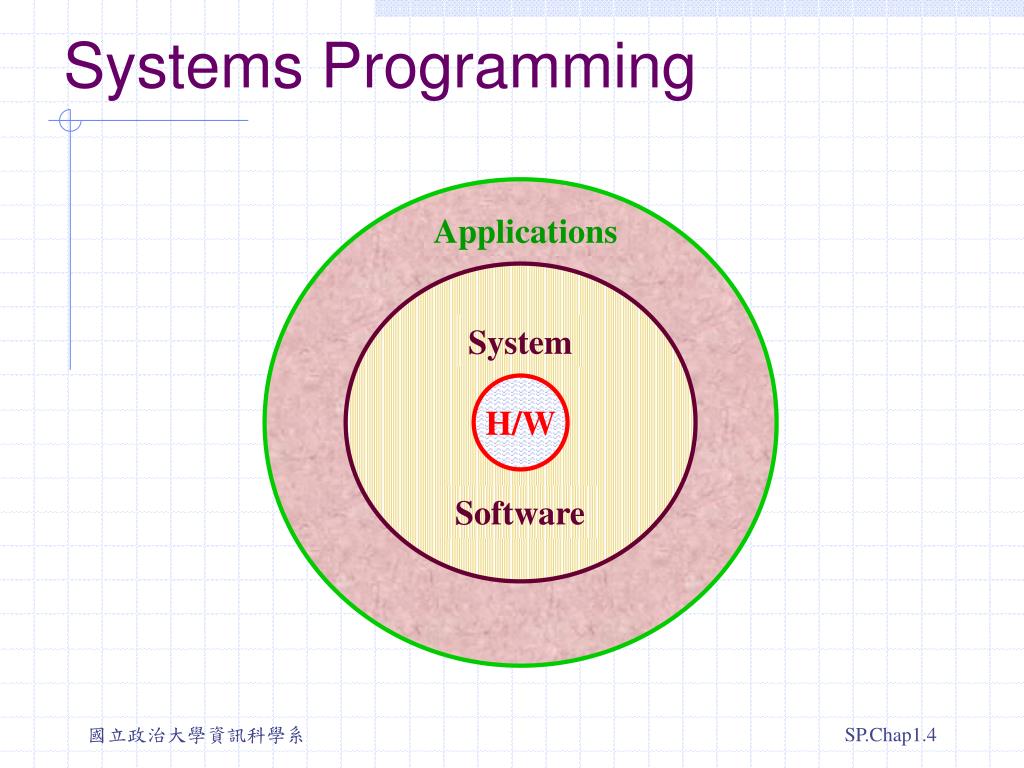

Applications System Software Systems Programming H/W
sample.exe output Example: Programming sample.c Compiler Loader, Linker & Runtime System

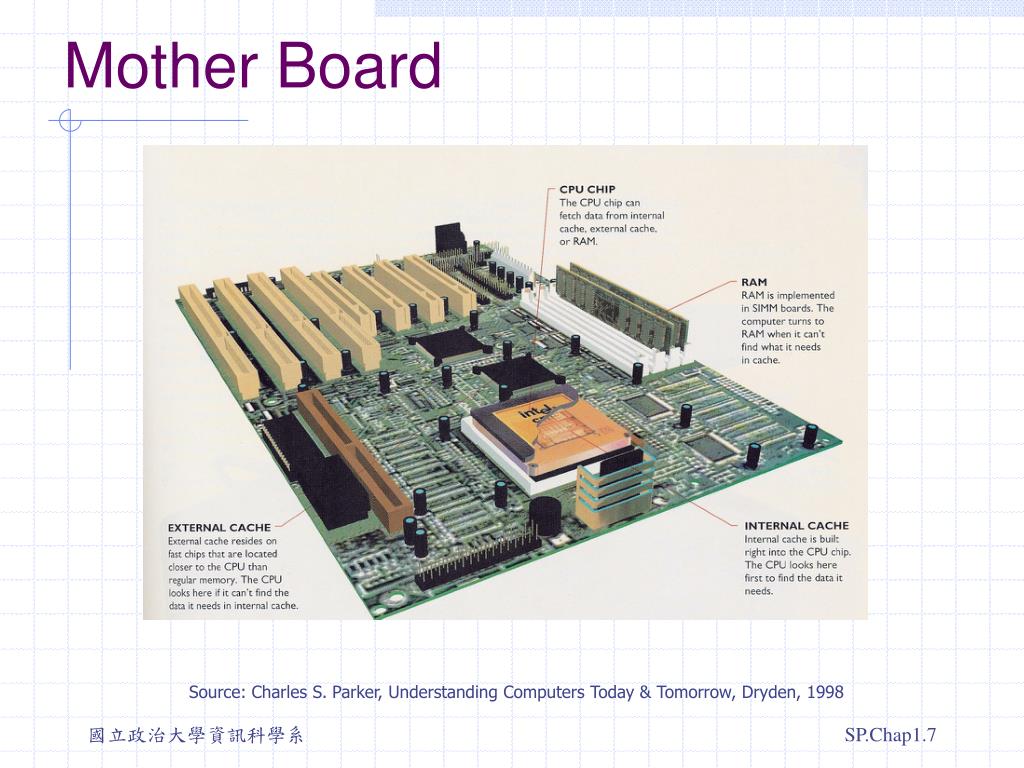

Mother Board Source: Charles S. Parker, Understanding Computers Today & Tomorrow, Dryden, 1998
CPU Source: Charles S. Parker, Understanding Computers Today & Tomorrow, Dryden, 1998
Turing Machine • Tape • Head • Table • State Register
SIC Machine Architecture • Memory • 8-bit bytes • A word consists of three bytes and is addressed by the lowest numbered byte. • A total of 32,768 (2^15) bytes in memory • Registers • Five 24-bit special-purpose registers • A (accumulator), X (index), L (linkage), PC (program counter), SW (status word) IP: instruction pointer
SIC (2) • Data Formats • 24-bit integers (no floating-point numbers) • negative values are represented by 2’s complement • 8-bit ASCII for characters • Instruction Formats 8 1 15 opcode x address
SIC (3) • Addressing Modes • Direct Mode: x=0; TA=address • Indexed Mode: x=1; TA=address+(X) • Instruction Set • Load and store registers • Integer arithmetic • Value comparison • Branching int a[10] for (int i=0; i<10; i++) a[i] = i; if ((a>b) && (x<y)) c=a+b; else c=20+y-x;
存取指令:LDA Memory CPU A暫存器
存取指令:STA Memory CPU A暫存器
資料複製:LDA & STA Memory CPU A暫存器 C1=D1 LDA D1 STA C1

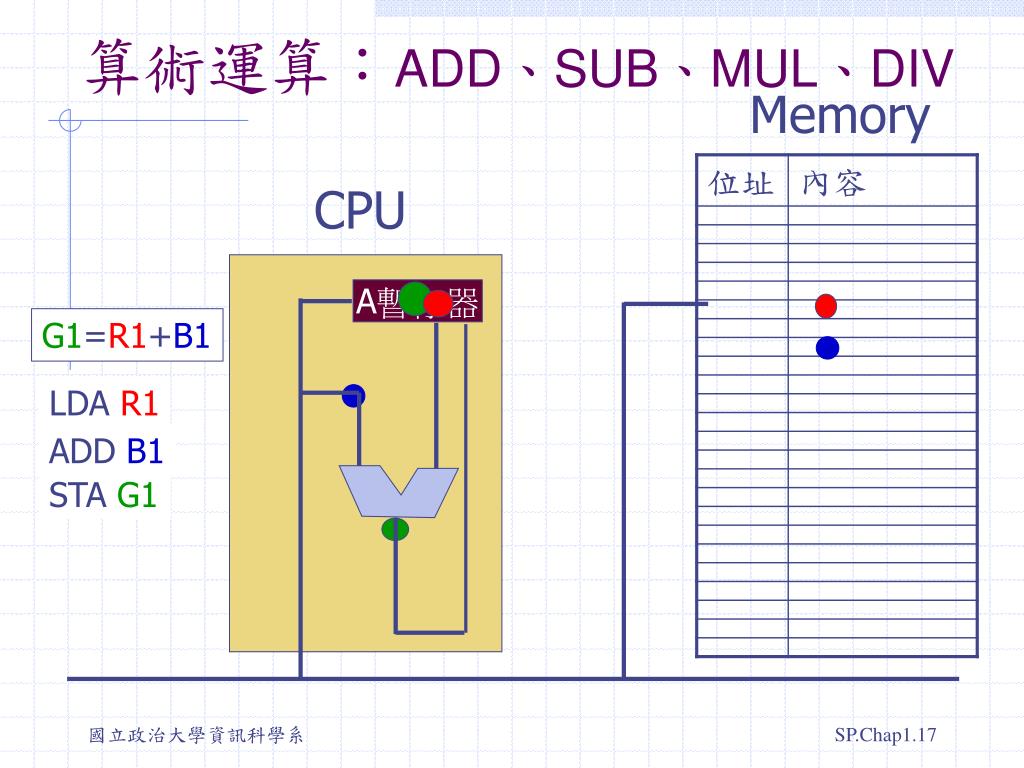

算術運算:ADD、SUB、MUL、DIV Memory CPU A暫存器 G1=R1+B1 LDA R1 ADD B1 STA G1
LDA (LoaD into the register A) addr=0300 TA=0300 addr=0300 (X)=0100 TA=addr+(X)=0400 SIC Machine Instructions • Examples: • 000000000000001100000000 • 000000001000001100000000 (X)=0100 103000 0300 103333 0400
1 s 11 36 exponent fraction SIC/XE Machine Architecture • Memory: 1 MB • Register: 4 new registers: B (base), S (general), T (general), F (floating-point accumulator) • Float-point • 48bits Data Format: n =
8 Discuss WHY 6 bits are sufficient. op 4 4 r2 r1 op 6 12 op x e disp i p n b 20 n p x i b e op address SIC/XE Instruction Formats • More complex instruction formats are required to meet the need to address 1MB. • SIC/XE has four instruction formats:
SIC/XE Machine Instructions • Please refer to Figure 1.1 on page 11 • How does a SIC/XE processor • differentiate format 1, 2, 3, and 4 instructions? • differentiate format 3 and 4 instructions? • know when to compute target address using based relative addressing, program-counter relative address, or neither? • determine how to find actual operands with immediate, direct, indirect modes?
Encoding Format Information OPCODE 0X 1X 2X 3X 4X 5X 6X 7X FORMAT 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 OPCODE 8X 9X AX BX CX DX EX FX FORMAT 3/4 2 2 2 1 3/4 3/4 1
Decoding SIC/XE instructions • Suppose that you are given a machine instruction in the hexadecimal format. You decode the instruction with the following steps. • Determine the format of the instruction • (Rewrite the instruction in its binary format) • If it is a format 1 or 2 instruction… • If it is a format 3 or 4 instruction…
Deciding SIC/XE Instruction Formats • Format 1: if first byte is CX or FX • Format 2: if first byte is 9X, AX, or BX • Format 3 or Format 4: all else • If n=i=0: a SIC instruction, get two more bytes • SIC/XE instructions all else • Decode the next byte and check the e bit • If e=0: Format 3 • If e=1: Format 4
Decoding Format 1/2 Instruction • Format 1 • Find the opcode in Appendix A • Format 2 • Find the opcode in Appendix A • Translate register numbers back to corresponding register names • Tables on pages 5 and 7

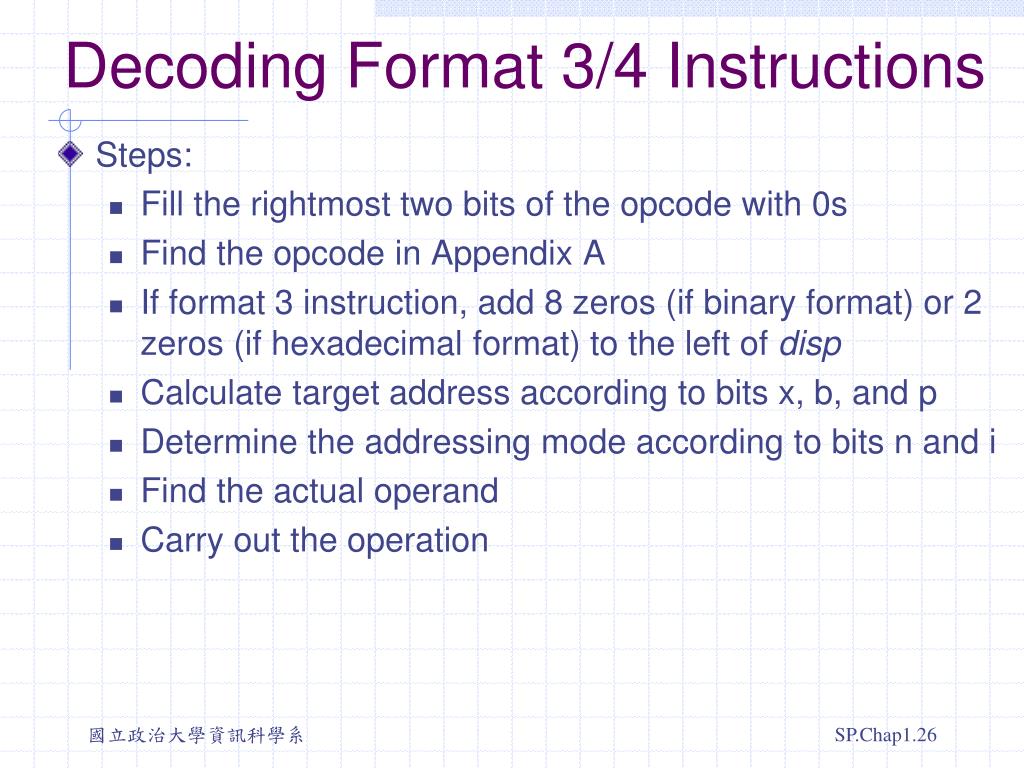

Decoding Format 3/4 Instructions • Steps: • Fill the rightmost two bits of the opcode with 0s • Find the opcode in Appendix A • If format 3 instruction, add 8 zeros (if binary format) or 2 zeros (if hexadecimal format) to the left of disp • Calculate target address according to bits x, b, and p • Determine the addressing mode according to bits n and i • Find the actual operand • Carry out the operation
解讀SIC/XE機器語言指令 找出Target Address
TA = (PC) + disp Figure 1.1 TA = (PC) + disp = 3000+600=3600
TA = (X)+(B) + disp Figure 1.1 TA = (X)+(B) + disp=90+6000+300=6390

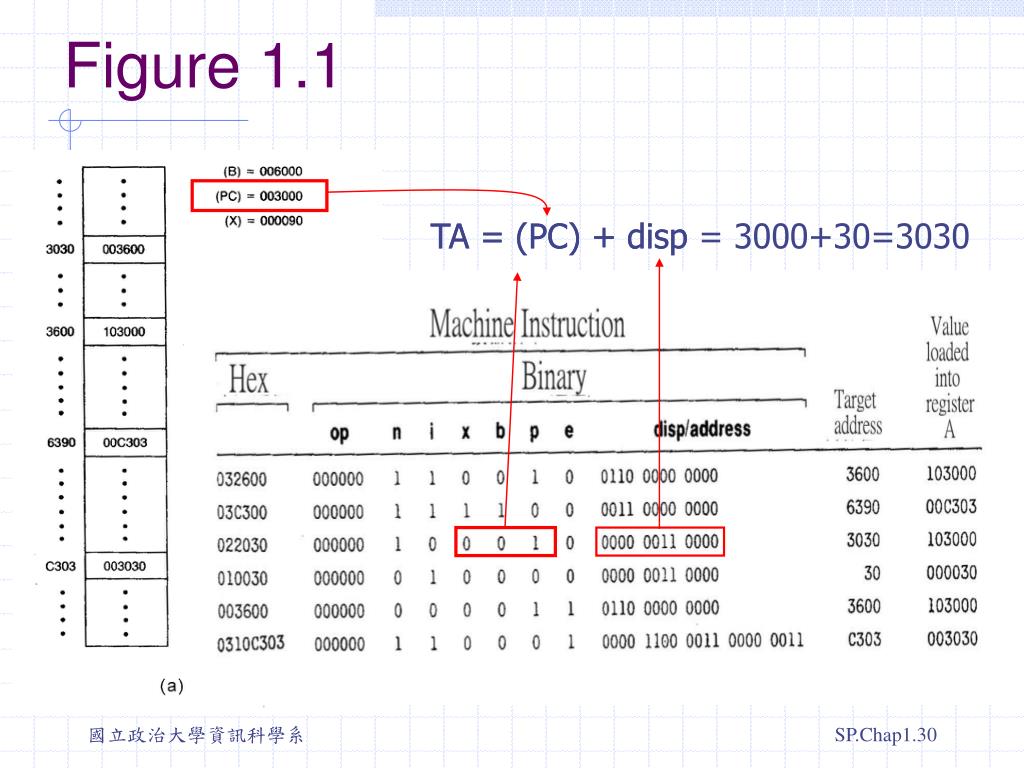

TA = (PC) + disp Figure 1.1 TA = (PC) + disp = 3000+30=3030
TA = disp Figure 1.1 TA = disp = 30
TA = disp Figure 1.1 TA = disp = 0C303
Figure 1.1(Cont’d) The fifth example: 003600 0000 0000 0011 0110 0000 0000 According to the third paragraph on page 10, the b, p, and e bits merge with disp because n=i=0. Discussion: When would a SIC/XE assembler set n=i=0 and n=i=1?
n=i=0 標記一個SIC指令 所以TA等於3600 Figure 1.1
解讀SIC/XE機器語言指令 找出實際運算對象
TA是運算資料的位址 TA = (PC) + disp Figure 1.1 TA = (PC) + disp = 3000+600=3600

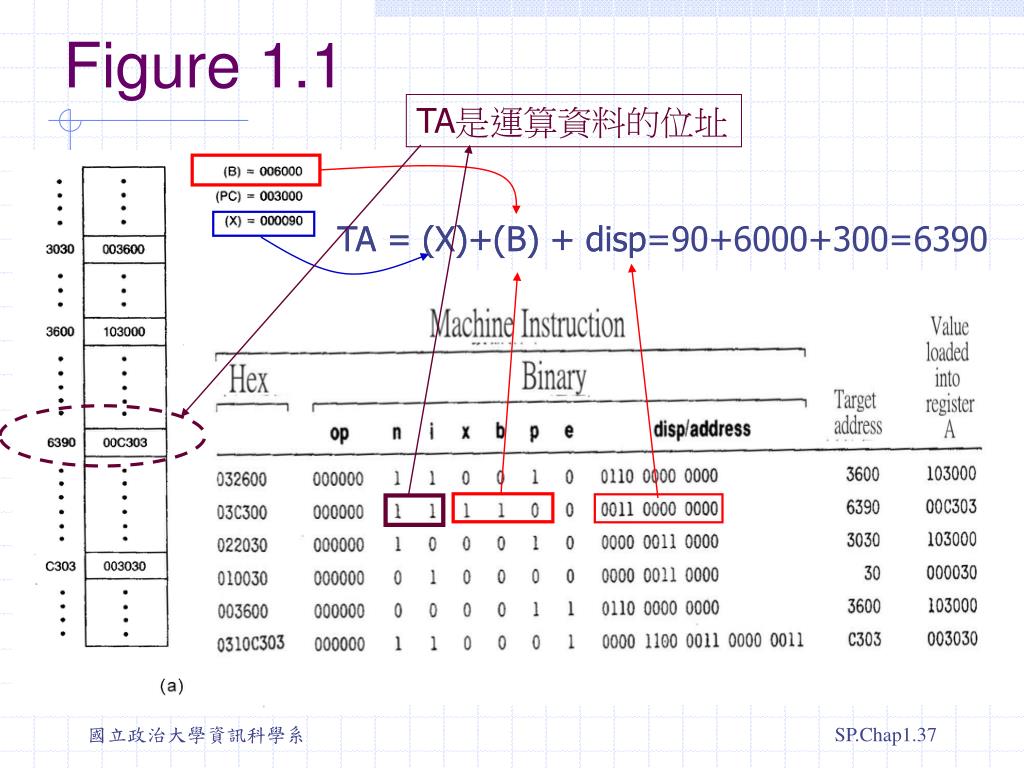

TA是運算資料的位址 TA = (X)+(B) + disp Figure 1.1 TA = (X)+(B) + disp=90+6000+300=6390
TA是運算資料的位址的位址 TA = (PC) + disp Figure 1.1 TA = (PC) + disp = 3000+30=3030
TA本身就是運算資料 TA = disp Figure 1.1 TA = disp = 30
SIC指令只要看x是否為1 n=i=0 標記一個SIC指令 所以TA等於3600 Figure 1.1
TA是運算資料的位址 TA = disp Figure 1.1 TA = disp = 0C303
SIC/XE機器語言指令的解讀 • 實際上,機器語言的解讀是非常機械化的過程 • 附錄A(第三版課本的第499頁上面)有更多的解讀機制 • 除了提供解讀更多機制之外,附錄A(第三版課本的第499頁上面)的表格,還揭露了SIC/XE CPU的設計有更多的限制。有一些看似可以的addressing mode並沒有出現在表格中。這一些是來自於硬體線路的設計的限制。對於SIC/XE來說,當然是假想的限制。

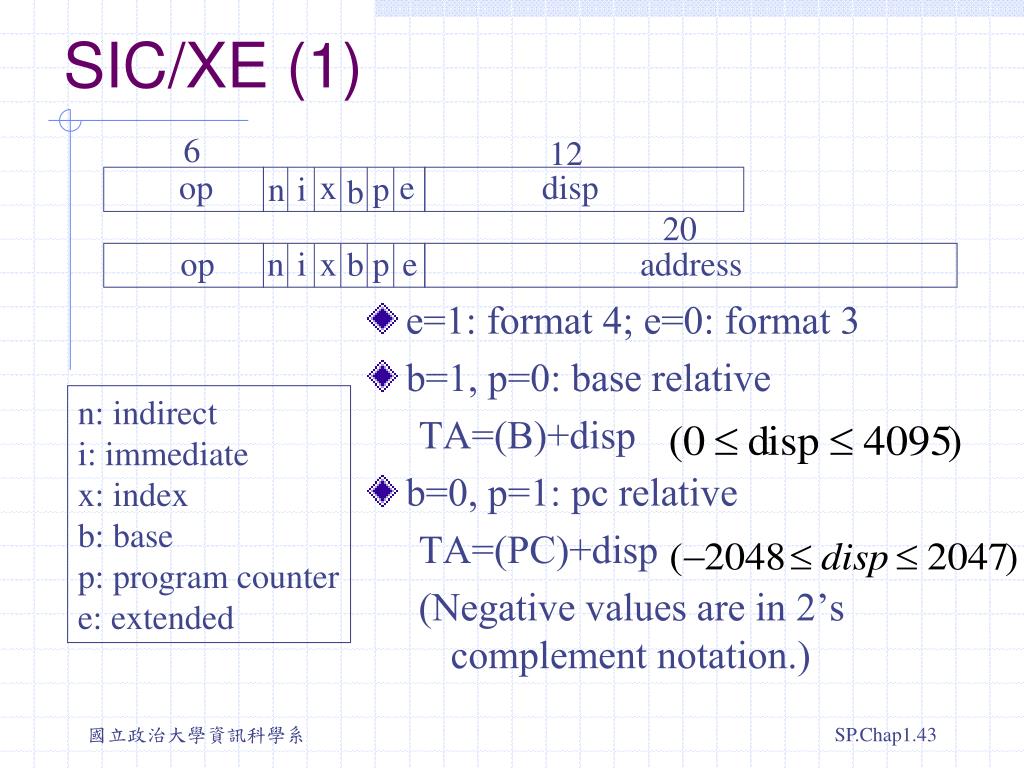

6 12 op x e disp i p n b SIC/XE (1) • e=1: format 4; e=0: format 3 • b=1, p=0: base relative TA=(B)+disp • b=0, p=1: pc relative TA=(PC)+disp (Negative values are in 2’s complement notation.) 20 op n i x p e address b n: indirect i: immediate x: index b: base p: program counter e: extended
6 12 op x e disp i p n b 20 n p x i b e op address SIC/XE (2) • b=0,p=0: disp is used as the TA. For a Format 4 instruction, b and p are normally set to 0. (simple addressing) • i=1,n=0: immediate addressing • i=0,n=1: indirect addressing (Data addressed by TA is used as the address of the real operand.) n: indirect i: immediate x: index b: base p: program counter e: extended

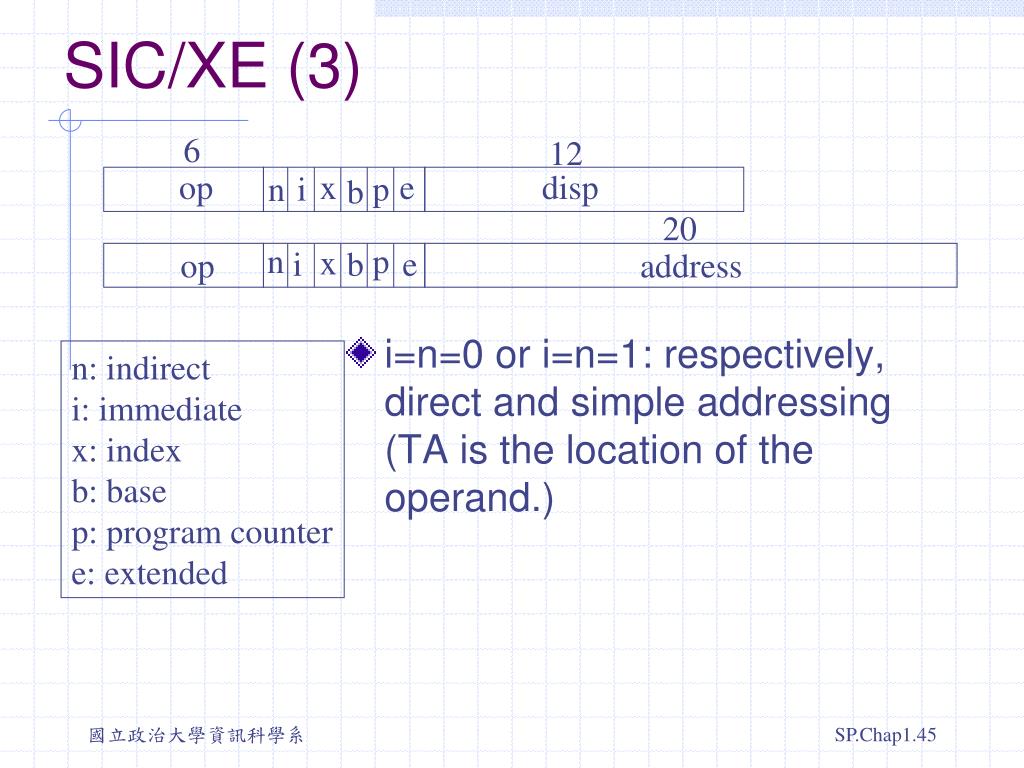

6 12 op x e disp i p n b 20 n p x i b e op address SIC/XE (3) • i=n=0 or i=n=1: respectively, direct and simple addressing (TA is the location of the operand.) n: indirect i: immediate x: index b: base p: program counter e: extended
SIC/XE (4) • Summary of addressing modes n i x b p e 0 Format 3 1 Format 4 1 0 0 Format 3, base relative 0 1 0 Format 3, pc relative 0 0 0/1 Format 3/4, disp is TA, direct 0 1 immediate (TA: operand) 1 0 indirect (TA: address of address) simple (TA: address of operand) 1 1 1 index
?????? ALPHA 000005 FIVE 5A CHARZ ?? C1 Figure 1.2 A register of SIC LDA FIVE STA ALPHA LDCH CHARZ STCH C1 ……… ALPHA RESW 1 FIVE WORD 5 CHARZ BYTE C’Z’ C1 RESB 1
A = ALPHA A = ALPHA+INCR 000001 ONE ?????? ALPHA ?????? BETA ?????? GAMMA ?????? DELTA ?????? INCR Figure 1.3 A = ALPHA+INCR-1 A register of SIC LDA ALPHA ADD INCR SUB ONE STA BETA ……… ONE WORD 1 ……… ALPHA RESW 1 BETA RESW 1 GAMMA RESW 1 DELTA RESW 1 INCR RESW 1
X(X)+1: (X):ELEVEN STATUS WORD, CONDITION CODE X Figure 1.4 A register of SIC STR2 STR1 ? T X register of SIC ? E ? S LDX ZERO MOVECH LDCH STR1,X STCH STR2,X TIX ELEVEN JLT MOVECH ……… STR1 BYTE C’TEST STRING’ STR2 RESB 11 ……… ZERO WORD 0 ELEVEN WORD 11 ? T ? ? S ? T ? R ? I ? N ? G ZERO 000000 00000B ELEVEN
SIC Programming Examples • Figure 1.2 on page 13 • Figure 1.3 on page 15 • Figure 1.4 on page 16 • Figure 1.5 on page 17 • Figure 1.6 on page 19 • Figure 1.7 on page 20
