  1. YACC no more Integrating parsers, interpreters and compilers into your application Sriram Srinivasan (“Ram”) Session # 2221

  2. This is he • Sriram Srinivasan • One of the core engineers of the WebLogic app server • Wrote the first commercially available EJB implementation • Wrote the TP engine in the WLS • Author: “Advanced Perl Programming” (O’reilly) Session # 2221 Beginning

  3. Why this talk? • Quest for higher level programming patterns • More productive / faster / maintainable etc… • Integrating compilers, parsers, interpreters into your application Session # 2221 Beginning

  4. Embeddable Parsers Case Study: Configuration Data • JDK parsers for configuration data • java.util.Properties, XML, regex library • java.util.Properties • Limited to “property = value” format • Takes care of comments, multi-line values, quotes #app server properties connectionPoolName = testPool numThreads = 10 … p = new Properties().load(inputStream) Session # 2221 Middle

  5. XML parsers • Good for structured, hierarchical data • DOM (Document Object Model) parser • Converts an entire XML document into a corresponding tree of Nodes. • SAX (Simple API for XML) • Callback class extends DefaultHandler • Supplies methods for startDocument(…), startElement(…), endElement(…) etc. Session # 2221 Middle

  6. Adding code to data • Problem: We want to add add macros and expressions to our properties. numThreads = numProcessors # Ensure that connection pool is smaller than # thread pool. connectionPoolSize = min(numThreads – 2, 1) • This requires an expression evaluator Session # 2221 Middle

  7. Embeddable interpreters • Plethora of free, high quality interpreters available • BeanShell (Java-like syntax) • Rhino (JavaScript) • Jython (Python in Java) • Kawa (Scheme in Java) • When embedded, flow of control easily goes from java to interpreter to back. • Command-line shell always included Session # 2221 Middle

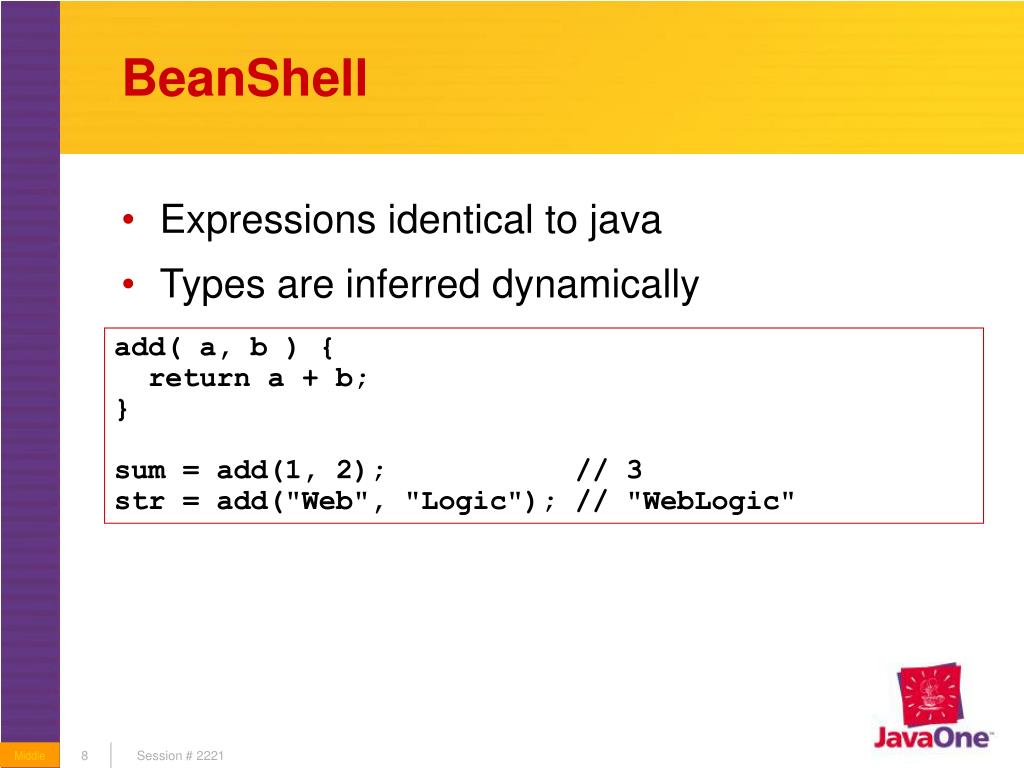

  8. BeanShell • Expressions identical to java • Types are inferred dynamically add( a, b ) { return a + b; } sum = add(1, 2); // 3 str = add("Web", "Logic"); // "WebLogic" Session # 2221 Middle

  9. Embedding BeanShell • Instead of writing code to parse the properties file, just eval it! • Comments should be “// … ”, not “# … • Each property definition line should end in “;” import bsh.Interpreter; Interpreter i = new Interpreter(); i.set("foo", 5); i.eval("bar = foo*10"); System.out.println("bar = "+ i.get("bar")); i.eval(new FileReader("config.properties")); Integer n = i.get("connectionPoolSize"); Session # 2221 Middle

  10. BeanShell features • Strict java expression syntax • no class declarations • Loose convenience syntax b = new java.awt.Button(); b.label = "Yo" // eqvt. to b.setLabel("Yo") h = new Hashtable(); h{"spud"} = "potato"; // Swing stuff b = new JButton("My Button"); f = new JFrame("My Frame"); f.getContentPane().add(b, "Center"); f.pack(); f.show(); Session # 2221 Middle

  11. Rhino • Free ECMAScript interpreter from Mozilla • Slightly more cumbersome to embed than BeanShell • Contains bytecode compiler that can be called from within java • Closures • Regex support built-in. Good for text manipulation Session # 2221 Middle

  12. Case study: Command pattern • Undo/Redo in an editor function insertCommand(text) { this.pos = buf.pos buf.insert(text) this.len = text.length this.undo = function () { buf.moveTo(this.pos) buf.erase(this.len); } undoStack.push(this); } new insertCommand("foo") undoStack.pop().undo() Session # 2221 Middle

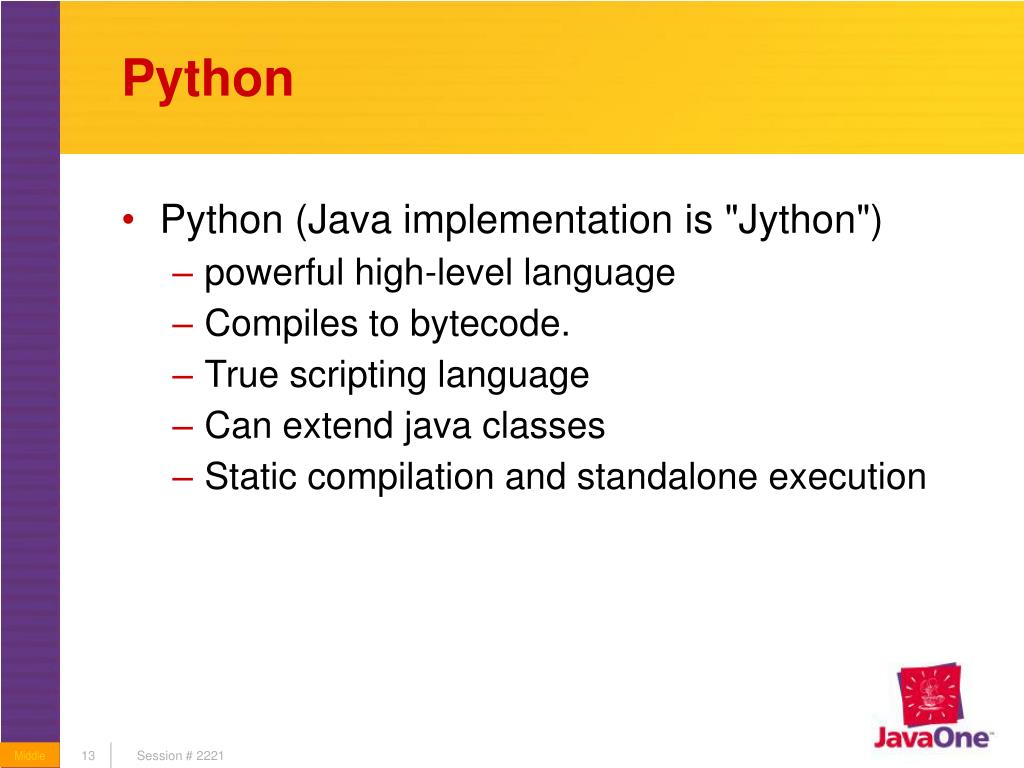

  13. Python • Python (Java implementation is "Jython") • powerful high-level language • Compiles to bytecode. • True scripting language • Can extend java classes • Static compilation and standalone execution Session # 2221 Middle

  14. More case studies • Embedded expressions • Spreadsheet formulae • Customizable GUIs • Macro facility, keyboard mapping • Remote agents • Monitoring • Performance through partial evaluation Session # 2221 Middle

  15. Case Study: Remote Agents • Example: Test Agents • Can upload script to each agent to launch processes, control them locally. • Jython is well-suited for this kind of task • Example: Scriptable IMAP mail server • "All messages that contain this regex, make a copy in this folder" Session # 2221 Middle

  16. Case Study: Monitoring • SNMP model: Obtain attributes from each node over the network, do calculation • Alternatively, upload script to each node, and let it return the result • Conserves network bandwidth • Can insert any kind of probe • Study application data structures • Application-specific profiling Session # 2221 Middle

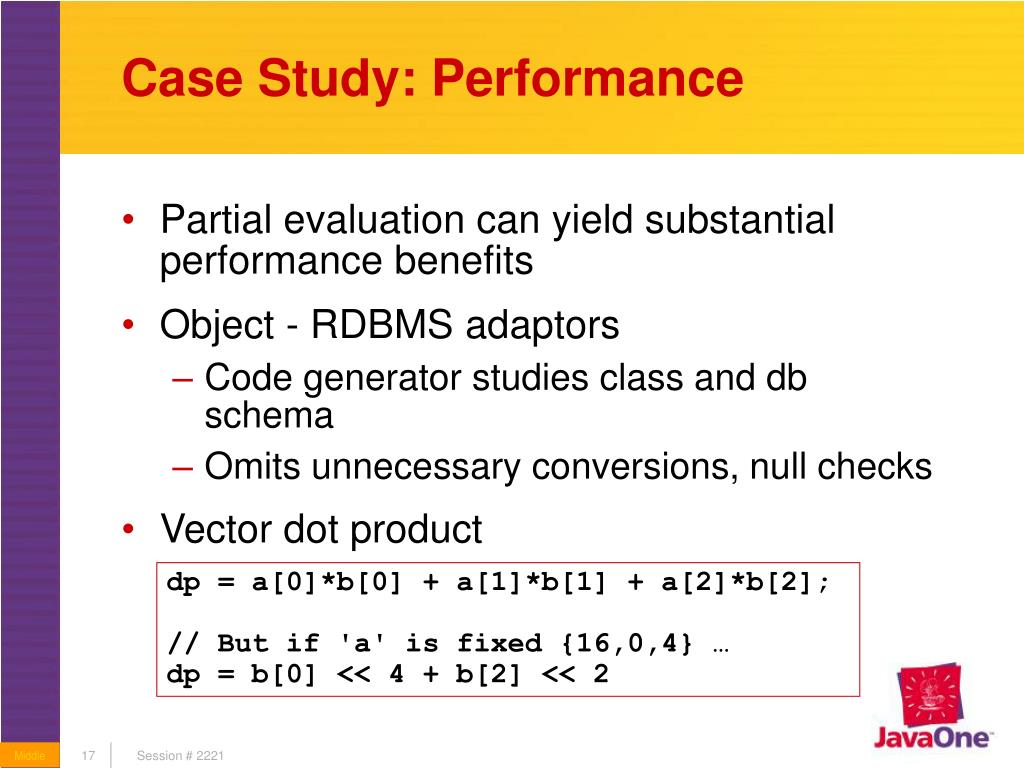

  17. Case Study: Performance • Partial evaluation can yield substantial performance benefits • Object - RDBMS adaptors • Code generator studies class and db schema • Omits unnecessary conversions, null checks • Vector dot product dp = a[0]*b[0] + a[1]*b[1] + a[2]*b[2]; // But if 'a' is fixed {16,0,4} … dp = b[0] << 4 + b[2] << 2 Session # 2221 Middle

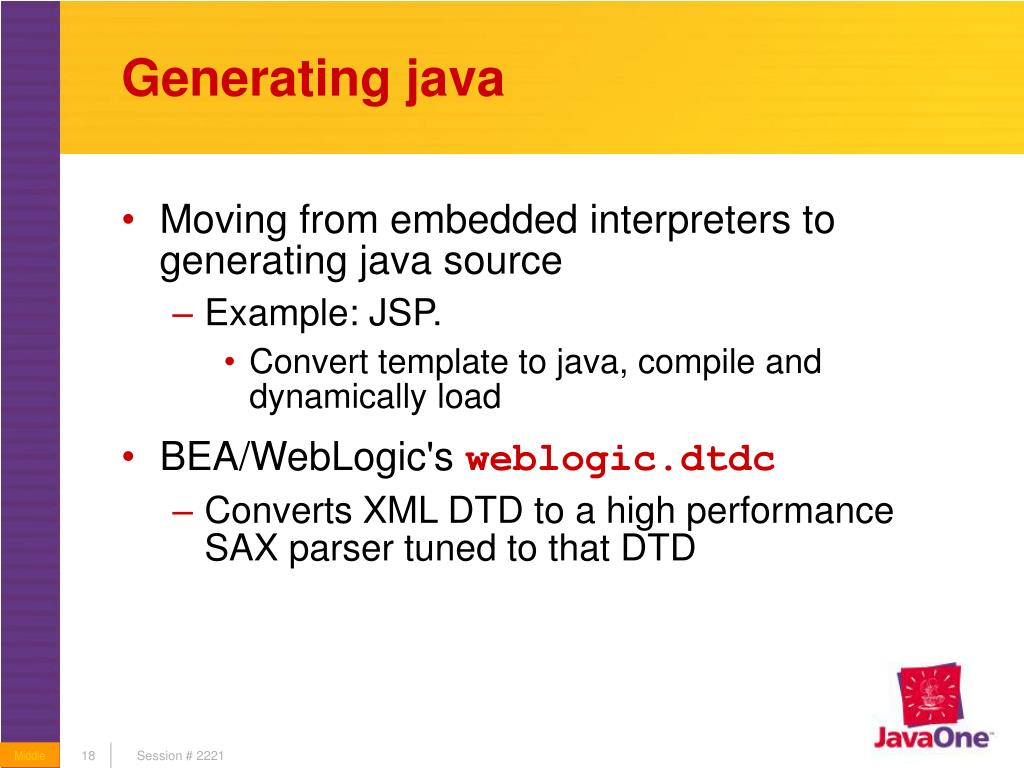

  18. Generating java • Moving from embedded interpreters to generating java source • Example: JSP. • Convert template to java, compile and dynamically load • BEA/WebLogic's weblogic.dtdc • Converts XML DTD to a high performance SAX parser tuned to that DTD Session # 2221 Middle

  19. Generating code with Doclets • javadoc is a general purpose parser javadoc –doclet ListClass foo.java • ListClass.start() called with a hierarchy of *Doc nodes import com.sun.javadoc.*; public class ListClass { public static boolean start(RootDoc root) { ClassDoc[] classes = root.classes(); for (int i = 0; i < classes.length; ++i) { System.out.println(classes[i]); } return true; } • Arbitrary tags can be introduced at any level Session # 2221 Middle

  20. Case study: iContract • Pattern: doclet expressions converted to annotated java code /** * Ensure that argument is always > 0* @pre f >= 0.0** Ensure that the function produces the sqrt * within a * @post Math.abs((return * return) - f) < 0.001*/ public float sqrt(float f) { ... } Session # 2221 Middle

  21. Case Study: EJBGen /** * @ejbgen:entity * ejb-name = AccountEJB-OneToMany * data-source-name = demoPool * table-name = Accounts */ abstract public class AccountBean implements EntityBean { /** * @ejbgen:cmp-field column = acct_id * @ejbgen:primkey-field * @ejbgen:remote-method transaction-attribute = Required */ abstract public String getAccountId(); Session # 2221 Middle

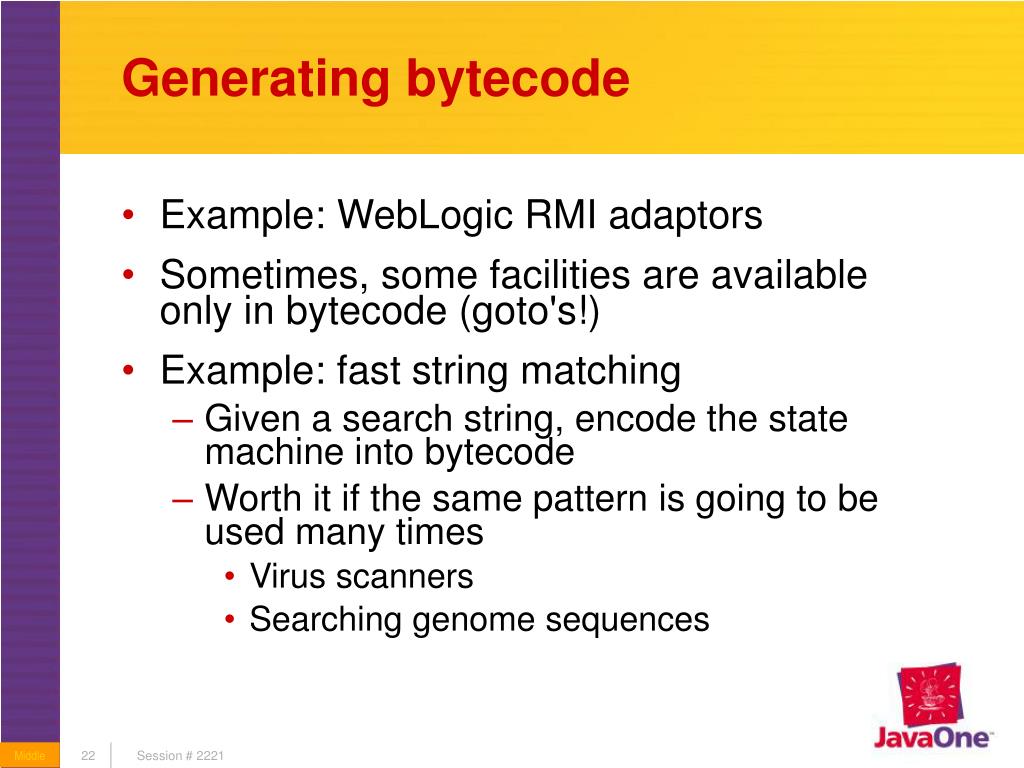

  22. Generating bytecode • Example: WebLogic RMI adaptors • Sometimes, some facilities are available only in bytecode (goto's!) • Example: fast string matching • Given a search string, encode the state machine into bytecode • Worth it if the same pattern is going to be used many times • Virus scanners • Searching genome sequences Session # 2221 Middle

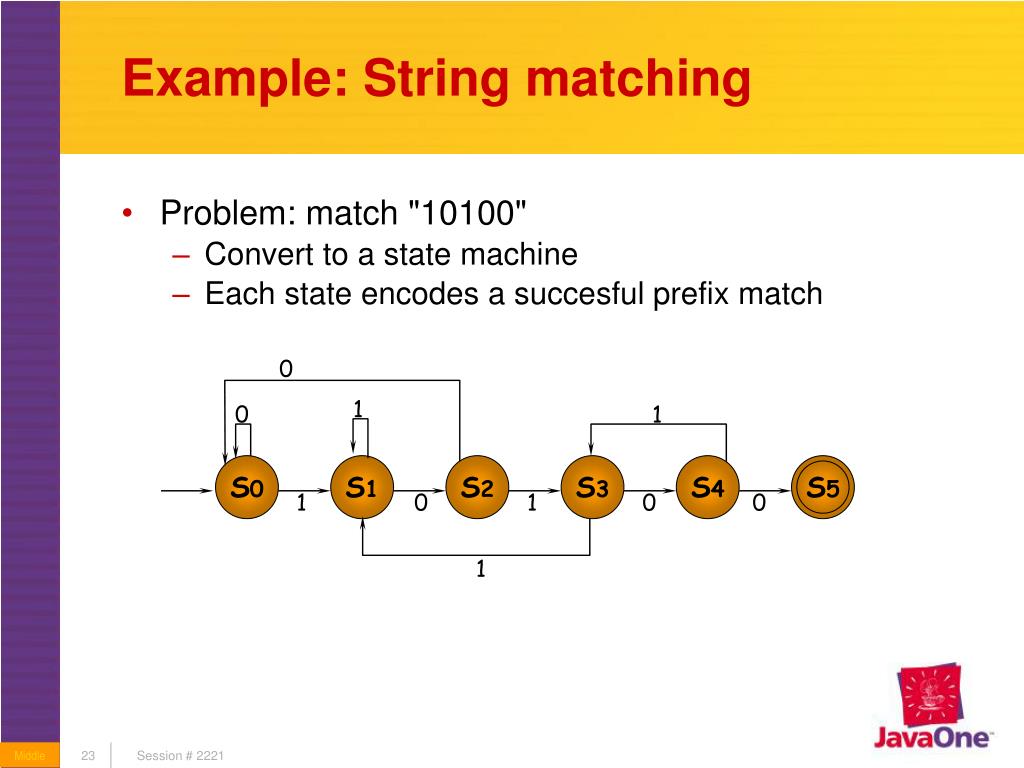

  23. 0 1 0 1 S0 S1 S2 S3 S4 S5 1 0 1 0 0 1 Example: String matching • Problem: match "10100" • Convert to a state machine • Each state encodes a succesful prefix match Session # 2221 Middle

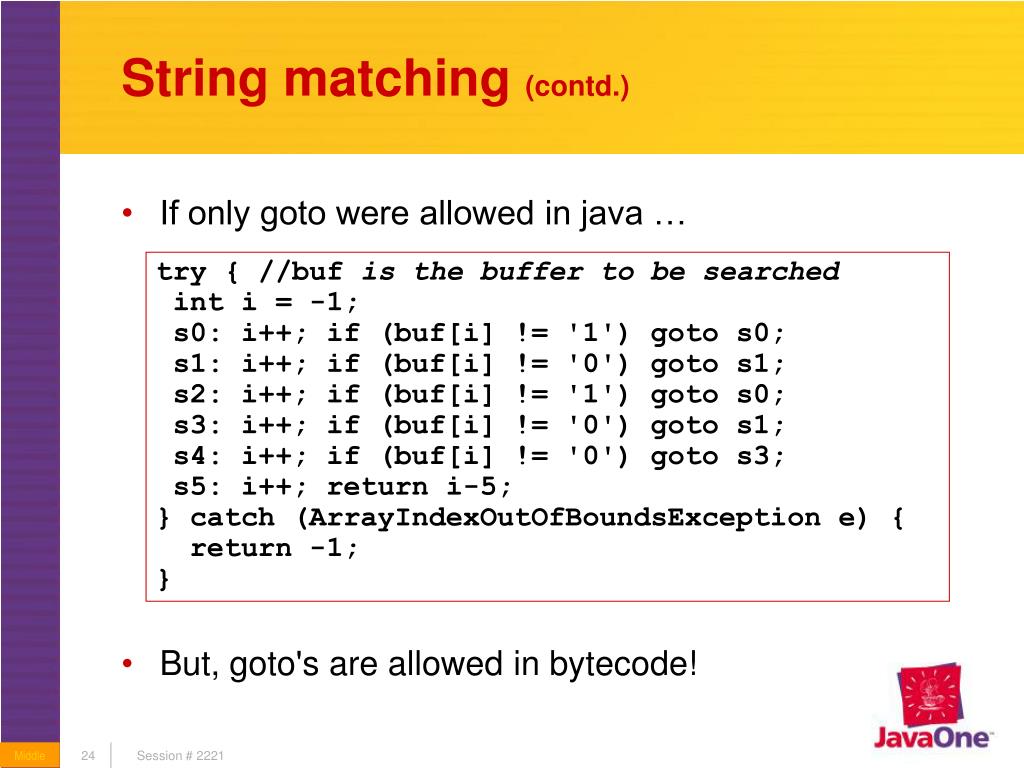

  24. String matching (contd.) • If only goto were allowed in java … • But, goto's are allowed in bytecode! try { //buf is the buffer to be searched int i = -1; s0: i++; if (buf[i] != '1') goto s0; s1: i++; if (buf[i] != '0') goto s1; s2: i++; if (buf[i] != '1') goto s0; s3: i++; if (buf[i] != '0') goto s1; s4: i++; if (buf[i] != '0') goto s3; s5: i++; return i-5; } catch (ArrayIndexOutOfBoundsException e) { return -1; } Session # 2221 Middle

  25. String matching (contd.) • Using an assembler like jasmin iconst_m1 istore_1 S0: ;; i++; if a[i] != '1' goto S0; iinc 1 1 ; i++ aload_0 ; load a[i] iload_1 caload bipush 49 ; load '1' if_icmpne S0 ; if .. goto S0 S1: ;; i++; if a[i] != '0' goto S1 iinc 1 1 aload_0 iload_1 caload bipush 48 if_icmpne S1 Session # 2221 Middle

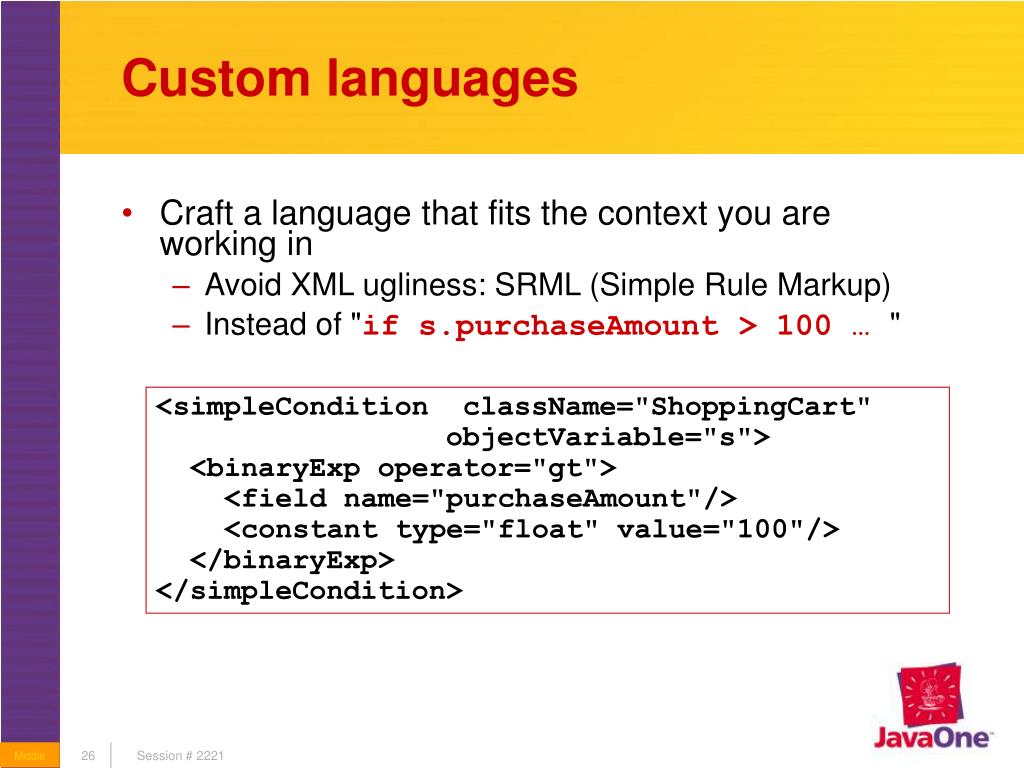

  26. Custom languages • Craft a language that fits the context you are working in • Avoid XML ugliness: SRML (Simple Rule Markup) • Instead of "if s.purchaseAmount > 100 …" <simpleCondition className="ShoppingCart" objectVariable="s"> <binaryExp operator="gt"> <field name="purchaseAmount"/> <constant type="float" value="100"/> </binaryExp> </simpleCondition> Session # 2221 Middle

  27. Antlr Introduction • Antlr: A recursive descent parser with configurable lookahead (LL(k) parser) • Much, much simpler than lex/yacc • Yacc error messages are cryptic, tough for non-CS types to understand • Even generated code easy to understand • Includes tree building and recognition • No such facility in yacc • Lexer, parser and tree recognizer phase have similar syntax Session # 2221 Middle

  28. Antlr • Example: hierarchical property list • A list consists of name value pairs • Names are identifiers, values are numbers or lists ( a 200 b (c 10 d 20) ) Session # 2221 Middle

  29. Antlr (contd.) class LispLexer extends Lexer; ID : ('a' .. 'z')+; NUM: ('0' .. '9')+; LP : '('; RP : ')'; class LispParser extends Parser; list : LP (nameValuePair)+ RP; nameValuePair : ID value ; value : NUM | list; Session # 2221 Middle

  30. Antlr (contd.) • Adding code, arguments, return values nameValuePair returns [NVP ret=null] {Object v;} : t:ID v=value {ret = new NVP(t.getText(),v);} ; value returns [Object ret=null] : t:NUM {ret=t.getText();} | ret=list ; Session # 2221 Middle

  31. Way out there … • Configurable hardware • New circuits on the fly • Intentional programming • Code not represented as a stream of characters Session # 2221 Middle

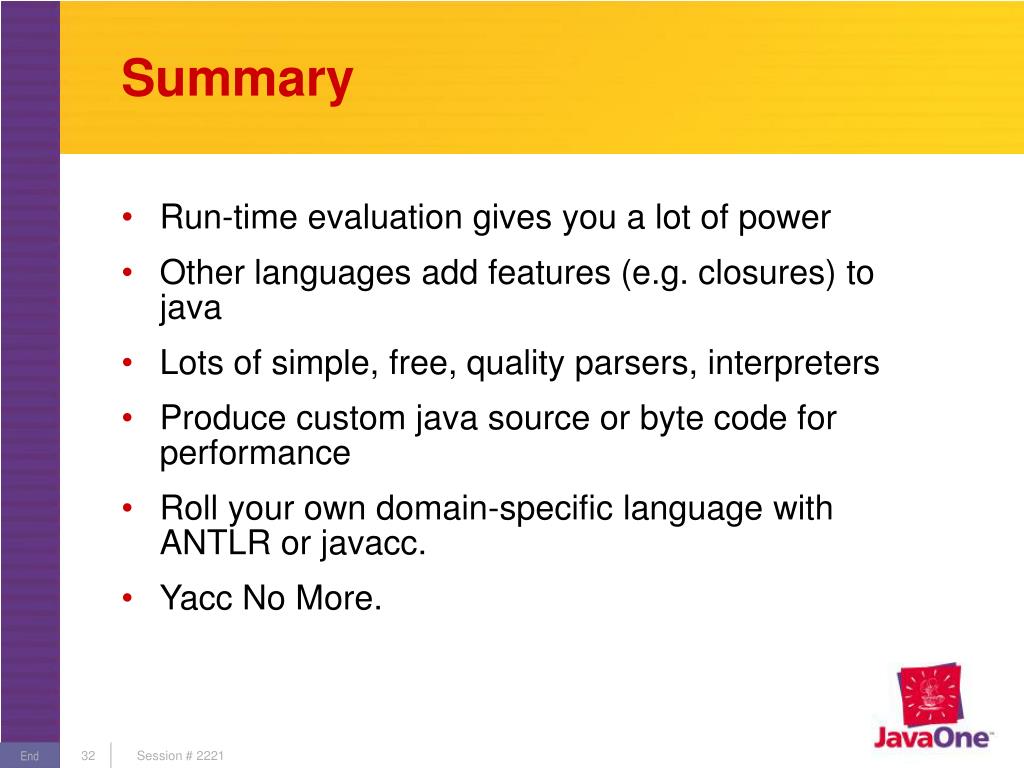

  32. Summary • Run-time evaluation gives you a lot of power • Other languages add features (e.g. closures) to java • Lots of simple, free, quality parsers, interpreters • Produce custom java source or byte code for performance • Roll your own domain-specific language with ANTLR or javacc. • Yacc No More. Session # 2221 End

  33. References • Doclets • Doclet tools: www.doclet.com • EJBGen: www.beust.com, Cedric Beust • Icontract: www.reliable-systems.com, Reto Kramer • Languages, interpreters • Beanshell: www.beanshell.org • Rhino: www.mozilla.org/rhino • Python: www.python.org, www.jython.org • ANTLR: www.antlr.org • More … flp.cs.tu-berlin.de/~tolk/vmlanguages.html • SRML: xml.coverpages.org/srml.html Session # 2221 End

  34. References (contd.) • Bytecode manipulation: • Jasmin: mrl.nyu.edu/~meyer/jasmin/ • Jikes Bytecode toolkit: www.alphaworks.ibm.com/tech/jikesbt • BCEL: bcel.sourceforge.net • "Rapid" - Reconfigurable hardware • www.cs.washington.edu/research • "The death of computer languages, the birth of intentional programming", Charles Simonyi • research.microsoft.com/scripts/pubs/trpub.asp • Microsoft tech report MSR-TR-95-52 • Thinking in Patterns with Java, Bruce Eckel • www.mindview.net/Books/TIPatterns Session # 2221 End
