Presentation Transcript
me timo sirainen
Me: TimoSirainen
  • Born 1979 in Finland
  • First C64 BASIC programs around 1988
  • Open source coding since about 1998
    • Irssi IRC client 1999-2004, still widely used
  • Worked as programmer since 1999
  • Went to university in 2006
  • Dovecot project started in 2002
    • Working full time on it since about 2007
    • 2009: Rackspace, USA
    • 2010: SAPO, Portugal
dovecot
Dovecot
  • Open source IMAP/POP3 server
    • Only mail retrieval to clients, no mail sending
  • First version released in 2002
  • Mostly written by me
    • Except Sieve by Stephan Bosch
  • High performance is an important goal
    • Disk I/O is typical bottleneck -> everything optimized to reduce it
talk overview

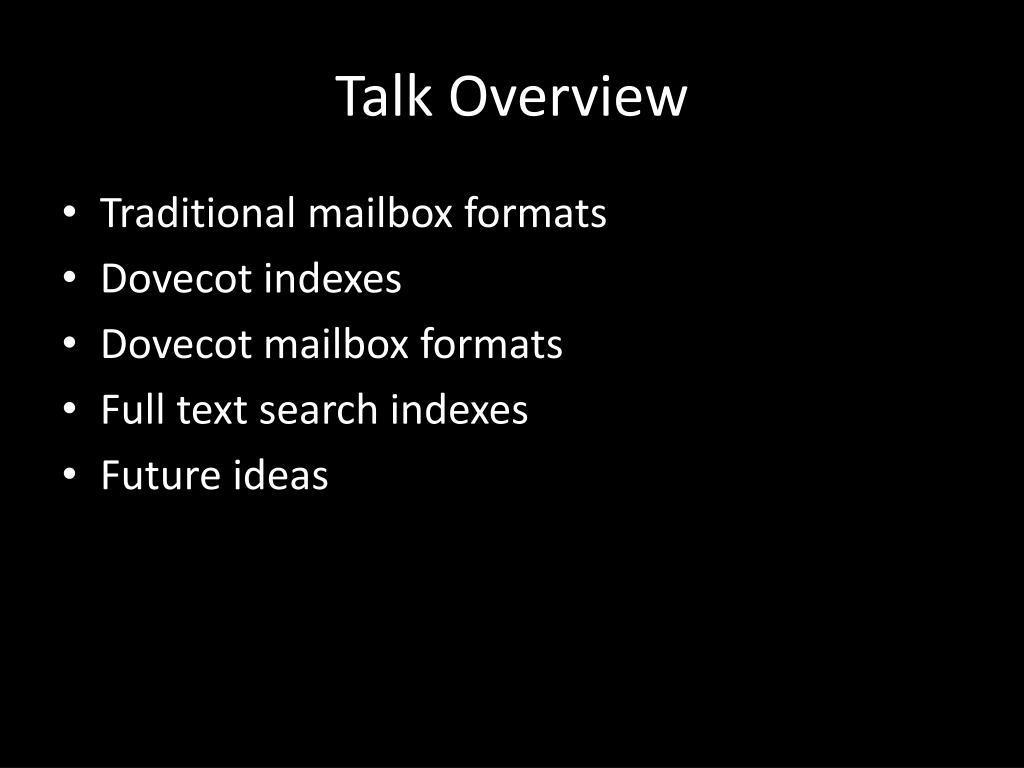

Talk Overview
  • Traditional mailbox formats
  • Dovecot indexes
  • Dovecot mailbox formats
  • Full text search indexes
  • Future ideas
slide5
mbox
  • One file per mailbox
  • Metadata in headers that are filtered out
    • X-UID, Status, X-Status, X-Keywords, etc.
  • Deleting requires moving data around
    • Fragile: corruption if crashes in the middle
    • Slow when deleting old messages
  • May become fragmented with constant appends
  • But non-fragmented file is fast to read
maildir
Maildir
  • One file per message
    • Reading through all files can be slow
  • Message flags in filename (name:2,<flags>)
    • Lots of renaming
    • Finding the current filename can be difficult
  • Maildir is lockless? Not so much, Dovecot uses write/sync lock
    • Otherwise files can temporarily be lost during renames
      • Was the file really deleted or just renamed?
dovecot index files
Dovecot Index Files
  • Main index
    • List of messages
    • Message flags
    • Offsets to cache records
  • Cache file
    • Message size, some headers, etc.
    • Keep only data that client actually uses
      • Different clients want different data for different amount of time
dovecot main index

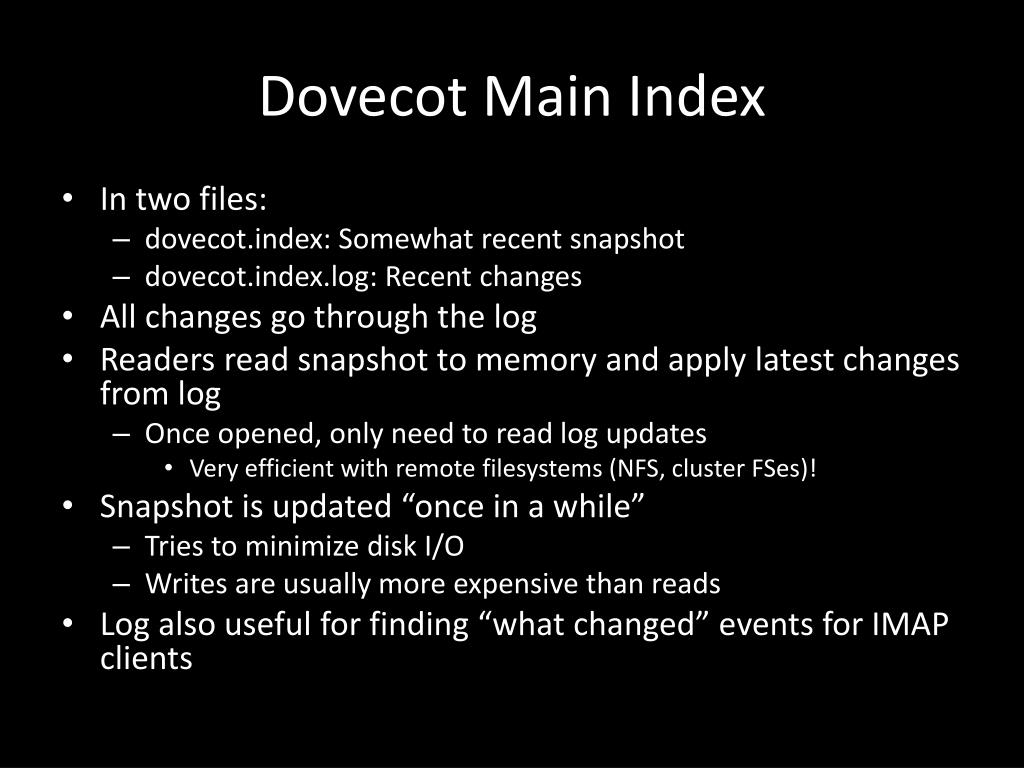

Dovecot Main Index
  • In two files:
    • dovecot.index: Somewhat recent snapshot
    • dovecot.index.log: Recent changes
  • All changes go through the log
  • Readers read snapshot to memory and apply latest changes from log
    • Once opened, only need to read log updates
      • Very efficient with remote filesystems (NFS, cluster FSes)!
  • Snapshot is updated “once in a while”
    • Tries to minimize disk I/O
    • Writes are usually more expensive than reads
  • Log also useful for finding “what changed” events for IMAP clients
dovecot cache

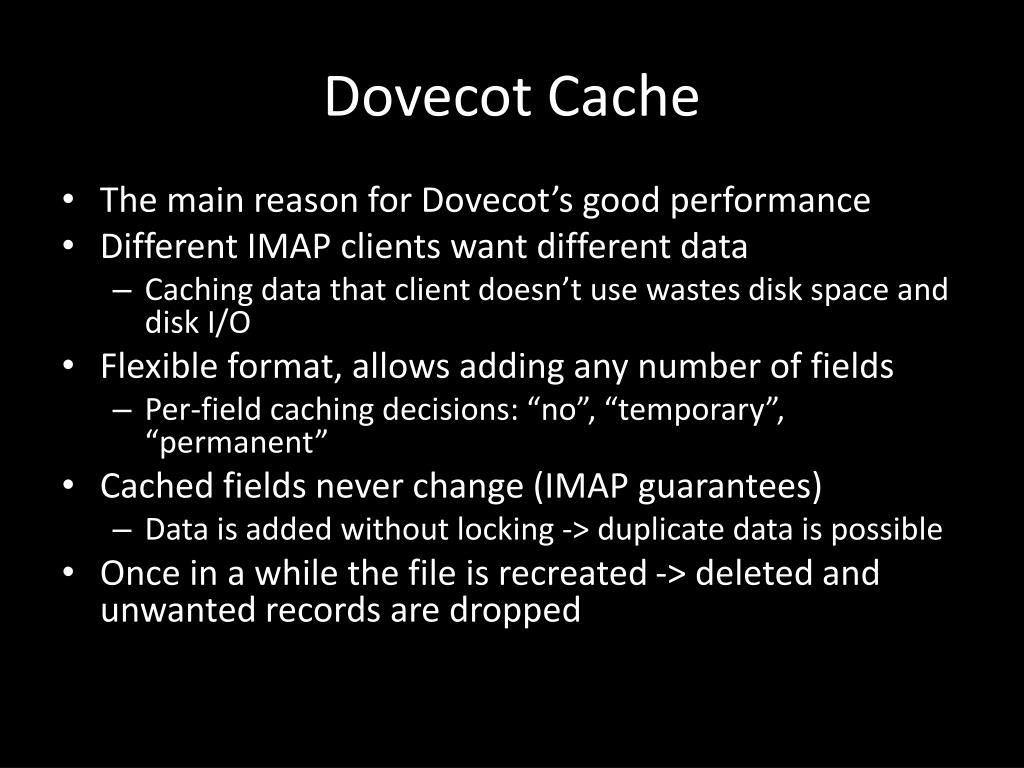

Dovecot Cache
  • The main reason for Dovecot’s good performance
  • Different IMAP clients want different data
    • Caching data that client doesn’t use wastes disk space and disk I/O
  • Flexible format, allows adding any number of fields
    • Per-field caching decisions: “no”, “temporary”, “permanent”
  • Cached fields never change (IMAP guarantees)
    • Data is added without locking -> duplicate data is possible
  • Once in a while the file is recreated -> deleted and unwanted records are dropped
locking

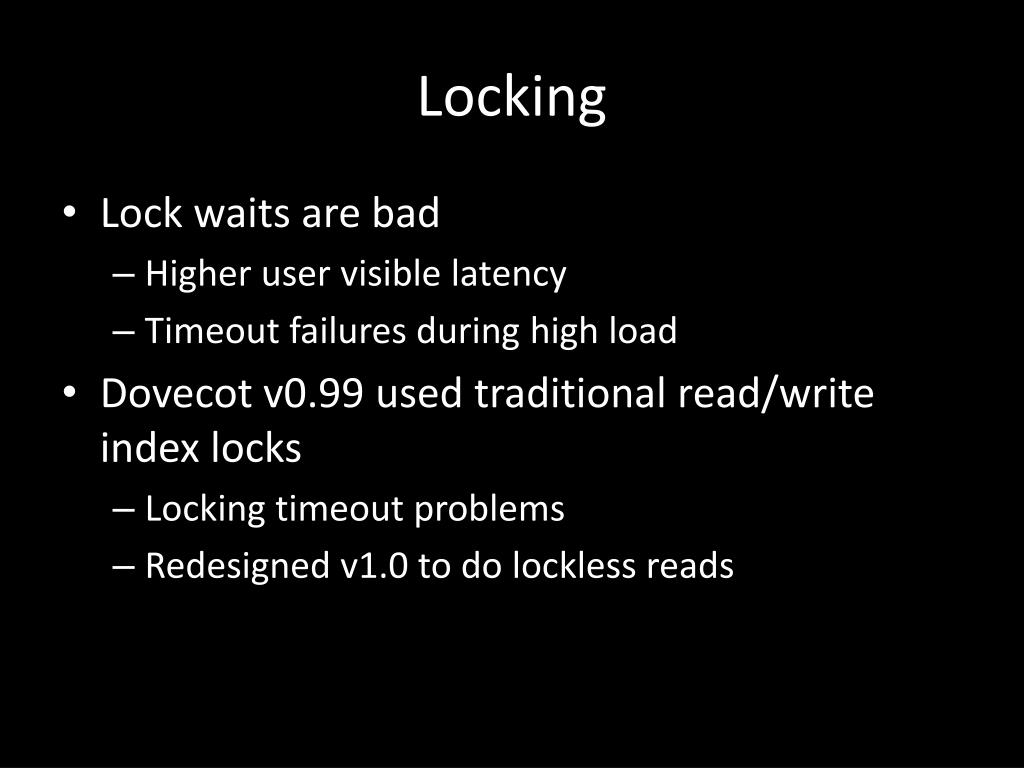

Locking
  • Lock waits are bad
    • Higher user visible latency
    • Timeout failures during high load
  • Dovecot v0.99 used traditional read/write index locks
    • Locking timeout problems
    • Redesigned v1.0 to do lockless reads
lockless reads rename
Lockless reads: rename()
  • For:
    • Small files
    • Rarely changing files
    • If a large part of the file changes
  • Writer
    • Lock
    • If file has changed, read+update internal state
    • Write the updated data to temp file
    • rename() over the original file
    • Unlock
  • Reader
    • Just read the file.

#1

Temp file

rename()

#2

lockless reads appends
Lockless reads: Appends
  • For append-only files with “size” header in each written record
  • Writer
    • Lock
    • Write data with size=0
    • Write size with each byte’s

highest bit set to 1

    • Unlock
  • Reader
    • Read one record at a time
    • Stop when seeing a size that isn’t fully written

Size

Data

lockless writes in future
Lockless writes in future?
  • open(path, O_APPEND) usually provides atomic writes
    • Except with NFS
    • write() may also return less bytes than intended? (signal, out of space)
    • read() during a write may see incomplete data?
single dbox
Single-dbox
  • One file per message (u.<IMAP UID>)
  • Files have immutable metadata section
    • GUID, POP3 UIDL, received date, etc.
  • Advantages over Maildir:
    • Filenames don’t change
    • No IMAP UID <-> filename mapping required
  • Flags stored only in Dovecot index files
    • Automatically creates dovecot.index.backup once in a while
    • When fixing corruption, tries very hard to preserve flags based on (corrupted) index and backup files
multi dbox

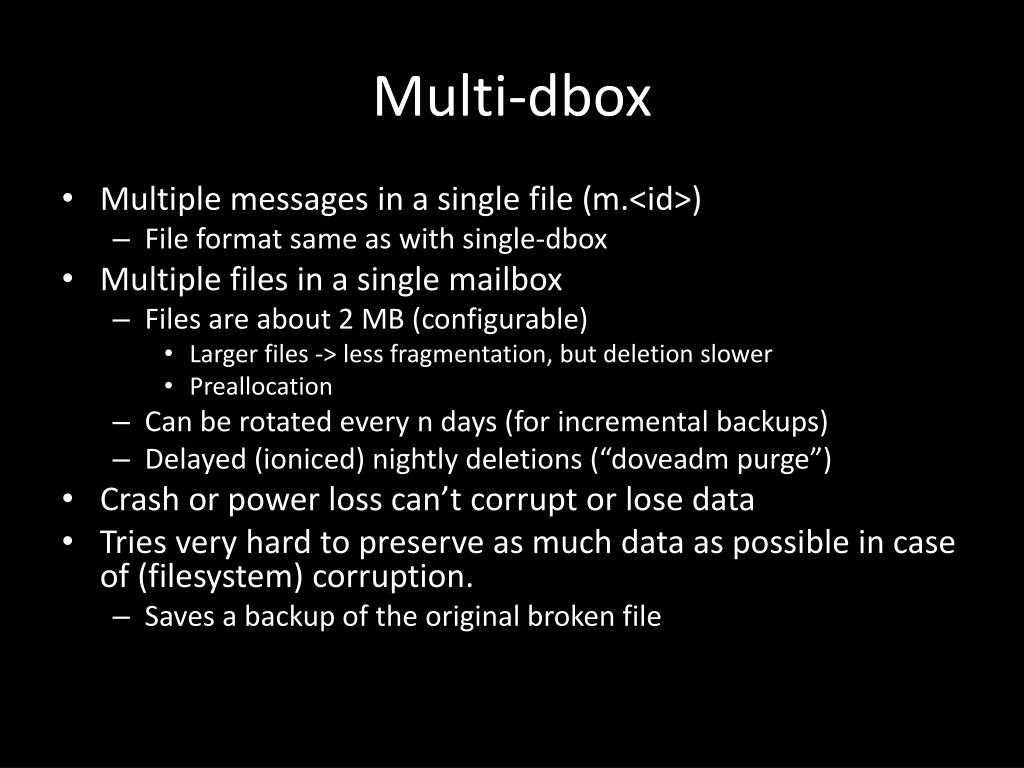

Multi-dbox
  • Multiple messages in a single file (m.<id>)
    • File format same as with single-dbox
  • Multiple files in a single mailbox
    • Files are about 2 MB (configurable)
      • Larger files -> less fragmentation, but deletion slower
      • Preallocation
    • Can be rotated every n days (for incremental backups)
    • Delayed (ioniced) nightly deletions (“doveadm purge”)
  • Crash or power loss can’t corrupt or lose data
  • Tries very hard to preserve as much data as possible in case of (filesystem) corruption.
    • Saves a backup of the original broken file
benchmarks
Benchmarks
  • Realistic IMAP benchmarks are difficult to do
  • Depends on clients and user behavior
benchmarks1

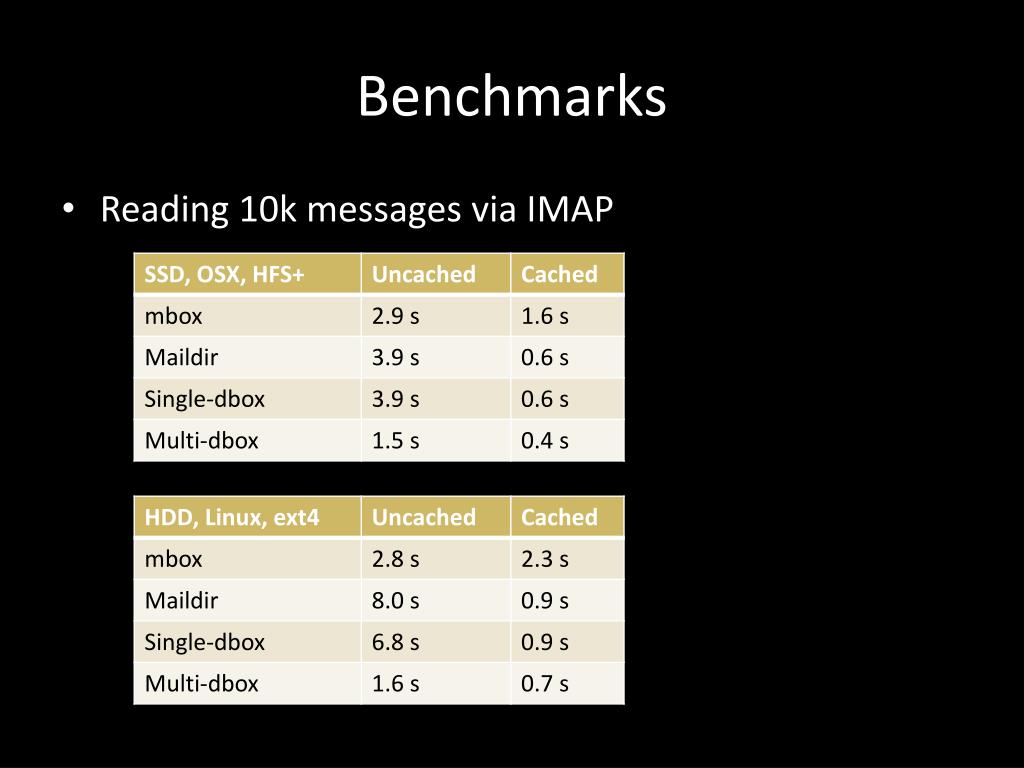

Benchmarks
  • Reading 10k messages via IMAP
benchmarks nfs ops
Benchmarks: # NFS ops
  • Reading 10k messages via IMAP
  • Above: uncached, below: cached
benchmarks nfs ops1

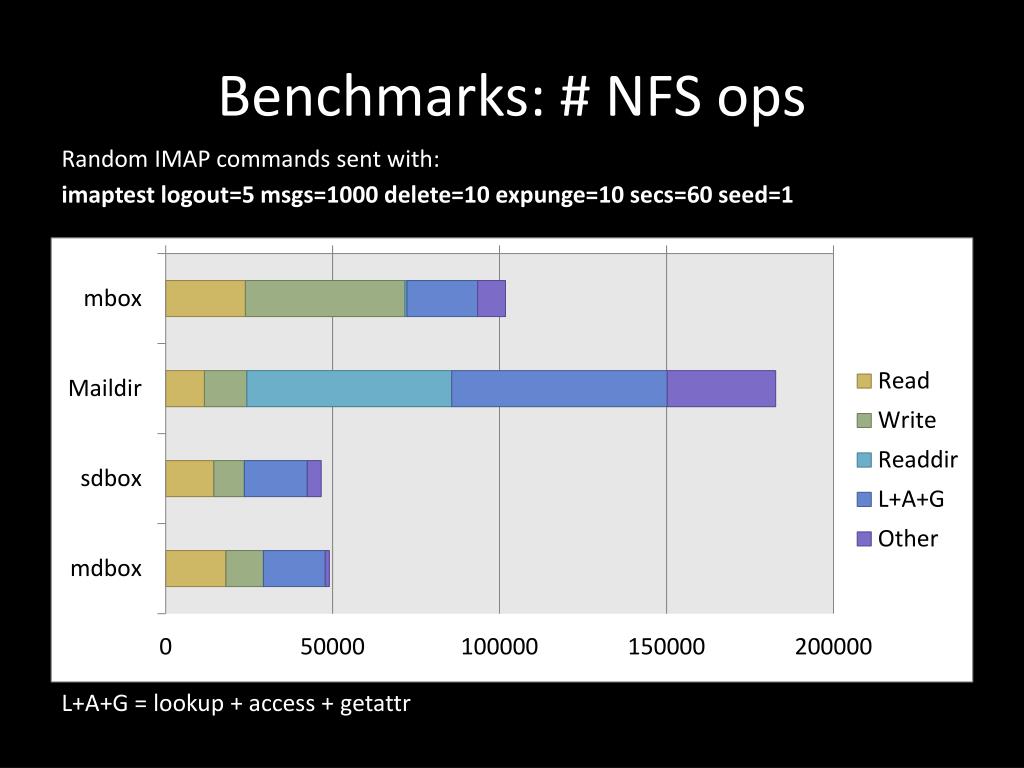

Benchmarks: # NFS ops

Random IMAP commands sent with:

imaptest logout=5 msgs=1000 delete=10 expunge=10 secs=60 seed=1

L+A+G = lookup + access + getattr

alternative mail storage
Alternative Mail Storage
  • Users rarely access their old mails
  • Lower performance storage is cheaper

-> Move old mails there

  • dbox supports “alternative path” setting: If u.* or m.* file isn’t found from primary path, it’s looked up from alternative path
    • Files could even be moved with /bin/mv
      • But easier/safer with “doveadmaltmove”
    • This would be difficult with Maildir because its filenames change
detached mail attachments
Detached Mail Attachments
  • MIME parts can be saved to external files
    • Only if they’re large enough (default: 128 kB)
    • Also can be filtered based on Content-Type, etc. headers
      • Avoid extra disk seek for downloading attachments that clients automatically display inline
  • Supports saving base64 encoded MIME parts decoded (25% less disk space)
    • Only if re-encoding can be done to 100% original
  • dbox-only
    • Metadata contains pointers to external parts
  • Saving is done via simplified “filesystem API”
single instance storage
Single Instance Storage
  • Storage’s internal deduplication
    • Could be enabled only for attachment storage
  • Dovecot’s SIS
    • FS API backend
    • Based on file hashes and hard links
      • Hash is configurable (e.g. SHA256 + size)
    • Byte-by-byte verification after hash found
      • Never, trust hash uniqueness (not implemented)
      • Immediate comparison during saving
      • Delayed (nightly) comparison and deduplication
dovecot sis
Dovecot SIS
  • Attachments saved to “HA/SH/HASH-GUID” under global attachment dir (e.g. /var/attachments/)
    • GUID guarantees filename uniqueness
    • e.g. file with hash “123456” is saved to 12/34/123456-GUID
    • “HA” and “SH” may be symlinks to other mounts
  • SIS is done by hard linking HA/SH/hashes/HASH to HA/SH/HASH-GUID if it exists.
    • Basically: “lnhashes/123456 123456-guid”
    • No attempts to create cross-mount hard links
  • Safe to move/backup/restore attachment files
    • But hashes/HASH is auto-deleted only when its link count drops from 2 to 1. External changes may leak it.
full text search indexes

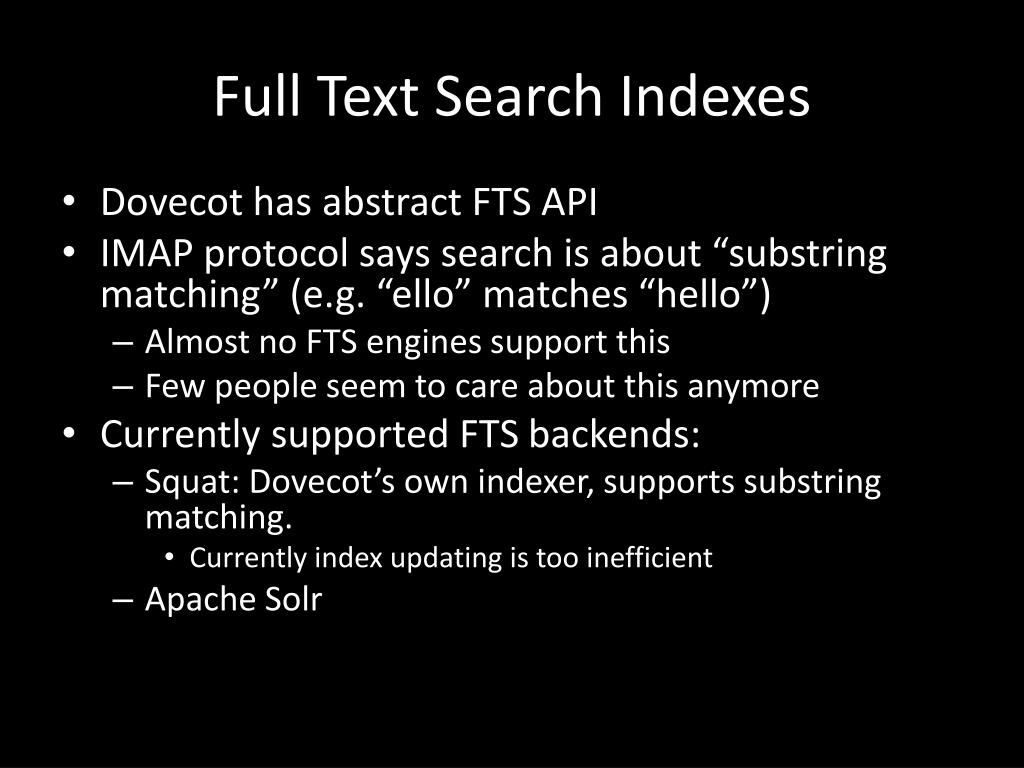

Full Text Search Indexes
  • Dovecot has abstract FTS API
  • IMAP protocol says search is about “substring matching” (e.g. “ello” matches “hello”)
    • Almost no FTS engines support this
    • Few people seem to care about this anymore
  • Currently supported FTS backends:
    • Squat: Dovecot’s own indexer, supports substring matching.
      • Currently index updating is too inefficient
    • Apache Solr
fts solr
FTS: Solr
  • Solr is a search engine server using Lucene
  • Dovecot talks to Solr via HTTP
  • Sharding via per-user fts_solr setting
future
Future
  • FS API used for indexes and dbox
    • Support for key-value databases
    • Asynchronous disk I/O
