  1. The Rover Toolkit Anthony D. Joseph Computer Science Division University of California at Berkeley BARWAN Retreat January 15, 1998

  2. MIT Rover People • Profs. Frans Kaashoek and David Gifford • Anthony D. Joseph (Toolkit arch/impl & apps) • Joshua A. Tauber (Toolkit arch & Webcal) • George M. Candea (Rover File System) • Constantine Cristakos (Rover NNTP) • Alan deLespinasse (Rover Web Browser proxy) • Michael Shurpik (Webcal)

  3. Outline • Harsh mobile environment • Rover toolkit benefits and techniques • Rover architecture • Use and benefits • Summary and future directions

  4. Mobile Applications are Hard to Build • Environment varies over an app’s lifetime • Connectivity, bandwidth, latency, and cost vary • Technological improvements won’t fix variability • Mobile computers are limited & fragile • Network partitions are frequent ($$ & shadows) • Most dist. algorithms and apps assume they’re not • Availability and consistency tradeoff • Application-adaptation is complex • When/where to move data and code • System provides mechanisms and policy engine

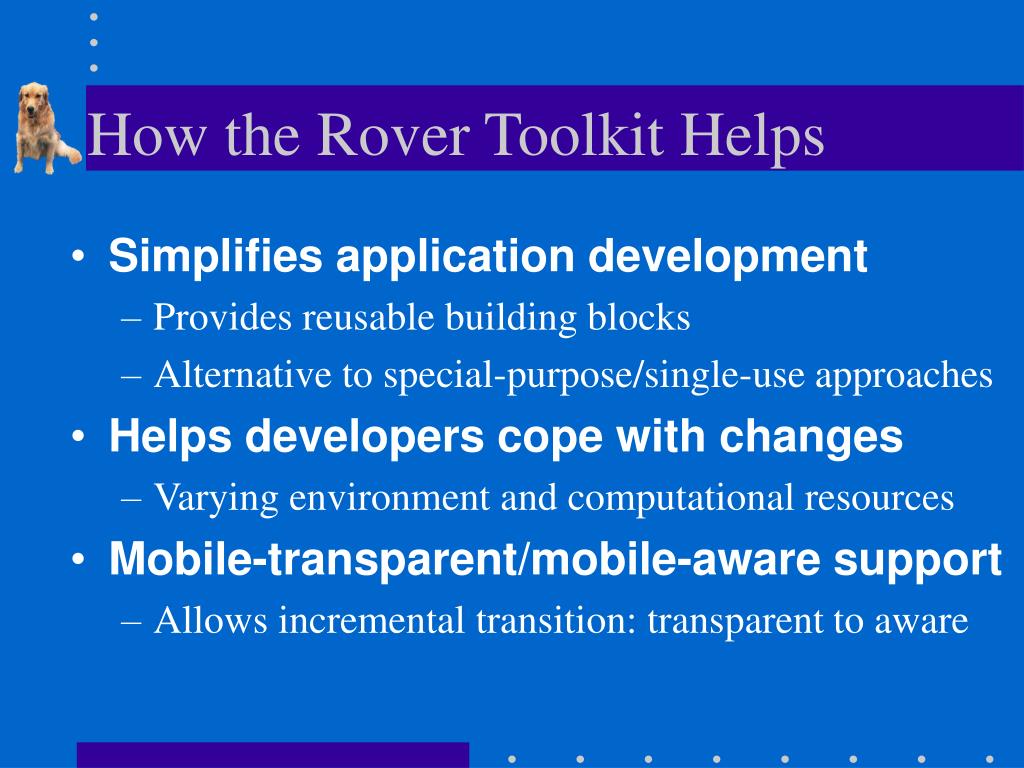

  5. How the Rover Toolkit Helps • Simplifies application development • Provides reusable building blocks • Alternative to special-purpose/single-use approaches • Helps developers cope with changes • Varying environment and computational resources • Mobile-transparent/mobile-aware support • Allows incremental transition: transparent to aware

  6. Transparent versus Aware • Mobile-transparent • Hides mobility from application • Allows the use of existing unmodified apps • Examples: Coda, Ficus, Little Work • Mobile-aware • Exposes environmental information to apps • Yields better functionality and performance • Examples: InfoPad, Daedalus, GloMop, Bayou

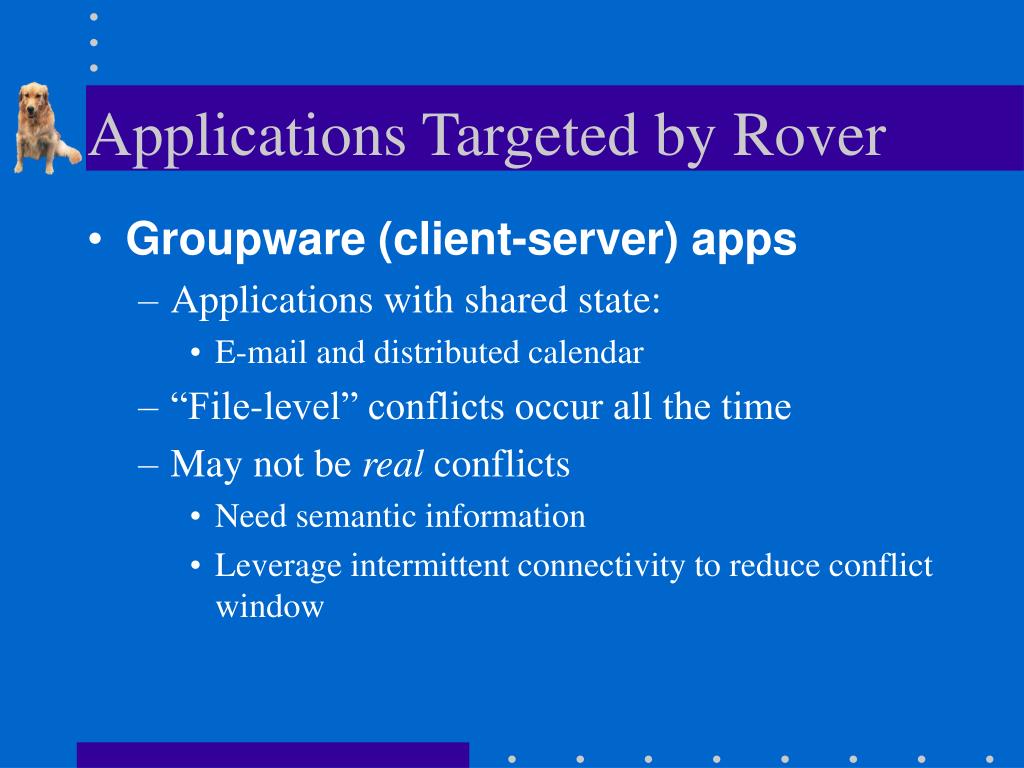

  7. Applications Targeted by Rover • Groupware (client-server) apps • Applications with shared state: • E-mail and distributed calendar • “File-level” conflicts occur all the time • May not be real conflicts • Need semantic information • Leverage intermittent connectivity to reduce conflict window

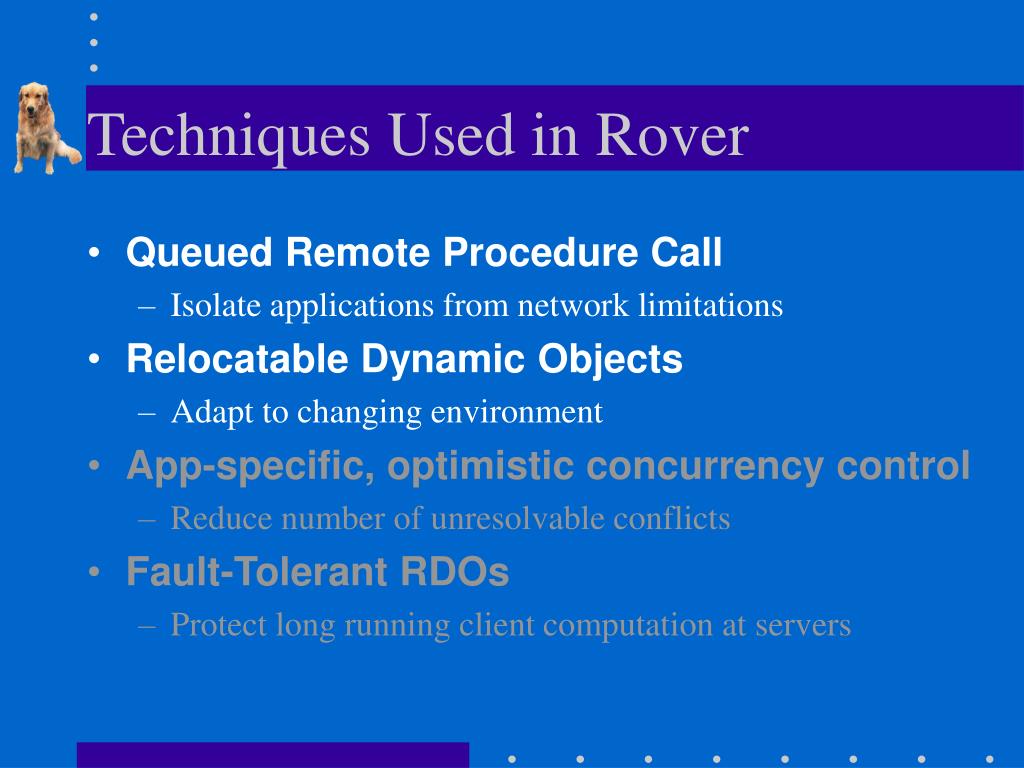

  8. Techniques Used in Rover • Queued Remote Procedure Call • Isolate applications from network limitations • Relocatable Dynamic Objects • Adapt to changing environment • App-specific, optimistic concurrency control • Reduce number of unresolvable conflicts • Fault-Tolerant RDOs • Protect long running client computation at servers

  9. Outline • Harsh mobile environment • Rover toolkit benefits and techniques • Rover architecture • Use and benefits • Summary and future directions

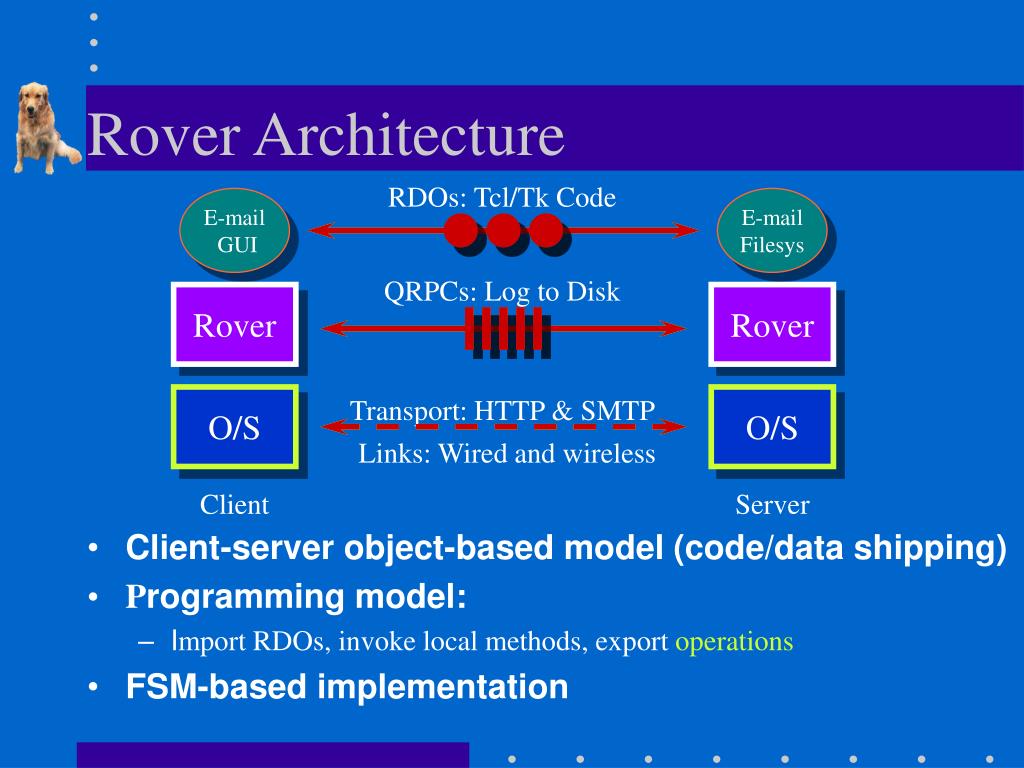

  10. E-mail GUI E-mail Filesys O/S O/S Rover Architecture RDOs: Tcl/Tk Code • Client-server object-based model (code/data shipping) • Programming model: • Import RDOs, invoke local methods, export operations • FSM-based implementation QRPCs: Log to Disk Rover Rover Transport: HTTP & SMTP Links: Wired and wireless Client Server

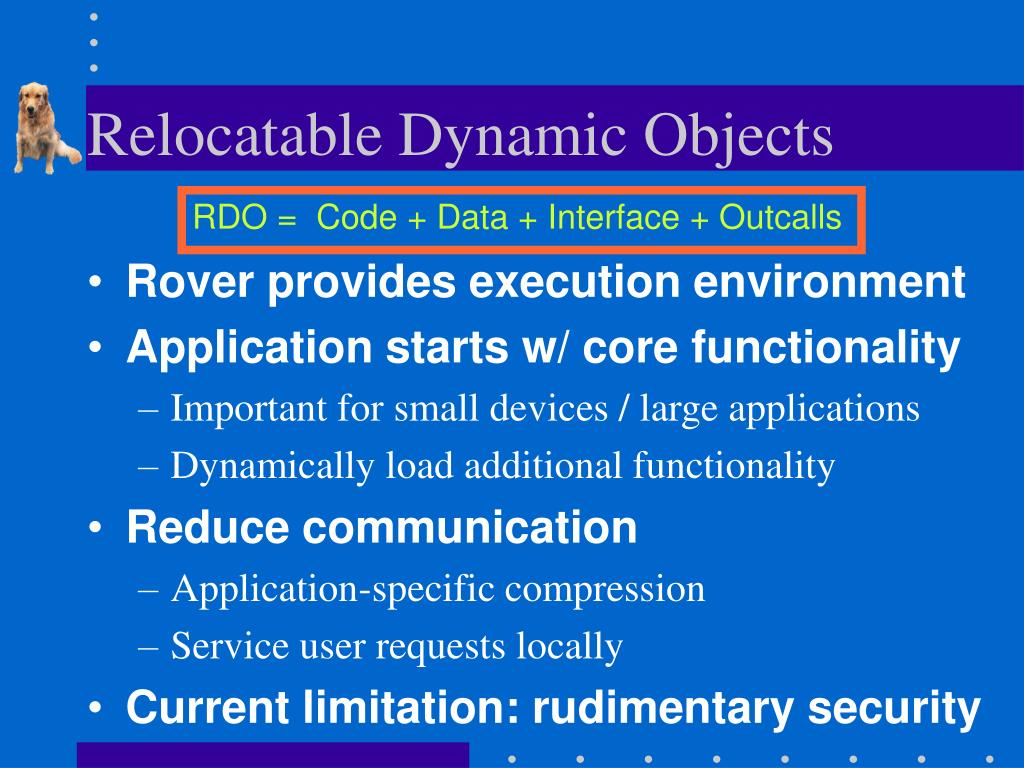

  11. Relocatable Dynamic Objects RDO = Code + Data + Interface + Outcalls • Rover provides execution environment • Application starts w/ core functionality • Important for small devices / large applications • Dynamically load additional functionality • Reduce communication • Application-specific compression • Service user requests locally • Current limitation: rudimentary security

  12. GUI Filesys Request Scheduler Stable queue Stable queues Callback Client Server Queued Remote Procedure Call QRPC = RPC + Split phase + Stable Q + Scheduler • Hides unpredictable remote access time • Tolerates network, client, and server failures

  13. QRPC Benefits • Request/reply can use different connections • Asymmetric or one-way networks • Exposes queues to applications • Applications can determine QRPC state/progress • Log compression/request absorption • Network scheduler • Allows prioritizing, batching, and compression • Reduces transmission power, time, and cost

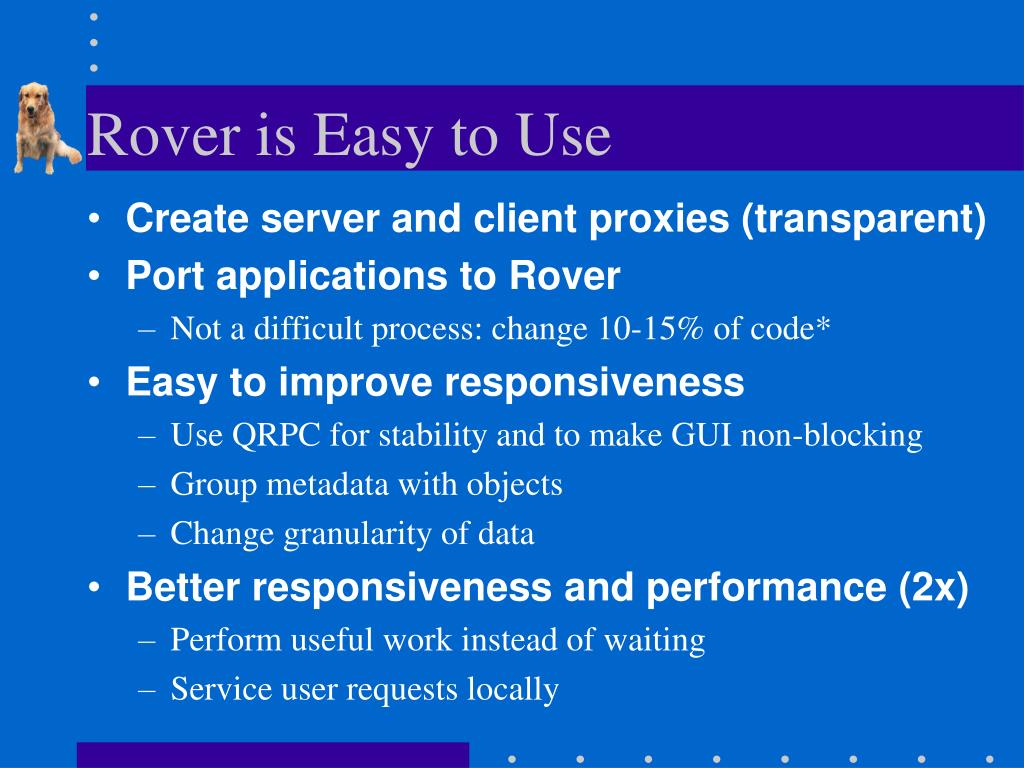

  14. Rover is Easy to Use • Create server and client proxies (transparent) • Port applications to Rover • Not a difficult process: change 10-15% of code* • Easy to improve responsiveness • Use QRPC for stability and to make GUI non-blocking • Group metadata with objects • Change granularity of data • Better responsiveness and performance (2x) • Perform useful work instead of waiting • Service user requests locally

  15. WWW Server N 2 1 WWW Server Rover Server Rover Server Rover Server Rover Server TranSend Proxy Cache Proxy Cache Queue Queue WWW Server Example: WWW Browser Proxy • “Click-ahead” for unchanged clients • Prefetches & compresses inlined objects • HTTP/1.1 (1/97): compression and pipelining (no prefetching) • Separate cache display (simple paradigm) • Better overall performance • Benefits for workstation users Client

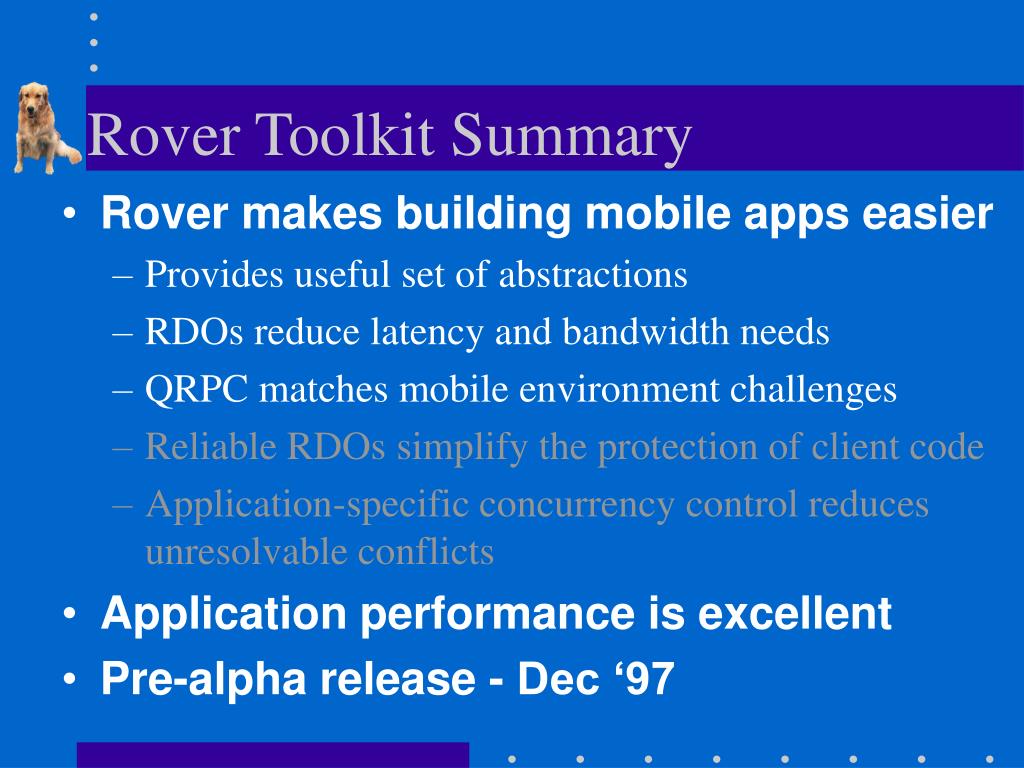

  16. Rover Toolkit Summary • Rover makes building mobile apps easier • Provides useful set of abstractions • RDOs reduce latency and bandwidth needs • QRPC matches mobile environment challenges • Reliable RDOs simplify the protection of client code • Application-specific concurrency control reduces unresolvable conflicts • Application performance is excellent • Pre-alpha release - Dec ‘97

  17. Future Directions • Java-based implementation • Provide portable QRPC operator for ProActive Infrastructure • Policies for adaptive mechanisms • When to open/close a network connection • Which network to use (b/w, latency, cost) • Security for mobile code • Code generated at clients and servers runs everywhere • How to protect private client and server data and resources • Highly-available servers • Providing consistent client views across servers [Bayou]

  18. More Future Directions • Peer-peer workgroups • Islands of high bandwidth (e.g., this retreat) • Where is the canonical copy / commit point? • Multi-layer client-server hierarchy • Similar to peer-peer workgroups • Dismounted warfighter with PDA to laptop to server

  19. Advertisement: Spring ‘98 Seminar • Mobile computing and wireless networking • CS 294: WF 12:30-2:00 (for now) in 405 Soda • Local- and wide-area wireless networks • WaveLAN, Metricom, CDPD, and GSM • Problems and issues • Mobile computing: Adapting to harsh env. • Disconnected operation/intermittent connectivity • Sharing: Consistency versus availability • Projects • From ProActive Infrastructure & Viking (BT3GC)
