  1. Colorado Water Workshop – 7.21.10 Opportunities to Save Water through Efficient Design, Appropriate Technology, and Effective Management

  2. Saving Water throughEFFICIENT DESIGN

  3. Coordination / Research • Understanding client needs/project goals • Understanding maintenance intent and management sophistication • Understanding site conditions and constraints • Pursuing alternative water sources

  4. Designing with Water Use in Mind

  5. Appropriate Plant Selection

  6. Irrigation Selection Criteria • Evaluation of application efficiency is critical during the design and equipment selection process. • Sprinkler coverage uniformity is a function of layout pattern, spacing, system pressure, and nozzle performance. • Using high efficiency sprinkler or drip application techniques where possible

  7. Distribution Rate Curve Data • The distribution rate curve or DRC: • Shows “single leg” variation in application rate from the sprinkler out to the full extend of the “effective radius.” • Single leg profiles provided by manufacturer; third-party testing by CIT in zero wind. • Design with consideration for Distribution Uniformity (DU) and Scheduling Coefficient (SC)

  8. Manufacturer Performance Data Using it effectively… • Single-leg profile for sprinkler selection

  9. Manufacturer Performance Data Using it effectively… • CIT SPACE algorithm to develop densogram for sprinkler selection 60’ SC=1.2 DU=85% 70’ SC=1.4 DU=79% 80’ SC=1.4 DU=74%

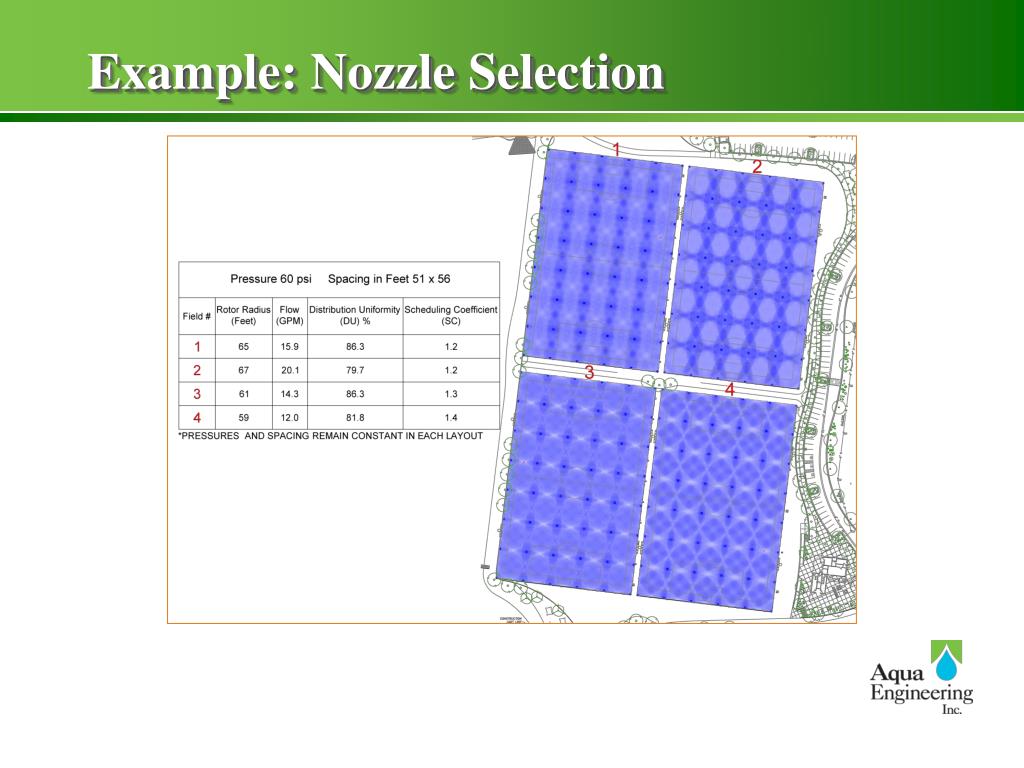

  10. Example: Nozzle Selection

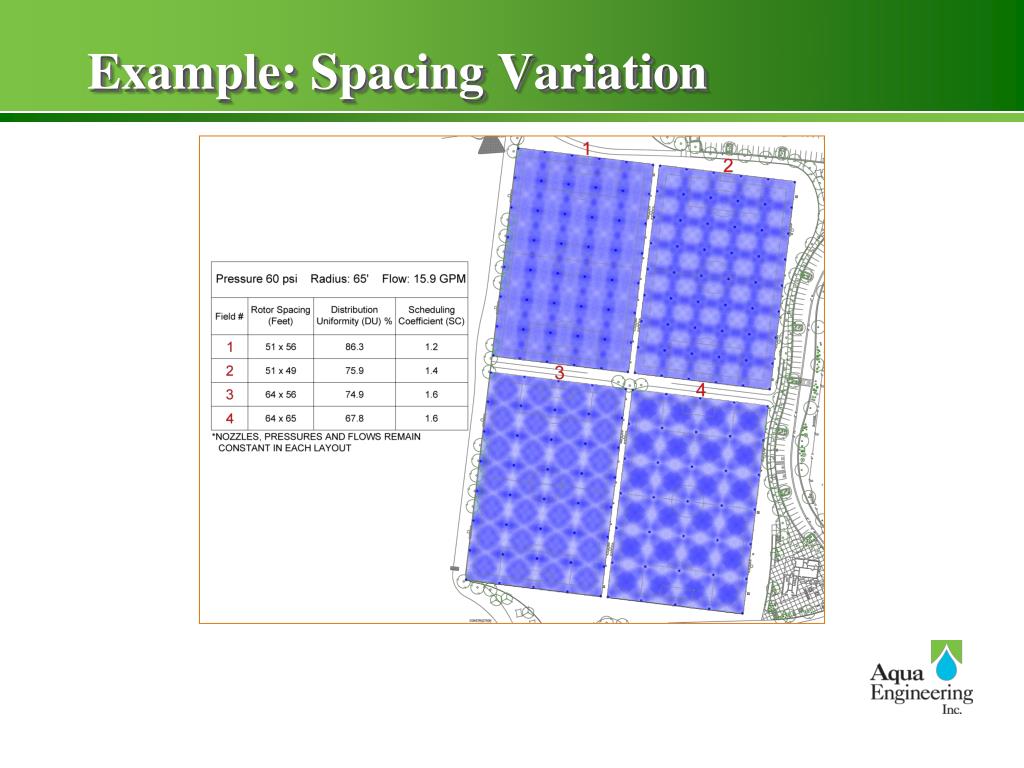

  11. Example: Spacing Variation

  12. Saving Water throughAPPROPRIATE TECHNOLOGIES

  13. Flow Sensors / Master Valves

  14. Weather Sensor Technology

  15. Soil Sensing Technology

  16. “SMART” Controller Technology

  17. Saving Water throughEFFECTIVE SYSTEM MANAGEMENT

  18. Water Auditing • Evaluation of actual system uniformity • Ongoing CONSISTENT maintenance and corrective action • Develop specific programming parameters based on actual DU and SC

  19. Actual Field Audit Summary

  20. Programming Guideline Developed from system audit.

  21. Paradigm Shift? • Managing irrigation systems based on user needs and activity, not solely on “aesthetic perception” • USGA sustainability position “We need to understand how brown can be the new green”… • Drought response planning opportunities

  22. Thank You!
