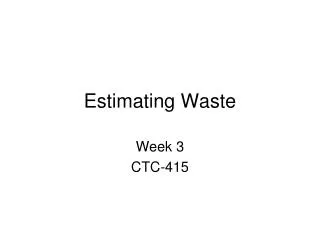

  1. Estimating Waste Week 3 CTC-415

  2. What is waste • Waste is material that needs to be supplied but may not be used • All material items except steel beams and columns have waste • Needs to be minimized

  3. Concrete & aggregate quantities • Concrete work • Some can be precisely estimated – columns, walls • Some cannot – footers, sidewalks, anything bearing on ground • Concrete batched by weight not cubic yards • May have variances due to sand and aggregate density • Assume 3 – 5% waste for variances

  4. Concrete & aggregate quantities • Asphalt • Batched by weight • Assumes uniform weight for sand, aggregate and filler • Also assumes existing grade is precise and accurate • Assumes compaction is correct • 5 – 10% waste

  5. Concrete & aggregate quantities • Sand and Gravel • Sold by weight • Based on bank volumes at pit • Based on loose volumes on truck • Based on compacted volumes at job site • Need to know swell and shrinkage of soil • Can be 25 – 40% changes • Need to know moisture content of soil

  6. Masonry • Can count block needed • Need to account for breakage • Especially if cutting block/brick to size • 5 – 20 % depending on cutting • Need to add in corners, lintels, special shapes • 5% waste

  7. Rebar • Waste comes from need to cut pieces to length • Rebar comes in lengths up to 40’ • Overlap – 30 – 40 diameters at joints • Are you buying or bending pieces? • Storage area • Mud, security, covered? will determine extra rebar needed • Caps, ties, shoes, etc – buy by the case

  8. Steel • No waste when doing steel quantities. • Beams and columns are fabricated to specs • Will have extra bolts, rivets

  9. Wood • 2x stock • Count all 2x stock as 8’ min pieces • 5 – 10% extra for blocking, bad pieces • Sheathing • Do not take out doors or windows when determining quantity • Add 5% waste • Nails & screws • Buy by the 25 – 50 # box

  10. Roof • Tar paper , roll roofing • Want full sheets across roof if possible • How many full sheets/ roll • Shingles • Measure roof divide by 100sf gives # of squares • Add 10% waste • Metal • Comes in sheets • Count full sheets needed

  11. Other Exterior • Siding • Figure square footage – excluding windows and doors • Add 5 – 10% waste • Trim • 5% waste

  12. Interior • Sheetrock • Want minimal seams 10% waste • Plumbing • Buy pipe in 10’ lengths • Minimize joints – buy in contractor packs • 5 – 10 % waste • Heating • Air – minimal waste in large ducts • Baseboard buy by length

  13. Interior • Electrical • Buy wire in boxes - 250’ lengths • charge by the box – 5% waste • Wire nuts – buy by the box • Countertop • Linoleum – by the sheet • Granite, corian – cut to fit – no waste

  14. Interior • Trim • 5 -20% waste depending on finish • Flooring • Carpet & Linoleum • Can have large waste factor depending on room size and carpet direction • Hardwood, tiles – 5%waste

  15. Exact Counts • Doors & Windows • Plumbing Fixtures • Appliances • Sinks, toilets • Light fixtures, vents, fans, outlets, switches • cabinets
