  1. TAFE Motors and Tractors limited (TMTL)

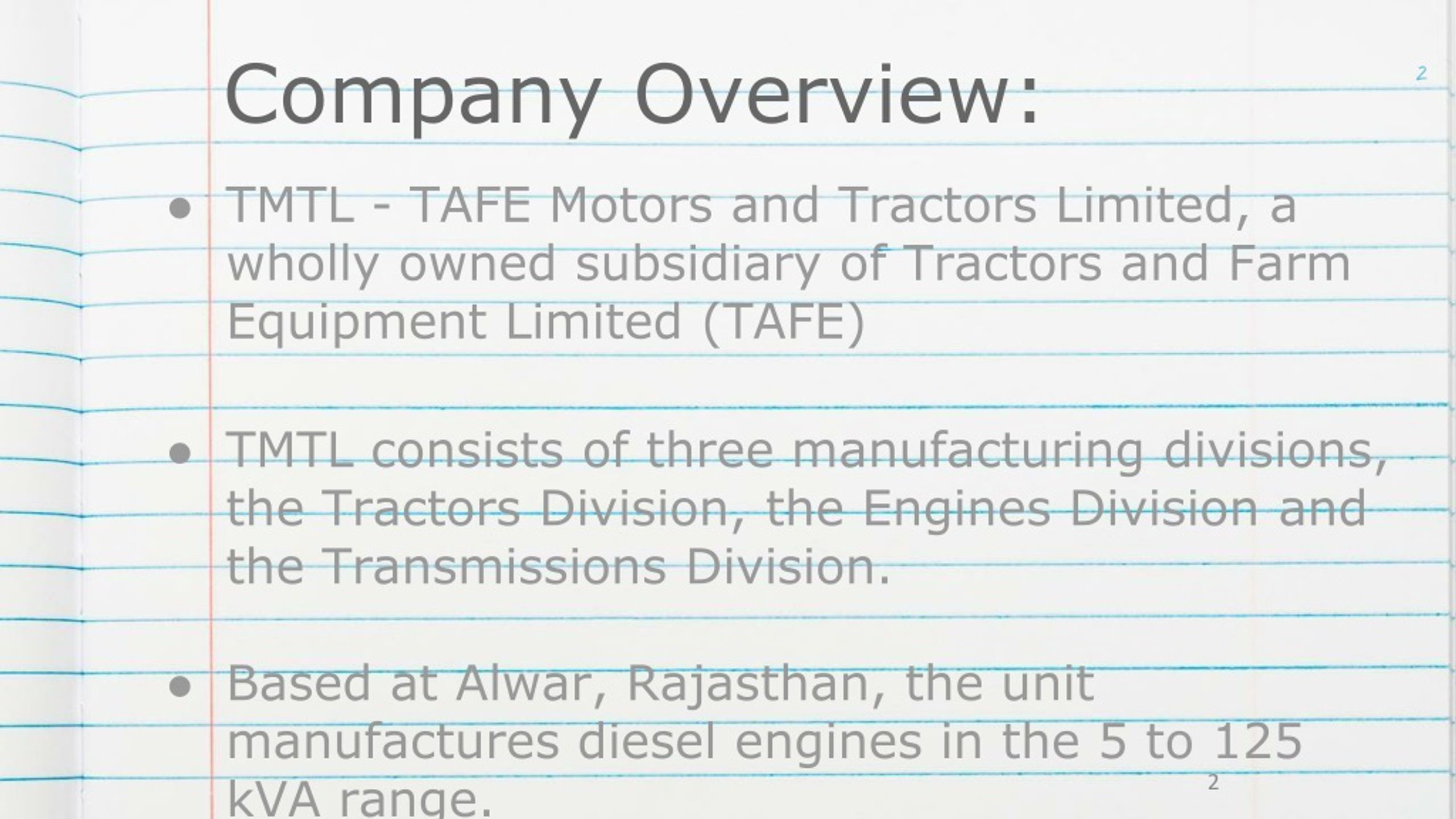

  2. Company Overview: • TMTL - TAFE Motors and Tractors Limited, a wholly owned subsidiary of Tractors and Farm Equipment Limited (TAFE) • TMTL consists of three manufacturing divisions, the Tractors Division, the Engines Division and the Transmissions Division. • Based at Alwar, Rajasthan, the unit manufactures diesel engines in the 5 to 125 kVA range. ‹#›

  3. How does a diesel generator produce electricity?

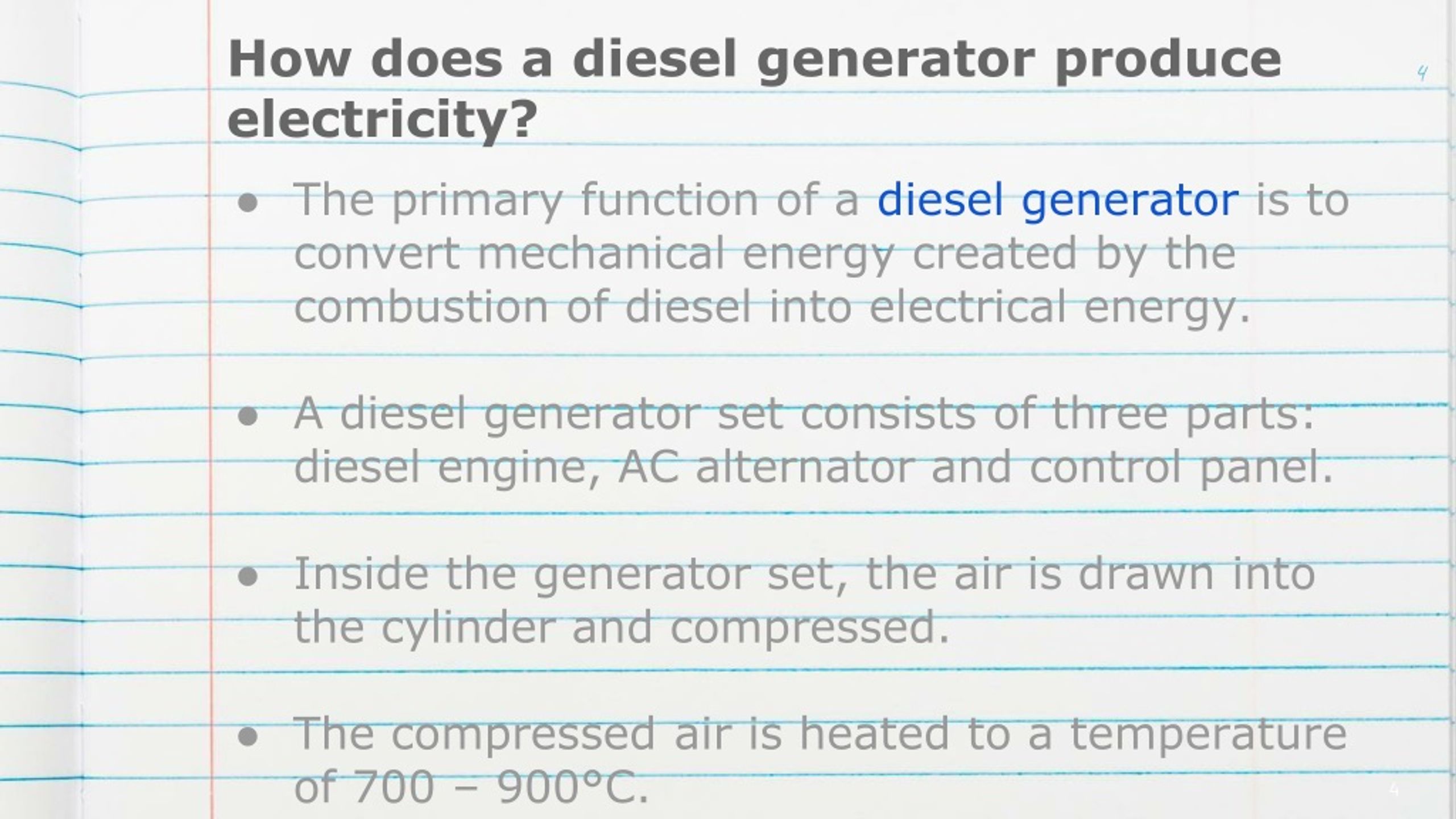

  4. How does a diesel generator produce electricity? • The primary function of a diesel generator is to convert mechanical energy created by the combustion of diesel into electrical energy. • A diesel generator set consists of three parts: diesel engine, AC alternator and control panel. • Inside the generator set, the air is drawn into the cylinder and compressed. • The compressed air is heated to a temperature of 700 – 900°C. ‹#›

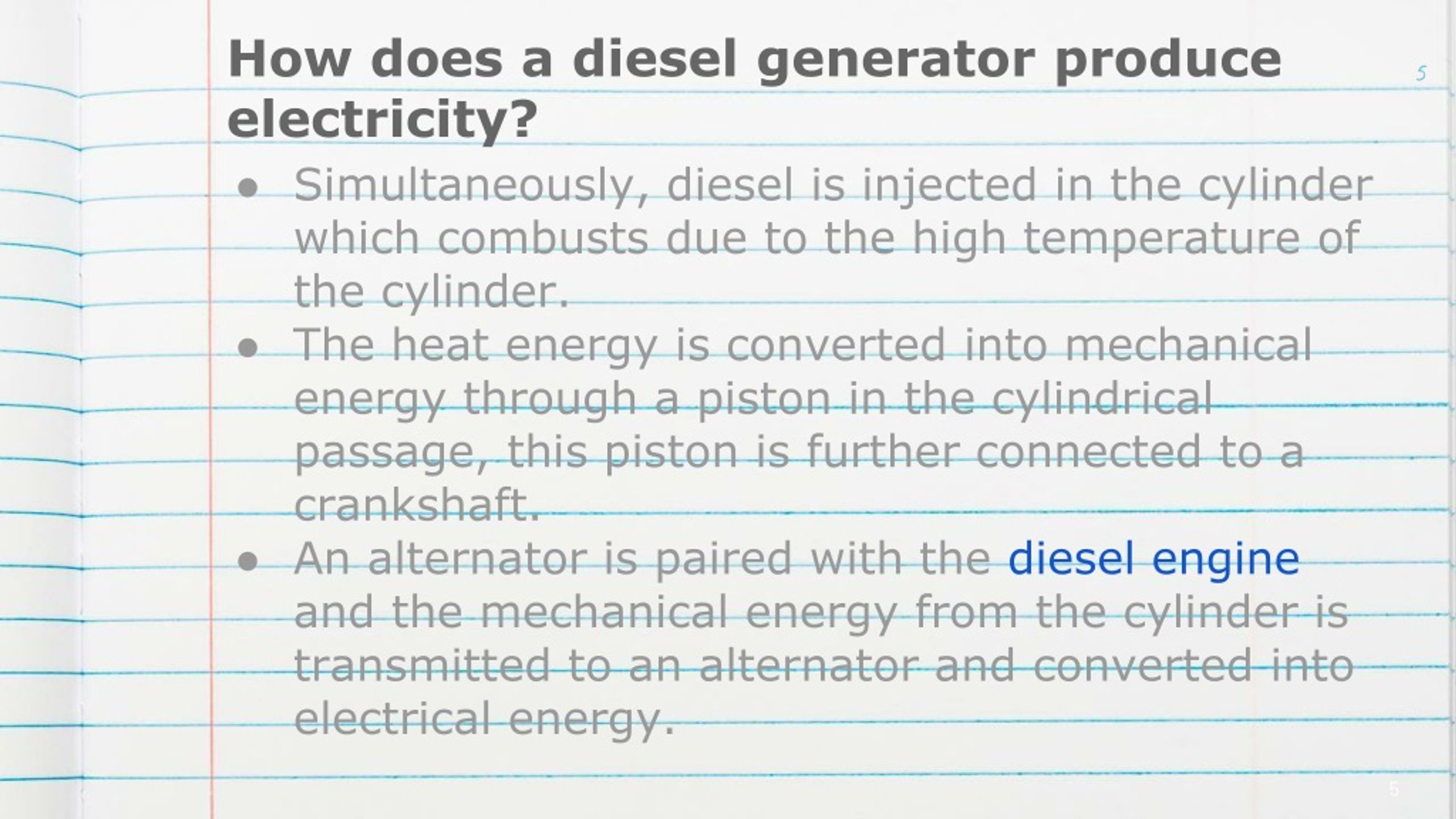

  5. How does a diesel generator produce electricity? • Simultaneously, diesel is injected in the cylinder which combusts due to the high temperature of the cylinder. • The heat energy is converted into mechanical energy through a piston in the cylindrical passage, this piston is further connected to a crankshaft. • An alternator is paired with the diesel engine and the mechanical energy from the cylinder is transmitted to an alternator and converted into electrical energy. ‹#›

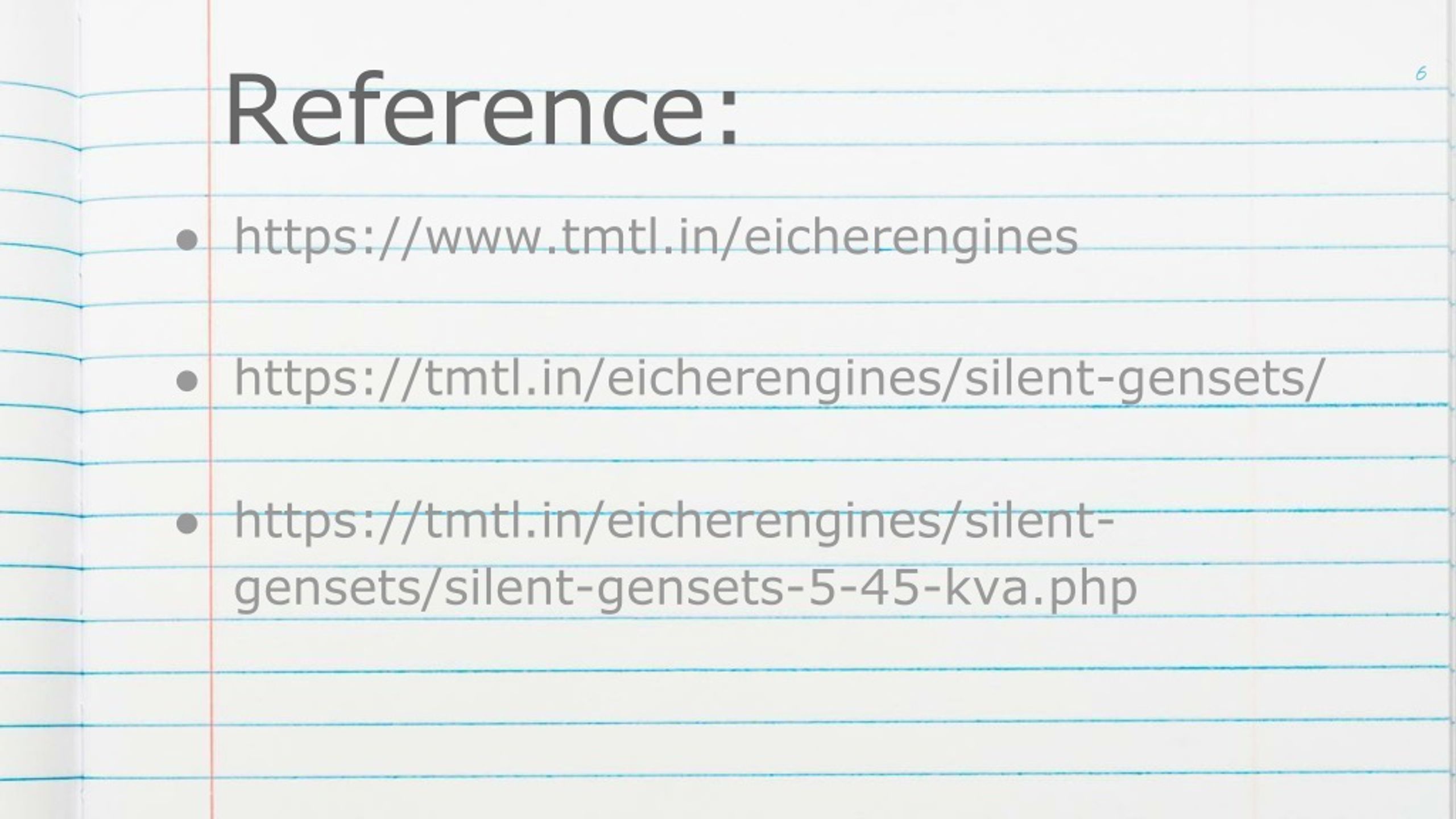

  6. Reference: • https://www.tmtl.in/eicherengines • https://tmtl.in/eicherengines/silent-gensets/ • https://tmtl.in/eicherengines/silent-gensets/silent-gensets-5-45-kva.php

  7. Thank You
