Presentation Transcript

  1. Experimental Design • Dependent variable (DV): Variable observed to determine the effects of an experimental manipulation (behavior) • Independent variable (IV): Variable manipulated by the experimenter (environmental event or treatment) • Confounding variable: Source of influence other than the IV that may produce changes in the DV • Experimental design: Rules for applying an IV so as to examine its effects on a DV • Functional relation: A relationship in which changes in one variable (DV) are demonstrated to be the result (a function) of changes in another variable (IV) • Single subject design: An experimental design in which a functional relationship can be demonstrated with the behavior of only one subject • Baseline: Condition in effect prior to introduction of the IV • A-B notation system: “A” denotes baseline; subsequent letters (“B,” “C,” etc.) denote different IVs • Replication: Duplication of earlier conditions in an experiment

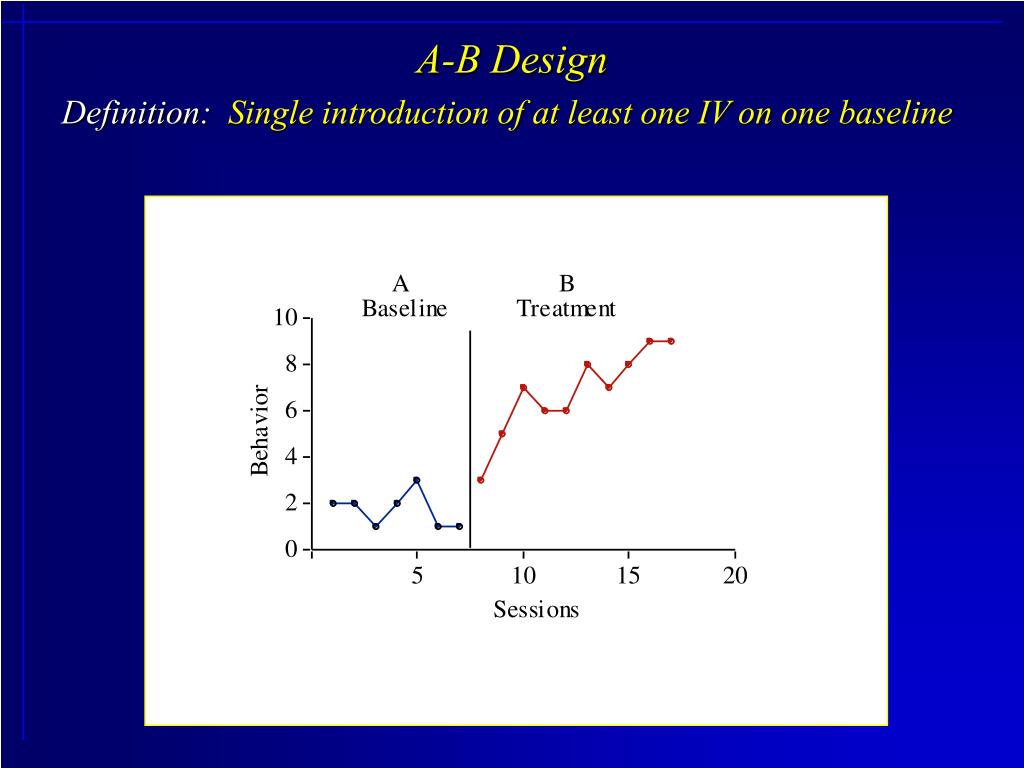

  2. A-B Design Definition: Single introduction of at least one IV on one baseline

  3. A-B Design • Definition: Single introduction of at least one IV on at least one baseline • Advantage: Repeated measurement under BL (A) and Rx (B) conditions allows examination of changes in level, trend, and variability • Limitations: • No replication • Therefore, does not rule out the influence of confounding variables • Therefore, no demonstration of a functional relation

  4. Reversal Design (ABA)

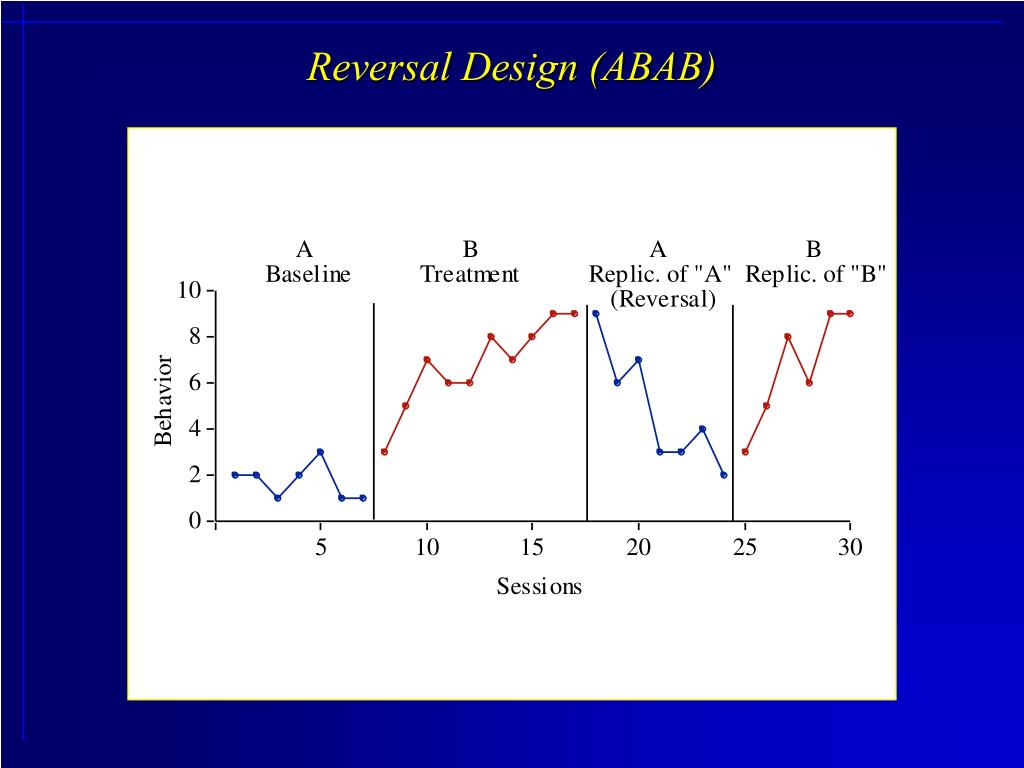

  5. Reversal Design (ABAB)

  6. Reversal Design • Definition: Introduction and subsequent removal of at least one IV on one BL • Variations: ABAB, ABA, BAB, ABAC, etc. • Advantage: Simple yet powerful demonstration of experimental control • Limitations: • Detrimental effects of reversal: Ethical considerations • Irreversibility: Failure to reproduce effect observed in a previous phase even though conditions are arranged identically • Sequence/Order effect: Influence of a previous manipulation on responding in a later condition (e.g., training  contingencies)

  7. Irreversibility (suspected)

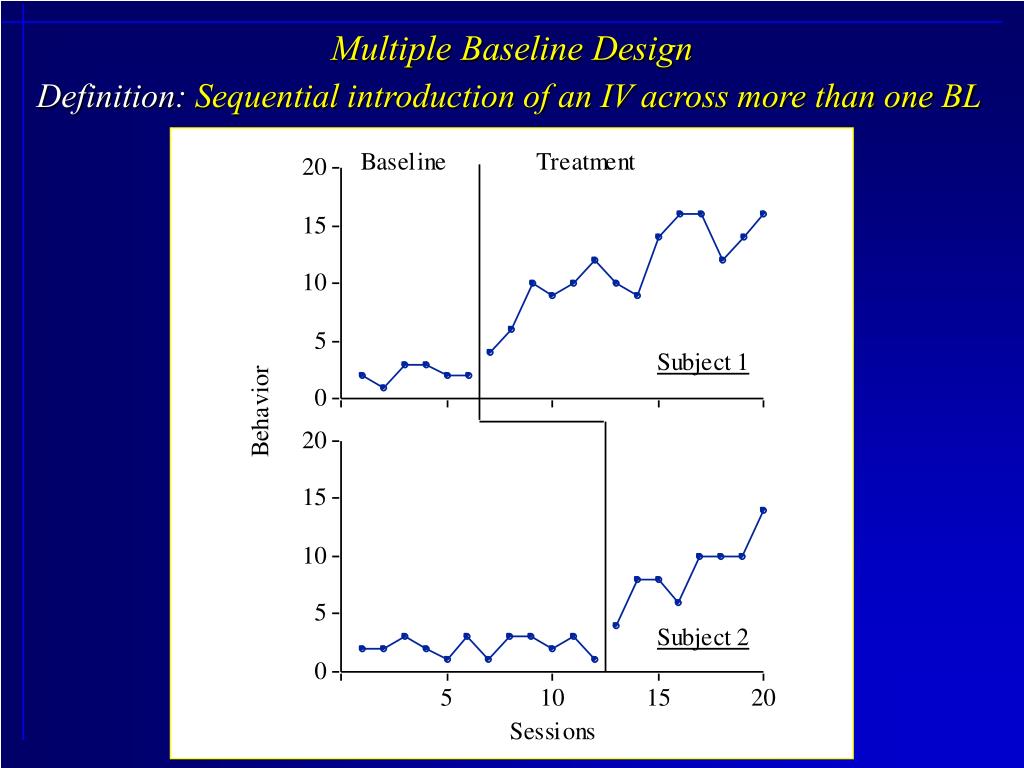

  8. Multiple Baseline Design Definition: Sequential introduction of an IV across more than one BL

  9. Multiple Baseline Design • Definition: Sequential introduction of an IV across more than one BL • Variations: Across subjects, behaviors, settings • Advantage: Does not require reversal to show experimental control • Disadvantages: • Stability requirement more cumbersome than with a reversal design • Potential generalization across baselines (more likely with MBL across behaviors or settings)

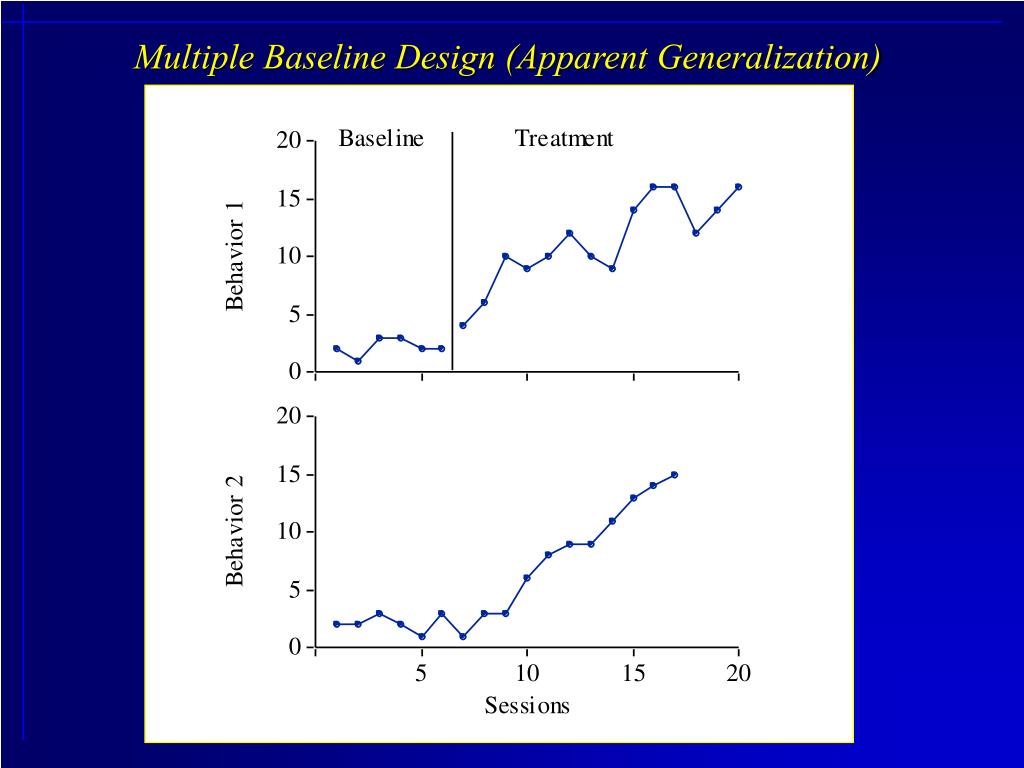

  10. Multiple Baseline Design (Apparent Generalization)

  11. Multielement Design Definition: Rapid alternation of BL and IV conditions (or 2 or more IVs) on a single BL

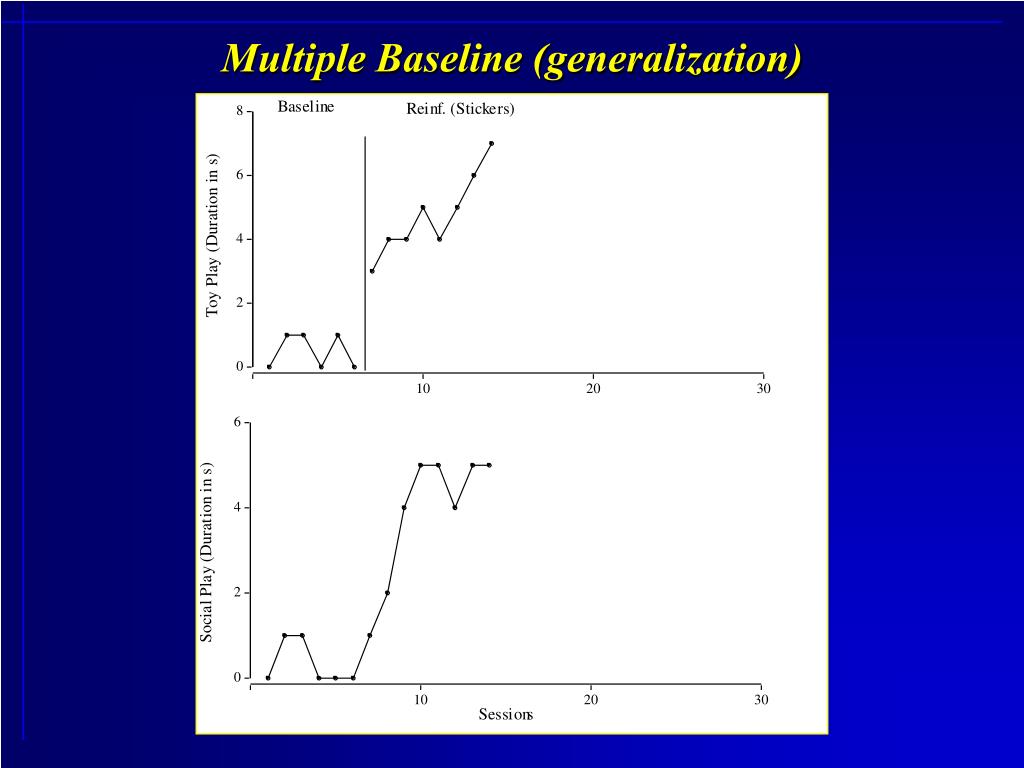

  12. Multiple Baseline (generalization)

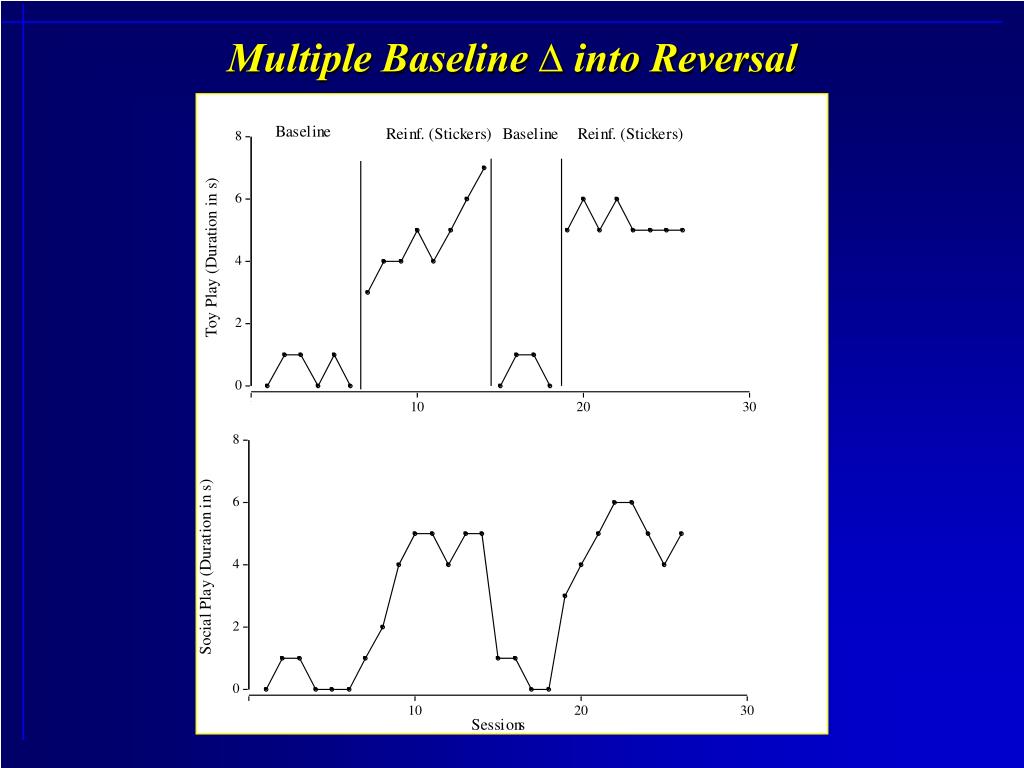

  13. Multiple Baseline ∆ into Reversal

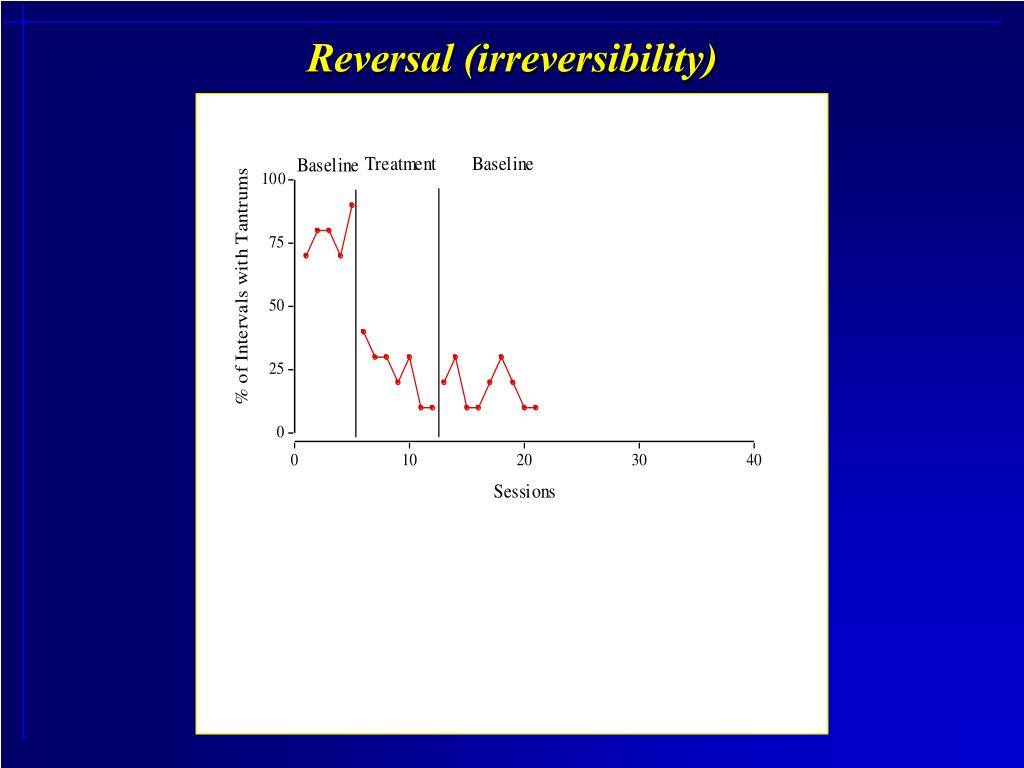

  14. Reversal (irreversibility)

  15. Reversal ∆ into Multiple BL across Subjects
