Complete Guide to Ansys_ Everything You Need to Know

1. Complete Guide to Ansys: Everything You Need to Know

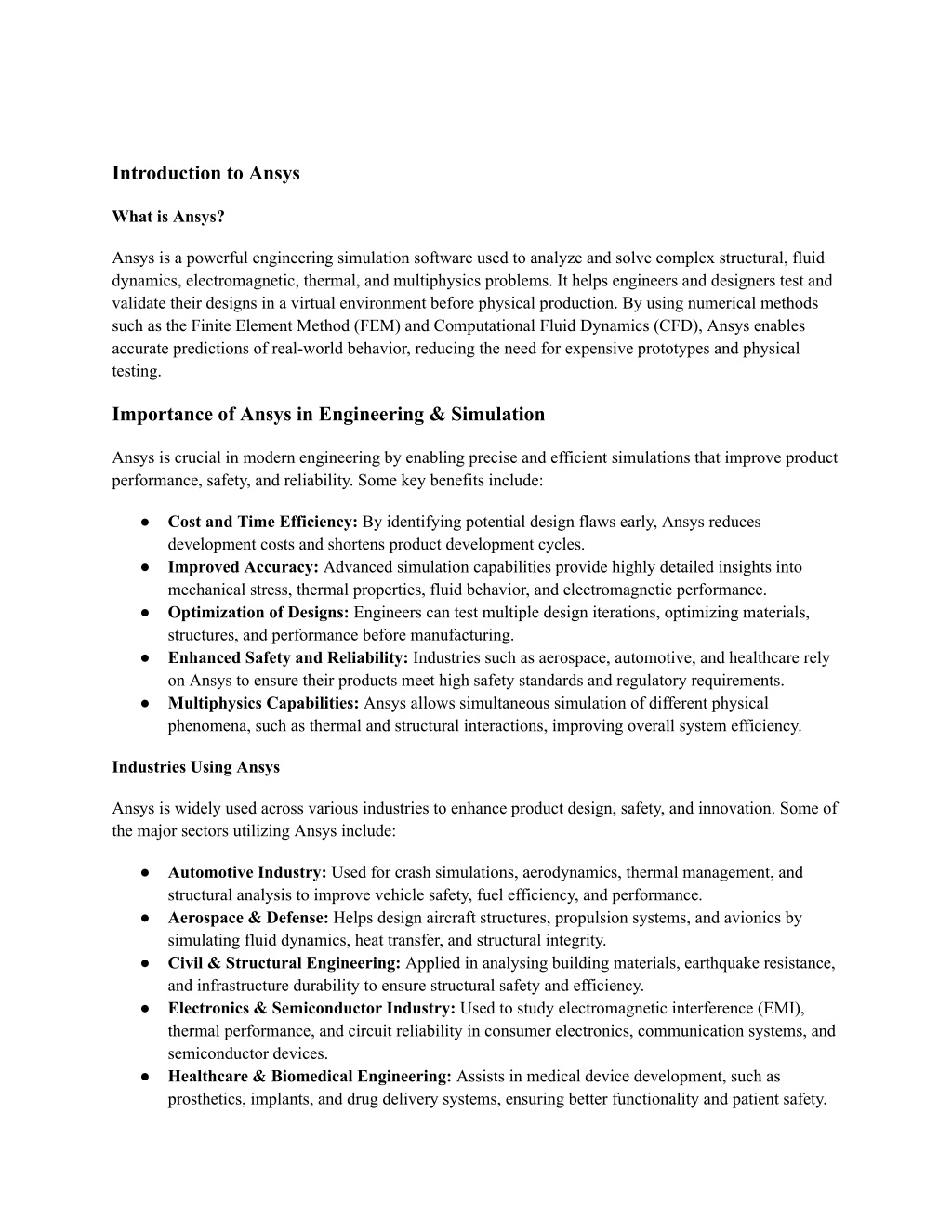

2. Introduction to Ansys What is Ansys? Ansys is a powerful engineering simulation software used to analyze and solve complex structural, fluid dynamics, electromagnetic, thermal, and multiphysics problems. It helps engineers and designers test and validate their designs in a virtual environment before physical production. By using numerical methods such as the Finite Element Method (FEM) and Computational Fluid Dynamics (CFD), Ansys enables accurate predictions of real-world behavior, reducing the need for expensive prototypes and physical testing. Importance of Ansys in Engineering & Simulation Ansys is crucial in modern engineering by enabling precise and efficient simulations that improve product performance, safety, and reliability. Some key benefits include: ● Cost and Time Efficiency: By identifying potential design flaws early, Ansys reduces development costs and shortens product development cycles. ● Improved Accuracy: Advanced simulation capabilities provide highly detailed insights into mechanical stress, thermal properties, fluid behavior, and electromagnetic performance. ● Optimization of Designs: Engineers can test multiple design iterations, optimizing materials, structures, and performance before manufacturing. ● Enhanced Safety and Reliability: Industries such as aerospace, automotive, and healthcare rely on Ansys to ensure their products meet high safety standards and regulatory requirements. ● Multiphysics Capabilities: Ansys allows simultaneous simulation of different physical phenomena, such as thermal and structural interactions, improving overall system efficiency. Industries Using Ansys Ansys is widely used across various industries to enhance product design, safety, and innovation. Some of the major sectors utilizing Ansys include: ● Automotive Industry: Used for crash simulations, aerodynamics, thermal management, and structural analysis to improve vehicle safety, fuel efficiency, and performance. ● Aerospace & Defense: Helps design aircraft structures, propulsion systems, and avionics by simulating fluid dynamics, heat transfer, and structural integrity. ● Civil & Structural Engineering: Applied in analysing building materials, earthquake resistance, and infrastructure durability to ensure structural safety and efficiency. ● Electronics & Semiconductor Industry: Used to study electromagnetic interference (EMI), thermal performance, and circuit reliability in consumer electronics, communication systems, and semiconductor devices. ● Healthcare & Biomedical Engineering: Assists in medical device development, such as prosthetics, implants, and drug delivery systems, ensuring better functionality and patient safety.

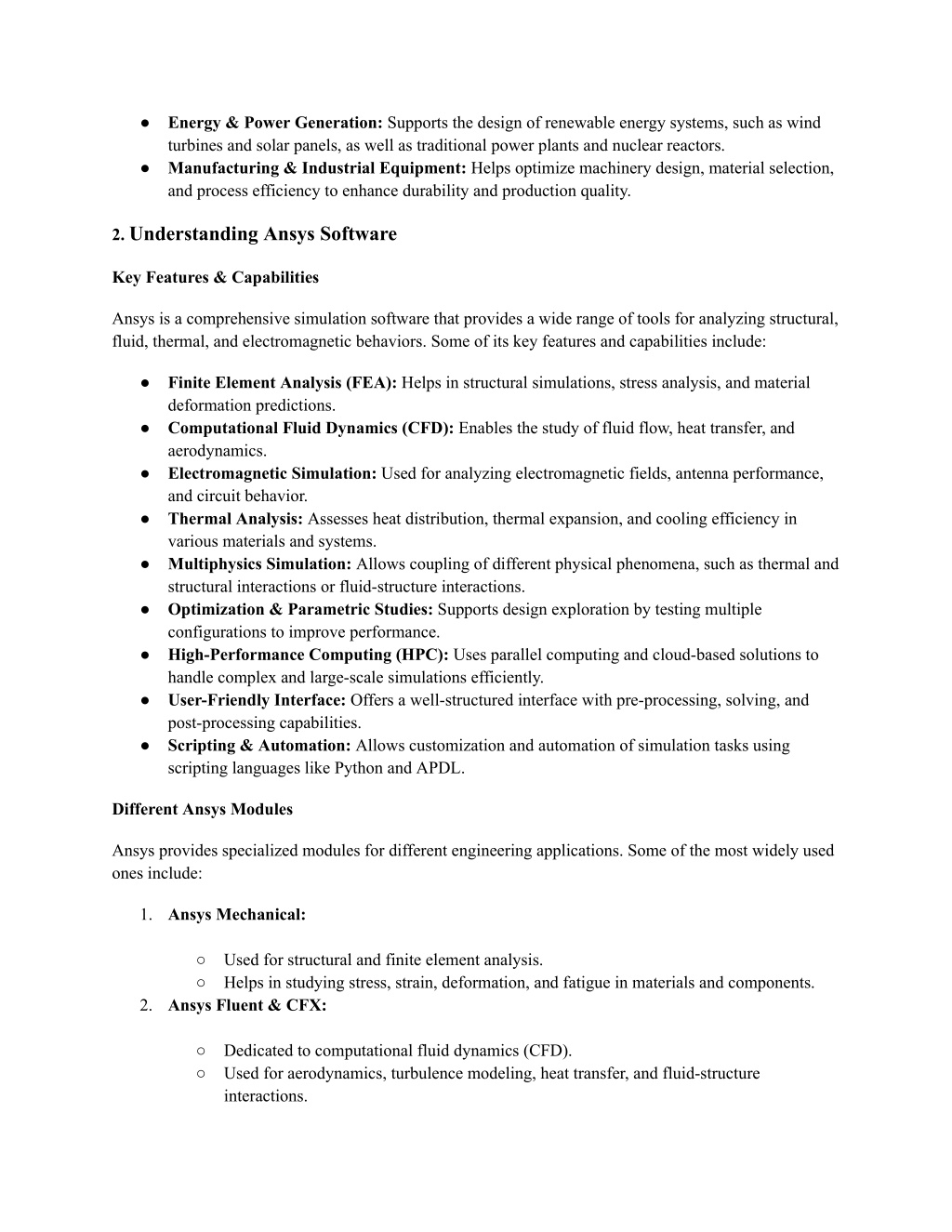

3. ● Energy & Power Generation: Supports the design of renewable energy systems, such as wind turbines and solar panels, as well as traditional power plants and nuclear reactors. ● Manufacturing & Industrial Equipment: Helps optimize machinery design, material selection, and process efficiency to enhance durability and production quality. 2. Understanding Ansys Software Key Features & Capabilities Ansys is a comprehensive simulation software that provides a wide range of tools for analyzing structural, fluid, thermal, and electromagnetic behaviors. Some of its key features and capabilities include: ● Finite Element Analysis (FEA): Helps in structural simulations, stress analysis, and material deformation predictions. ● Computational Fluid Dynamics (CFD): Enables the study of fluid flow, heat transfer, and aerodynamics. ● Electromagnetic Simulation: Used for analyzing electromagnetic fields, antenna performance, and circuit behavior. ● Thermal Analysis: Assesses heat distribution, thermal expansion, and cooling efficiency in various materials and systems. ● Multiphysics Simulation: Allows coupling of different physical phenomena, such as thermal and structural interactions or fluid-structure interactions. ● Optimization & Parametric Studies: Supports design exploration by testing multiple configurations to improve performance. ● High-Performance Computing (HPC): Uses parallel computing and cloud-based solutions to handle complex and large-scale simulations efficiently. ● User-Friendly Interface: Offers a well-structured interface with pre-processing, solving, and post-processing capabilities. ● Scripting & Automation: Allows customization and automation of simulation tasks using scripting languages like Python and APDL. Different Ansys Modules Ansys provides specialized modules for different engineering applications. Some of the most widely used ones include: 1. Ansys Mechanical: ○ Used for structural and finite element analysis. ○ Helps in studying stress, strain, deformation, and fatigue in materials and components. 2. Ansys Fluent & CFX: ○ Dedicated to computational fluid dynamics (CFD). ○ Used for aerodynamics, turbulence modeling, heat transfer, and fluid-structure interactions.

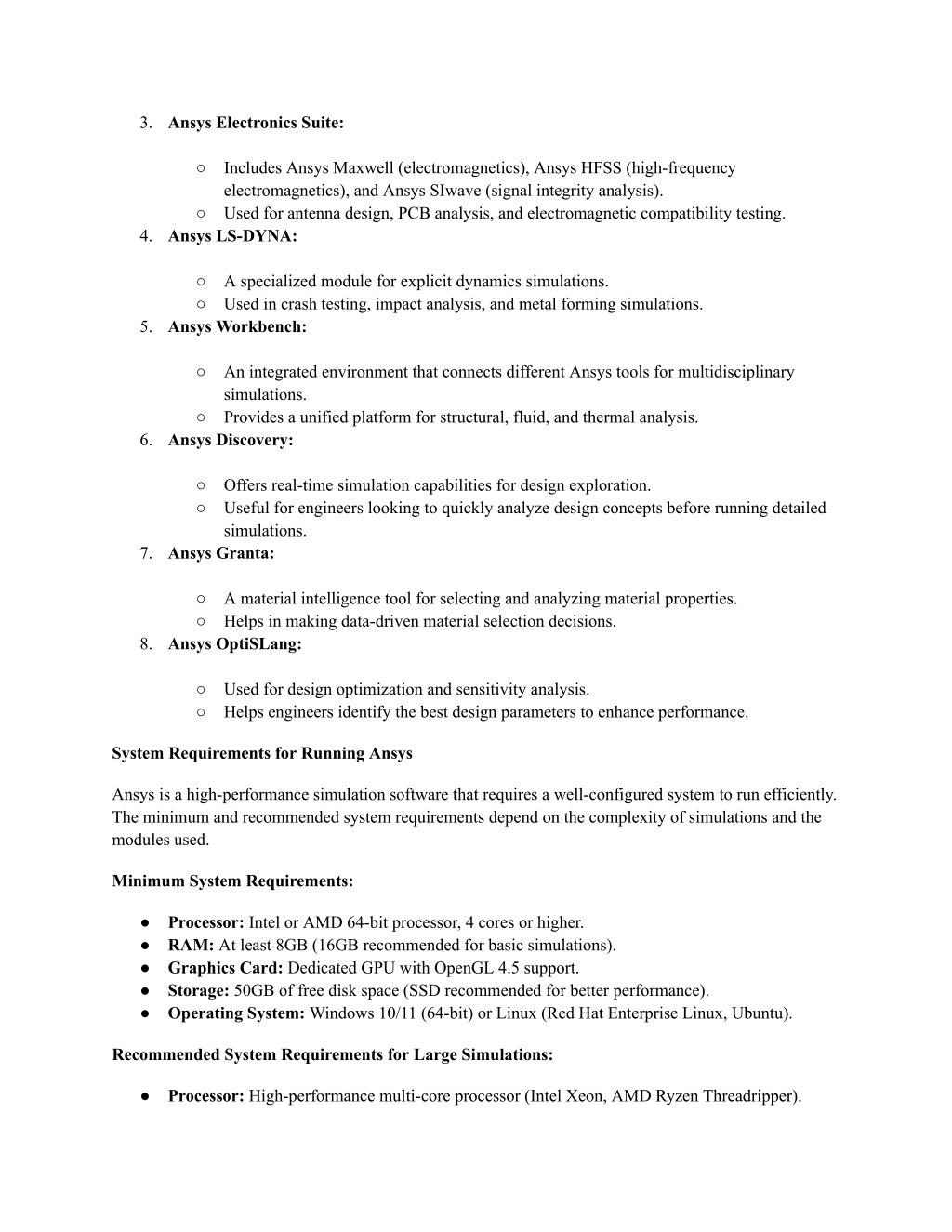

4. 3. Ansys Electronics Suite: ○ Includes Ansys Maxwell (electromagnetics), Ansys HFSS (high-frequency electromagnetics), and Ansys SIwave (signal integrity analysis). ○ Used for antenna design, PCB analysis, and electromagnetic compatibility testing. 4. Ansys LS-DYNA: ○ A specialized module for explicit dynamics simulations. ○ Used in crash testing, impact analysis, and metal forming simulations. 5. Ansys Workbench: ○ An integrated environment that connects different Ansys tools for multidisciplinary simulations. ○ Provides a unified platform for structural, fluid, and thermal analysis. 6. Ansys Discovery: ○ Offers real-time simulation capabilities for design exploration. ○ Useful for engineers looking to quickly analyze design concepts before running detailed simulations. 7. Ansys Granta: ○ A material intelligence tool for selecting and analyzing material properties. ○ Helps in making data-driven material selection decisions. 8. Ansys OptiSLang: ○ Used for design optimization and sensitivity analysis. ○ Helps engineers identify the best design parameters to enhance performance. System Requirements for Running Ansys Ansys is a high-performance simulation software that requires a well-configured system to run efficiently. The minimum and recommended system requirements depend on the complexity of simulations and the modules used. Minimum System Requirements: ● Processor: Intel or AMD 64-bit processor, 4 cores or higher. ● RAM: At least 8GB (16GB recommended for basic simulations). ● Graphics Card: Dedicated GPU with OpenGL 4.5 support. ● Storage: 50GB of free disk space (SSD recommended for better performance). ● Operating System: Windows 10/11 (64-bit) or Linux (Red Hat Enterprise Linux, Ubuntu). Recommended System Requirements for Large Simulations: ● Processor: High-performance multi-core processor (Intel Xeon, AMD Ryzen Threadripper).

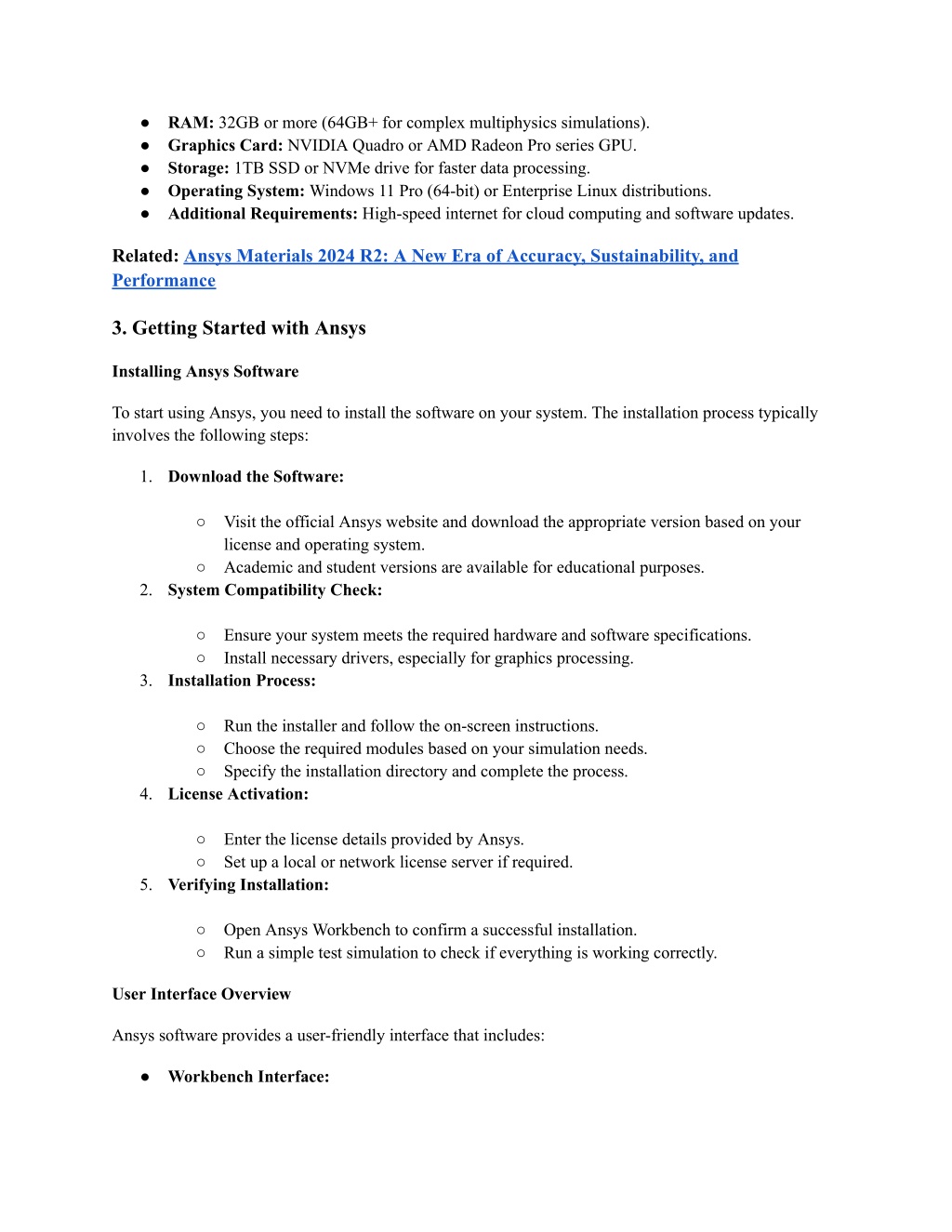

5. ● RAM: 32GB or more (64GB+ for complex multiphysics simulations). ● Graphics Card: NVIDIA Quadro or AMD Radeon Pro series GPU. ● Storage: 1TB SSD or NVMe drive for faster data processing. ● Operating System: Windows 11 Pro (64-bit) or Enterprise Linux distributions. ● Additional Requirements: High-speed internet for cloud computing and software updates. Related:Ansys Materials 2024 R2: A New Era of Accuracy, Sustainability, and Performance 3. Getting Started with Ansys Installing Ansys Software To start using Ansys, you need to install the software on your system. The installation process typically involves the following steps: 1. Download the Software: ○ Visit the official Ansys website and download the appropriate version based on your license and operating system. ○ Academic and student versions are available for educational purposes. 2. System Compatibility Check: ○ Ensure your system meets the required hardware and software specifications. ○ Install necessary drivers, especially for graphics processing. 3. Installation Process: ○ Run the installer and follow the on-screen instructions. ○ Choose the required modules based on your simulation needs. ○ Specify the installation directory and complete the process. 4. License Activation: ○ Enter the license details provided by Ansys. ○ Set up a local or network license server if required. 5. Verifying Installation: ○ Open Ansys Workbench to confirm a successful installation. ○ Run a simple test simulation to check if everything is working correctly. User Interface Overview Ansys software provides a user-friendly interface that includes: ● Workbench Interface:

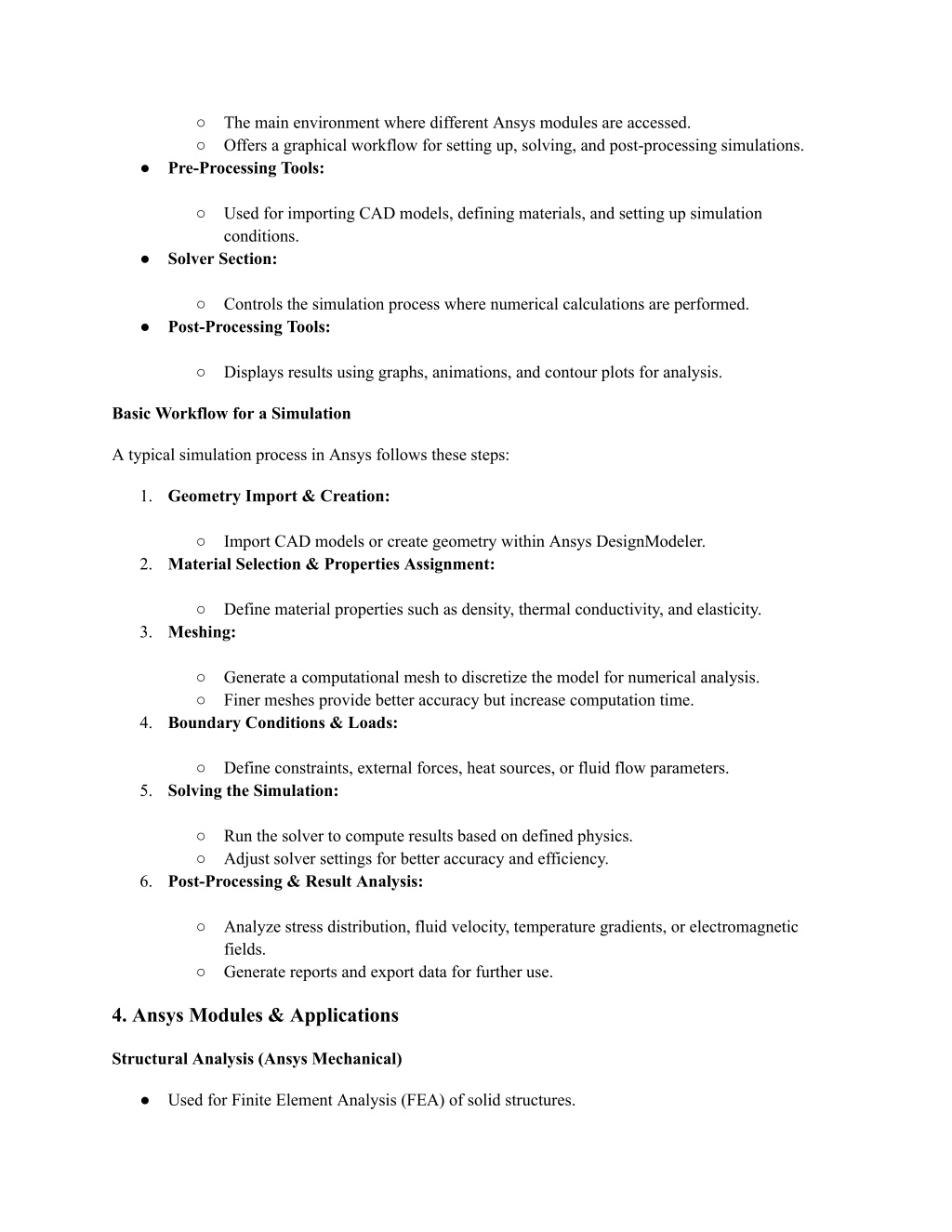

6. ○ The main environment where different Ansys modules are accessed. ○ Offers a graphical workflow for setting up, solving, and post-processing simulations. ● Pre-Processing Tools: ○ Used for importing CAD models, defining materials, and setting up simulation conditions. ● Solver Section: ○ Controls the simulation process where numerical calculations are performed. ● Post-Processing Tools: ○ Displays results using graphs, animations, and contour plots for analysis. Basic Workflow for a Simulation A typical simulation process in Ansys follows these steps: 1. Geometry Import & Creation: ○ Import CAD models or create geometry within Ansys DesignModeler. 2. Material Selection & Properties Assignment: ○ Define material properties such as density, thermal conductivity, and elasticity. 3. Meshing: ○ Generate a computational mesh to discretize the model for numerical analysis. ○ Finer meshes provide better accuracy but increase computation time. 4. Boundary Conditions & Loads: ○ Define constraints, external forces, heat sources, or fluid flow parameters. 5. Solving the Simulation: ○ Run the solver to compute results based on defined physics. ○ Adjust solver settings for better accuracy and efficiency. 6. Post-Processing & Result Analysis: ○ Analyze stress distribution, fluid velocity, temperature gradients, or electromagnetic fields. ○ Generate reports and export data for further use. 4. Ansys Modules & Applications Structural Analysis (Ansys Mechanical) ● Used for Finite Element Analysis (FEA) of solid structures.

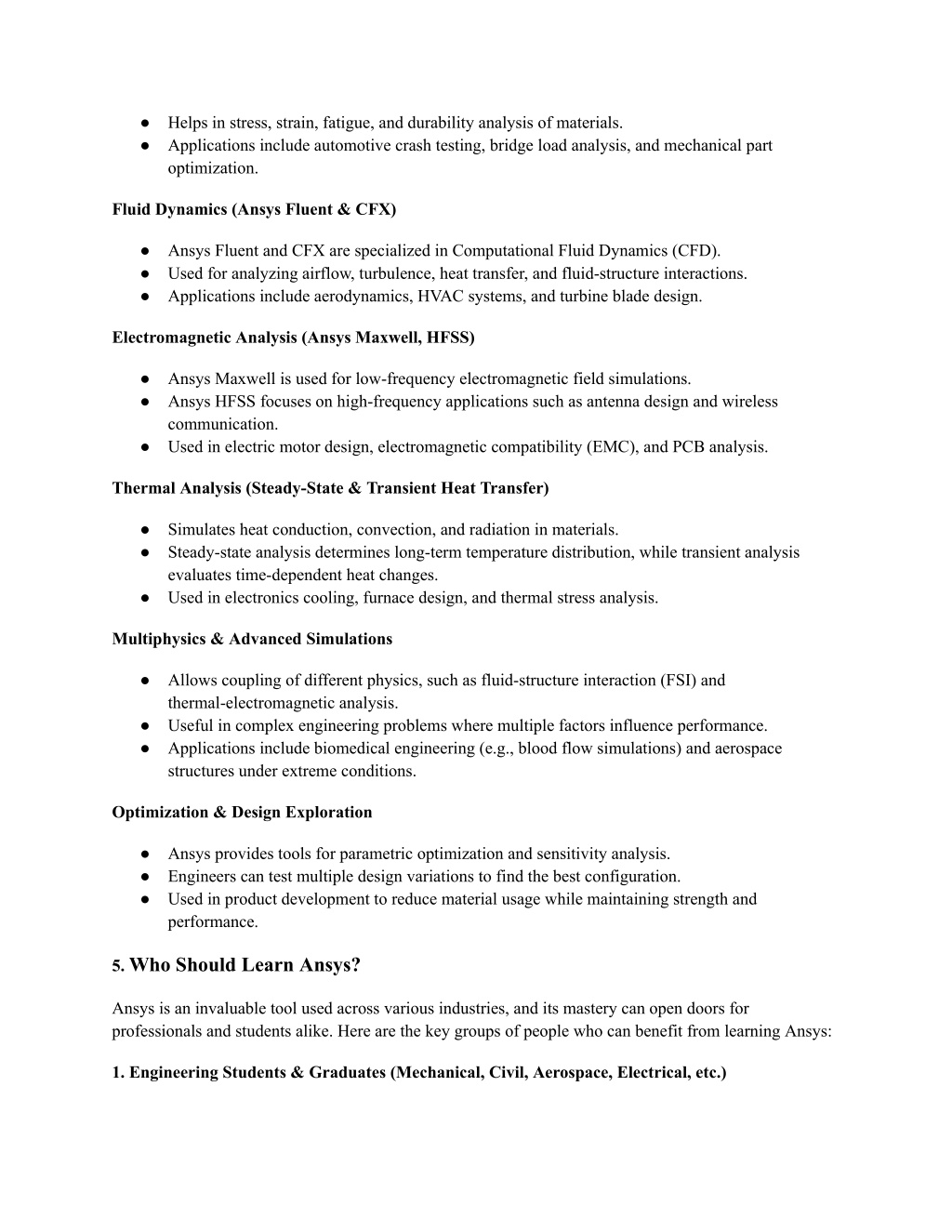

7. ● Helps in stress, strain, fatigue, and durability analysis of materials. ● Applications include automotive crash testing, bridge load analysis, and mechanical part optimization. Fluid Dynamics (Ansys Fluent & CFX) ● Ansys Fluent and CFX are specialized in Computational Fluid Dynamics (CFD). ● Used for analyzing airflow, turbulence, heat transfer, and fluid-structure interactions. ● Applications include aerodynamics, HVAC systems, and turbine blade design. Electromagnetic Analysis (Ansys Maxwell, HFSS) ● Ansys Maxwell is used for low-frequency electromagnetic field simulations. ● Ansys HFSS focuses on high-frequency applications such as antenna design and wireless communication. ● Used in electric motor design, electromagnetic compatibility (EMC), and PCB analysis. Thermal Analysis (Steady-State & Transient Heat Transfer) ● Simulates heat conduction, convection, and radiation in materials. ● Steady-state analysis determines long-term temperature distribution, while transient analysis evaluates time-dependent heat changes. ● Used in electronics cooling, furnace design, and thermal stress analysis. Multiphysics & Advanced Simulations ● Allows coupling of different physics, such as fluid-structure interaction (FSI) and thermal-electromagnetic analysis. ● Useful in complex engineering problems where multiple factors influence performance. ● Applications include biomedical engineering (e.g., blood flow simulations) and aerospace structures under extreme conditions. Optimization & Design Exploration ● Ansys provides tools for parametric optimization and sensitivity analysis. ● Engineers can test multiple design variations to find the best configuration. ● Used in product development to reduce material usage while maintaining strength and performance. 5. Who Should Learn Ansys? Ansys is an invaluable tool used across various industries, and its mastery can open doors for professionals and students alike. Here are the key groups of people who can benefit from learning Ansys: 1. Engineering Students & Graduates (Mechanical, Civil, Aerospace, Electrical, etc.)

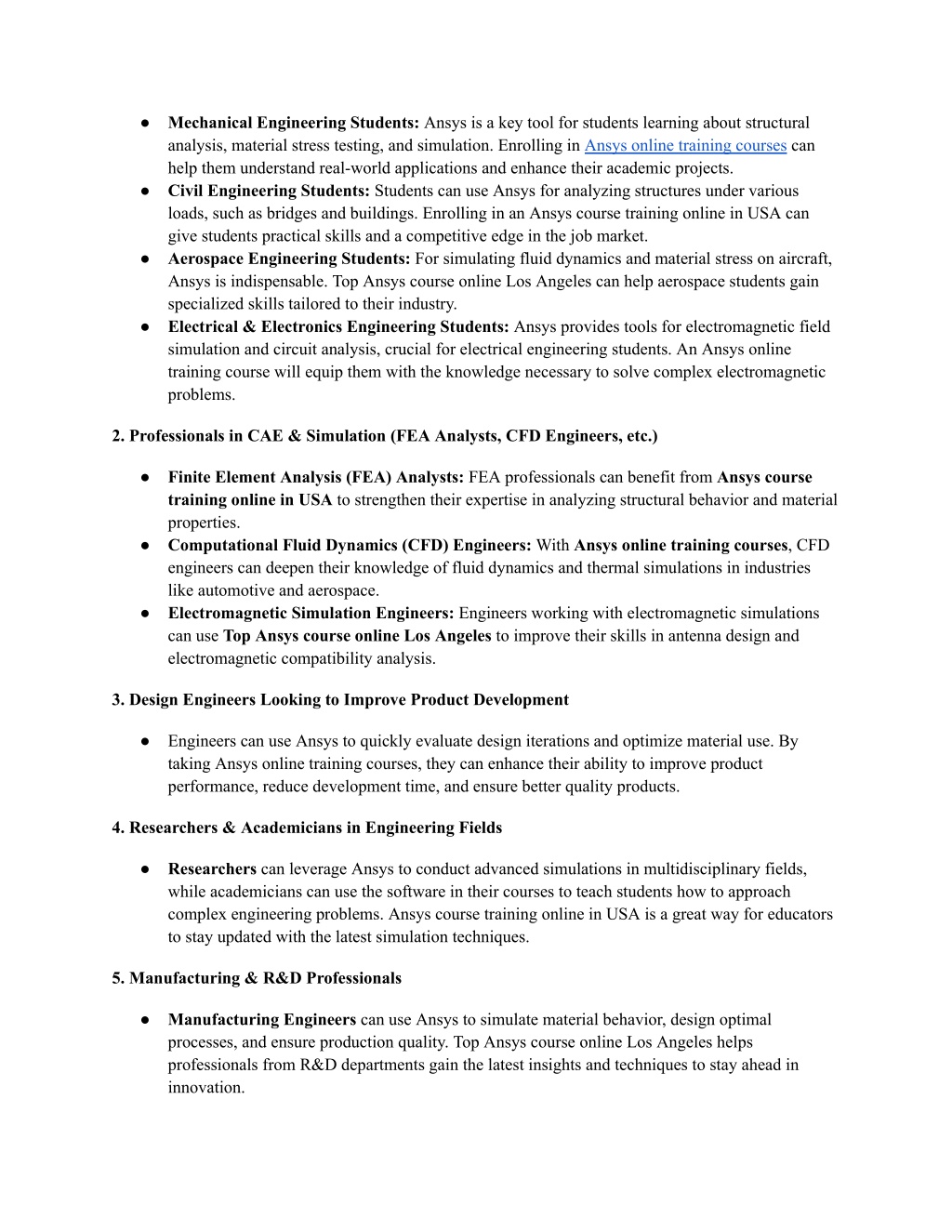

8. ● Mechanical Engineering Students: Ansys is a key tool for students learning about structural analysis, material stress testing, and simulation. Enrolling in Ansys online training courses can help them understand real-world applications and enhance their academic projects. ● Civil Engineering Students: Students can use Ansys for analyzing structures under various loads, such as bridges and buildings. Enrolling in an Ansys course training online in USA can give students practical skills and a competitive edge in the job market. ● Aerospace Engineering Students: For simulating fluid dynamics and material stress on aircraft, Ansys is indispensable. Top Ansys course online Los Angeles can help aerospace students gain specialized skills tailored to their industry. ● Electrical & Electronics Engineering Students: Ansys provides tools for electromagnetic field simulation and circuit analysis, crucial for electrical engineering students. An Ansys online training course will equip them with the knowledge necessary to solve complex electromagnetic problems. 2. Professionals in CAE & Simulation (FEA Analysts, CFD Engineers, etc.) ● Finite Element Analysis (FEA) Analysts: FEA professionals can benefit from Ansys course training online in USA to strengthen their expertise in analyzing structural behavior and material properties. ● Computational Fluid Dynamics (CFD) Engineers: With Ansys online training courses, CFD engineers can deepen their knowledge of fluid dynamics and thermal simulations in industries like automotive and aerospace. ● Electromagnetic Simulation Engineers: Engineers working with electromagnetic simulations can use Top Ansys course online Los Angeles to improve their skills in antenna design and electromagnetic compatibility analysis. 3. Design Engineers Looking to Improve Product Development ● Engineers can use Ansys to quickly evaluate design iterations and optimize material use. By taking Ansys online training courses, they can enhance their ability to improve product performance, reduce development time, and ensure better quality products. 4. Researchers & Academicians in Engineering Fields ● Researchers can leverage Ansys to conduct advanced simulations in multidisciplinary fields, while academicians can use the software in their courses to teach students how to approach complex engineering problems. Ansys course training online in USA is a great way for educators to stay updated with the latest simulation techniques. 5. Manufacturing & R&D Professionals ● Manufacturing Engineers can use Ansys to simulate material behavior, design optimal processes, and ensure production quality. Top Ansys course online Los Angeles helps professionals from R&D departments gain the latest insights and techniques to stay ahead in innovation.

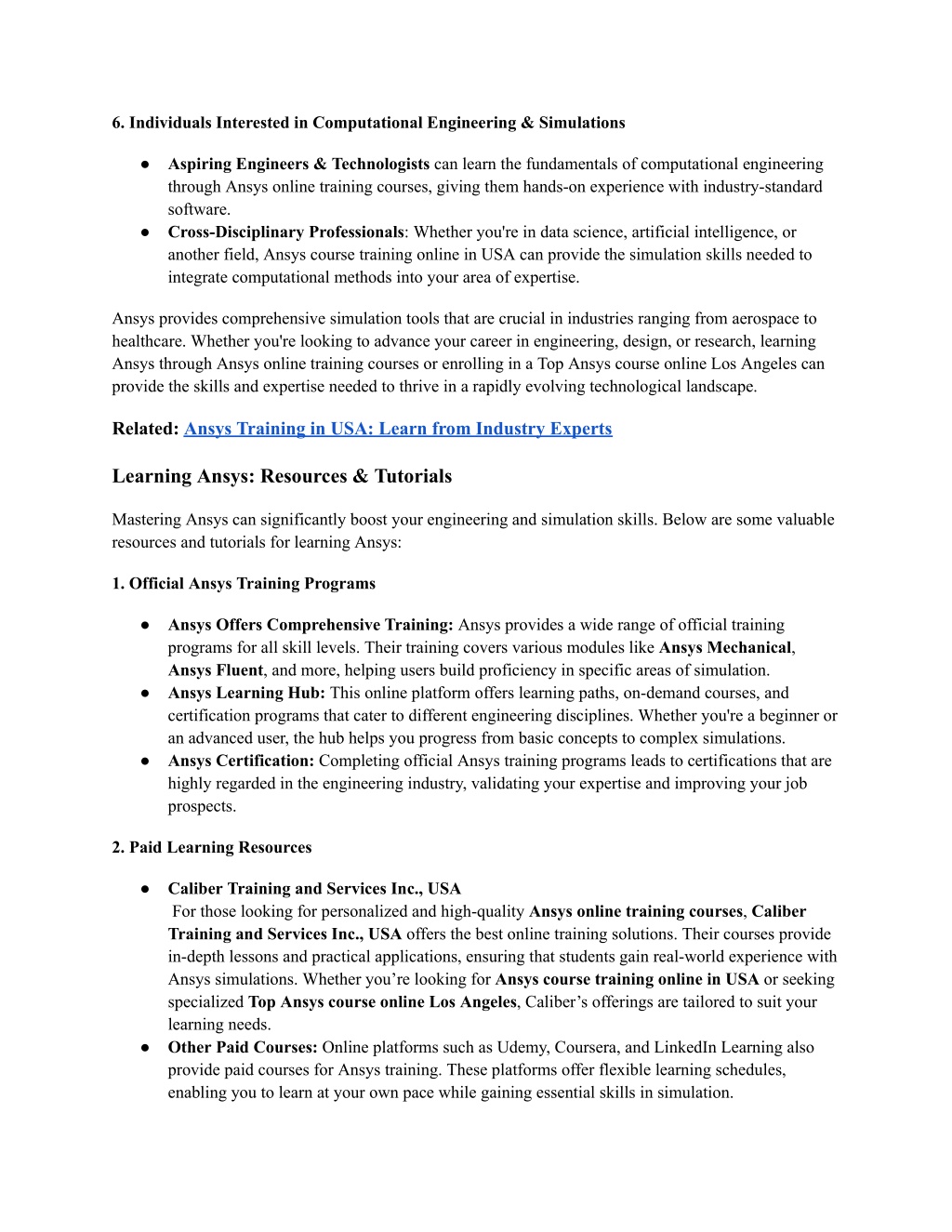

9. 6. Individuals Interested in Computational Engineering & Simulations ● Aspiring Engineers & Technologists can learn the fundamentals of computational engineering through Ansys online training courses, giving them hands-on experience with industry-standard software. ● Cross-Disciplinary Professionals: Whether you're in data science, artificial intelligence, or another field, Ansys course training online in USA can provide the simulation skills needed to integrate computational methods into your area of expertise. Ansys provides comprehensive simulation tools that are crucial in industries ranging from aerospace to healthcare. Whether you're looking to advance your career in engineering, design, or research, learning Ansys through Ansys online training courses or enrolling in a Top Ansys course online Los Angeles can provide the skills and expertise needed to thrive in a rapidly evolving technological landscape. Related:Ansys Training in USA: Learn from Industry Experts Learning Ansys: Resources & Tutorials Mastering Ansys can significantly boost your engineering and simulation skills. Below are some valuable resources and tutorials for learning Ansys: 1. Official Ansys Training Programs ● Ansys Offers Comprehensive Training: Ansys provides a wide range of official training programs for all skill levels. Their training covers various modules like Ansys Mechanical, Ansys Fluent, and more, helping users build proficiency in specific areas of simulation. ● Ansys Learning Hub: This online platform offers learning paths, on-demand courses, and certification programs that cater to different engineering disciplines. Whether you're a beginner or an advanced user, the hub helps you progress from basic concepts to complex simulations. ● Ansys Certification: Completing official Ansys training programs leads to certifications that are highly regarded in the engineering industry, validating your expertise and improving your job prospects. 2. Paid Learning Resources ● Caliber Training and Services Inc., USA For those looking for personalized and high-quality Ansys online training courses, Caliber Training and Services Inc., USA offers the best online training solutions. Their courses provide in-depth lessons and practical applications, ensuring that students gain real-world experience with Ansys simulations. Whether you’re looking for Ansys course training online in USA or seeking specialized Top Ansys course online Los Angeles, Caliber’s offerings are tailored to suit your learning needs. ● Other Paid Courses: Online platforms such as Udemy, Coursera, and LinkedIn Learning also provide paid courses for Ansys training. These platforms offer flexible learning schedules, enabling you to learn at your own pace while gaining essential skills in simulation.

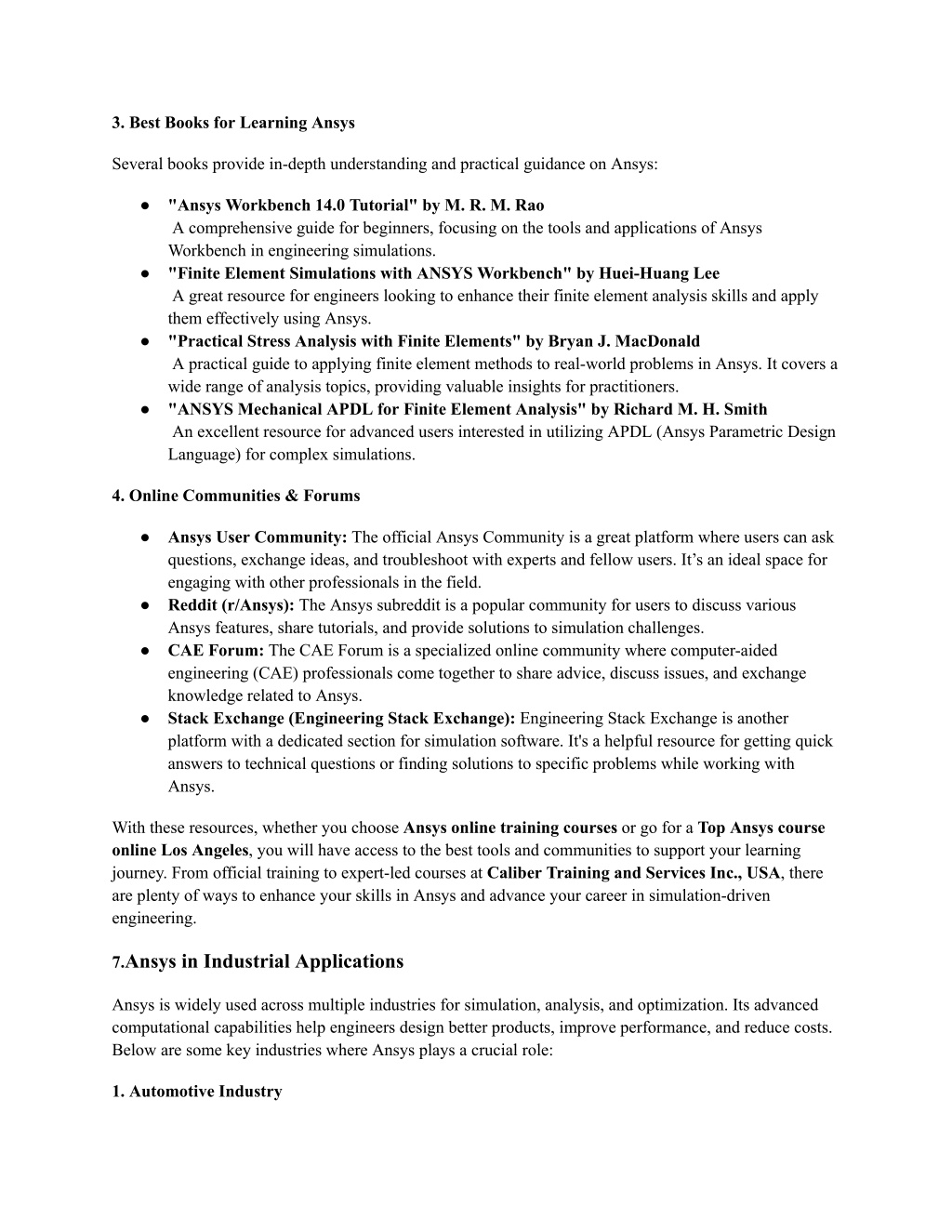

10. 3. Best Books for Learning Ansys Several books provide in-depth understanding and practical guidance on Ansys: ● "Ansys Workbench 14.0 Tutorial" by M. R. M. Rao A comprehensive guide for beginners, focusing on the tools and applications of Ansys Workbench in engineering simulations. ● "Finite Element Simulations with ANSYS Workbench" by Huei-Huang Lee A great resource for engineers looking to enhance their finite element analysis skills and apply them effectively using Ansys. ● "Practical Stress Analysis with Finite Elements" by Bryan J. MacDonald A practical guide to applying finite element methods to real-world problems in Ansys. It covers a wide range of analysis topics, providing valuable insights for practitioners. ● "ANSYS Mechanical APDL for Finite Element Analysis" by Richard M. H. Smith An excellent resource for advanced users interested in utilizing APDL (Ansys Parametric Design Language) for complex simulations. 4. Online Communities & Forums ● Ansys User Community: The official Ansys Community is a great platform where users can ask questions, exchange ideas, and troubleshoot with experts and fellow users. It’s an ideal space for engaging with other professionals in the field. ● Reddit (r/Ansys): The Ansys subreddit is a popular community for users to discuss various Ansys features, share tutorials, and provide solutions to simulation challenges. ● CAE Forum: The CAE Forum is a specialized online community where computer-aided engineering (CAE) professionals come together to share advice, discuss issues, and exchange knowledge related to Ansys. ● Stack Exchange (Engineering Stack Exchange): Engineering Stack Exchange is another platform with a dedicated section for simulation software. It's a helpful resource for getting quick answers to technical questions or finding solutions to specific problems while working with Ansys. With these resources, whether you choose Ansys online training courses or go for a Top Ansys course online Los Angeles, you will have access to the best tools and communities to support your learning journey. From official training to expert-led courses at Caliber Training and Services Inc., USA, there are plenty of ways to enhance your skills in Ansys and advance your career in simulation-driven engineering. 7.Ansys in Industrial Applications Ansys is widely used across multiple industries for simulation, analysis, and optimization. Its advanced computational capabilities help engineers design better products, improve performance, and reduce costs. Below are some key industries where Ansys plays a crucial role: 1. Automotive Industry

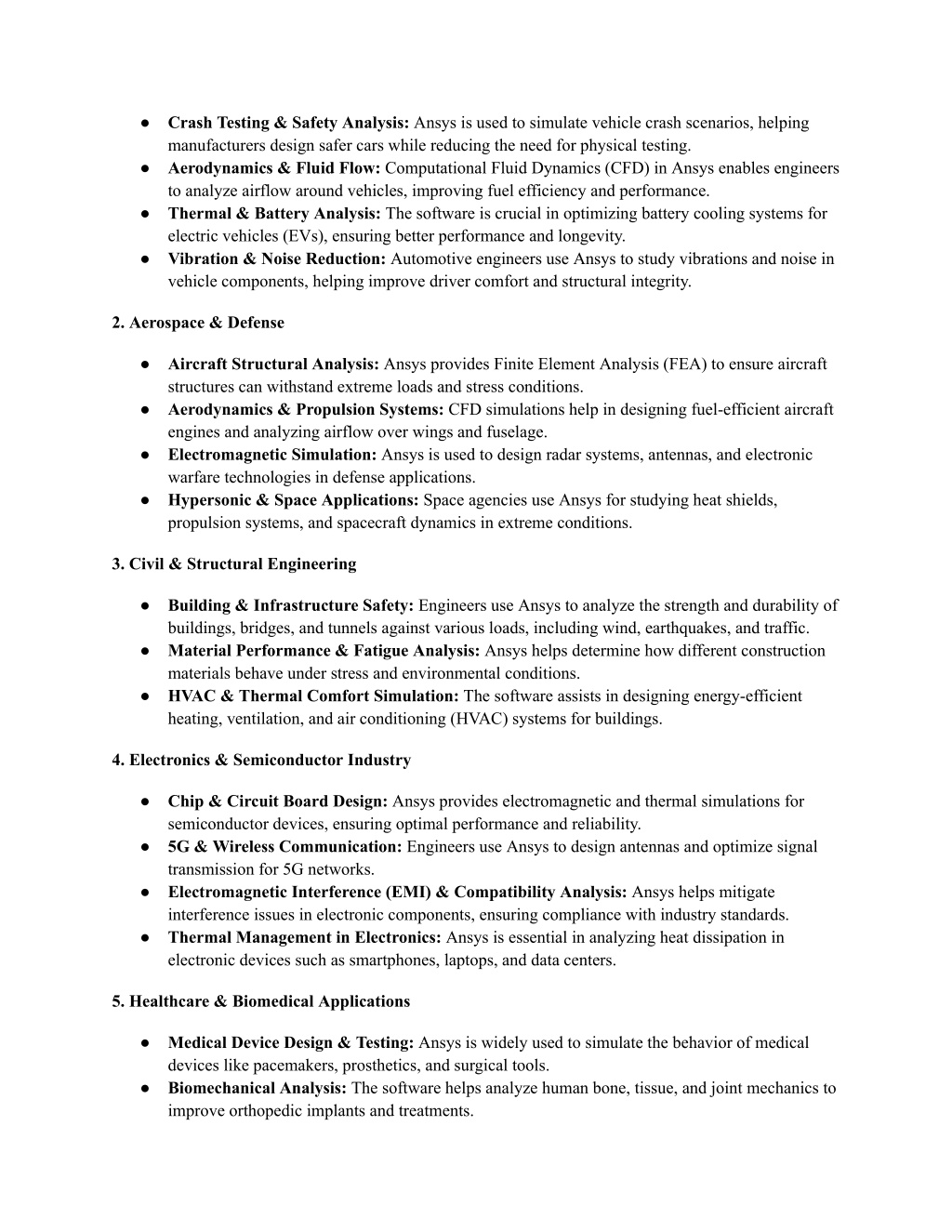

11. ● Crash Testing & Safety Analysis: Ansys is used to simulate vehicle crash scenarios, helping manufacturers design safer cars while reducing the need for physical testing. ● Aerodynamics & Fluid Flow: Computational Fluid Dynamics (CFD) in Ansys enables engineers to analyze airflow around vehicles, improving fuel efficiency and performance. ● Thermal & Battery Analysis: The software is crucial in optimizing battery cooling systems for electric vehicles (EVs), ensuring better performance and longevity. ● Vibration & Noise Reduction: Automotive engineers use Ansys to study vibrations and noise in vehicle components, helping improve driver comfort and structural integrity. 2. Aerospace & Defense ● Aircraft Structural Analysis: Ansys provides Finite Element Analysis (FEA) to ensure aircraft structures can withstand extreme loads and stress conditions. ● Aerodynamics & Propulsion Systems: CFD simulations help in designing fuel-efficient aircraft engines and analyzing airflow over wings and fuselage. ● Electromagnetic Simulation: Ansys is used to design radar systems, antennas, and electronic warfare technologies in defense applications. ● Hypersonic & Space Applications: Space agencies use Ansys for studying heat shields, propulsion systems, and spacecraft dynamics in extreme conditions. 3. Civil & Structural Engineering ● Building & Infrastructure Safety: Engineers use Ansys to analyze the strength and durability of buildings, bridges, and tunnels against various loads, including wind, earthquakes, and traffic. ● Material Performance & Fatigue Analysis: Ansys helps determine how different construction materials behave under stress and environmental conditions. ● HVAC & Thermal Comfort Simulation: The software assists in designing energy-efficient heating, ventilation, and air conditioning (HVAC) systems for buildings. 4. Electronics & Semiconductor Industry ● Chip & Circuit Board Design: Ansys provides electromagnetic and thermal simulations for semiconductor devices, ensuring optimal performance and reliability. ● 5G & Wireless Communication: Engineers use Ansys to design antennas and optimize signal transmission for 5G networks. ● Electromagnetic Interference (EMI) & Compatibility Analysis: Ansys helps mitigate interference issues in electronic components, ensuring compliance with industry standards. ● Thermal Management in Electronics: Ansys is essential in analyzing heat dissipation in electronic devices such as smartphones, laptops, and data centers. 5. Healthcare & Biomedical Applications ● Medical Device Design & Testing: Ansys is widely used to simulate the behavior of medical devices like pacemakers, prosthetics, and surgical tools. ● Biomechanical Analysis: The software helps analyze human bone, tissue, and joint mechanics to improve orthopedic implants and treatments.

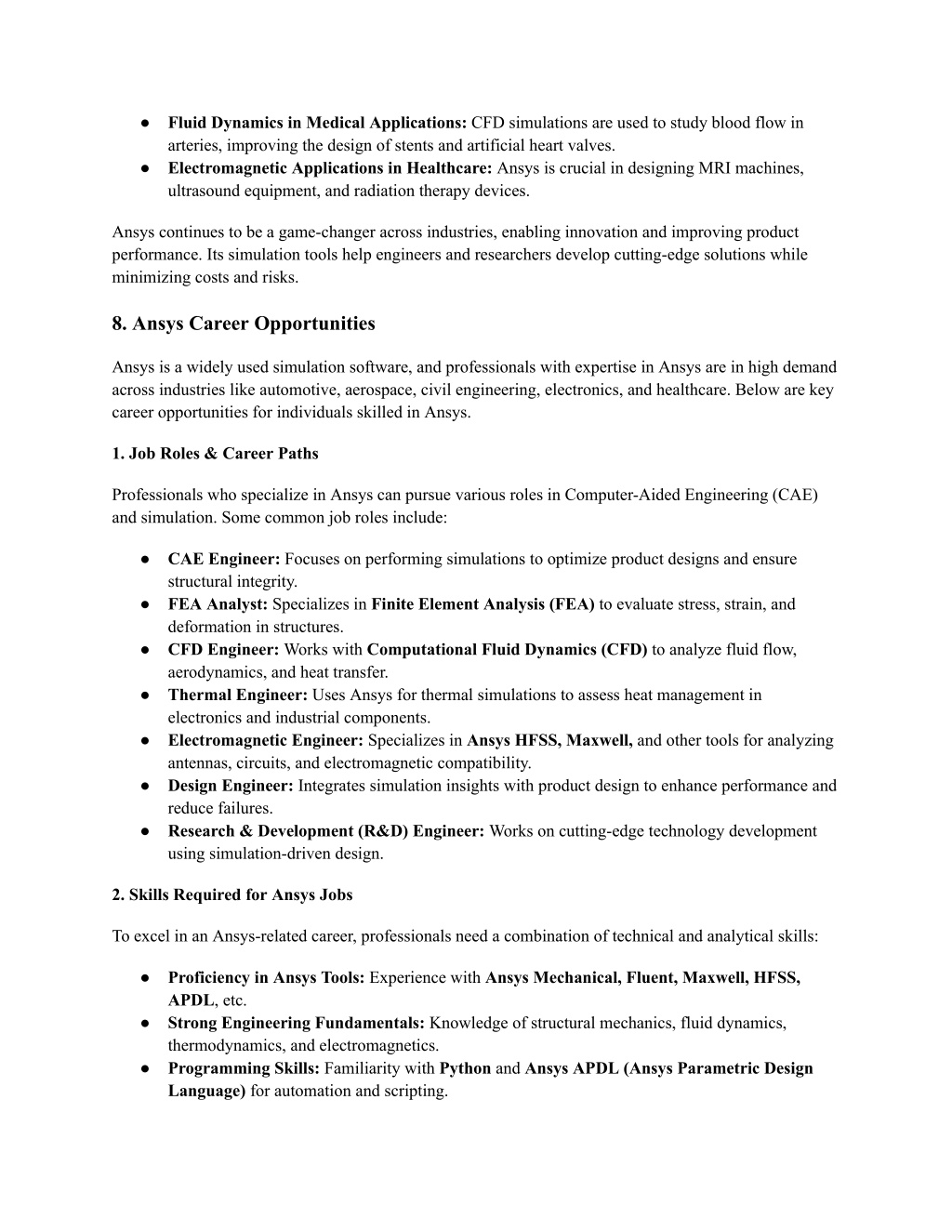

12. ● Fluid Dynamics in Medical Applications: CFD simulations are used to study blood flow in arteries, improving the design of stents and artificial heart valves. ● Electromagnetic Applications in Healthcare: Ansys is crucial in designing MRI machines, ultrasound equipment, and radiation therapy devices. Ansys continues to be a game-changer across industries, enabling innovation and improving product performance. Its simulation tools help engineers and researchers develop cutting-edge solutions while minimizing costs and risks. 8. Ansys Career Opportunities Ansys is a widely used simulation software, and professionals with expertise in Ansys are in high demand across industries like automotive, aerospace, civil engineering, electronics, and healthcare. Below are key career opportunities for individuals skilled in Ansys. 1. Job Roles & Career Paths Professionals who specialize in Ansys can pursue various roles in Computer-Aided Engineering (CAE) and simulation. Some common job roles include: ● CAE Engineer: Focuses on performing simulations to optimize product designs and ensure structural integrity. ● FEA Analyst: Specializes in Finite Element Analysis (FEA) to evaluate stress, strain, and deformation in structures. ● CFD Engineer: Works with Computational Fluid Dynamics (CFD) to analyze fluid flow, aerodynamics, and heat transfer. ● Thermal Engineer: Uses Ansys for thermal simulations to assess heat management in electronics and industrial components. ● Electromagnetic Engineer: Specializes in Ansys HFSS, Maxwell, and other tools for analyzing antennas, circuits, and electromagnetic compatibility. ● Design Engineer: Integrates simulation insights with product design to enhance performance and reduce failures. ● Research & Development (R&D) Engineer: Works on cutting-edge technology development using simulation-driven design. 2. Skills Required for Ansys Jobs To excel in an Ansys-related career, professionals need a combination of technical and analytical skills: ● Proficiency in Ansys Tools: Experience with Ansys Mechanical, Fluent, Maxwell, HFSS, APDL, etc. ● Strong Engineering Fundamentals: Knowledge of structural mechanics, fluid dynamics, thermodynamics, and electromagnetics. ● Programming Skills: Familiarity with Python and Ansys APDL (Ansys Parametric Design Language) for automation and scripting.

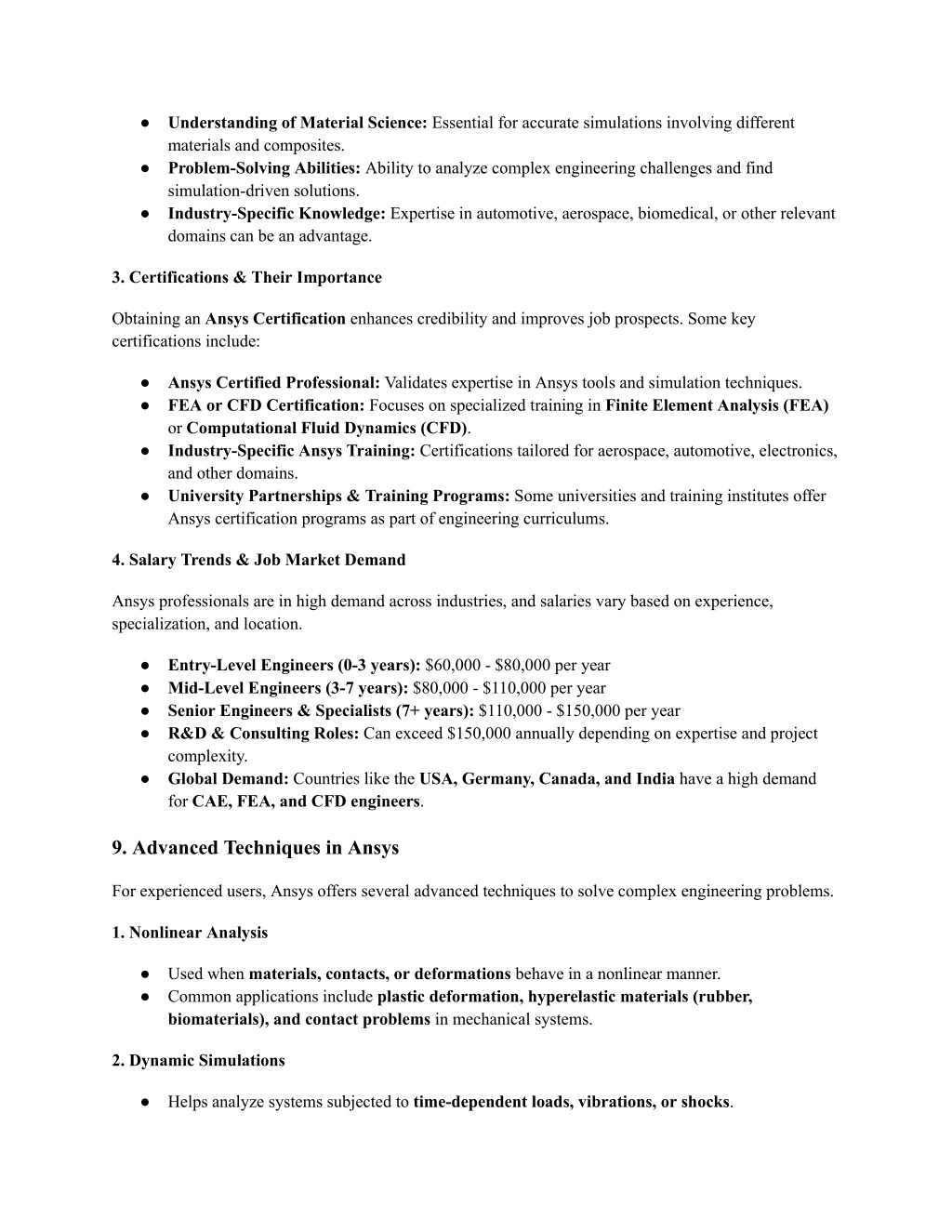

13. ● Understanding of Material Science: Essential for accurate simulations involving different materials and composites. ● Problem-Solving Abilities: Ability to analyze complex engineering challenges and find simulation-driven solutions. ● Industry-Specific Knowledge: Expertise in automotive, aerospace, biomedical, or other relevant domains can be an advantage. 3. Certifications & Their Importance Obtaining an Ansys Certification enhances credibility and improves job prospects. Some key certifications include: ● Ansys Certified Professional: Validates expertise in Ansys tools and simulation techniques. ● FEA or CFD Certification: Focuses on specialized training in Finite Element Analysis (FEA) or Computational Fluid Dynamics (CFD). ● Industry-Specific Ansys Training: Certifications tailored for aerospace, automotive, electronics, and other domains. ● University Partnerships & Training Programs: Some universities and training institutes offer Ansys certification programs as part of engineering curriculums. 4. Salary Trends & Job Market Demand Ansys professionals are in high demand across industries, and salaries vary based on experience, specialization, and location. ● Entry-Level Engineers (0-3 years): $60,000 - $80,000 per year ● Mid-Level Engineers (3-7 years): $80,000 - $110,000 per year ● Senior Engineers & Specialists (7+ years): $110,000 - $150,000 per year ● R&D & Consulting Roles: Can exceed $150,000 annually depending on expertise and project complexity. ● Global Demand: Countries like the USA, Germany, Canada, and India have a high demand for CAE, FEA, and CFD engineers. 9. Advanced Techniques in Ansys For experienced users, Ansys offers several advanced techniques to solve complex engineering problems. 1. Nonlinear Analysis ● Used when materials, contacts, or deformations behave in a nonlinear manner. ● Common applications include plastic deformation, hyperelastic materials (rubber, biomaterials), and contact problems in mechanical systems. 2. Dynamic Simulations ● Helps analyze systems subjected to time-dependent loads, vibrations, or shocks.

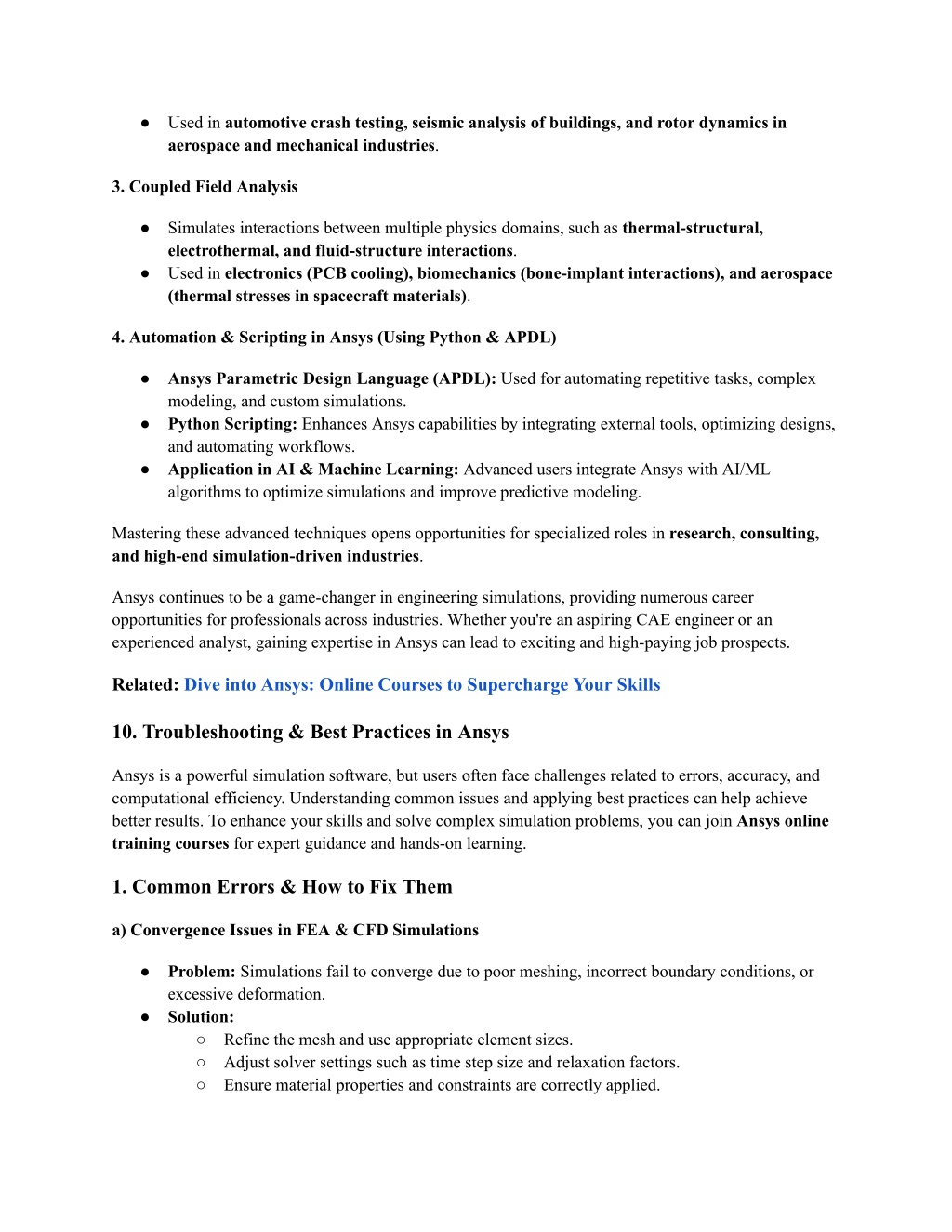

14. ● Used in automotive crash testing, seismic analysis of buildings, and rotor dynamics in aerospace and mechanical industries. 3. Coupled Field Analysis ● Simulates interactions between multiple physics domains, such as thermal-structural, electrothermal, and fluid-structure interactions. ● Used in electronics (PCB cooling), biomechanics (bone-implant interactions), and aerospace (thermal stresses in spacecraft materials). 4. Automation & Scripting in Ansys (Using Python & APDL) ● Ansys Parametric Design Language (APDL): Used for automating repetitive tasks, complex modeling, and custom simulations. ● Python Scripting: Enhances Ansys capabilities by integrating external tools, optimizing designs, and automating workflows. ● Application in AI & Machine Learning: Advanced users integrate Ansys with AI/ML algorithms to optimize simulations and improve predictive modeling. Mastering these advanced techniques opens opportunities for specialized roles in research, consulting, and high-end simulation-driven industries. Ansys continues to be a game-changer in engineering simulations, providing numerous career opportunities for professionals across industries. Whether you're an aspiring CAE engineer or an experienced analyst, gaining expertise in Ansys can lead to exciting and high-paying job prospects. Related:Dive into Ansys: Online Courses to Supercharge Your Skills 10. Troubleshooting & Best Practices in Ansys Ansys is a powerful simulation software, but users often face challenges related to errors, accuracy, and computational efficiency. Understanding common issues and applying best practices can help achieve better results. To enhance your skills and solve complex simulation problems, you can join Ansys online training courses for expert guidance and hands-on learning. 1. Common Errors & How to Fix Them a) Convergence Issues in FEA & CFD Simulations ● Problem: Simulations fail to converge due to poor meshing, incorrect boundary conditions, or excessive deformation. ● Solution: ○ Refine the mesh and use appropriate element sizes. ○ Adjust solver settings such as time step size and relaxation factors. ○ Ensure material properties and constraints are correctly applied.

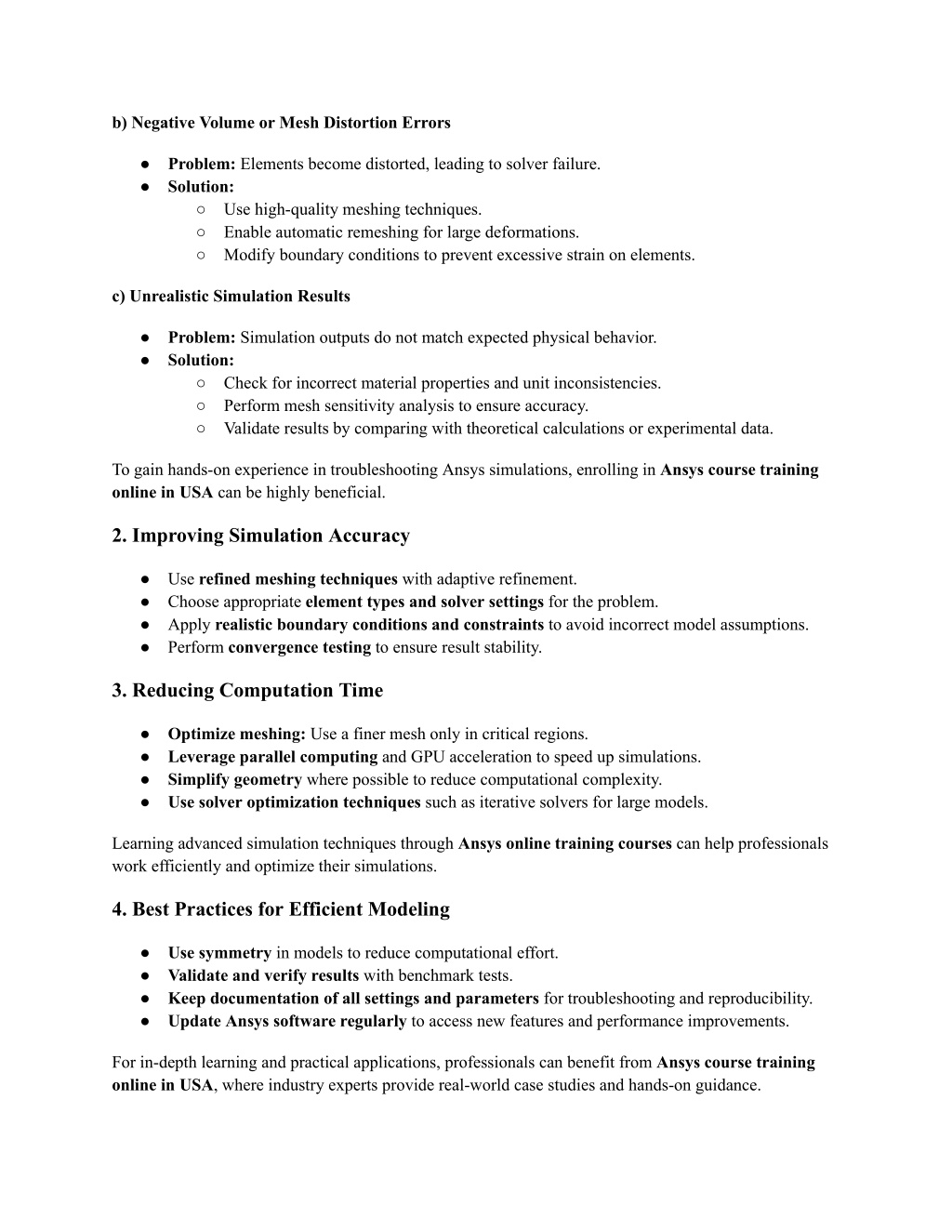

15. b) Negative Volume or Mesh Distortion Errors ● Problem: Elements become distorted, leading to solver failure. ● Solution: ○ Use high-quality meshing techniques. ○ Enable automatic remeshing for large deformations. ○ Modify boundary conditions to prevent excessive strain on elements. c) Unrealistic Simulation Results ● Problem: Simulation outputs do not match expected physical behavior. ● Solution: ○ Check for incorrect material properties and unit inconsistencies. ○ Perform mesh sensitivity analysis to ensure accuracy. ○ Validate results by comparing with theoretical calculations or experimental data. To gain hands-on experience in troubleshooting Ansys simulations, enrolling in Ansys course training online in USA can be highly beneficial. 2. Improving Simulation Accuracy ● Use refined meshing techniques with adaptive refinement. ● Choose appropriate element types and solver settings for the problem. ● Apply realistic boundary conditions and constraints to avoid incorrect model assumptions. ● Perform convergence testing to ensure result stability. 3. Reducing Computation Time ● Optimize meshing: Use a finer mesh only in critical regions. ● Leverage parallel computing and GPU acceleration to speed up simulations. ● Simplify geometry where possible to reduce computational complexity. ● Use solver optimization techniques such as iterative solvers for large models. Learning advanced simulation techniques through Ansys online training courses can help professionals work efficiently and optimize their simulations. 4. Best Practices for Efficient Modeling ● Use symmetry in models to reduce computational effort. ● Validate and verify results with benchmark tests. ● Keep documentation of all settings and parameters for troubleshooting and reproducibility. ● Update Ansys software regularly to access new features and performance improvements. For in-depth learning and practical applications, professionals can benefit from Ansys course training online in USA, where industry experts provide real-world case studies and hands-on guidance.

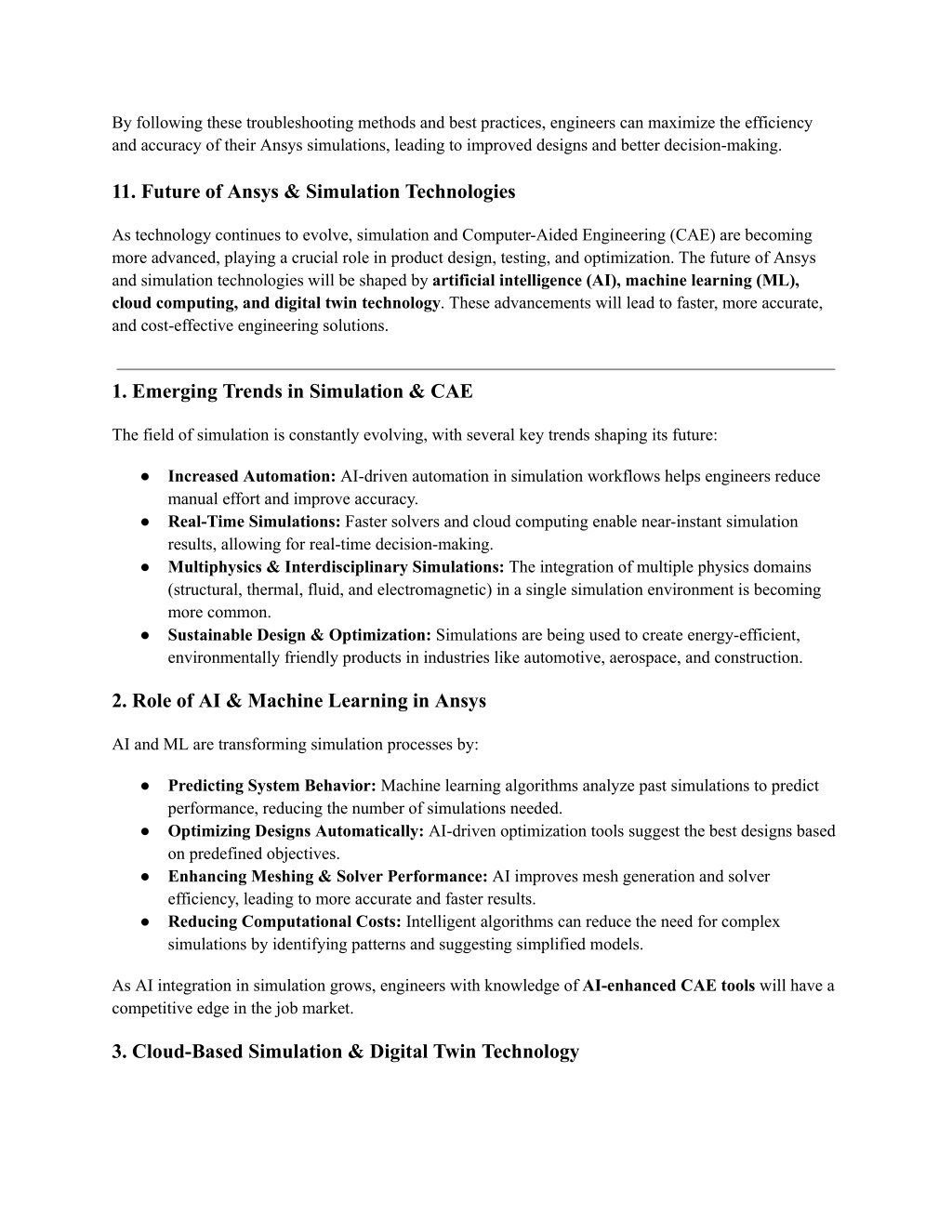

16. By following these troubleshooting methods and best practices, engineers can maximize the efficiency and accuracy of their Ansys simulations, leading to improved designs and better decision-making. 11. Future of Ansys & Simulation Technologies As technology continues to evolve, simulation and Computer-Aided Engineering (CAE) are becoming more advanced, playing a crucial role in product design, testing, and optimization. The future of Ansys and simulation technologies will be shaped by artificial intelligence (AI), machine learning (ML), cloud computing, and digital twin technology. These advancements will lead to faster, more accurate, and cost-effective engineering solutions. 1. Emerging Trends in Simulation & CAE The field of simulation is constantly evolving, with several key trends shaping its future: ● Increased Automation: AI-driven automation in simulation workflows helps engineers reduce manual effort and improve accuracy. ● Real-Time Simulations: Faster solvers and cloud computing enable near-instant simulation results, allowing for real-time decision-making. ● Multiphysics & Interdisciplinary Simulations: The integration of multiple physics domains (structural, thermal, fluid, and electromagnetic) in a single simulation environment is becoming more common. ● Sustainable Design & Optimization: Simulations are being used to create energy-efficient, environmentally friendly products in industries like automotive, aerospace, and construction. 2. Role of AI & Machine Learning in Ansys AI and ML are transforming simulation processes by: ● Predicting System Behavior: Machine learning algorithms analyze past simulations to predict performance, reducing the number of simulations needed. ● Optimizing Designs Automatically: AI-driven optimization tools suggest the best designs based on predefined objectives. ● Enhancing Meshing & Solver Performance: AI improves mesh generation and solver efficiency, leading to more accurate and faster results. ● Reducing Computational Costs: Intelligent algorithms can reduce the need for complex simulations by identifying patterns and suggesting simplified models. As AI integration in simulation grows, engineers with knowledge of AI-enhanced CAE tools will have a competitive edge in the job market. 3. Cloud-Based Simulation & Digital Twin Technology

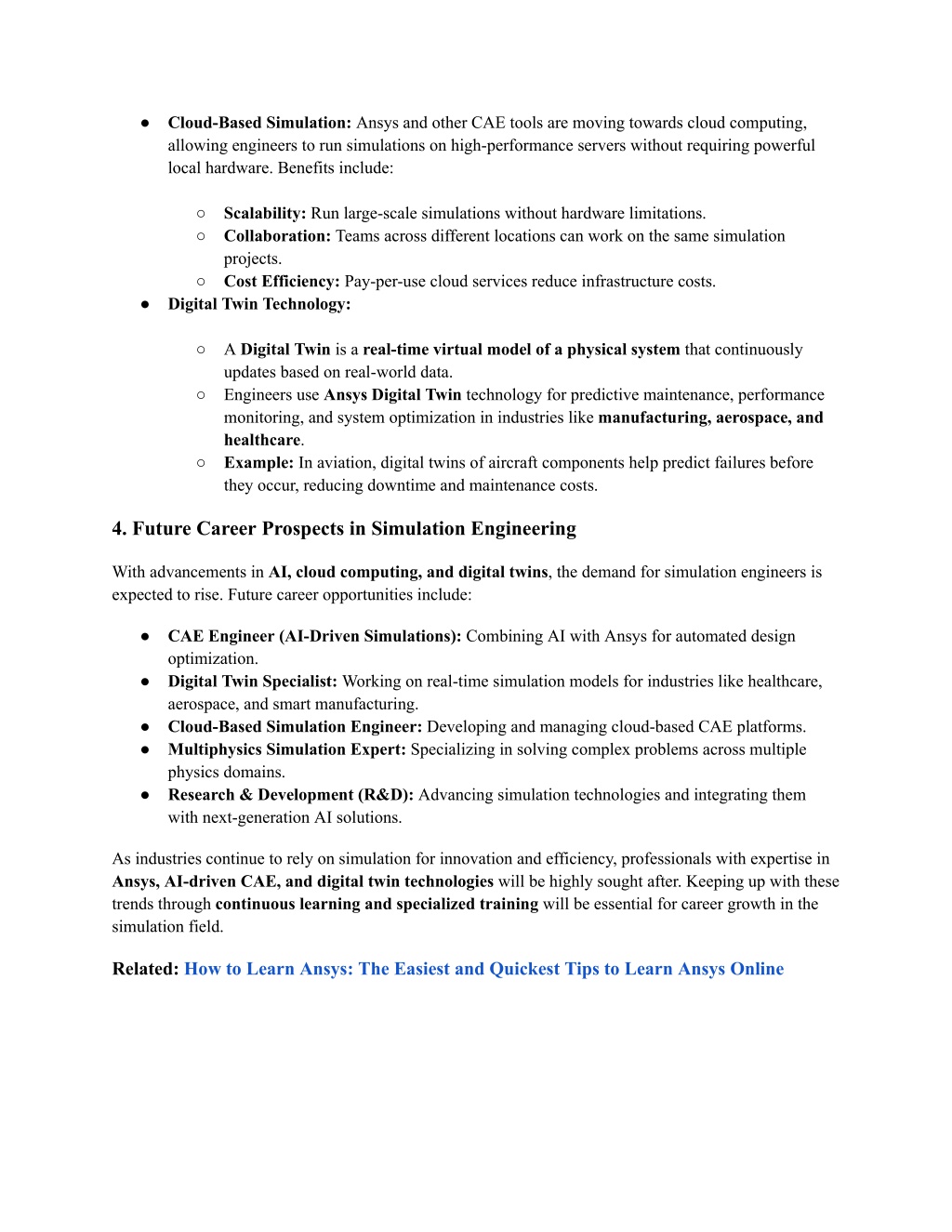

17. ● Cloud-Based Simulation: Ansys and other CAE tools are moving towards cloud computing, allowing engineers to run simulations on high-performance servers without requiring powerful local hardware. Benefits include: ○ Scalability: Run large-scale simulations without hardware limitations. ○ Collaboration: Teams across different locations can work on the same simulation projects. ○ Cost Efficiency: Pay-per-use cloud services reduce infrastructure costs. ● Digital Twin Technology: ○ A Digital Twin is a real-time virtual model of a physical system that continuously updates based on real-world data. ○ Engineers use Ansys Digital Twin technology for predictive maintenance, performance monitoring, and system optimization in industries like manufacturing, aerospace, and healthcare. ○ Example: In aviation, digital twins of aircraft components help predict failures before they occur, reducing downtime and maintenance costs. 4. Future Career Prospects in Simulation Engineering With advancements in AI, cloud computing, and digital twins, the demand for simulation engineers is expected to rise. Future career opportunities include: ● CAE Engineer (AI-Driven Simulations): Combining AI with Ansys for automated design optimization. ● Digital Twin Specialist: Working on real-time simulation models for industries like healthcare, aerospace, and smart manufacturing. ● Cloud-Based Simulation Engineer: Developing and managing cloud-based CAE platforms. ● Multiphysics Simulation Expert: Specializing in solving complex problems across multiple physics domains. ● Research & Development (R&D): Advancing simulation technologies and integrating them with next-generation AI solutions. As industries continue to rely on simulation for innovation and efficiency, professionals with expertise in Ansys, AI-driven CAE, and digital twin technologies will be highly sought after. Keeping up with these trends through continuous learning and specialized training will be essential for career growth in the simulation field. Related:How to Learn Ansys: The Easiest and Quickest Tips to Learn Ansys Online
