Rev 6. Upper Platform Box (#2). Box end of snake : 7 XLR Female 2 XLR Male Also : 1 RJ-45 Female. XLR In. Suspended Platform L. Suspended Platform R. Sanctuary. Extra. Extra. Extra. Other end of snake : 7 XLR Male 2 XLR Female Also : 1 RJ-45 Male. LED Light Control

Download Presentation

House L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

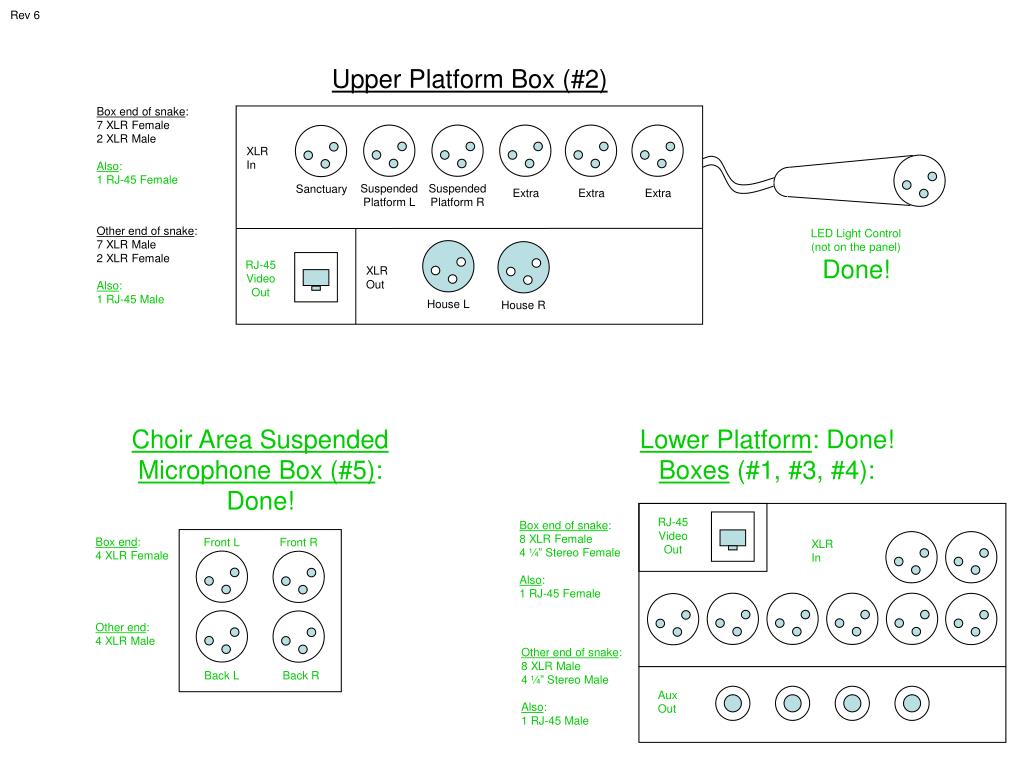

  1. Rev 6 Upper Platform Box (#2) Box end of snake: 7 XLR Female 2 XLR Male Also: 1 RJ-45 Female XLR In Suspended Platform L Suspended Platform R Sanctuary Extra Extra Extra Other end of snake: 7 XLR Male 2 XLR Female Also: 1 RJ-45 Male LED Light Control (not on the panel) Done! RJ-45 Video Out XLR Out House L House R Choir Area Suspended Microphone Box (#5): Done! Lower Platform: Done! Boxes (#1, #3, #4): RJ-45 Video Out Box end of snake: 8 XLR Female 4 ¼” Stereo Female Also: 1 RJ-45 Female Box end: 4 XLR Female Front L Front R XLR In Other end: 4 XLR Male Other end of snake: 8 XLR Male 4 ¼” Stereo Male Also: 1 RJ-45 Male Back L Back R Aux Out

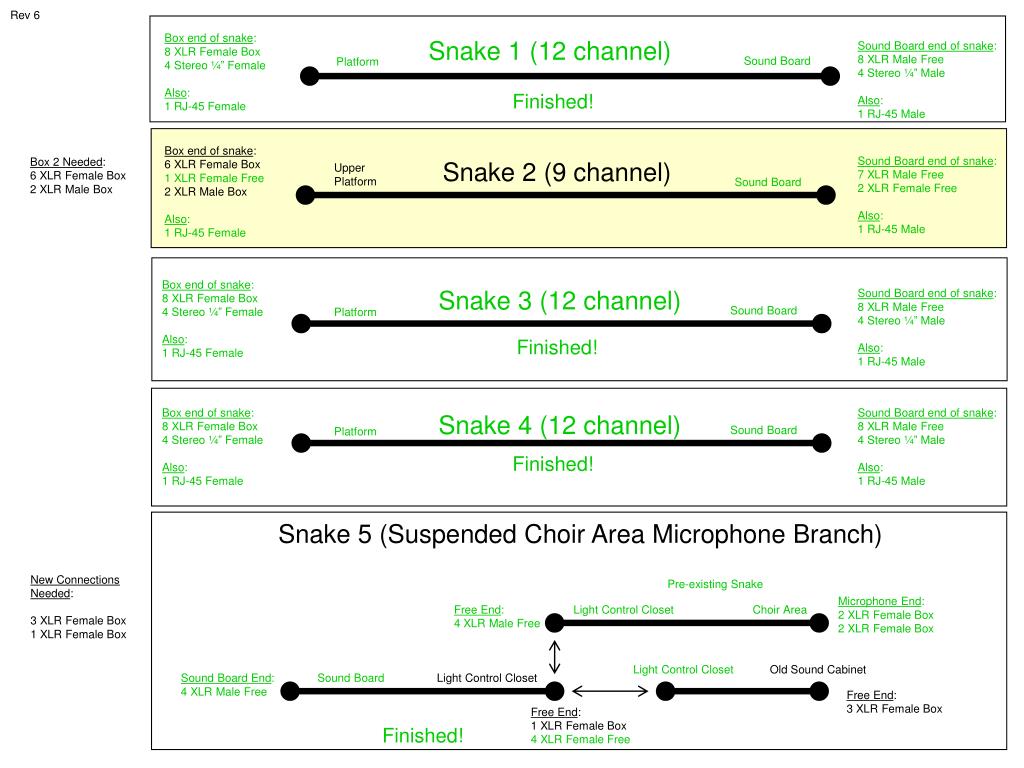

  2. Rev 6 Box end of snake: 8 XLR Female Box 4 Stereo ¼” Female Also: 1 RJ-45 Female Snake 1 (12 channel) Sound Board end of snake: 8 XLR Male Free 4 Stereo ¼” Male Also: 1 RJ-45 Male Sound Board Platform Finished! Box end of snake: 6 XLR Female Box 1 XLR Female Free 2 XLR Male Box Also: 1 RJ-45 Female Sound Board end of snake: 7 XLR Male Free 2 XLR Female Free Also: 1 RJ-45 Male Box 2 Needed: 6 XLR Female Box 2 XLR Male Box Snake 2 (9 channel) Upper Platform Sound Board Box end of snake: 8 XLR Female Box 4 Stereo ¼” Female Also: 1 RJ-45 Female Snake 3 (12 channel) Sound Board end of snake: 8 XLR Male Free 4 Stereo ¼” Male Also: 1 RJ-45 Male Sound Board Platform Finished! Box end of snake: 8 XLR Female Box 4 Stereo ¼” Female Also: 1 RJ-45 Female Sound Board end of snake: 8 XLR Male Free 4 Stereo ¼” Male Also: 1 RJ-45 Male Snake 4 (12 channel) Sound Board Platform Finished! Snake 5 (Suspended Choir Area Microphone Branch) New Connections Needed: 3 XLR Female Box 1 XLR Female Box Pre-existing Snake Microphone End: 2 XLR Female Box 2 XLR Female Box Free End: 4 XLR Male Free Light Control Closet Choir Area Light Control Closet Old Sound Cabinet Sound Board End: 4 XLR Male Free Sound Board Light Control Closet Free End: 3 XLR Female Box Free End: 1 XLR Female Box 4 XLR Female Free Finished!

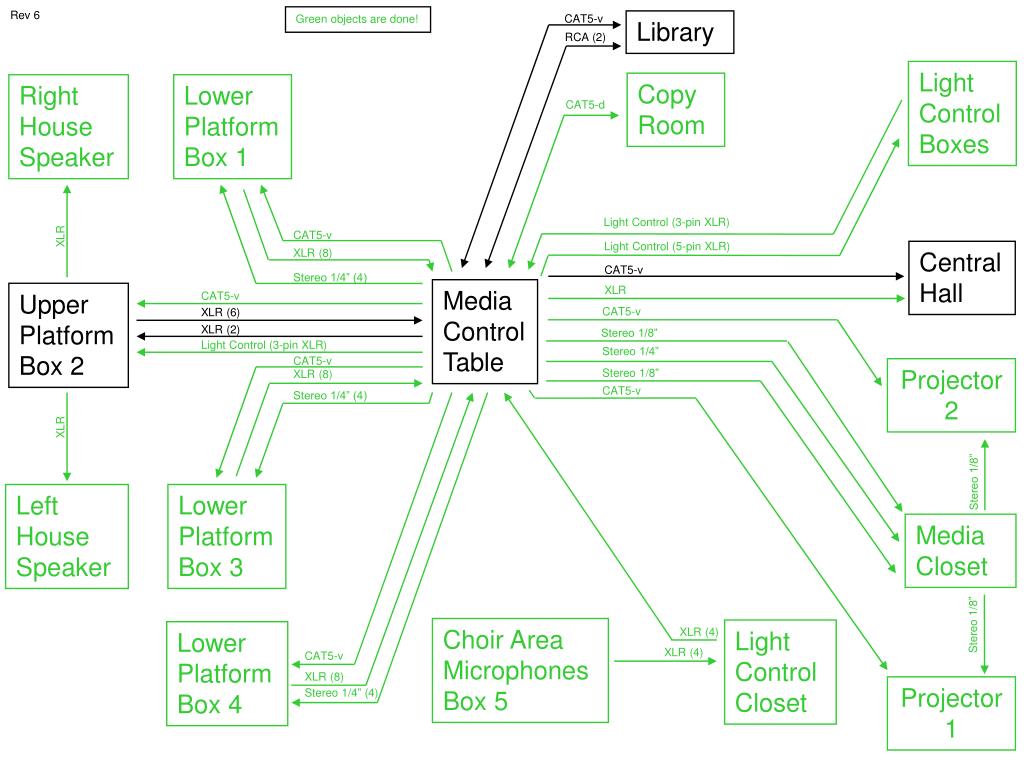

  3. Rev 6 CAT5-v Green objects are done! Library RCA (2) Light Control Boxes Copy Room Right House Speaker Lower Platform Box 1 CAT5-d Light Control (3-pin XLR) XLR CAT5-v Light Control (5-pin XLR) XLR (8) Central Hall CAT5-v Stereo 1/4” (4) XLR Media Control Table Upper Platform Box 2 CAT5-v CAT5-v XLR (6) XLR (2) Stereo 1/8” Light Control (3-pin XLR) Stereo 1/4” CAT5-v Projector 2 Stereo 1/8” XLR (8) CAT5-v Stereo 1/4” (4) XLR Stereo 1/8” Left House Speaker Lower Platform Box 3 Media Closet Stereo 1/8” Choir Area Microphones Box 5 XLR (4) Light Control Closet Lower Platform Box 4 XLR (4) CAT5-v XLR (8) Projector 1 Stereo 1/4” (4)

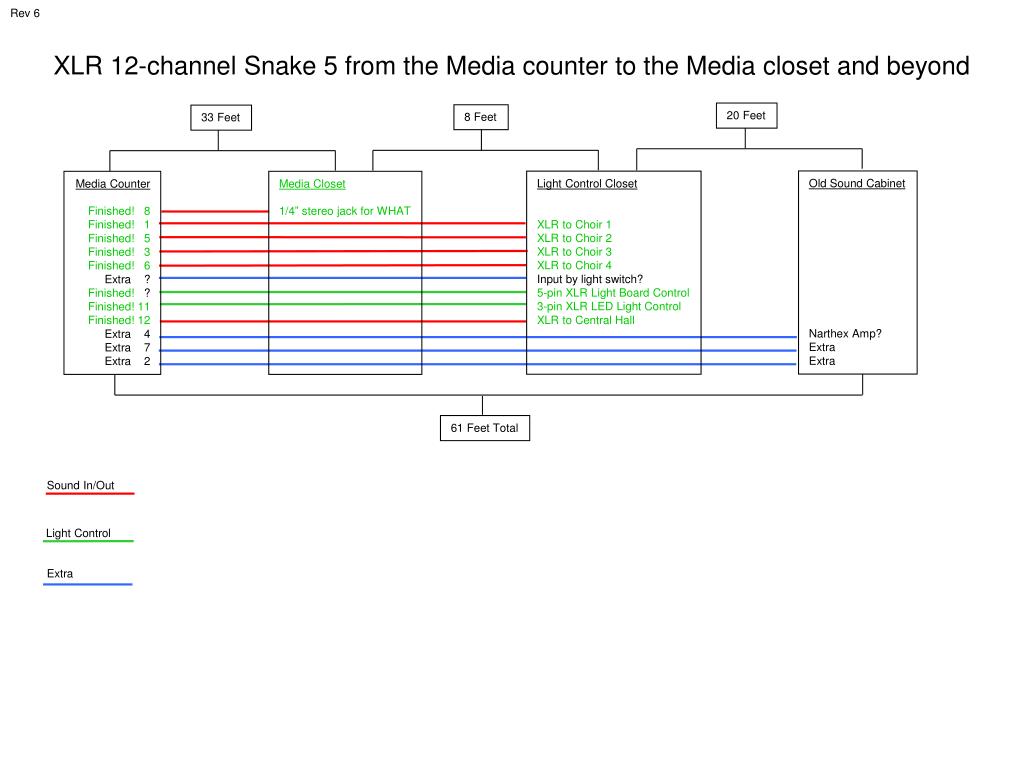

  4. Rev 6 XLR 12-channel Snake 5 from the Media counter to the Media closet and beyond 20 Feet 8 Feet 33 Feet Old Sound Cabinet Narthex Amp? Extra Extra Light Control Closet XLR to Choir 1 XLR to Choir 2 XLR to Choir 3 XLR to Choir 4 Input by light switch? 5-pin XLR Light Board Control 3-pin XLR LED Light Control XLR to Central Hall Media Counter Finished! 8 Finished! 1 Finished! 5 Finished! 3 Finished! 6 Extra? Finished! ? Finished! 11 Finished! 12 Extra 4 Extra 7 Extra 2 Media Closet 1/4” stereo jack for WHAT 61 Feet Total Sound In/Out Light Control Extra
