  1. Structures and Types of Solids

  2. TWO TYPES OF SOLIDS • 1. Crystalline solids • highly regular arrangement of their particles • crystals- at microscopic level

  3. How are they crystals? • Lattice - 3-D system of points indicating position of ions, atoms or molecules that make up the substance

  4. Unit cell • Smallest repeating pattern of the lattice- extend in all directions for the structure

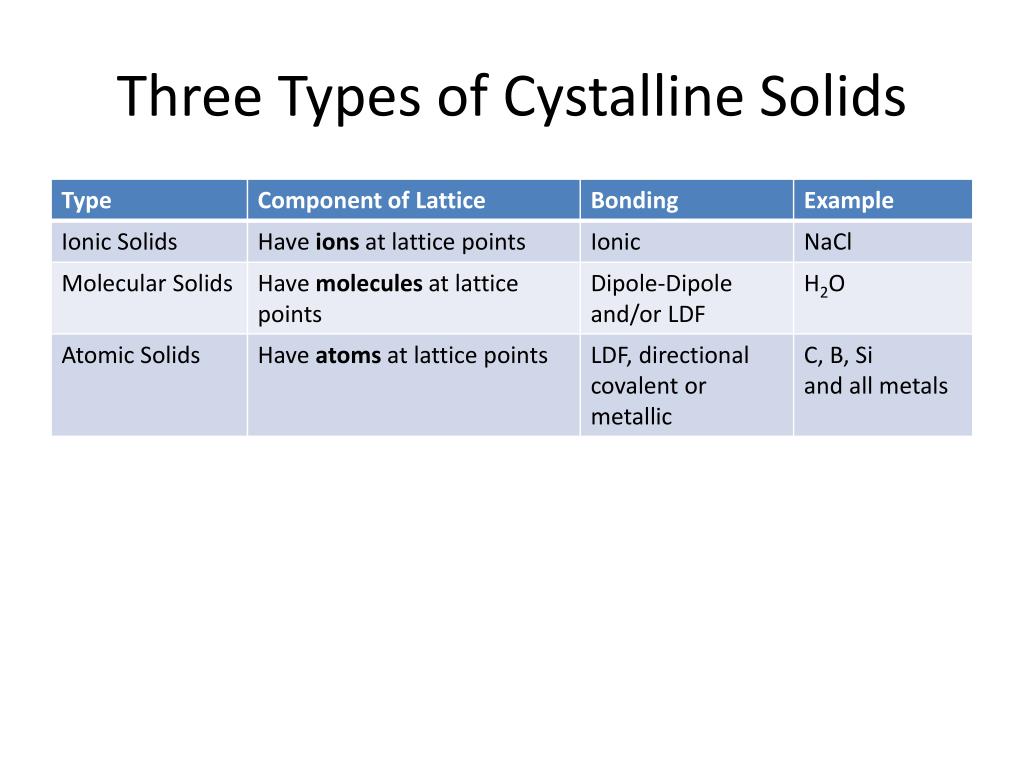

  5. Three Types of Cystalline Solids

  6. Two types of solids • 2. Amorphous solids- considerable disorder in their structure • EX- glass- liquid that is “frozen in place”

  7. Bonding models for metals • Model must account for physical properties: • A. shape can be changed fairly easily- malleable and ductile

  8. Bonding models for metals • B. durable • C. high melting points

  9. Bonding models for metals • Indicates the bonding is STRONG and NONDIRECTIONAL • or difficult to separate metals atoms, but easy to move them

  10. The model is... • Electron “sea”model • metal cations in sea of e- (mobile e- for conductivity and cations can be moved around when hammered

  11. Metal alloys! • Metals introduced into the crystal structure of other metals

  12. Alloy • A substance that contains a mixture of elements and has metallic properties

  13. Two types of alloys • Substitutional alloy- some of the host metal atoms are replaced by other metal atoms of similar size

  14. Substitutional alloys • EX: Brass (1/3 of copper atoms replaced with zinc) • Pewter (85%Sn, 7%Cu, 6%Bi, 2%At)

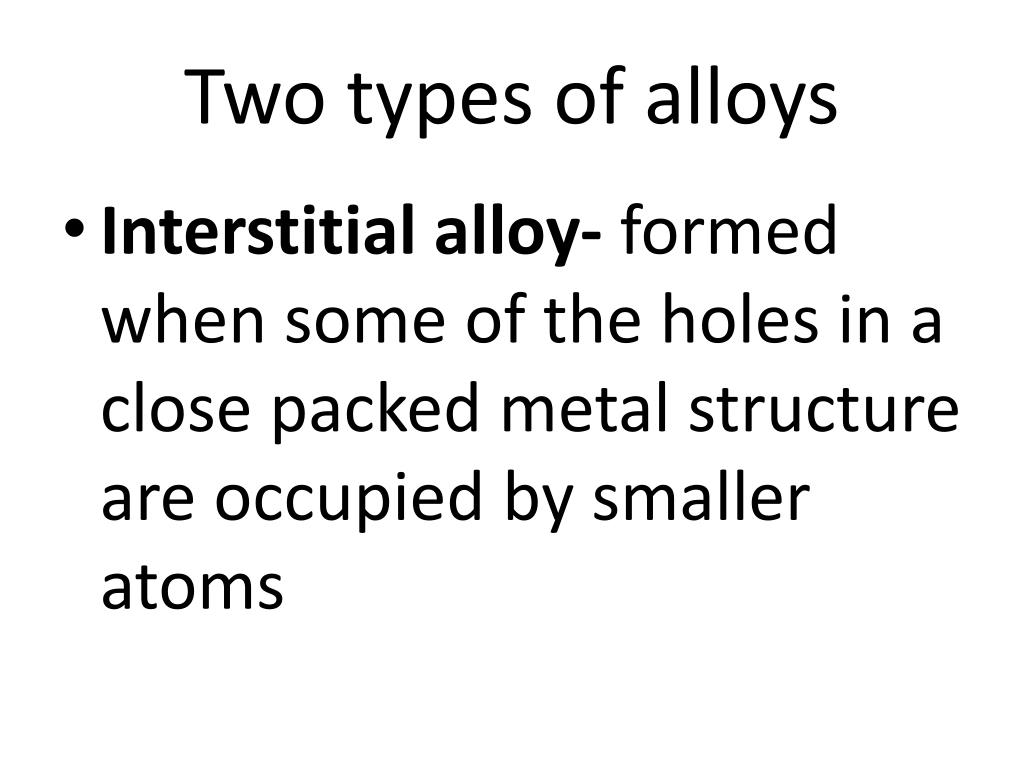

  15. Two types of alloys • Interstitial alloy- formed when some of the holes in a close packed metal structure are occupied by smaller atoms

  16. Interstitial alloy • EX: Steel (carbon atoms into iron) • Strengthens iron by adding strong directional bonds
