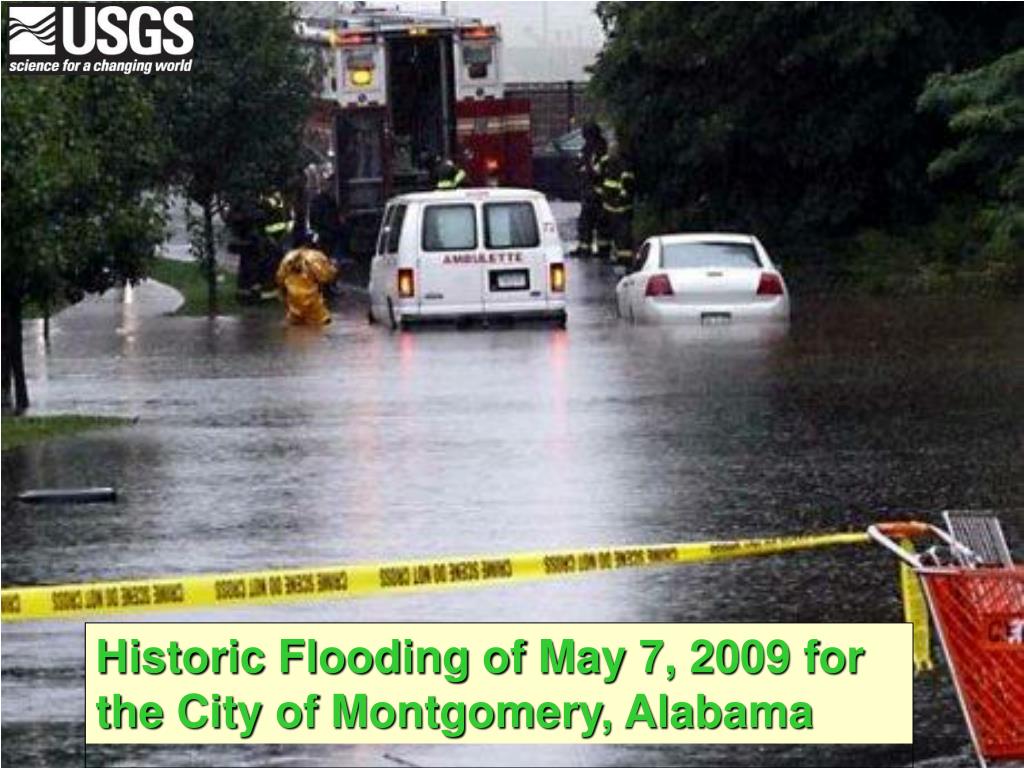

  1. Historic Flooding of May 7, 2009 for the City of Montgomery, Alabama

  2. Torrential rain caused severe flash flooding in Montgomery and surrounding areas on May 7, 2009. The River Region experienced a line of severe thunderstorms having widespread rainfall totals of six to eight inches, with local amounts in excess of 10 inches, falling in just over a four hour time period.

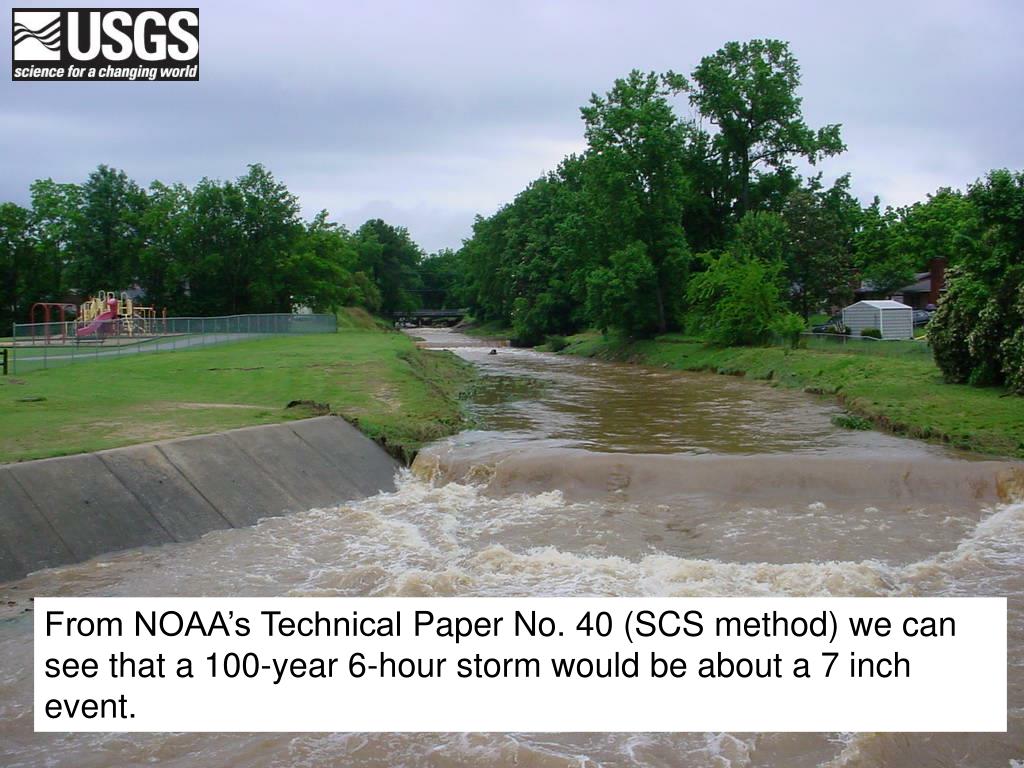

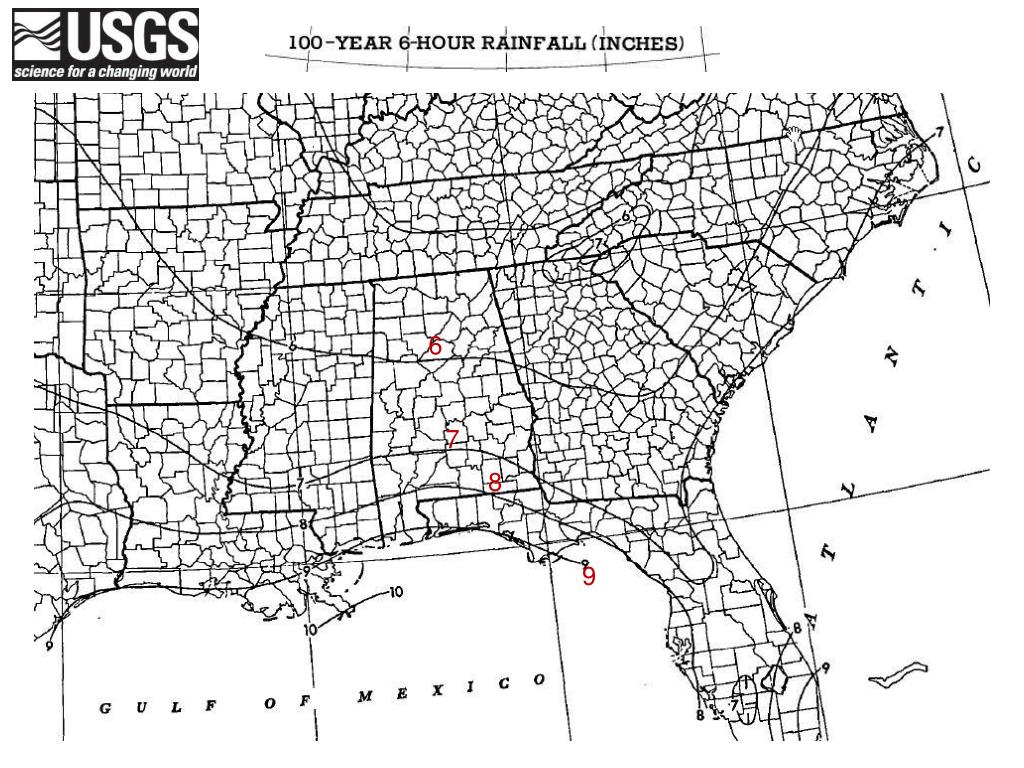

  3. From NOAA’s Technical Paper No. 40 (SCS method) we can see that a 100-year 6-hour storm would be about a 7 inch event.

  4. 6 7 8 9

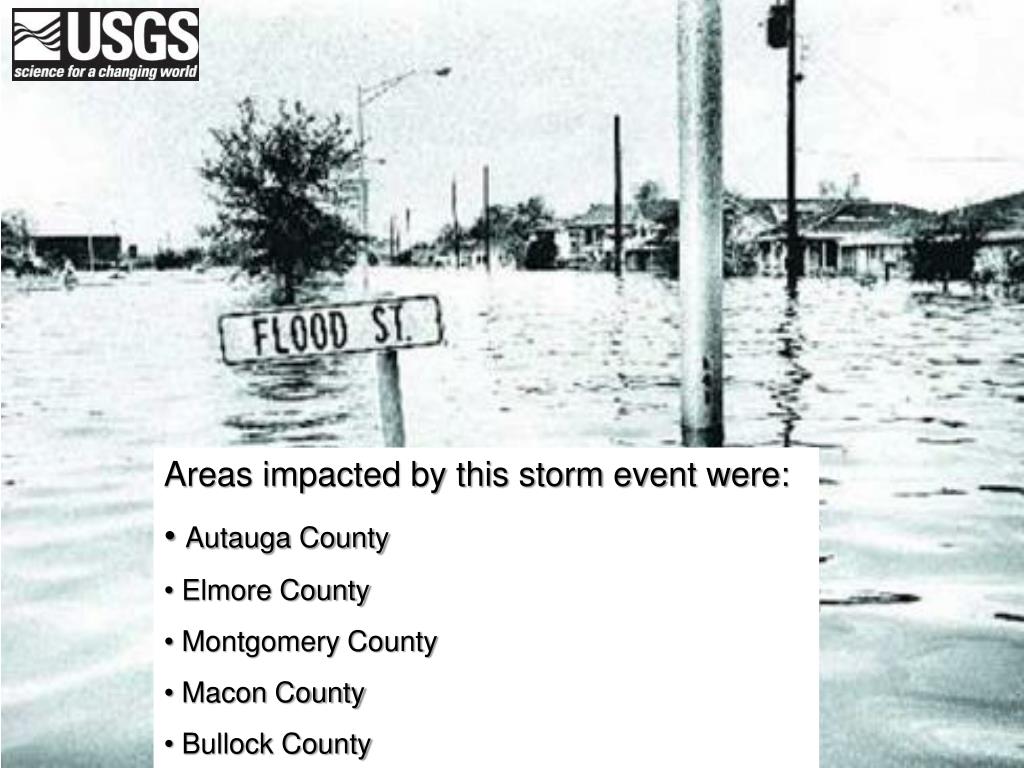

  5. Areas impacted by this storm event were: • Autauga County • Elmore County • Montgomery County • Macon County • Bullock County

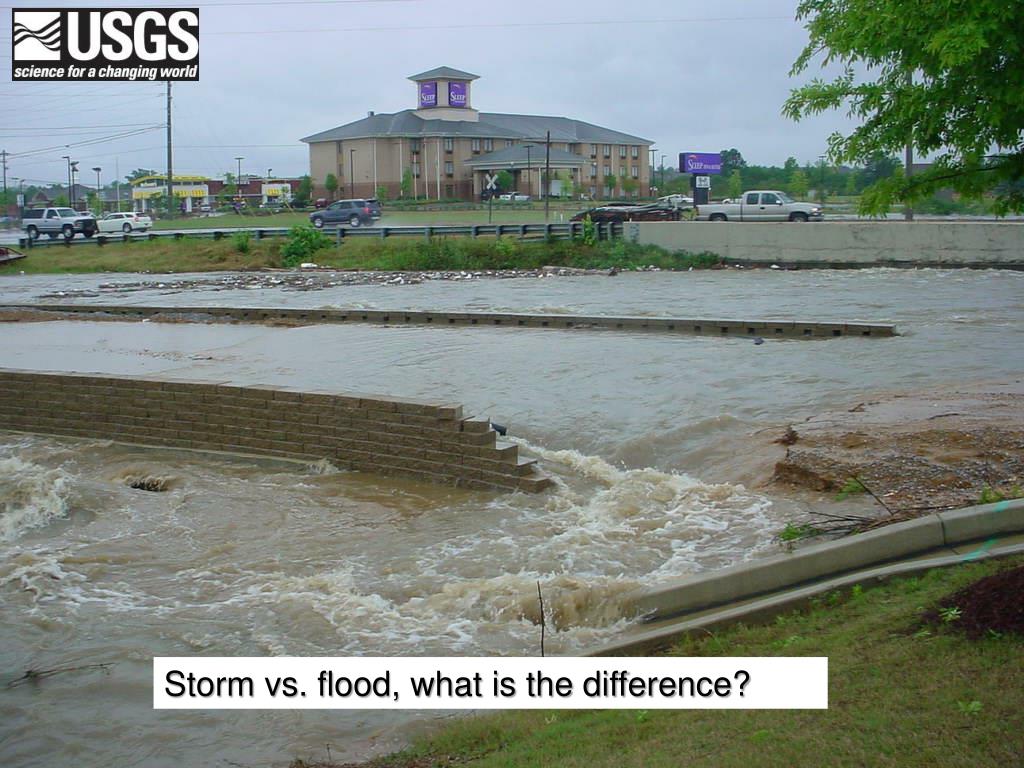

  6. Storm vs. flood, what is the difference?

  7. Following the May 7, 2009 flood event, the USGS collected data for the following streams: • Oliver Creek • Sherwood Ditch • Jenkins Creek (2) • Baldwin Slough (2) • Three Mile Branch • Miller Creek

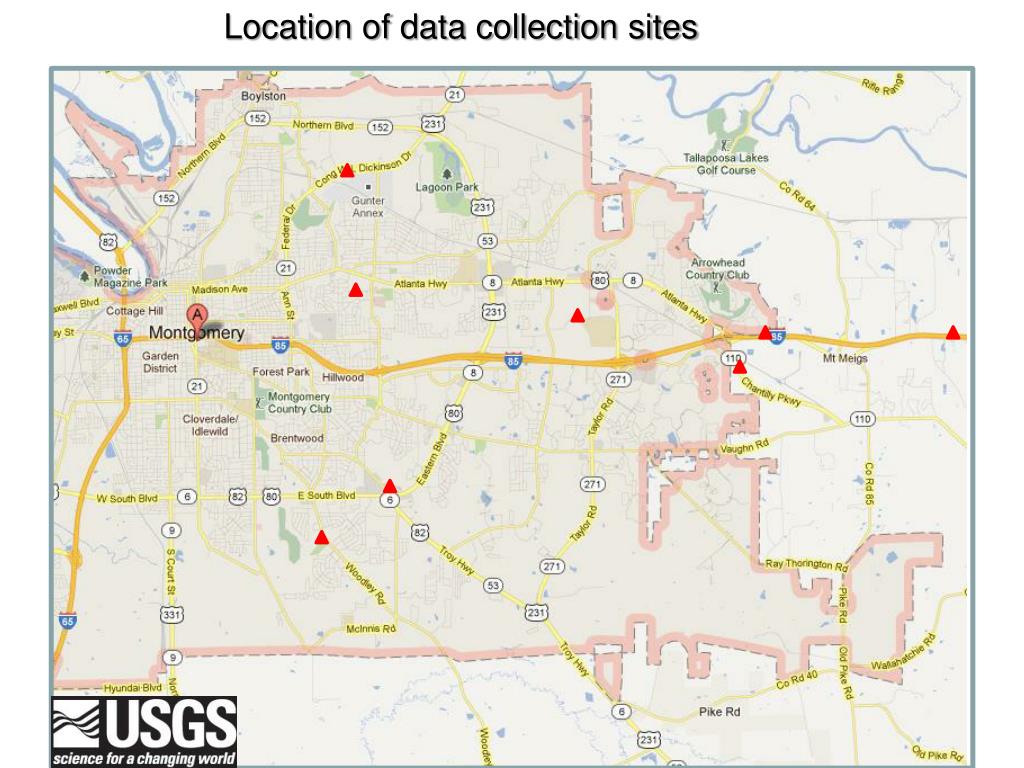

  8. Location of data collection sites

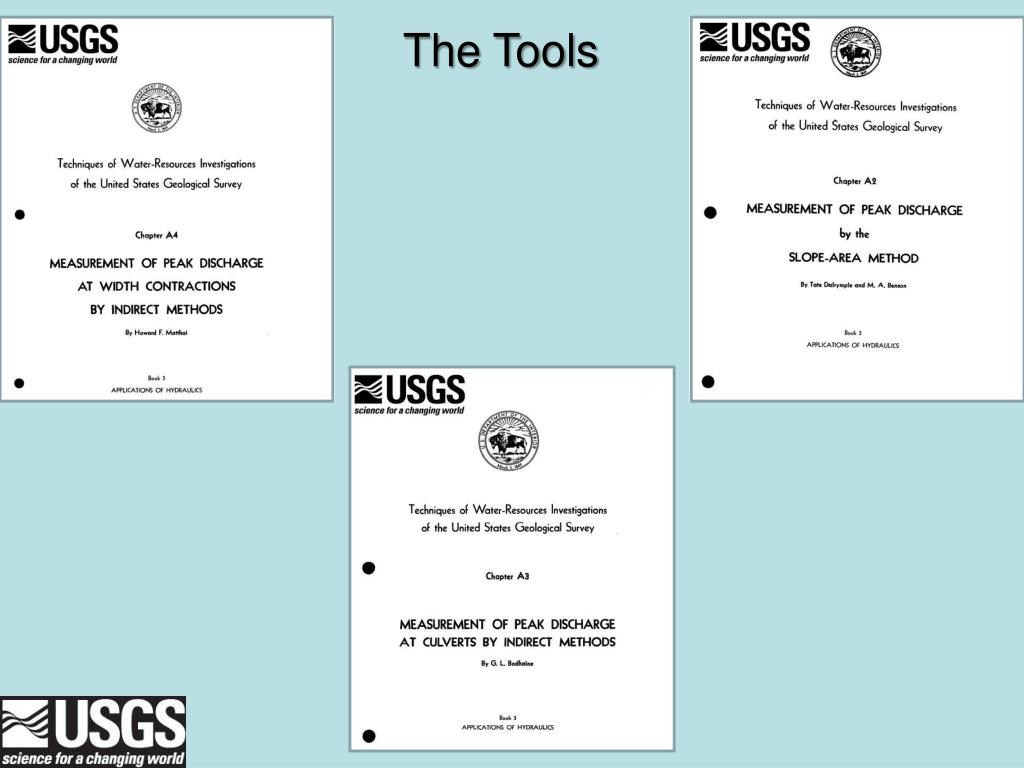

  9. The Tools

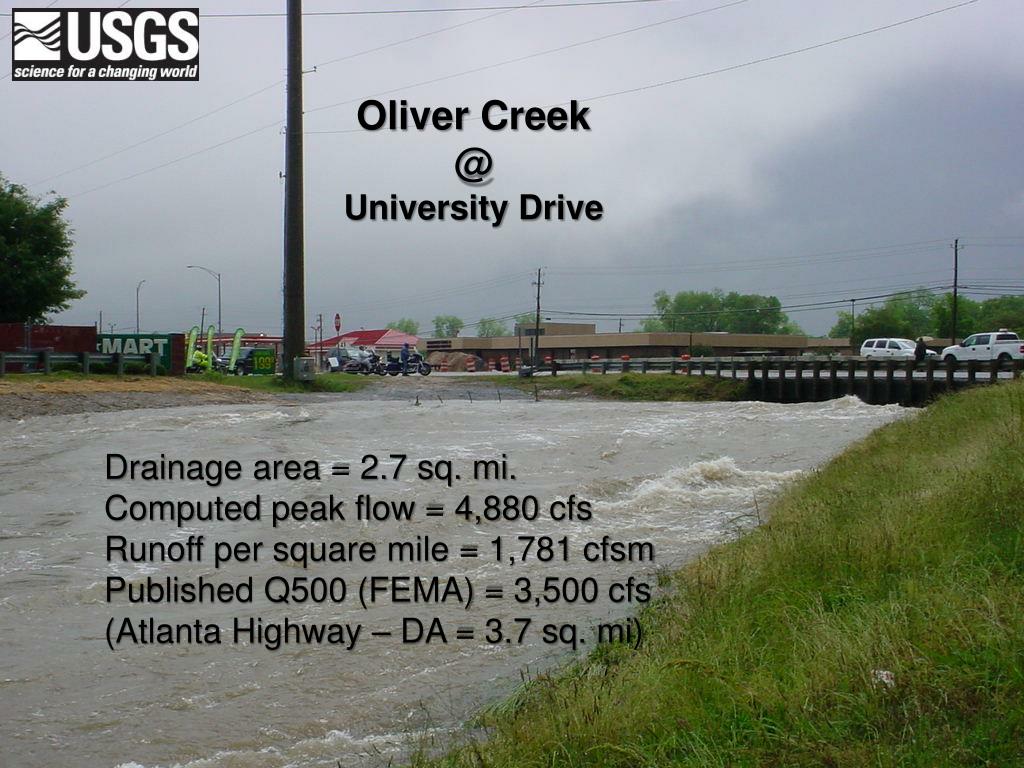

  10. Oliver Creek @ University Drive Drainage area = 2.7 sq. mi. Computed peak flow = 4,880 cfs Runoff per square mile = 1,781 cfsm Published Q500 (FEMA) = 3,500 cfs (Atlanta Highway – DA = 3.7 sq. mi)

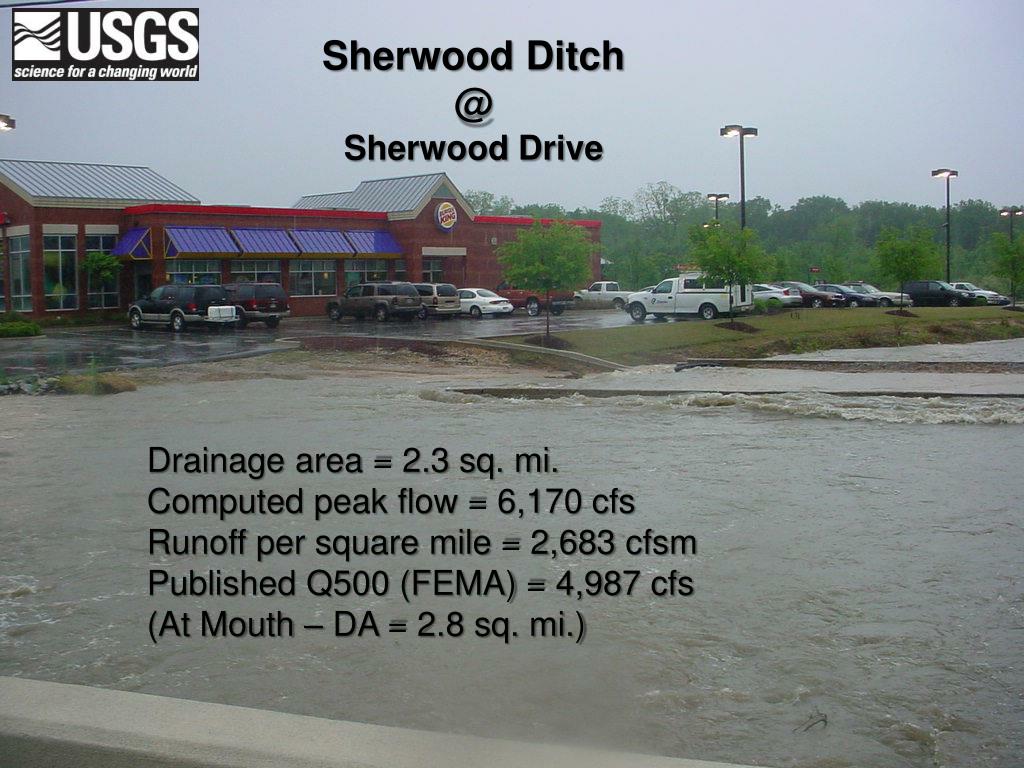

  11. Sherwood Ditch @ Sherwood Drive Drainage area = 2.3 sq. mi. Computed peak flow = 6,170 cfs Runoff per square mile = 2,683 cfsm Published Q500 (FEMA) = 4,987 cfs (At Mouth – DA = 2.8 sq. mi.)

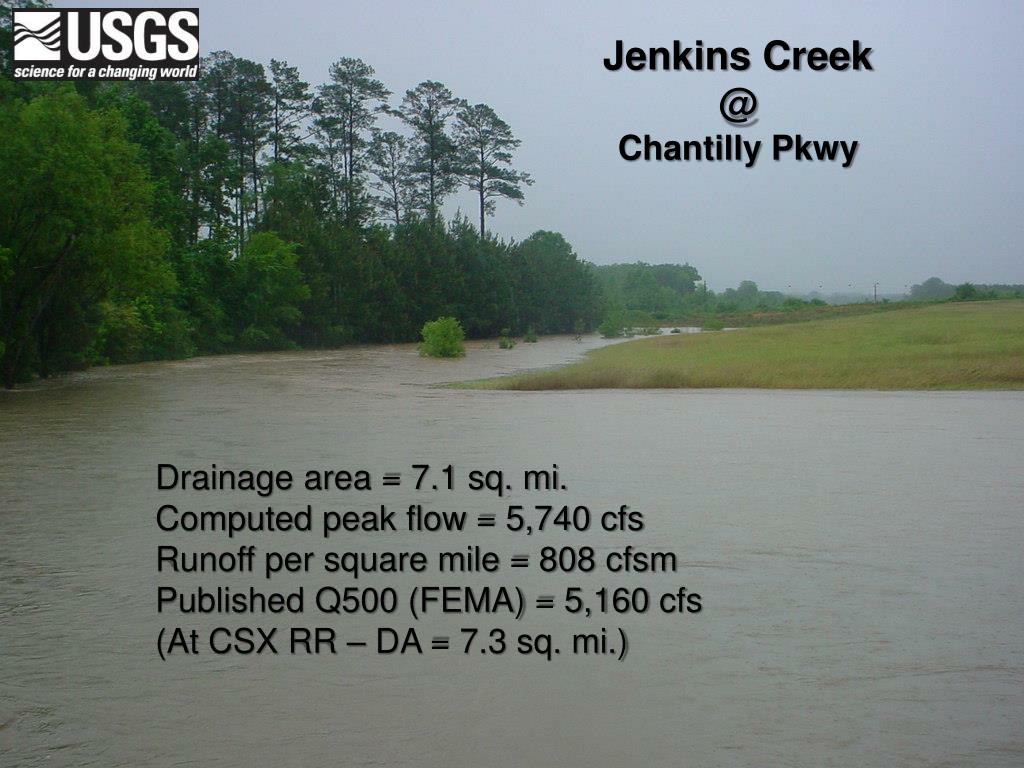

  12. Jenkins Creek @ Chantilly Pkwy Drainage area = 7.1 sq. mi. Computed peak flow = 5,740 cfs Runoff per square mile = 808 cfsm Published Q500 (FEMA) = 5,160 cfs (At CSX RR – DA = 7.3 sq. mi.)

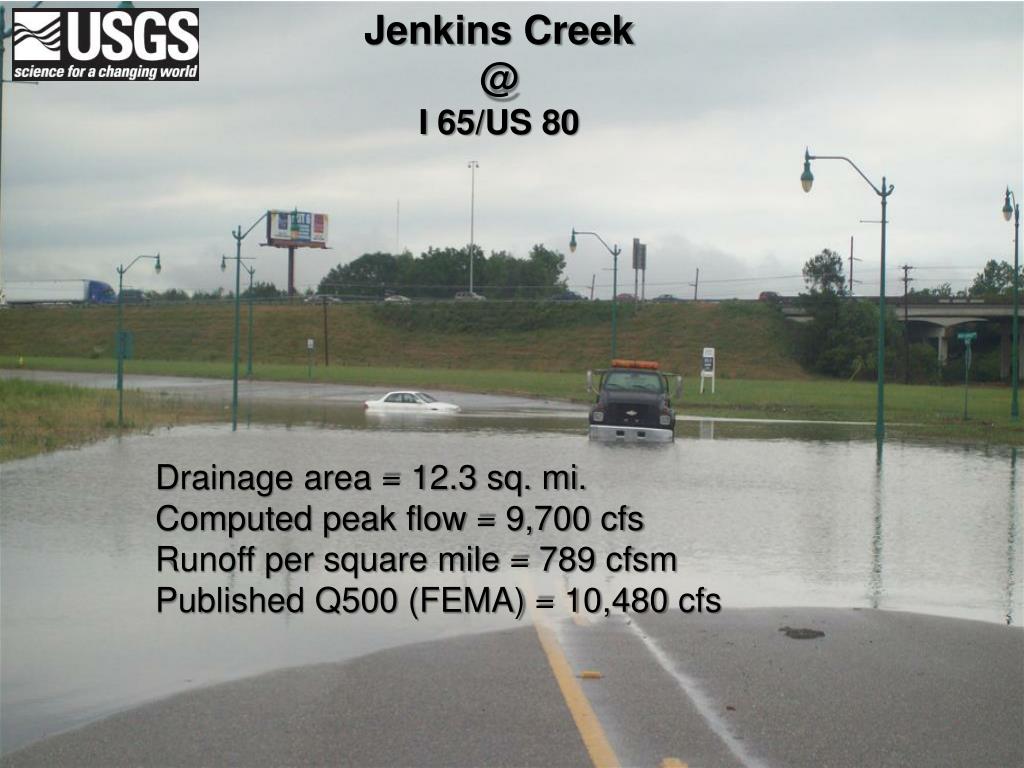

  13. Jenkins Creek @ I 65/US 80 Drainage area = 12.3 sq. mi. Computed peak flow = 9,700 cfs Runoff per square mile = 789 cfsm Published Q500 (FEMA) = 10,480 cfs

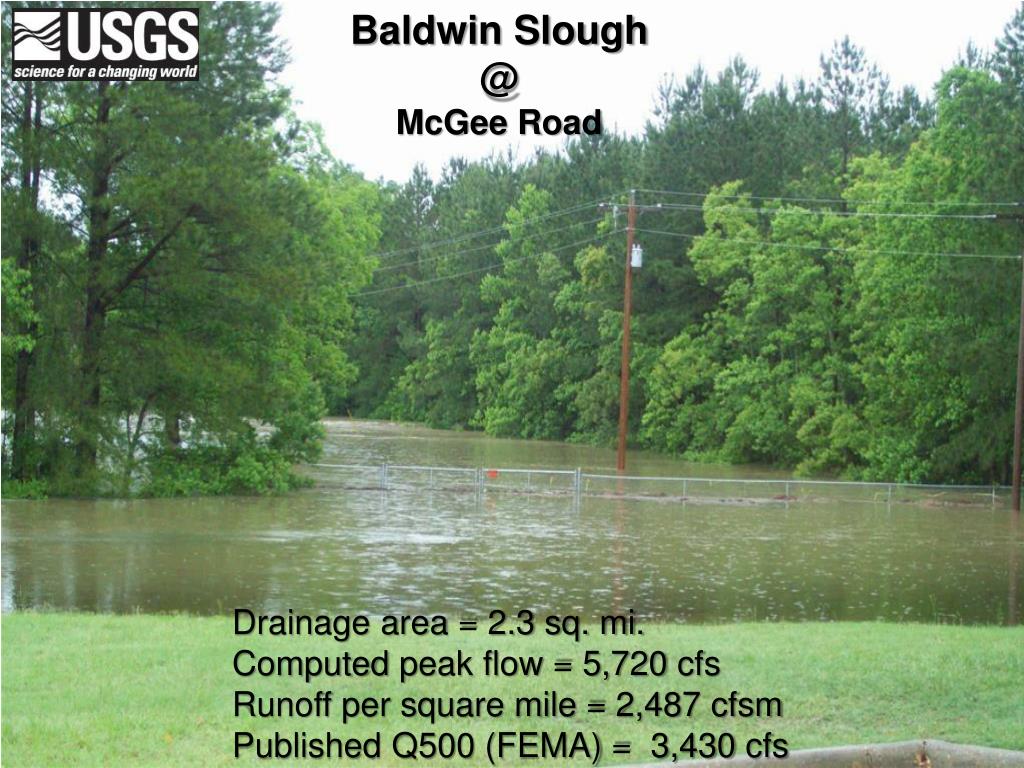

  14. Baldwin Slough @ McGee Road Drainage area = 2.3 sq. mi. Computed peak flow = 5,720 cfs Runoff per square mile = 2,487 cfsm Published Q500 (FEMA) = 3,430 cfs

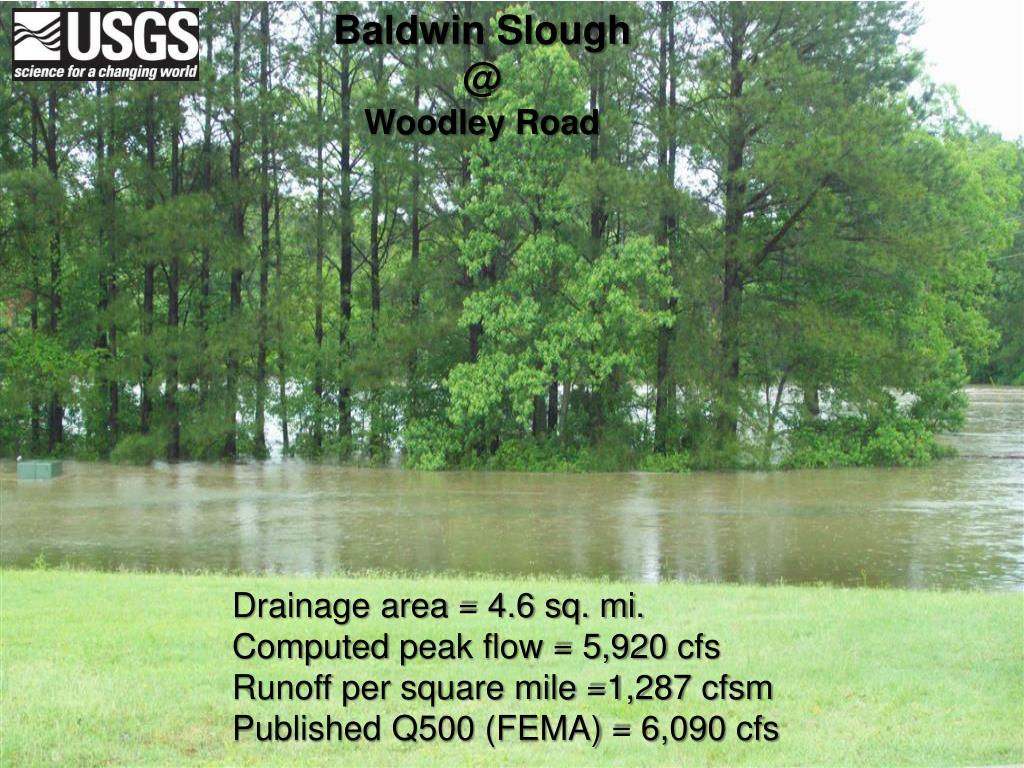

  15. Baldwin Slough @ Woodley Road Drainage area = 4.6 sq. mi. Computed peak flow = 5,920 cfs Runoff per square mile =1,287 cfsm Published Q500 (FEMA) = 6,090 cfs

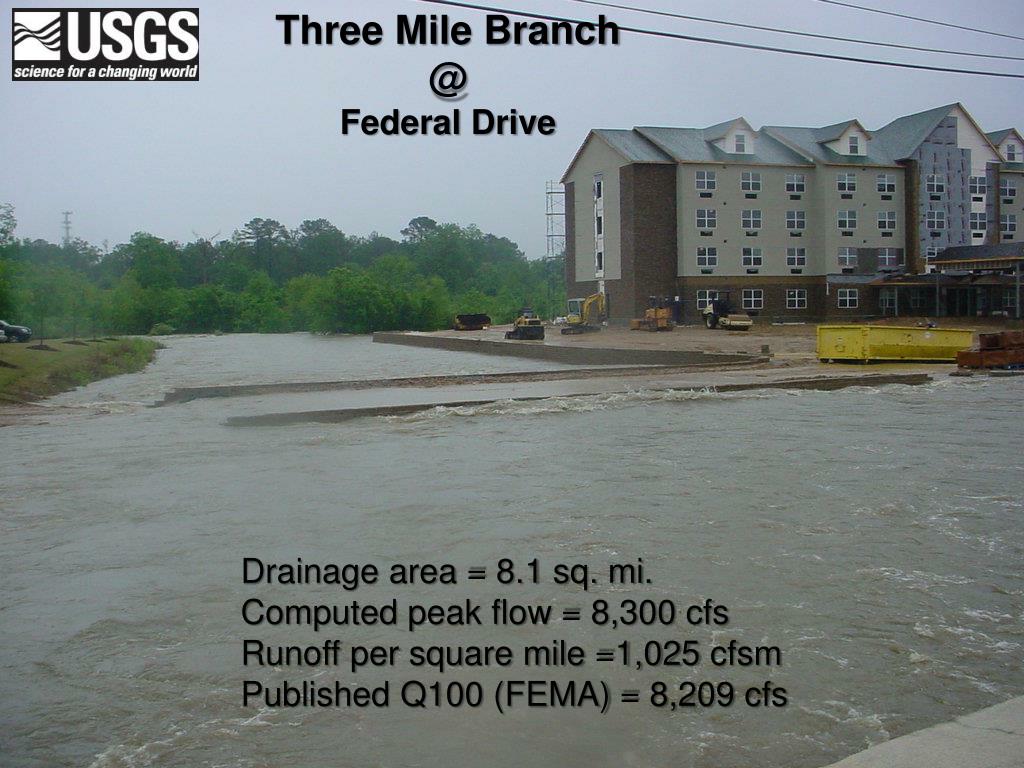

  16. Three Mile Branch @ Federal Drive Drainage area = 8.1 sq. mi. Computed peak flow = 8,300 cfs Runoff per square mile =1,025 cfsm Published Q100 (FEMA) = 8,209 cfs

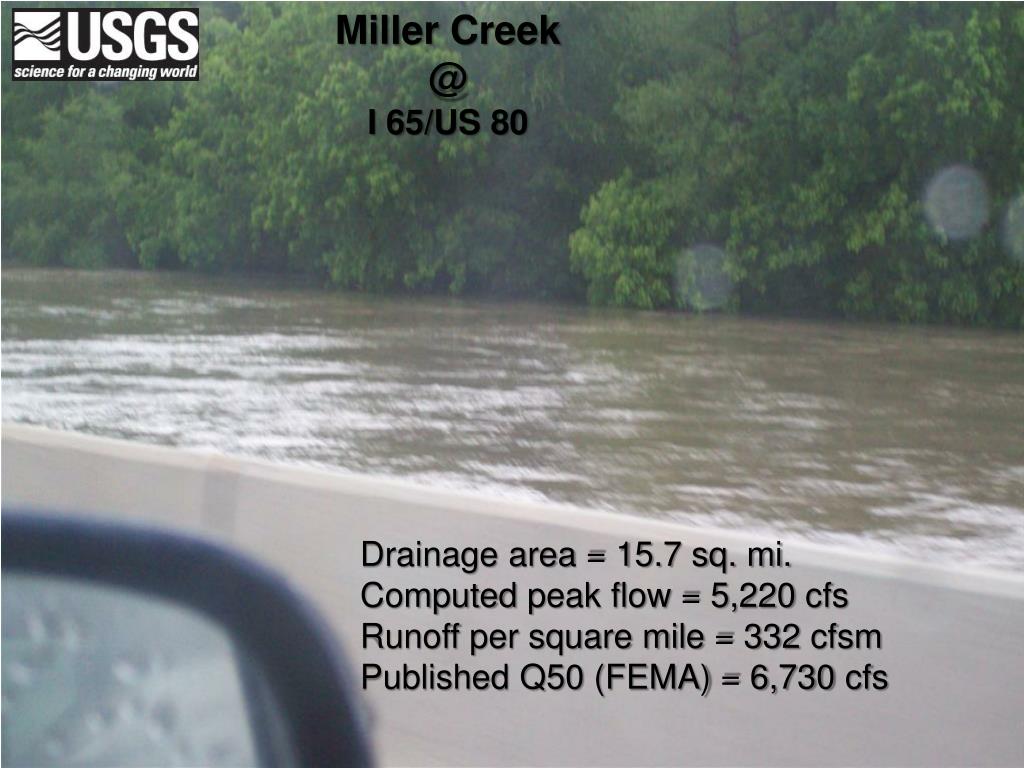

  17. Miller Creek @ I 65/US 80 Drainage area = 15.7 sq. mi. Computed peak flow = 5,220 cfs Runoff per square mile = 332 cfsm Published Q50 (FEMA) = 6,730 cfs

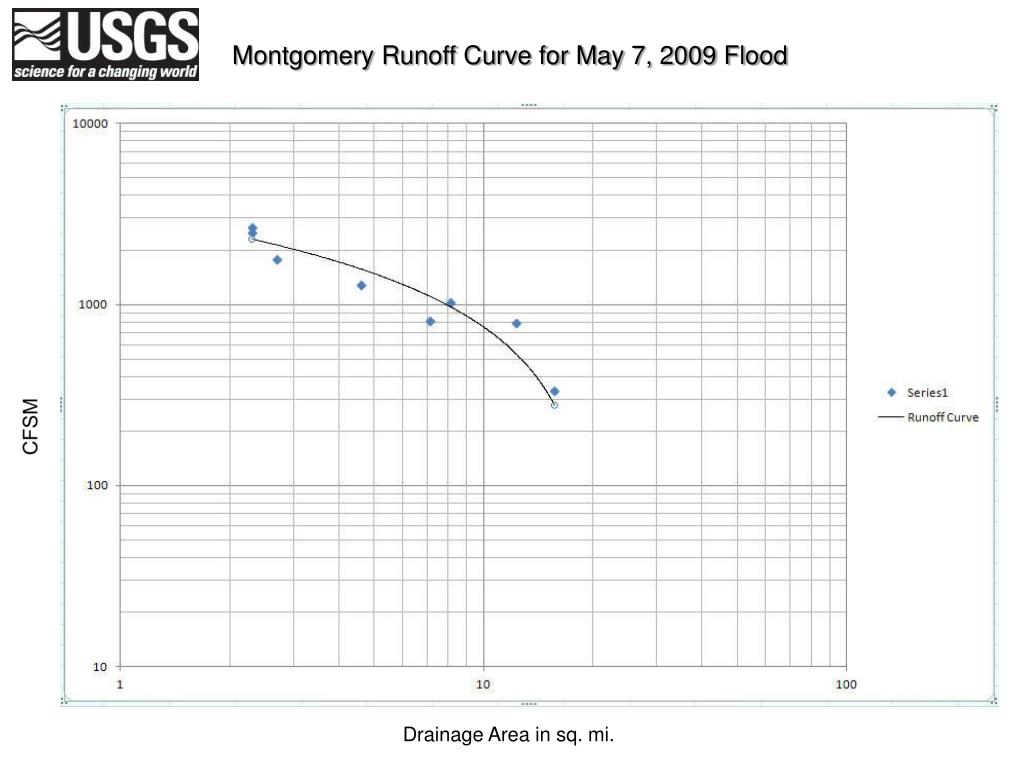

  18. Montgomery Runoff Curve for May 7, 2009 Flood CFSM Drainage Area in sq. mi.

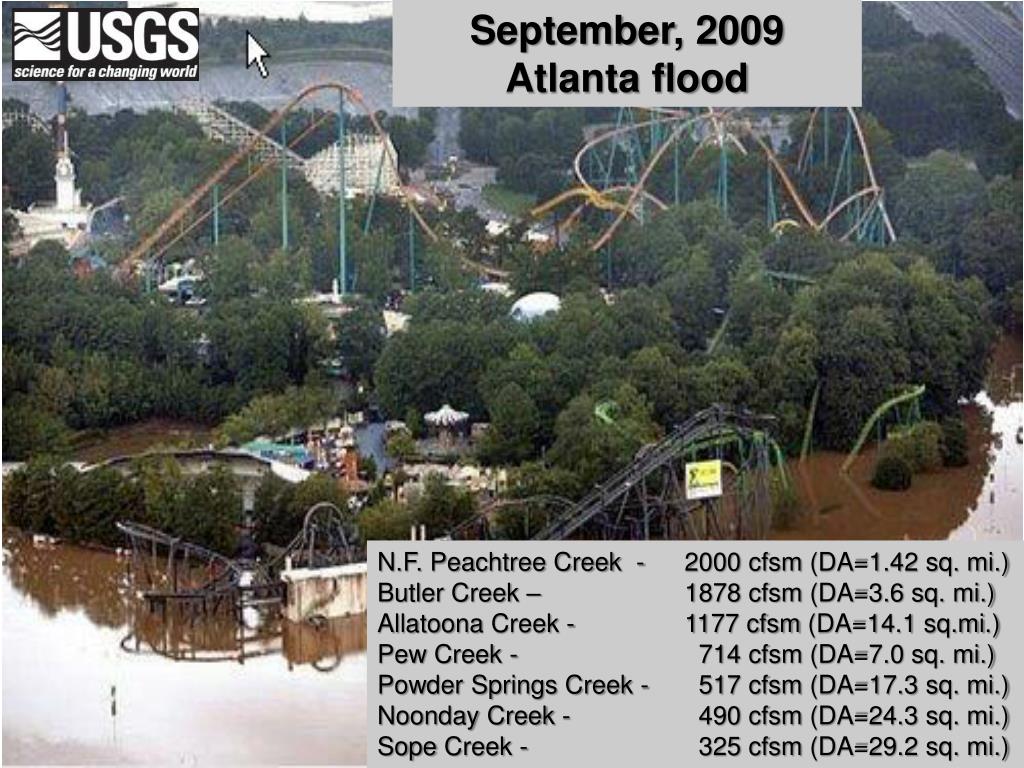

  19. September, 2009 Atlanta flood N.F. Peachtree Creek - 2000 cfsm (DA=1.42 sq. mi.) Butler Creek – 1878 cfsm (DA=3.6 sq. mi.) Allatoona Creek - 1177 cfsm (DA=14.1 sq.mi.) Pew Creek - 714 cfsm(DA=7.0 sq. mi.) Powder Springs Creek - 517 cfsm (DA=17.3 sq. mi.) Noonday Creek - 490 cfsm (DA=24.3 sq. mi.) Sope Creek - 325 cfsm (DA=29.2 sq. mi.)

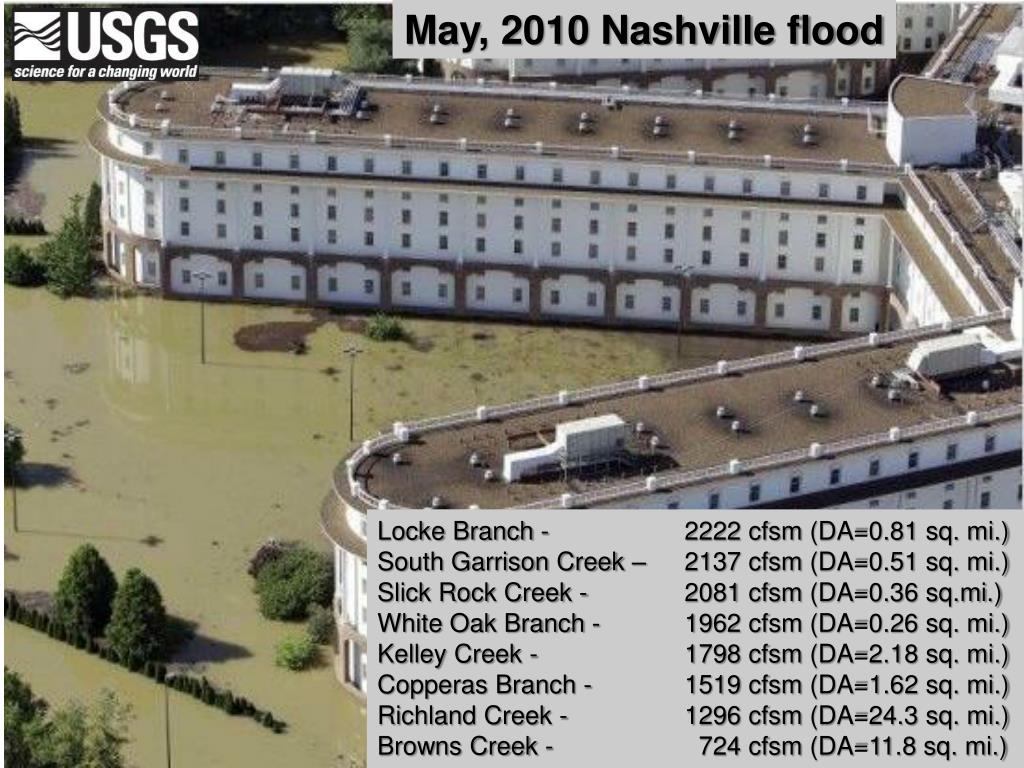

  20. May, 2010 Nashville flood Locke Branch - 2222 cfsm (DA=0.81 sq. mi.) South Garrison Creek – 2137 cfsm (DA=0.51 sq. mi.) Slick Rock Creek - 2081 cfsm (DA=0.36 sq.mi.) White Oak Branch - 1962 cfsm (DA=0.26 sq. mi.) Kelley Creek - 1798 cfsm (DA=2.18 sq. mi.) Copperas Branch - 1519 cfsm (DA=1.62 sq. mi.) Richland Creek - 1296 cfsm (DA=24.3 sq. mi.) Browns Creek - 724 cfsm (DA=11.8 sq. mi.)

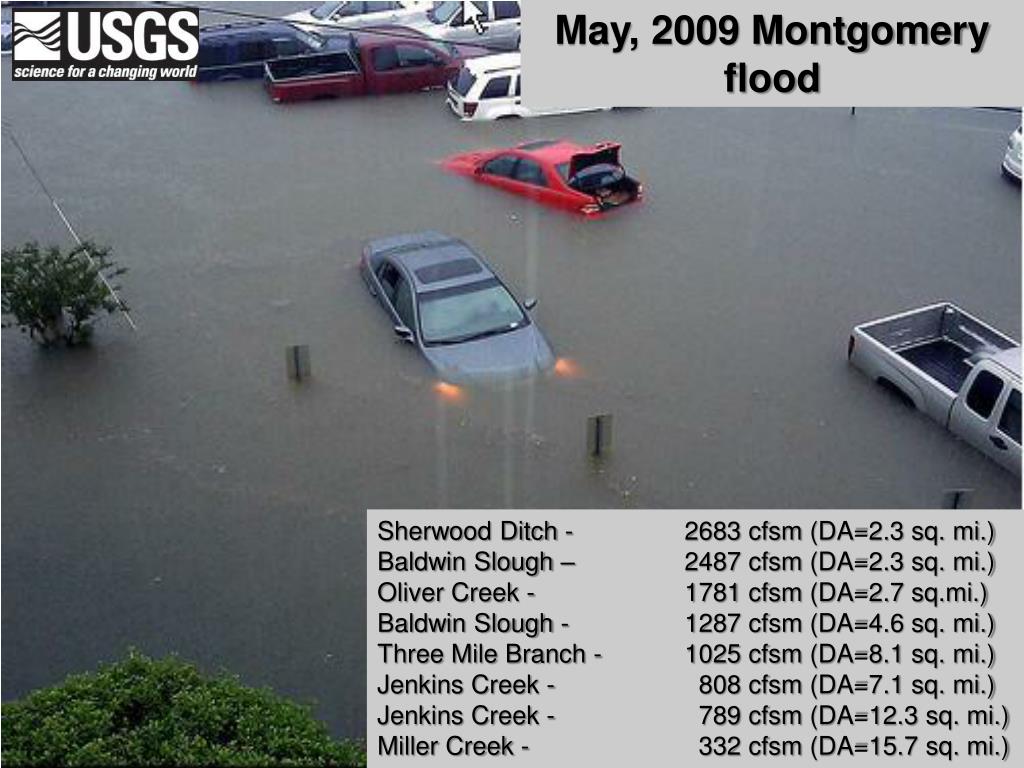

  21. May, 2009 Montgomery flood Sherwood Ditch - 2683 cfsm (DA=2.3 sq. mi.) Baldwin Slough – 2487 cfsm (DA=2.3 sq. mi.) Oliver Creek - 1781 cfsm (DA=2.7 sq.mi.) Baldwin Slough - 1287 cfsm (DA=4.6 sq. mi.) Three Mile Branch - 1025 cfsm (DA=8.1 sq. mi.) Jenkins Creek - 808 cfsm (DA=7.1 sq. mi.) Jenkins Creek - 789 cfsm (DA=12.3 sq. mi.) Miller Creek - 332 cfsm (DA=15.7 sq. mi.)

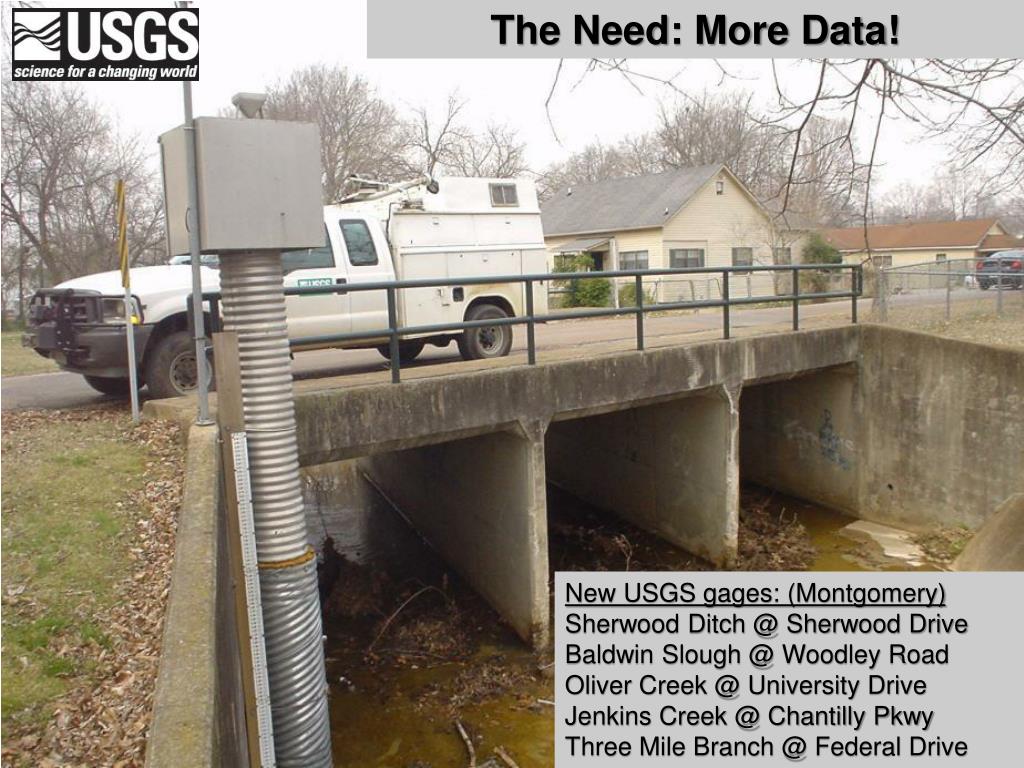

  22. The Need: More Data! New USGS gages: (Montgomery) Sherwood Ditch @ Sherwood Drive Baldwin Slough @ Woodley Road Oliver Creek @ University Drive Jenkins Creek @ Chantilly Pkwy Three Mile Branch @ Federal Drive

  23. Questions ???
