Nerve physiology

Nerve physiology. Physiology of Nerves. There are two major regulatory systems in the body, the nervous system and the endocrine system. The endocrine system regulates relatively slow, long-lived responses The nervous system regulates fast, short-term responses. Neuron structure.

neva
Download Presentation

Nerve physiology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Nerve physiology

  2. Physiology of Nerves • There are two major regulatory systems in the body, the nervous system and the endocrine system. • The endocrine system regulates relatively slow, long-lived responses • The nervous system regulates fast, short-term responses

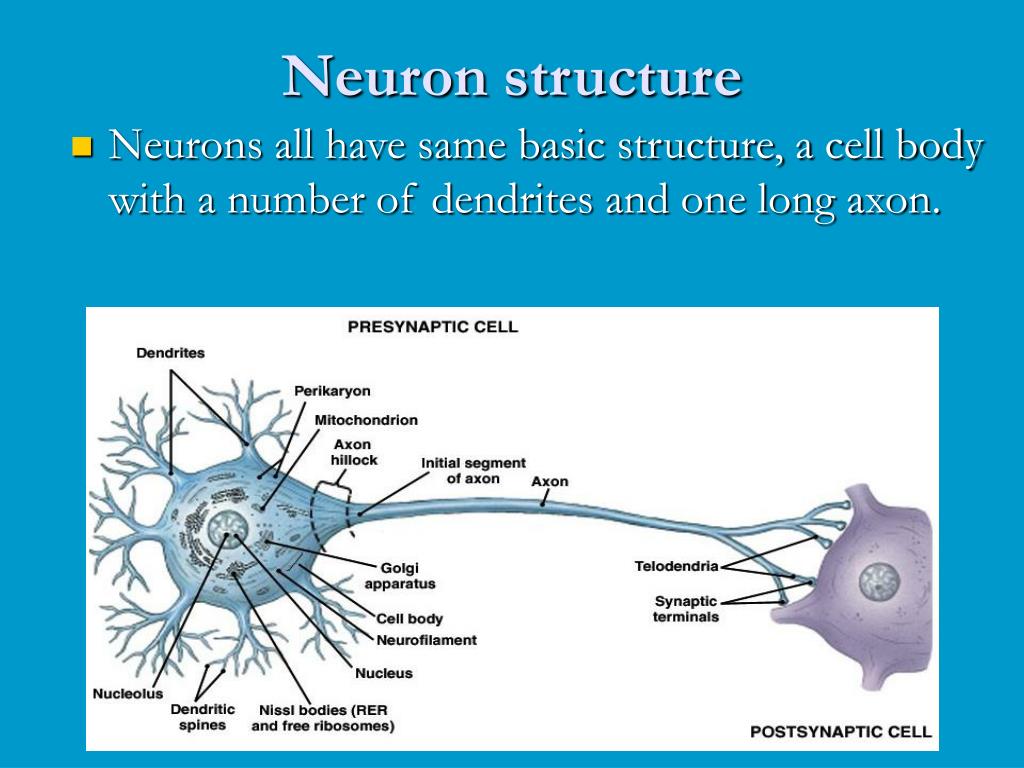

  3. Neuron structure • Neurons all have same basic structure, a cell body with a number of dendrites and one long axon.

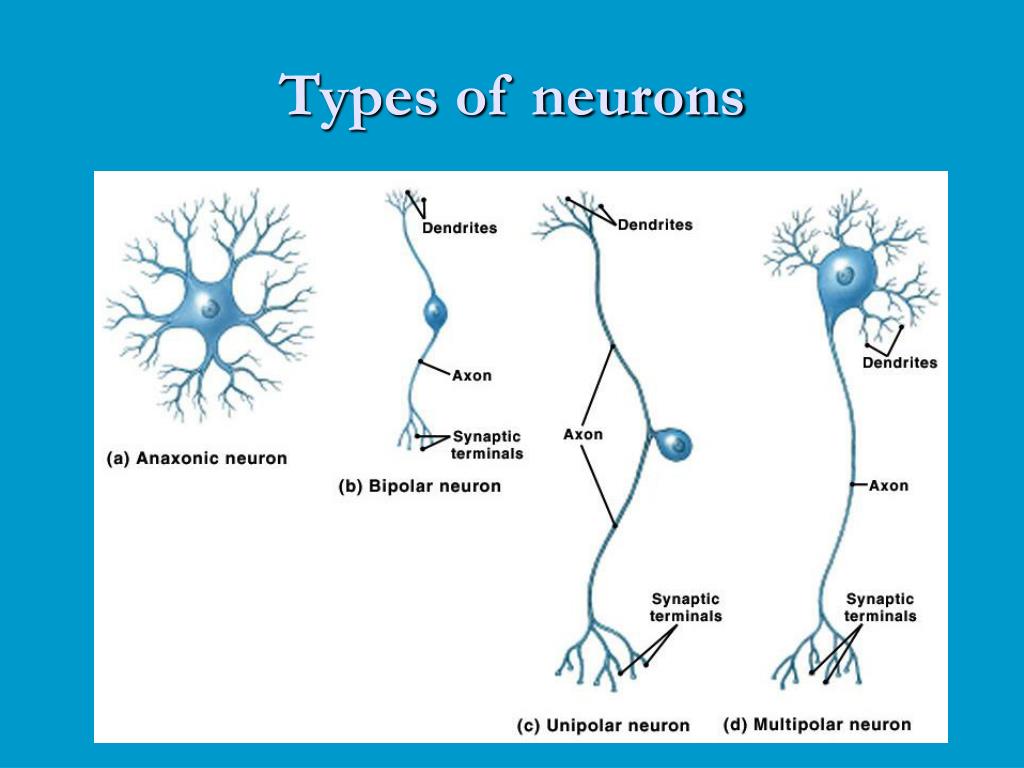

  4. Types of neurons

  5. Divisions of the nervous system

  6. Non-excitable cells of the nervous system

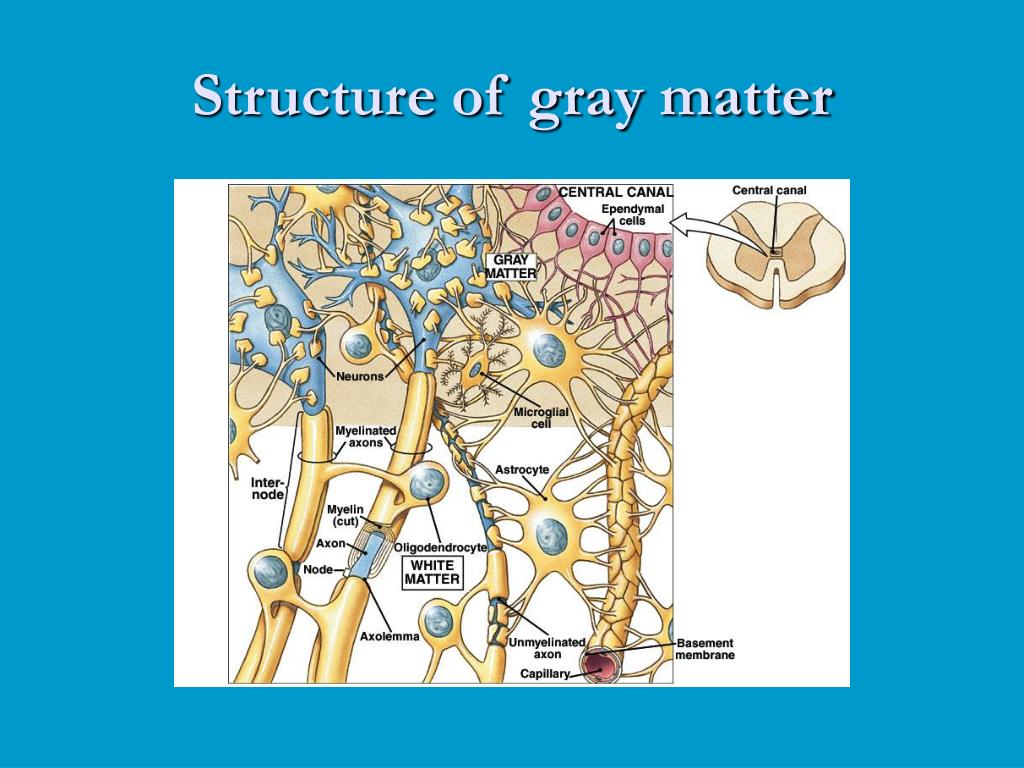

  7. Structure of gray matter

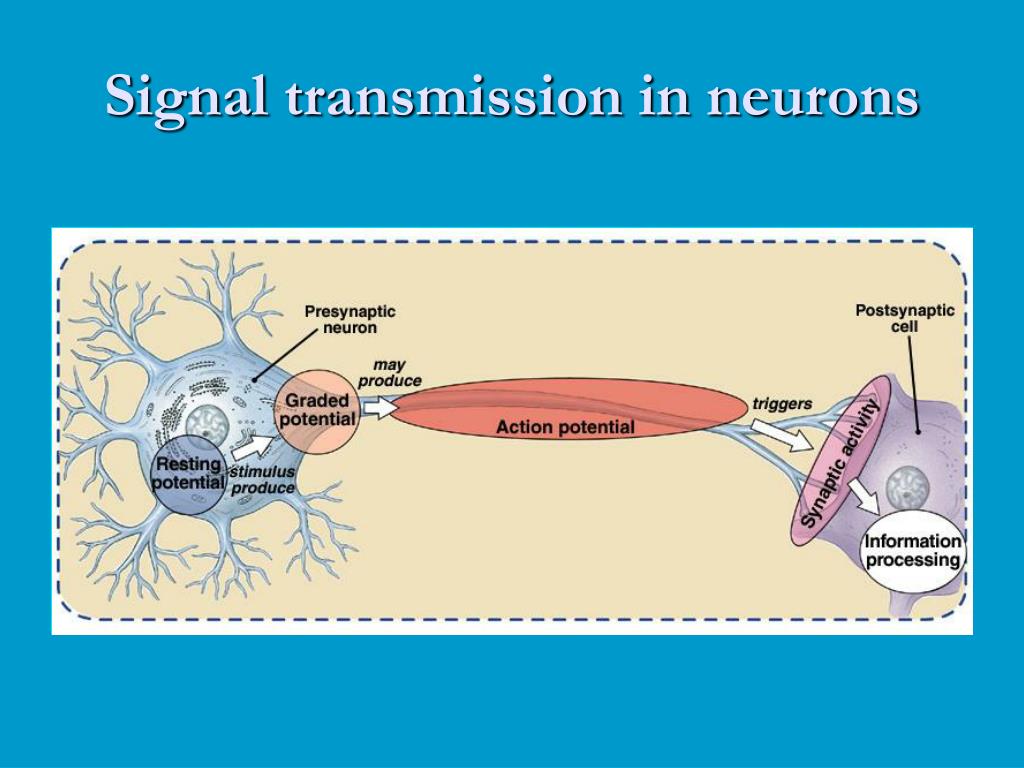

  8. Signal transmission in neurons

  9. Resting potential

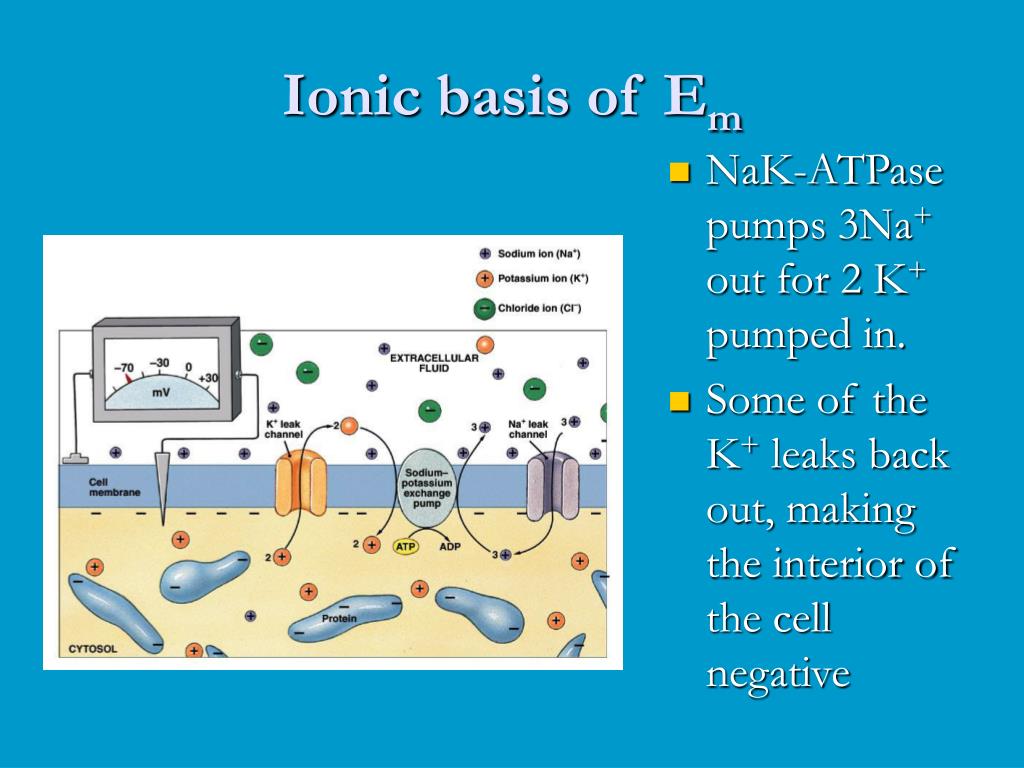

  10. Ionic basis of Em • NaK-ATPase pumps 3Na+ out for 2 K+ pumped in. • Some of the K+ leaks back out, making the interior of the cell negative

  11. Electrochemical Gradients Figure 12.12

  12. Ion channels • Remember Ohm’s Law: I=E/R • When a channel opens, it has a fixed resistance. • Thus, each channel has a fixed current. • Using the patch-clamp technique, we can measure the current through individual channels

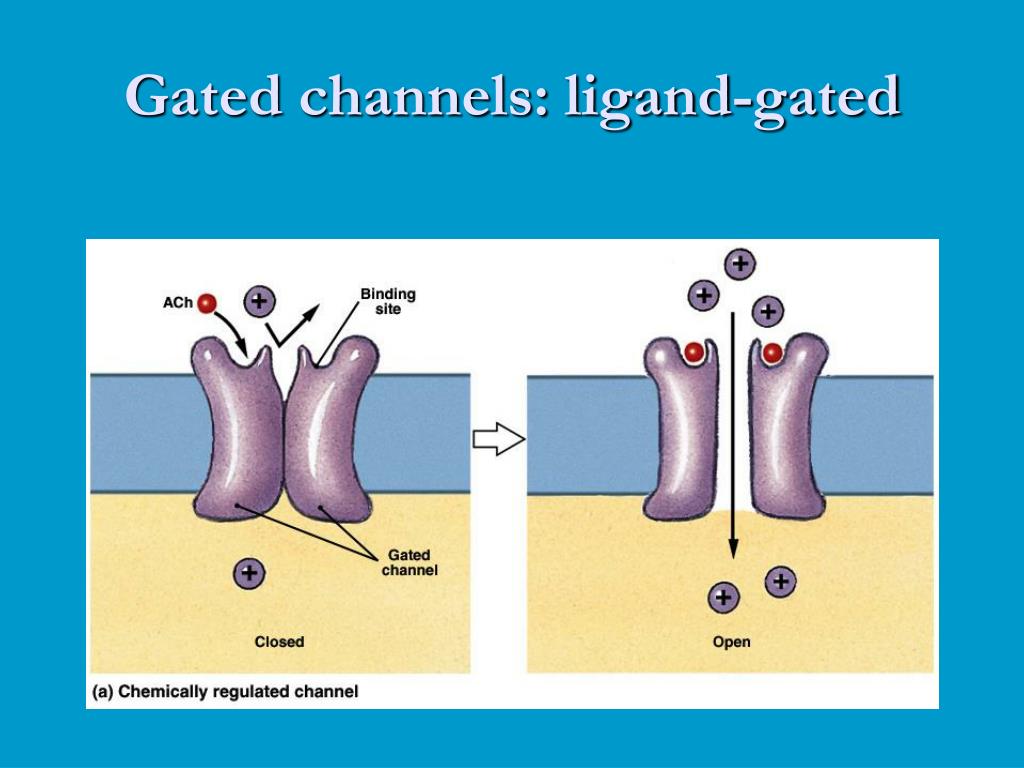

  13. Gated channels: ligand-gated

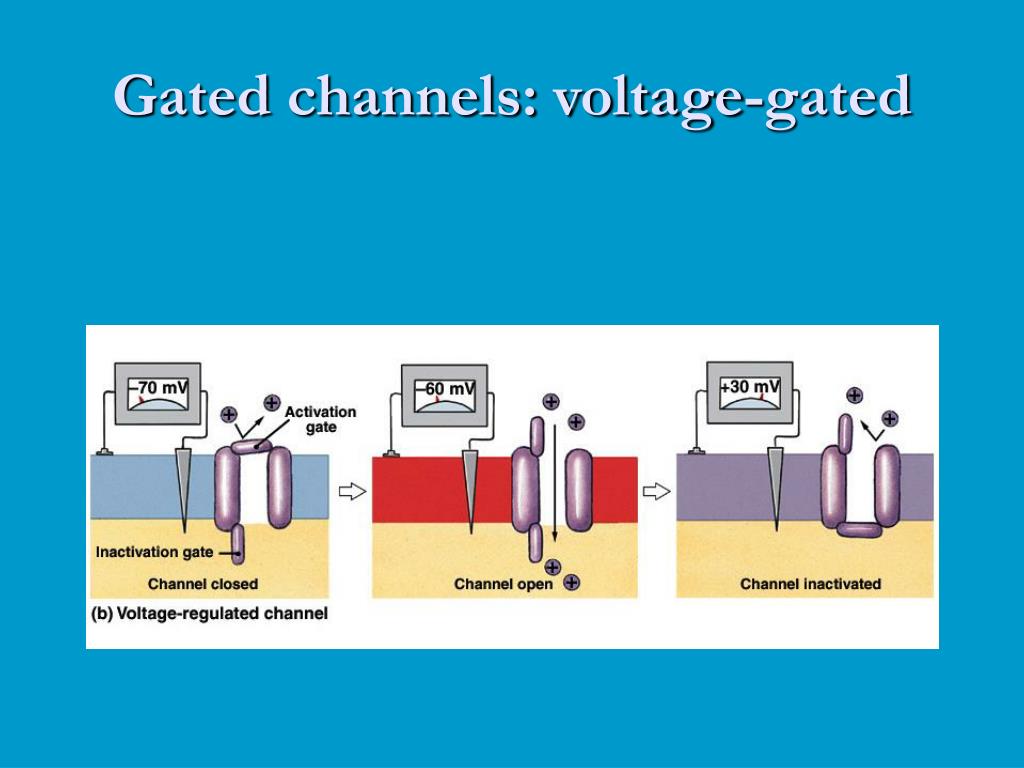

  14. Gated channels: voltage-gated

  15. Gated channels: mechanically-gated

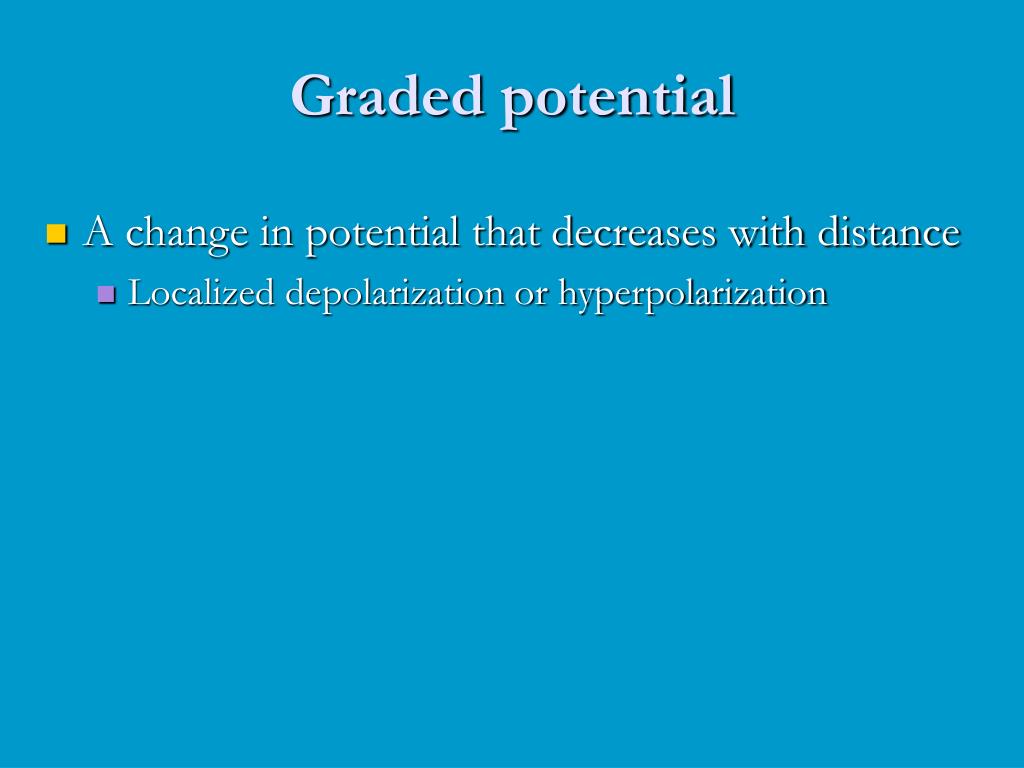

  16. Graded potential • A change in potential that decreases with distance • Localized depolarization or hyperpolarization

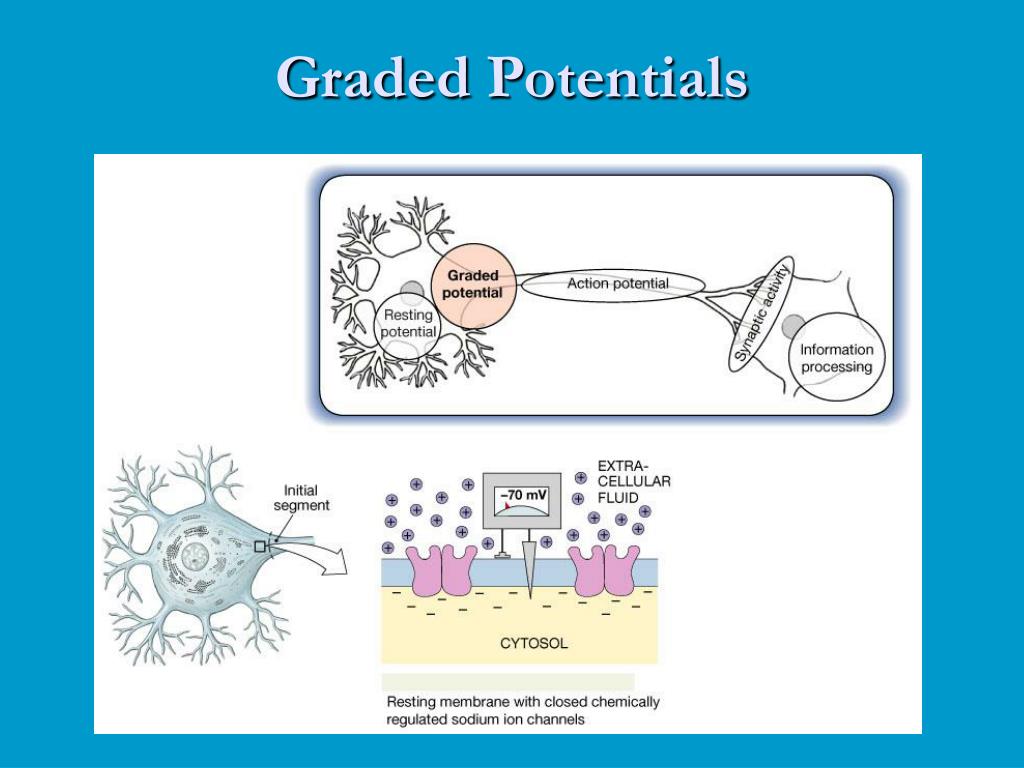

  17. Graded Potentials

  18. Graded Potentials

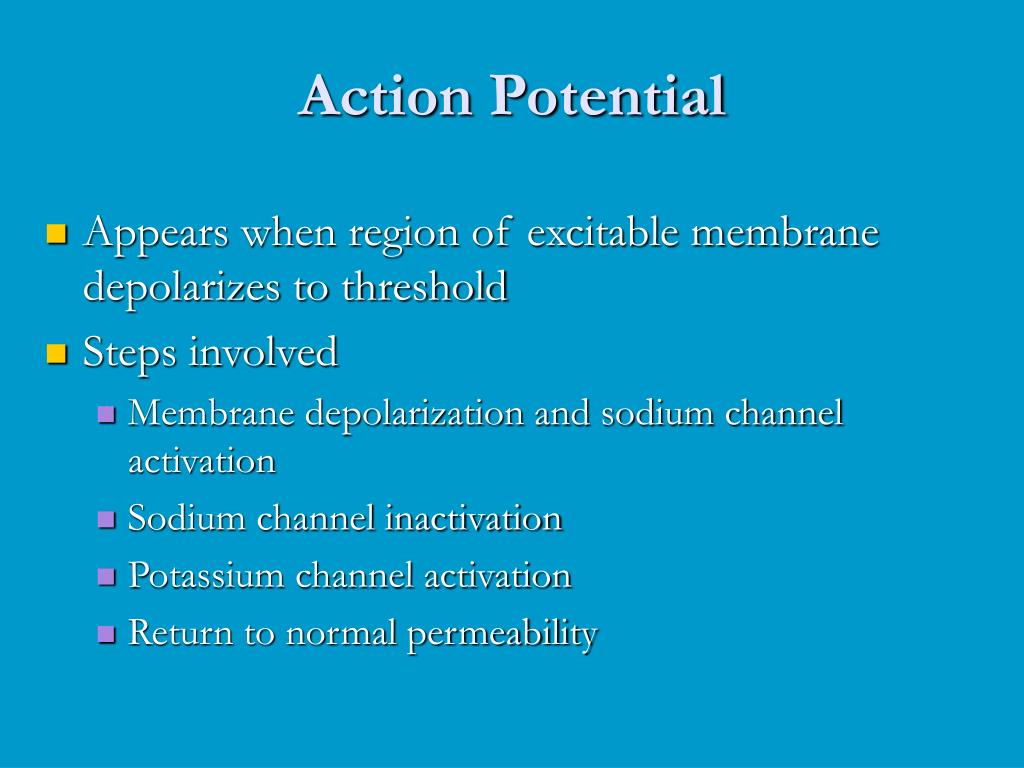

  19. Action Potential • Appears when region of excitable membrane depolarizes to threshold • Steps involved • Membrane depolarization and sodium channel activation • Sodium channel inactivation • Potassium channel activation • Return to normal permeability

  20. The Generation of an Action Potential Figure 2.16.1

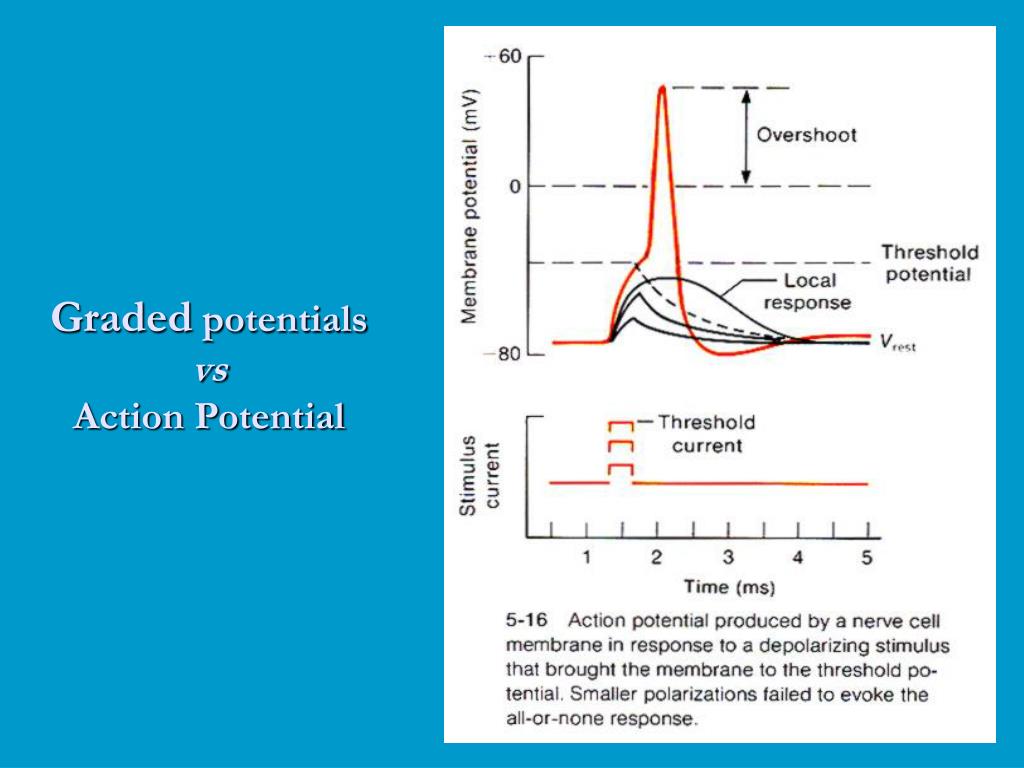

  21. Graded potentials vsAction Potential

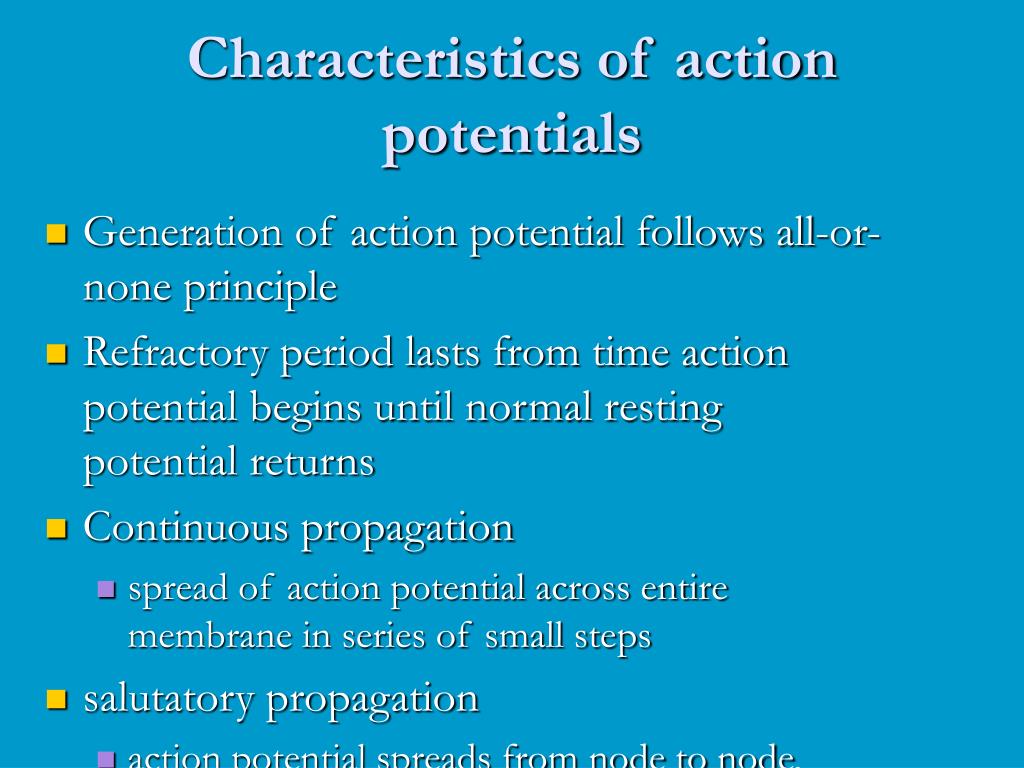

  22. Characteristics of action potentials • Generation of action potential follows all-or-none principle • Refractory period lasts from time action potential begins until normal resting potential returns • Continuous propagation • spread of action potential across entire membrane in series of small steps • salutatory propagation • action potential spreads from node to node, skipping internodal membrane

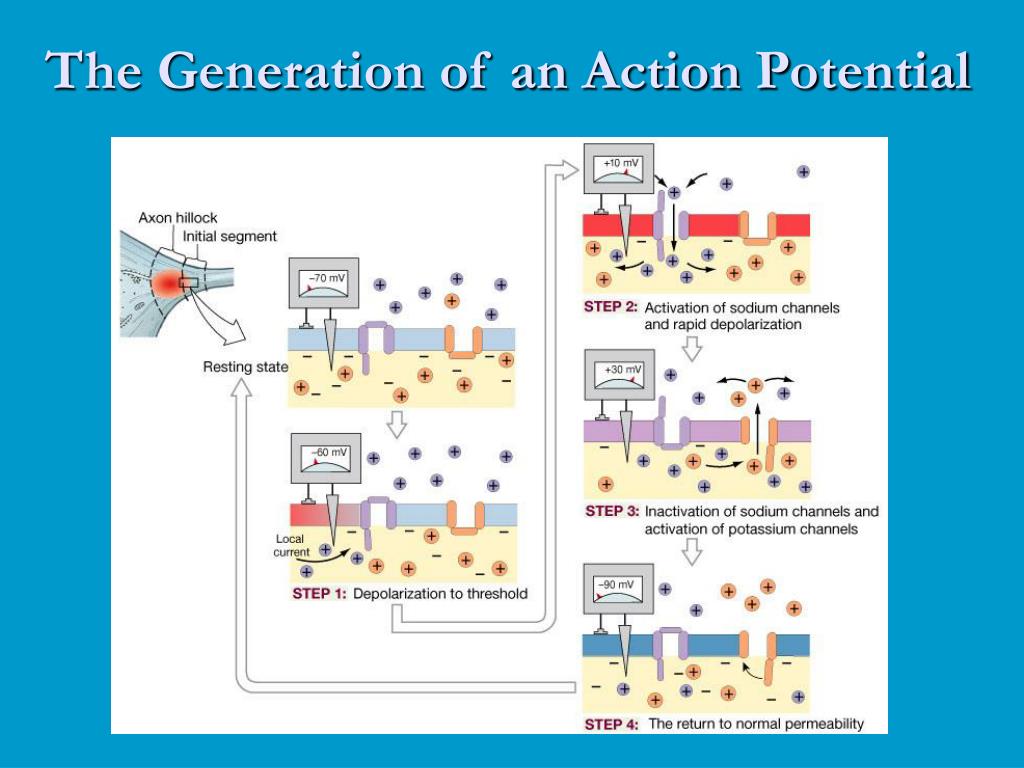

  23. The Generation of an Action Potential

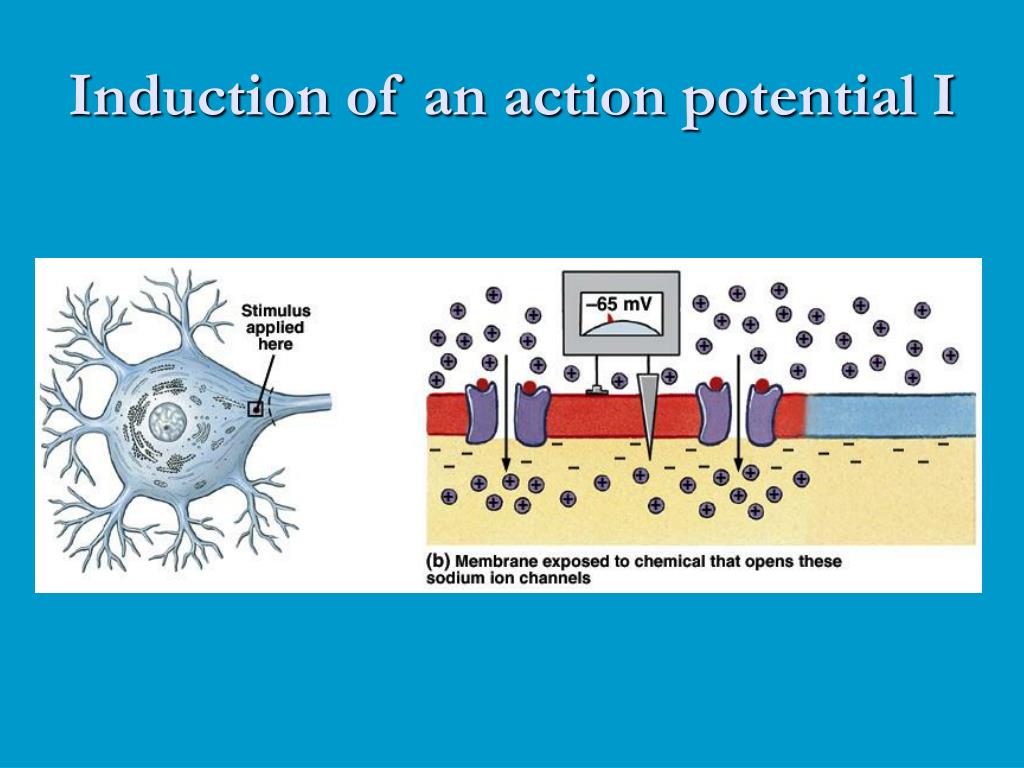

  24. Induction of an action potential I

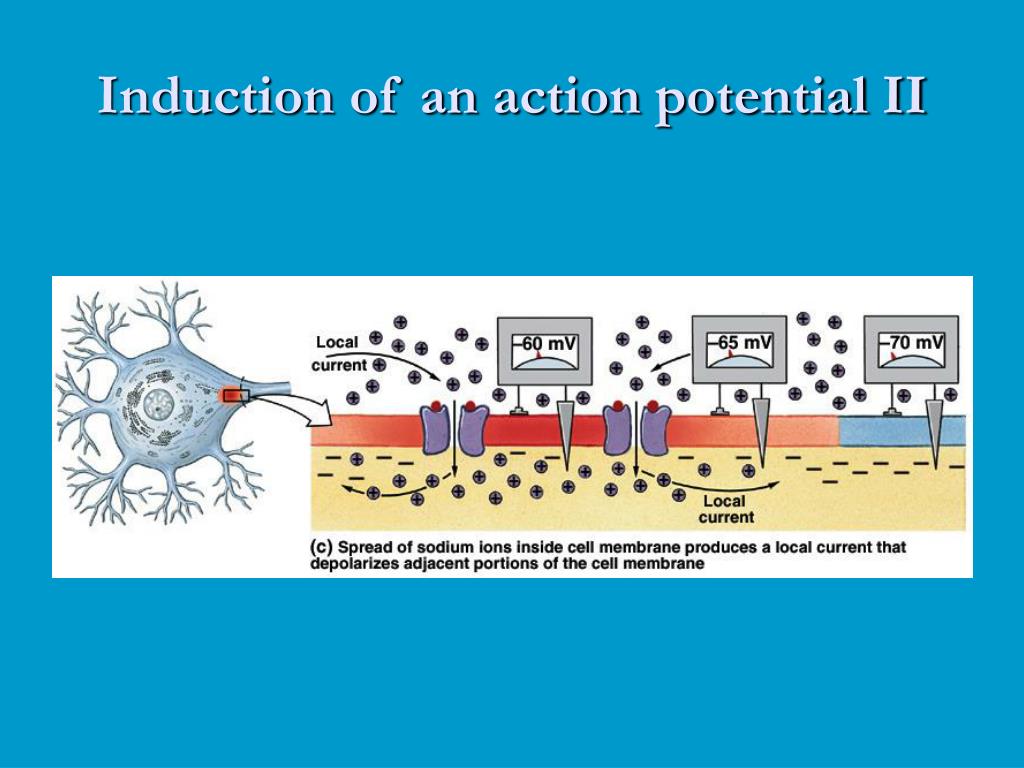

  25. Induction of an action potential II

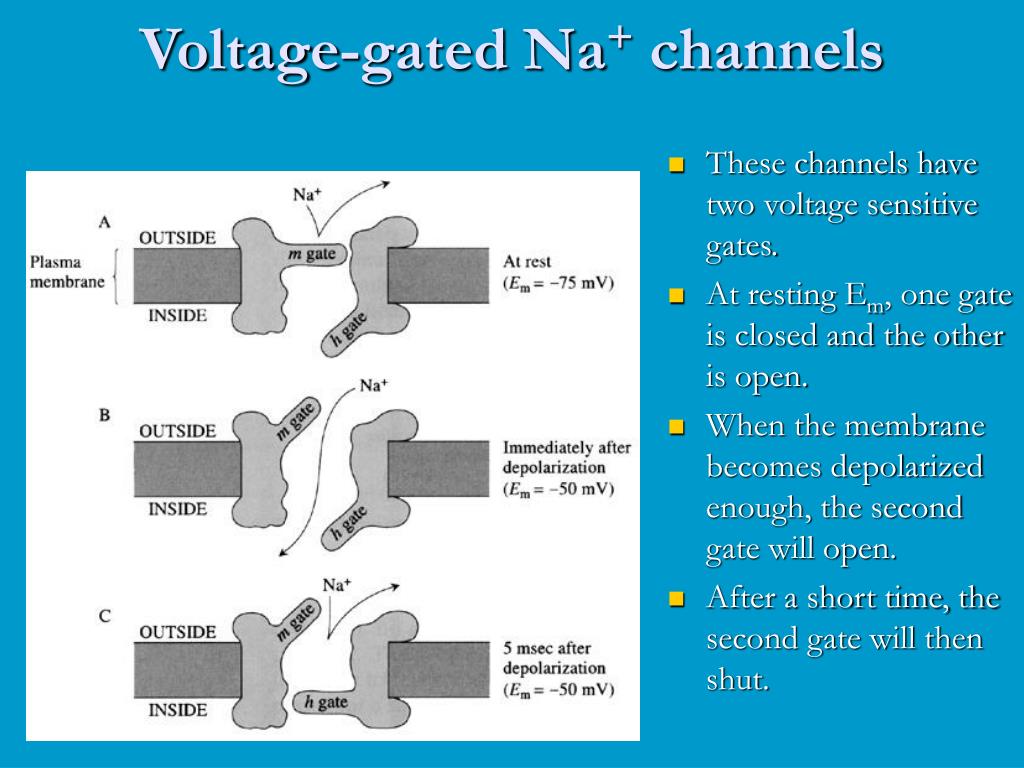

  26. Voltage-gated Na+ channels • These channels have two voltage sensitive gates. • At resting Em, one gate is closed and the other is open. • When the membrane becomes depolarized enough, the second gate will open. • After a short time, the second gate will then shut.

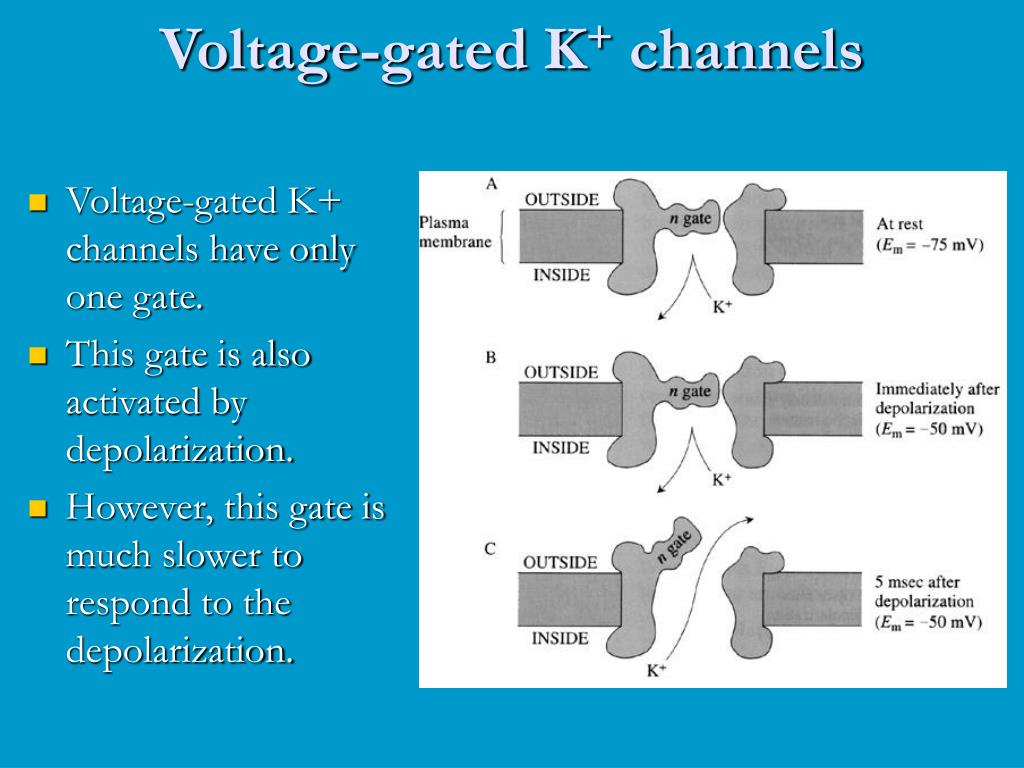

  27. Voltage-gated K+ channels • Voltage-gated K+ channels have only one gate. • This gate is also activated by depolarization. • However, this gate is much slower to respond to the depolarization.

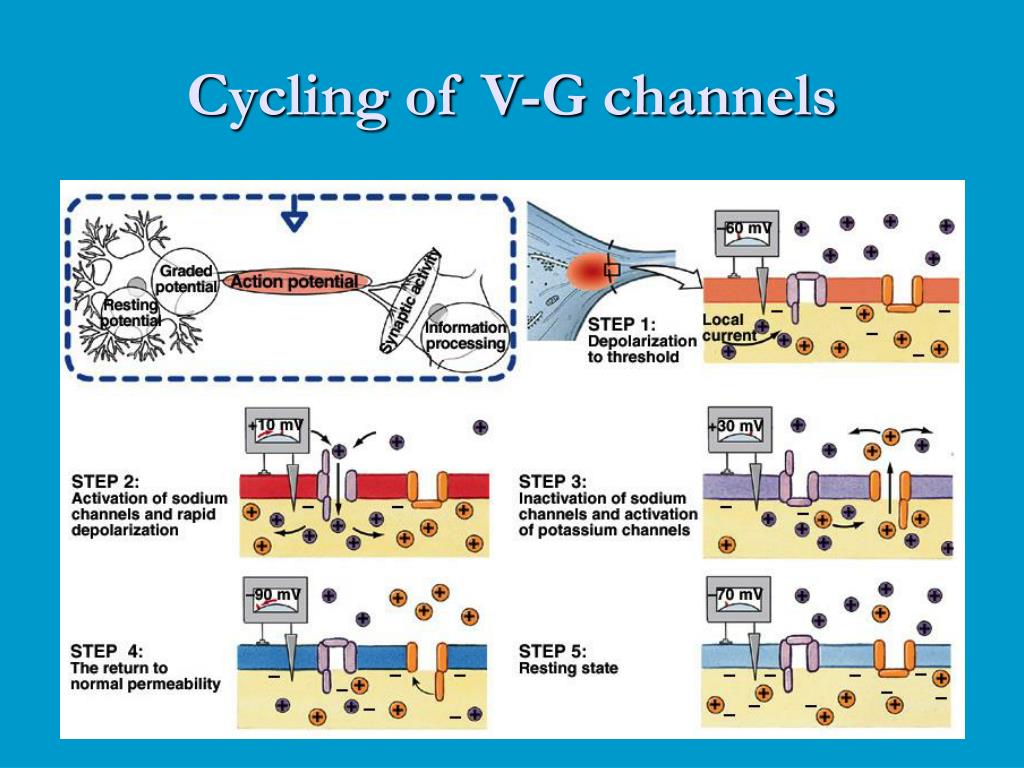

  28. Cycling of V-G channels

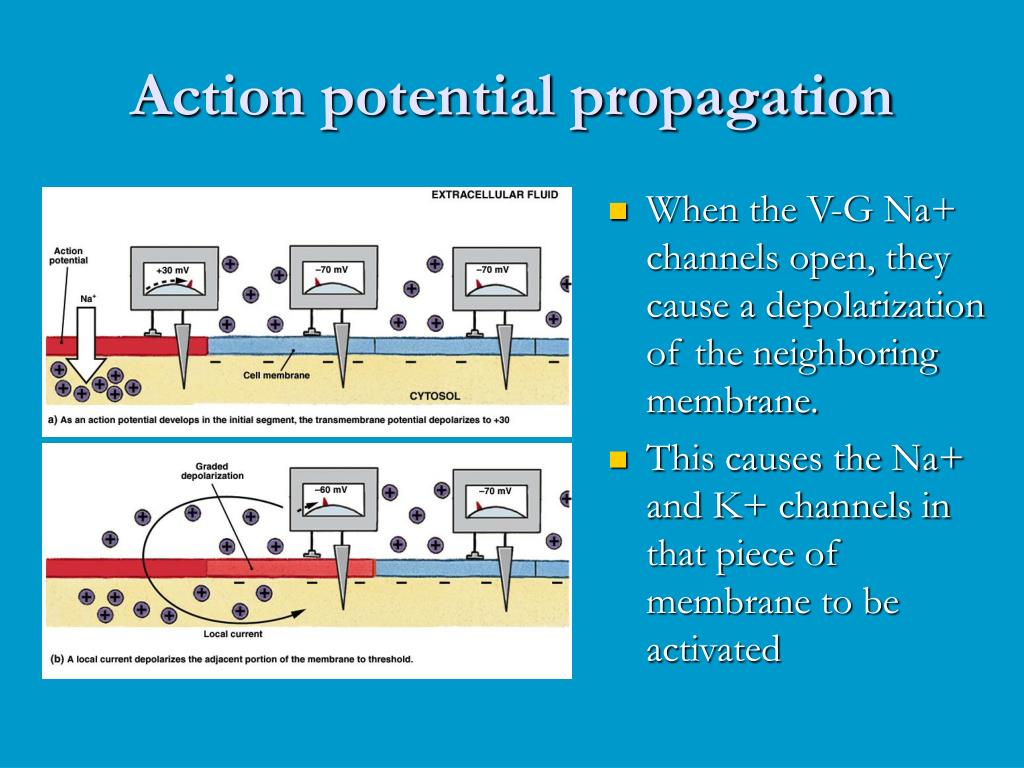

  29. Action potential propagation • When the V-G Na+ channels open, they cause a depolarization of the neighboring membrane. • This causes the Na+ and K+ channels in that piece of membrane to be activated

  30. AP propagation cont. • The V_G chanels in the neighboring membrane then open, causing that membrane to depolarize. • That depolarizes the next piece of membrane, etc. • It takes a while for the Na+ channels to return to their voltage-sensitive state. Until then, they won’t respond to a second depolarization.

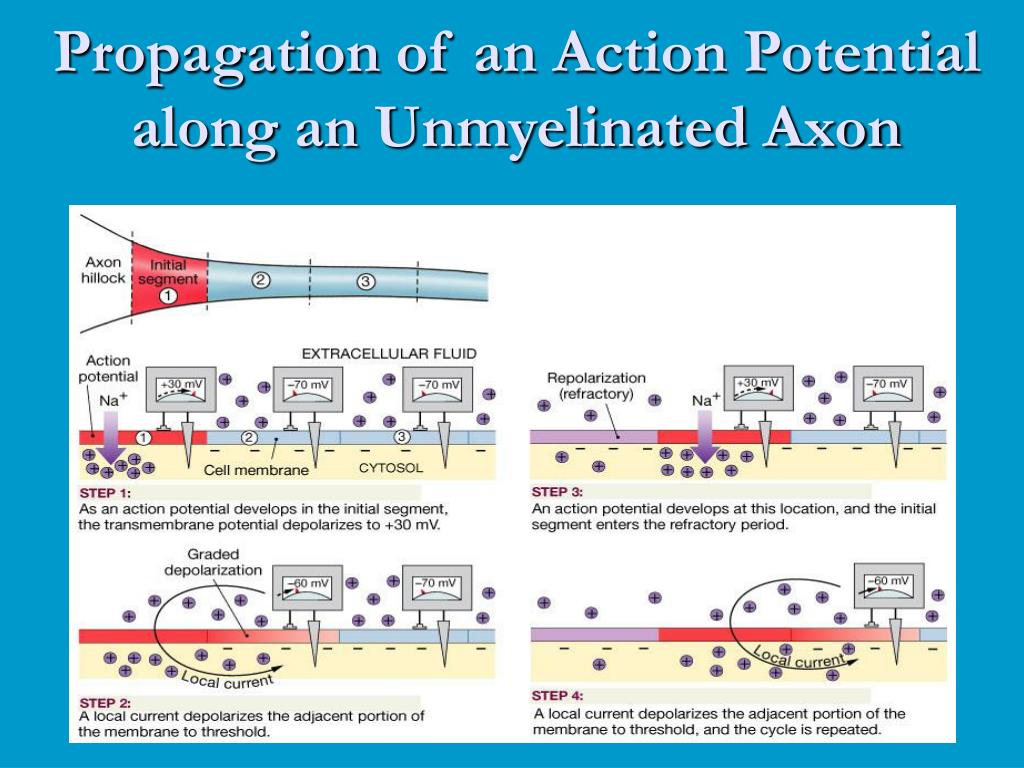

  31. Propagation of an Action Potential along an Unmyelinated Axon

  32. Saltatory Propagation along a Myelinated Axon

  33. Saltatory Propagation along a Myelinated Axon

  34. Schwann cells cont. • In unmyelinated nerves, each Schwann cell can associate with several axons. • These axons become embedded in the Schwann cell, which provides structural support and nutrients.

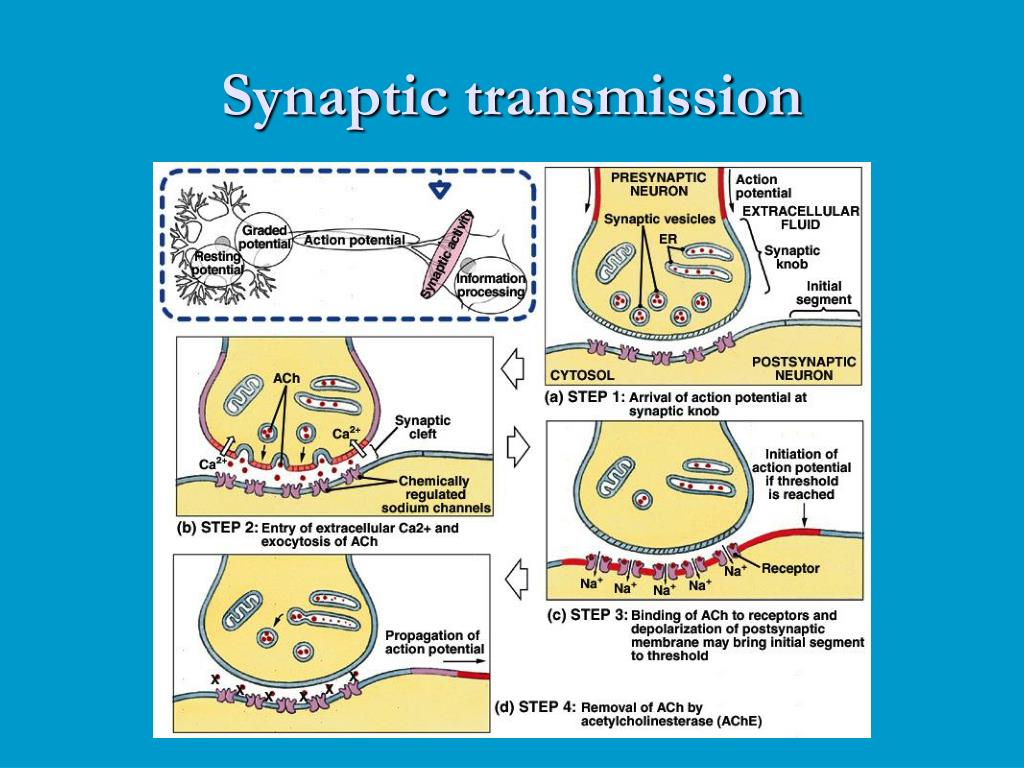

  35. Synaptic transmission

  36. g Aminobutyric Acid • Also know as GABA • Two know receptors for GABA • Both initiate hyperpolarization in the post-synaptic membrane • GABAA receptor allows an influx of Cl- ions • GABAB receptors allow an efflux of K+ ions

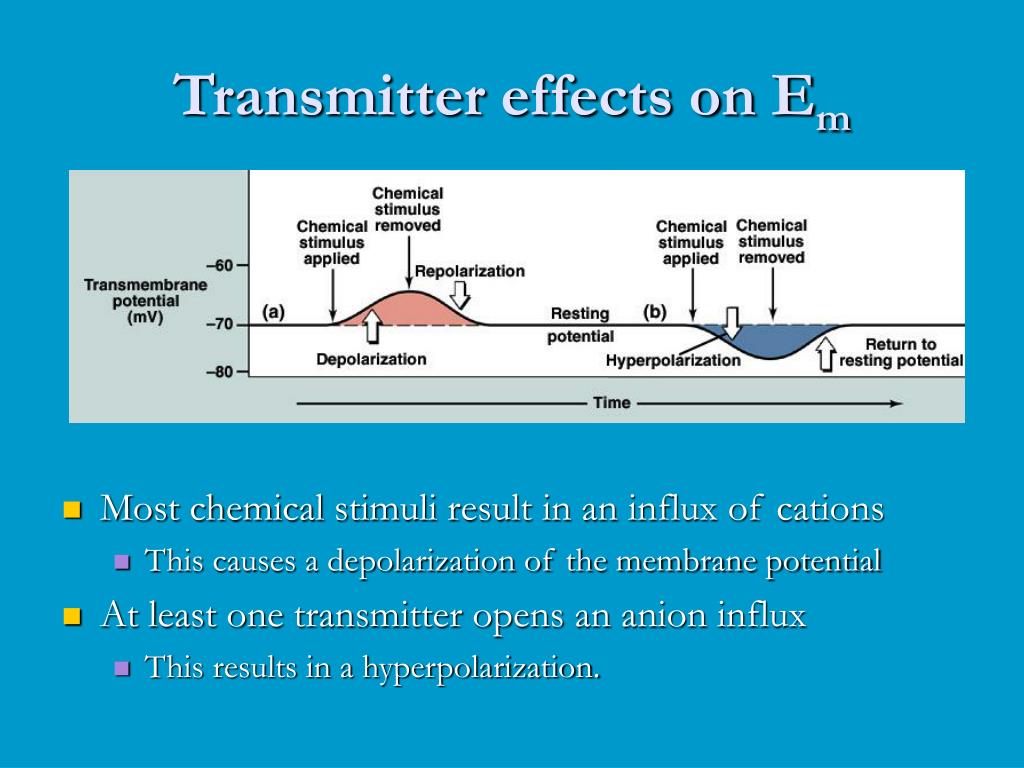

  37. Transmitter effects on Em • Most chemical stimuli result in an influx of cations • This causes a depolarization of the membrane potential • At least one transmitter opens an anion influx • This results in a hyperpolarization.

  38. EPSPs and IPSPs • If the transmitter opens a cation influx, the resulting depolarization is called an Excitatory Post Synaptic Potential (EPSP). • These individual potentials are sub-threshold. • If the transmitter opens an anion influx, the resulting hyperpolarization is called an Inhibitory Post Synaptic Potential (IPSP • All these potentials are additive.

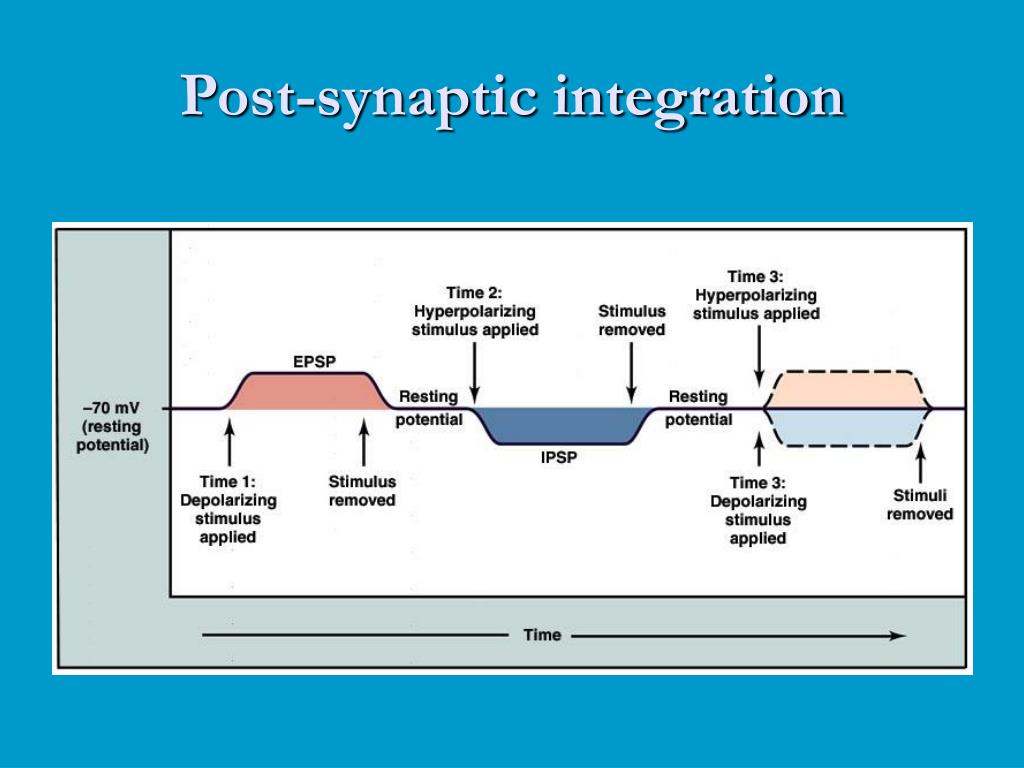

  39. Post-synaptic integration

  40. Signal integration

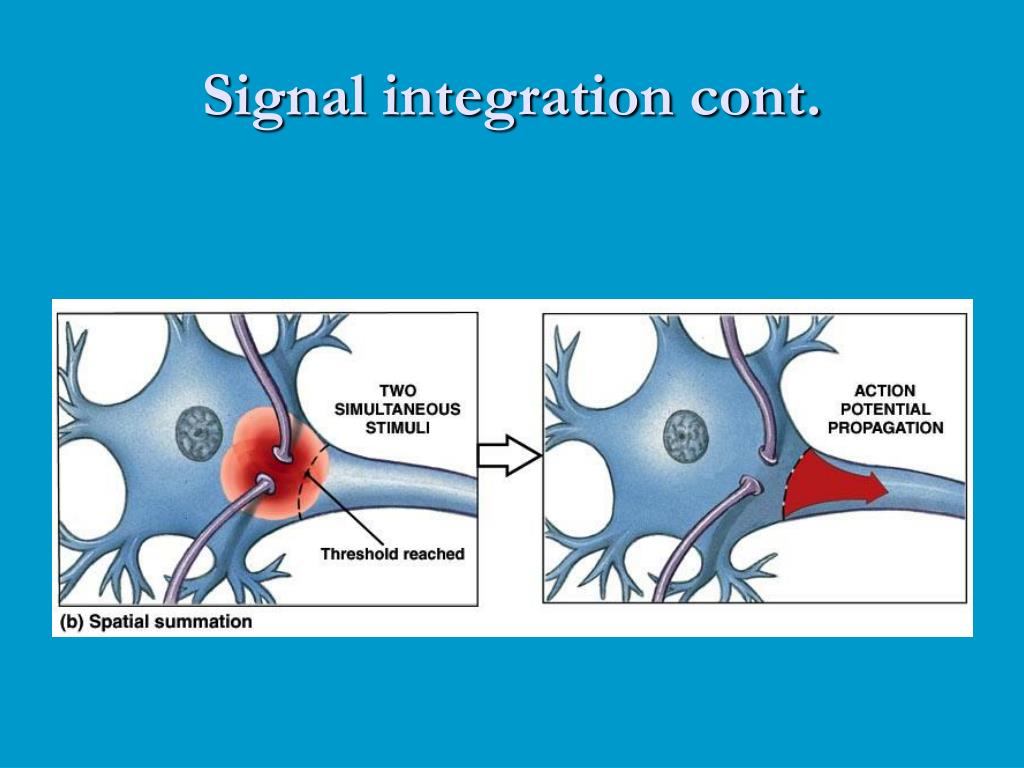

  41. Signal integration cont.

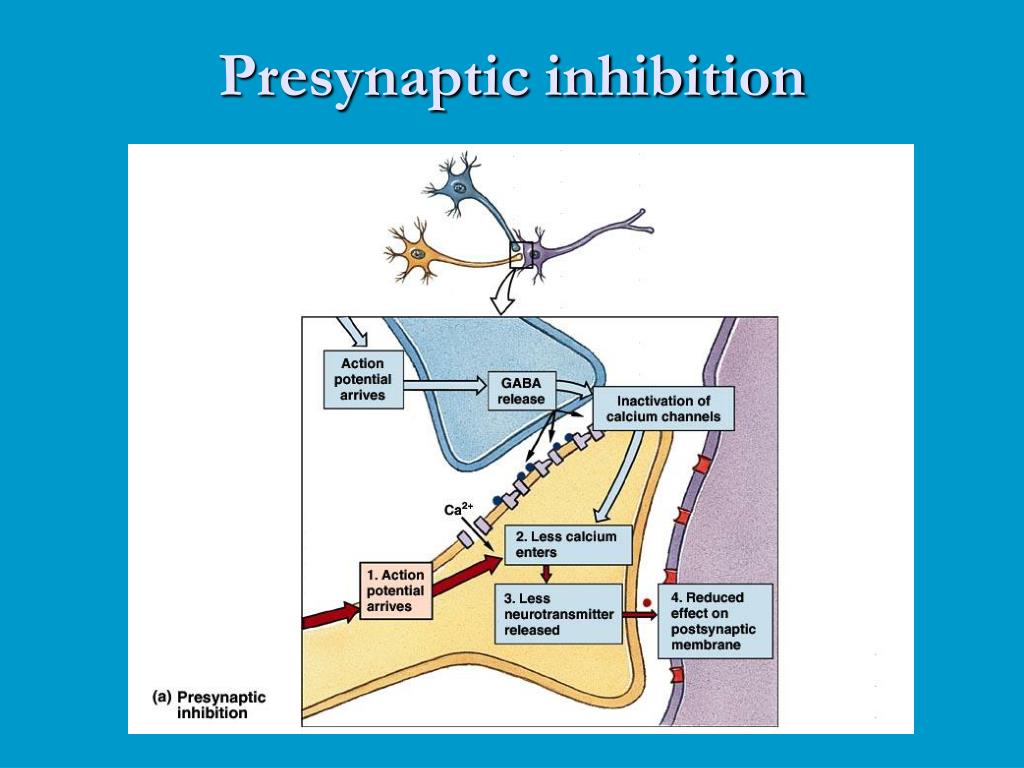

  42. Presynaptic inhibition

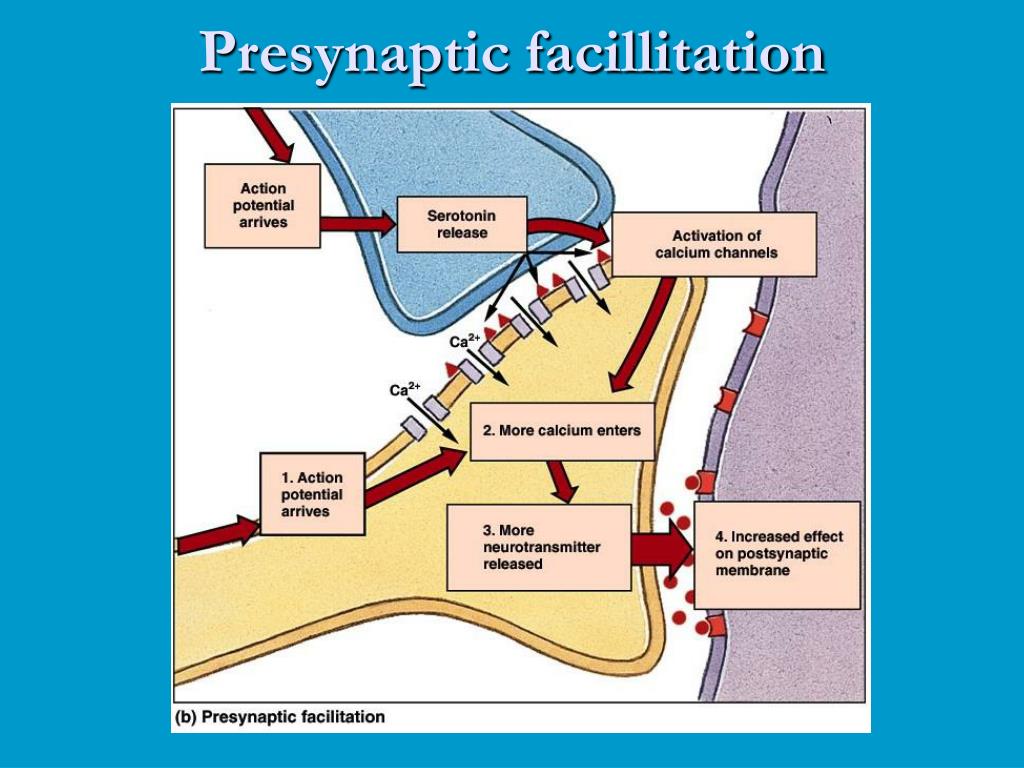

  43. Presynaptic facillitation

  44. Neural circuits I

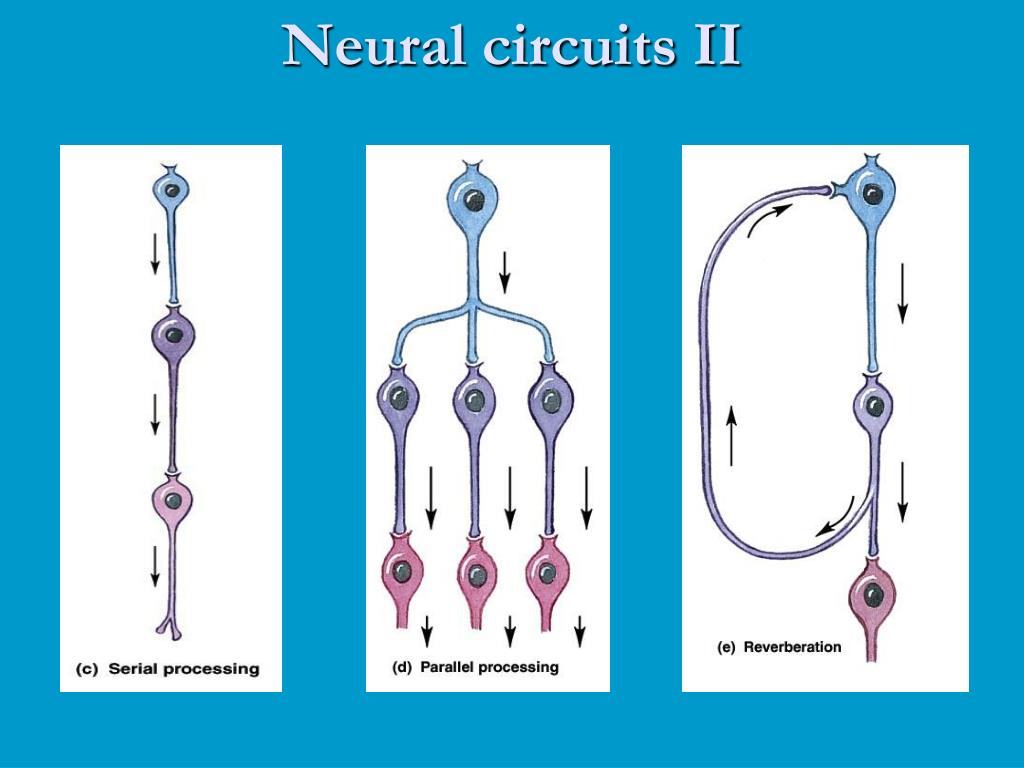

  45. Neural circuits II
