Hpc at hcc jun wang
HPC at HCCJun Wang

hcc.unl.edu

Outline of Workshop2

Familiar with Linux file system

Familiar with Shell environment

Familiar with module command

Familiar with queuing system

How to submit a serial job

How to submit a MPI parallel job


Hpc at hcc jun wang1
HPC at HCCJun Wang

hcc.unl.edu

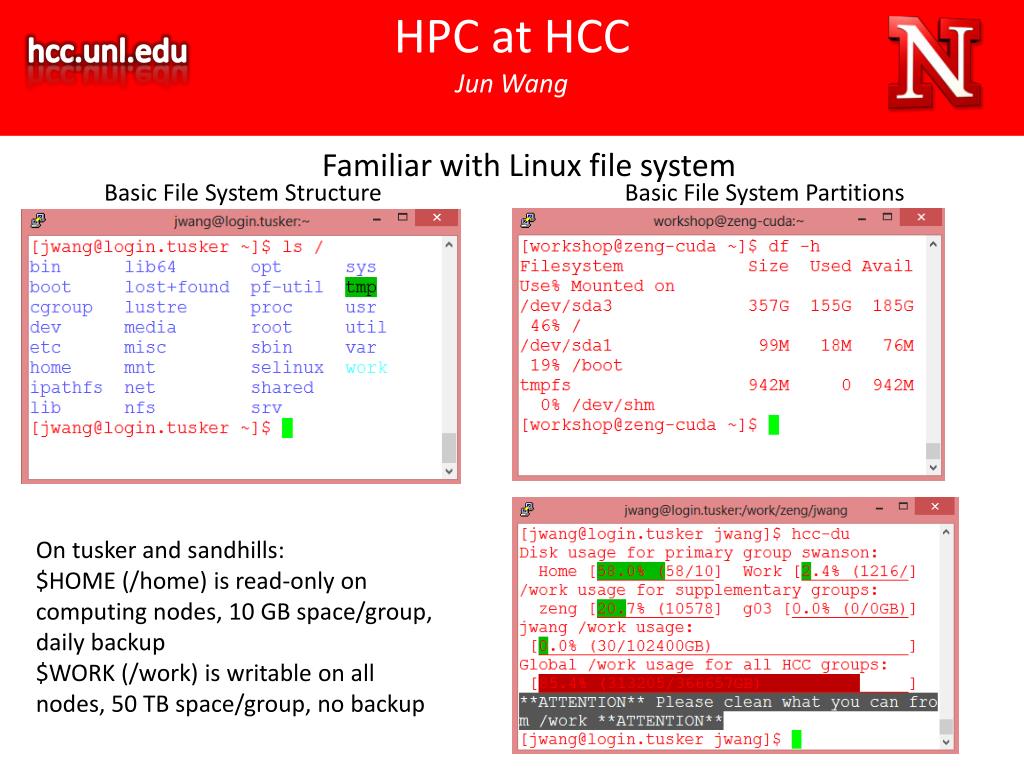

Familiar with Linux file system

Basic File System Structure

Basic File System Partitions

On tusker and sandhills:

$HOME (/home) is read-only on computing nodes, 10 GB space/group, daily backup

$WORK (/work) is writable on all nodes, 50 TB space/group, no backup


Hpc at hcc jun wang2
HPC at HCCJun Wang

hcc.unl.edu

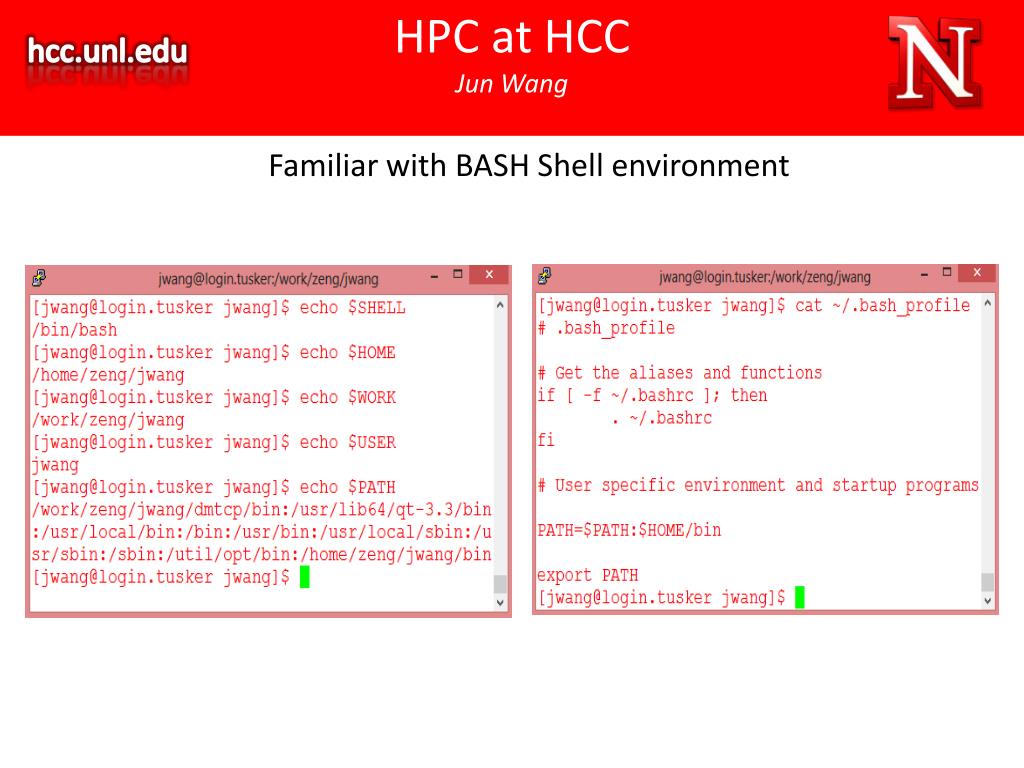

Familiar with BASH Shell environment


Hpc at hcc jun wang3
HPC at HCCJun Wang

hcc.unl.edu

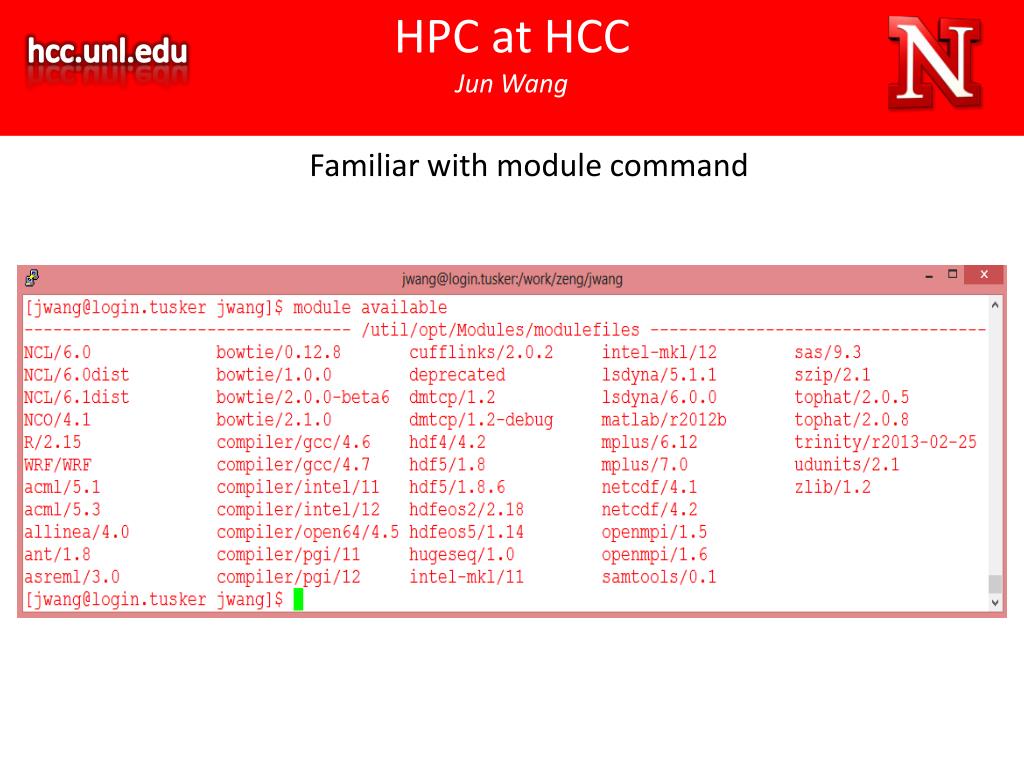

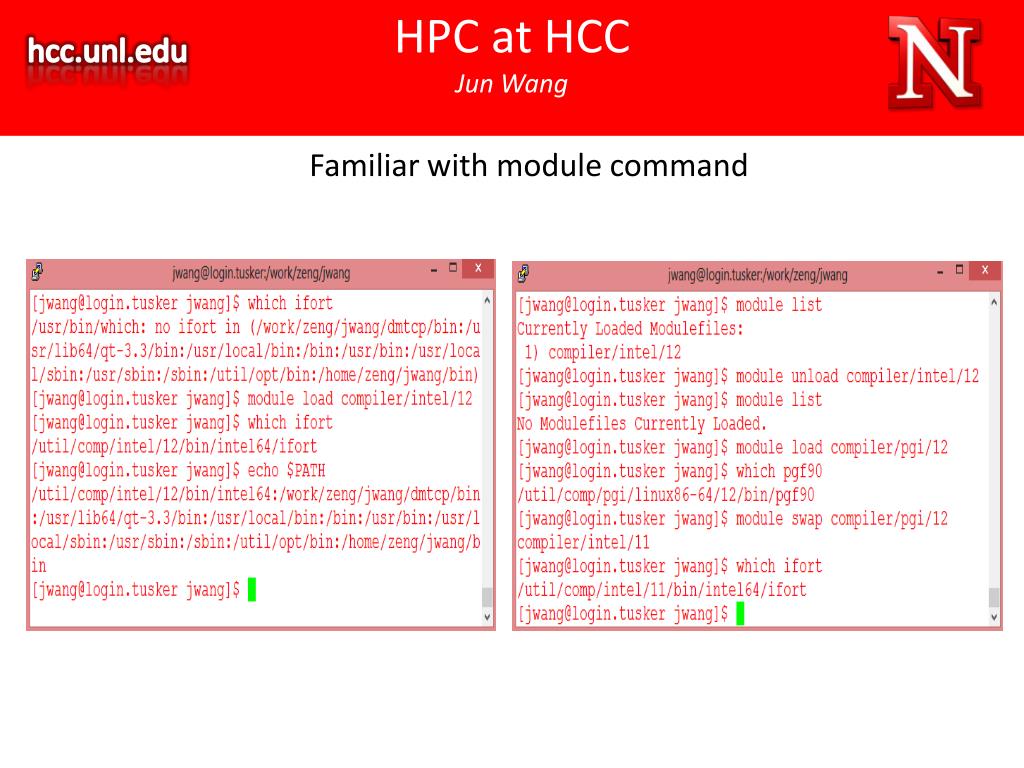

Familiar with module command


Hpc at hcc jun wang4
HPC at HCCJun Wang

hcc.unl.edu

Familiar with module command


Hpc at hcc jun wang5
HPC at HCCJun Wang

hcc.unl.edu

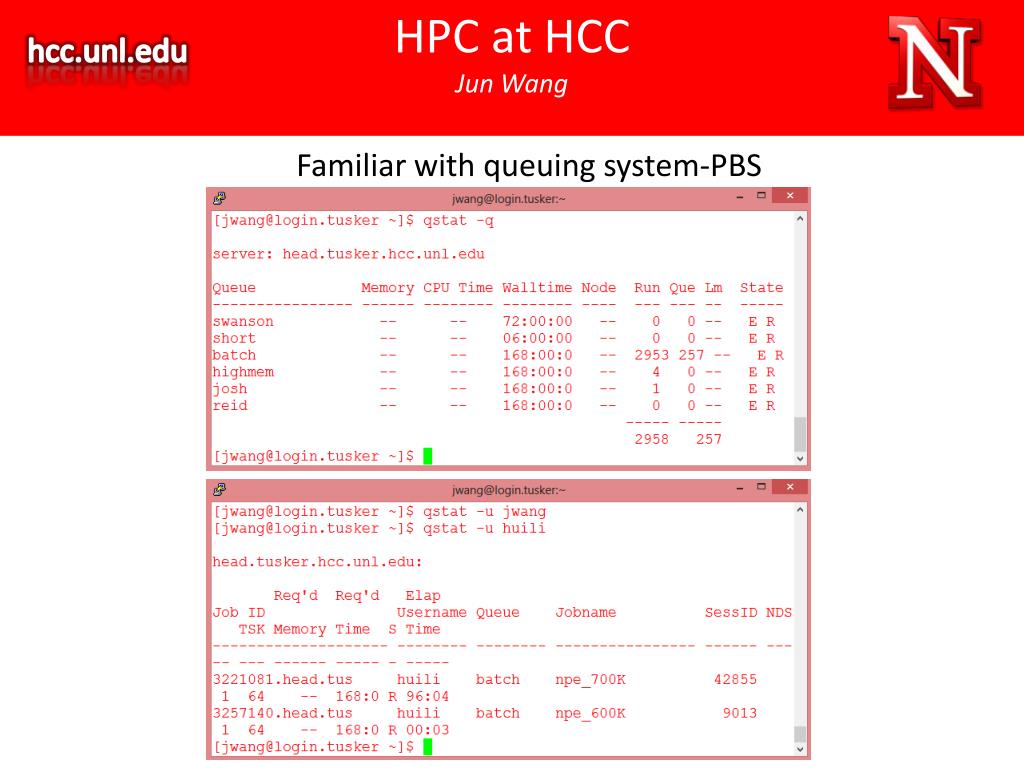

Familiar with queuing system-PBS


Hpc at hcc jun wang6
HPC at HCCJun Wang

hcc.unl.edu

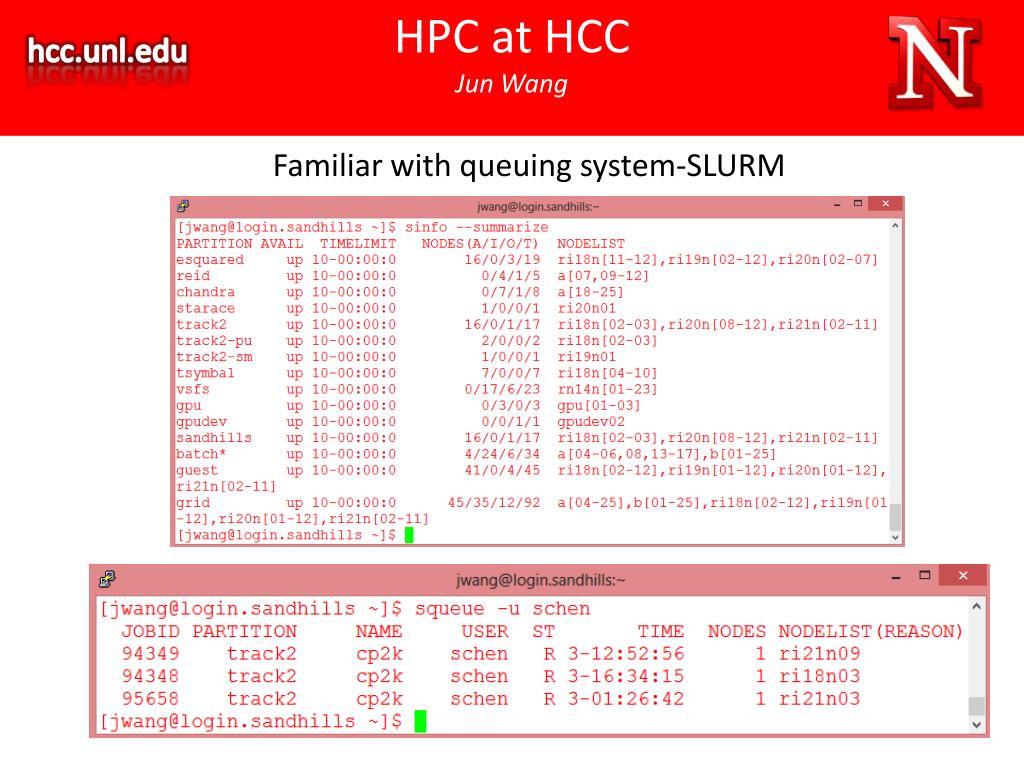

Familiar with queuing system-SLURM


Hpc at hcc jun wang7
HPC at HCCJun Wang

hcc.unl.edu

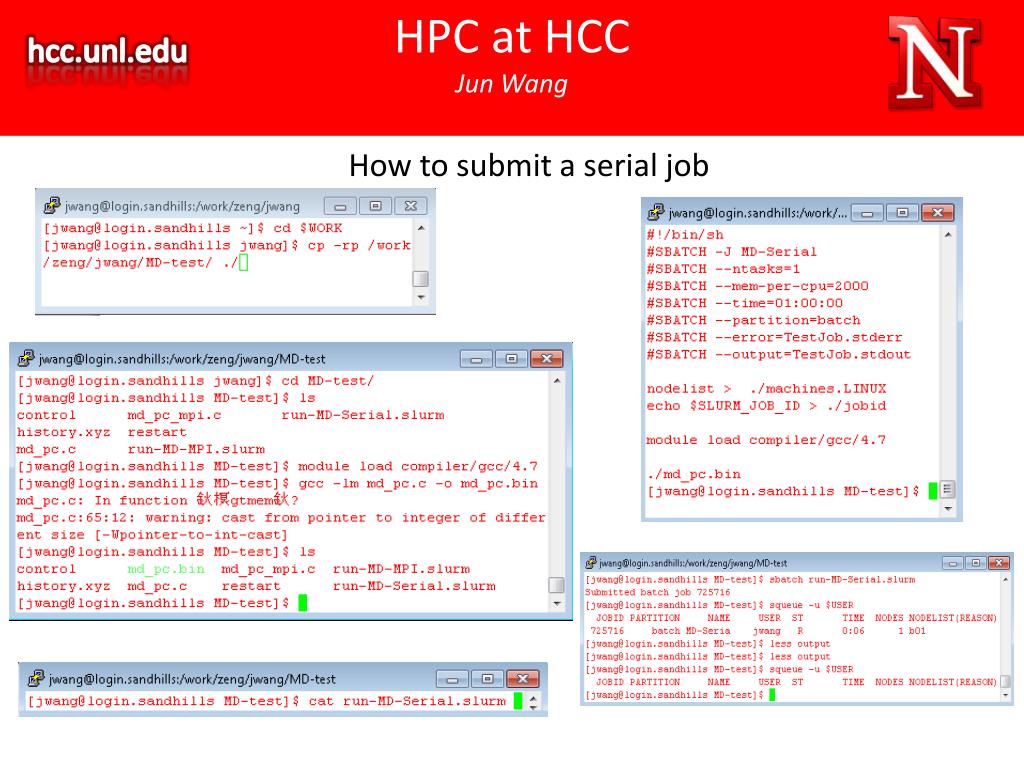

How to submit a serial job


Hpc at hcc jun wang8
HPC at HCCJun Wang

hcc.unl.edu

How to submit a serial job


Hpc at hcc jun wang9
HPC at HCCJun Wang

hcc.unl.edu

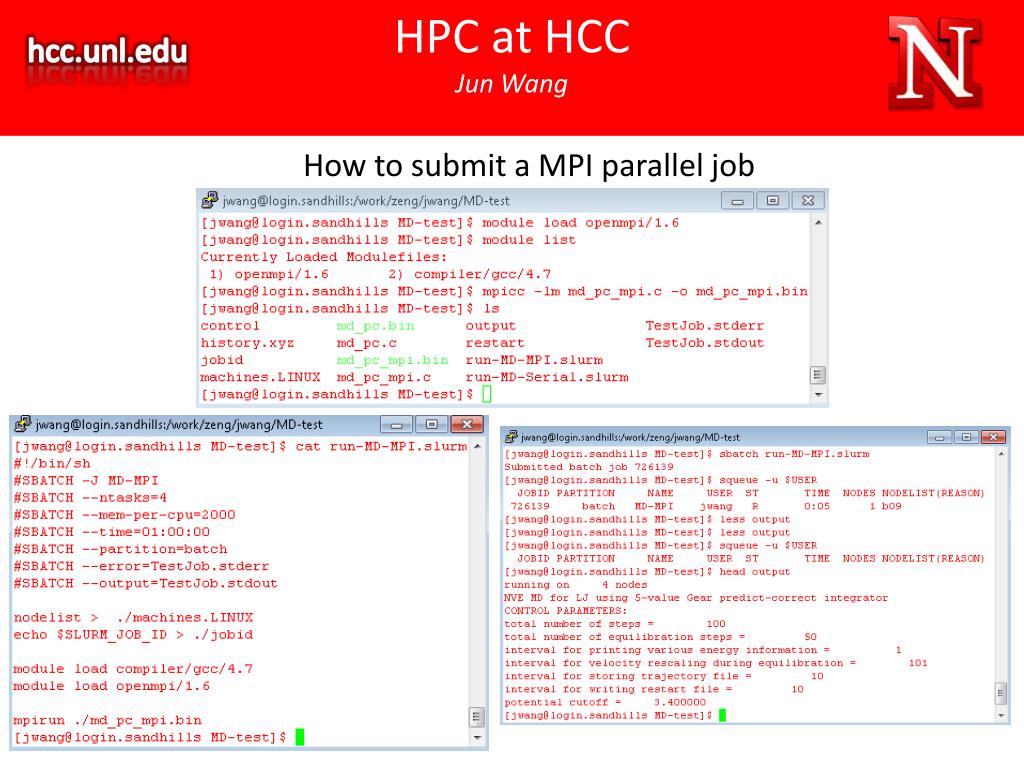

How to submit a MPI parallel job


Hpc at hcc jun wang10
HPC at HCCJun Wang

hcc.unl.edu

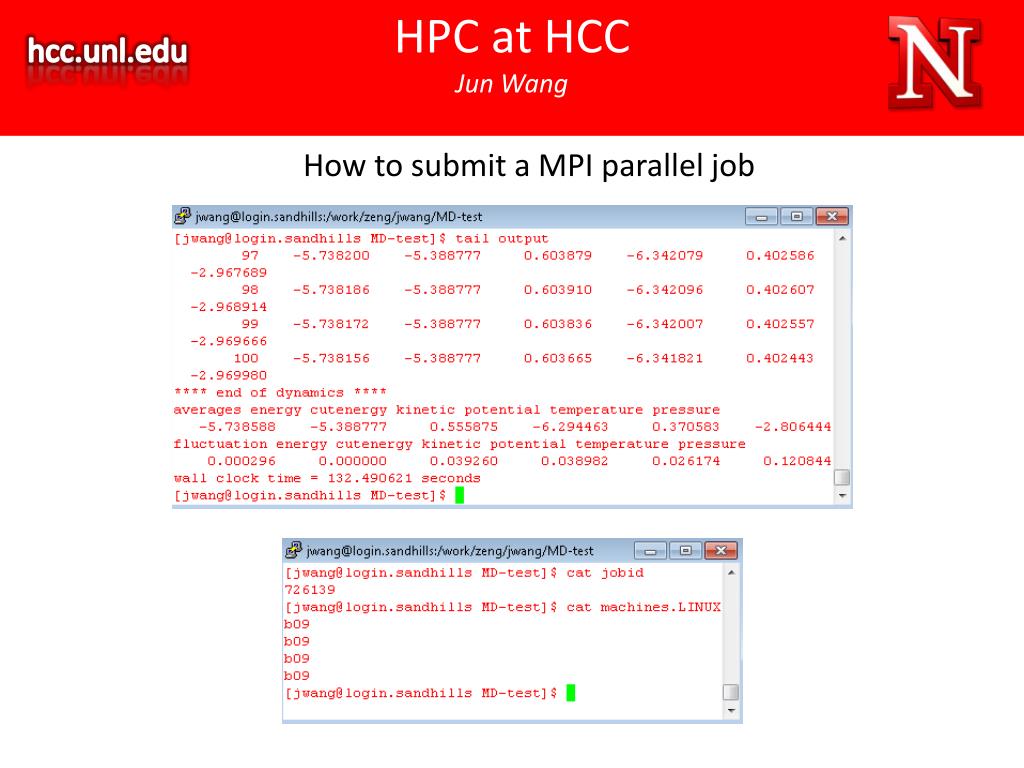

How to submit a MPI parallel job


Hpc at hcc jun wang11
HPC at HCCJun Wang

hcc.unl.edu

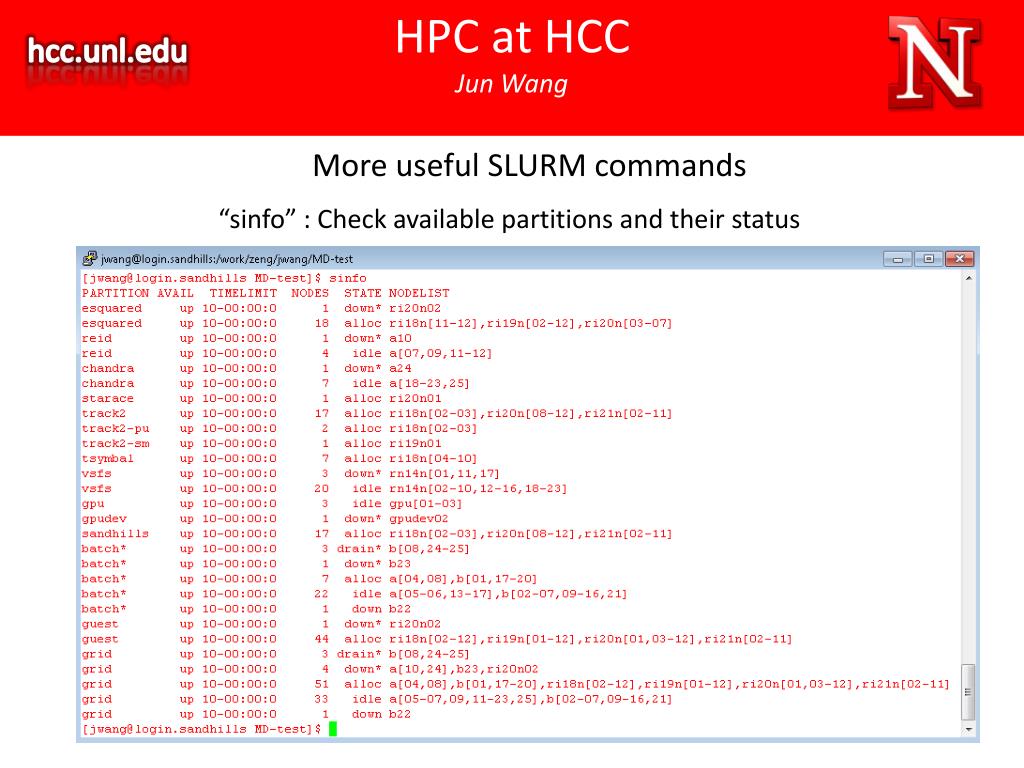

More useful SLURM commands

“sinfo” : Check available partitions and their status


Hpc at hcc jun wang12
HPC at HCCJun Wang

hcc.unl.edu

More useful SLURM commands

“scontrol show job YourJobID”: Check details of a specific job


Hpc at hcc jun wang13
HPC at HCCJun Wang

hcc.unl.edu

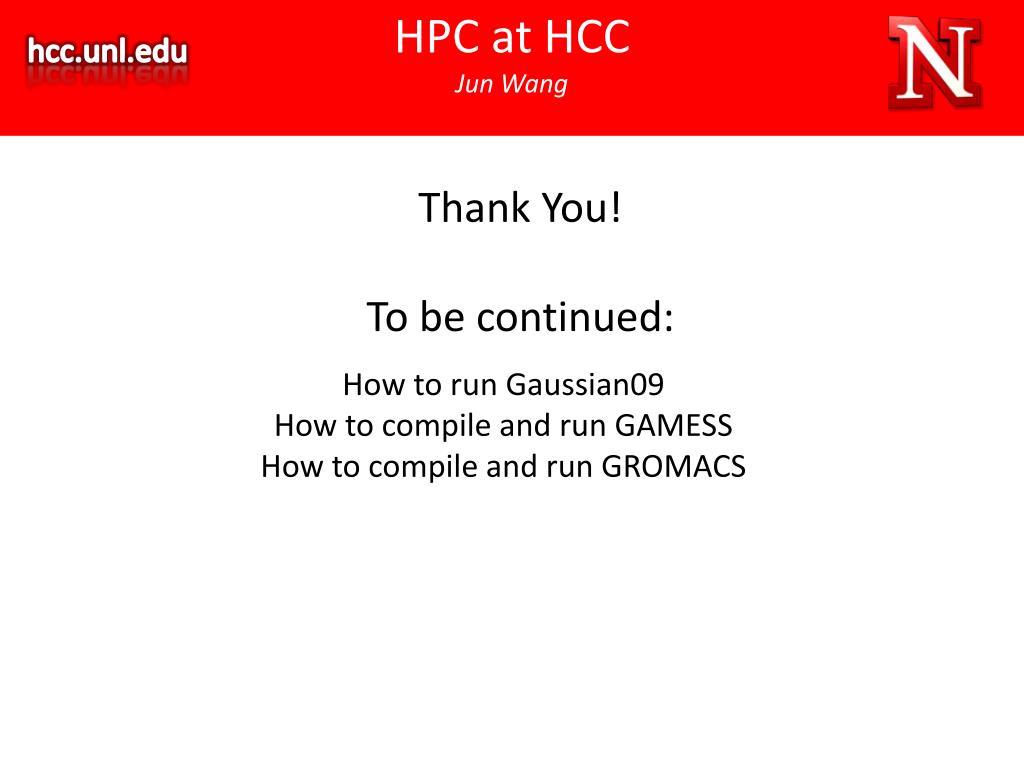

Thank You!

To be continued:

How to run Gaussian09

How to compile and run GAMESS

How to compile and run GROMACS
