Team ROSV. Tim Dewberry & Brian Mulvaney. Design Overview. Remotely Operated Submersible Vehicle. Design Objectives. A submersible vehicle with waterproof construction Capable of being controlled using a graphical user interface (GUI) on a laptop connected by Ethernet cable

nessa
Download Presentation

Team ROSV

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

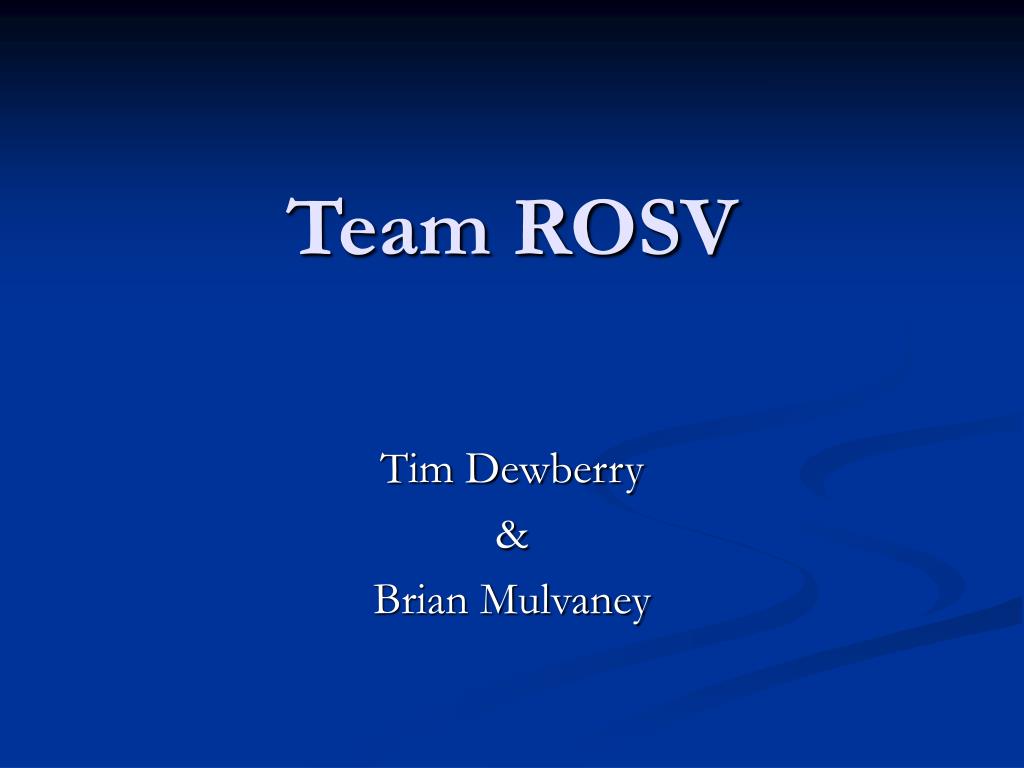

  1. Team ROSV Tim Dewberry & Brian Mulvaney

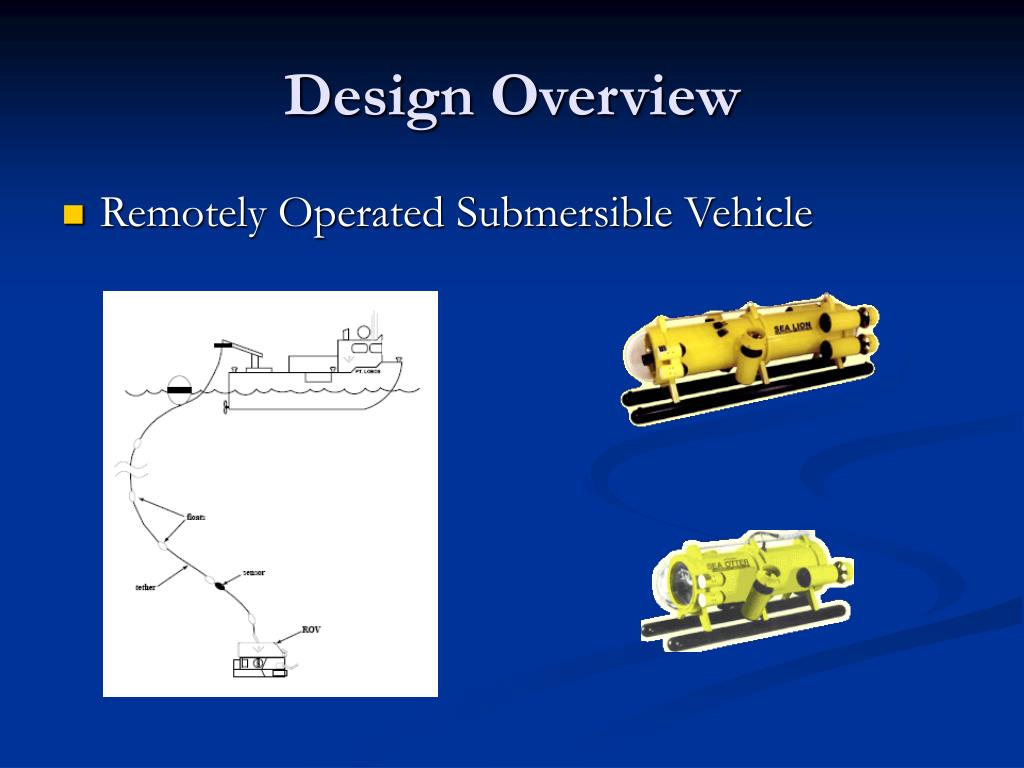

  2. Design Overview • Remotely Operated Submersible Vehicle

  3. Design Objectives • A submersible vehicle with waterproof construction • Capable of being controlled using a graphical user interface (GUI) on a laptop connected by Ethernet cable • Streaming video relayed from the vehicle to the GUI

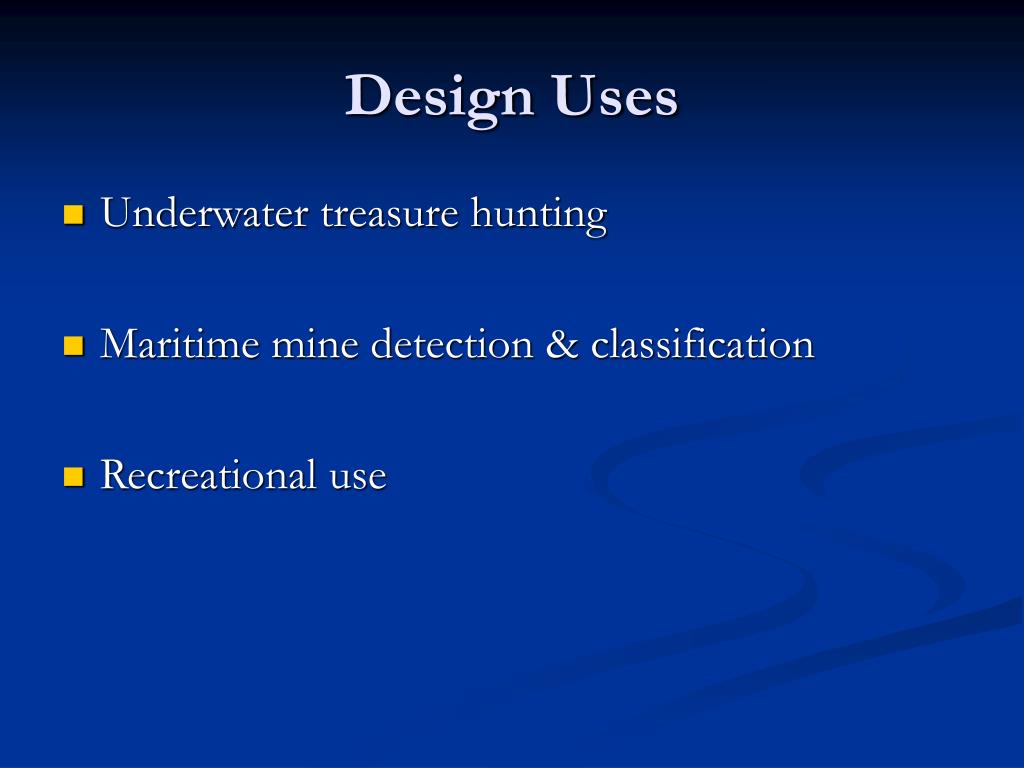

  4. Design Uses • Underwater treasure hunting • Maritime mine detection & classification • Recreational use

  5. Chassis • PVC piping glued together to produce a water tight environment for electronics inside

  6. Four Attwood V500 Bilge Pumps Used for changing direction Two Attwood V1250 Bilge Pumps Used for going forward & reverse Propulsion

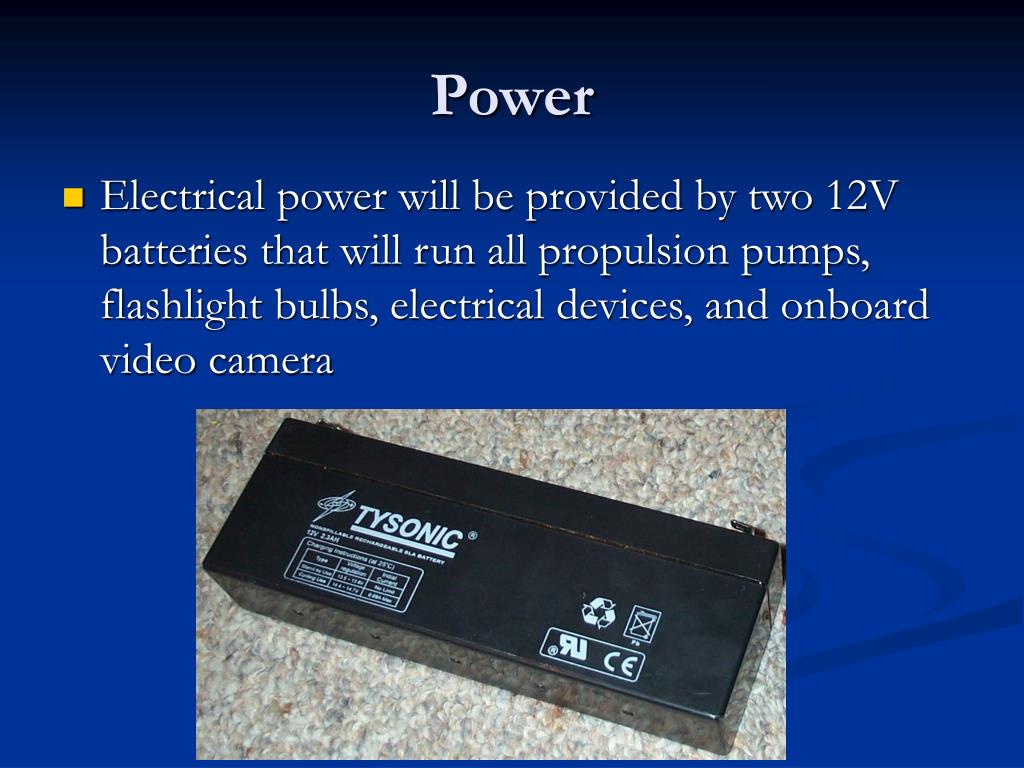

  7. Power • Electrical power will be provided by two 12V batteries that will run all propulsion pumps, flashlight bulbs, electrical devices, and onboard video camera

  8. Camera • X10 “Anaconda” camera within vehicle • Streamed to laptop and displayed to user through the GUI

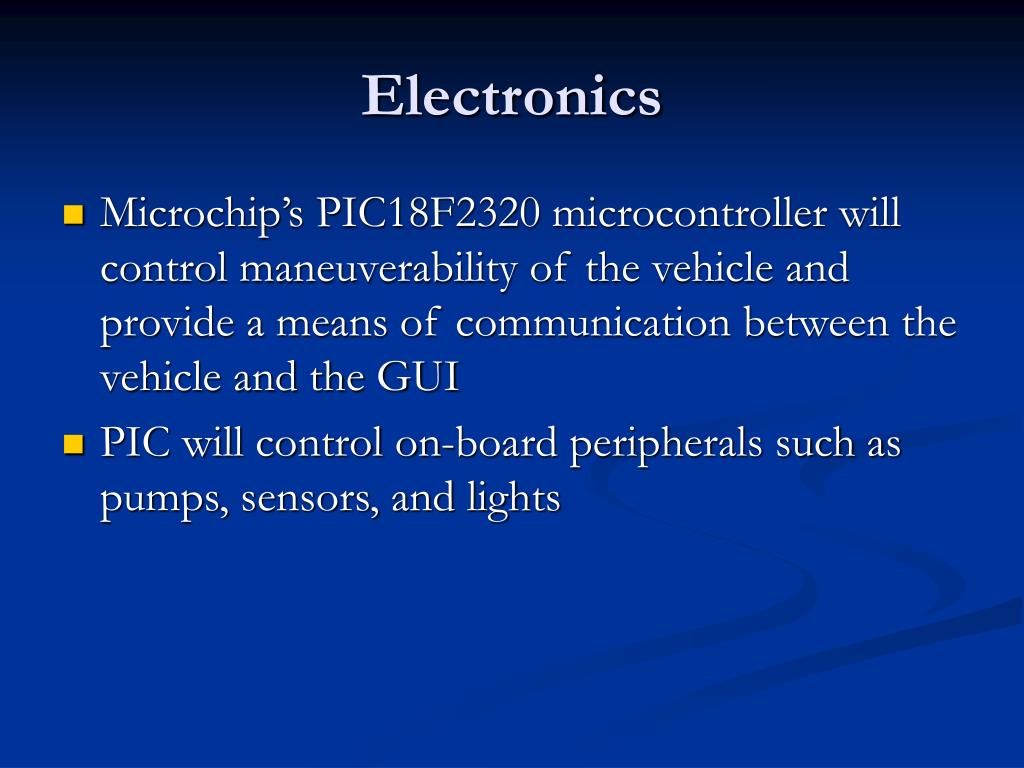

  9. Electronics • Microchip’s PIC18F2320 microcontroller will control maneuverability of the vehicle and provide a means of communication between the vehicle and the GUI • PIC will control on-board peripherals such as pumps, sensors, and lights
