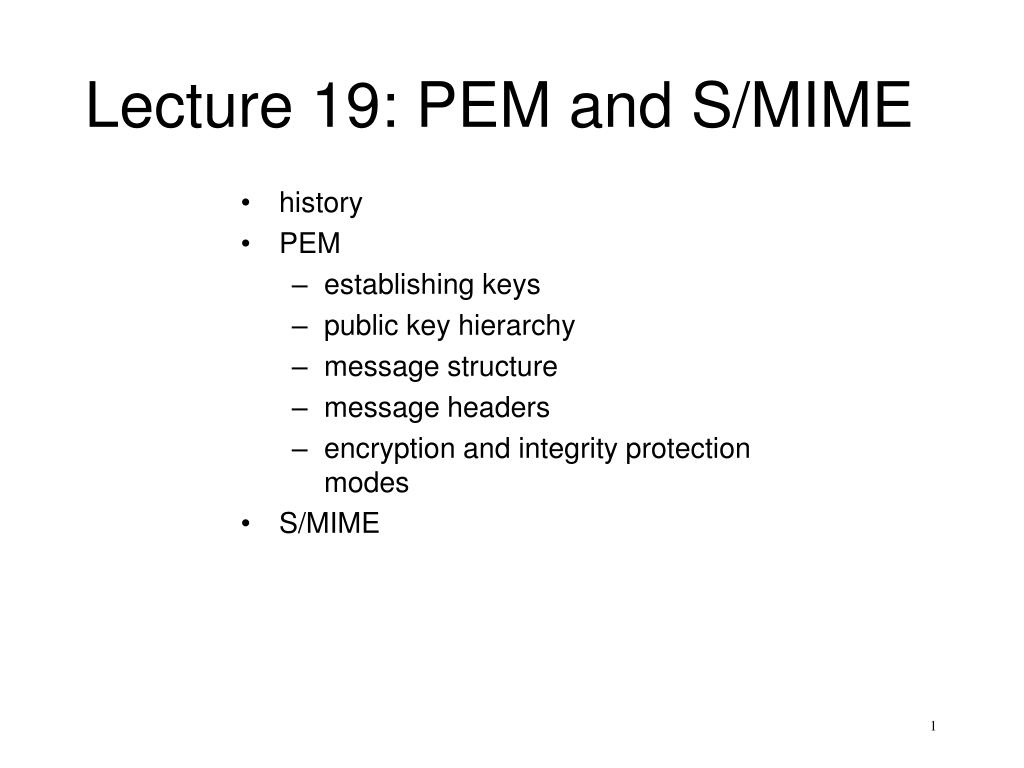

  1. Lecture 19: PEM and S/MIME • history • PEM • establishing keys • public key hierarchy • message structure • message headers • encryption and integrity protection modes • S/MIME

  2. PEM & S/MIME • Privacy Enhanced Mail (PEM) • Developed by IETF, to add encryption, source authentication & integrity protection to e-mail • Allows both public & secret long-term keysMessage key is always symmetric • Specifies a detailed certification hierarchy • Secure/MIME (S/MIME) • PEM never took off; CA hierarchy difficult to realize • S/MIME: PEM design incorporated into MIME

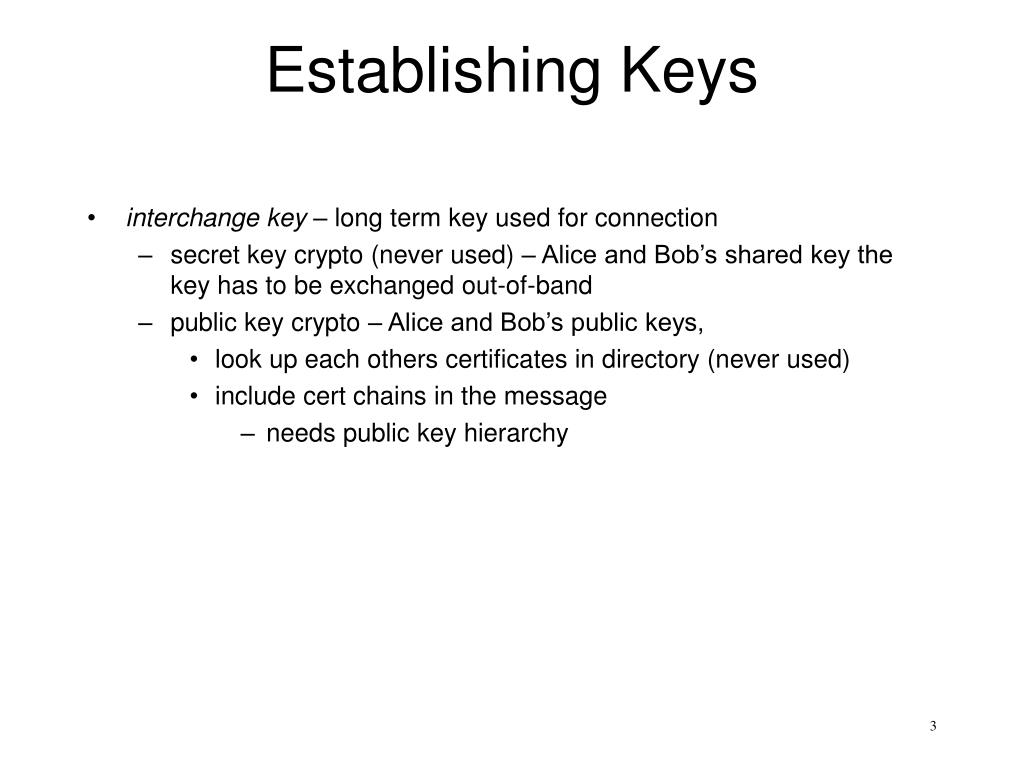

  3. Establishing Keys • interchange key – long term key used for connection • secret key crypto (never used) – Alice and Bob’s shared key the key has to be exchanged out-of-band • public key crypto – Alice and Bob’s public keys, • look up each others certificates in directory (never used) • include cert chains in the message • needs public key hierarchy

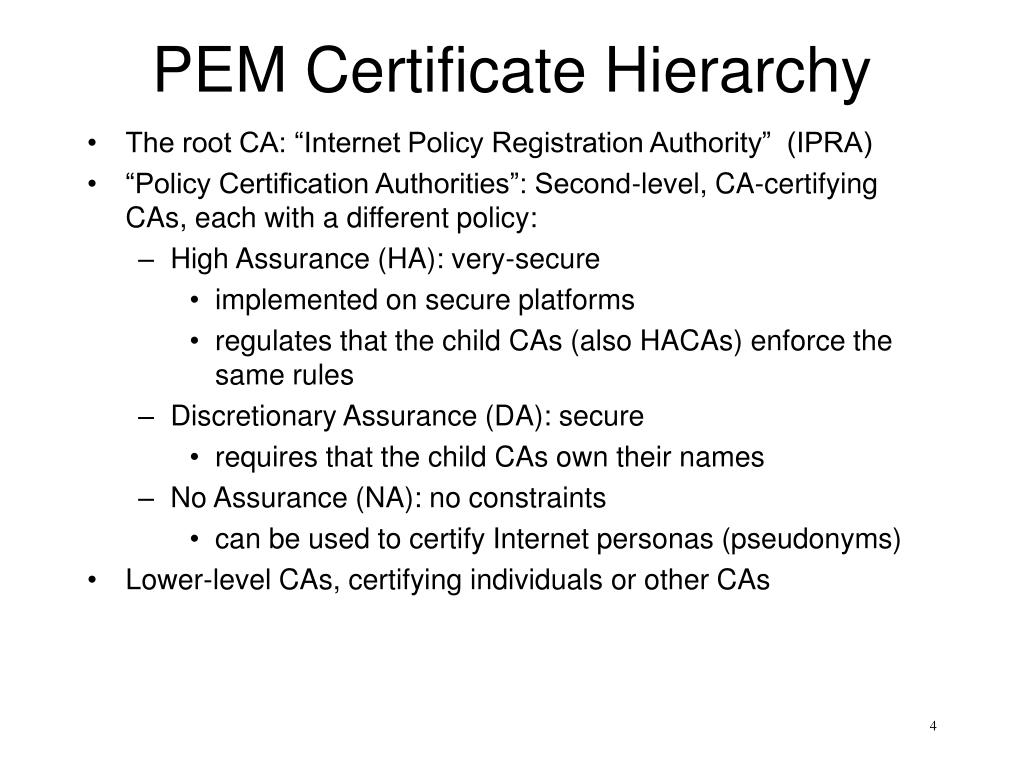

  4. PEM Certificate Hierarchy • The root CA: “Internet Policy Registration Authority” (IPRA) • “Policy Certification Authorities”: Second-level, CA-certifying CAs, each with a different policy: • High Assurance (HA): very-secure • implemented on secure platforms • regulates that the child CAs (also HACAs) enforce the same rules • Discretionary Assurance (DA): secure • requires that the child CAs own their names • No Assurance (NA): no constraints • can be used to certify Internet personas (pseudonyms) • Lower-level CAs, certifying individuals or other CAs

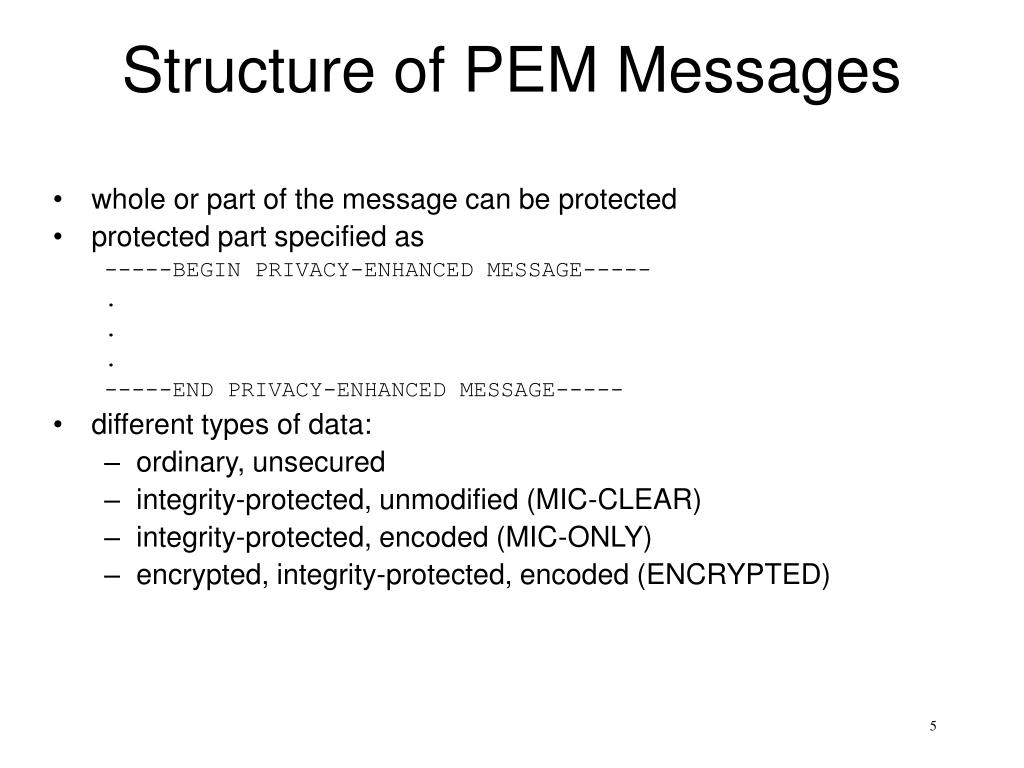

  5. Structure of PEM Messages • whole or part of the message can be protected • protected part specified as -----BEGIN PRIVACY-ENHANCED MESSAGE----- . . . -----END PRIVACY-ENHANCED MESSAGE----- • different types of data: • ordinary, unsecured • integrity-protected, unmodified (MIC-CLEAR) • integrity-protected, encoded (MIC-ONLY) • encrypted, integrity-protected, encoded (ENCRYPTED)

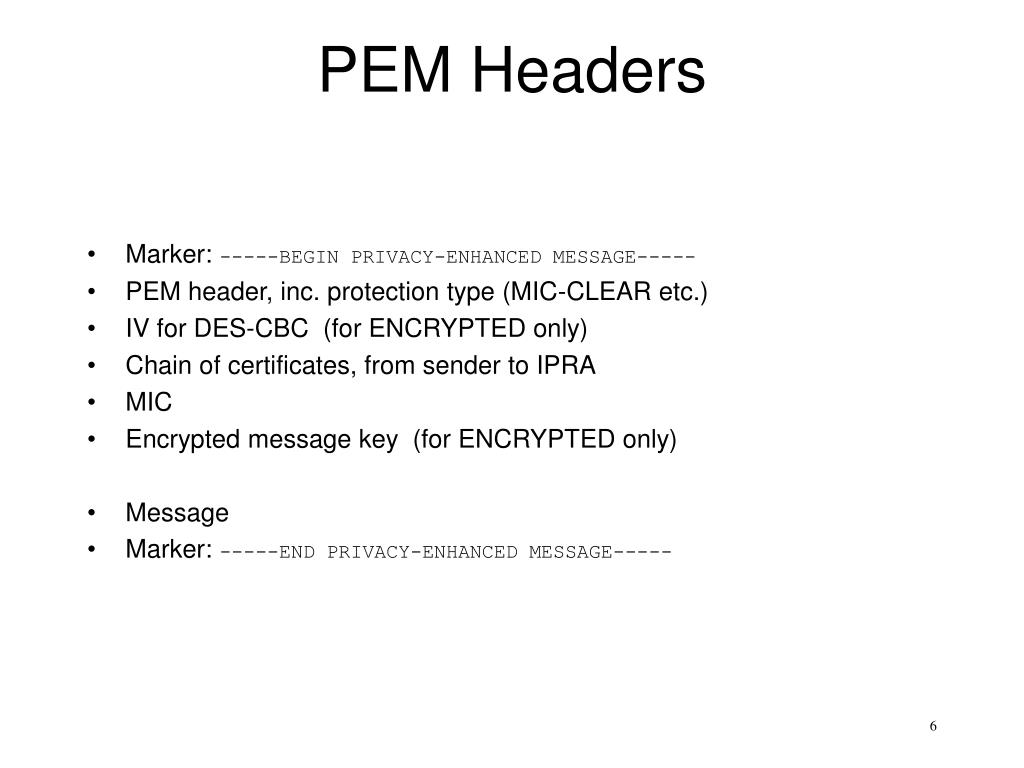

  6. PEM Headers • Marker: -----BEGIN PRIVACY-ENHANCED MESSAGE----- • PEM header, inc. protection type (MIC-CLEAR etc.) • IV for DES-CBC (for ENCRYPTED only) • Chain of certificates, from sender to IPRA • MIC • Encrypted message key (for ENCRYPTED only) • Message • Marker: -----END PRIVACY-ENHANCED MESSAGE-----

  7. Encryption & Integrity Protection Modes Encryption: Typically DES in CBC mode Integrity Protection (Message Authentication): • MIC: MD2 or MD5 of the message (previously included DES CBC-MAC) • signed by sender’s private key • encrypted if the message is encrypted(against guessable plaintext attack) • message header not protected (problematic) • solution: include header info in the text

  8. S/MIME vs. PEM • Incorporated into MIME; no other encoding • Any sequence of sign & encrypt is supported (each as a recursive MIME encapsulation) • Has more options than PEM • ASN.1 header encoding • No prescribed certification hierarchy • Has a good prospect of deployment for commercial & organizational usage
