Presentation Transcript
slide1

Integrating OGSA-DAI to computational

Grid workflows

Tamas Kukla,Tamas Kiss, Gabor Terstyanszky

University of Westminster, UK

Peter Kacsuk

MTA SZTAKI, Hungary

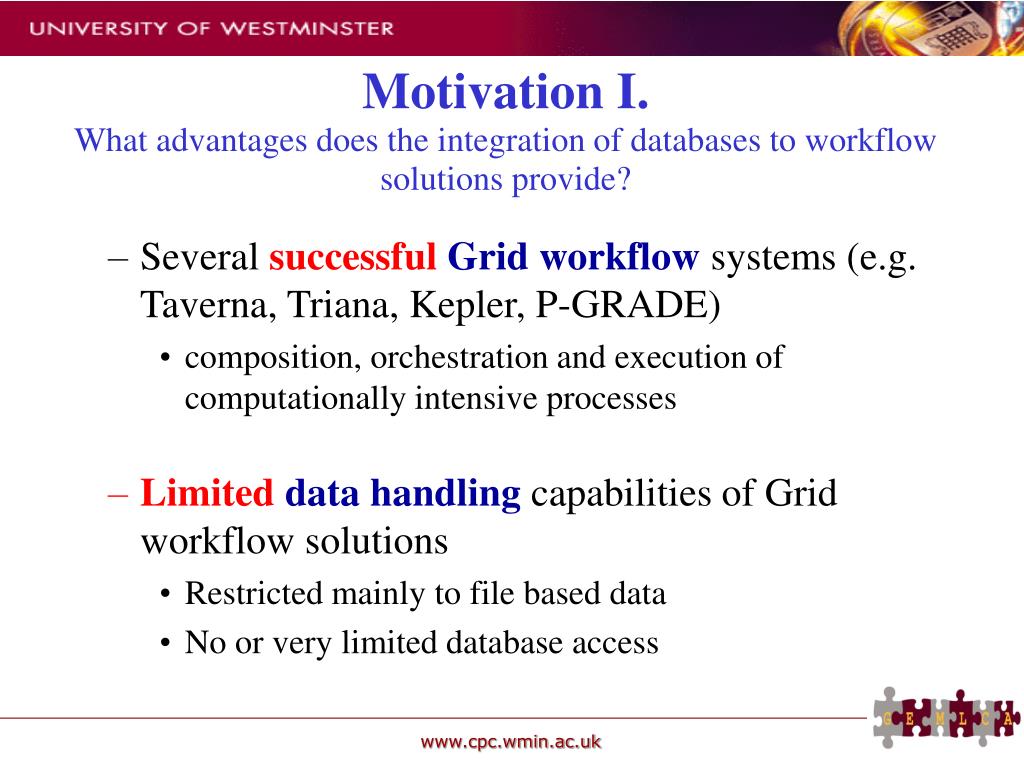

slide2

Motivation I.What advantages does the integration of databases to workflow solutions provide?

  • Several successfulGrid workflow systems (e.g. Taverna, Triana, Kepler, P-GRADE)
    • composition, orchestration and execution of computationally intensive processes
  • Limiteddata handling capabilities of Grid workflow solutions
    • Restricted mainly to file based data
    • No or very limited database access
slide3

FS2

FS1

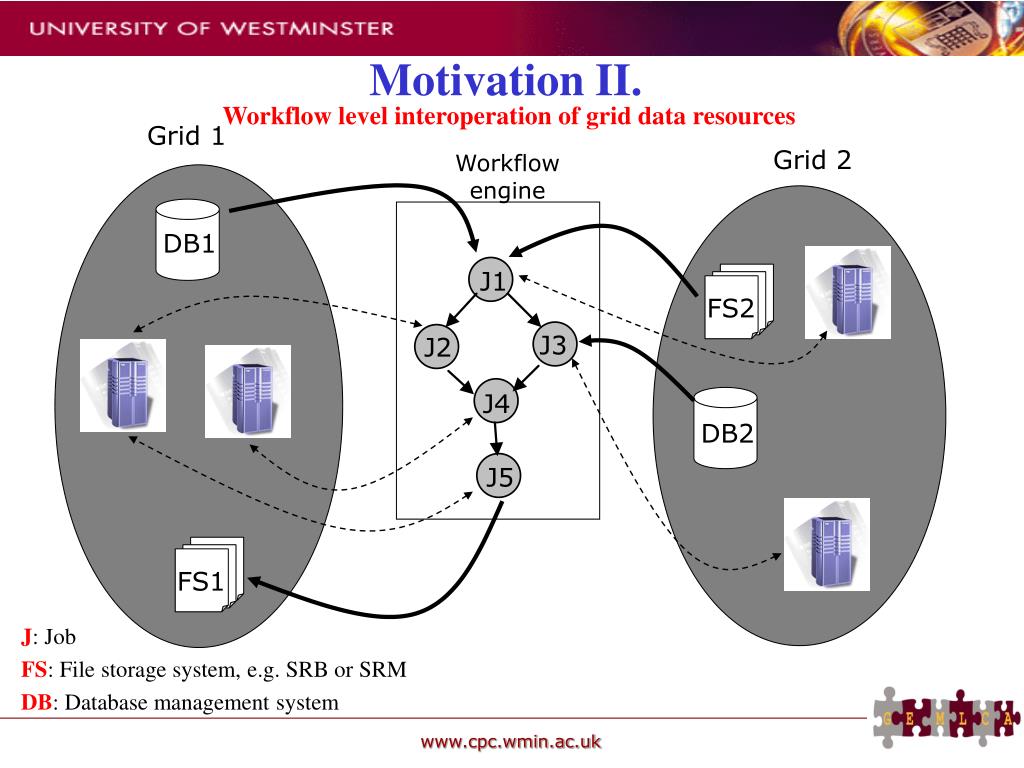

Motivation II.

Workflow level interoperation of grid data resources

Grid 1

Grid 2

Workflow engine

DB1

J1

J3

J2

J4

DB2

J5

J: Job

FS: File storage system, e.g. SRB or SRM

DB: Database management system

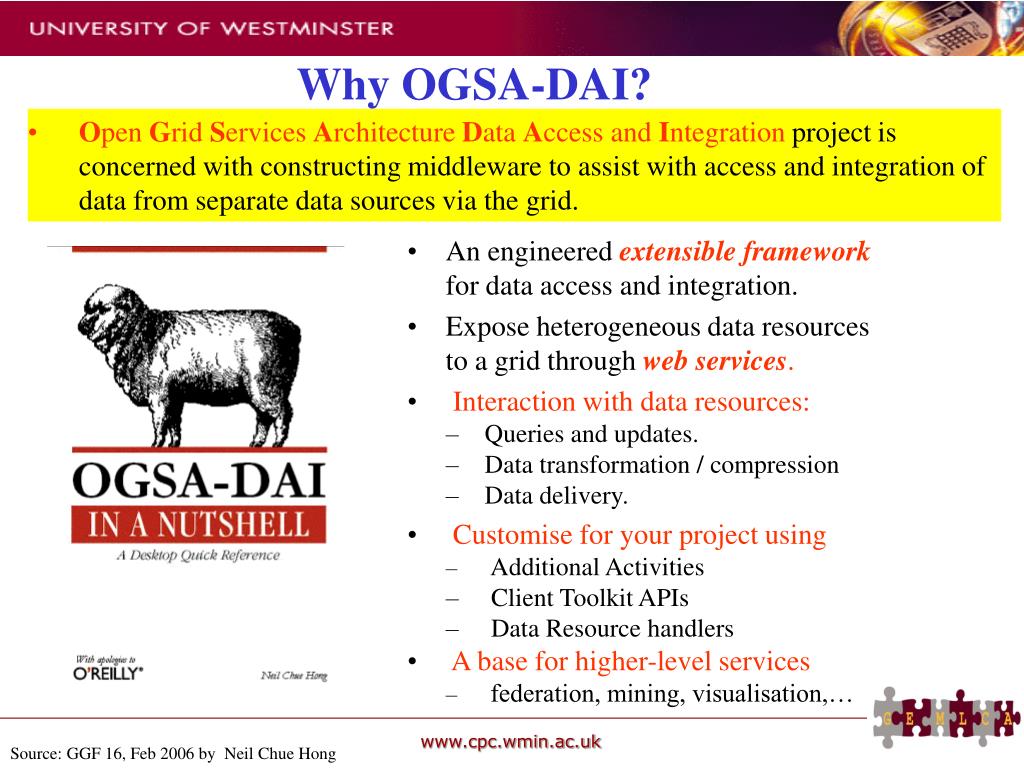

slide4

Why OGSA-DAI?

  • Open Grid Services Architecture Data Access and Integration project is concerned with constructing middleware to assist with access and integration of data from separate data sources via the grid.
  • An engineered extensible framework for data access and integration.
  • Expose heterogeneous data resources to a grid through web services.
  • Interaction with data resources:
    • Queries and updates.
    • Data transformation / compression
    • Data delivery.
  • Customise for your project using
    • Additional Activities
    • Client Toolkit APIs
    • Data Resource handlers
  • A base for higher-level services
    • federation, mining, visualisation,…

Source: GGF 16, Feb 2006 by Neil Chue Hong

slide5

OGSA DAI integration aspectsData staging

Legend

s: Data gathering request specification

  • Static:databases can be accessed before and after workflow execution, but they cannot be accessed at runtime
  • Semi-dynamic:data is accessed during workflow execution, but the parameters of the OGSA-DAI request are already specified before execution and cannot be generated at runtime
  • Dynamic: access the databases at runtime and the parameters of the request are also generated during workflow execution

s

e

s

e

e: Data gathering request execution

s: Data uploading request specification

s

s

e

e

e: Data uploading request execution

s

e

s

e

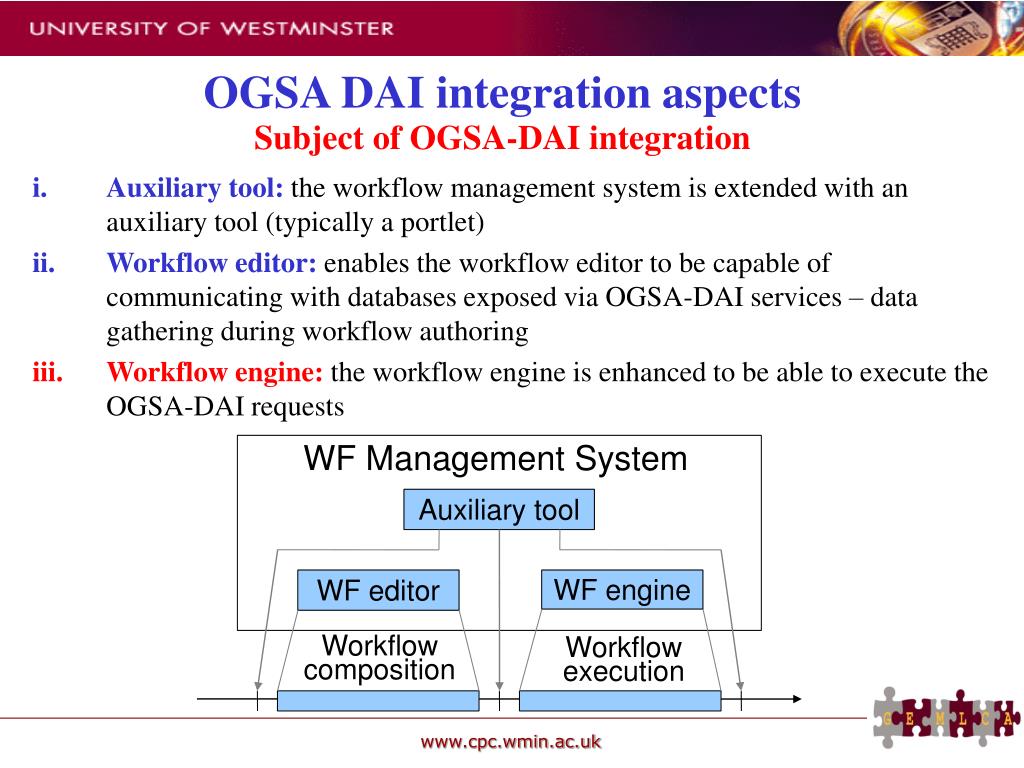

slide6

WF Management System

Auxiliary tool

WF editor

WF engine

Workflow composition

Workflow execution

OGSA DAI integration aspectsSubject of OGSA-DAI integration

  • Auxiliary tool:the workflow management system is extended with an auxiliary tool (typically a portlet)
  • Workflow editor:enables the workflow editor to be capable of communicating with databases exposed via OGSA-DAI services – data gathering during workflow authoring
  • Workflow engine: the workflow engine is enhanced to be able to execute the OGSA-DAI requests
slide7

Port level representation:OGSA-DAI request is represented as either an input or an output port of a node

data access

OGSA-DAIservice

OGSA-DAI port

  • Node level representation: request is represented as a workflow node that submits it to the OGSA-DAI service and receives the results

data access

OGSA-DAIservice

OGSA-DAI node

OGSA DAI integration aspectsRequest representation

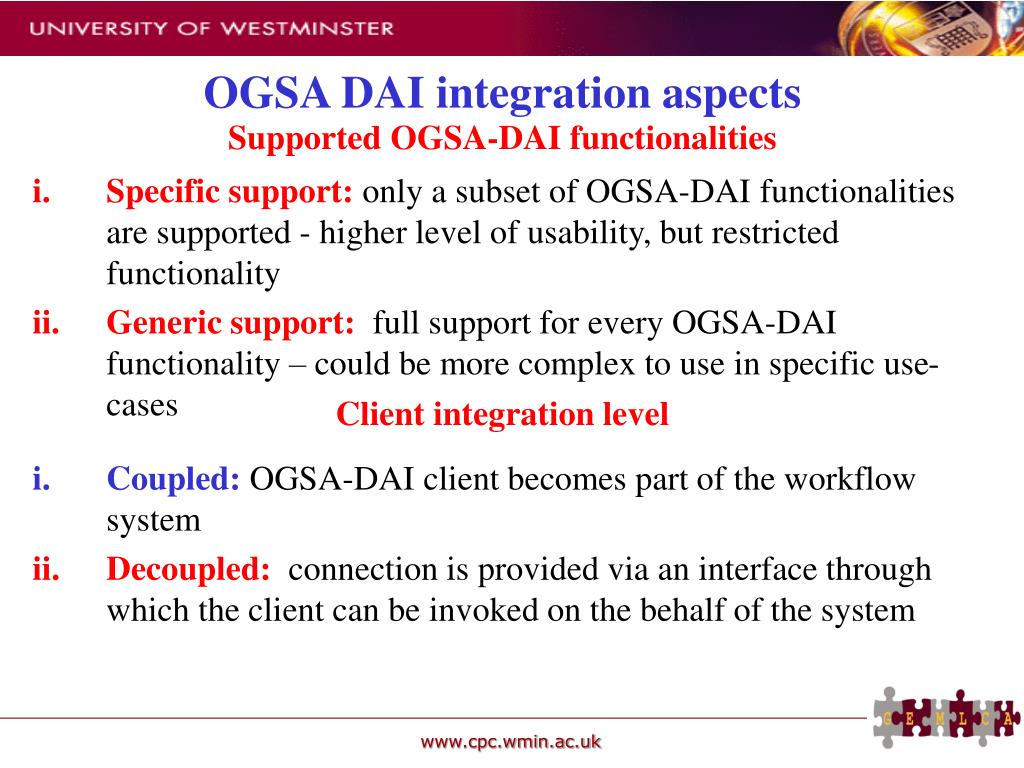

slide8

OGSA DAI integration aspectsSupported OGSA-DAI functionalities

  • Specific support: only a subset of OGSA-DAI functionalities are supported - higher level of usability, but restricted functionality
  • Generic support: full support for every OGSA-DAI functionality – could be more complex to use in specific use-cases

Client integration level

  • Coupled:OGSA-DAI client becomes part of the workflow system
  • Decoupled: connection is provided via an interface through which the client can be invoked on the behalf of the system
slide9

The targeted OGSA-DAI integration

Static

Data staging

Semi-dynamic

Dynamic

WF Editor

Subject of integration

Auxiliary Tool

WF Engine

OGSA-DAI integration aspects

Port Level

Request representation

Node Level

Specific

Functionality support

General

Coupled

Client integration level

Decoupled

implementation environment p grade portal
Implementation environment: P-GRADE Portal
  • Open source, general purpose, workflow-oriented computational Grid portal. Supports the development and execution of workflow-based Grid applications –a tool for Grid orchestration
  • Based on GridSphere-2
    • Easy to expand with new portlets (e.g. application-specific portlets)
    • Easy to tailor to end-user needs
  • Developed by P-GRADE portal Alliance (lead by SZTAKI)
  • Grid services supported by the portal:
what is a p grade portal workflow
What is a P-GRADE Portal workflow?
  • A directed acyclic graph where:
  • Nodes represent jobs - either sequential or parallel programs
  • Ports represent input/output files the jobs expect/produce
  • Arcs represent file transfer between the jobs
  • Integration at required integration level:allow the submission of a general/specific OGSA-DAI command line client application to the Grid as a P-GRADE workflow node

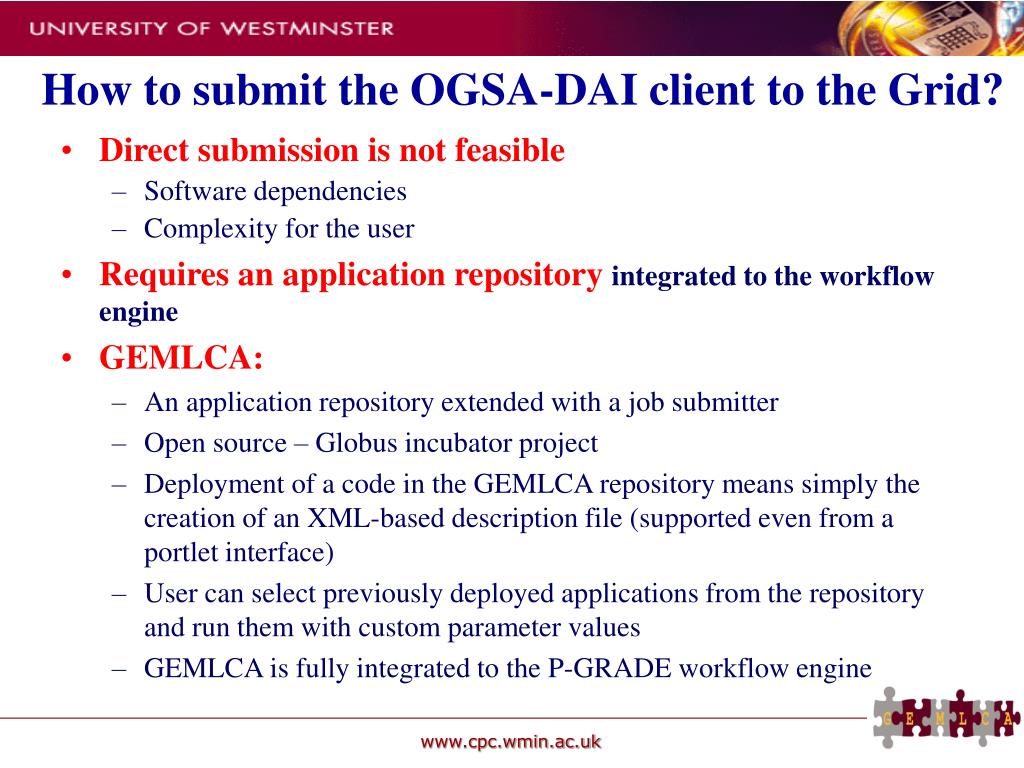

how to submit the ogsa dai client to the grid
How to submit the OGSA-DAI client to the Grid?
  • Direct submission is not feasible
    • Software dependencies
    • Complexity for the user
  • Requires an application repositoryintegrated to the workflow engine
  • GEMLCA:
    • An application repository extended with a job submitter
    • Open source – Globus incubator project
    • Deployment of a code in the GEMLCA repository means simply the creation of an XML-based description file (supported even from a portlet interface)
    • User can select previously deployed applications from the repository and run them with custom parameter values
    • GEMLCA is fully integrated to the P-GRADE workflow engine
ogsa dai integration through gemlca
OGSA-DAI integration through GEMLCA

OGSA-DAI node

Workflow

OGSA-DAIservice

Computationalresources

GEMLCArepository

...

submit

OGSA-DAI client

...

Database

OGSA-DAI client

The solution is generic as any workflow engine can be made capable to communicate with the GEMLCA service (GT4 based Grid service)

Set custom parameter values

ogsa dai integration through gemlca1
OGSA-DAI integration through GEMLCA
  • OGSA-DAI client applications supporting both OGSA-DAI 3.0 Axis (WSI) and GT (WSRF) deployed in the GEMLCA repository
    • Query client: to submit query statements to a given database exposed by an OGSA-DAI service
    • Update client: to submit update statements to a given database exposed by an OGSA-DAI service
    • Request document client: to execute general OGSA-DAI workflows represented as request documents (database query and update execution, data transfer, data transformation)

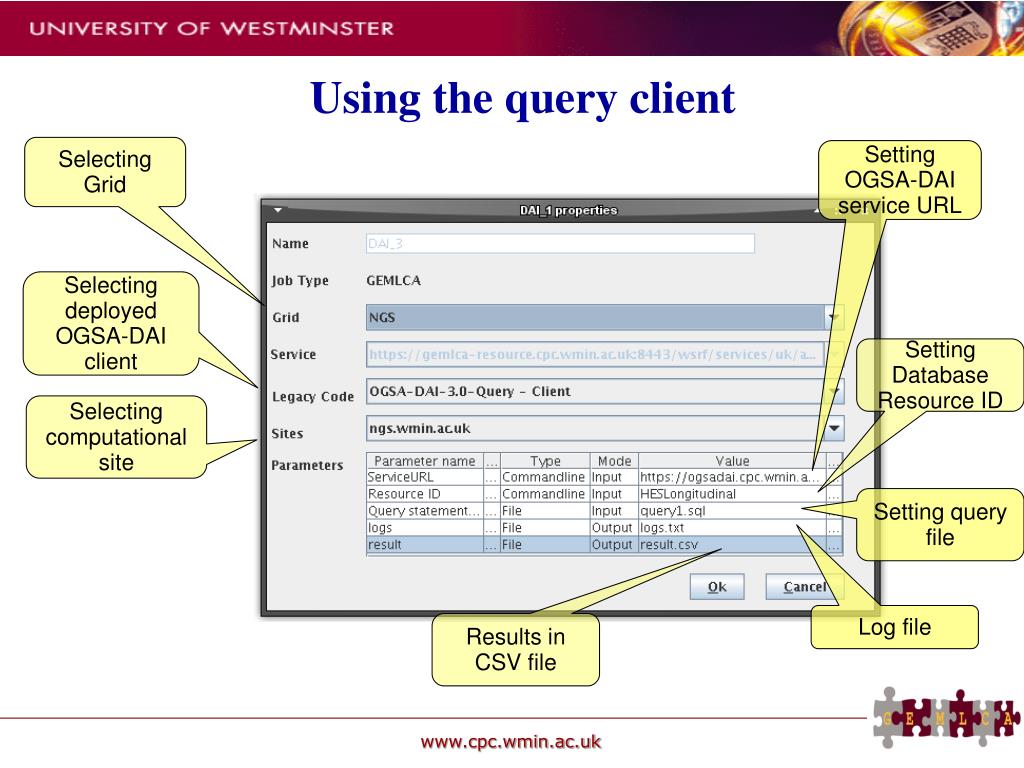

using the query client
Using the query client

Selecting Grid

Setting OGSA-DAI service URL

Selecting deployed OGSA-DAI client

Setting Database Resource ID

Selecting computational site

Setting query file

Log file

Results in CSV file

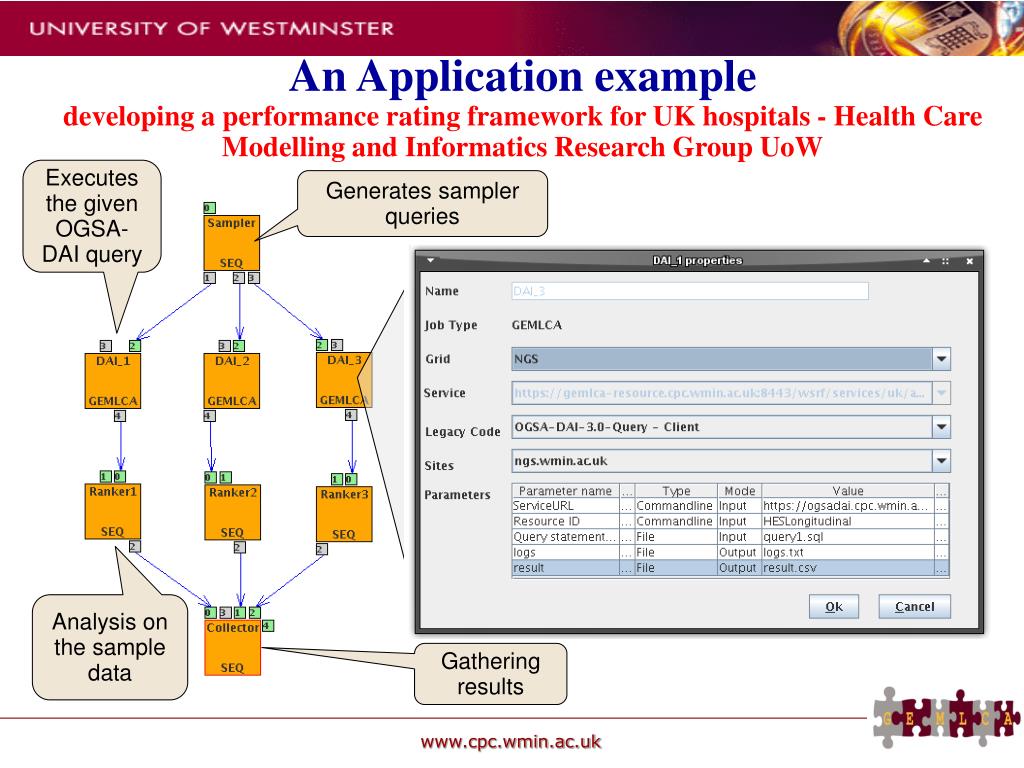

slide16

An Application exampledeveloping a performance rating framework for UK hospitals - Health Care Modelling and Informatics Research Group UoW

Executes the given OGSA-DAI query

Generates sampler queries

Analysis on the sample data

Gathering results

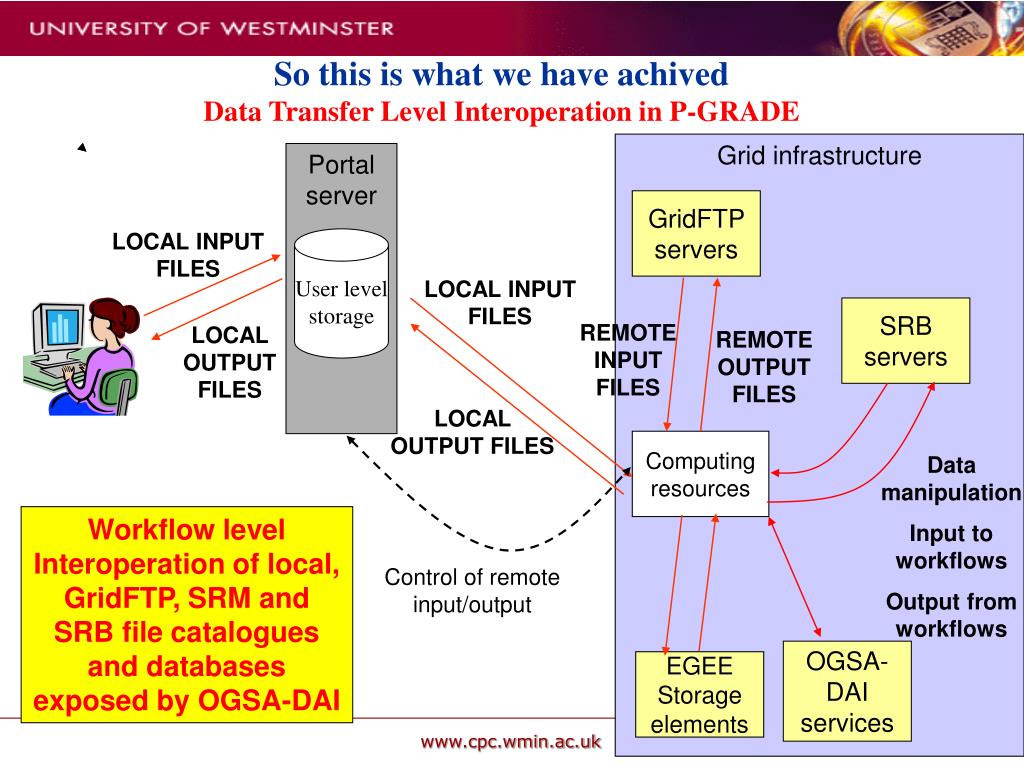

slide17

So this is what we have achived

Data Transfer Level Interoperation in P-GRADE

Grid infrastructure

Portal

server

GridFTP servers

LOCAL INPUT FILES

User levelstorage

LOCAL INPUT FILES

SRB servers

REMOTE INPUTFILES

LOCAL OUTPUT FILES

REMOTE OUTPUTFILES

LOCAL OUTPUT FILES

Computing resources

Data manipulation

Input to workflows

Output from workflows

Workflow level Interoperation of local, GridFTP, SRM and SRB file catalogues and databases exposed by OGSA-DAI

Control of remote input/output

OGSA-DAI services

EGEE Storage elements

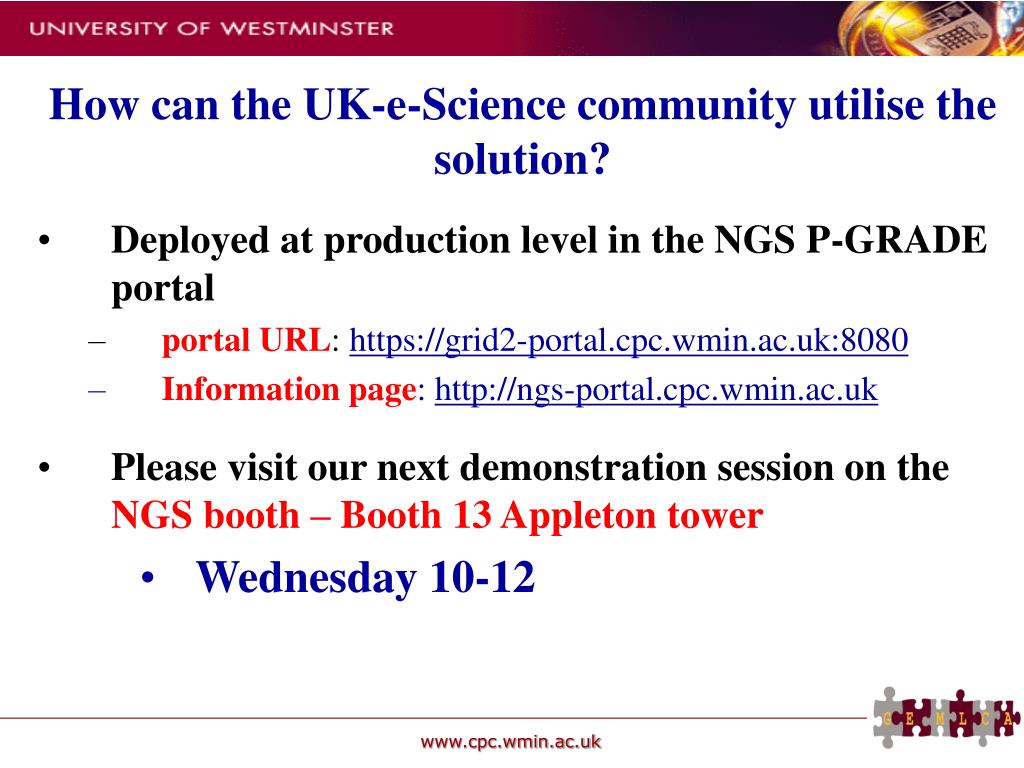

how can the uk e science community utilise the solution
How can the UK-e-Science community utilise the solution?
  • Deployed at production level in the NGS P-GRADE portal
    • portal URL: https://grid2-portal.cpc.wmin.ac.uk:8080
    • Information page: http://ngs-portal.cpc.wmin.ac.uk
  • Please visit our next demonstration session on theNGS booth – Booth 13 Appleton tower
      • Wednesday 10-12
thank you for your attention

Any

questions?

Thank you for your attention …

Email:

kisst@wmin.ac.uk

Website:

www.cpc.wmin.ac.uk
