Extreme Heavy Rain in Franklin County, Missouri

Extreme Heavy Rain in Franklin County, Missouri. Occurred during the nighttime and early hours of 6-7 May 2000 Rainfall exceeding 4 inches (100 mm) fell over a 5500 km 2 area, with embedded amounts over 12 inches (300 mm)

nerice
Download Presentation

Extreme Heavy Rain in Franklin County, Missouri

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Extreme Heavy Rain in Franklin County, Missouri • Occurred during the nighttime and early hours of 6-7 May 2000 • Rainfall exceeding 4 inches (100 mm) fell over a 5500 km2 area, with embedded amounts over 12 inches (300 mm) • There were two fatalities and property damage of over 100 million dollars • 379 structures damaged or destroyed in Franklin County; declared a disaster area by the President • Flat Creek in Franklin County rose about 15 feet (4.57 m) destroying two mobile home parks.

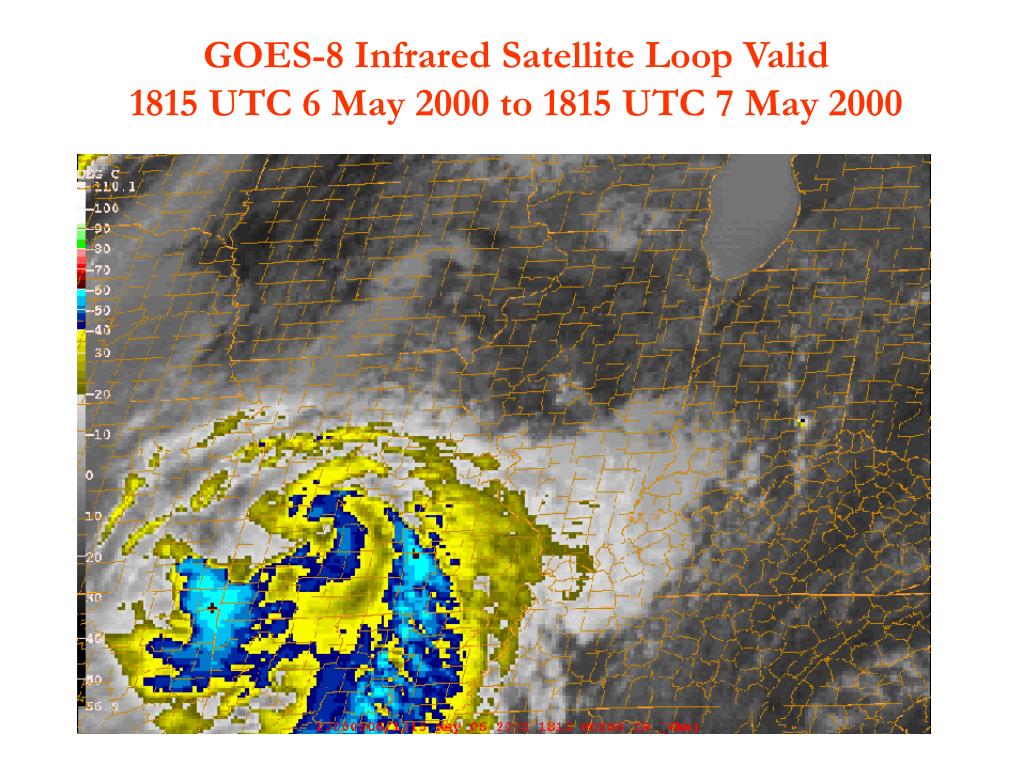

  2. GOES-8 Infrared Satellite Loop Valid 1815 UTC 6 May 2000 to 1815 UTC 7 May 2000

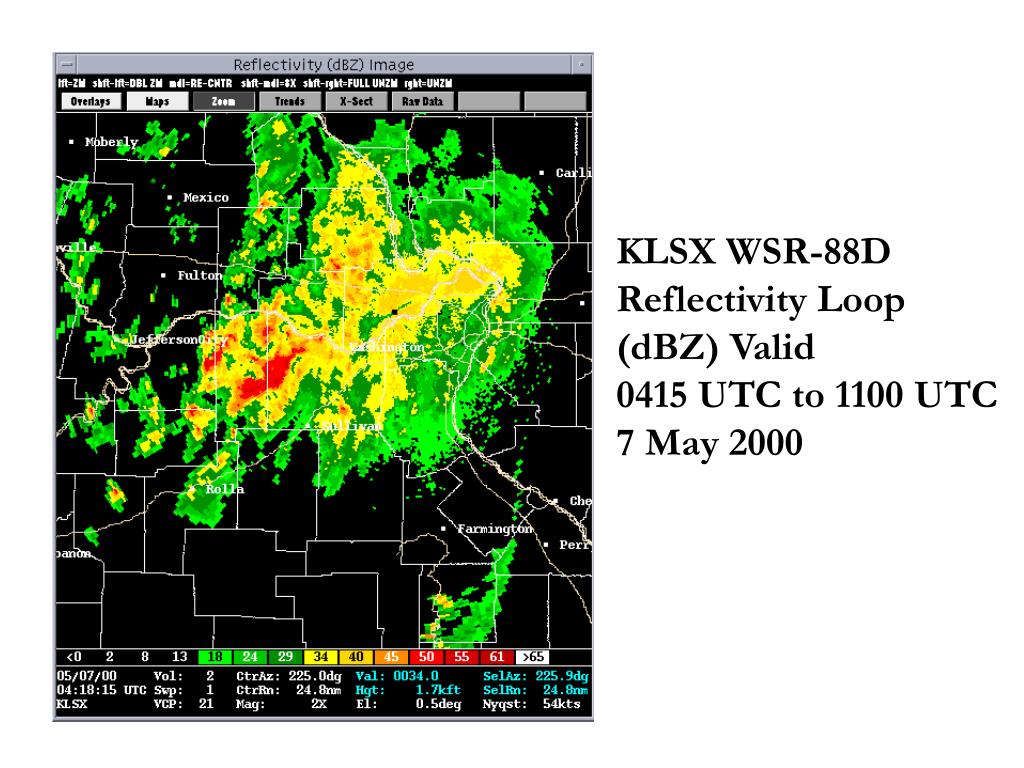

  3. KLSX WSR-88D Reflectivity Loop (dBZ) Valid 0415 UTC to 1100 UTC 7 May 2000

  4. KLSX WSR-88D storm total precipitation estimate for 04 UTC to 11 UTC 7 May 2000

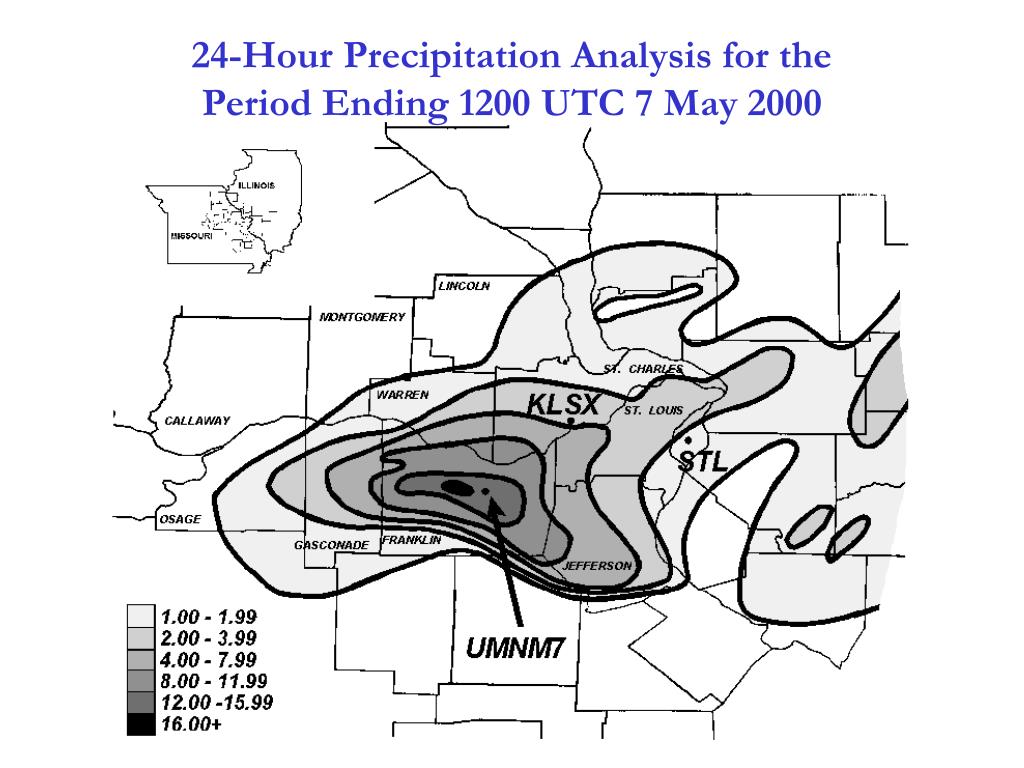

  5. 24-Hour Precipitation Analysis for the Period Ending 1200 UTC 7 May 2000

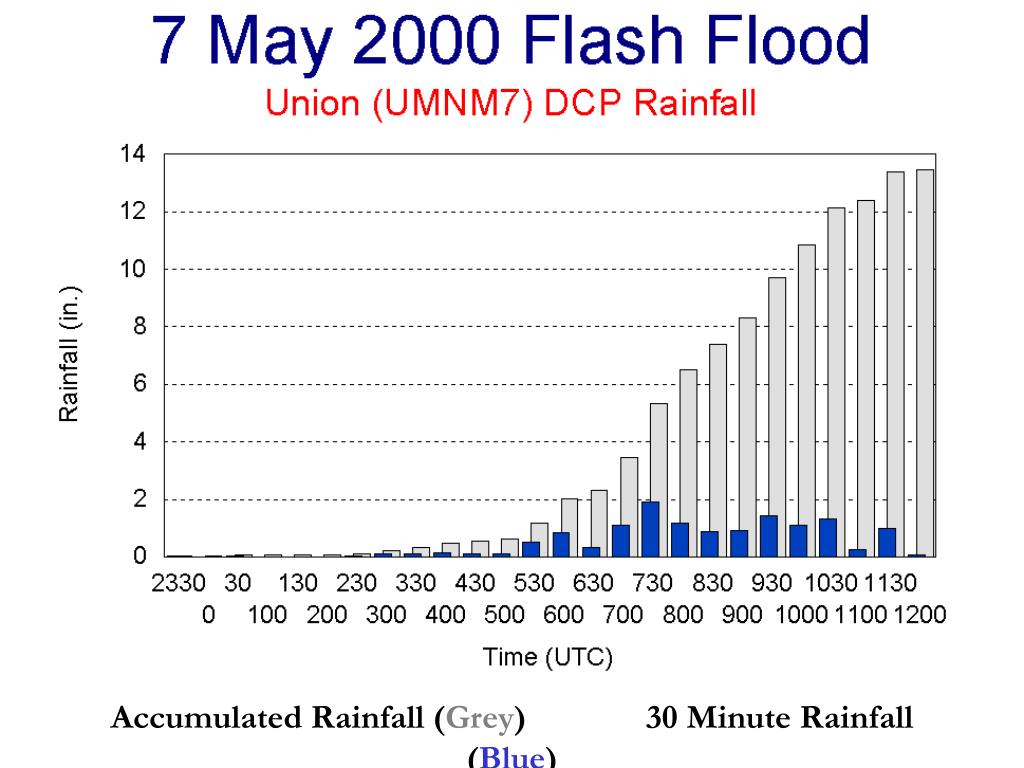

  6. Accumulated Rainfall (Grey) 30 Minute Rainfall (Blue)

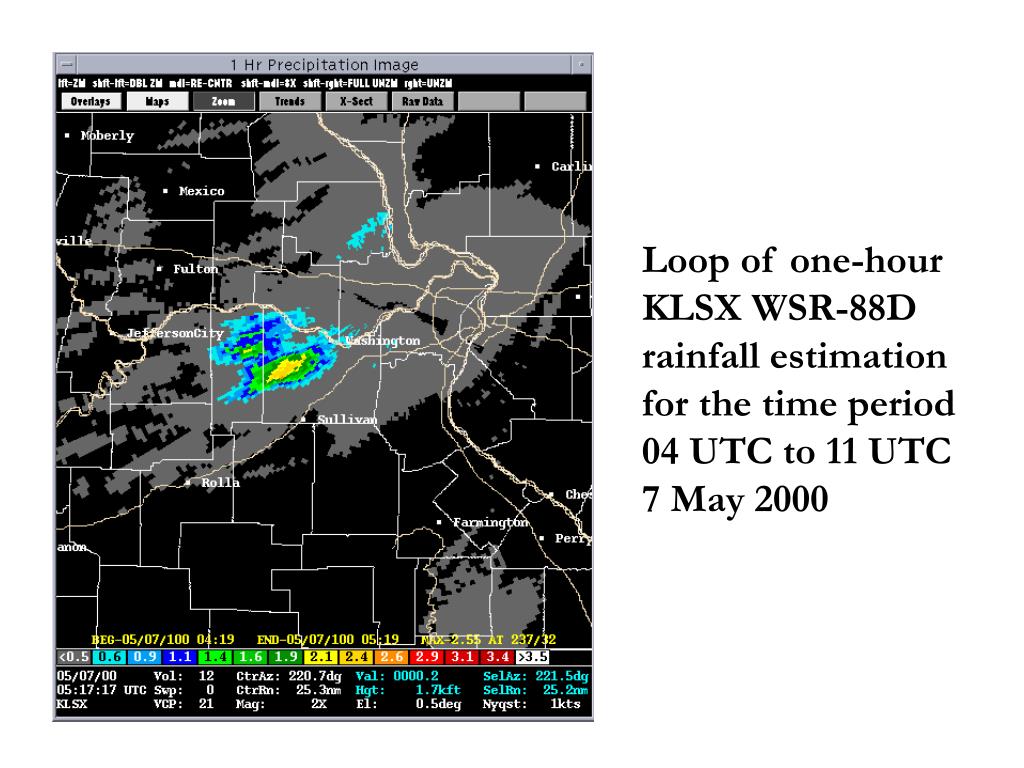

  7. Loop of one-hour KLSX WSR-88D rainfall estimation for the time period 04 UTC to 11 UTC 7 May 2000

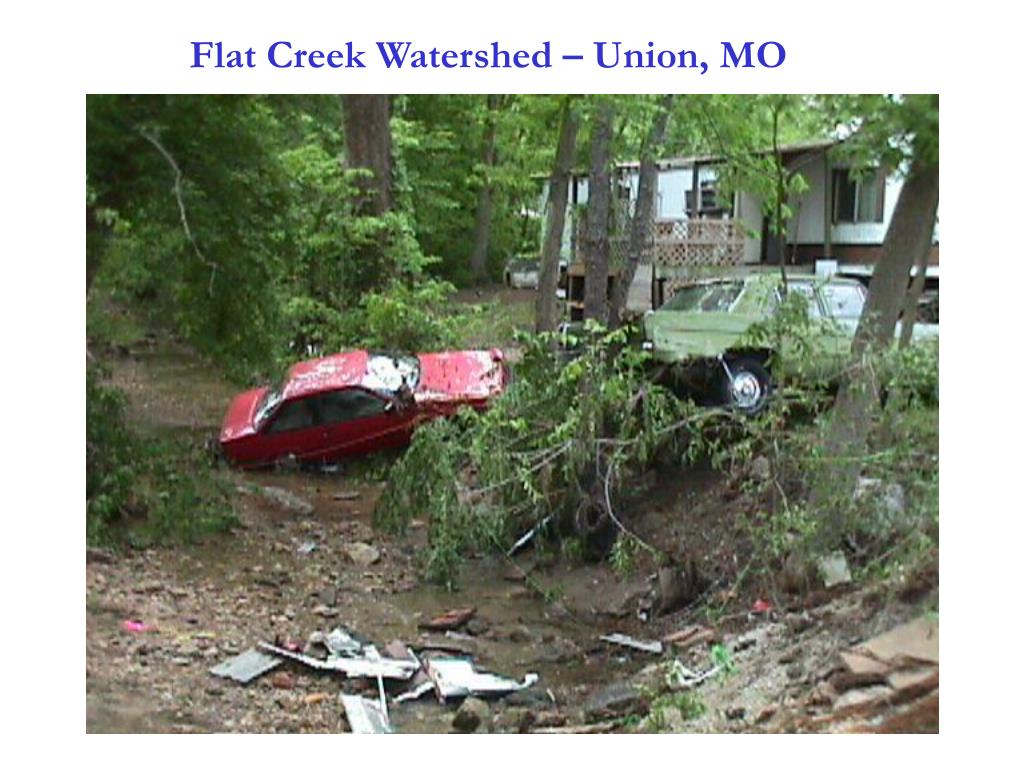

  8. Flat Creek Watershed – Union, MO

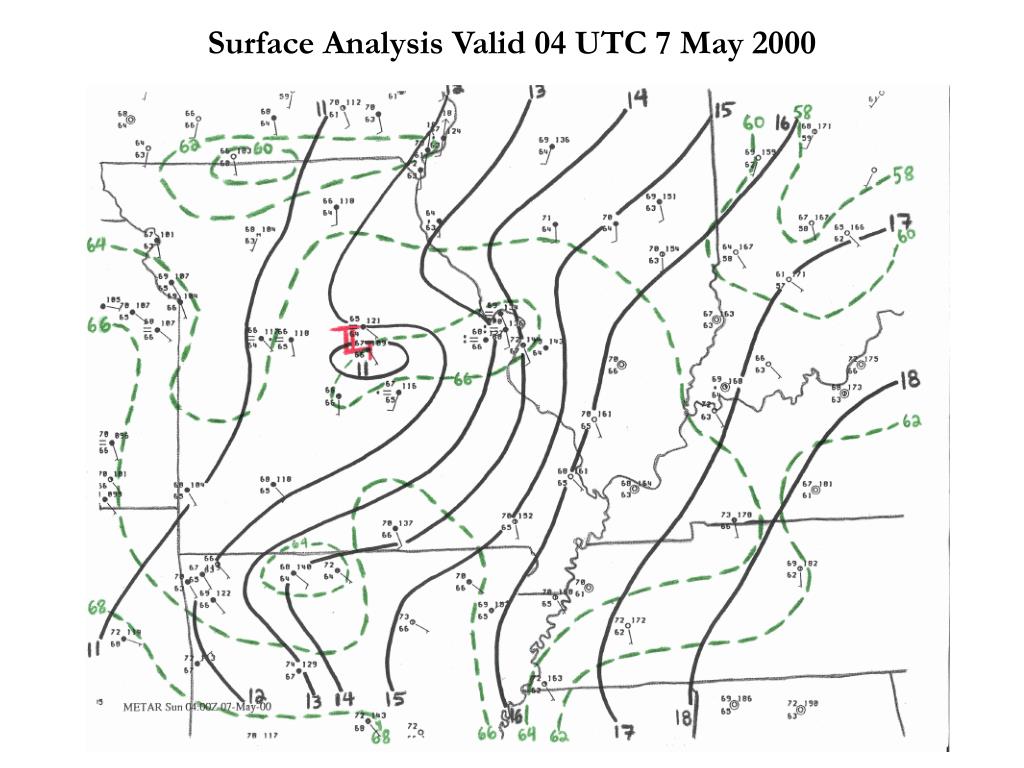

  9. Surface Analysis Valid 04 UTC 7 May 2000

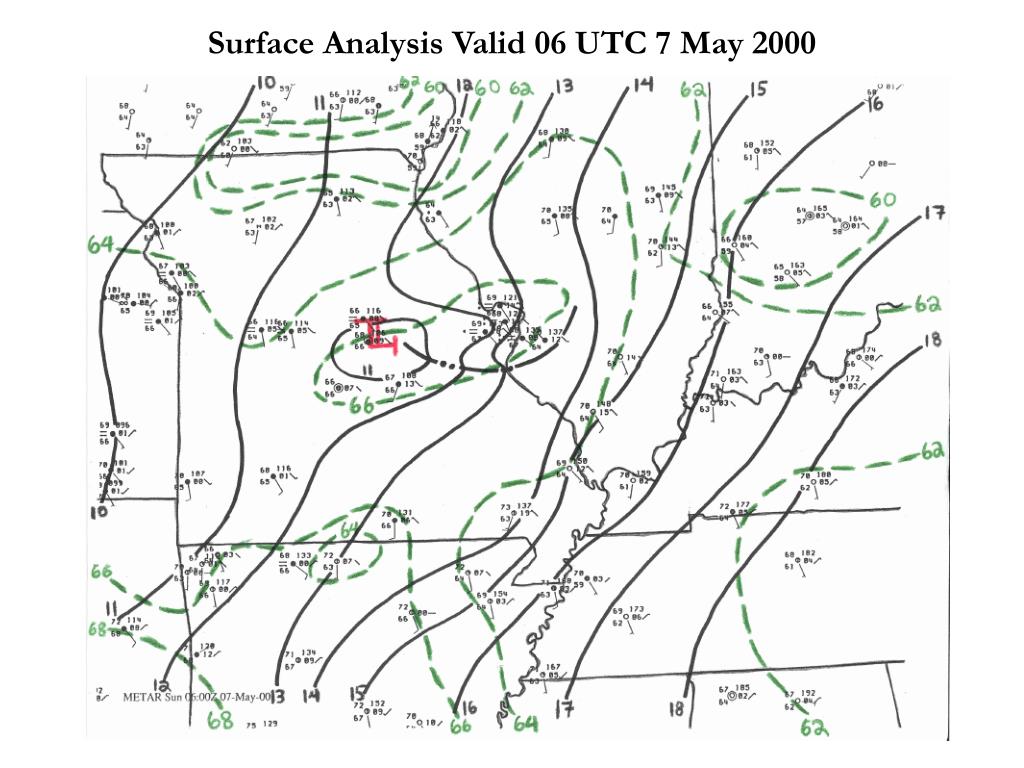

  10. Surface Analysis Valid 06 UTC 7 May 2000

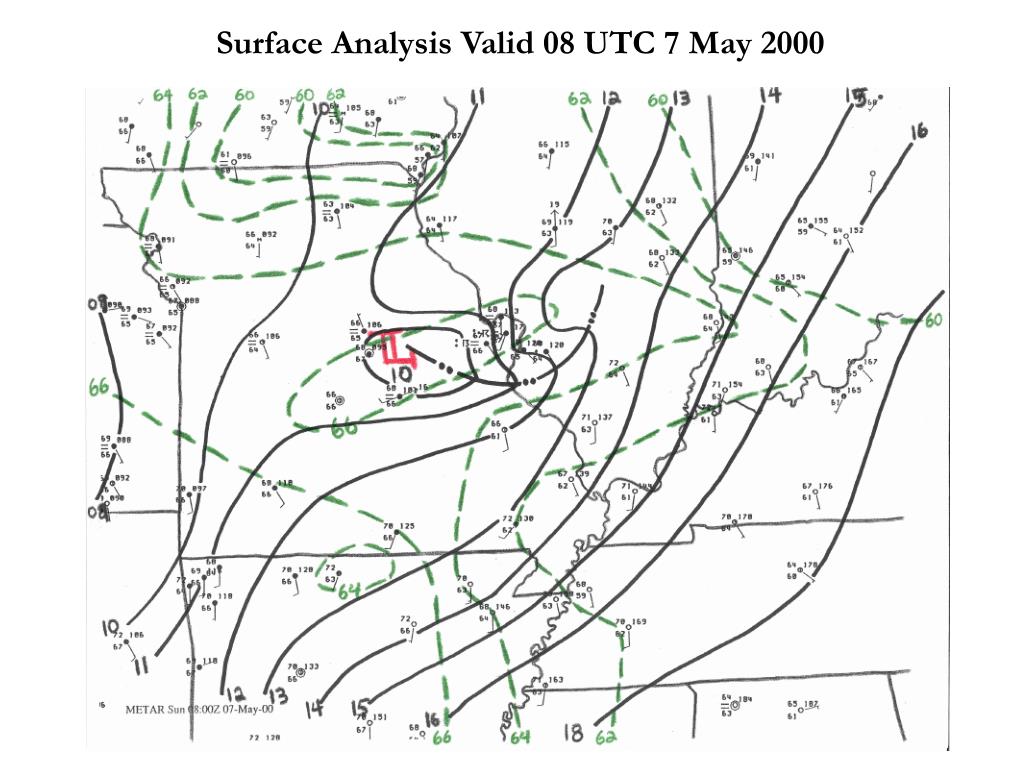

  11. Surface Analysis Valid 08 UTC 7 May 2000

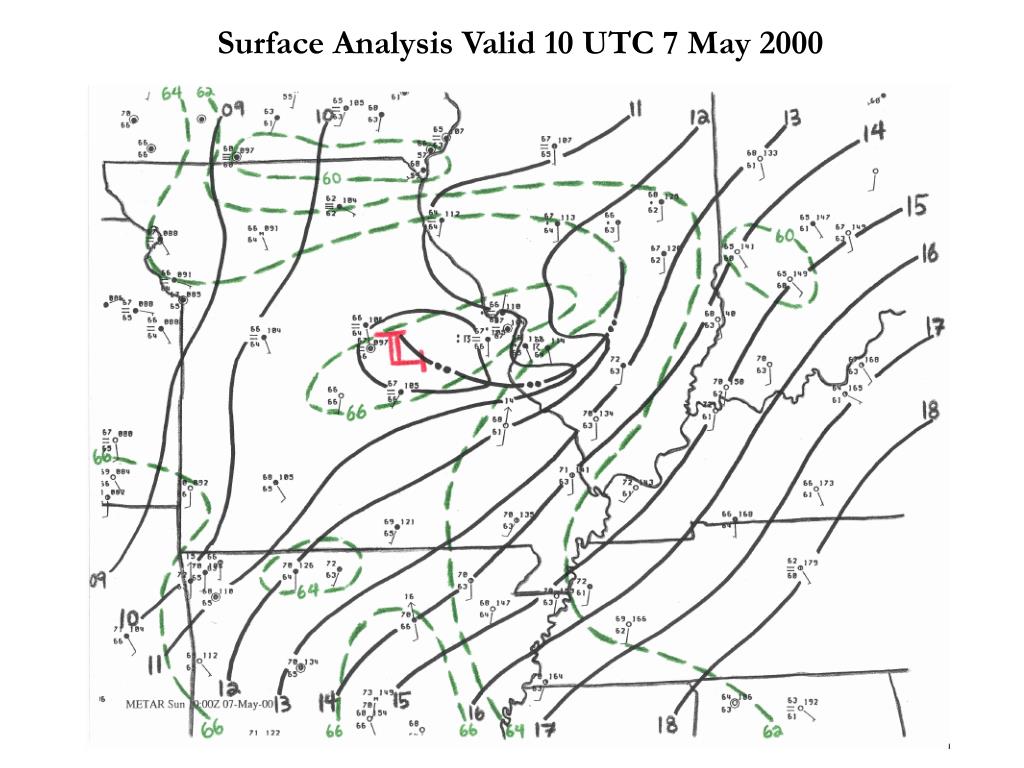

  12. Surface Analysis Valid 10 UTC 7 May 2000

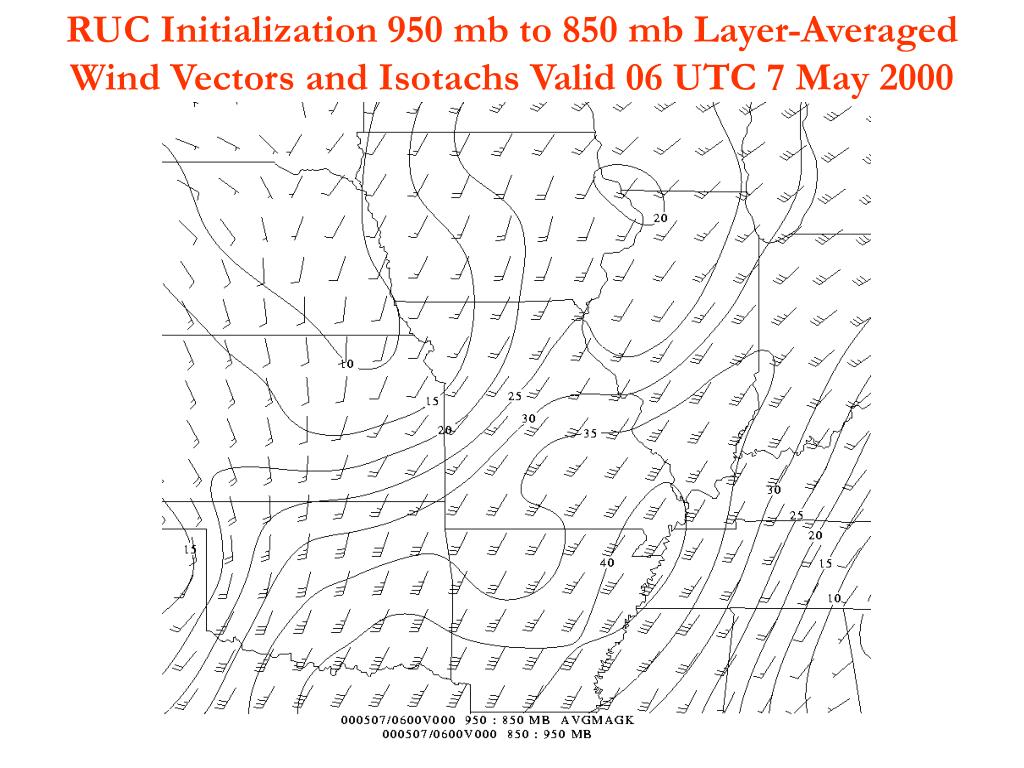

  13. RUC Initialization 950 mb to 850 mb Layer-Averaged Wind Vectors and Isotachs Valid 06 UTC 7 May 2000

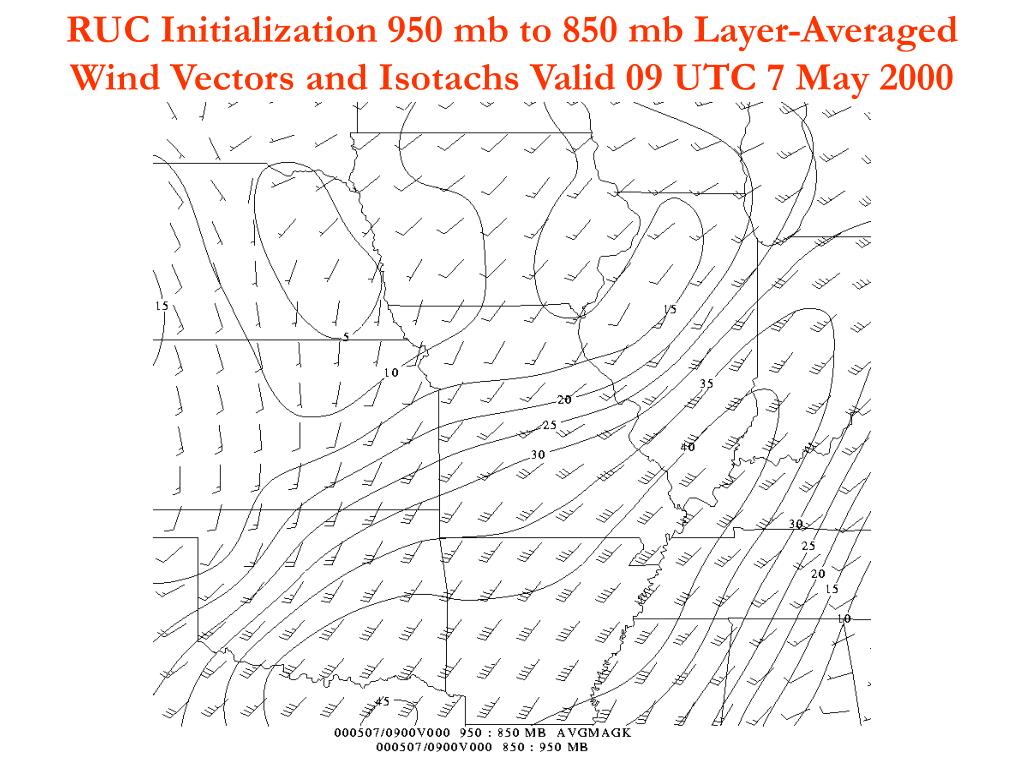

  14. RUC Initialization 950 mb to 850 mb Layer-Averaged Wind Vectors and Isotachs Valid 09 UTC 7 May 2000

  15. RUC Initialization 950 mb to 850 mb Layer-Averaged Wind Vectors and Isotachs Valid 12 UTC 7 May 2000

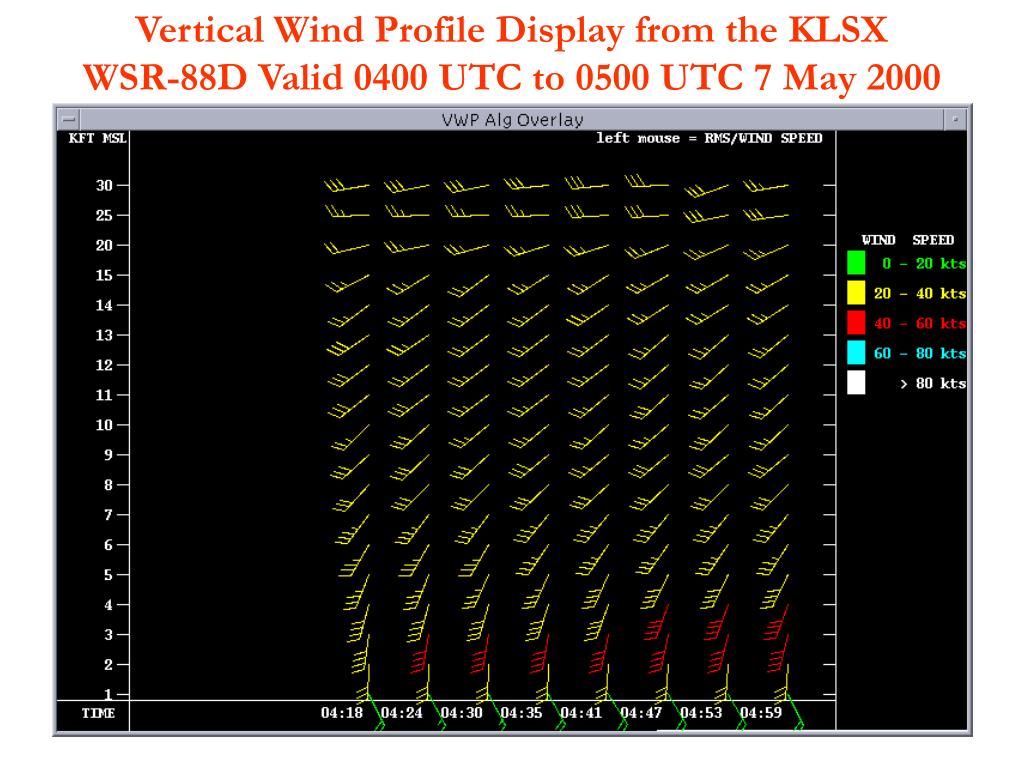

  16. Vertical Wind Profile Display from the KLSX WSR-88D Valid 0400 UTC to 0500 UTC 7 May 2000

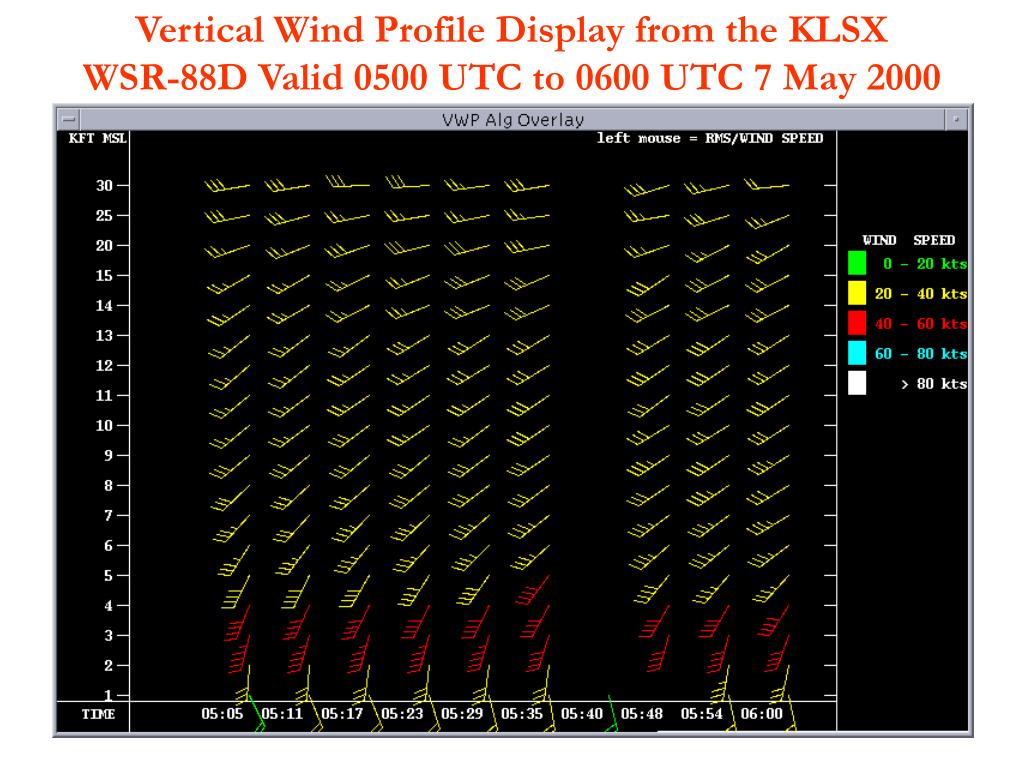

  17. Vertical Wind Profile Display from the KLSX WSR-88D Valid 0500 UTC to 0600 UTC 7 May 2000

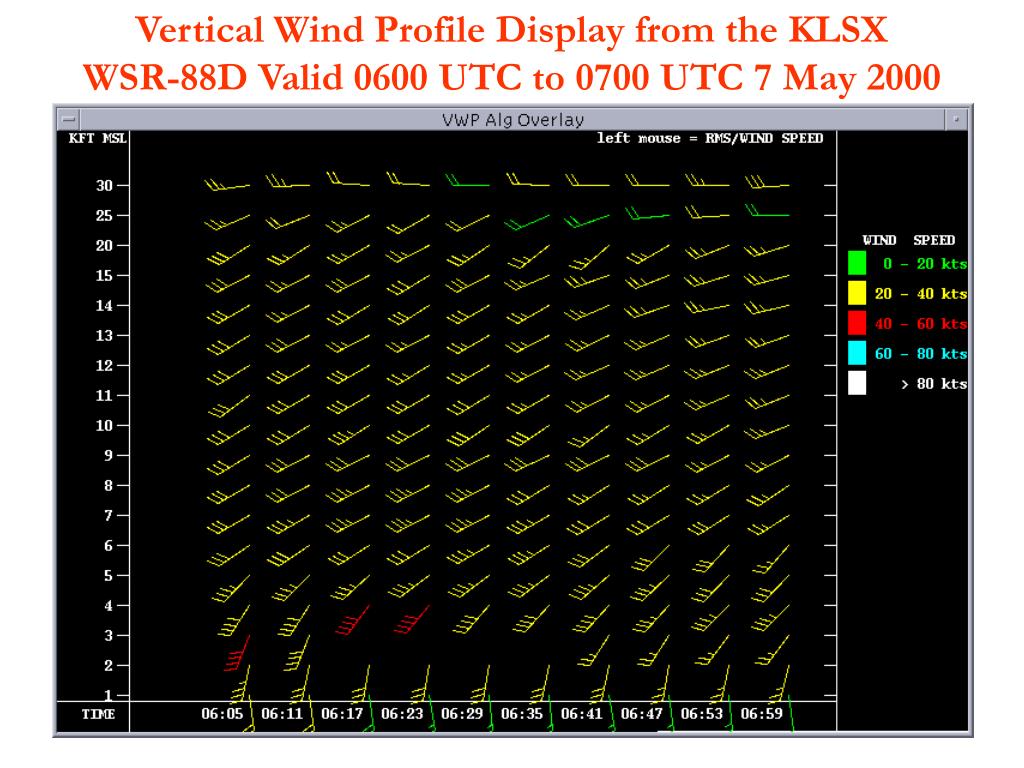

  18. Vertical Wind Profile Display from the KLSX WSR-88D Valid 0600 UTC to 0700 UTC 7 May 2000

  19. Vertical Wind Profile Display from the KLSX WSR-88D Valid 0700 UTC to 0800 UTC 7 May 2000

  20. Vertical Wind Profile Display from the KLSX WSR-88D Valid 0800 UTC to 0900 UTC 7 May 2000

  21. Vertical Wind Profile Display from the KLSX WSR-88D Valid 0900 UTC to 1000 UTC 7 May 2000

  22. Vertical Wind Profile Display from the KLSX WSR-88D Valid 1000 UTC to 1100 UTC 7 May 2000

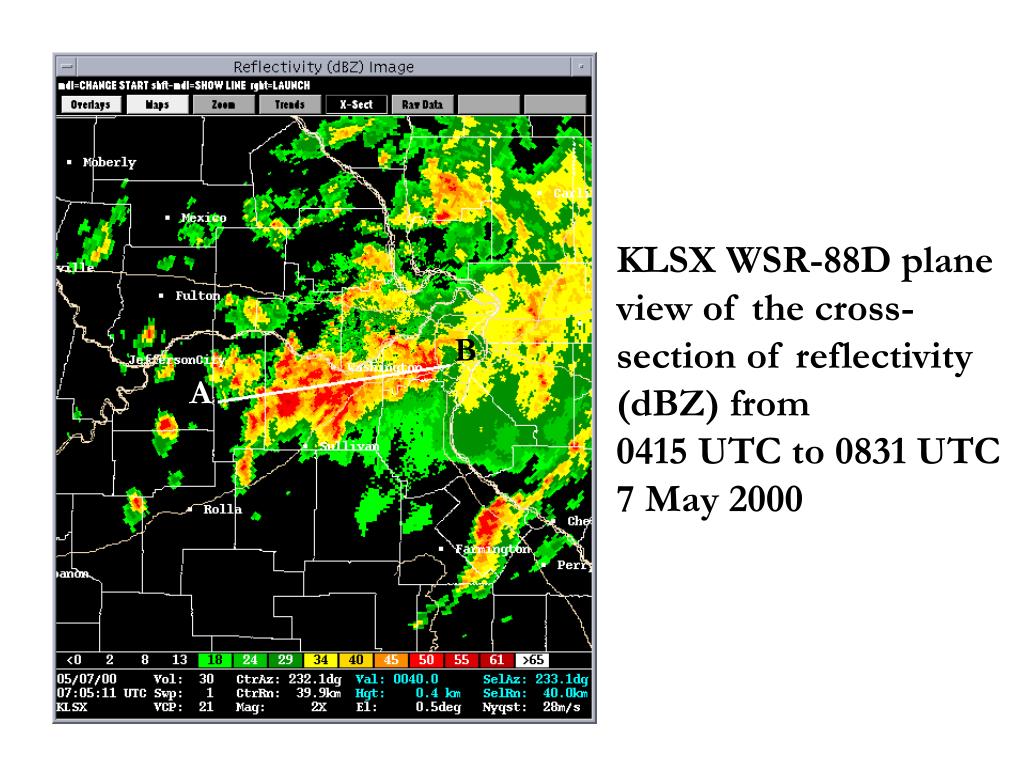

  23. KLSX WSR-88D plane view of the cross-section of reflectivity (dBZ) from 0415 UTC to 0831 UTC 7 May 2000 B A

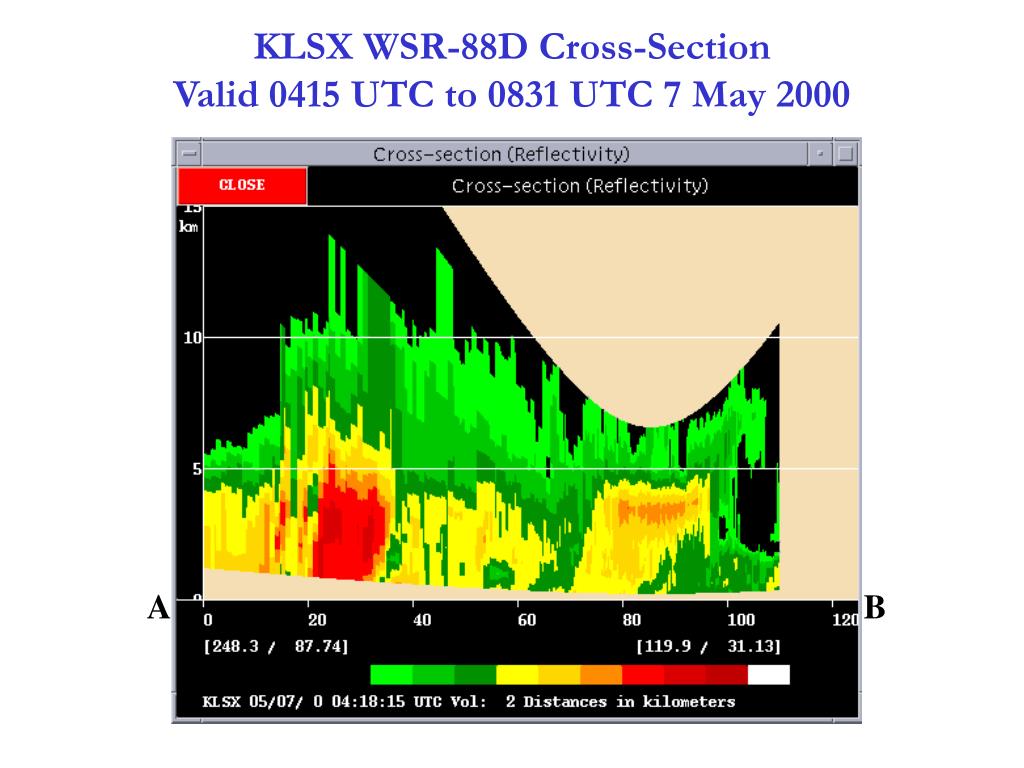

  24. KLSX WSR-88D Cross-Section Valid 0415 UTC to 0831 UTC 7 May 2000 A B

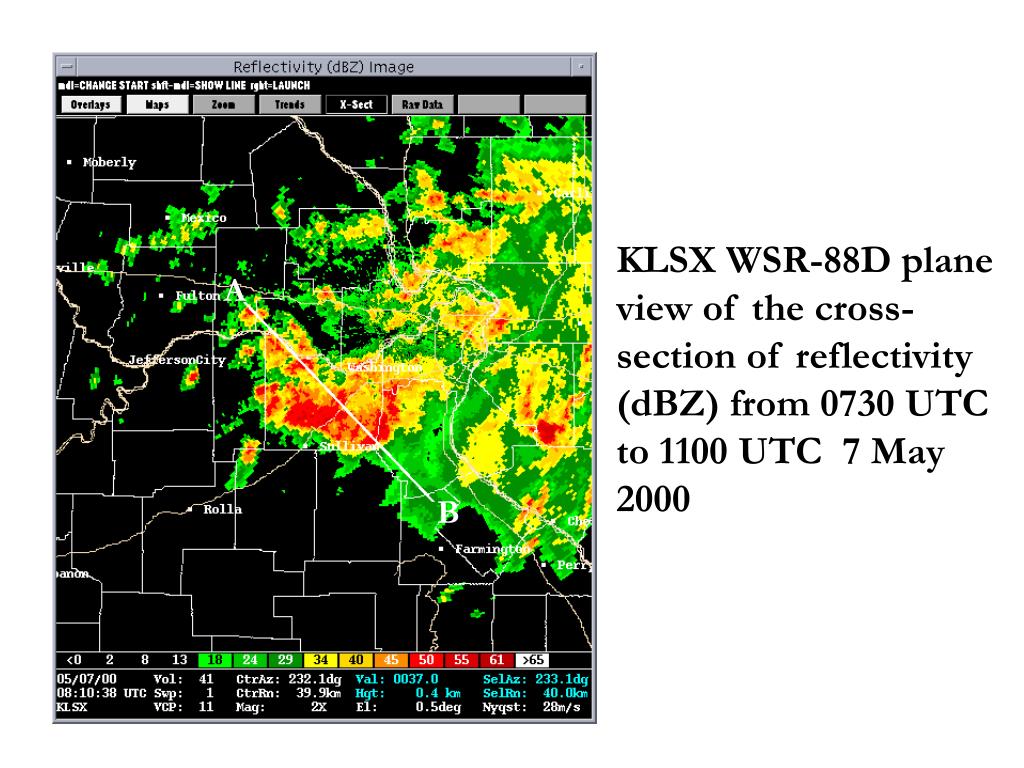

  25. KLSX WSR-88D plane view of the cross-section of reflectivity (dBZ) from 0730 UTC to 1100 UTC 7 May 2000 A B B

  26. KLSX WSR-88D Cross-Section Valid 0731 UTC to 1100 UTC 7 May 2000 A B

  27. KLSX WSR-88D Storm Relative Velocity Valid 0415 UTC to 1100 UTC 7 May 2000

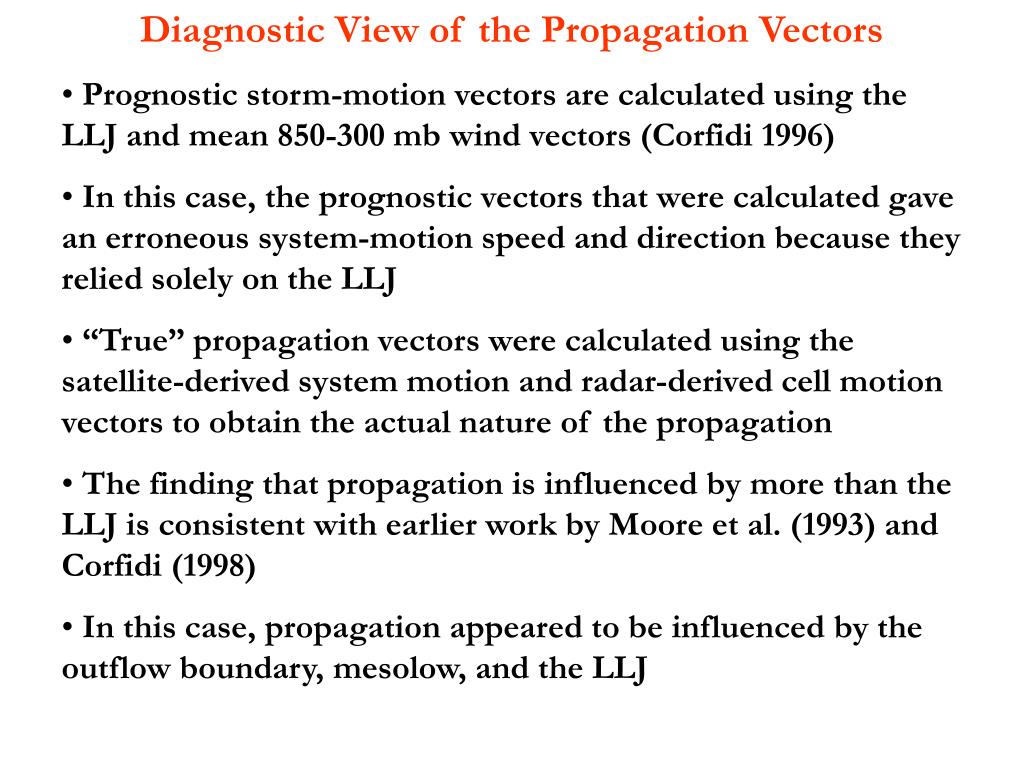

  28. Diagnostic View of the Propagation Vectors • Prognostic storm-motion vectors are calculated using the LLJ and mean 850-300 mb wind vectors (Corfidi 1996) • In this case, the prognostic vectors that were calculated gave an erroneous system-motion speed and direction because they relied solely on the LLJ • “True” propagation vectors were calculated using the satellite-derived system motion and radar-derived cell motion vectors to obtain the actual nature of the propagation • The finding that propagation is influenced by more than the LLJ is consistent with earlier work by Moore et al. (1993) and Corfidi (1998) • In this case, propagation appeared to be influenced by the outflow boundary, mesolow, and the LLJ

  29. Prognostic and Diagnostic Corfidi Vector Diagrams Valid 0500 UTC 7 May 2000 FORECAST ACTUAL

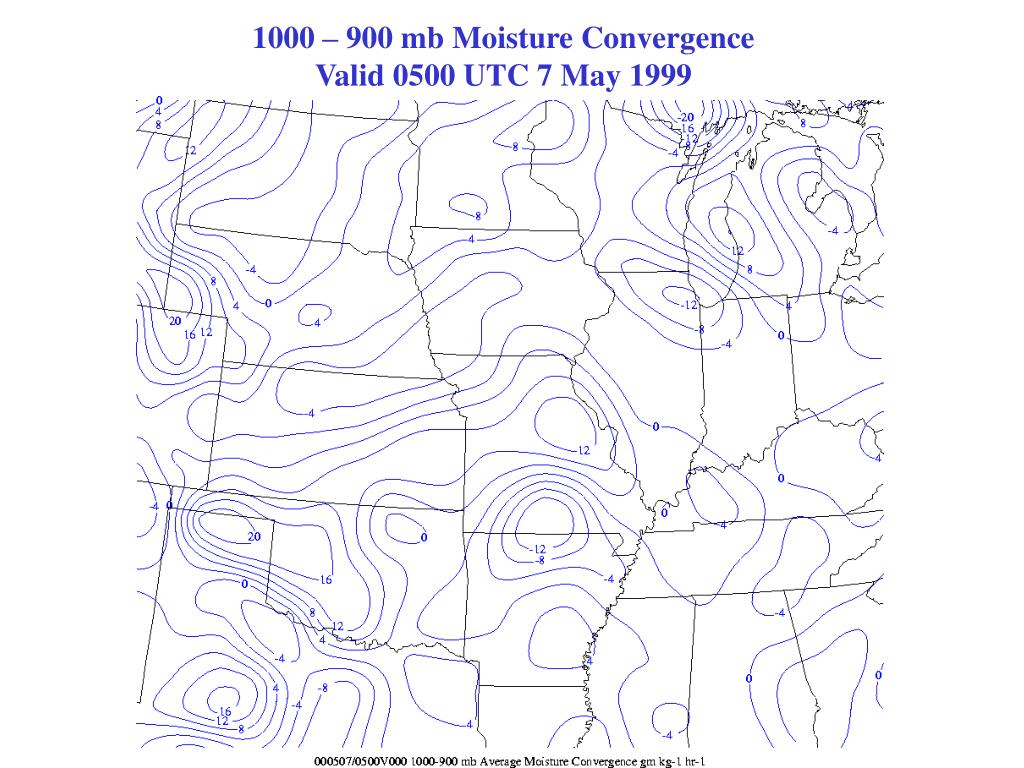

  30. 1000 – 900 mb Moisture Convergence Valid 0500 UTC 7 May 1999

  31. Prognostic and Diagnostic Corfidi Vector Diagrams Valid 0600 UTC 7 May 2000 FORECAST ACTUAL

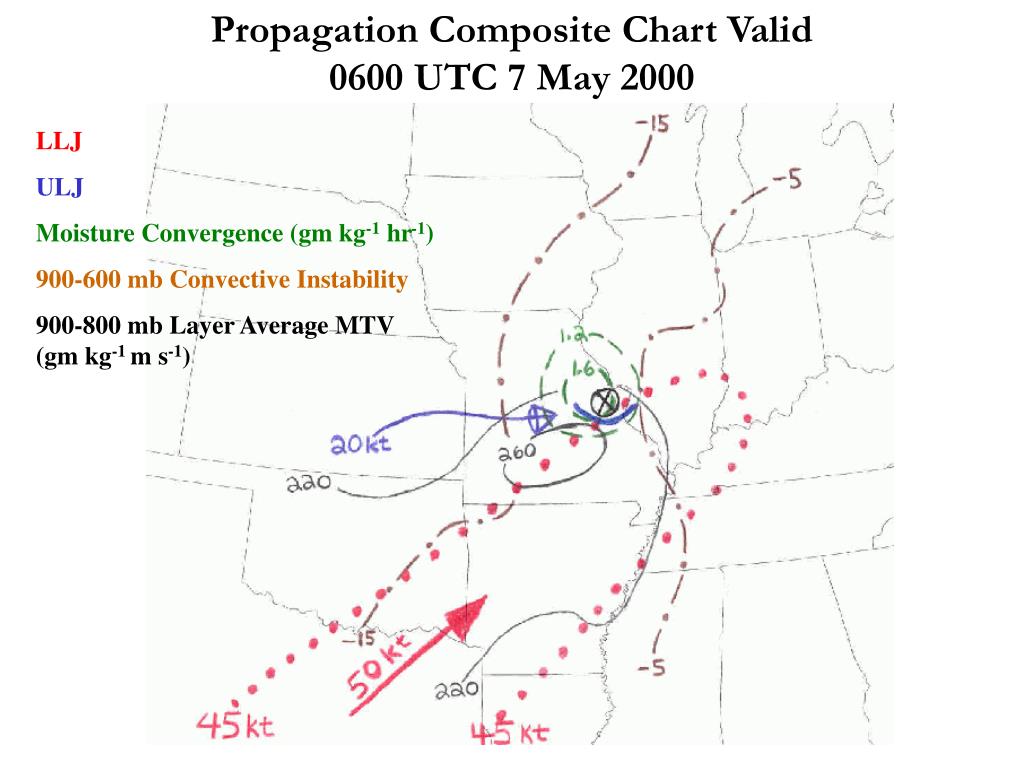

  32. Propagation Composite Chart Valid 0600 UTC 7 May 2000 LLJ ULJ Moisture Convergence (gm kg-1 hr-1) 900-600 mb Convective Instability 900-800 mb Layer Average MTV (gm kg-1 m s-1)

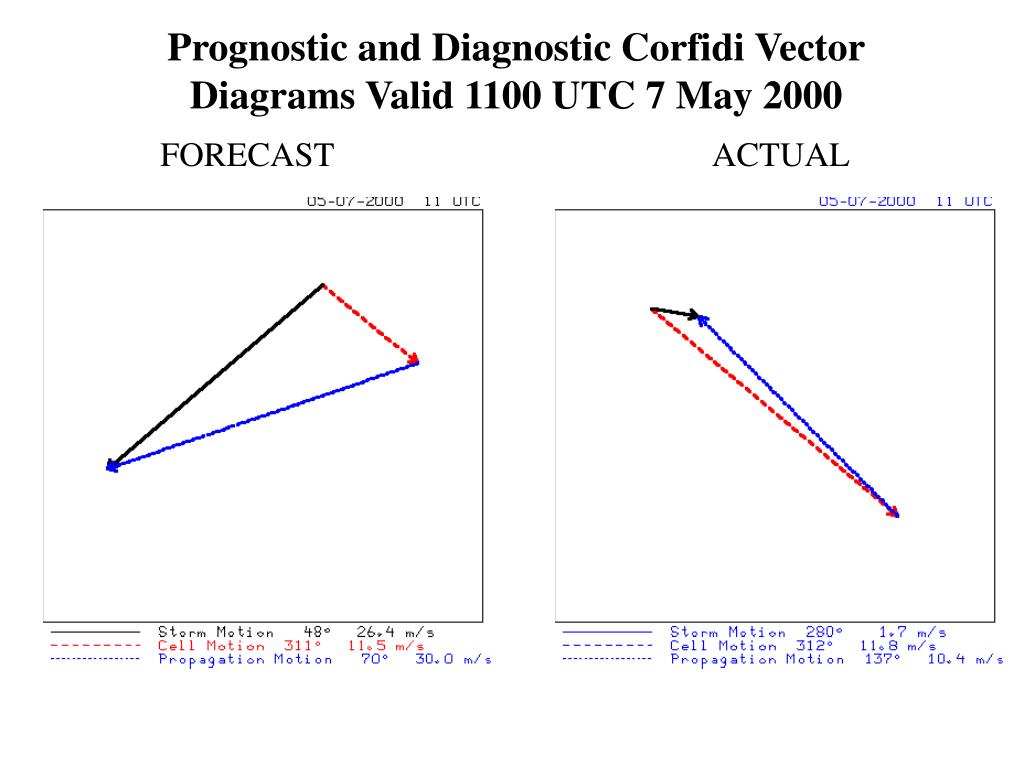

  33. Prognostic and Diagnostic Corfidi Vector Diagrams Valid 1100 UTC 7 May 2000 FORECAST ACTUAL

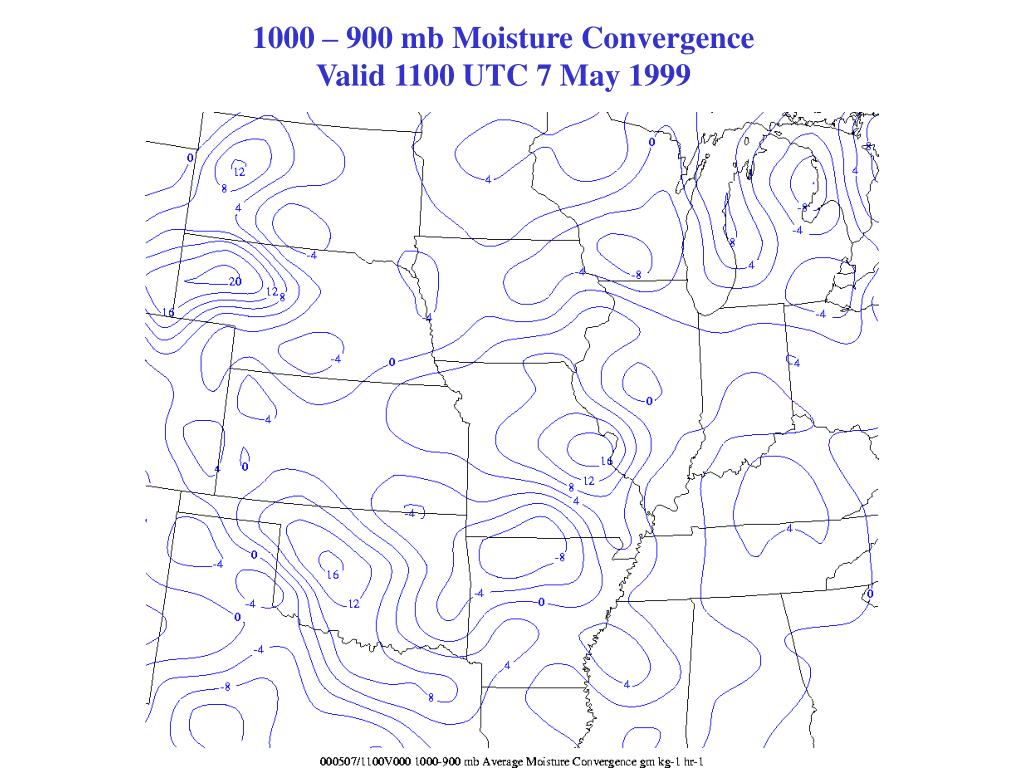

  34. 1000 – 900 mb Moisture Convergence Valid 1100 UTC 7 May 1999

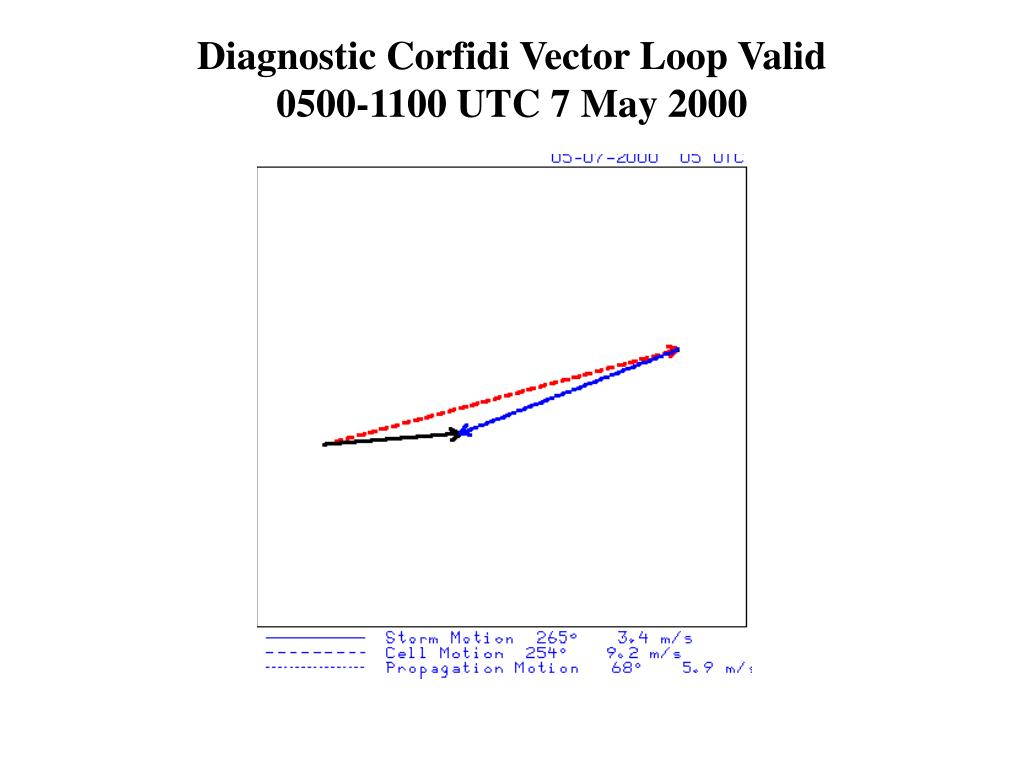

  35. Diagnostic Corfidi Vector Loop Valid 0500-1100 UTC 7 May 2000

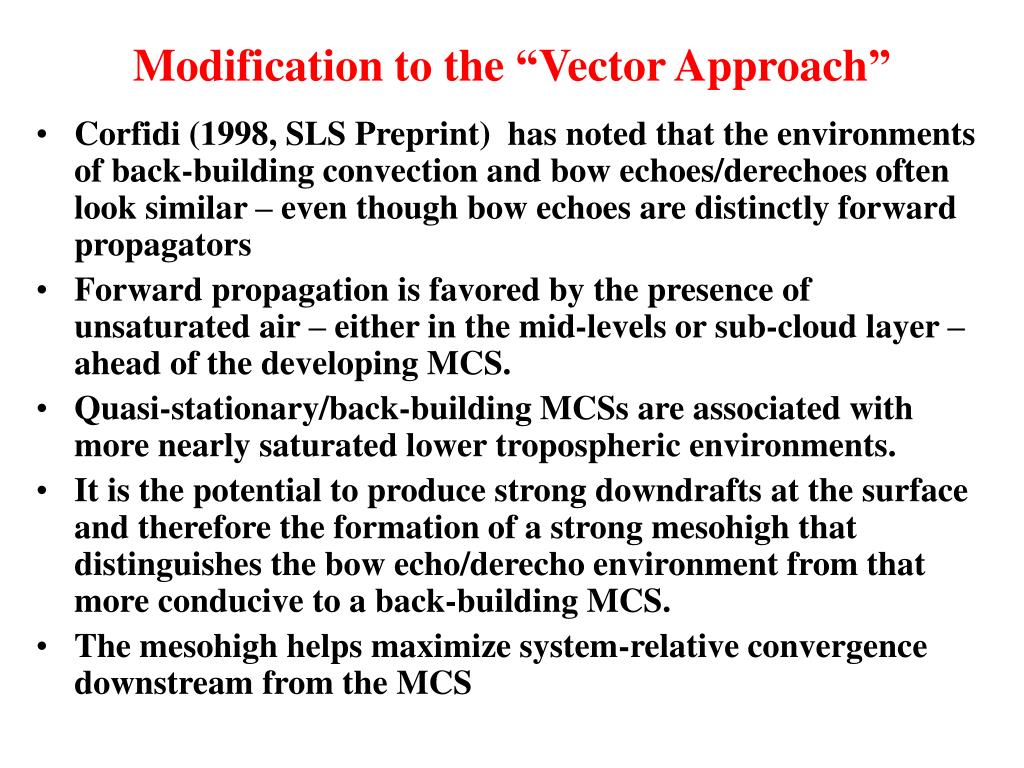

  36. Modification to the “Vector Approach” • Corfidi (1998, SLS Preprint) has noted that the environments of back-building convection and bow echoes/derechoes often look similar – even though bow echoes are distinctly forward propagators • Forward propagation is favored by the presence of unsaturated air – either in the mid-levels or sub-cloud layer – ahead of the developing MCS. • Quasi-stationary/back-building MCSs are associated with more nearly saturated lower tropospheric environments. • It is the potential to produce strong downdrafts at the surface and therefore the formation of a strong mesohigh that distinguishes the bow echo/derecho environment from that more conducive to a back-building MCS. • The mesohigh helps maximize system-relative convergence downstream from the MCS

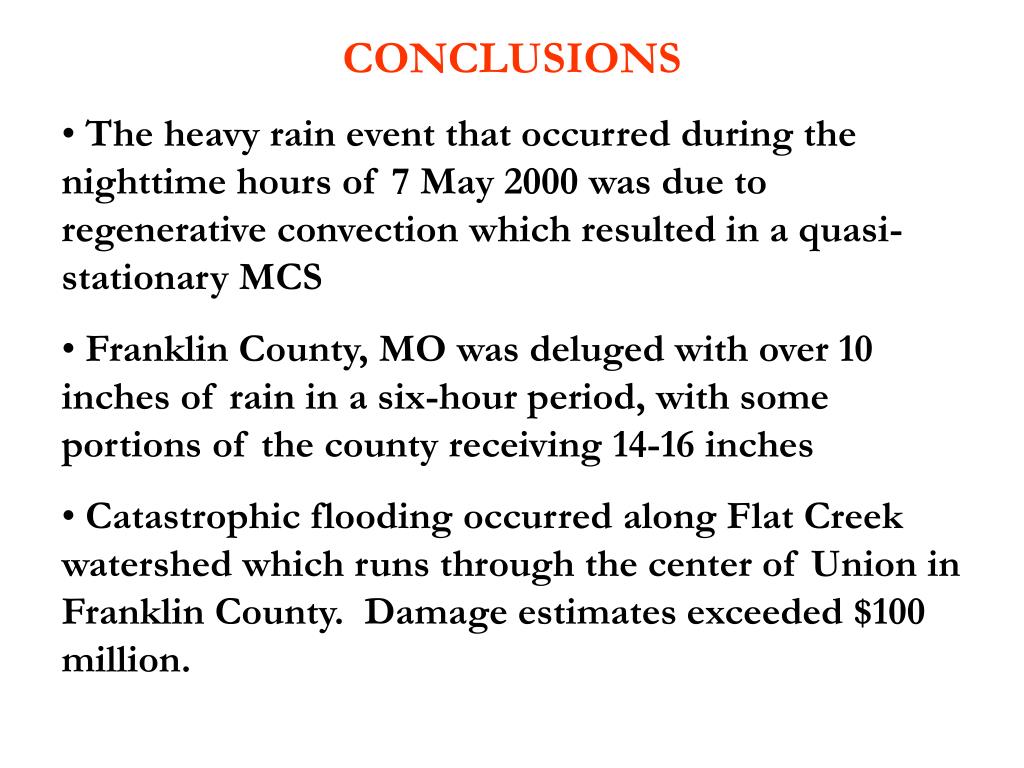

  37. CONCLUSIONS • The heavy rain event that occurred during the nighttime hours of 7 May 2000 was due to regenerative convection which resulted in a quasi-stationary MCS • Franklin County, MO was deluged with over 10 inches of rain in a six-hour period, with some portions of the county receiving 14-16 inches • Catastrophic flooding occurred along Flat Creek watershed which runs through the center of Union in Franklin County. Damage estimates exceeded $100 million.

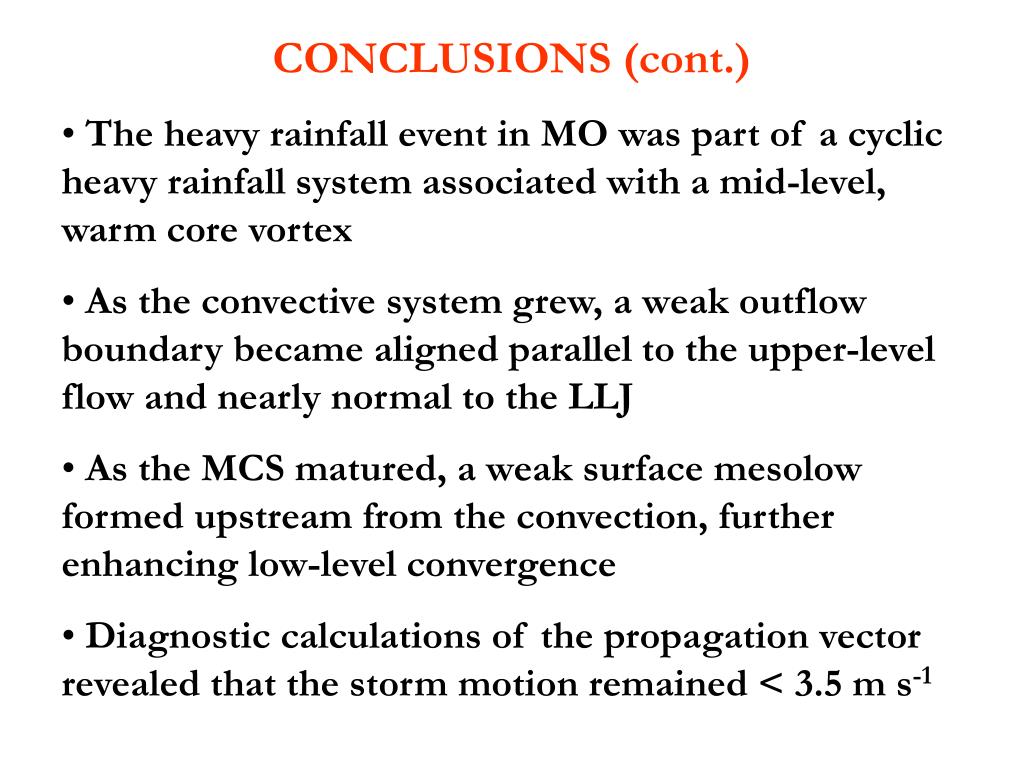

  38. CONCLUSIONS (cont.) • The heavy rainfall event in MO was part of a cyclic heavy rainfall system associated with a mid-level, warm core vortex • As the convective system grew, a weak outflow boundary became aligned parallel to the upper-level flow and nearly normal to the LLJ • As the MCS matured, a weak surface mesolow formed upstream from the convection, further enhancing low-level convergence • Diagnostic calculations of the propagation vector revealed that the storm motion remained < 3.5 m s-1

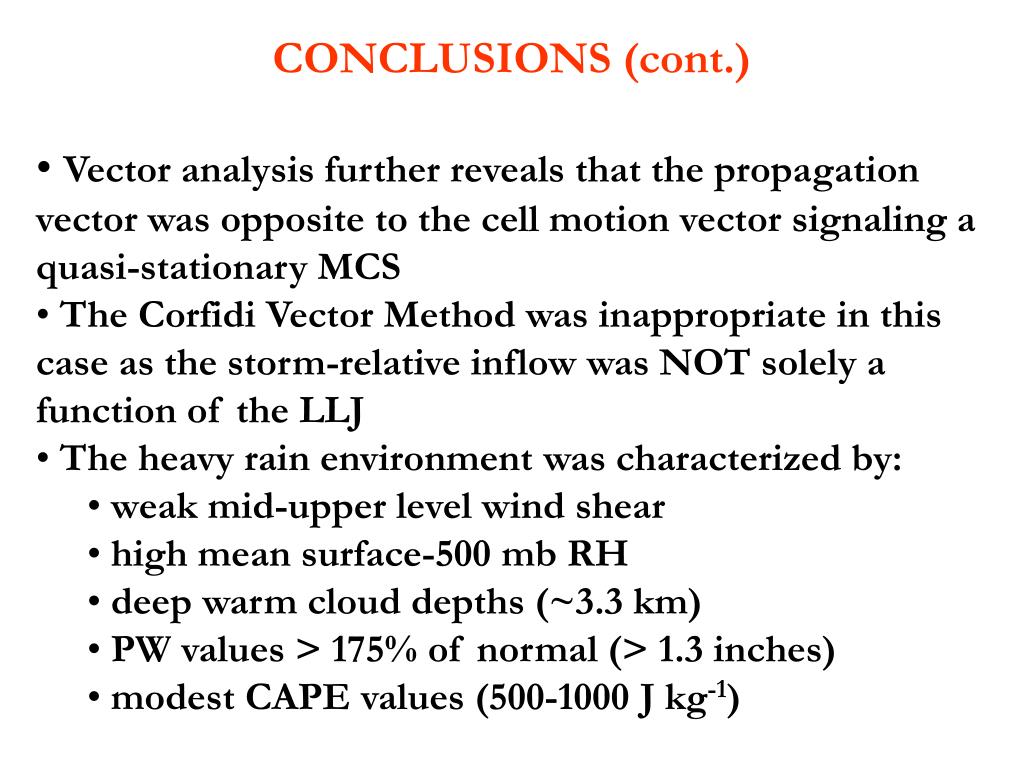

  39. CONCLUSIONS (cont.) • Vector analysis further reveals that the propagation vector was opposite to the cell motion vector signaling a quasi-stationary MCS • The Corfidi Vector Method was inappropriate in this case as the storm-relative inflow was NOT solely a function of the LLJ • The heavy rain environment was characterized by: • weak mid-upper level wind shear • high mean surface-500 mb RH • deep warm cloud depths (~3.3 km) • PW values > 175% of normal (> 1.3 inches) • modest CAPE values (500-1000 J kg-1)

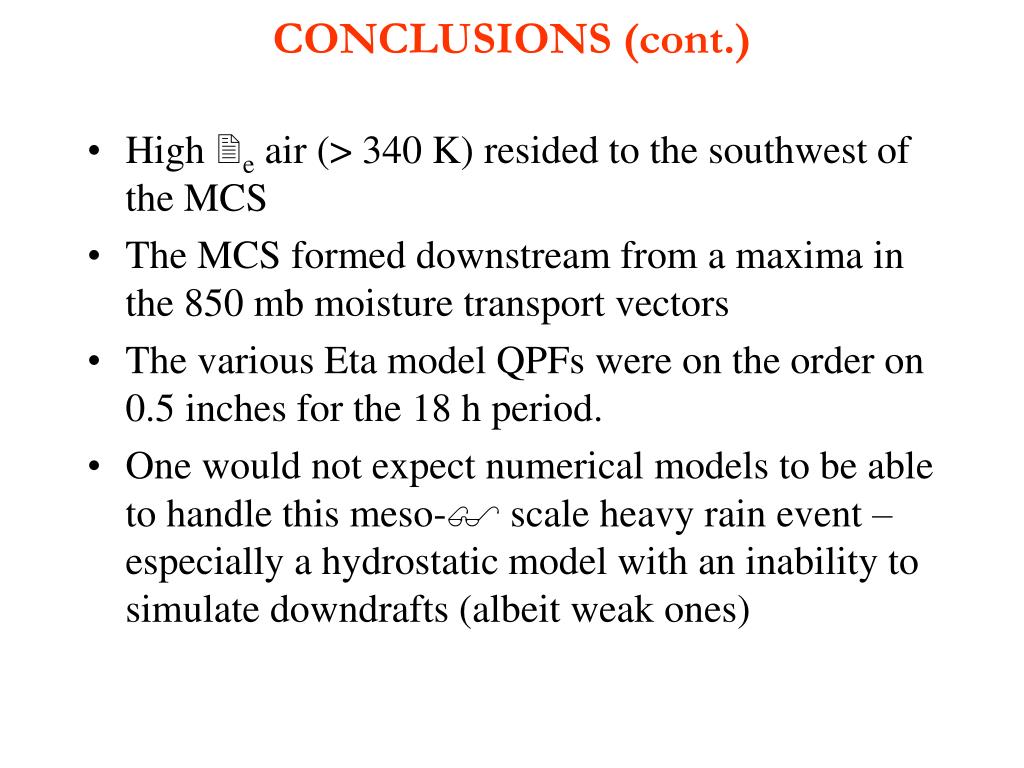

  40. CONCLUSIONS (cont.) • High e air (> 340 K) resided to the southwest of the MCS • The MCS formed downstream from a maxima in the 850 mb moisture transport vectors • The various Eta model QPFs were on the order on 0.5 inches for the 18 h period. • One would not expect numerical models to be able to handle this meso- scale heavy rain event – especially a hydrostatic model with an inability to simulate downdrafts (albeit weak ones)

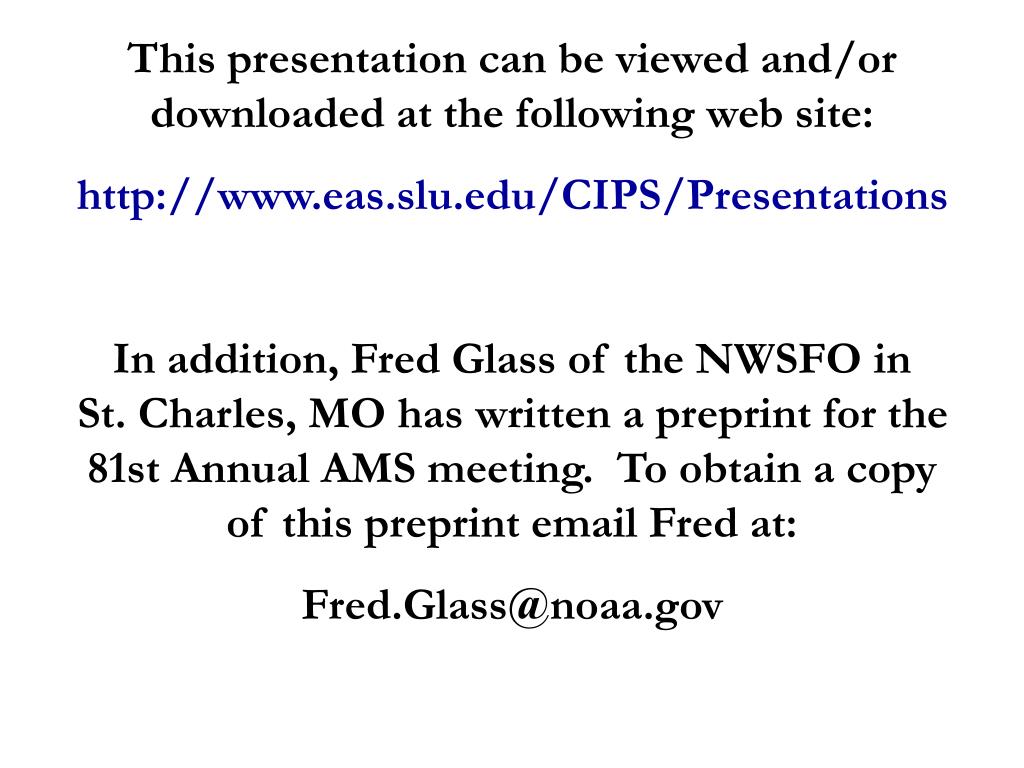

  41. This presentation can be viewed and/or downloaded at the following web site: http://www.eas.slu.edu/CIPS/Presentations In addition, Fred Glass of the NWSFO in St. Charles, MO has written a preprint for the 81st Annual AMS meeting. To obtain a copy of this preprint email Fred at: Fred.Glass@noaa.gov
