  1. Synchronization Akos Ledeczi EECE 354, Fall 2012 Vanderbilt University

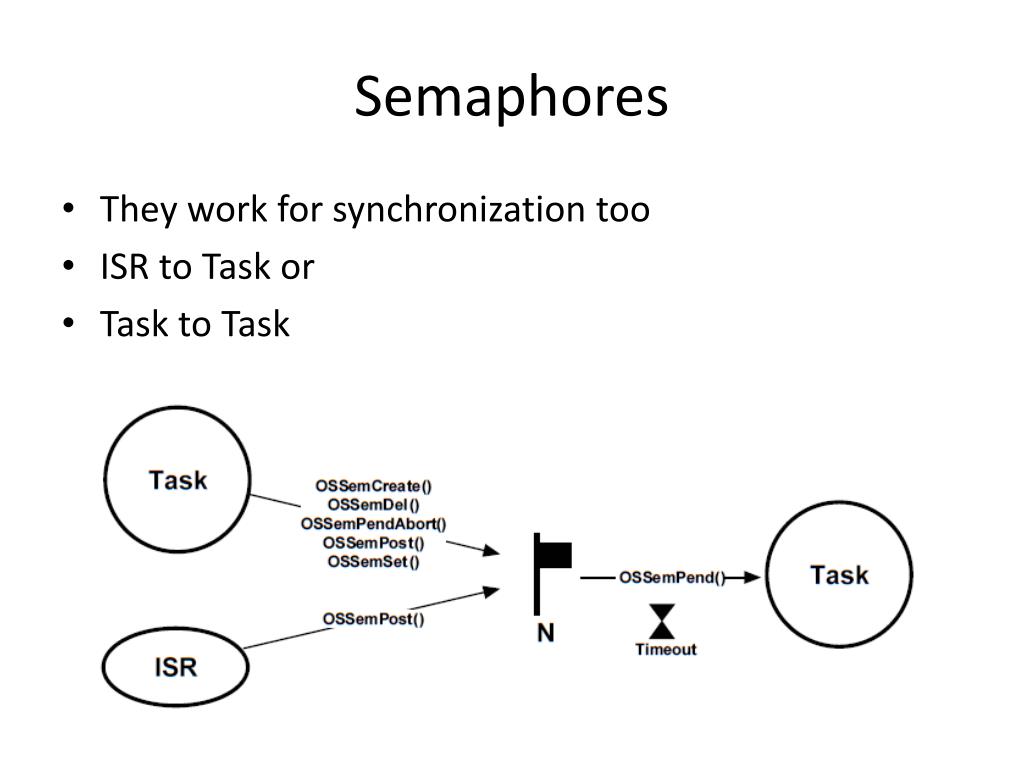

  2. Semaphores • They work for synchronization too • ISR to Task or • Task to Task

  3. Unilateral Rendezvous • Task calling Pend() does not need to know about the details: the Pend() call will return when the event has occurred • Maximizes use of CPU; no busy waiting • Event (i.e., Post()) will cause the waiting task to run immediately (assuming it has the highest priority)

  4. Credit Tracking • Semaphore accumulates the number of times Post() has been called /without a corresponding Pend()/

  5. Broadcasting • Multiple tasks waiting on a semaphore • OS_OPT_POST_ALL • All waiting tasks become ready to run • Care must be taken because some of the tasks may not have called Pend() yet

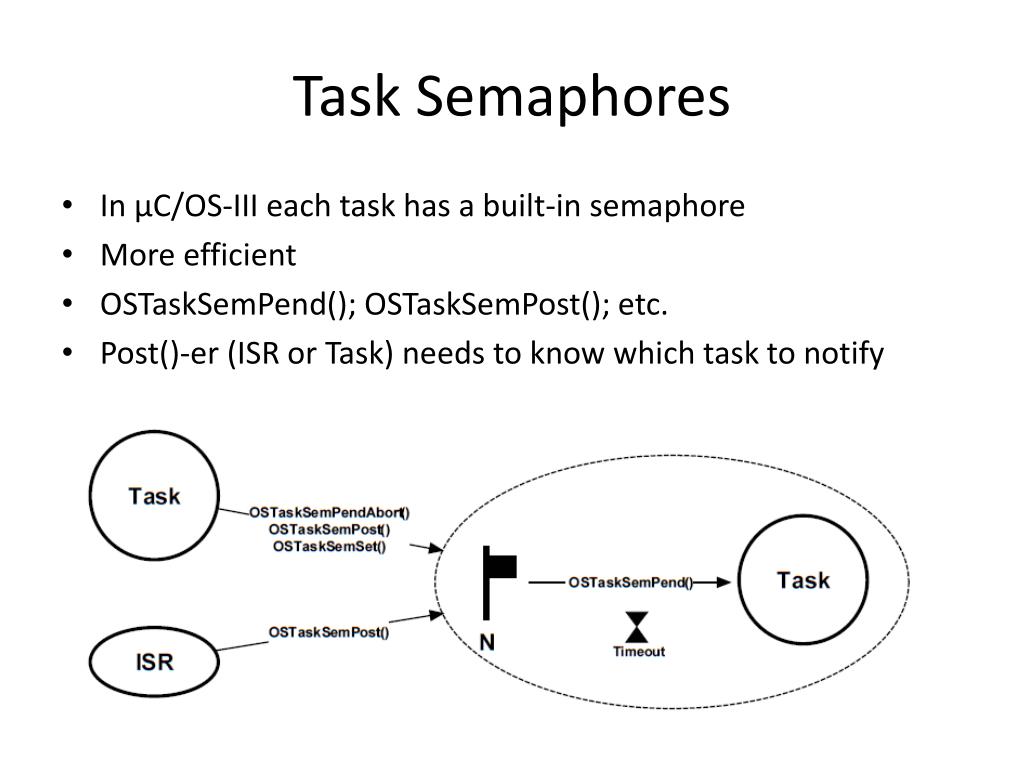

  6. Task Semaphores • In µC/OS-III each task has a built-in semaphore • More efficient • OSTaskSemPend(); OSTaskSemPost(); etc. • Post()-er (ISR or Task) needs to know which task to notify

  7. Bilateral Rendezvous void Task1(void *p_arg) { … OSTaskSemPost(&Task2_TCB, OS_OPT_POST_1, &err); OSTaskSemPend(0,OS_OPT_PEND_BLOCKING,&ts,&err); … } void Task2(void *p_arg) { … OSTaskSemPost(&Task1_TCB, OS_OPT_POST_1, &err); OSTaskSemPend(0,OS_OPT_PEND_BLOCKING,&ts,&err); … } • Only between tasks, as an ISR cannot Pend()

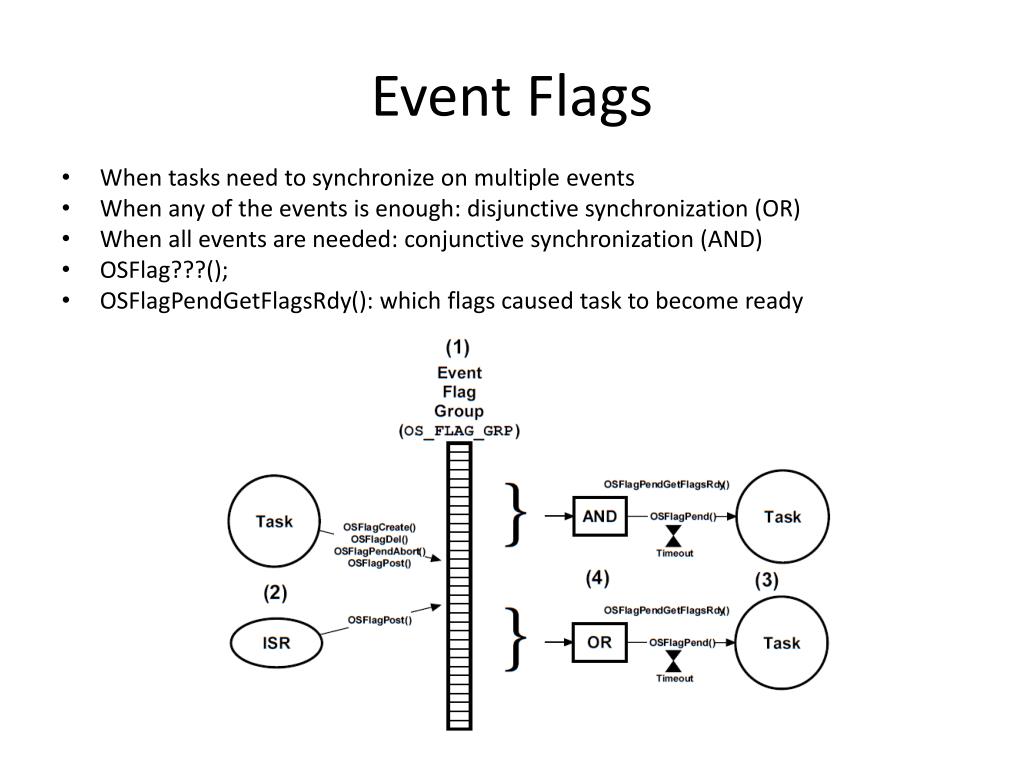

  8. Event Flags • When tasks need to synchronize on multiple events • When any of the events is enough: disjunctive synchronization (OR) • When all events are needed: conjunctive synchronization (AND) • OSFlag???(); • OSFlagPendGetFlagsRdy(): which flags caused task to become ready

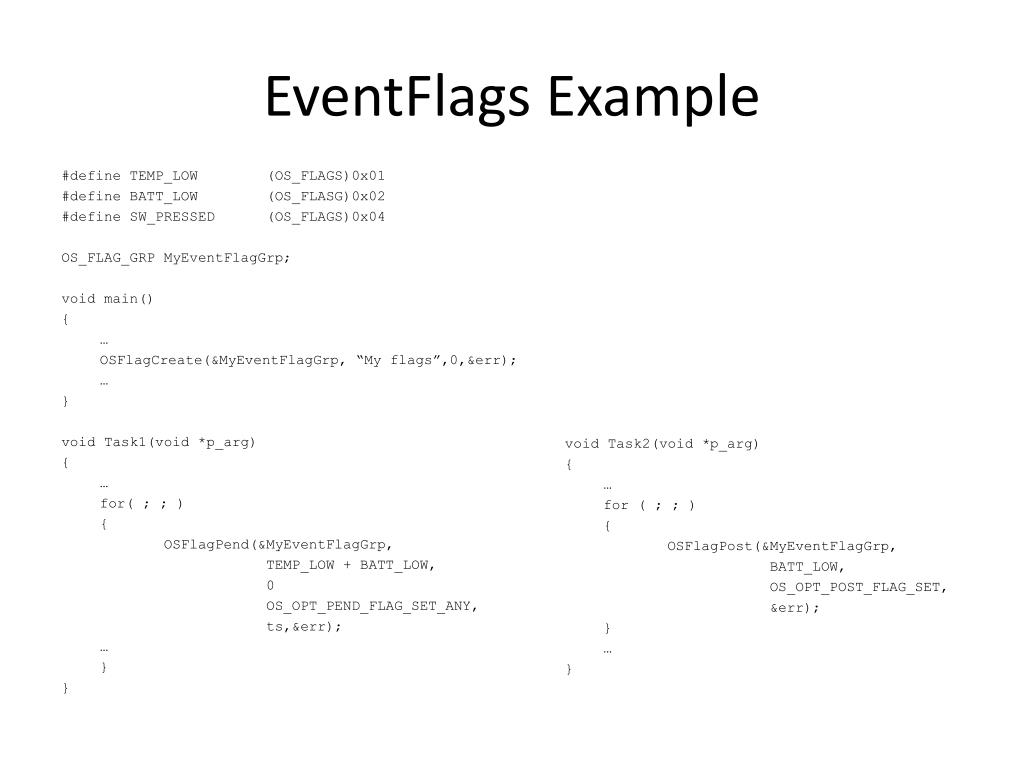

  9. EventFlags Example #define TEMP_LOW (OS_FLAGS)0x01 #define BATT_LOW (OS_FLASG)0x02 #define SW_PRESSED (OS_FLAGS)0x04 OS_FLAG_GRP MyEventFlagGrp; void main() { … OSFlagCreate(&MyEventFlagGrp, “My flags”,0,&err); … } void Task1(void *p_arg) { … for( ; ; ) { OSFlagPend(&MyEventFlagGrp, TEMP_LOW + BATT_LOW, 0 OS_OPT_PEND_FLAG_SET_ANY, ts,&err); … } } void Task2(void *p_arg) { … for ( ; ; ) { OSFlagPost(&MyEventFlagGrp, BATT_LOW, OS_OPT_POST_FLAG_SET, &err); } … }

  10. Status and Transient Events • Typically: • Status info monitored by one task, handled by another task using a non-blocking call • A transient event is generated by an ISR or task and handled and consumed by a task using a blocking call

  11. Event Flag Internals structos_flag_grp { OS_OBJ_TYPE Type CPU_CHAR *NamePtr OS_PEND_LIST PendList; OS_FLAGS Flags CPU_TS TS }; OSFlagPost(&flagGrp, (OS_FLAGS)0x0C, OS_OPT_FLAG_SET, &err); • Pend list is not in priority order as all tasks need to be looked at anyways • Look at code on the left: • If OS_OPT_FLAG_SET and flags contain 0x03, result will be 0x0F • IfOS_OPT_FLAG_CLR and flags contain 0x0F, result will be 0x03

  12. Synchronizing Multiple Tasks
