  1. Marktpartner ITW Befestigungssysteme GmbH

  2. Future market ITW Befestigungssysteme GmbH

  3. Future market ITW Befestigungssysteme GmbH

  4. haubold-Certificate ITW Befestigungssysteme GmbH

  5. Nails New!! 220 mm Nails ITW Befestigungssysteme GmbH

  6. RN 220 R ITW Befestigungssysteme GmbH

  7. Staples ITW Befestigungssysteme GmbH

  8. Serie KL 1400/800 Applications: Upholstered indu*stry, Chairs, Toy industrys, HiFi housings and isolation material PN 1416 F / PN 816 F PN 1414 G / PN 814 G Serie KL 800 und 1400 ITW Befestigungssysteme GmbH

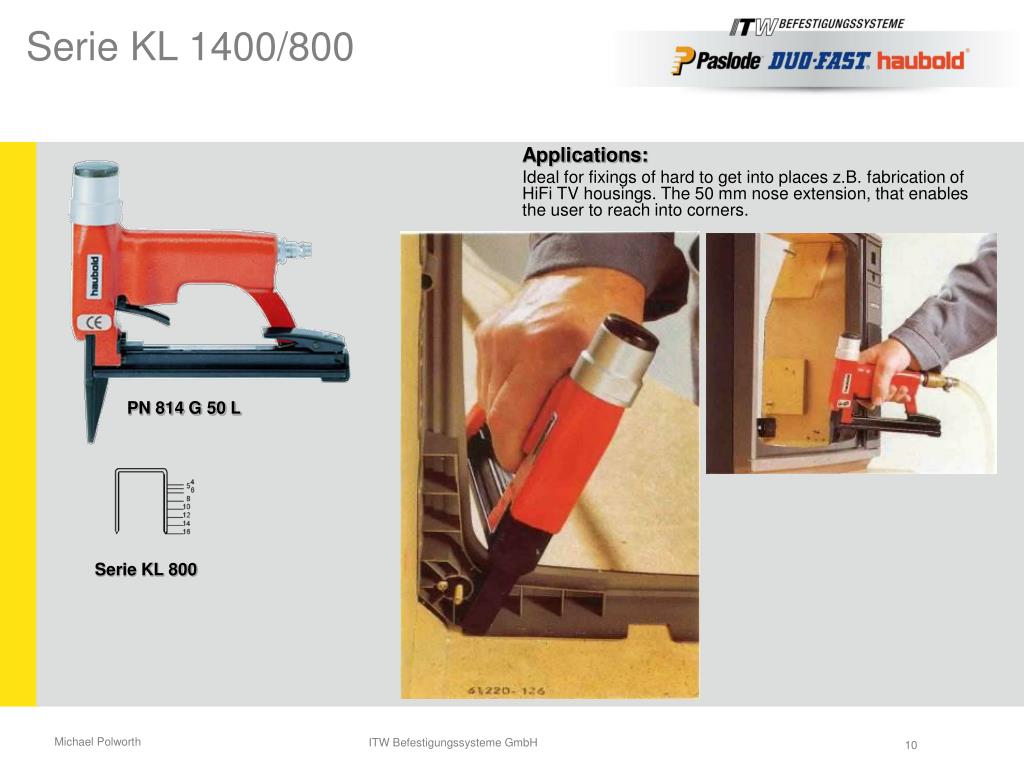

  9. Serie KL 1400/800 Applications: Ideal for fixings of hard to get into places z.B. fabrication of HiFi TV housings. The 50 mm nose extension, that enables the user to reach into corners. PN 814 G 50 L Serie KL 800 ITW Befestigungssysteme GmbH

  10. Serie KL 1400 Applications: Uphostered industry, chairs, radio and TV cabinets, rattan furniture, baby carriages, installing insulation, cabinetry, and automotive industry PN 1414 JG / Automatik Serie KL 1400 ITW Befestigungssysteme GmbH

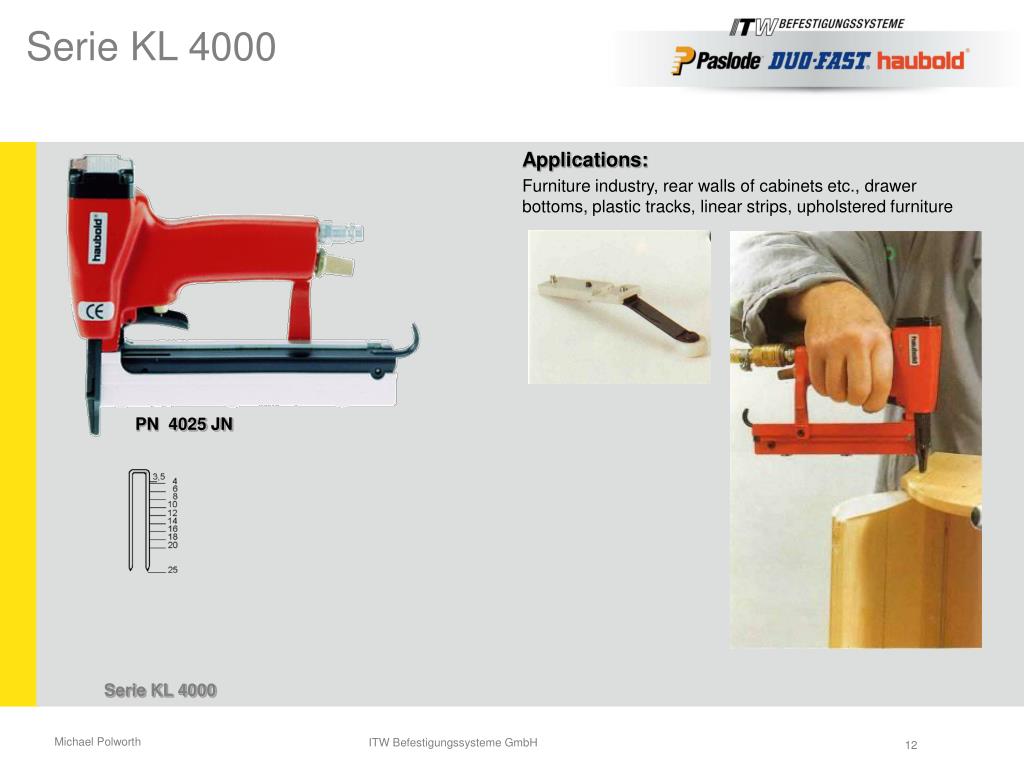

  11. Serie KL 4000 Applications: Furniture industry, rear walls of cabinets etc., drawer bottoms, plastic tracks, linear strips, upholstered furniture PN 4025 JN Serie KL 4000 ITW Befestigungssysteme GmbH

  12. Serie KL 5000/6000 Applications: The installation of moulding and panelling in interior finishing with and without fastenings clips, gypsum boards, coffered panels, smooth-edged boards, etc. PN 6040 L Serie KL 5000 Serie KL 6000 ITW Befestigungssysteme GmbH

  13. Serie KL 500 Applications: Upholstered furniture, gypsum board, other furniture, caravan/camper, timber construction, timber forms, plastic board etc. PN 530 L / Automatic Serie KL 500 PN 540 L ITW Befestigungssysteme GmbH

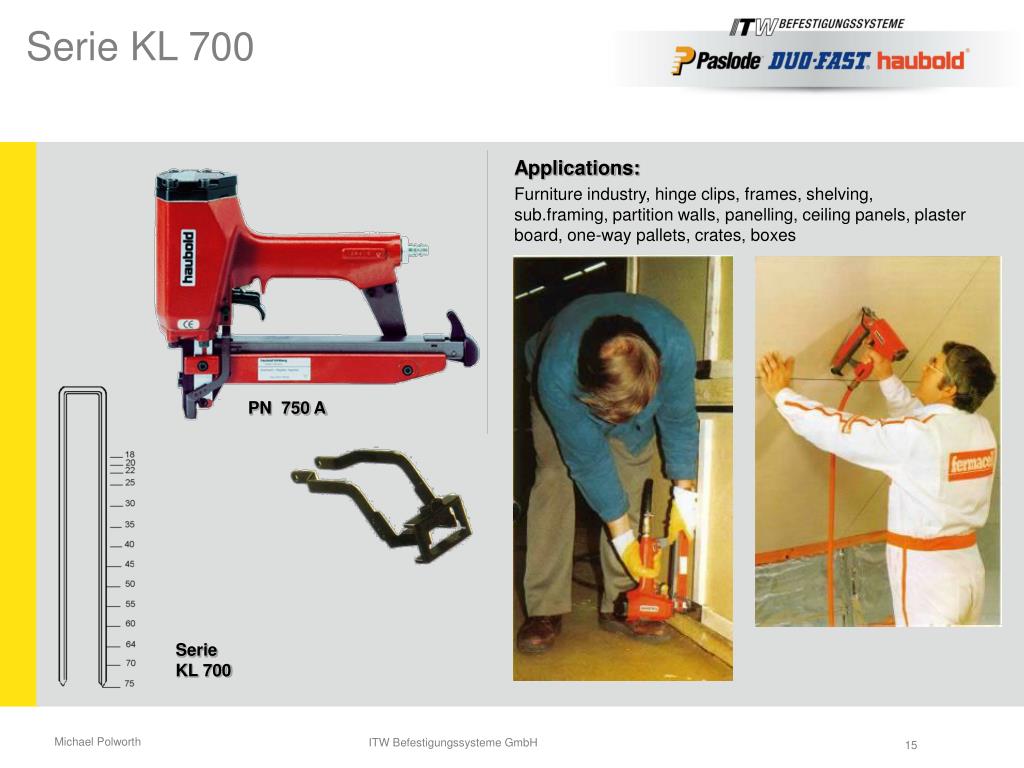

  14. Serie KL 700 Applications: Furniture industry, hinge clips, frames, shelving, sub.framing, partition walls, panelling, ceiling panels, plaster board, one-way pallets, crates, boxes PN 750 A Serie KL 700 ITW Befestigungssysteme GmbH

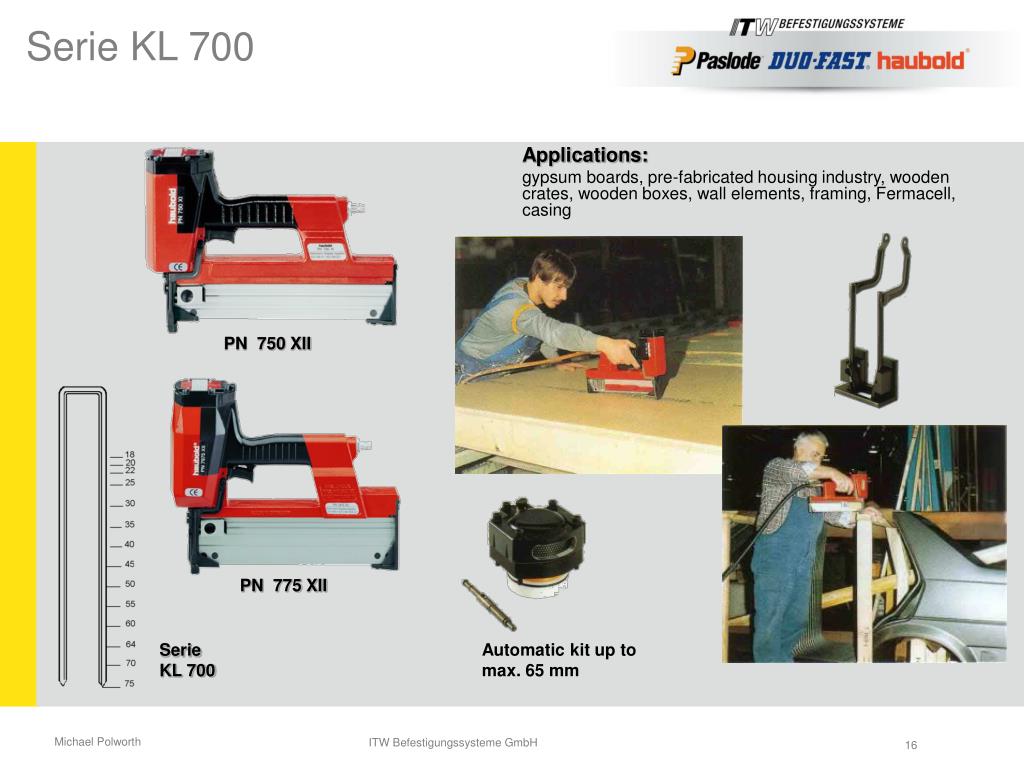

  15. Serie KL 700 Applications: gypsum boards, pre-fabricated housing industry, wooden crates, wooden boxes, wall elements, framing, Fermacell, casing PN 750 XII PN 775 XII Serie KL 700 Automatic kit up to max. 65 mm ITW Befestigungssysteme GmbH

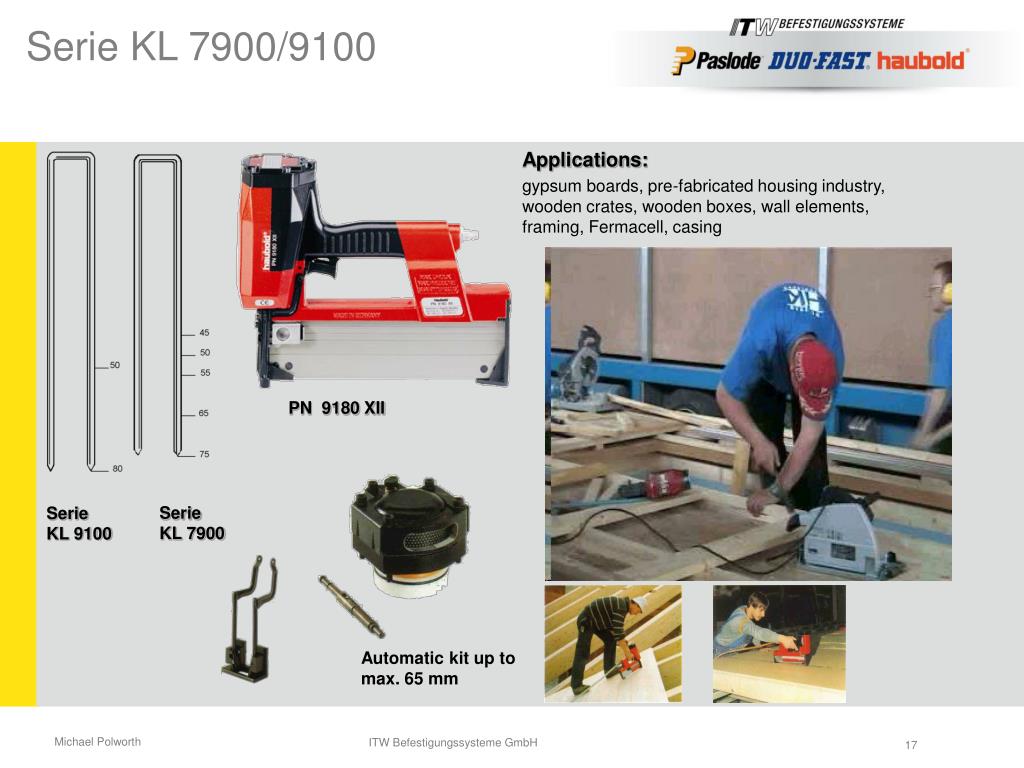

  16. Serie KL 7900/9100 Applications: gypsum boards, pre-fabricated housing industry, wooden crates, wooden boxes, wall elements, framing, Fermacell, casing PN 9180 XII Serie KL 7900 Serie KL 9100 Automatic kit up to max. 65 mm ITW Befestigungssysteme GmbH

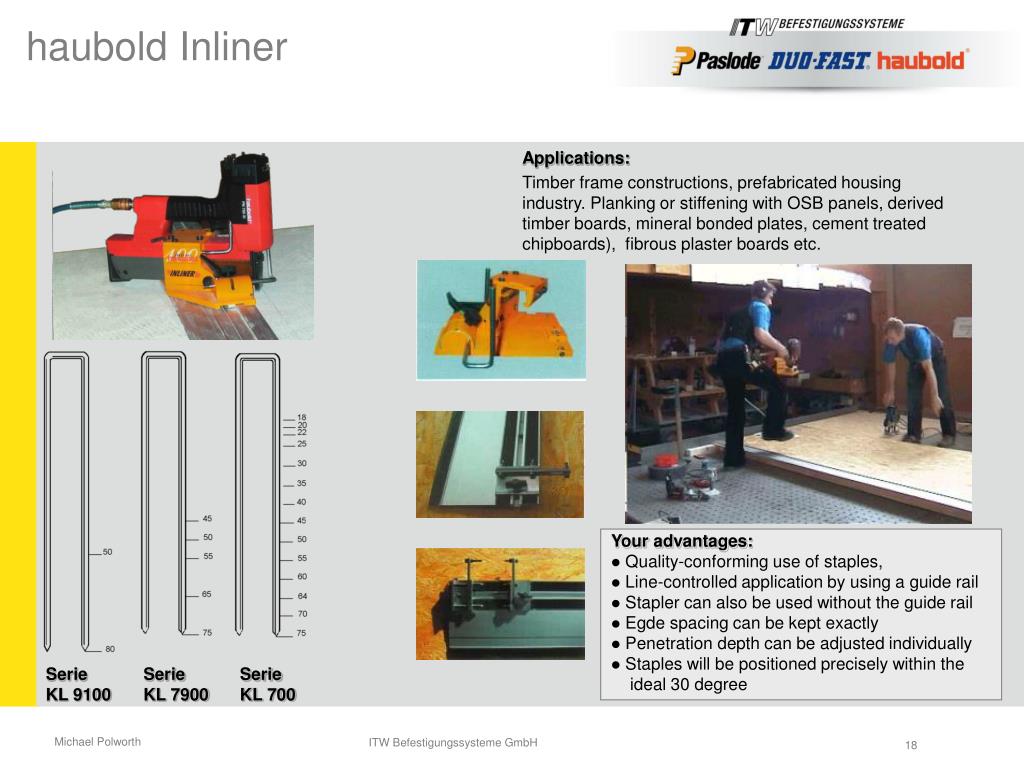

  17. haubold Inliner Applications: Timber frame constructions, prefabricated housing industry. Planking or stiffening with OSB panels, derived timber boards, mineral bonded plates, cement treated chipboards), fibrous plaster boards etc. Your advantages: • Quality-conforming use of staples, • Line-controlled application by using a guide rail • Stapler can also be used without the guide rail • Egde spacing can be kept exactly • Penetration depth can be adjusted individually • Staples will be positioned precisely within the ideal 30 degree Serie KL 9100 Serie KL 7900 Serie KL 700 ITW Befestigungssysteme GmbH

  18. haubold-Modul Applications: Wall panelling, pre-fabricated housing industry, Planking andstatical use of OSB-boards, Holzwerkstoffplatten, mineralisch gebundenen Holzwerkstoffplatten (cement boards), gypsum fibre boards, gypsum boards Technical data: Length/Height/Width: 482/446/205 Weight: 15 kg Max. firing frequency per sec.: 12 ½ Air consumption per shoot: 2,1 liter Noise level: 96 dB A Magazine capacity / Stag. magazine: ca. 2200 Staples PN 750 - Modul II - Ref. no. 038115 for staple series KG 700 of 30 - 50 mm PN 775 - Modul II - Ref. no. 038116 for staple series KG 700 of 30 - 75 mm PN 9180 - Modul II - Ref. no. 038117 for staple series HD 7900 of 45 - 75 mm and SD 9100 of 45 - 80 mm Serie SD 91000 Serie KL 7900 Serie KG 700 Technical alterations reserved ITW Befestigungssysteme GmbH

  19. Serie SD 9100 Applications: pre-fabricated housing industry, Wooden sub frames, fire protection boards, roof casings, wooden subframes for facades and roofs 80 PN 91120 D 120 Serie SD 91000 ITW Befestigungssysteme GmbH

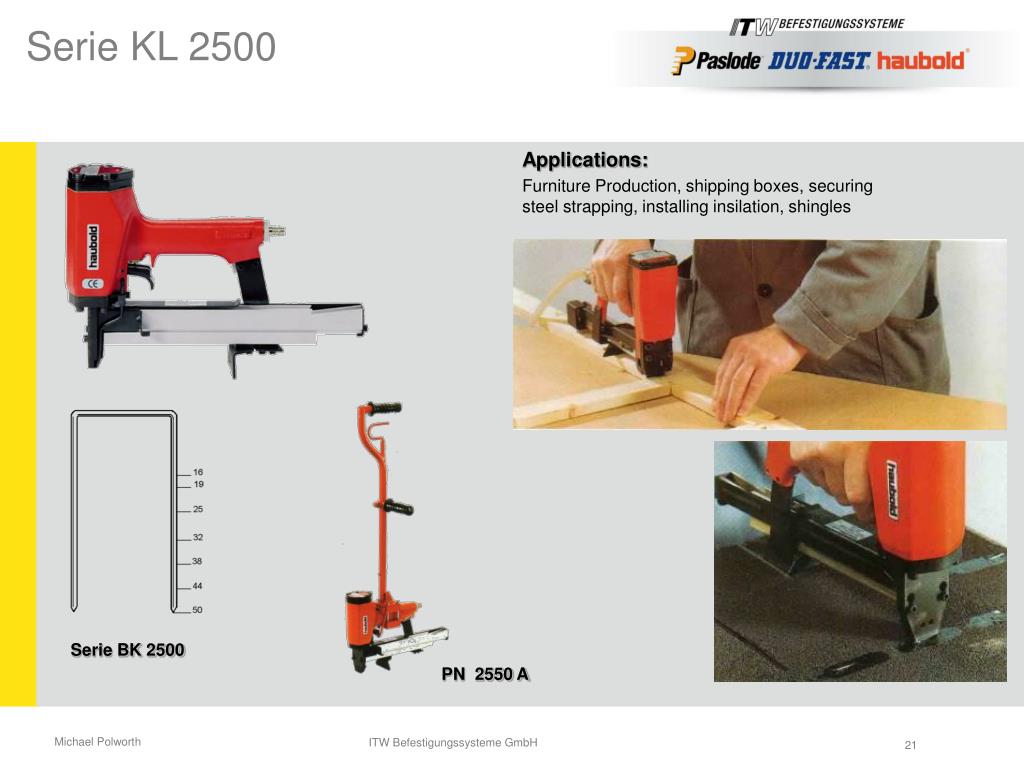

  20. Serie KL 2500 Applications: Furniture Production, shipping boxes, securing steel strapping, installing insilation, shingles Serie BK 2500 PN 2550 A ITW Befestigungssysteme GmbH

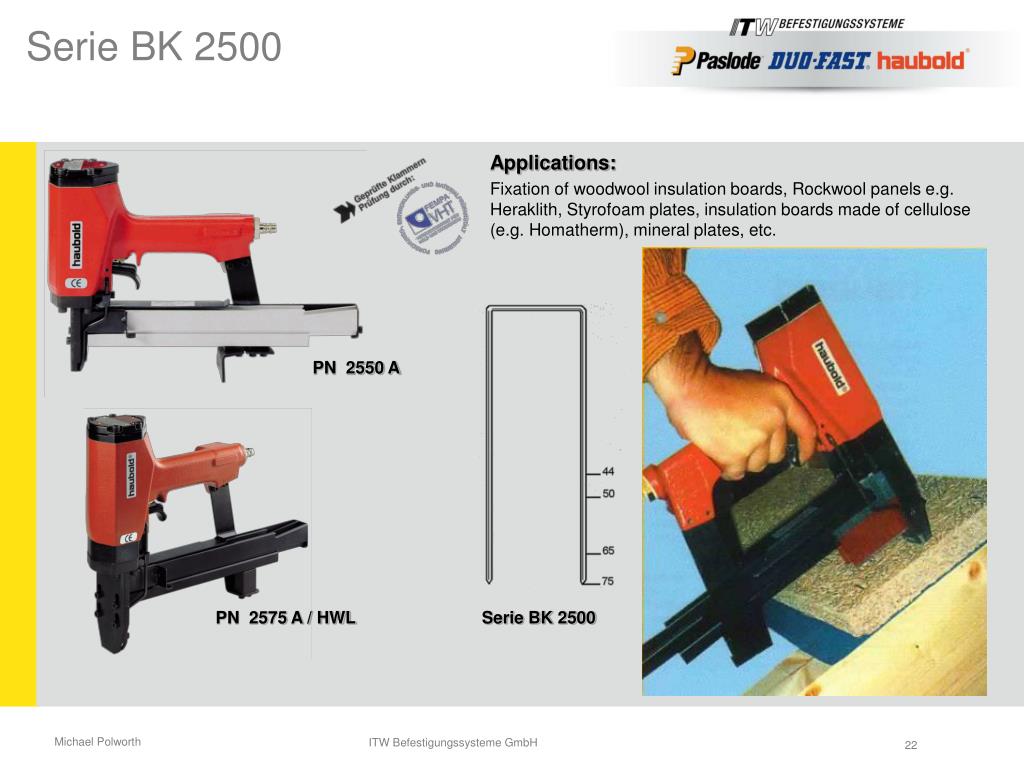

  21. Serie BK 2500 Applications: Fixation of woodwool insulation boards, Rockwool panels e.g. Heraklith, Styrofoam plates, insulation boards made of cellulose (e.g. Homatherm), mineral plates, etc. PN 2550 A PN 2575 A / HWL Serie BK 2500 ITW Befestigungssysteme GmbH

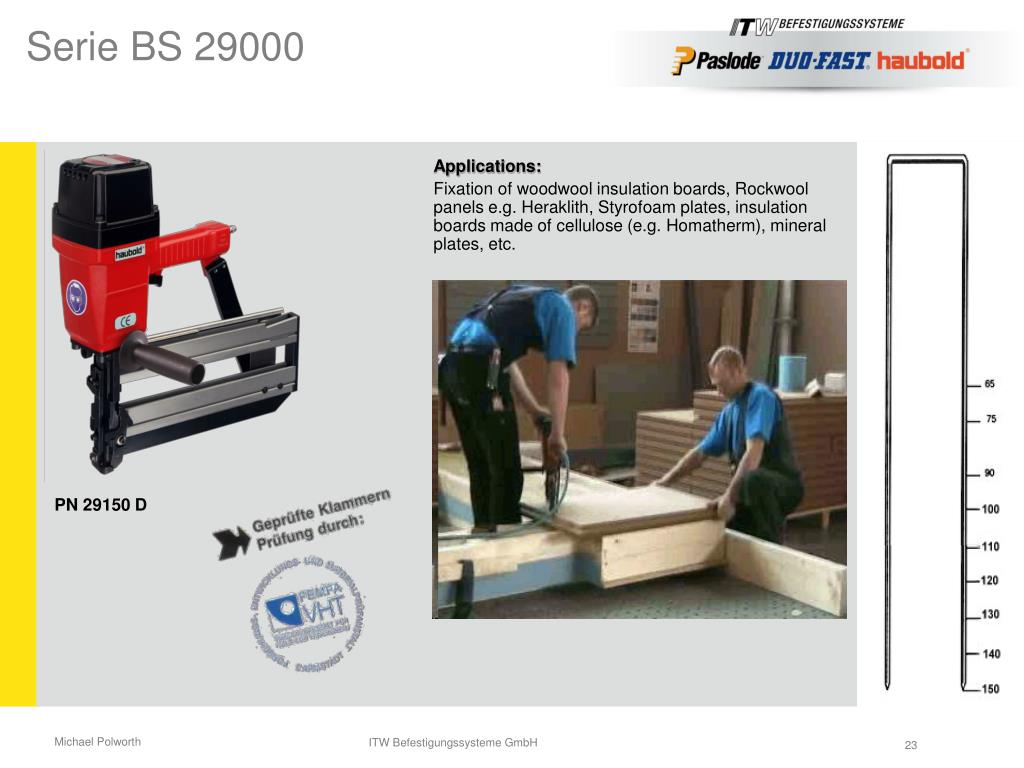

  22. Serie BS 29000 Applications: Fixation of woodwool insulation boards, Rockwool panels e.g. Heraklith, Styrofoam plates, insulation boards made of cellulose (e.g. Homatherm), mineral plates, etc. PN 29150 D ITW Befestigungssysteme GmbH

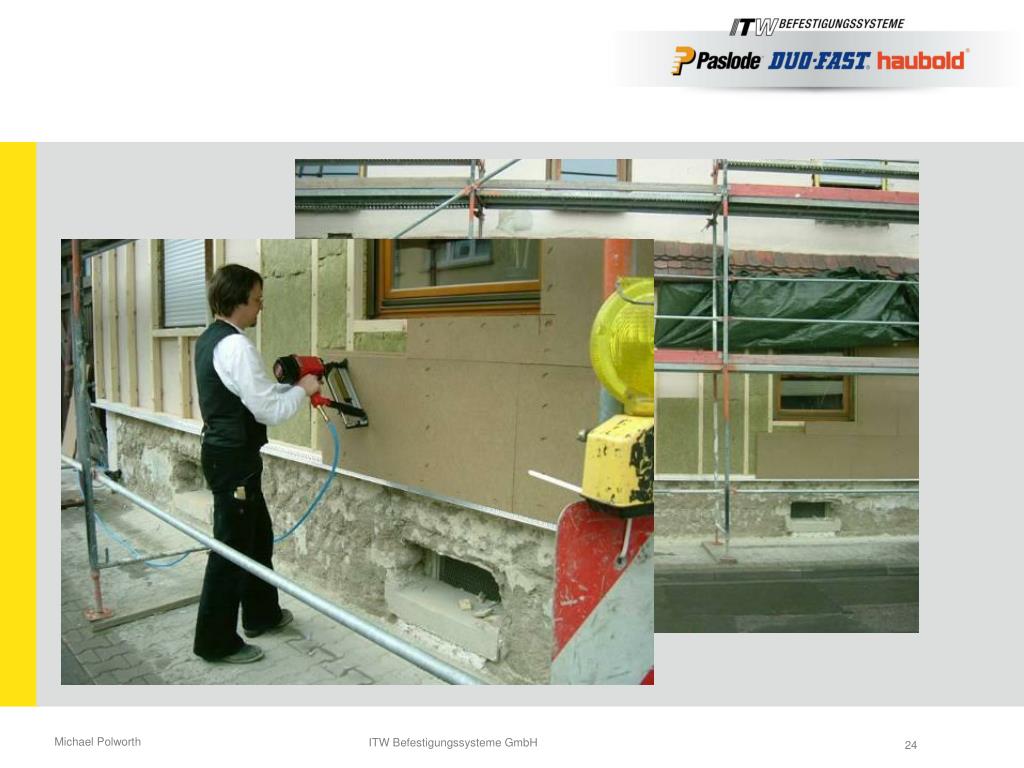

  23. ITW Befestigungssysteme GmbH

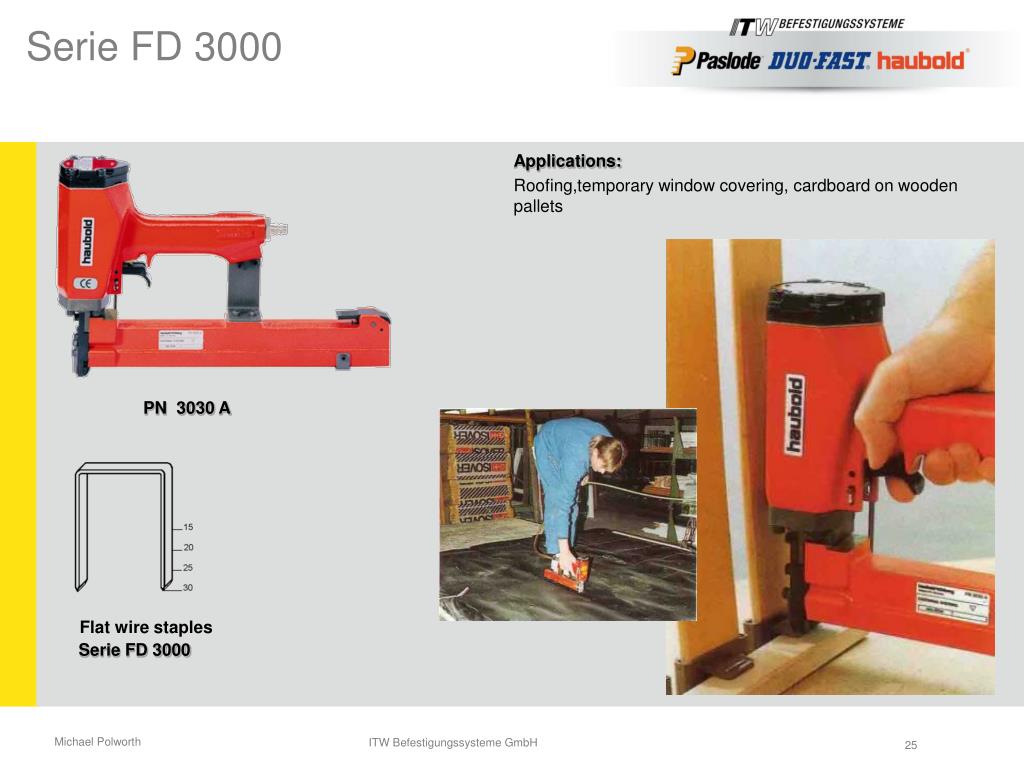

  24. Serie FD 3000 Applications: Roofing,temporary window covering, cardboard on wooden pallets PN 3030 A Flat wire staples Serie FD 3000 ITW Befestigungssysteme GmbH

  25. Serie ST 06/00 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repairs, cabinets SN 618 F / 6 Serie ST 06/00 ITW Befestigungssysteme GmbH

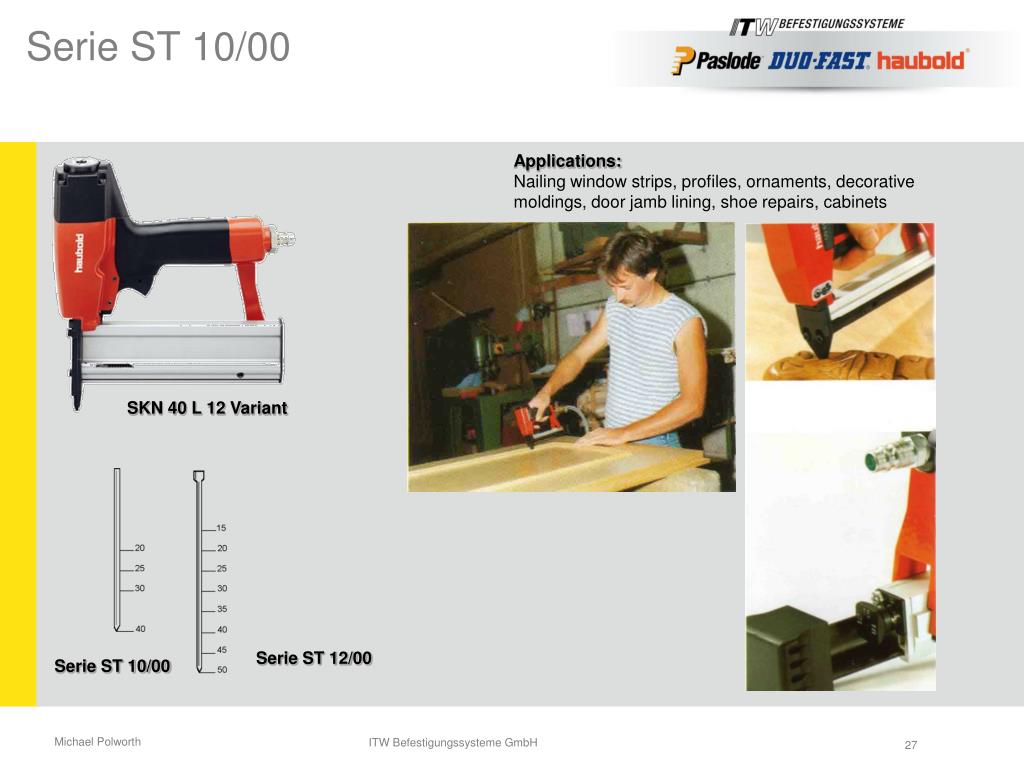

  26. Serie ST 10/00 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repairs, cabinets SKN 40 L 12 Variant Serie ST 12/00 Serie ST 10/00 ITW Befestigungssysteme GmbH

  27. SKN 12/00 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repair SKN 30 JN SKN 40 L / 12 Variant SKN 50 L / 12 Serie ST 12/00 ITW Befestigungssysteme GmbH

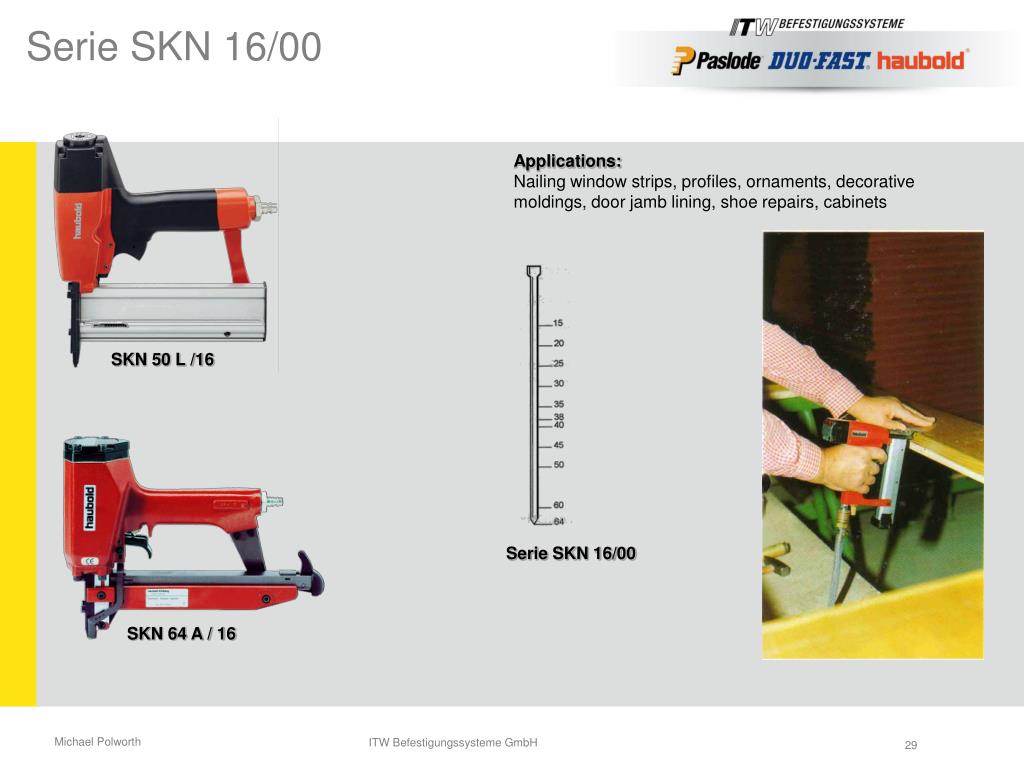

  28. Serie SKN 16/00 Applications: Nailing window strips, profiles, ornaments, decorative moldings, door jamb lining, shoe repairs, cabinets SKN 50 L /16 Serie SKN 16/00 SKN 64 A / 16 ITW Befestigungssysteme GmbH

  29. Serie SKN 20/00 Applications: Doors, Schlagleisten, Laufleisten, window stripesand wall elements SKN 64 A / 20 Serie SKN 20/00 ITW Befestigungssysteme GmbH

  30. Serie TN 22/00 Applications: wooden crates, Paletten, wooden boxesn, laying ofparquet flooringand fixation of steel profiles TN 64 A / 22 Nails suitable for steel fixations up to 15 -35 mm available!! Serie TN 22/00 ITW Befestigungssysteme GmbH

  31. Serie RB 25/00 Applications: Fastening of special hooks for sheet metal roofs up to 1,0 mm diameter RN 35 A / Haften Serie RB 25/00 ITW Befestigungssysteme GmbH

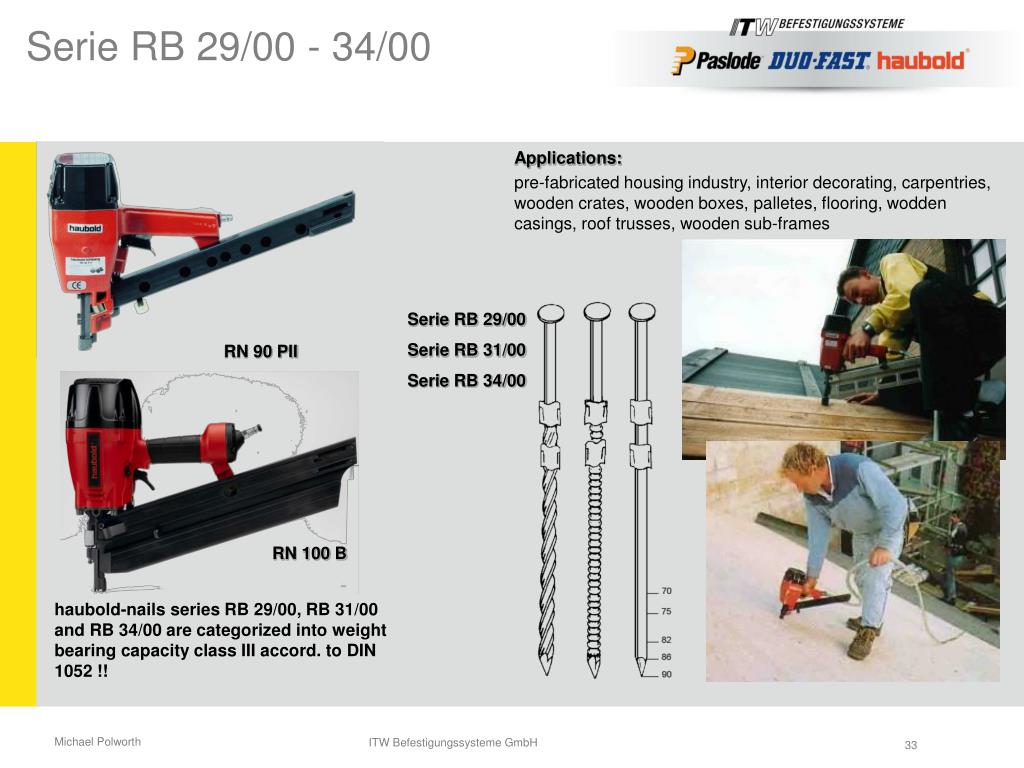

  32. Serie RB 29/00 - 34/00 Applications: pre-fabricated housing industry, interior decorating, carpentries, wooden crates, wooden boxes, palletes, flooring, wodden casings, roof trusses, wooden sub-frames Serie RB 29/00 Serie RB 31/00 Serie RB 34/00 RN 90 PII RN 100 B haubold-nails series RB 29/00, RB 31/00 and RB 34/00 are categorized into weight bearing capacity class III accord. to DIN 1052 !! ITW Befestigungssysteme GmbH

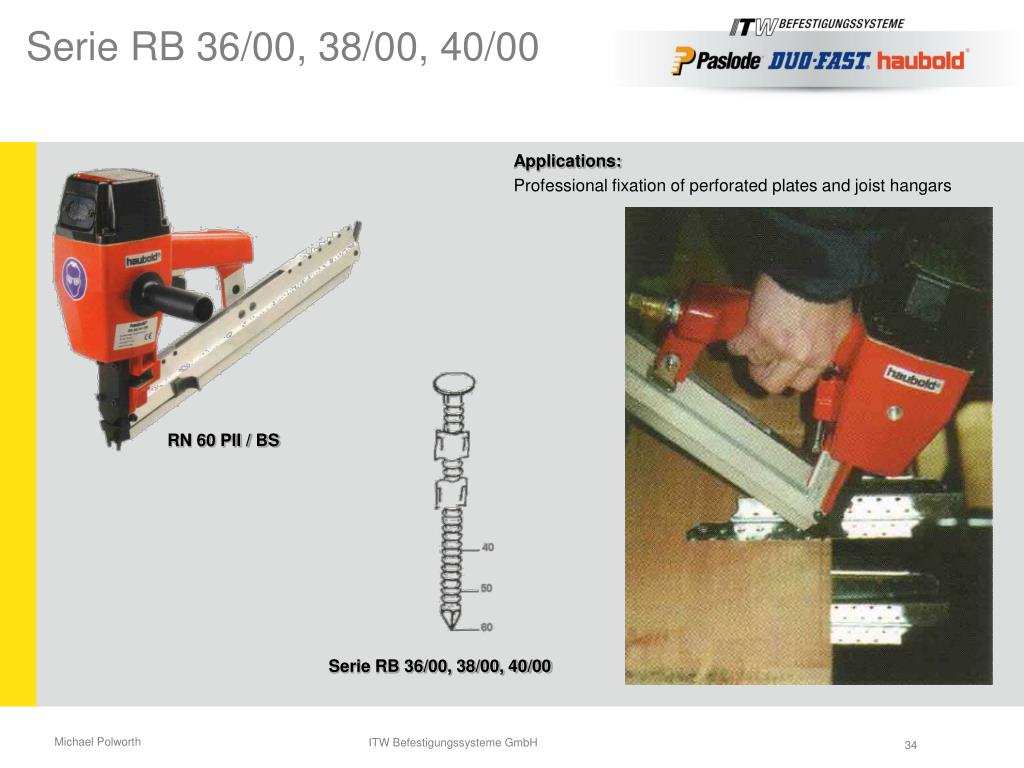

  33. Serie RB 36/00, 38/00, 40/00 Applications: Professional fixation of perforated plates and joist hangars RN 60 PII / BS Serie RB 36/00, 38/00, 40/00 ITW Befestigungssysteme GmbH

  34. Serie RB 34/00 – 50/00 Applications: Barrack buildings, statical constructions, wooden crates, wooden boxes, repair of palletes, noise protection walls RN 130 R RN 160 R Serie RB 34/00 Serie RB 38/00 Serie RB 42/00 Serie RB 46/00 Serie RB 50/00 ITW Befestigungssysteme GmbH

  35. RNC S-Profil Applications: Fixation of gypsum boards onto metal subframesup to 1,2 mm RNC S 22/40 C-Profil NKballistic ITW Befestigungssysteme GmbH

  36. RNC-E 23/00 Applications: Fixation of Eternit roof- and facade shingles RNC-E Eterfix Serie RNC-E 23/00 Serie RNC-E 25/00 ITW Befestigungssysteme GmbH

  37. Serie RNC-S 25/00 Applications: Fixation of metal hooks of material thickness up to 0,8 mm RN 35 S - Haften Serie RNC - S 25/00 ITW Befestigungssysteme GmbH

  38. Serie RNC-MS 22/00 Applications: Plankings, wall panelling, gypsum boards, gabel- and ledge facings, wooden crates and wooden packaging, rear wall cabinets RN 50 W / MS I Serie RNC - MS 22/00 Serie RNCW - MS 22/00 ITW Befestigungssysteme GmbH

  39. Nails Srews ITW Befestigungssysteme GmbH

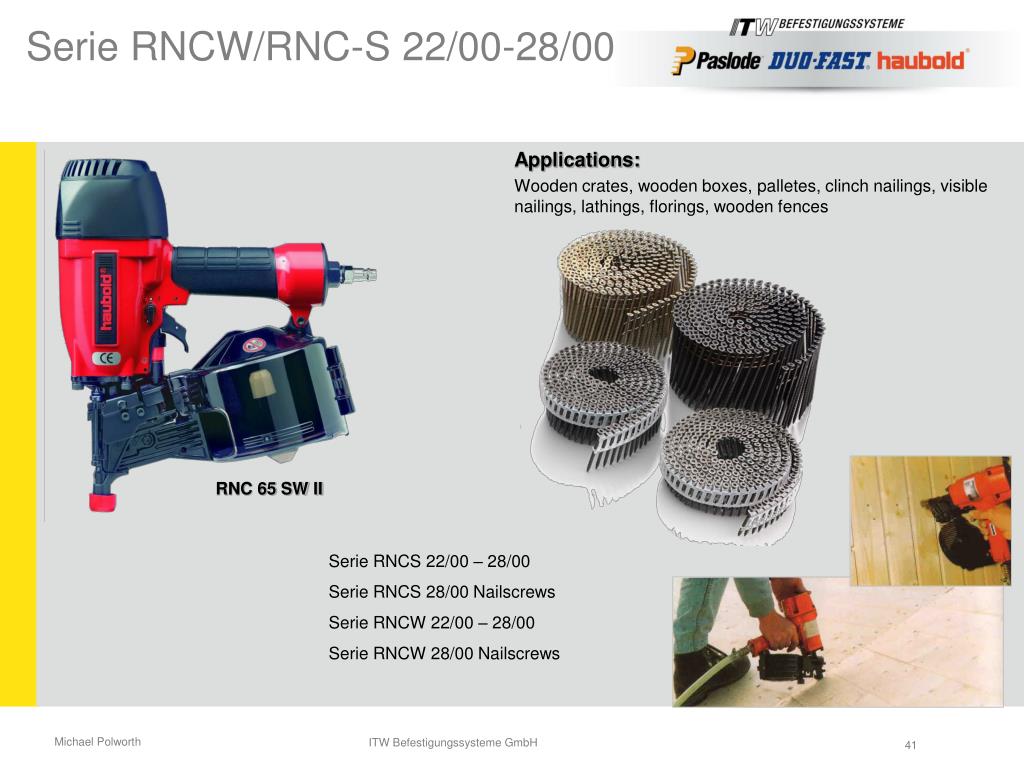

  40. Serie RNCW/RNC-S 22/00-28/00 Applications: Wooden crates, wooden boxes, palletes, clinch nailings, visible nailings, lathings, florings, wooden fences RNC 65 SW II Serie RNCS 22/00 – 28/00 Serie RNCS 28/00 Nailscrews Serie RNCW 22/00 – 28/00 Serie RNCW 28/00 Nailscrews ITW Befestigungssysteme GmbH

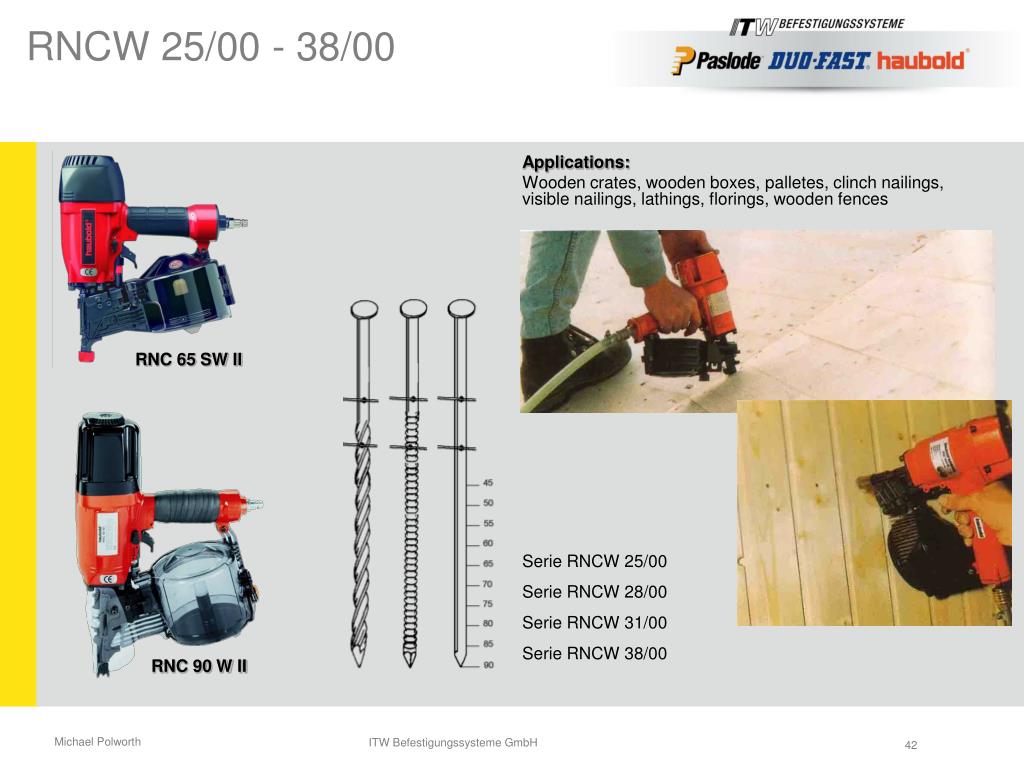

  41. RNCW 25/00 - 38/00 Applications: Wooden crates, wooden boxes, palletes, clinch nailings, visible nailings, lathings, florings, wooden fences RNC 65 SW II Serie RNCW 25/00 Serie RNCW 28/00 Serie RNCW 31/00 Serie RNCW 38/00 RNC 90 W II ITW Befestigungssysteme GmbH

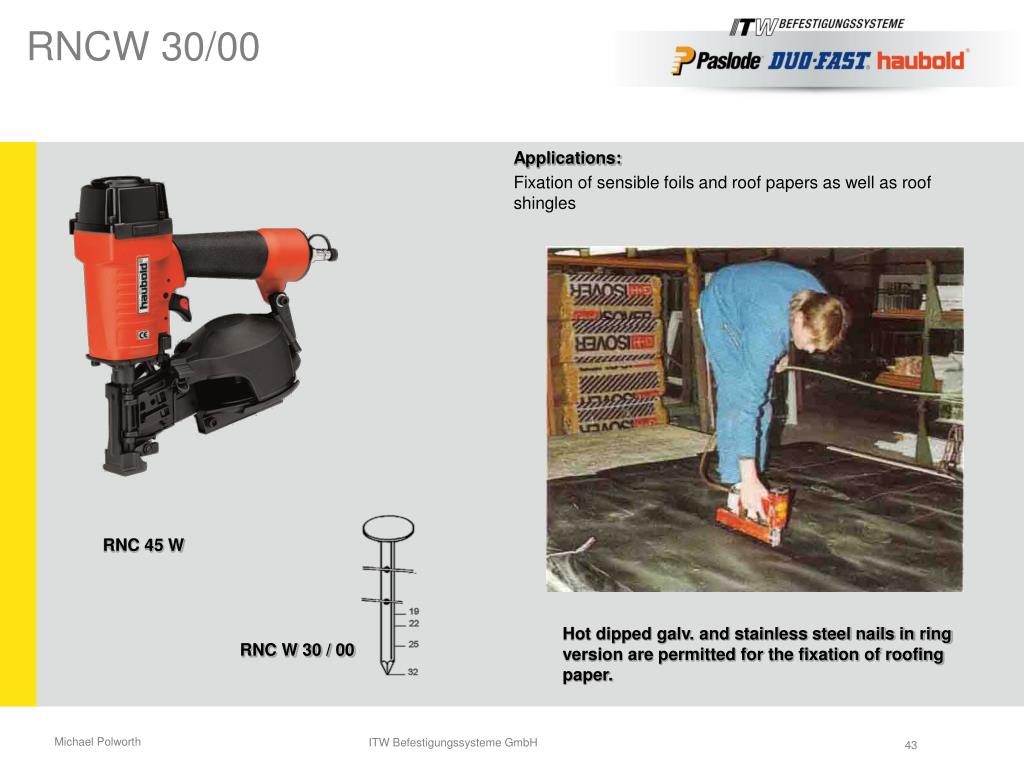

  42. RNCW 30/00 Applications: Fixation of sensible foils and roof papers as well as roof shingles RNC 45 W Hot dipped galv. and stainless steel nails in ring version are permitted for the fixation of roofing paper. RNC W 30 / 00 ITW Befestigungssysteme GmbH

  43. Serie Corrugated Nails Applications: Coffin industry, butt joint, window corners, mitre joints WN 15 • Also available: • Corrugated fasteners in stainless steel accord. to DIN 1.4301and elongated driver blade for jobs in corners • or • Wellennagler WN 15 F for window corners ITW Befestigungssysteme GmbH

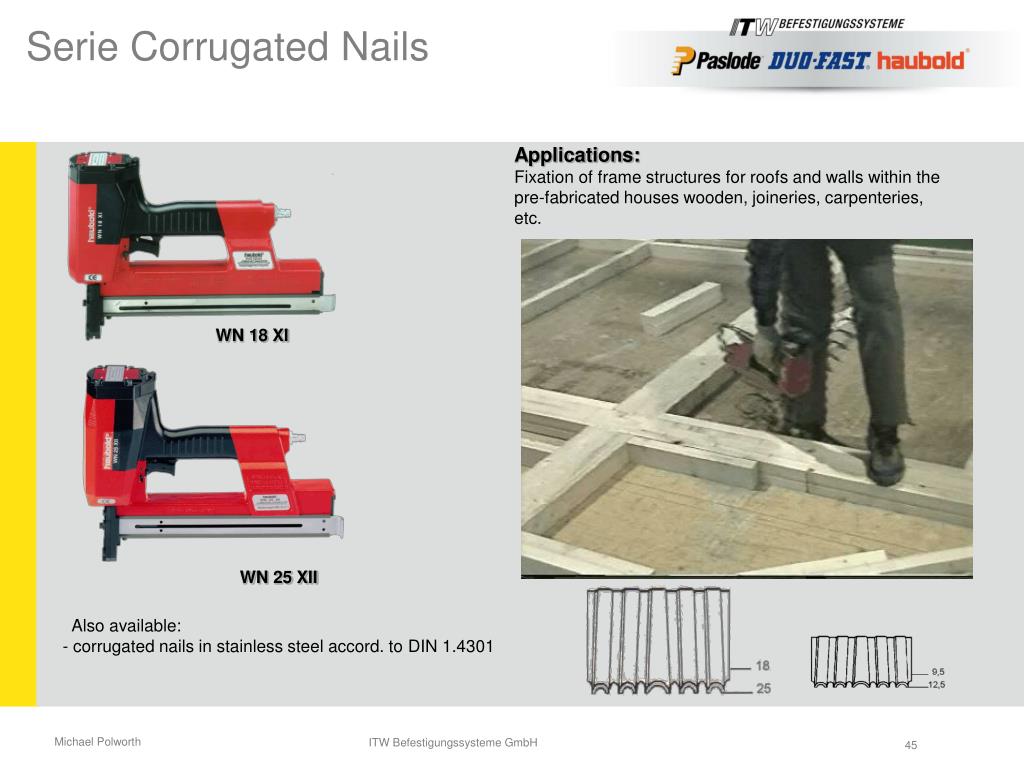

  44. Serie Corrugated Nails Applications: Fixation of frame structures for roofs and walls within the pre-fabricated houses wooden, joineries, carpenteries, etc. WN 18 XI WN 25 XII • Also available: • corrugated nails in stainless steel accord. to DIN 1.4301 ITW Befestigungssysteme GmbH

  45. Holzbaupreis 2007 Gewinner des Holzbaupreises für innovative Bauprodukte 2007 ITW Befestigungssysteme GmbH

  46. Procedure of fastening ITW Befestigungssysteme GmbH

  47. Joint Advertising Good work high competence. haubold and itspartners in joint co-operations. ITW Befestigungssysteme GmbH

  48. haubold-website www.haubold-deutschland.com ITW Befestigungssysteme GmbH
