  1. Design Of New Index Structures For The ISAT Algorithm By Biswanath Panda, Mirek Riedewald, Paul Chew, Johannes Gehrke

  2. Outline • Last Time • New API For ISATAB • Looked at some preliminary results • Today • Detailed look at the experiments • Two new index structures • Open questions

  3. Index Structures • Linked List • Linked List + Point RTree • RTree • Random Projection RTree • Explained on next slide • Ellipsoidal RTree • Use ellipsoids rather than bounding boxes

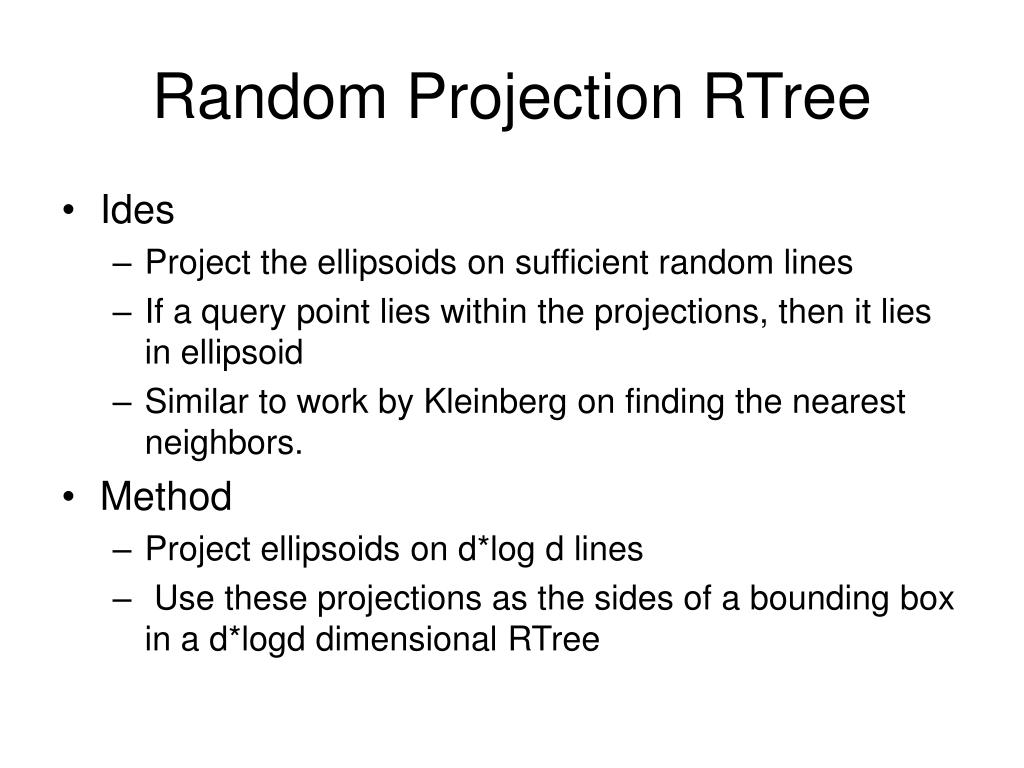

  4. Random Projection RTree • Ides • Project the ellipsoids on sufficient random lines • If a query point lies within the projections, then it lies in ellipsoid • Similar to work by Kleinberg on finding the nearest neighbors. • Method • Project ellipsoids on d*log d lines • Use these projections as the sides of a bounding box in a d*logd dimensional RTree

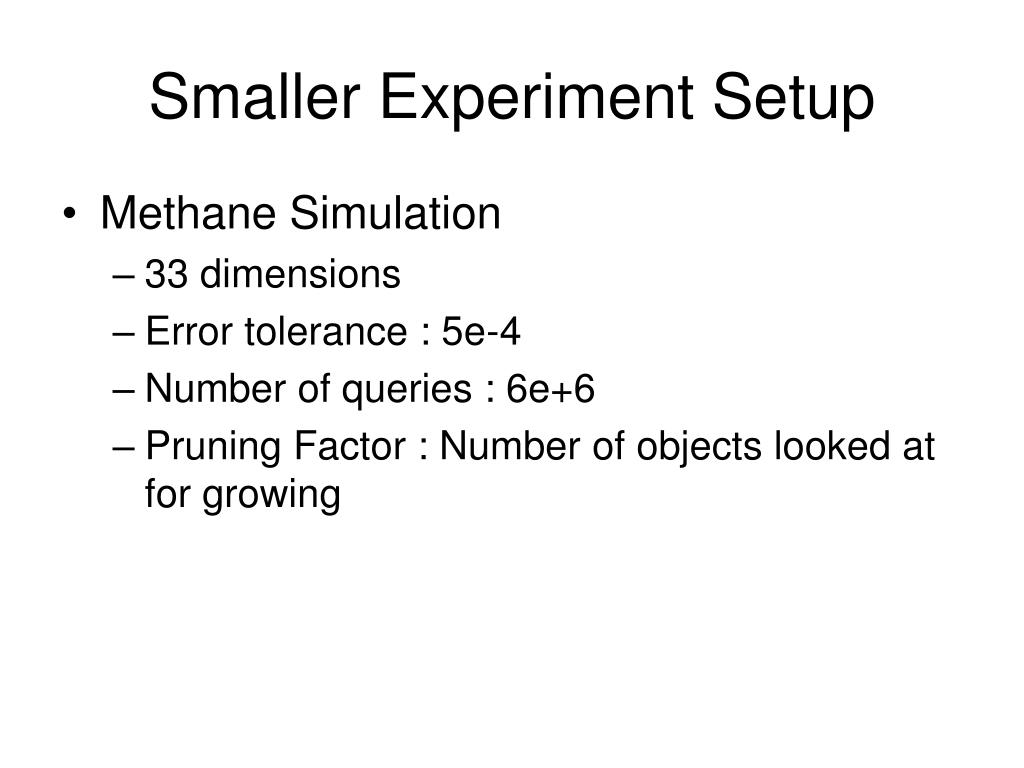

  5. Smaller Experiment Setup • Methane Simulation • 33 dimensions • Error tolerance : 5e-4 • Number of queries : 6e+6 • Pruning Factor : Number of objects looked at for growing

  6. Total Time • Original :1000s LinkedList : 821s LinkedList+Rtree: 857s

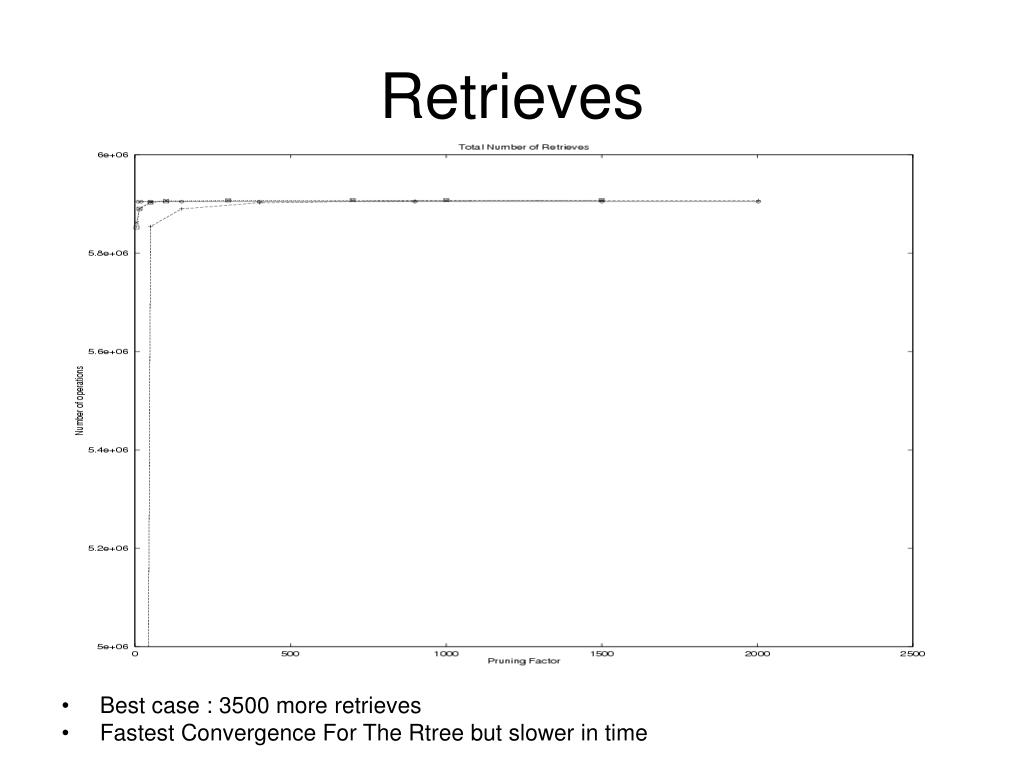

  7. Retrieves • Best case : 3500 more retrieves • Fastest Convergence For The Rtree but slower in time

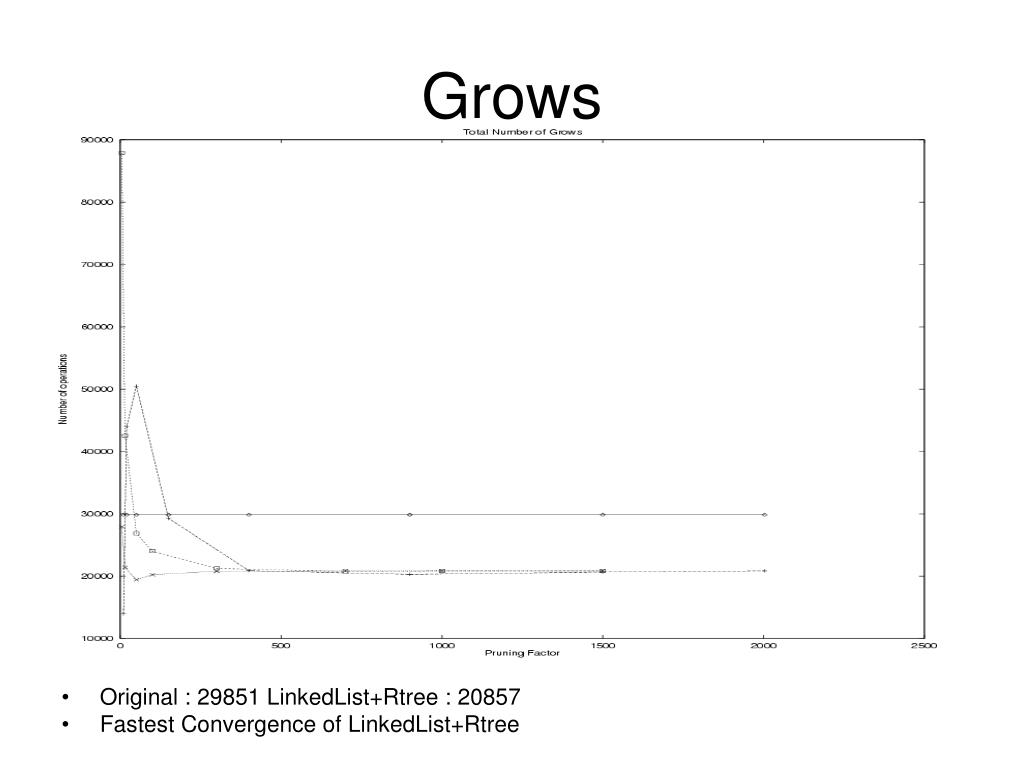

  8. Grows • Original : 29851 LinkedList+Rtree : 20857 • Fastest Convergence of LinkedList+Rtree

  9. Adds • Original : 2184 Rtree+LinkedList : 2003 • Rtree+LinkedList converges fastest

  10. Takeaways • Need for a model to prune amount to grow and search -Number of adds and grows decrease over time -How much to search? • Small Index • LinkedList seems best for searching • Point Rtree best for growing

  11. Larger Index • Methane Simulation • 33 dimensions • Error tolerance : 5e-5 • Queries : 6e+6 • Pruning Factor : Number of objects looked at for growing • Index now grows to around 30000 ellipsoids

  12. Total Time • Rtree does better than a linked list search • Total time increases as you search more

  13. Performance of List In Retrieves • Performance of list is not so good

  14. Adds • 1000 Less Adds than the original index

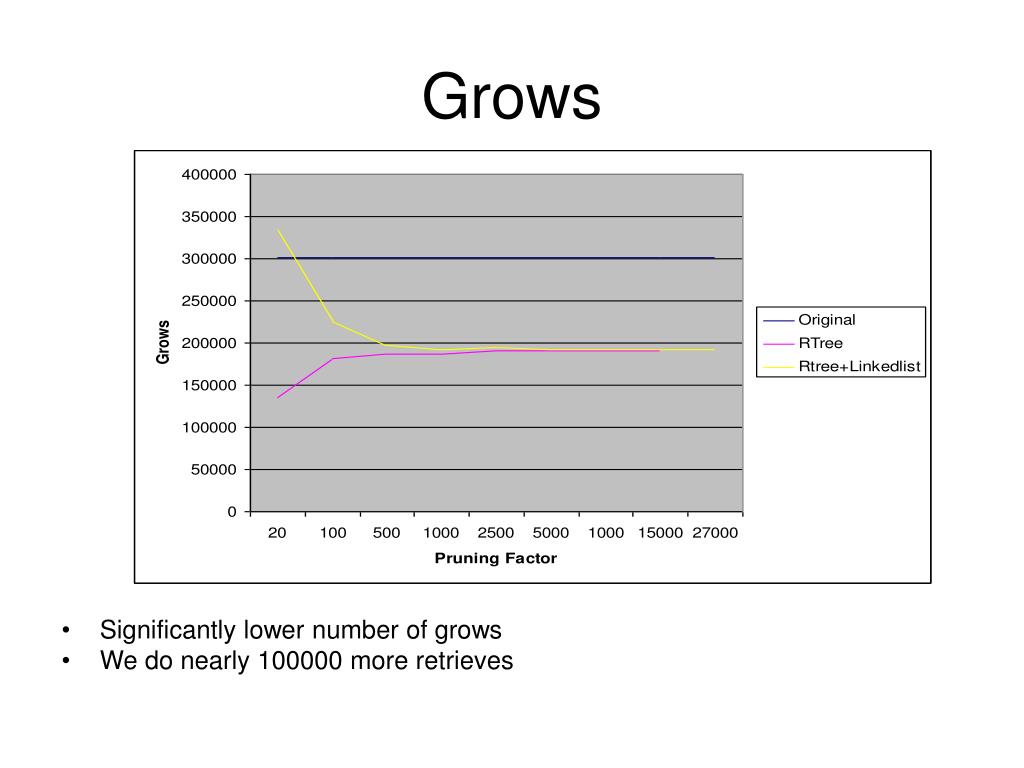

  15. Grows • Significantly lower number of grows • We do nearly 100000 more retrieves

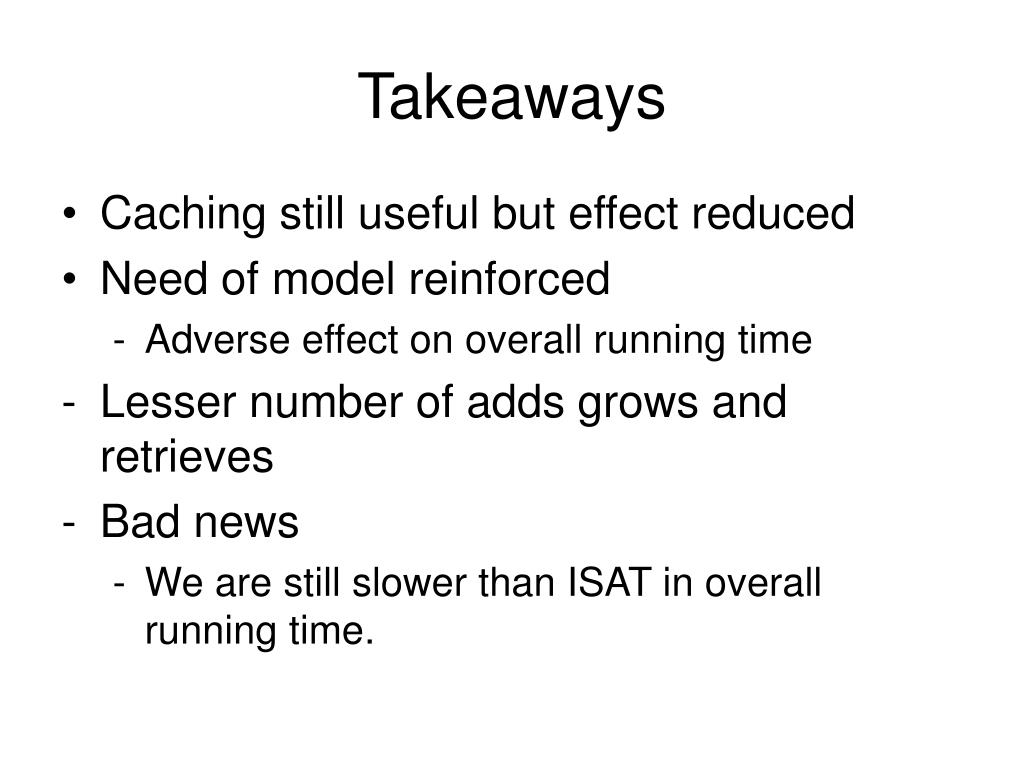

  16. Takeaways • Caching still useful but effect reduced • Need of model reinforced • Adverse effect on overall running time • Lesser number of adds grows and retrieves • Bad news • We are still slower than ISAT in overall running time.

  17. Pruning Power Of Indexes • ISATAB does 50% primary retrieves • Possible reason for time difference

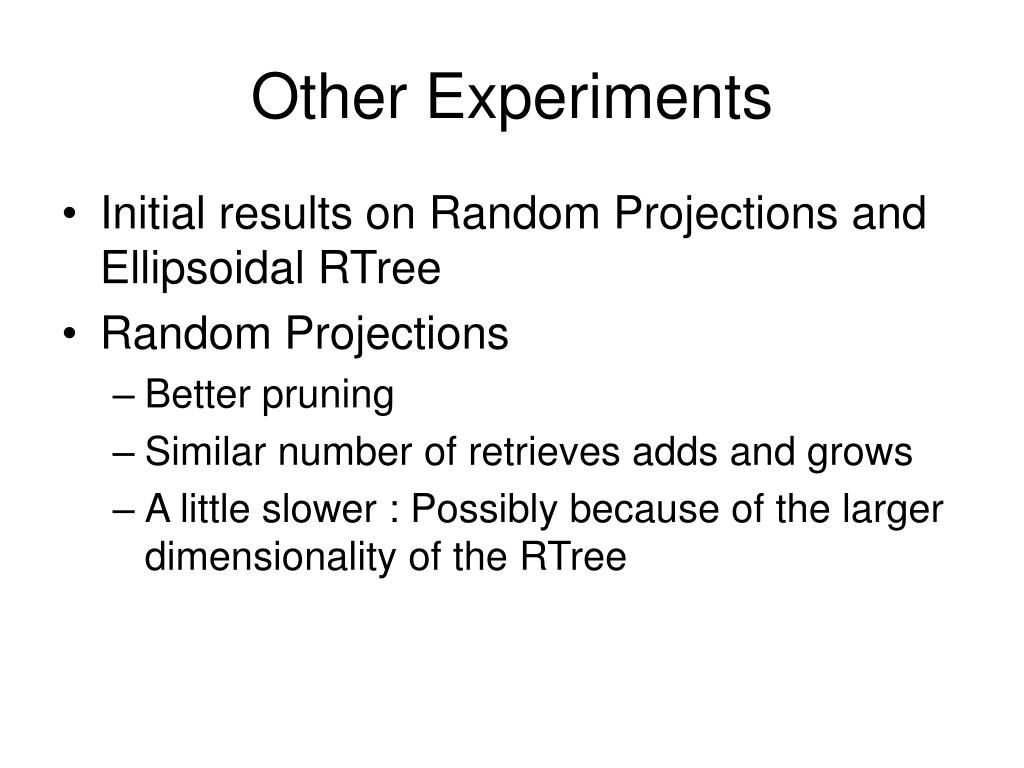

  18. Other Experiments • Initial results on Random Projections and Ellipsoidal RTree • Random Projections • Better pruning • Similar number of retrieves adds and grows • A little slower : Possibly because of the larger dimensionality of the RTree

  19. Other Experiments Contd.. • Ellipsoidal Rtree • Very slow for the simulation with 33000 ellipsoids • Grows are a problem • Nearest neighbor search is very slow • Finding the minimum distance between a query point and the ellipsoid • Finding covering ellipsoids • Both methods show promise in terms of searching but the costs need to be understood

  20. Open Question • Why does ISATAB show such great pruning? • Does not know about extent of ellipsoids • Understand the space • How do the ellipsoids look? • What arrangement of ellipsoids are possible? • How often to ellipsoids straddle planes?

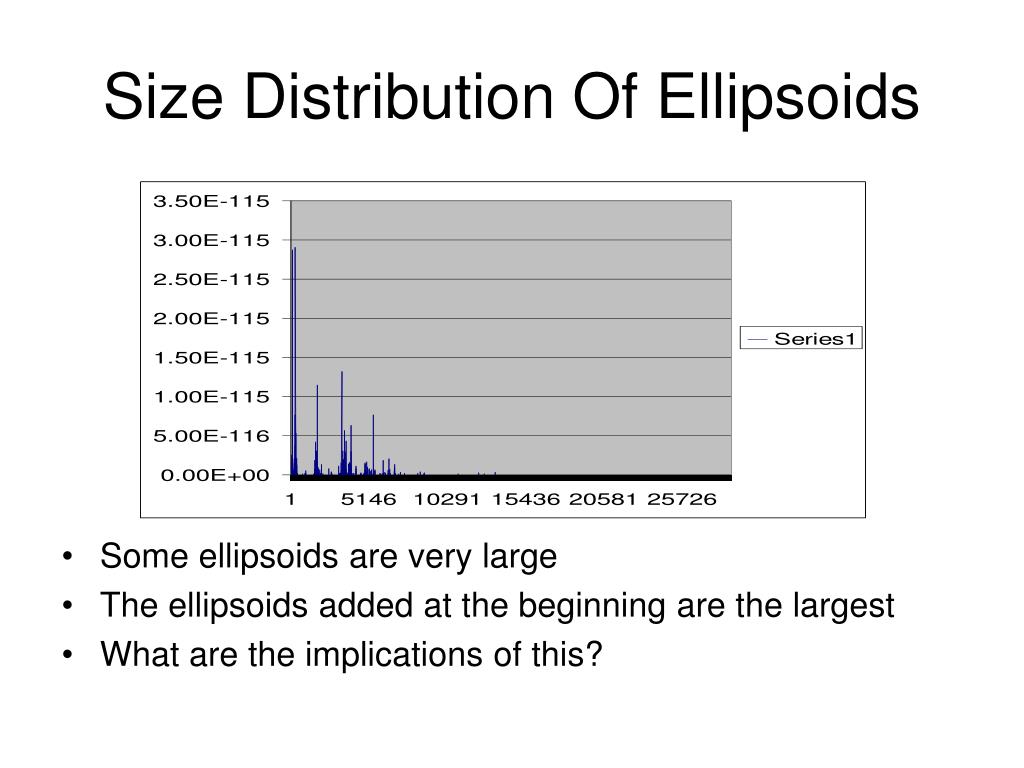

  21. Size Distribution Of Ellipsoids • Some ellipsoids are very large • The ellipsoids added at the beginning are the largest • What are the implications of this?

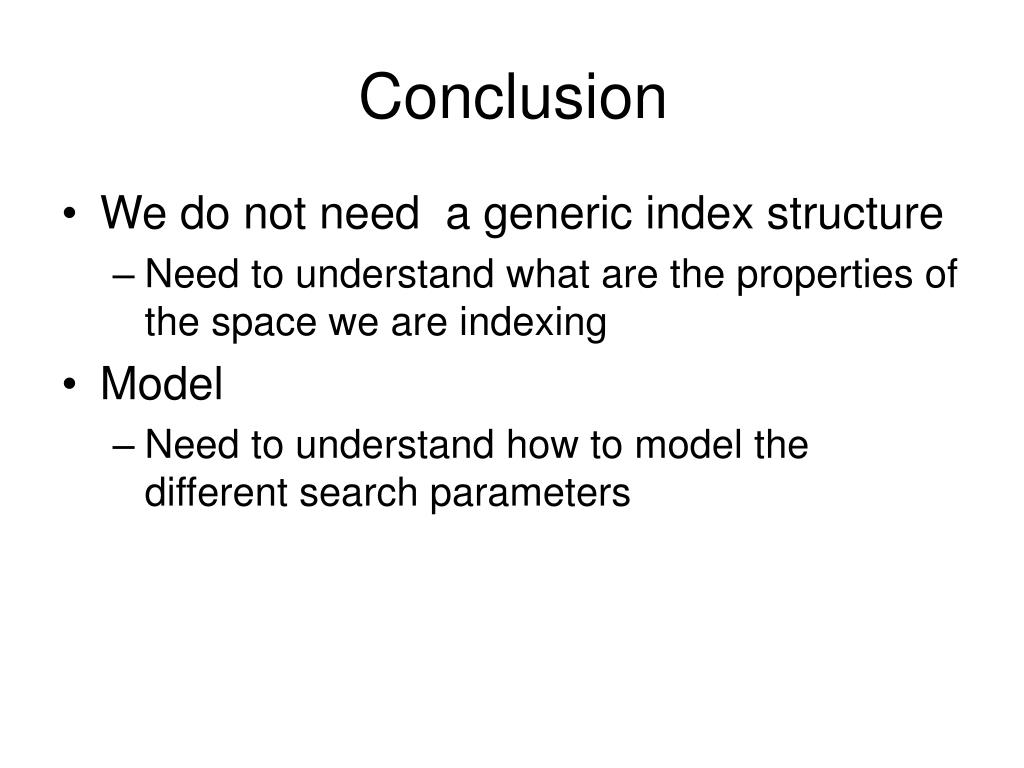

  22. Conclusion • We do not need a generic index structure • Need to understand what are the properties of the space we are indexing • Model • Need to understand how to model the different search parameters
