slide1

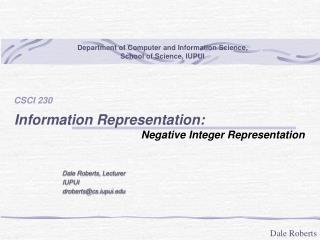

Department of Computer and Information Science,School of Science, IUPUI

CSCI 230

Information Representation:

Negative Integer Representation

Dale Roberts, Lecturer

IUPUI

droberts@cs.iupui.edu

negative numbers in binary
Negative Numbers in Binary
  • Four different representation schemes are used for negative numbers
  • Signed Magnitude
      • Left most bit (LMB) is the sign bit :
        • 0  positive (+)
        • 1  negative (-)
      • Remaining bits hold absolute magnitude

Example:

210  0000 0010b

-210 1000 0010b

Q: 0000 0000 = ?

1000 0000 = ?

Try, 1000 0100b =

-410

1 s complement
1’s Complement
  • One’s Complement
    • Left most bit is the sign bit :
      • 0  positive (+)
      • 1  negative (-)
    • The magnitude is Complemented

Example:

210 0 000 0010b

-210  1 111 1101b

Exercise: try - 410using 1’s Complement

Q: 0000 0000 = ?

1111 1111 = ?

Solution:

410 = 0 0000100b

-410 =

1

1111011b

2 s complement
2’s Complement
  • 2’s Complement
    • Sign bit same as above
    • Magnitude is Complemented first and a “1” is added to the Complemented digits
    • Example:
      • 210 0 000 0010b
  • 1’s Complement  1 1111101b
      • +1
      • -210 1 111 1110b
  • Exercise: try -710using 2’s Complement
        • 710
  • 1’s Complement 
        • +1
      • -710 

0000 0111b

11111000b

  • 1111 1001b
2 s complement1
2’s Complement

710 = 0000 0111b

310 = 0000 0011b

1’s complement 1111 1100b

2’s complement 1111 1101b -310

7+(-3)  0000 0111

+ 1111 1101

  • Example: 7+(-3) [hint]: A – B = A + (~B) +1

1 1111 111 carry

  • ignore 1 0000 0100  0000 0100 410
negative numbers in binary cont
Negative Numbers in Binary (cont.)
  • Excess Representation
    • For a given fixed number of bits the range is remapped such that roughly half the numbers are negative and half are positive.

Example: (as left)

Excess – 8 notation for 4 bit numbers

    • Binary value = 8 + excess-8 value
    • MSB can be used as a sign bit, but
      • If MSB =1, positive number
      • If MSB =0, negative number
    • Excess Representation is also called bias
fundamental data types
Fundamental Data Types
  • With vs. without using sign bit
    • For a 16 bit binary pattern:
fundamental data types1
Fundamental Data Types
  • Four Data Typesin C(assume 2’s complement, byte machine)
  • Note: 27 = 128, 215 =32768, 215 = 2147483648
    • Complex and double complex are not available
acknowledgements
Acknowledgements
  • These slides where originally prepared by Dr. Jeffrey Huang, updated by Dale Roberts.
