cs 3050
CS 3050

Object-Oriented Analysis and Design

objectives
Objectives
  • What is “Object-Oriented?”
  • Object-Oriented Approach Vs. Structured Approach
  • How Has the Object-Oriented Approach Evolved?
  • What are the Benefits of the Object-Oriented Approach?
what is object oriented

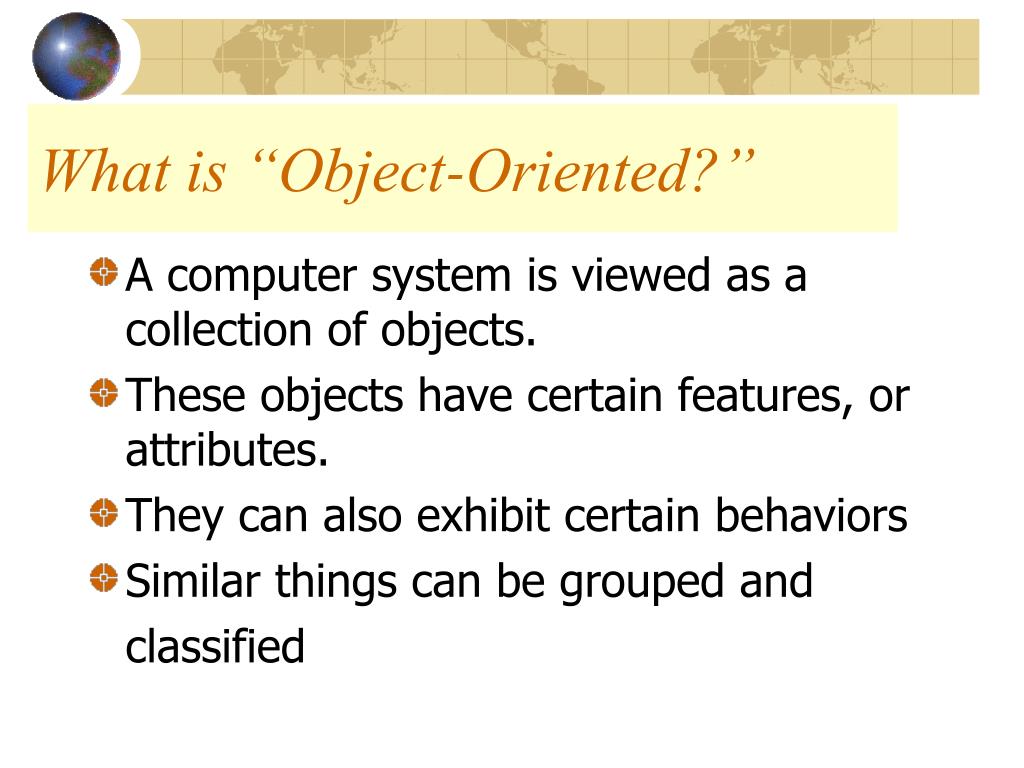

What is “Object-Oriented?”
  • A computer system is viewed as a collection of objects.
  • These objects have certain features, or attributes.
  • They can also exhibit certain behaviors
  • Similar things can be grouped and

classified

what is object oriented1

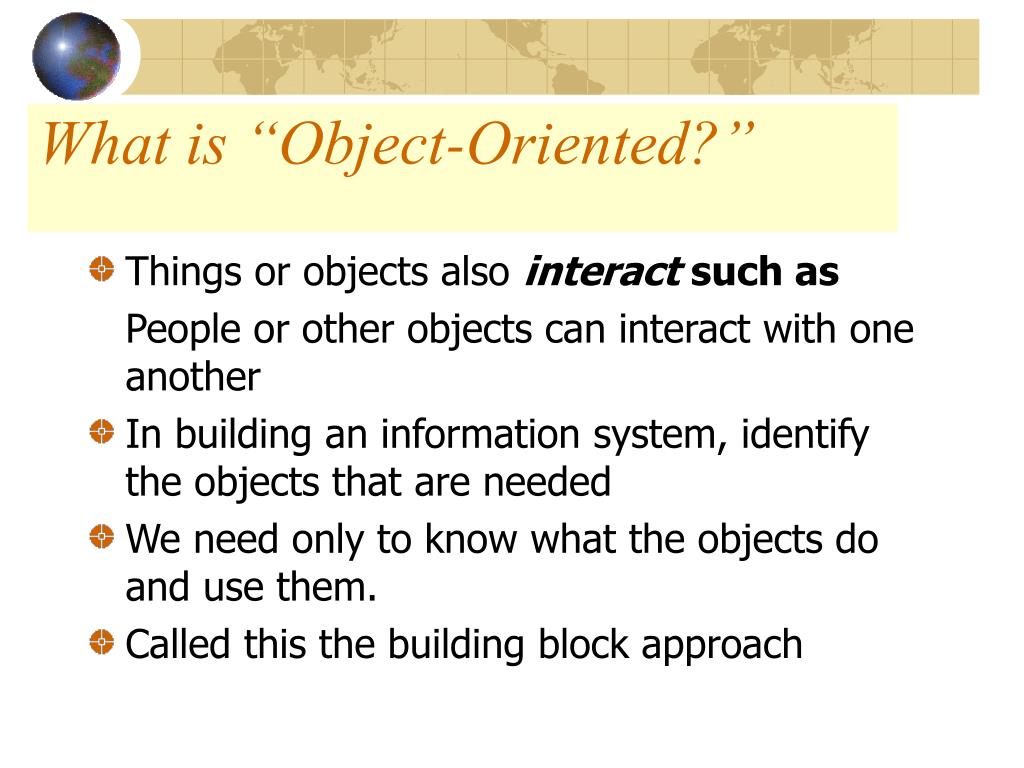

What is “Object-Oriented?”
  • Things or objects also interact such as

People or other objects can interact with one another

  • In building an information system, identify the objects that are needed
  • We need only to know what the objects do and use them.
  • Called this the building block approach
object oriented paradigm

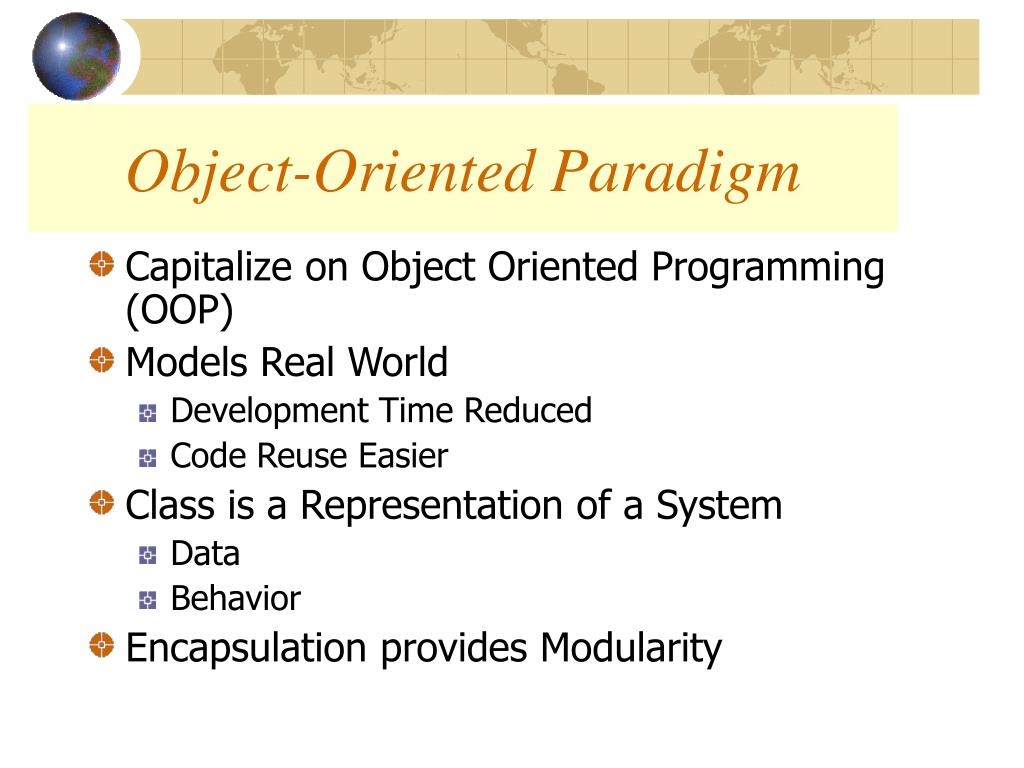

Object-Oriented Paradigm
  • Capitalize on Object Oriented Programming (OOP)
  • Models Real World
    • Development Time Reduced
    • Code Reuse Easier
  • Class is a Representation of a System
    • Data
    • Behavior
  • Encapsulation provides Modularity
other design methodologies

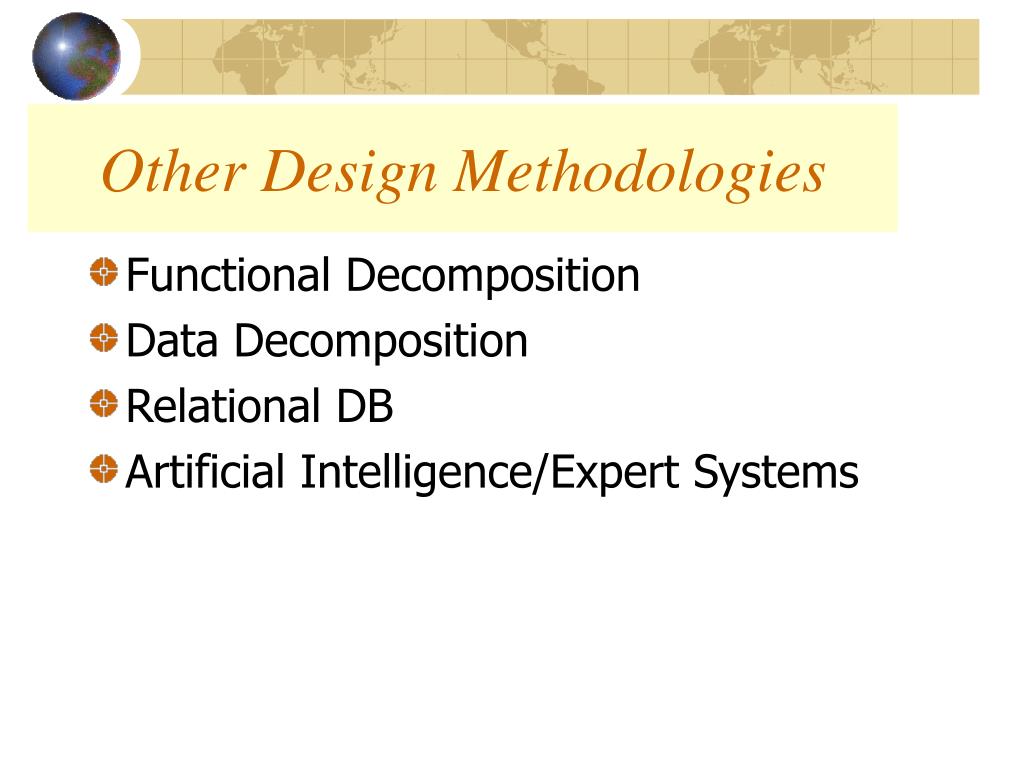

Other Design Methodologies
  • Functional Decomposition
  • Data Decomposition
  • Relational DB
  • Artificial Intelligence/Expert Systems

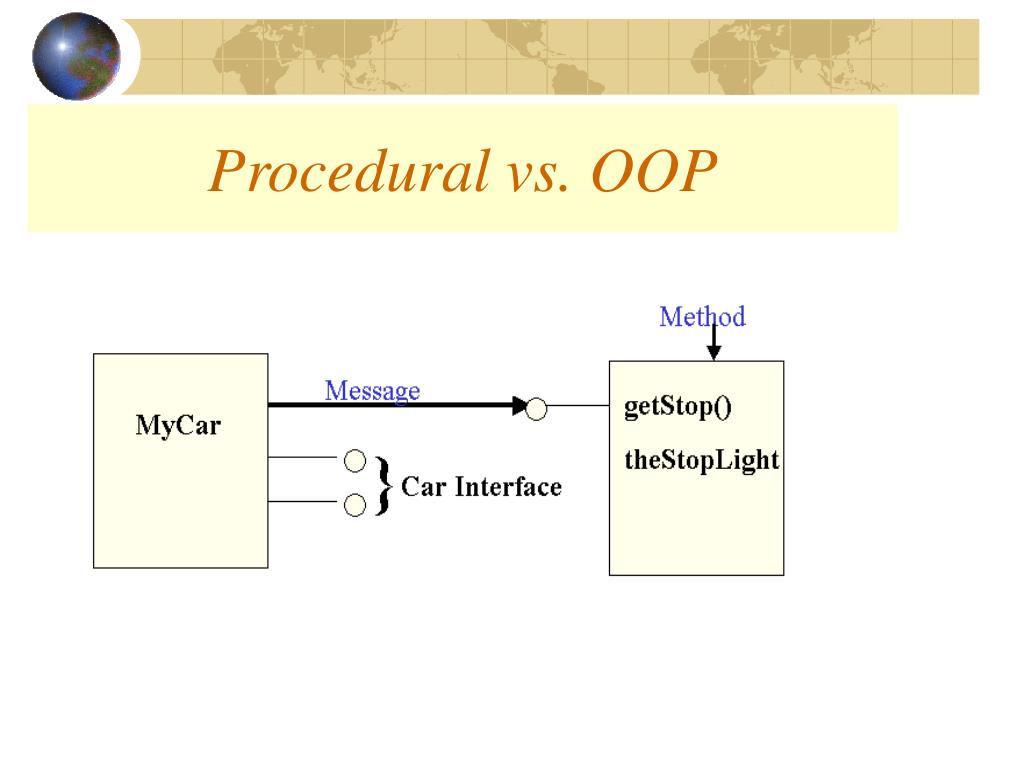

procedural vs oop

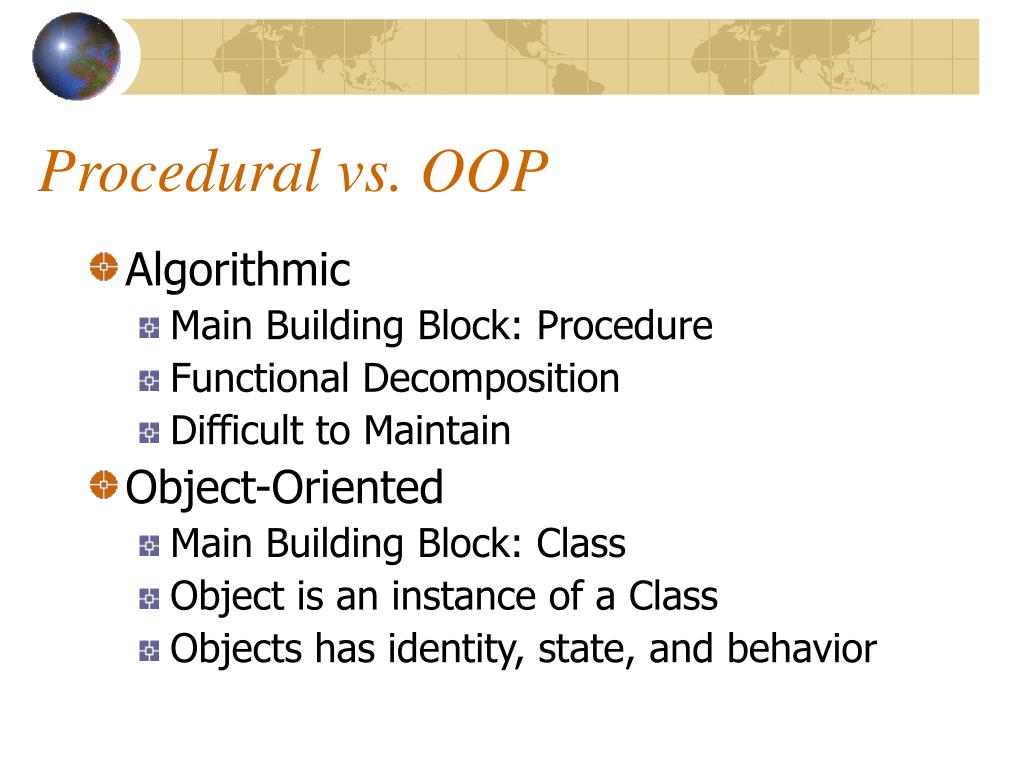

Procedural vs. OOP
  • Algorithmic
    • Main Building Block: Procedure
    • Functional Decomposition
    • Difficult to Maintain
  • Object-Oriented
    • Main Building Block: Class
    • Object is an instance of a Class
    • Objects has identity, state, and behavior
object oriented approach vs structured approach
Object-Oriented Approach Vs. Structured Approach
  • Structured Traditional approach: (See Fig 1.2)
  • Computer systems is viewed as a collection of computer programs
  • Procedural approach is usually complex.
  • Three logic structures characterize structured programming :

- sequence of set of instructions

- choice on set of instructions

- repetition of a set of instructions.

object oriented approach vs structured approach1
Object-Oriented Approach Vs. Structured Approach

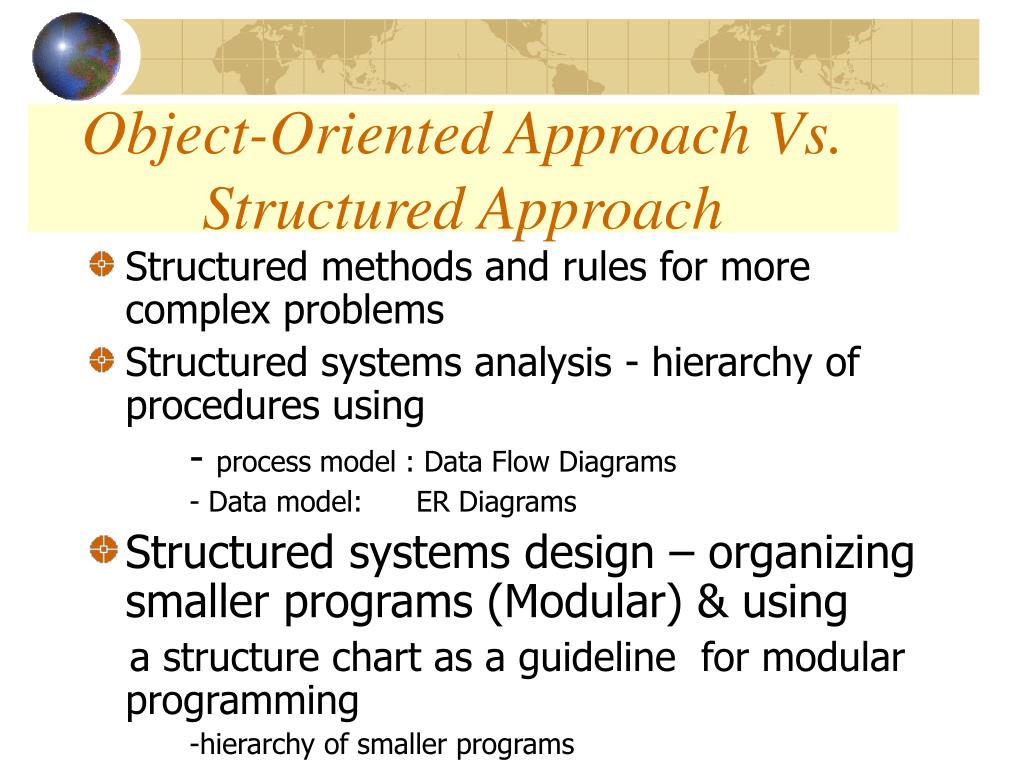

  • Structured methods and rules for more complex problems
  • Structured systems analysis - hierarchy of procedures using

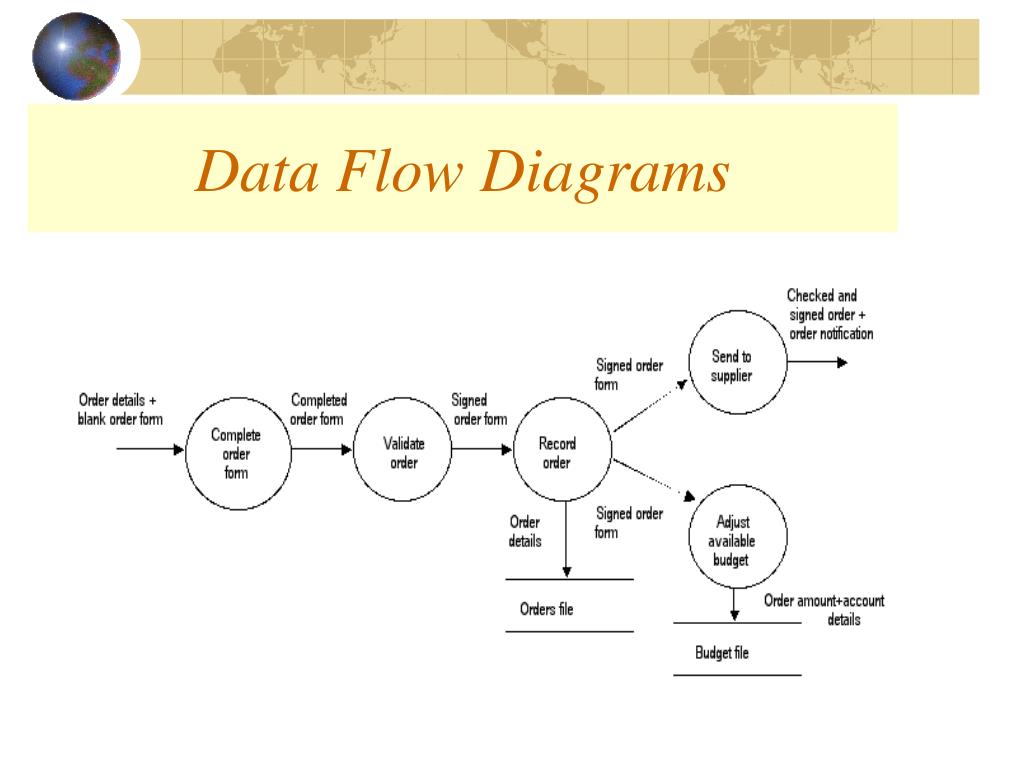

- process model : Data Flow Diagrams

- Data model: ER Diagrams

  • Structured systems design – organizing smaller programs (Modular) & using

a structure chart as a guideline for modular programming

-hierarchy of smaller programs

object oriented approach vs structured approach2

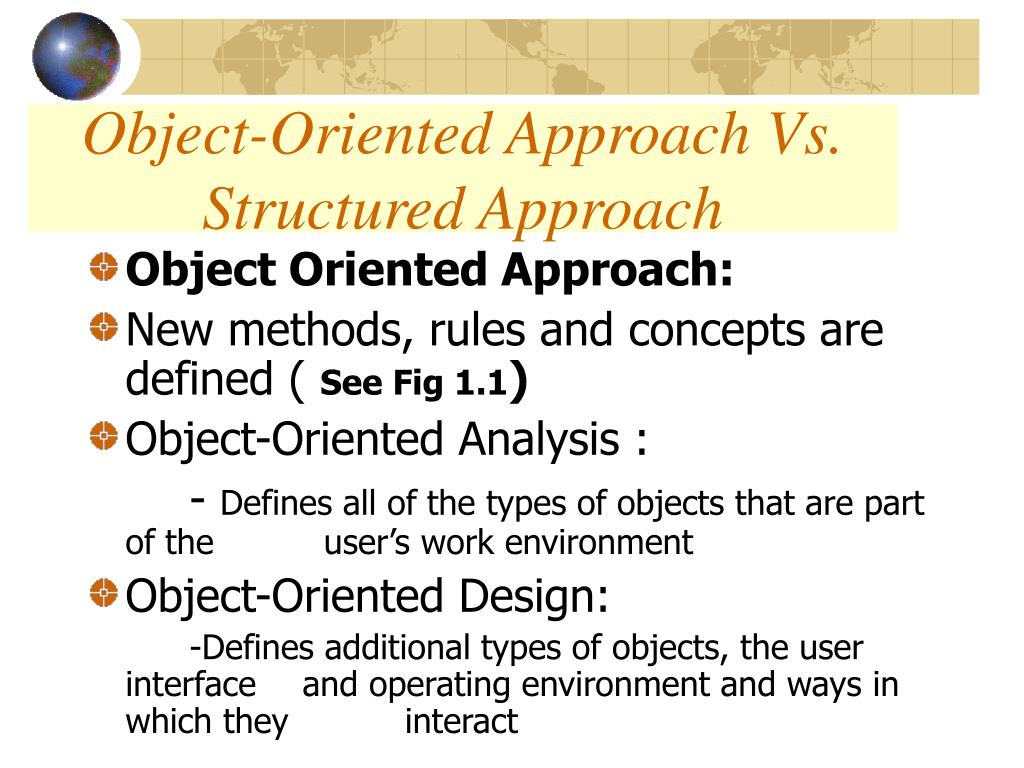

Object-Oriented Approach Vs. Structured Approach
  • Object Oriented Approach:
  • New methods, rules and concepts are defined ( See Fig 1.1)
  • Object-Oriented Analysis :

- Defines all of the types of objects that are part of the user’s work environment

  • Object-Oriented Design:

-Defines additional types of objects, the user interface and operating environment and ways in which they interact

object oriented approach vs structured approach3

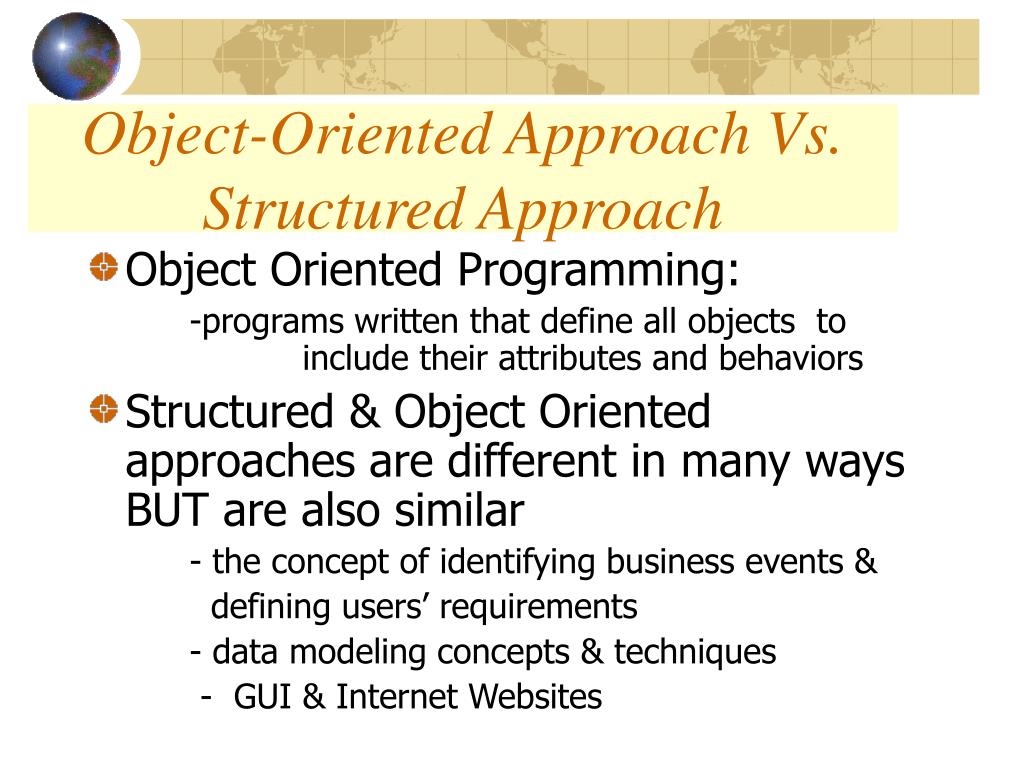

Object-Oriented Approach Vs. Structured Approach
  • Object Oriented Programming:

-programs written that define all objects to include their attributes and behaviors

  • Structured & Object Oriented approaches are different in many ways BUT are also similar

- the concept of identifying business events &

defining users’ requirements

- data modeling concepts & techniques

- GUI & Internet Websites

how has the object oriented approach evolved

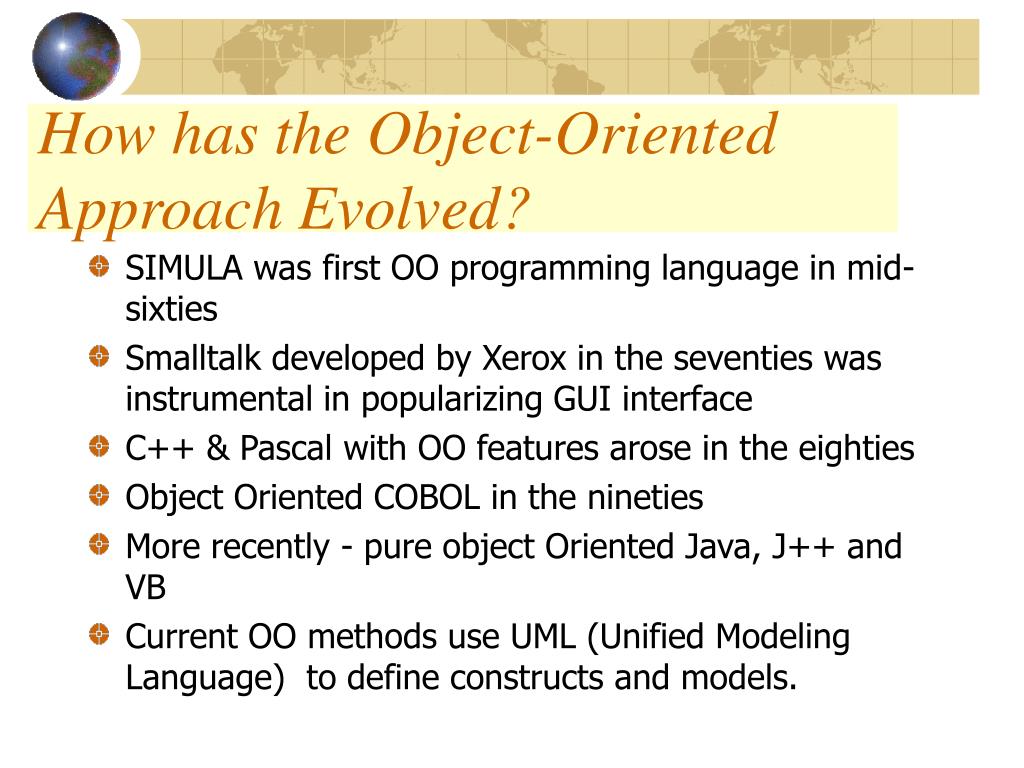

How has the Object-Oriented Approach Evolved?
  • SIMULA was first OO programming language in mid-sixties
  • Smalltalk developed by Xerox in the seventies was instrumental in popularizing GUI interface
  • C++ & Pascal with OO features arose in the eighties
  • Object Oriented COBOL in the nineties
  • More recently - pure object Oriented Java, J++ and VB
  • Current OO methods use UML (Unified Modeling Language) to define constructs and models.
what are the benefits of oo
What are the Benefits of OO
  • OO approach addresses THREE pervasive problems with traditional systems development
    • Quality
    • Productivity
    • Flexibility
  • Small, small-contained manageable objects reduces the complexity of the system development
  • Reuse can greatly increase productivity
  • Adding and changing objects can be done without interfering with the rest of the system
