  1. CSA3202Human Language Technology HMMs for POS Tagging

  2. Acknowledgement Slides adapted from lecture by Dan Jurafsky

  3. Hidden Markov Model Tagging • Using an HMM to do POS tagging is a special case of Bayesian inference • Foundational work in computational linguistics • Bledsoe 1959: OCR • Mosteller and Wallace 1964: authorship identification • It is also related to the “noisy channel” model that’s the basis for ASR, OCR and MT

  4. Noisy Channel Modelfor Machine Translation (Brown et. al. 1990) target sentence sourcesentence sentence

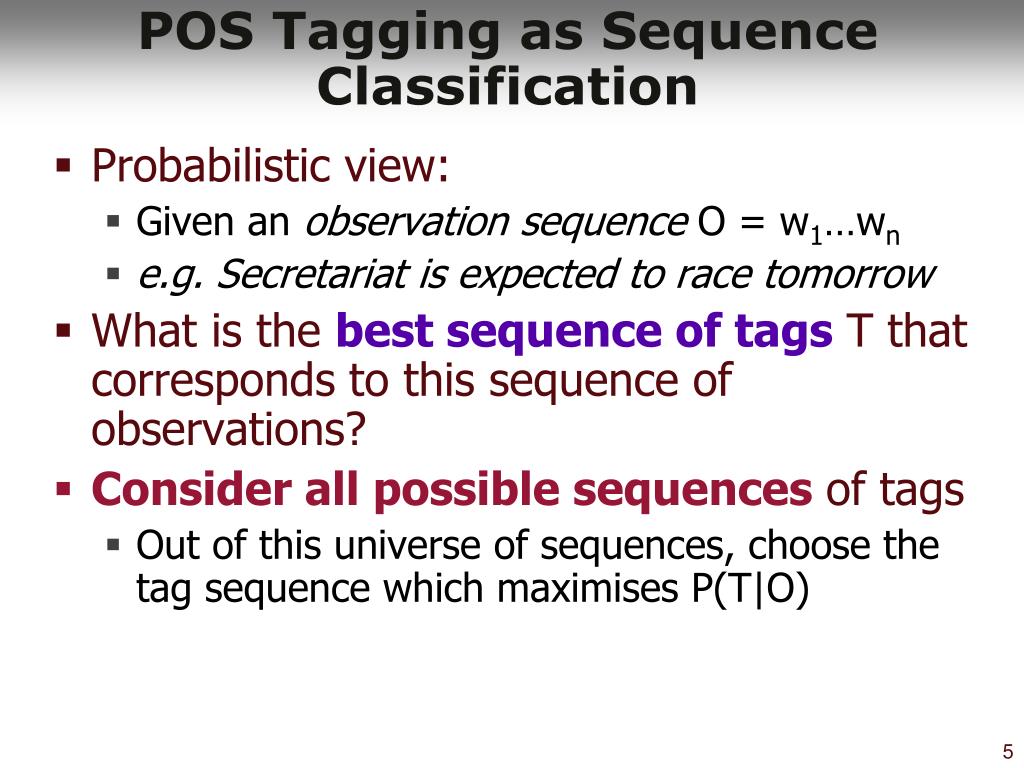

  5. POS Tagging as Sequence Classification • Probabilistic view: • Given an observation sequence O = w1…wn • e.g. Secretariat is expected to race tomorrow • What is the best sequence of tags T that corresponds to this sequence of observations? • Consider all possible sequences of tags • Out of this universe of sequences, choose the tag sequence which maximises P(T|O)

  6. Getting to HMMs • i.e. out of all sequences of n tags t1…tn the single tag sequence such that P(t1…tn|w1…wn) is highest. • Hat ^ means “our estimate of the best one” • argmaxx f(x) means “the x such that f(x) is maximized”

  7. Getting to HMMs • But how to make it operational? How to compute this value? • Intuition of Bayesian classification: • Use Bayes Rule to transform this equation into a set of other probabilities that are easier to compute

  8. Bayes Rule

  9. recall this picture .... A A  B B sample space

  10. Using Bayes Rule

  11. Two Probabilities Involved: Probability of a word sequence given a tag sequence Probability of a tag sequence

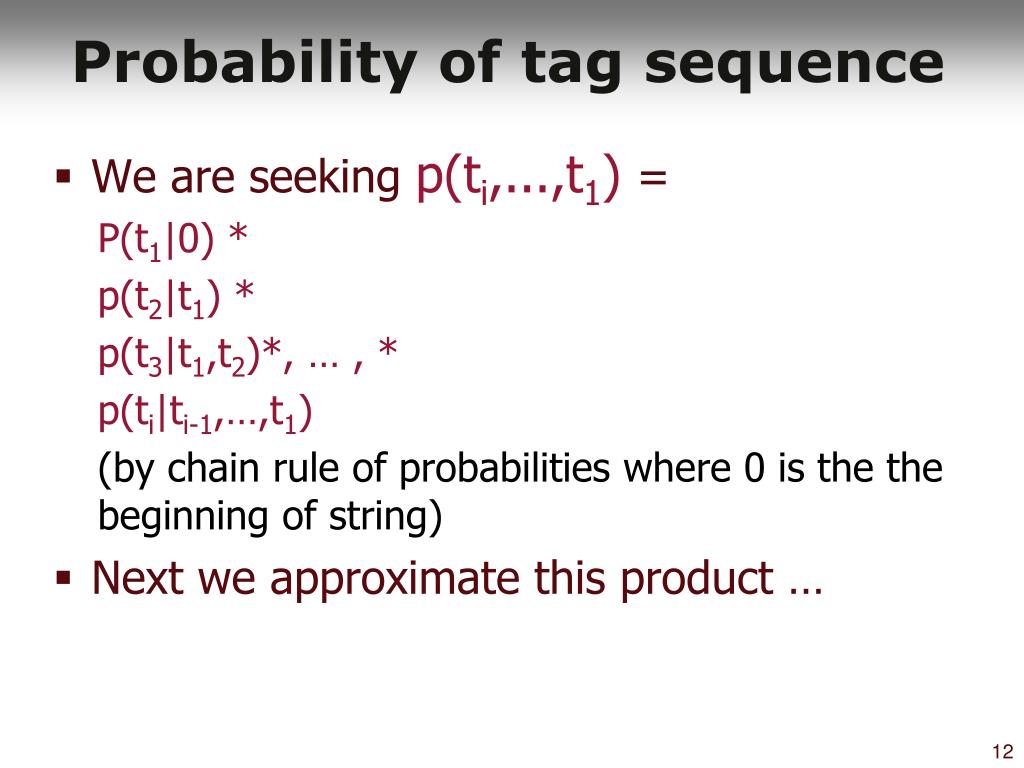

  12. Probability of tag sequence • We are seeking p(ti,...,t1) = P(t1|0) * p(t2|t1) * p(t3|t1,t2)*, … , * p(ti|ti-1,…,t1) (by chain rule of probabilities where 0 is the the beginning of string) • Next we approximate this product …

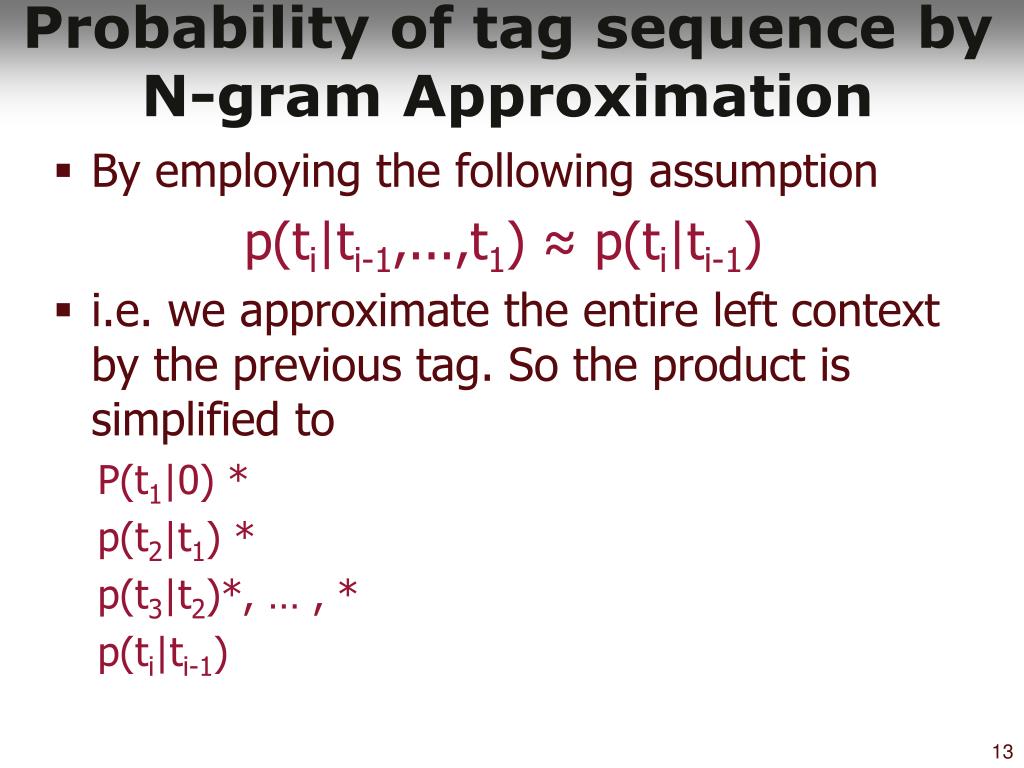

  13. Probability of tag sequence by N-gram Approximation • By employing the following assumption p(ti|ti-1,...,t1) ≈ p(ti|ti-1) • i.e. we approximate the entire left context by the previous tag. So the product is simplified to P(t1|0) * p(t2|t1) * p(t3|t2)*, … , * p(ti|ti-1)

  14. Generalizing the Approach The same trick works for approximating P(wn1|tn1) P(wn1|tn1) ≈ P(w1|t1) * P(w2|t2) * P(wn-1|tn-1) * P(wn|tn) as seen on the next slide

  15. Likelihood and Prior

  16. Two Kinds of Probabilities • Tag transition probabilities p(ti|ti-1) • Word likelihood probabilities p(wi|ti)

  17. Estimating Probabilities • Tag transition probabilities p(ti|ti-1) • Determiners likely to precede adjs and nouns • That/DT flight/NN • The/DT yellow/JJ hat/NN • So we expect P(NN|DT) and P(JJ|DT) to be high • Compute p(ti|ti-1) by counting in a labeled corpus:

  18. Example

  19. Two Kinds of Probabilities • Word likelihood probabilities p(wi|ti) • VBZ (3sg Pres verb) likely to be “is” • Compute P(is|VBZ) by counting in a labeled corpus:

  20. Example: The Verb “race” • Secretariat/NNP is/VBZ expected/VBN to/TO race/VB tomorrow/NR • People/NNS continue/VB to/TO inquire/VB the/DT reason/NN for/IN the/DTrace/NN for/IN outer/JJ space/NN • How do we pick the right tag?

  21. Disambiguating “race”

  22. Example • P(NN|TO) = .00047 • P(VB|TO) = .83 • P(race|NN) = .00057 • P(race|VB) = .00012 • P(NR|VB) = .0027 • P(NR|NN) = .0012 • P(VB|TO)P(NR|VB)P(race|VB) = .00000027 • P(NN|TO)P(NR|NN)P(race|NN)=.00000000032 • So we (correctly) choose the verb reading

  23. Hidden Markov Models • What we’ve described with these two kinds of probabilities is a Hidden Markov Model (HMM) • We approach the concept of an HMM via the simpler notions • Weighted Finite State Automaton • Markov Chain

  24. WFST Definition • A Weighted Finite-State Automaton (WFST) adds probabilities to the arcs • The sum of the probabilities leaving any arc must sum to one • A Markov chain is a special case of a WFST in which the input sequence uniquely determines which states the automaton will go through • Examples follow

  25. Markov Chain for Pronunciation Variants

  26. Markov Chain for Weather

  27. Probability of a Sequence • Markov chain assigns probabilities to unambiguous sequences • What is the probability of 3 consecutive rainy days? • Sequence is rainy-rainy-rainy • I.e., state sequence is 0-3-3-3 • P(0,3,3,3) = • 0a03a33a33 = 0.2 x (0.6)3 = 0.0432

  28. Markov Chain: “First-order observable Markov Model” • A set of states • Q = q1, q2…qN; the state at time t is qt • Transition probabilities: • a set of probabilities A = a01a02…an1…ann. • Each aij represents the probability of transitioning from state i to state j • The set of these is the transition probability matrix A • Current state only depends on previous state

  29. But .... • Markov chains can’t represent inherently ambiguous problems • For that we need a Hidden Markov Model

  30. Hidden Markov Model • For Markov chains, the output symbols are the same as the states. • See hot weather: we’re in state hot • But in part-of-speech tagging (and other things) • The output symbols are words • But the hidden states are part-of-speech tags • So we need an extension! • A Hidden Markov Model is an extension of a Markov chain in which the input symbols are not the same as the states. • This means we don’t know which state we are in.

  31. Hidden Markov Models • States Q = q1, q2…qN; • Observations O= o1, o2…oN; • Each observation is a symbol from a vocabulary V = {v1,v2,…vV} • Transition probabilities • Transition probability matrix A = {aij} • Observation likelihoods • Output probability matrix B={bi(k)} • Special initial probability vector 

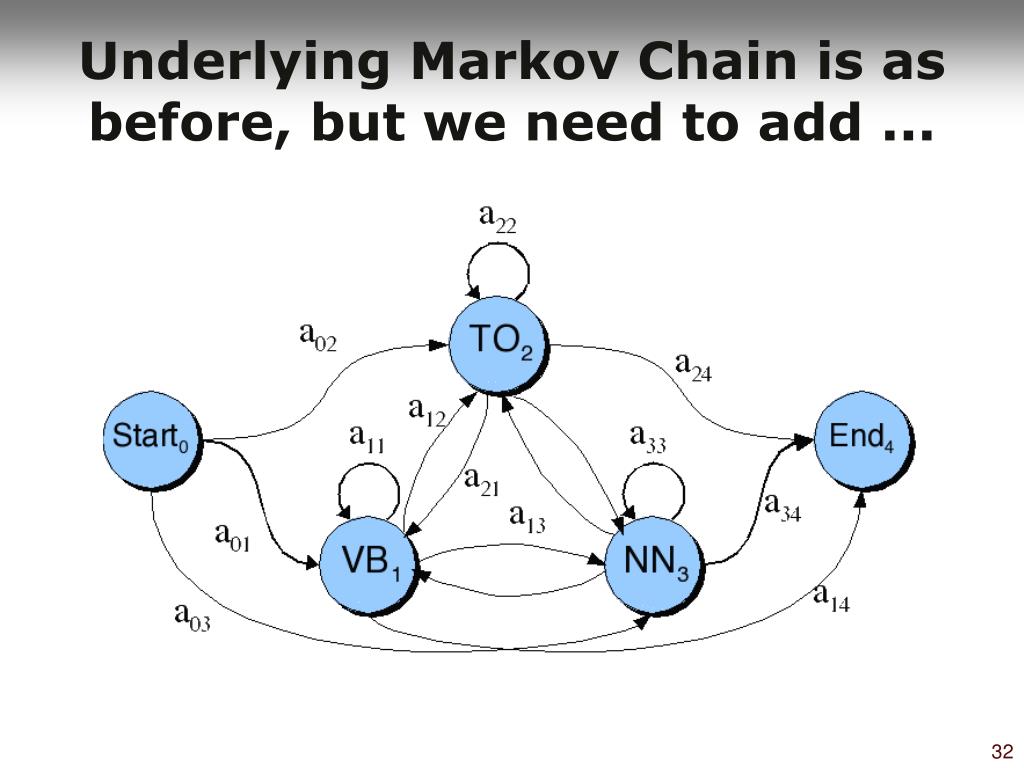

  32. Underlying Markov Chain is as before, but we need to add ...

  33. Observation Likelihoods

  34. Observation Likelihoods • Observation likelihoods P(O|S) link actual observations O with underlying states S • Are necessary whenever there is not a 1:1 correspondence between the two. • Examples from many different domains where there is uncertainty of interpretation • OCR • Speech Recognition • Spelling Correction • POS

  35. Decoding • Recall that we need to compute • We could just enumerate all paths given the input and use the model to assign probabilities to each. • Many Paths • Only need to store the most probable path • Dynamic programming • Viterbi Algorithm

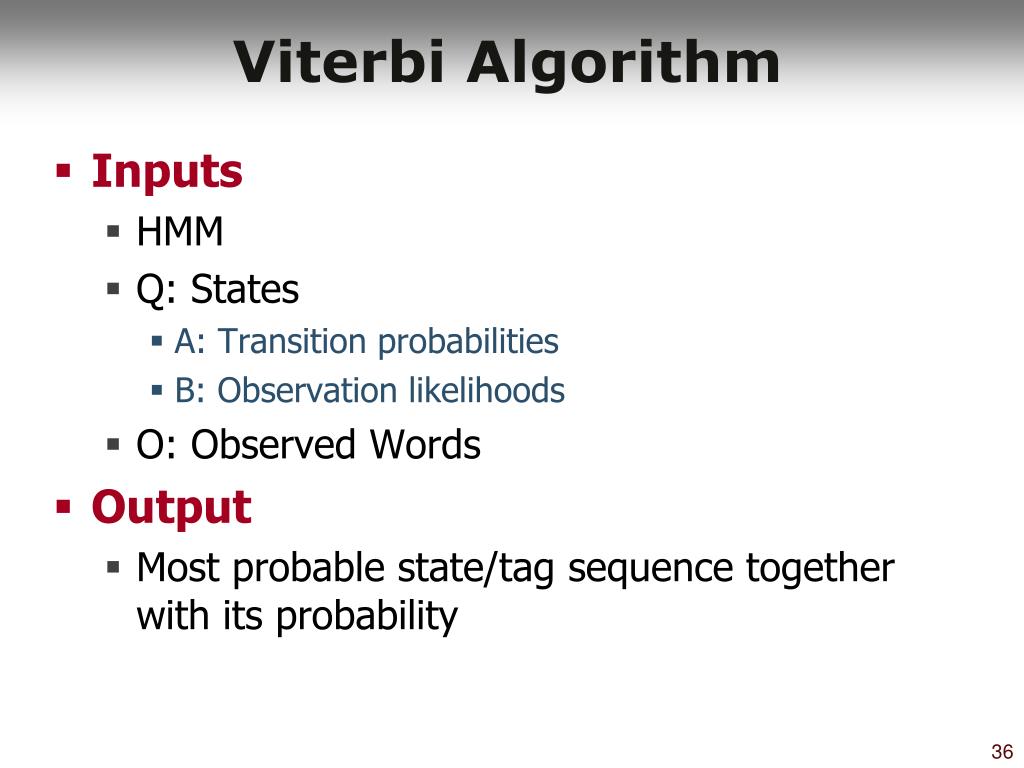

  36. Viterbi Algorithm • Inputs • HMM • Q: States • A: Transition probabilities • B: Observation likelihoods • O: Observed Words • Output • Most probable state/tag sequence together with its probability

  37. POS Transition Probabilities

  38. POS Observation Likelihoods

  39. Viterbi Summary • Create an array • Columns corresponding to inputs • Rows corresponding states • Sweep through the array in one pass filling the columns left to right using our transition probs and observations probs • Dynamic programming key is that we need only store the MAX prob path to each cell, (not all paths).

  40. Viterbi Example

  41. POS-Tagger Evaluation • Different metrics can be used: • Overall error rate with respect to a gold-standard test set. • Error rates on particular tagsc(gold(tok)=t and tagger(tok)=t)/c(gold(tok)=t) • Error rates on particular words • Tag confusions...

  42. Evaluation • The result is compared with a manually coded “Gold Standard” • Typically accuracy reaches 96-97% • This may be compared with result for a baseline tagger (one that uses no context). • Important: 100% is impossible even for human annotators. • Inter annotator agreement problem

  43. Error Analysis • Look at a confusion matrix • See what errors are causing problems • Noun (NN) vs ProperNoun (NNP) vs Adj (JJ) • Preterite (VBD) vs Participle (VBN) vs Adjective (JJ)

  44. POS Tagging Summary • Parts of speech • Tagsets • Part of speech tagging • Rule-Based • HMM Tagging • Markov Chains • Hidden Markov Models • Next: Transformation based
