  1. CS 603Jini April 10, 2002

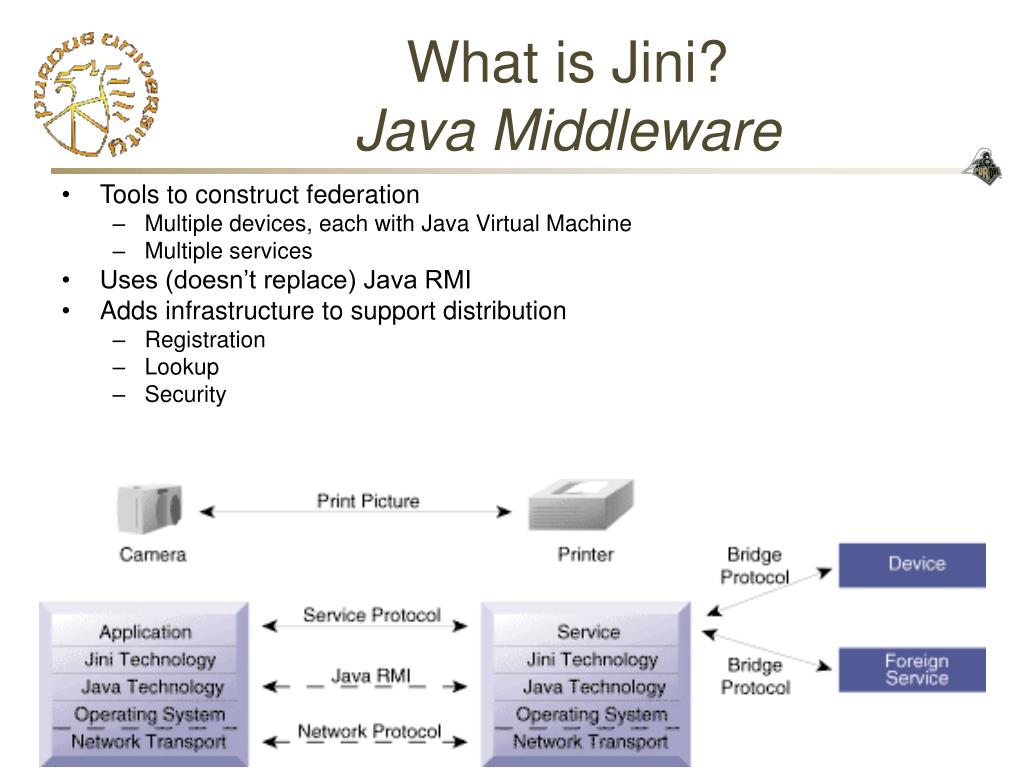

  2. What is Jini?Java Middleware • Tools to construct federation • Multiple devices, each with Java Virtual Machine • Multiple services • Uses (doesn’t replace) Java RMI • Adds infrastructure to support distribution • Registration • Lookup • Security

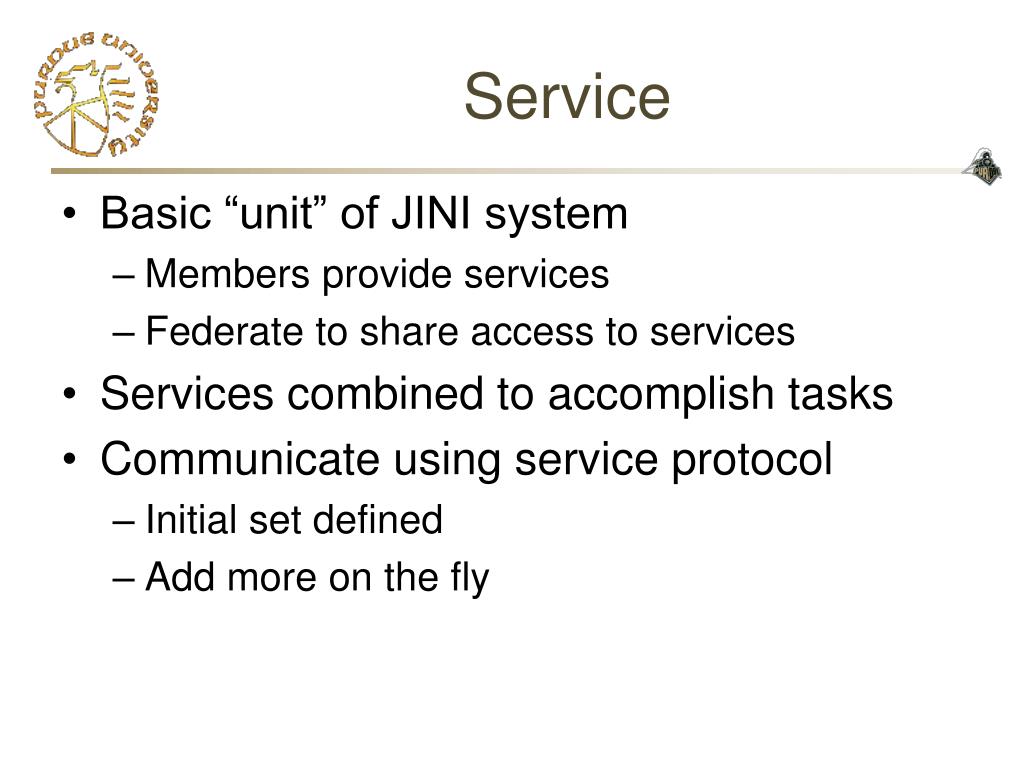

  3. Service • Basic “unit” of JINI system • Members provide services • Federate to share access to services • Services combined to accomplish tasks • Communicate using service protocol • Initial set defined • Add more on the fly

  4. Infrastructure:Key Components • RMI • Basic communication model • Distributed Security System • Integrated with RMI • Extends JVM security model • Discovery/join protocol • How to register and advertise services • Lookup services • Returns object implementing service (really a local proxy)

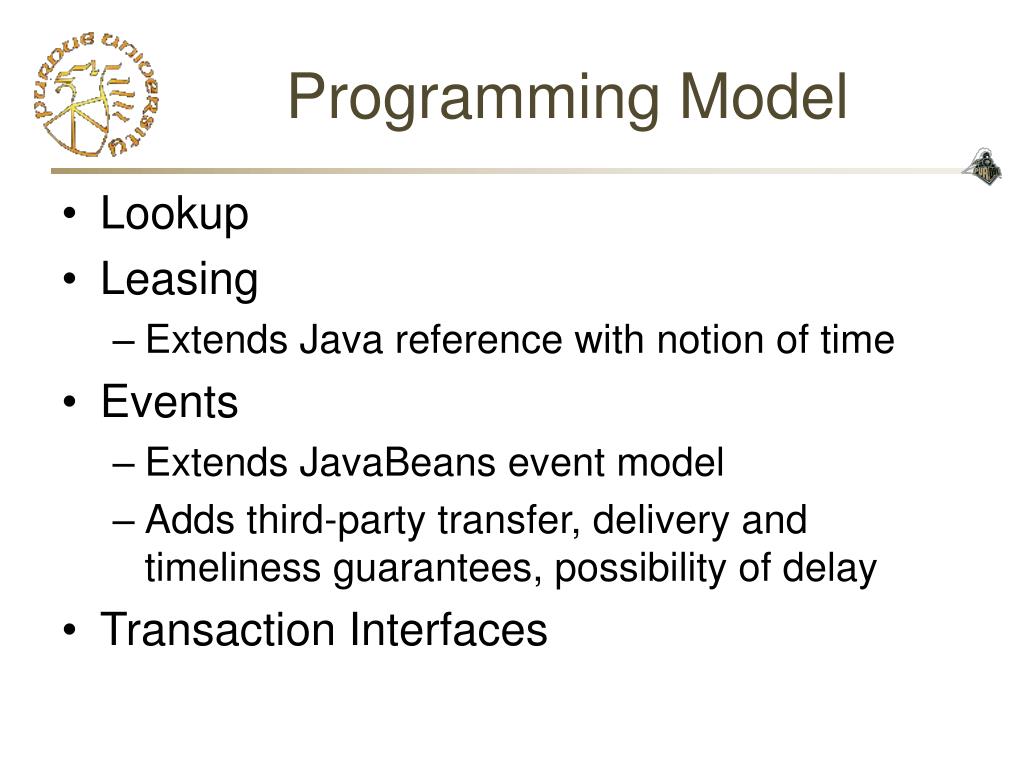

  5. Programming Model • Lookup • Leasing • Extends Java reference with notion of time • Events • Extends JavaBeans event model • Adds third-party transfer, delivery and timeliness guarantees, possibility of delay • Transaction Interfaces

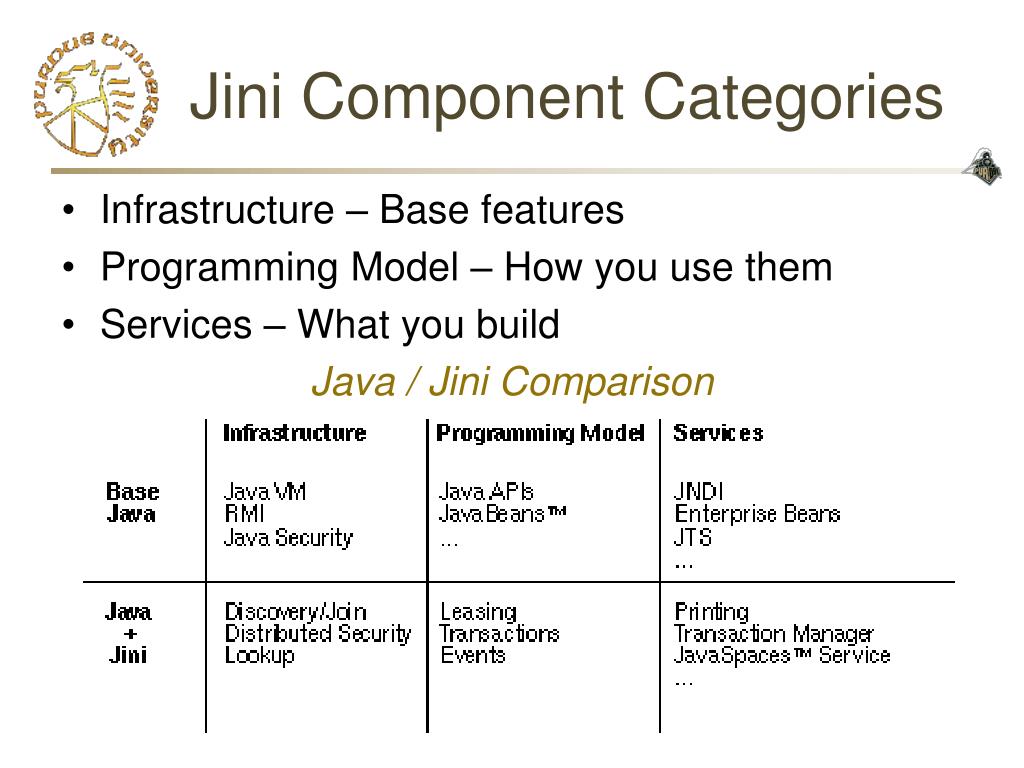

  6. Jini Component Categories • Infrastructure – Base features • Programming Model – How you use them • Services – What you build Java / Jini Comparison

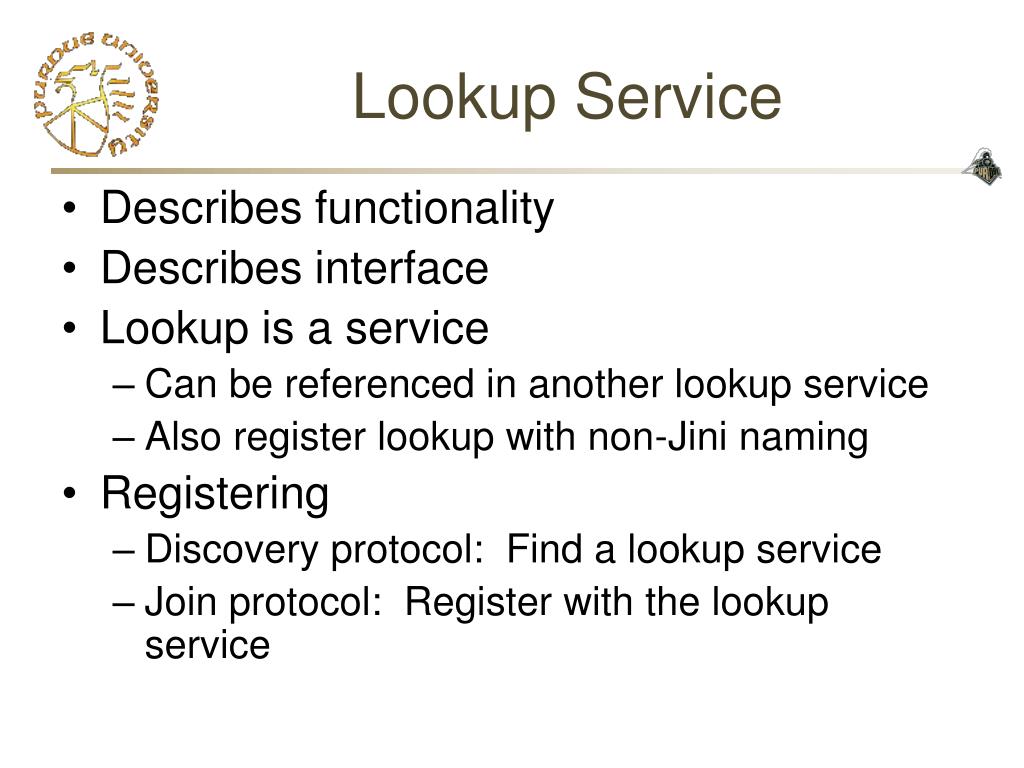

  7. Lookup Service • Describes functionality • Describes interface • Lookup is a service • Can be referenced in another lookup service • Also register lookup with non-Jini naming • Registering • Discovery protocol: Find a lookup service • Join protocol: Register with the lookup service

  8. Registration

  9. public class SendHelloServer implements DiscoveryListener { protected LeaseRenewalManager leaseManager = new LeaseRenewalManager(); public static void main(String argv[]) { new SendHelloServer(); // keep server running to allow time for locator // discovery and keep re-registering the lease Thread.currentThread().sleep(Lease.FOREVER); } public SendHello() { LookupDiscovery discover = null; // Prepare for discovery - empty here // Discover a lookup service // This uses the asynchronous multicast protocol, // which calls back into the discovered() method discover = new LookupDiscovery( LookupDiscovery.ALL_GROUPS); discover.addDiscoveryListener(this); } public void discovered(DiscoveryEvent evt) { ServiceRegistrar registrar = evt.getRegistrars()[0]; // At this point we have discovered a lookup service // Create information about a service ServiceItem item = new ServiceItem(null, new SendHelloImpl(), null); // Export a service ServiceRegistration reg = registrar.register(item, Lease.FOREVER); // Renew leasing leaseManager.renewUntil(reg.getLease(), Lease.FOREVER, this); } } // SendHelloServer Sample Server

  10. Invocation

  11. public class Hello { public static void main(String argv[ ]) { new Hello(); } public Hello() { LookupLocator lookup = null; ServiceRegistrar registrar = null; FileClassifier classifier = null; // Prepare for discovery lookup = new LookupLocator("jini://www.simple_stuff.com"); // Discover a lookup service // This uses the synchronous unicast protocol registrar = lookup.getRegistrar(); // Prepare a template for lookup search Class[ ] classes = new Class[ ] {SendHello.class}; ServiceTemplate template = new ServiceTemplate(null, classes, null); // Lookup a service sender = (SendHello) registrar.lookup(template); // Call the service System.out.println(sender.SendHello()); } } // Hello Sample Client

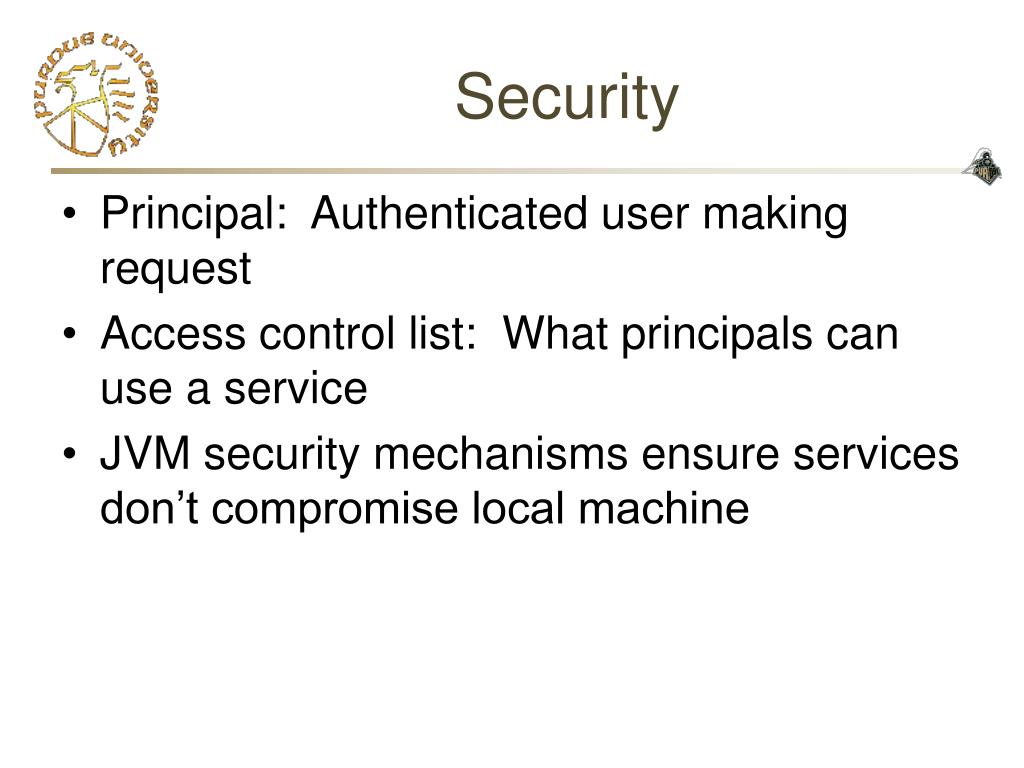

  12. Security • Principal: Authenticated user making request • Access control list: What principals can use a service • JVM security mechanisms ensure services don’t compromise local machine

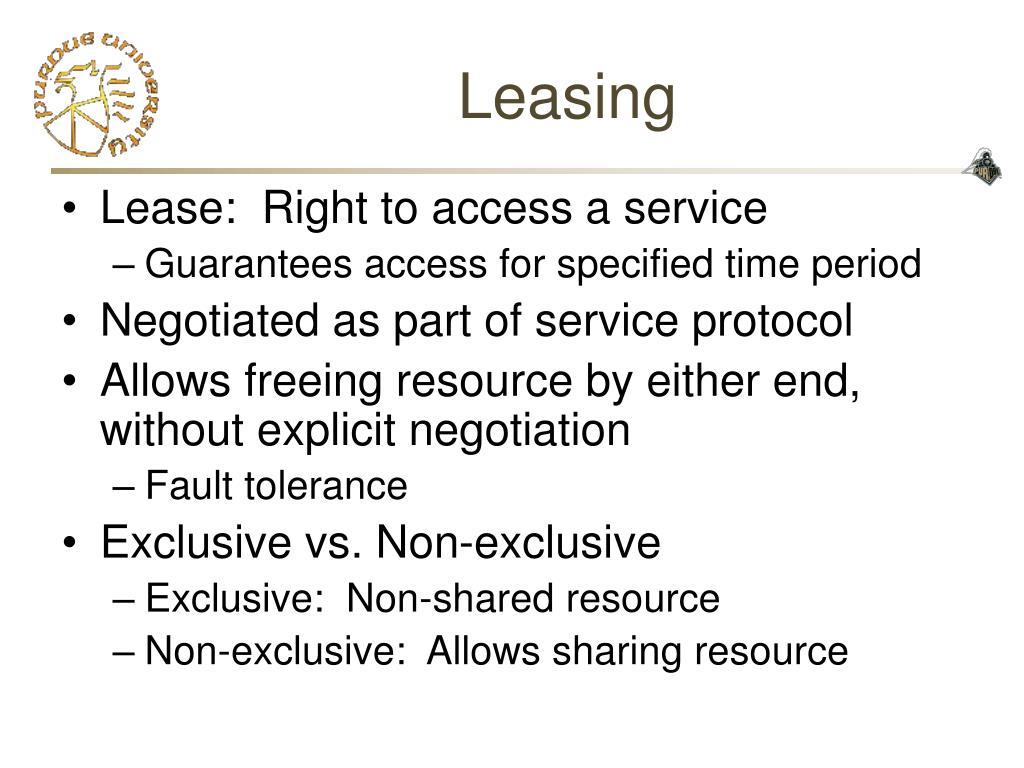

  13. Leasing • Lease: Right to access a service • Guarantees access for specified time period • Negotiated as part of service protocol • Allows freeing resource by either end, without explicit negotiation • Fault tolerance • Exclusive vs. Non-exclusive • Exclusive: Non-shared resource • Non-exclusive: Allows sharing resource

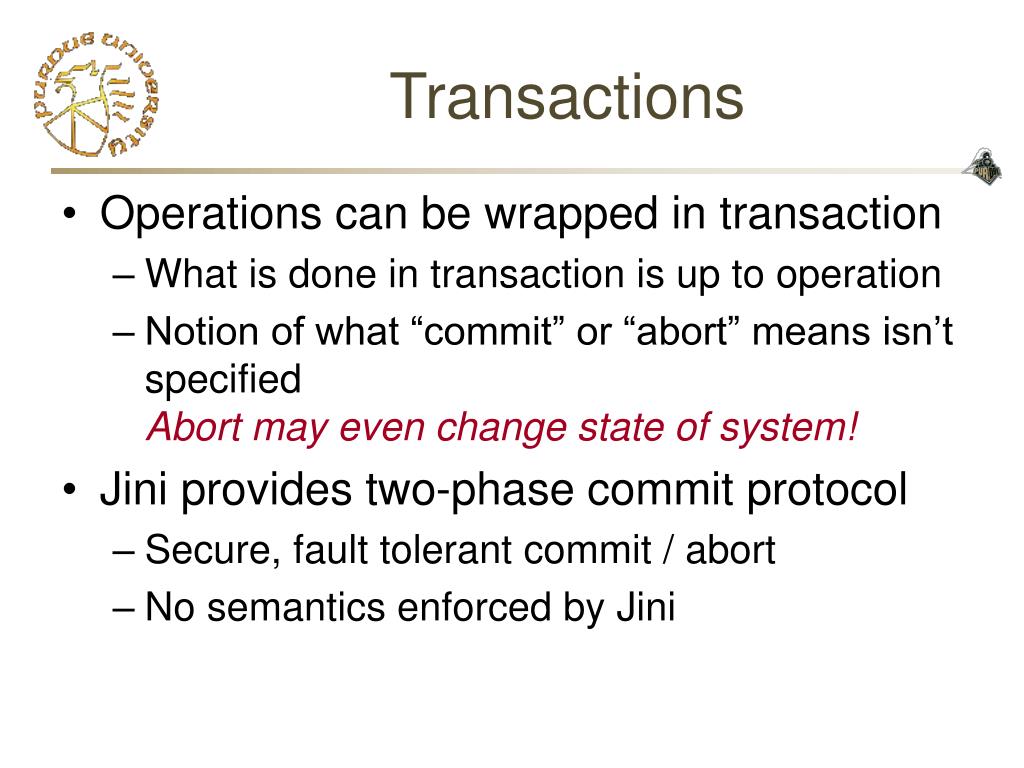

  14. Transactions • Operations can be wrapped in transaction • What is done in transaction is up to operation • Notion of what “commit” or “abort” means isn’t specifiedAbort may even change state of system! • Jini provides two-phase commit protocol • Secure, fault tolerant commit / abort • No semantics enforced by Jini

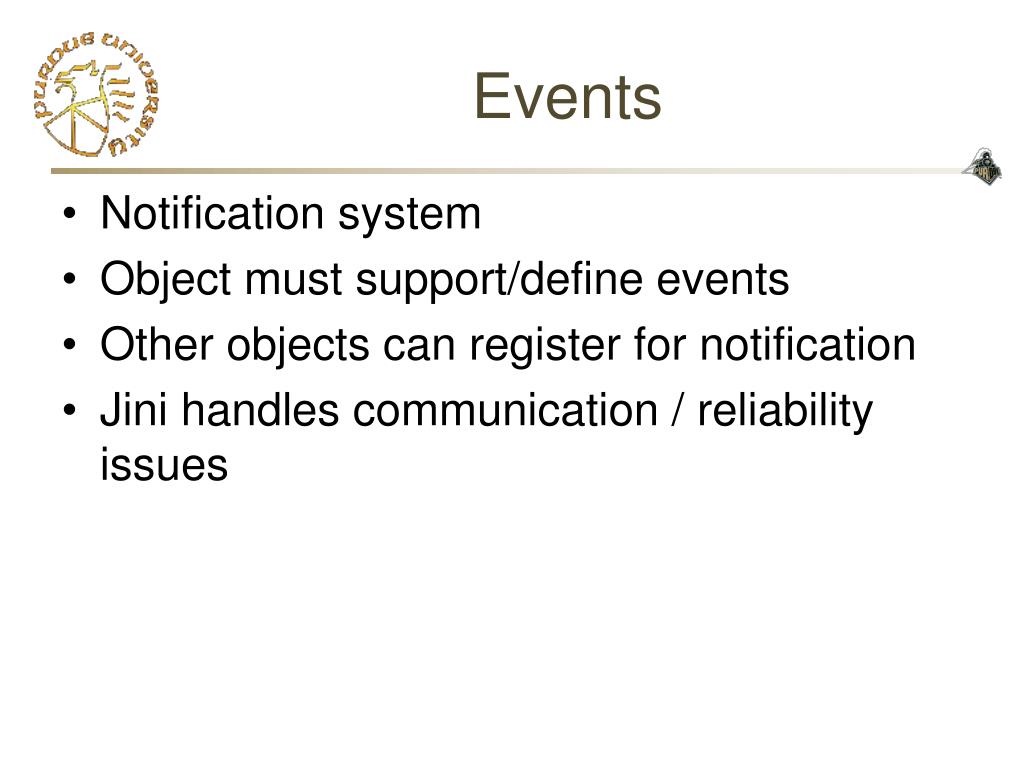

  15. Events • Notification system • Object must support/define events • Other objects can register for notification • Jini handles communication / reliability issues
