slide1

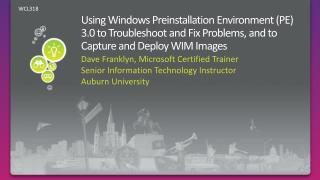

WCL318

Using Windows Preinstallation Environment (PE) 3.0 to Troubleshoot and Fix Problems, and to Capture and Deploy WIM Images

Dave Franklyn, Microsoft Certified Trainer

Senior Information Technology Instructor

Auburn University

introductions
INTRODUCTIONS
  • Presenter
    • MCT, MCSE, MCITP: Enterprise Administrator; Enterprise Messaging Administrator; Enterprise Support Technician; Enterprise Desktop Support Technician 7
    • Senior Trainer, Auburn University, Montgomery Campus
    • E-mail: dfranklyn@aum.edu
    • Website: www.MCTdave.com
session objectives
SESSION OBJECTIVES
  • How to create a fully functioning Windows PE 3.0 ISO with the recovery tools installed and place it on a Universal Serial Bus (USB) Flash Drive (UFD)
  • How to boot to Windows PE, and then use the recovery tools to repair or modify a computer.
  • How to use Windows PE along with imagex to capture and deploy reference images to and from WIM files.
demonstrations
DEMONSTRATIONS
  • Use the Windows Automated Installation Kit (WAIK) to extract the recovery tools and create a Windows PE ISO
  • Create a USB Flash Disk (UFD) version & Use it to recover and repair
  • Using Windows PE to capture an image of a Windows 7 machine and deploy an image to a bare metal machine
introduction to windows pe 3 0
INTRODUCTION TO WINDOWS PE 3.0
  • What Windows PE is:
    • An operating system built to help deploy other operating systems or repair them
    • Also part of Windows 7 Setup vie Recovery Environment
    • Customizable to allow you to apply, deploy, and repair
    • Replaces DOS boot disks
  • What Windows PE is NOT:
    • An operating system you can use for production purposes beyond deployment or repair
    • A client or server operating system
features and usage of windows pe
FEATURES AND USAGE OF WINDOWS PE
  • Can be used in a variety of settings
    • Bootable from CD-ROM, hard drive, or UFD
    • Bootable over network with Preinstallation Execution Environment (PXE)
    • Less than 250MB compressed
    • Boots fast <= 1 minute on contemporary machine
    • Uses RAM disk, very small memory space needs (512MB)
  • Allows access to hard drives
    • Format and manipulate without rebooting
    • Provides temporary storage space to applications
    • Can load drivers, network components and APIs
the recovery environment
THE RECOVERY ENVIRONMENT
  • Windows PE with recovery extensions
  • An image on installation media called WinRE.wim
  • Added to hard drive as recovery partition
  • System Recovery Tools package:
    • SRT package found in the OEM Preinstallation Kit
    • SRT package not found in WAIK!
  • Can be extracted from the installation media
use waik to create custom winpe 3 0
USE WAIK TO CREATE CUSTOM WINPE 3.0
  • Extract & prepare WinRE.wim
    • Copy and mount Install.wim from installation DVD
    • Extract out WinRE.wim, unmount Install.wim
    • Mount WinRE.wim, add additional tools as desired
    • Unmount WinRE.wim
  • Extract an unaltered WinPE, copy prepared WinRE.wim as boot.wim into WinPE
booting from a custom winpe 3 0 ufd with recovery tools
BOOTING FROM A CUSTOM WINPE 3.0 UFD WITH RECOVERY TOOLS
  • Prepare and partition UFD
  • Copy altered WinPE to UFD
  • Boot into recovery environment with UFD
using winpe to perform operating systems migrations
USING WINPE TO PERFORM OPERATING SYSTEMS MIGRATIONS
  • Imagex.exe
  • Boot to capture a master image
  • Boot to deploy an image
slide13

USING WINDOWS PE TO CAPTURE AN IMAGE OF A WINDOWS 7 MACHINE AND DEPLOY AN IMAGE TO A BARE METAL MACHINE

DEMO

related content

Required Slide

Speakers, please list the Breakout Sessions, Interactive Sessions, Labs and Demo Stations that are related to your session.

Related Content
  • Breakout Sessions (WCL309 | Keeping Windows Running Efficiently with the Microsoft Diagnostics and Recovery Toolset)
  • Interactive Sessions (WCL07-INT | Meet the Deployment Guys)
  • Hands-on Labs (WCL03-HOL | Microsoft Diagnostics and Recovery Toolset / WCL05-HOL | Introduction to Deploying Windows 7 Using the Windows Automated Installation Kit
  • Product Demo Stations (TLC-41 | Windows 7 Deployment and Application Management)
what is the springboard series
What is the Springboard Series?

The Springboard Series IT pro experience offers dynamic content

and structured guidance across the adoption lifecycle

  • Inside of Microsoft we are
  • A turnkey IT pro engagement platform for depth and breadth
  • The program to mobilize MS marketing and field to focus on desktop OS IT pros
  • To the IT pro, our goal is
  • Be the definitive resource for Desktop IT pros
    • Open, honest; show don’t tell
    • Information at right time, right level across Adoption Lifecycle

DISCOVER

EXPLORE

PILOT

DEPLOY

MANAGE

How does it change my work?

How do I maintain and optimize?

Is it worth the pain?

Is our environment ready?

Is the organization ready?

Weekly, Monthly and Quarterly Rhythm of Topical Content

Springboard Technical Experts Panel Event Support and Resources

Straight-talk Monthly Feature Articles and Overview Guides

one-Windows TechCenter in 10 languages

TalkingAboutWindows

Video Blogs

Virtual Roundtable Events

Visit the Springboard Series on TechNet at www.microsoft.com/springboard

resources

Required Slide

Resources

Learning

  • Sessions On-Demand & Community
  • Microsoft Certification & Training Resources

www.microsoft.com/teched

www.microsoft.com/learning

  • Resources for IT Professionals
  • Resources for Developers

http://microsoft.com/technet

http://microsoft.com/msdn

slide18

Required Slide

Complete an evaluation on CommNet and enter to win!

slide19

Sign up for Tech·Ed 2011 and save $500 starting June 8 – June 31st

http://northamerica.msteched.com/registration

You can also register at the North America 2011 kiosk located at registrationJoin us in Atlanta next year

slide20
