Presentation Transcript
spotting culprits in epidemics how many and which ones

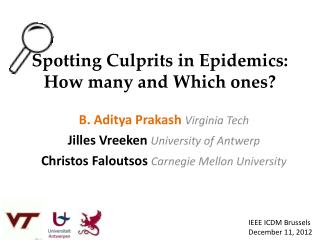

Spotting Culprits in Epidemics: How many and Which ones?

B. Aditya Prakash Virginia Tech

JillesVreekenUniversity of Antwerp

Christos FaloutsosCarnegie Mellon University

IEEE ICDM Brussels

December 11, 2012

contagions
Contagions
  • Social collaboration
  • Information Diffusion
  • Viral Marketing
  • Epidemiology and Public Health
  • Cyber Security
  • Human mobility
  • Games and Virtual Worlds
  • Ecology
  • Localized effects: riots…
virus propagation
Virus Propagation
  • Susceptible-Infected (SI) Model

[AJPH 2007]

β

CDC data: Visualization of the first 35 tuberculosis (TB) patients and their 1039 contacts

Diseases over contact networks

Prakash, Vreeken, Faloutsos 2012

outline
Outline
  • Motivation---Introduction
  • Problem Definition
  • Intuition
  • MDL
  • Experiments
  • Conclusion

Prakash, Vreeken, Faloutsos 2012

culprits problem definition
Culprits: Problem definition

2-d grid

Q: Who started it?

Prakash, Vreeken, Faloutsos 2012

culprits problem definition1
Culprits: Problem definition

2-d grid

Q: Who started it?

Prior work: [Lappas et al. 2010, Shah et al. 2011]

Prakash, Vreeken, Faloutsos 2012

outline1
Outline
  • Motivation---Introduction
  • Problem Definition
  • Intuition
  • MDL
  • Experiments
  • Conclusion

Prakash, Vreeken, Faloutsos 2012

culprits exoneration
Culprits: Exoneration

Prakash, Vreeken, Faloutsos 2012

culprits exoneration1
Culprits: Exoneration

Prakash, Vreeken, Faloutsos 2012

who are the culprits
Who are the culprits
  • Two-part solution
    • use MDL for number of seeds
    • for a given number:
      • exoneration = centrality + penalty
  • Running time =
    • linear! (in edges and nodes)

NetSleuth

Prakash, Vreeken, Faloutsos 2012

outline2
Outline
  • Motivation---Introduction
  • Problem Definition
  • Intuition
  • MDL
    • Construction
    • Opitimization
  • Experiments
  • Conclusion

Prakash, Vreeken, Faloutsos 2012

modeling using mdl

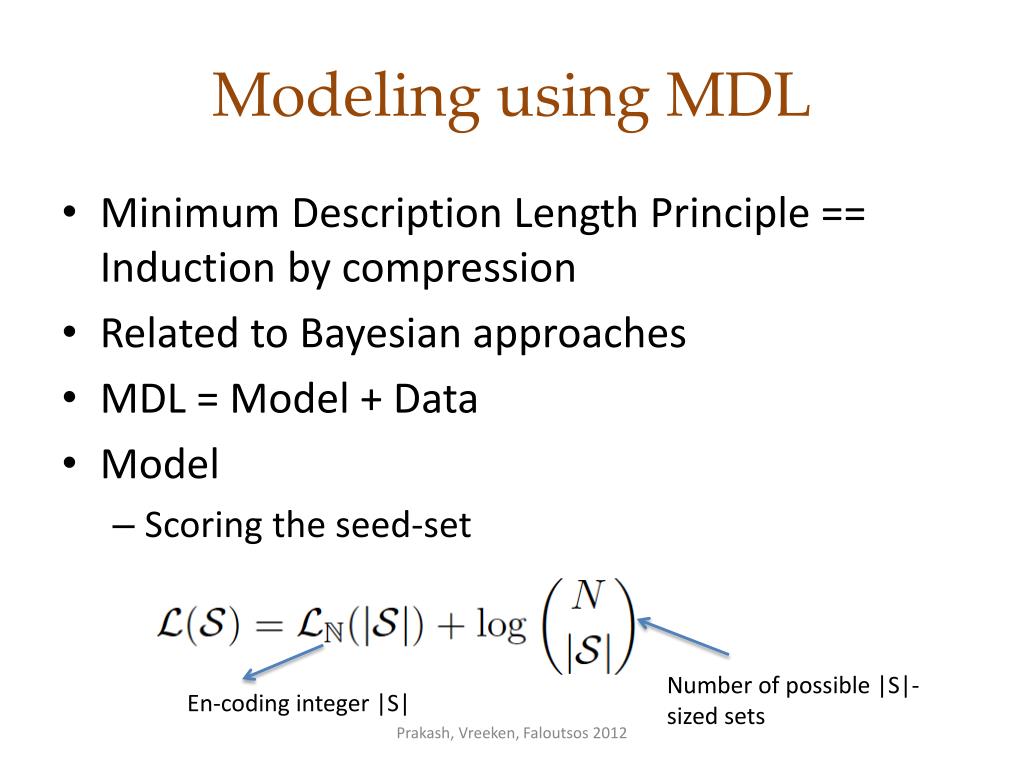

Modeling using MDL
  • Minimum Description Length Principle == Induction by compression
  • Related to Bayesian approaches
  • MDL = Model + Data
  • Model
    • Scoring the seed-set

Number of possible |S|-sized sets

En-coding integer |S|

Prakash, Vreeken, Faloutsos 2012

modeling using mdl1

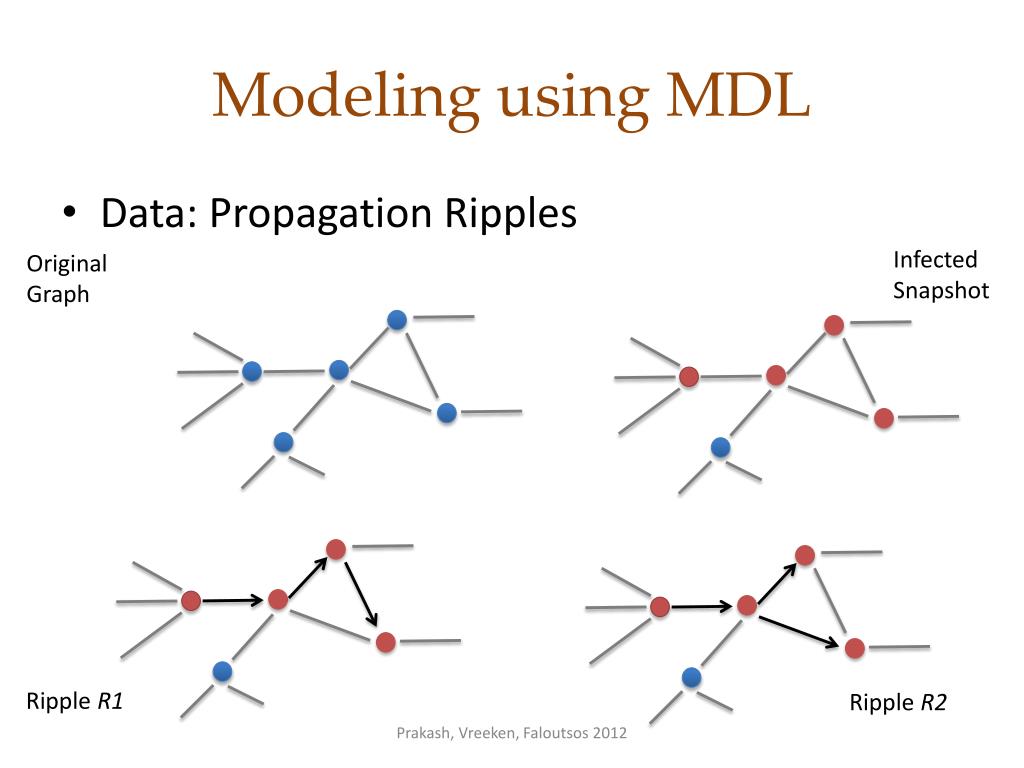

Modeling using MDL
  • Data: Propagation Ripples

Infected Snapshot

Original Graph

Ripple R1

Ripple R2

Prakash, Vreeken, Faloutsos 2012

modeling using mdl2
Modeling using MDL
  • Ripple cost
  • Total MDL cost

Ripple R

How the ‘frontier’ advances

How long is the ripple

Prakash, Vreeken, Faloutsos 2012

outline3
Outline
  • Motivation---Introduction
  • Problem Definition
  • Intuition
  • MDL
    • Construction
    • Opitimization
  • Experiments
  • Conclusion

Prakash, Vreeken, Faloutsos 2012

how to optimize the score
How to optimize the score?
  • Two-step process
    • Given k, quickly identify high-quality set
    • Given these nodes, optimize the ripple R

Prakash, Vreeken, Faloutsos 2012

optimizing the score
Optimizing the score
  • High-quality k-seed-set
    • Exoneration
  • Best single seed:
    • Smallest eigenvector of Laplaciansub-matrix
    • Analyze a Constrained SI epidemic
  • Exonerate neighbors
  • Repeat

Prakash, Vreeken, Faloutsos 2012

optimizing the score1
Optimizing the score
  • Optimizing R
    • Get the MLE ripple!
  • Finally use MDL score to tell us the best set
  • NetSleuth: Linear running time in nodes and edges

Ripple R

Prakash, Vreeken, Faloutsos 2012

outline4
Outline
  • Motivation---Introduction
  • Problem Definition
  • Intuition
  • MDL
  • Experiments
  • Conclusion

Prakash, Vreeken, Faloutsos 2012

experiments
Experiments
  • Evaluation functions:
    • MDL based
    • Overlap based

(JD == Jaccard distance)

How far are they?

Closer to 1 the better

Prakash, Vreeken, Faloutsos 2012

experiments of seeds
Experiments: # of Seeds

One Seed

Two Seeds

Three Seeds

experiments quality mdl and jd
Experiments: Quality (MDL and JD)

One Seed

Two Seeds

Ideal = 1

Three Seeds

Prakash, Vreeken, Faloutsos 2012

experiments quality jaccard scores
Experiments: Quality (Jaccard Scores)

One Seed

Two Seeds

NetSleuth

Closer to diagonal, the better

True

Three Seeds

Prakash, Vreeken, Faloutsos 2012

experiments scalability
Experiments: Scalability

Prakash, Vreeken, Faloutsos 2012

outline5
Outline
  • Motivation---Introduction
  • Problem Definition
  • Intuition
  • MDL
  • Experiments
  • Conclusion

Prakash, Vreeken, Faloutsos 2012

conclusion
Conclusion
  • Given:Graph and Infections
  • Find: Best ‘Culprits’
  • Two-part solution
    • use MDL for number of seeds
    • for a given number:

exoneration = centrality + penalty

  • NetSleuth:
    • Linear running time

in nodes and edges

Prakash, Vreeken, Faloutsos 2012

any questions
Any Questions?

B. AdityaPrakash

http://www.cs.vt.edu/~badityap

Prakash, Vreeken, Faloutsos 2012
