voice transmission in an ieee 802 11 wlan based access network

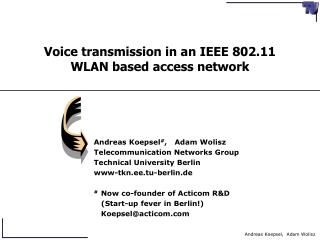

Voice transmission in an IEEE 802.11 WLAN based access network

Andreas Koepsel#, Adam Wolisz

Telecommunication Networks Group

Technical University Berlin

www-tkn.ee.tu-berlin.de

# Now co-founder of Acticom R&D

(Start-up fever in Berlin!)

Koepsel@acticom.com

motivation
Several wireless technologies are competing for wireless access in local environments

DECT, GSM

Hiperlan/2

Bluetooth

IEEE 802.11

Usage of a single technology for voice and data avoids expensive parallel infrastructures

Suitability of IEEE802.11 WLAN for parallel use for data and voice streams

Distributed vs. Centralized coordination schemes

Motivation
architectural scenario
IEEE 802.11 WLAN cells used as last hop within wired local area networks, both for Data and voice

All mobile nodes (MN) create best-effort traffic

A subset of the wireless terminals generates voice calls to destinations outside of the local environment

Architectural Scenario
audio source modeling and qos requirements
G.711 (PCM) /G 723.1 codecsIntegrated silence detection => 2-state Markovian chain simulating ON-OFF-sequences with exponential distributed periods

QoS requirements

maximum end-2-end delay limitations of ~250-300ms

Maximum loss rate rate (dependent on coding).

Queueing and Dropping:

An audio packet that exceeds its maximum lifetime is dropped hence reducing the overall offered load

The lifetime varies for different audioconnections (different destinations)

Audio source modeling and QoS requirements
best effort physical layer
Best effort traffic

Packet interarrival times from Pareto distribution

Packet length distribution from packet trace (Harvard university)

Packet length maximum 1500bytes

Transmission systems

IEEE 802.11b DSSS system with up to 11Mbit/s

IEEE 802.11a OFDM system with 24Mbit/s mandatory and up to 54Mbit/s optional

Gilbert-Elliott- based channel error model independent channels among every pair of mobiles

Best Effort / Physical Layer
audio transmission with dcf delay 1
Data Traffic – 12 Nodes, Voice Traffic:4VoIP flows, 6Mbit/s

Link speeds:2, 11, 24 and 54Mbit/s

Bit error rates from 10-7 up to 10-3

Audio transmission with DCF – Delay(1)
  • A minimum transmission link speed of 11Mbit/s is required,
  • further increase of link speed very advantegous...
increasing the link speed just the solution
Increasing the link speed- just the solution?
  • Fixed length PHY PDU header sent with a reduced basic rate (1Mbit/s for DSSS, 6Mbit/s for OFDM), fixed interframe spaces
  • Link speed enhanced by factor 5 11Mbps  54Mbps
  • Improvement seen by application ( 2,2) 45%|11Mbps  20%|54Mbps
audio transmission with dcf 3
Audio transmission with DCF (3)
  • R-time traffic is mixed up with best-effort packets, why not separate?
  • The mean channel access delay decreases significantly without the need of a high complexity!
  • Mean channel access delay drops at 11Mbps from 90ms to 50ms at BER 10-4

Single queue

Two queues

audio transmission with pcf
Audio transmission with PCF
  • The superframe interval is chosen according to the used audio codec ( eg. with G.723.1, 5.3kbps, frame interval 30ms)
  • PCF offers significantly lower channel access times
  • ... and an improved probability density function (see next slide)
  • ... but reduces the overall throughput for best-effort traffic
slide12

Probability density function of Channel Access Delay at 11Mbps PCF

Probability density function of Channel Access Delay at 11Mbps - DCF

additional improvement
Due to existence of talkspurts the application will have brakes in sending...lost cycles.

An idea: Why not remove the station from the polling cycle if there are no data, and introduce it again after a first packet has been tranmitted in DCF?

But: there might be losses of the polling frame...

RTP fileds SSRF id (for flow identification) and the MORE flag migh be used to decide about the continuation of the flow.

Additional Improvement
slide14

Avoiding unneccesary polling attempts caused by talkspurts

  • Implicit signalling by a simple MORE flag when further audio packets will be available

conclusion
A simple separation of the transmission queues within DCF decreases the channel access times significantly.

DCF wastes capacity when used with improved coding schemes (higher bit rates!).

PCF provides lower delay and lower delay variance to audio flows as compared to DCF.

The PCF overhead plays a less significant role for higher data rates.

PCF performance might be further improved by introducing a flow aware scheduling policy.

Conclusion
further research
Introduction of true elastic load for best effort traffic.

More insight in different load scenarios (best effort vs. RT, number of active stations)

Differentiation of packet importance for improved scheduling ... Papers in ACM MM2001 ans SPIE Denver, August 2001

Further Research...
example voice source
Example: Voice source
  • Time aspect
    • G.711  PCM 64kbps source
    • G.723.1  5.3 and 6.4kbps speech codecs
    • audio flow (in time) can be fairly well simulated by a two state Markov chain with geometric distributions (talk-spurts)
    • states TALK and SILENCE with means TALK =1.35 msandSILENCE =1.15 ms
  • Importance of packets...
    • not identical!
    • position of the lost packet influences essentially the quality
    • „Voiced“ frames: important, decoder needs more time to synchronize after loss....
    • Loss of a „voiced“ frame at the border „unvoiced“-“voiced“ even worse.
    • How does it work for wired Internet
qos interactive audio
QoS – Interactive Audio

Classical wisdom

  • Audio connections need a strictly limited delay/delay variation. Overdue packets contribute to loss rate...
  • Audio quality decreases significantly if the number of packet losses exceeds some level (n %)

Priority in preserving packets

  • SPB: Speech property based prioritization
  • ALT: just alternating high/low prioritization
  • FEC: additional FEC protection
speech quality wired internet
Speech quality - wired internet

0

excellent

FULL MARK

SPB-FEC

SPB-DIFFMARK

good

EMBSD Perceptual Distortion

NO MARK

ALT-DIFFMARK

fair

5

0.05

0.25

drop probability p0
