Look At The Major Types Of The Track Rollers Bearings

Even though plenty of types of track rollers are accessible in the ground, the following section mentions much about the stud type and Yoke Type Track Rollers.

needlerollerbearing
Download Presentation

Look At The Major Types Of The Track Rollers Bearings

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

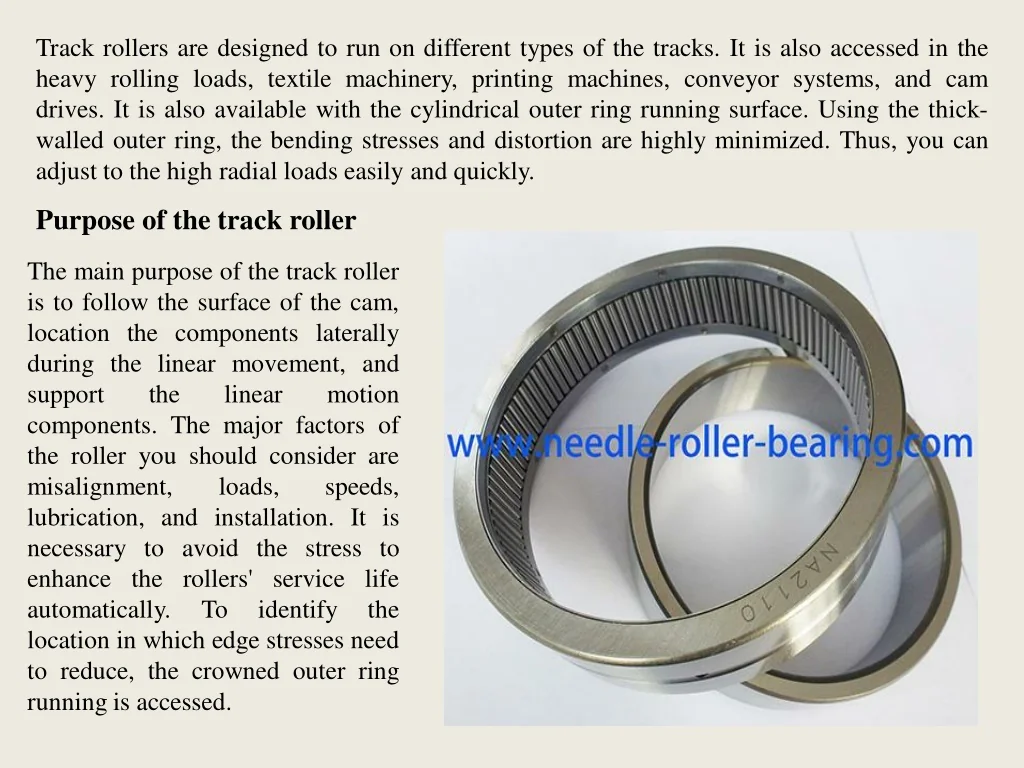

  1. Track rollers are designed to run on different types of the tracks. It is also accessed in the heavy rolling loads, textile machinery, printing machines, conveyor systems, and cam drives. It is also available with the cylindrical outer ring running surface. Using the thick- walled outer ring, the bending stresses and distortion are highly minimized. Thus, you can adjust to the high radial loads easily and quickly. Purpose of the track roller The main purpose of the track roller is to follow the surface of the cam, location the components laterally during the linear movement, and support the components. The major factors of the roller you should consider are misalignment, lubrication, and installation. It is necessary to avoid the stress to enhance the rollers' service life automatically. To location in which edge stresses need to reduce, the crowned outer ring running is accessed. linear motion loads, speeds, identify the

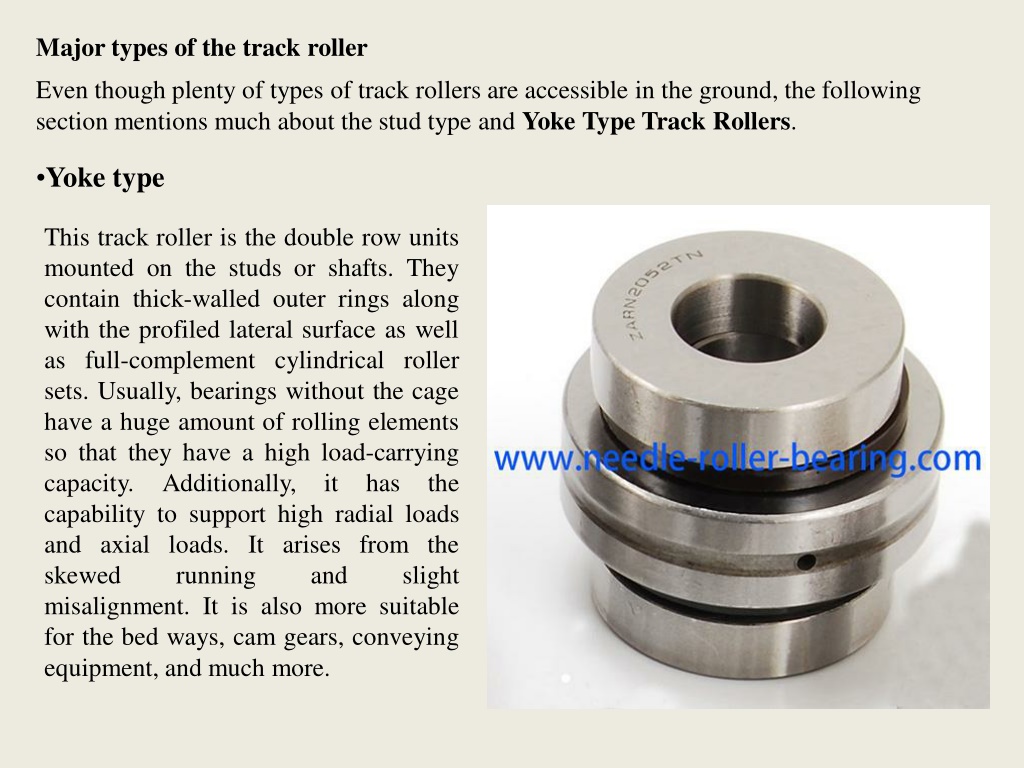

  2. Major types of the track roller Even though plenty of types of track rollers are accessible in the ground, the following section mentions much about the stud type and Yoke Type Track Rollers. •Yoke type This track roller is the double row units mounted on the studs or shafts. They contain thick-walled outer rings along with the profiled lateral surface as well as full-complement cylindrical roller sets. Usually, bearings without the cage have a huge amount of rolling elements so that they have a high load-carrying capacity. Additionally, capability to support high radial loads and axial loads. It arises from the skewed running misalignment. It is also more suitable for the bed ways, cam gears, conveying equipment, and much more. it has the and slight

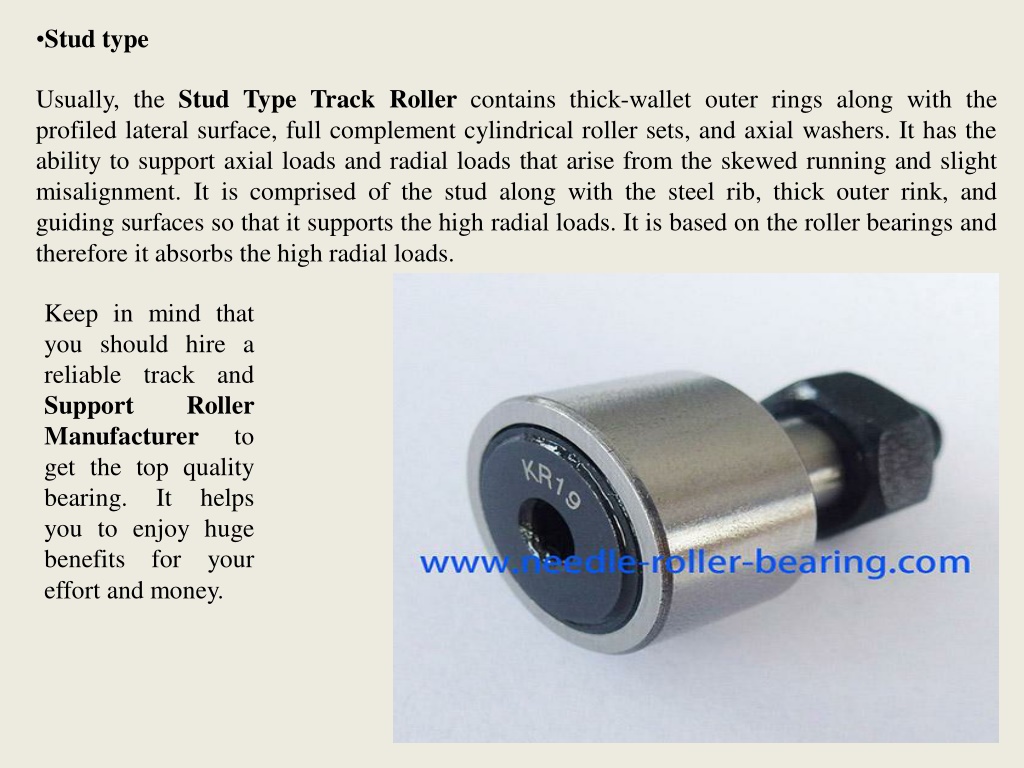

  3. •Stud type Usually, the Stud Type Track Roller contains thick-wallet outer rings along with the profiled lateral surface, full complement cylindrical roller sets, and axial washers. It has the ability to support axial loads and radial loads that arise from the skewed running and slight misalignment. It is comprised of the stud along with the steel rib, thick outer rink, and guiding surfaces so that it supports the high radial loads. It is based on the roller bearings and therefore it absorbs the high radial loads. Keep in mind that you should hire a reliable track and Support Manufacturer get the top quality bearing. you to enjoy huge benefits effort and money. Roller to It helps for your

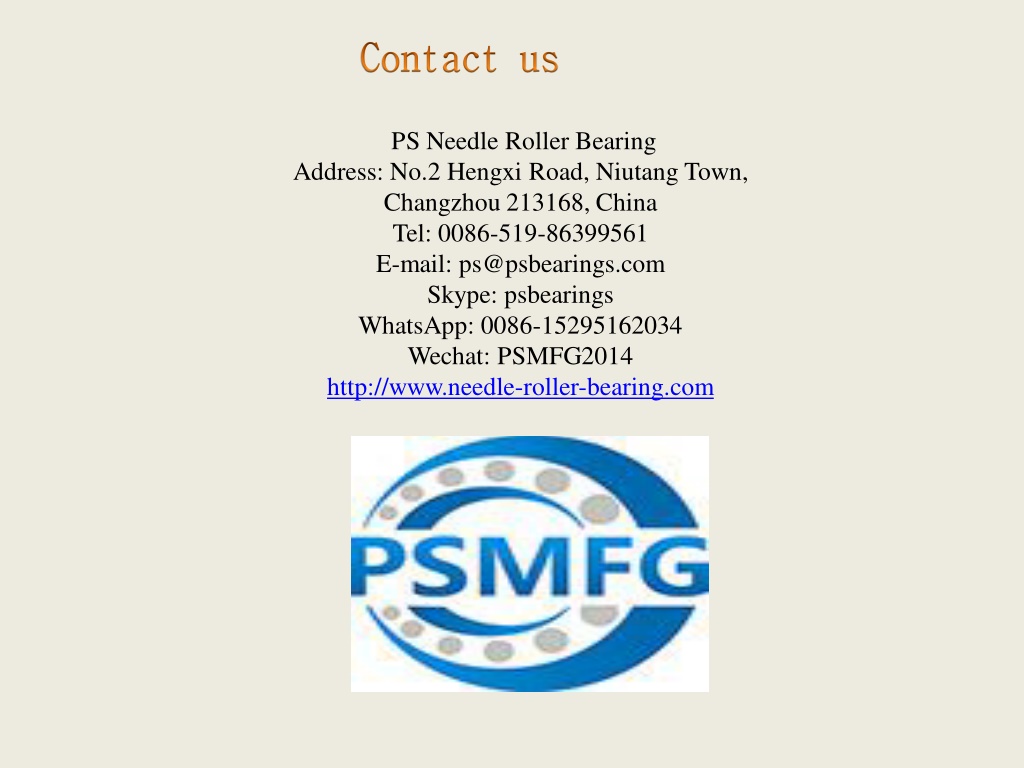

  4. PS Needle Roller Bearing Address: No.2 Hengxi Road, Niutang Town, Changzhou 213168, China Tel: 0086-519-86399561 E-mail: ps@psbearings.com Skype: psbearings WhatsApp: 0086-15295162034 Wechat: PSMFG2014 http://www.needle-roller-bearing.com
