  1. MK285 Mod0 PPHE/SDProgrammable Prefragmented High Explosive Ammunition 50th Annual Joint Services Small Arms Jarl Eirik Straume Las Vegas, NV, May 11, 2004 Program Manager

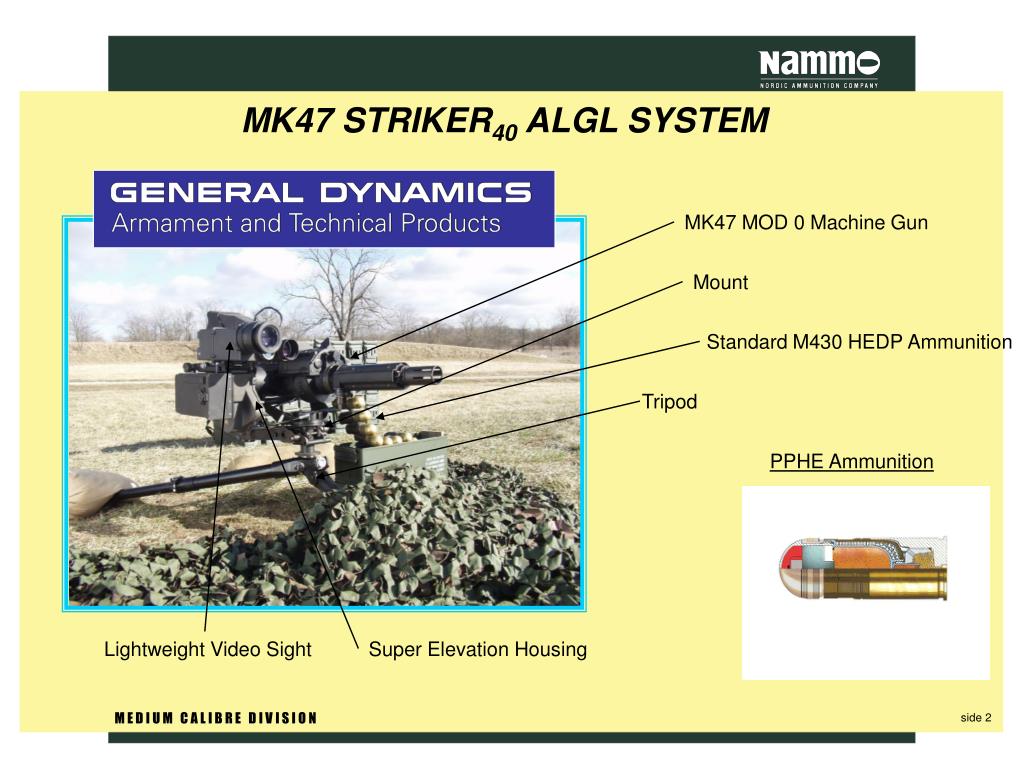

  2. MK47 STRIKER40 ALGL SYSTEM MK47 MOD 0 Machine Gun Mount Standard M430 HEDP Ammunition Tripod PPHE Ammunition Lightweight Video Sight Super Elevation Housing

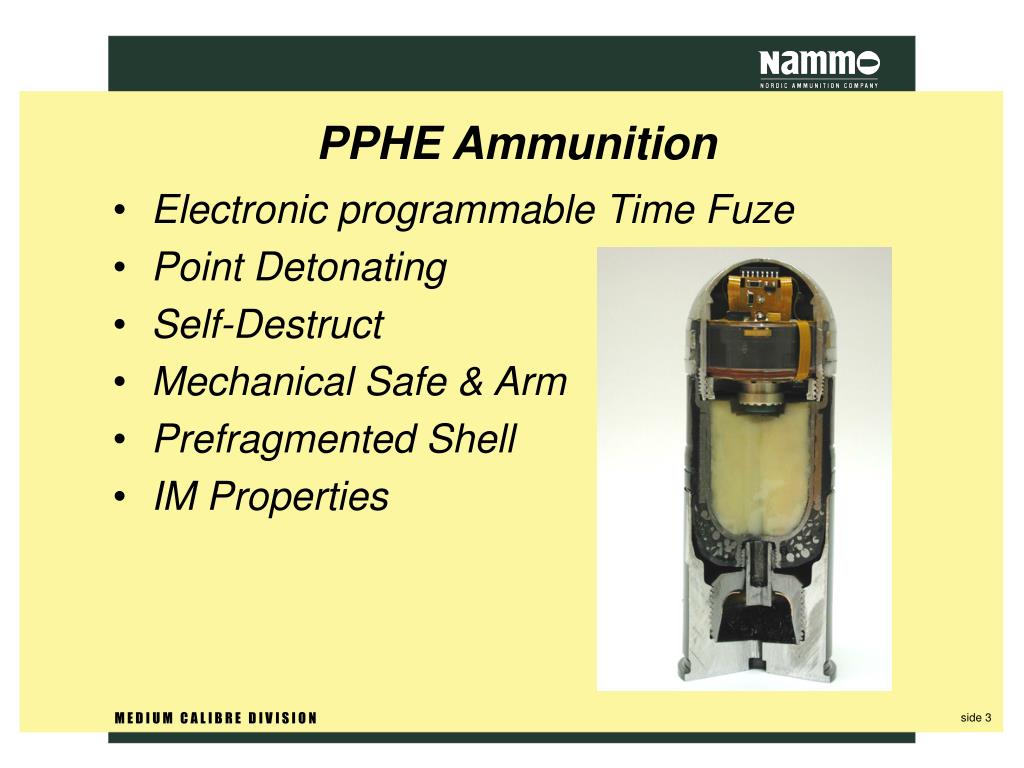

  3. PPHE Ammunition • Electronic programmable Time Fuze • Point Detonating • Self-Destruct • Mechanical Safe & Arm • Prefragmented Shell • IM Properties

  4. Programming Principle The electronic time fuze is initially power supplied through galvanic contact by the fire control when the round is chambered. A capacitor is charged and will supply the fuze until the battery is activated by the accelleration. The programming takes place when the trigger is pushed and the signal is transferred during hammer fall time.

  5. Other Applications • This Air-Burst technology is transferable to applications like: • Low Velocity • Nammo study • EGLM (replace M203) • Medium Velocity • Nammo study • SSW for FMV

  6. MK285 PPHE Live Firings

  7. MK285 PPHE Live Firing

  8. Fragmentation of PPHE Results from Static Arena Test LOF Distance from detonating point: 3 m 5 m 7,5 m 10 m 35 30 25 20 15 10 5 0 0-10 10-20 20-30 30-40 40-50 50-60 60-70 70-80 80-90 90-100 100-110 110-120 120-130 130-140 140-150 150-160 160-170 170-180 Sector (degrees)

  9. Integration Test MK47 and MK285

  10. PPHE-T/SD Round, Highly effective in Urban Combat Takes out Targets in Defilade

  11. Final Comments • Main customers US SOCOM Future Nordic ALGL Program • US SOCOM Qualification Program ongoing • Serial production starts fall of –04 • Low/Medium VelocityApplications • The Nammo PP-HE round is especially designed to take out targets in defilade!
