redler chain and components

Redler Chain and Components

‘A guide to Redler Chain’Matt Knight 05/01/05

slide2

Redler Chain and Components

  • 3000 series Links
  • 3000 GB series Links
  • 5000 series Links
  • Variations to Links Available
  • Types of Flights
  • Flight Variations
  • Configuration
  • Pins & Circlips
  • Manganese & Runners
  • Sprockets and Trailing Wheels
  • Competition
  • Why Buy Redler
  • Enquiry Information Needed
slide3

3000 Series LinksFlat bottomed profile – Marked Redler Used in Most Redler Conveyors5 sizes(Different pitches, measured by hole center)

Note: Stainless Steel Links and other sizes can be sourced* The Redler 3003 Have a Bulge on the male end so that same Sprocket flanges as 3002 can be used.

slide4

3000 GB Series LinksFlat bottomed profile - Marked GBUsed by Braime and Non Redler OEM’s5 sizes(Different pitches, measured by hole center)

Note: Stainless Steel Links and other sizes can be sourced

slide5

5000 Series Links‘V’ bottomed profile – Marked Redler Used in Some Redler and all competitors Conveyors3 sizes(Different pitches, measured by hole center)

Note: Stainless Steel Links and other sizes can be sourced

slide6

Variations to Links

  • Through hardening – Maximum Tensile Strength
  • Anti wear bushes –Split Type – Anti Wear Solid Stainless – Anti Corrosion (Used in conjunction with FHM Pins)
  • Keyways Link Keywayed in Male end to force articulation in bushed female end.
  • Significant cost implications are involvedwith bushed links

Link with keyway

Pin with locking pin

Hardened Bush

slide9

Flight Configurations

  • Chain Configuration
  • Links are assembled in a configuration to match individual applications.
  • This configuration can include scavenger, cleaning or pad flights as required.
  • Within a complete chain, flighted links are usually supplied at every single, second or third pitch. See sketch showing typical arrangement of a ‘T’ type chain. Alternative configurations available.
  • Chain is usually supplied pre-assembled into 3-metre lengths complete with connecting pins.
  • All assembled chains supplied with appropriate protective coating.
slide10

Pins and Circlips

Circlips are available as Mild Steel (standard) or Cromweld 3Cr12 (Corrosion resistant steel)

slide11

Manganese & Runners

Basic Info

- Used with flat bottomed Links

- Used with flat bottomed Links

- Used with V bottomed Links

MC Range – Runs On Mild Steel Flat Runners

slide12

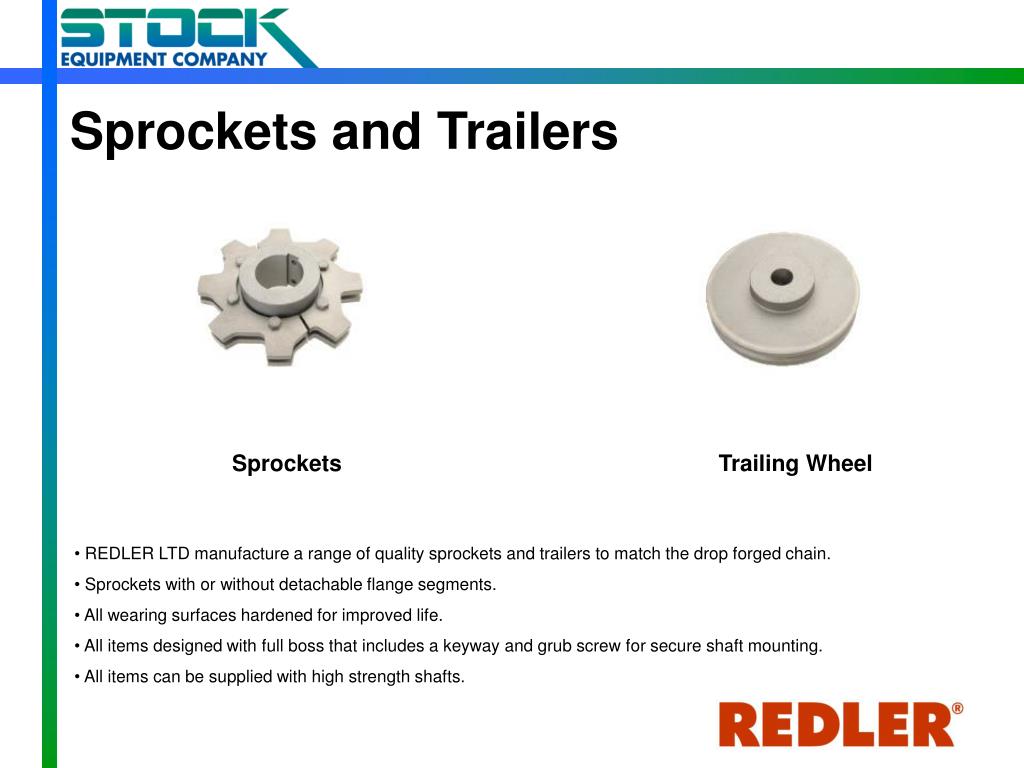

Sprockets and Trailers

Sprockets

Trailing Wheel

  • REDLER LTD manufacture a range of quality sprockets and trailers to match the drop forged chain.
  • Sprockets with or without detachable flange segments.
  • All wearing surfaces hardened for improved life.
  • All items designed with full boss that includes a keyway and grub screw for secure shaft mounting.
  • All items can be supplied with high strength shafts.
slide13

Why Buy Redler ?

  • Drop forged from alloy steel
  • Precision machined
  • Case hardened to RC57 min
  • High tensile strength
  • Consistent dimensional accuracy
  • Manufactured to stringent quality procedures ISO 9001:2000
slide14

Enquiry Information Needed:

  • If Redler:
  • M/C number & Qty needed
  • Assembled/Not AssembledIf Non-Redler:
  • Pitch
  • Quantity
  • Type & Dimension of Flight
  • Configuration T1/T2/T3
  • Flight additions (Scavs etc)
  • Material to be handled
  • Sketch
  • Assembled/Not Assembled
  • Finish required
