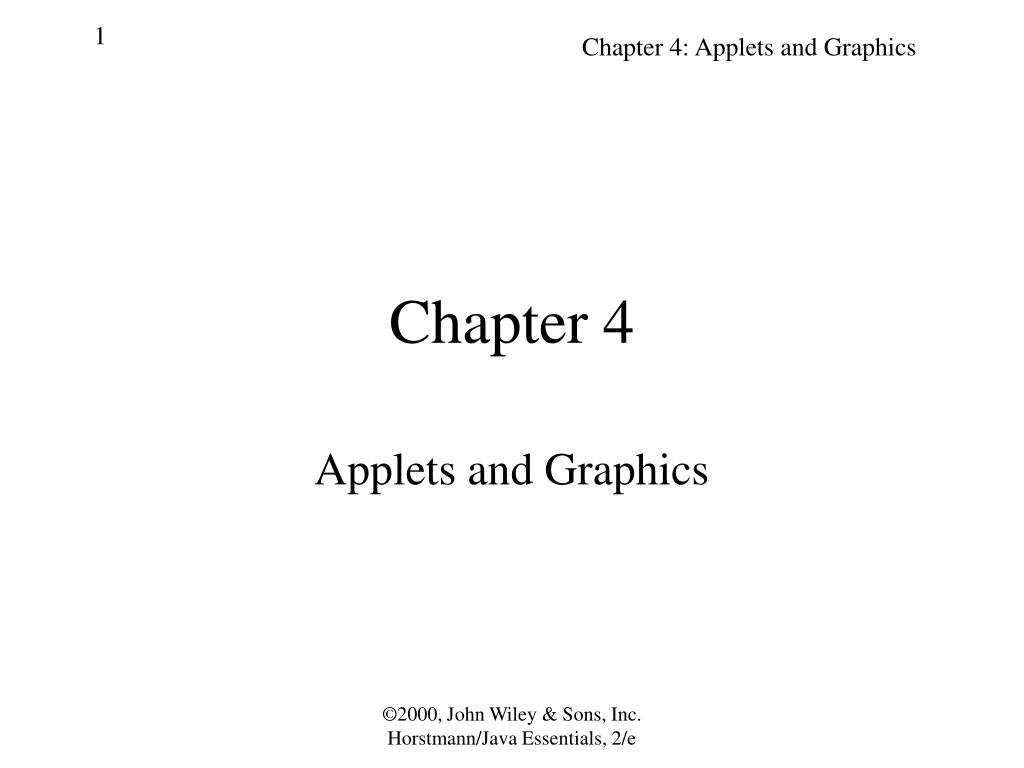

  1. Chapter 4 Applets and Graphics

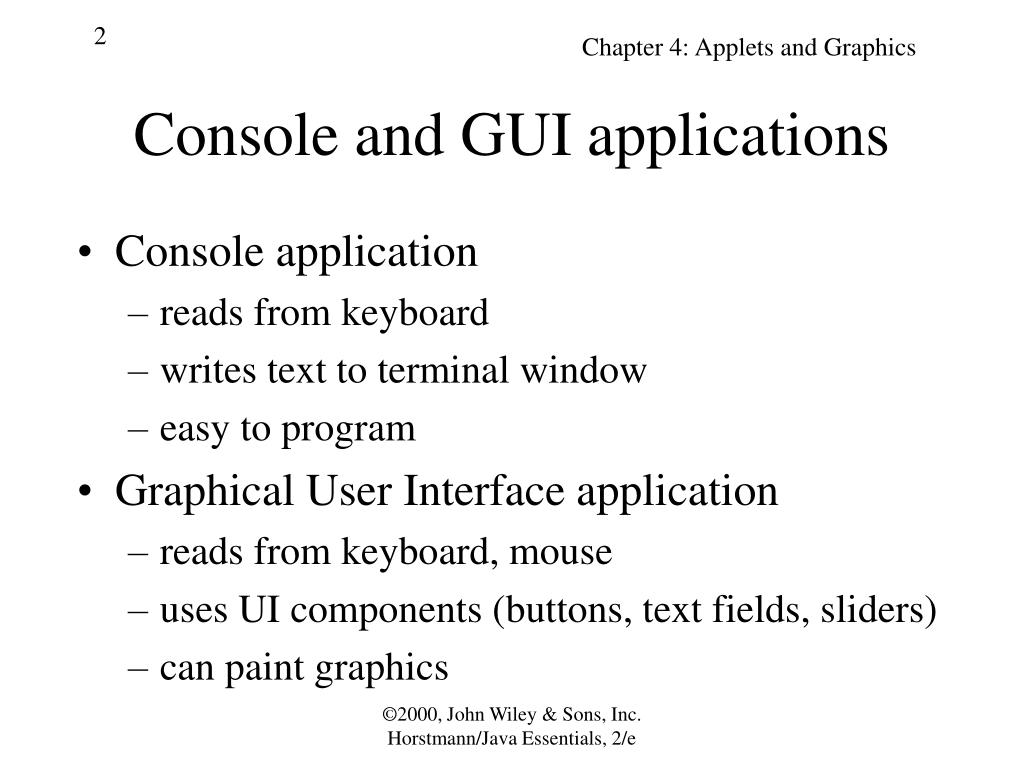

  2. Console and GUI applications • Console application • reads from keyboard • writes text to terminal window • easy to program • Graphical User Interface application • reads from keyboard, mouse • uses UI components (buttons, text fields, sliders) • can paint graphics

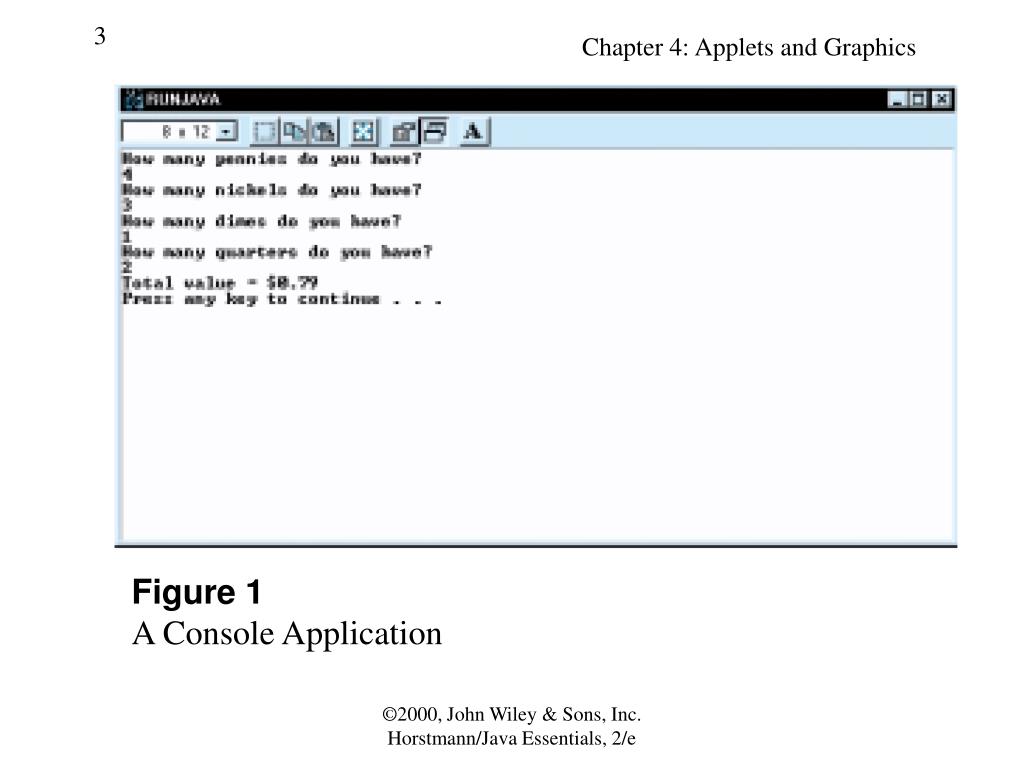

  3. Figure 1 A Console Application

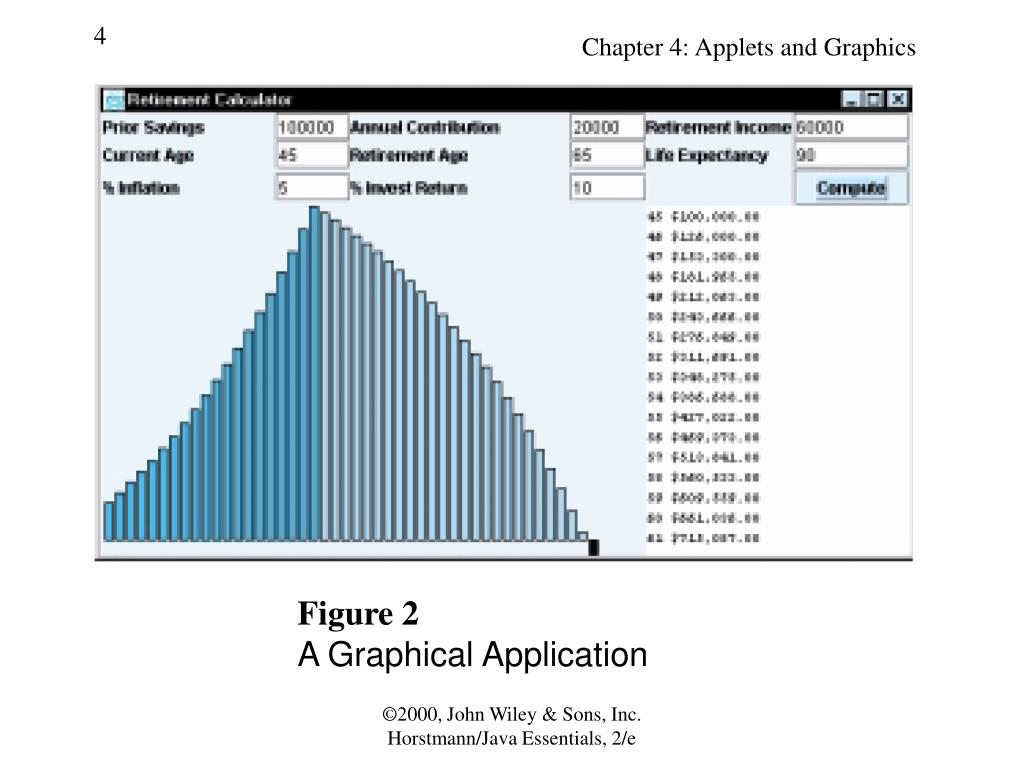

  4. Figure 2 A Graphical Application

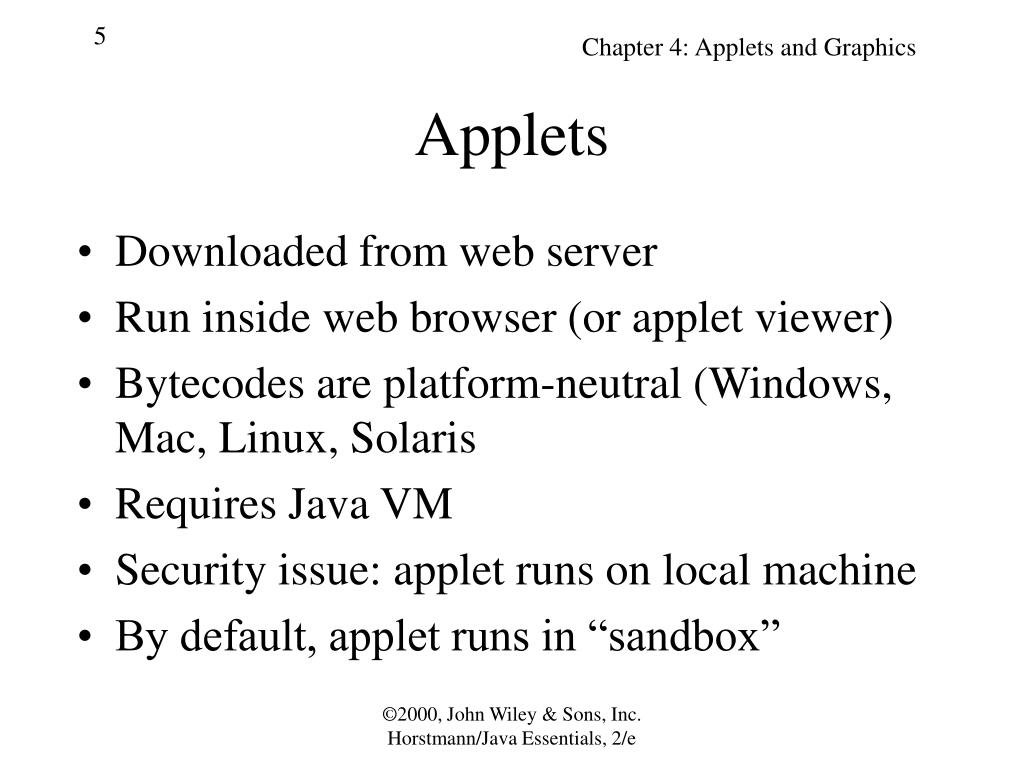

  5. Applets • Downloaded from web server • Run inside web browser (or applet viewer) • Bytecodes are platform-neutral (Windows, Mac, Linux, Solaris • Requires Java VM • Security issue: applet runs on local machine • By default, applet runs in “sandbox”

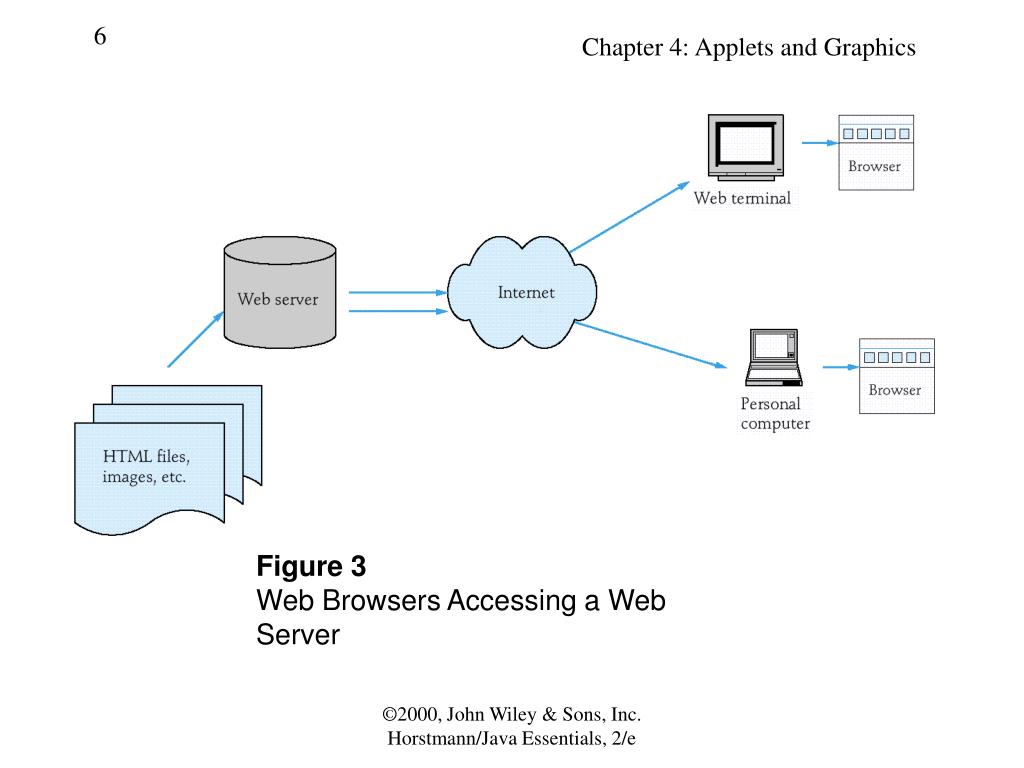

  6. Figure 3 Web Browsers Accessing a Web Server

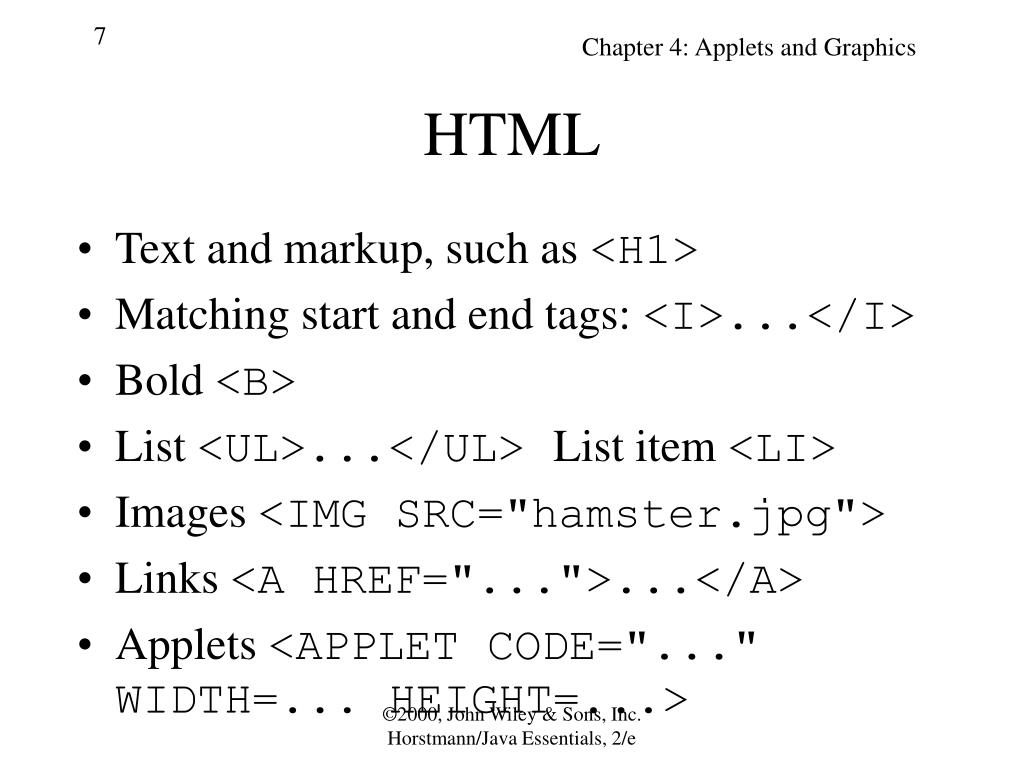

  7. HTML • Text and markup, such as <H1> • Matching start and end tags: <I>...</I> • Bold <B> • List <UL>...</UL> List item <LI> • Images <IMG SRC="hamster.jpg"> • Links <A HREF="...">...</A> • Applets <APPLET CODE="..." WIDTH=... HEIGHT=...>

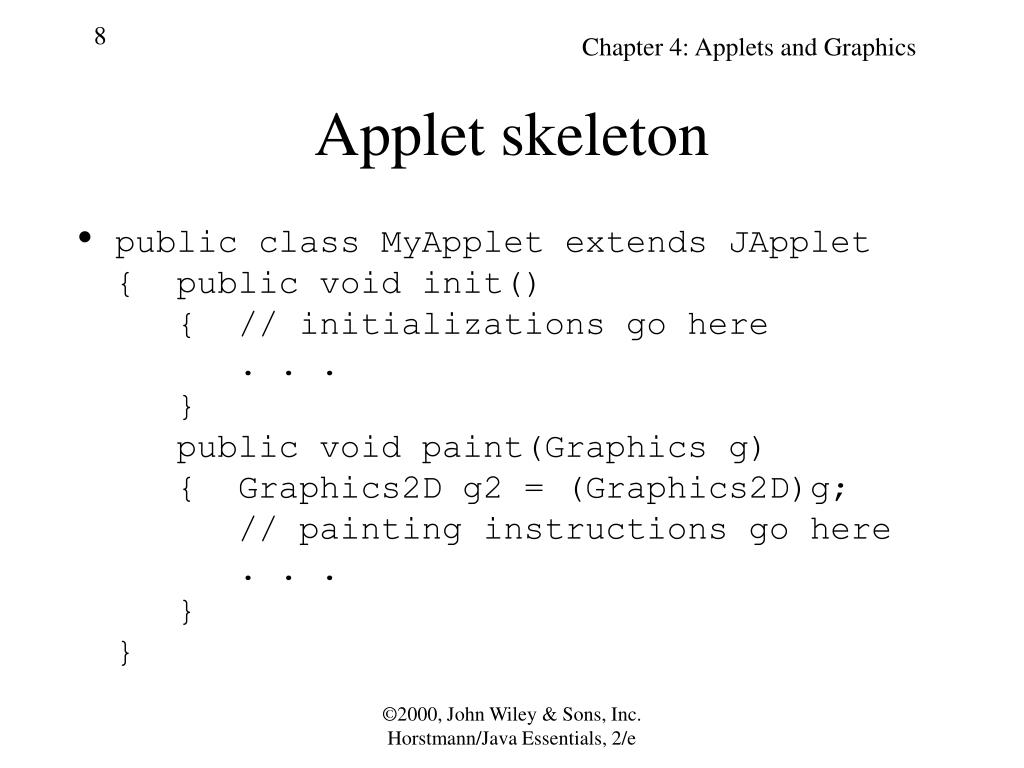

  8. Applet skeleton • public class MyApplet extends JApplet{ public void init() { // initializations go here . . . } public void paint(Graphics g) { Graphics2D g2 = (Graphics2D)g; // painting instructions go here . . . }}

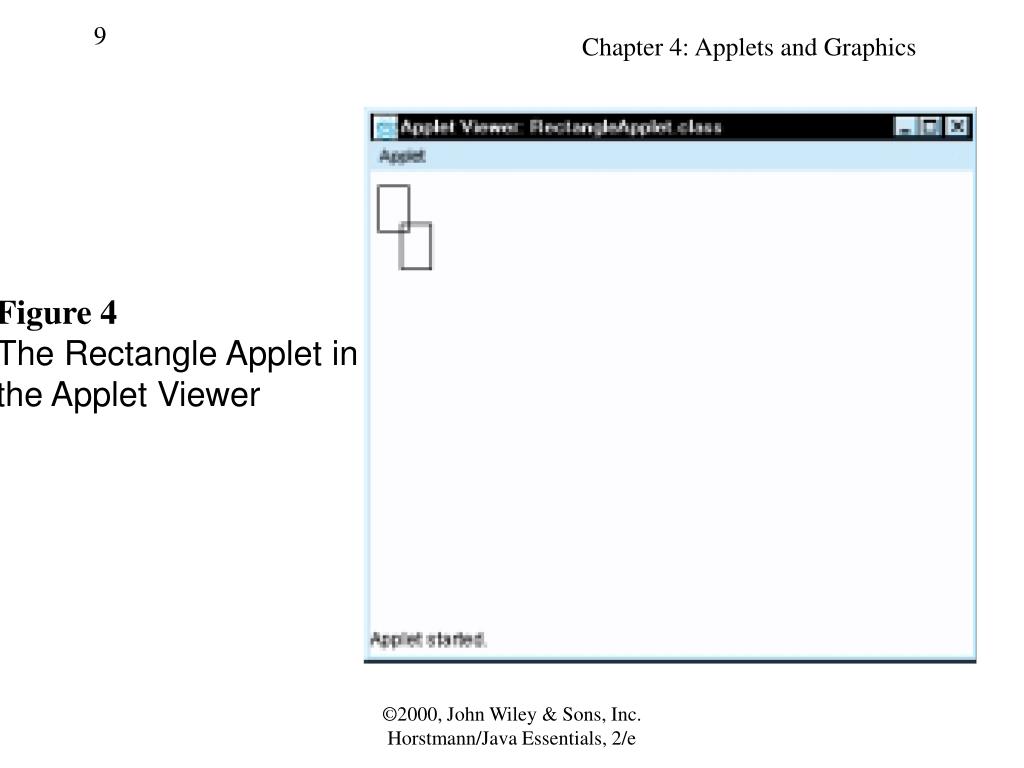

  9. Figure 4 The Rectangle Applet in the Applet Viewer

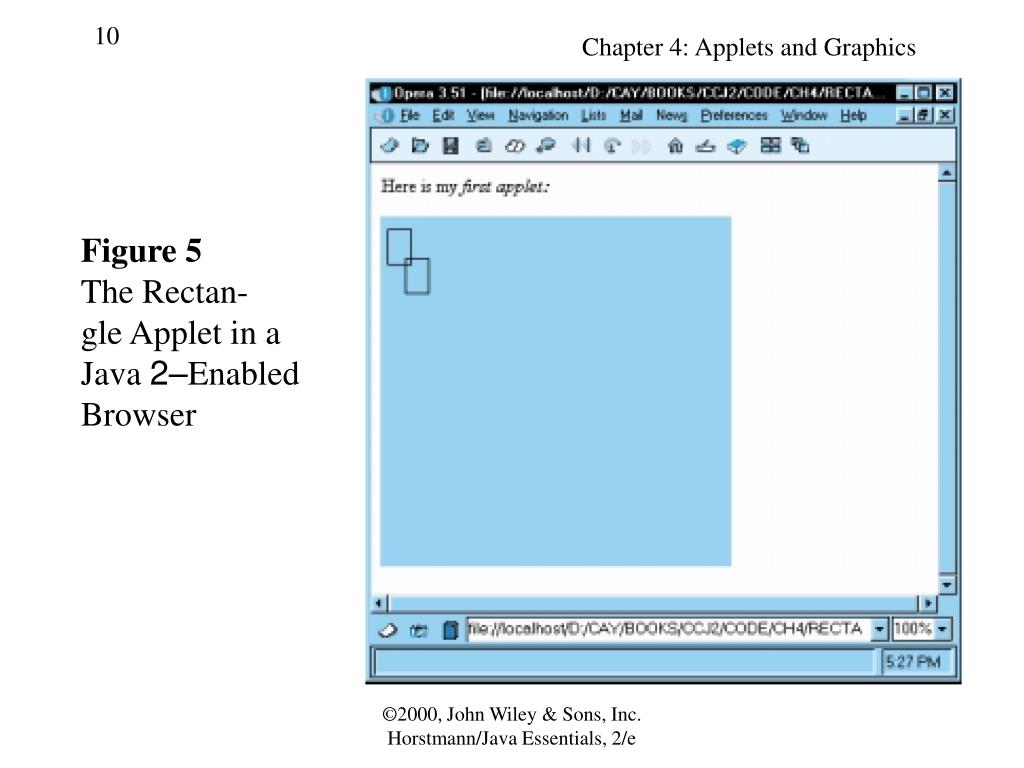

  10. Figure 5 The Rectan- gle Applet in a Java 2–Enabled Browser

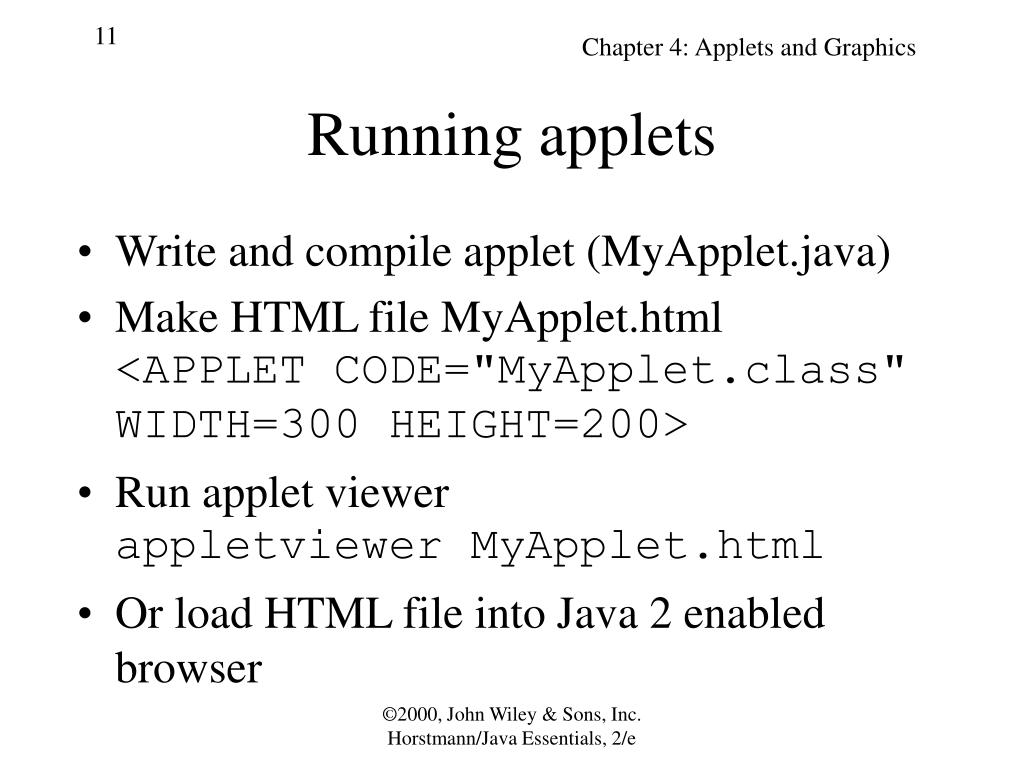

  11. Running applets • Write and compile applet (MyApplet.java) • Make HTML file MyApplet.html<APPLET CODE="MyApplet.class" WIDTH=300 HEIGHT=200> • Run applet viewerappletviewer MyApplet.html • Or load HTML file into Java 2 enabled browser

  12. Program RectangleApplet.java import java.applet.Applet; import java.awt.Graphics; import java.awt.Graphics2D; import java.awt.Rectangle; public class RectangleApplet extends Applet { public void paint(Graphics g) { // recover Graphics2D Graphics2D g2 = (Graphics2D)g; // construct a rectangle and draw it Rectangle cerealBox = new Rectangle(5, 10, 20, 30); g2.draw(cerealBox);

  13. // move rectangle 15 units sideways and 25 units down cerealBox.translate(15, 25); // draw moved rectangle g2.draw(cerealBox); } }

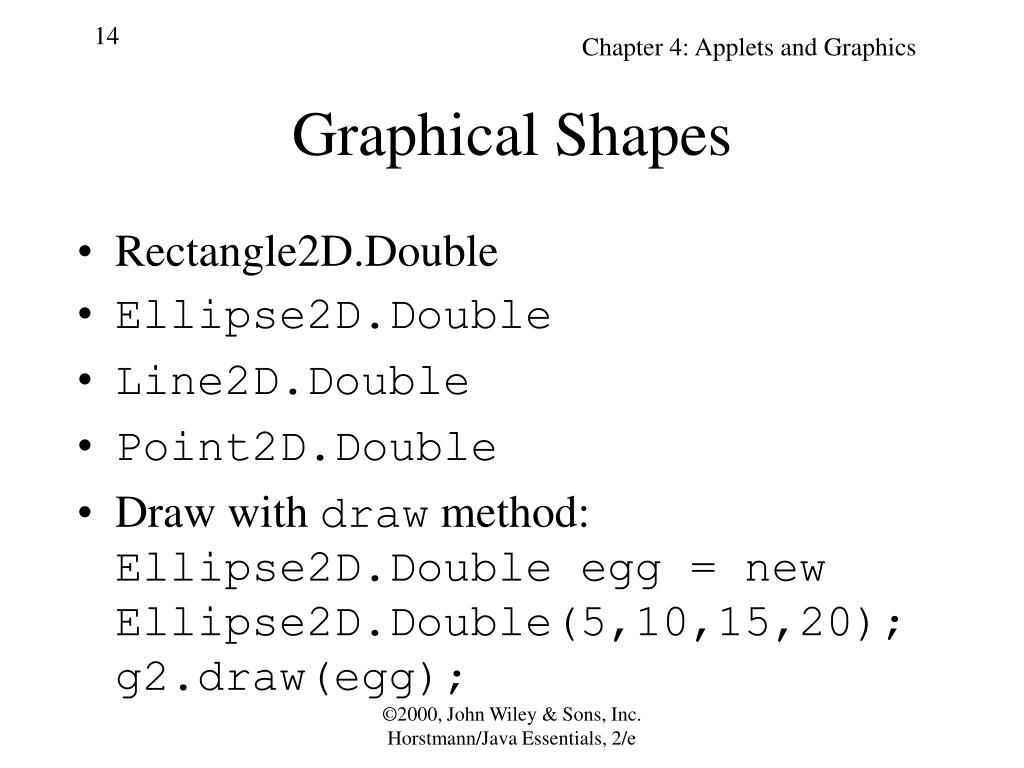

  14. Graphical Shapes • Rectangle2D.Double • Ellipse2D.Double • Line2D.Double • Point2D.Double • Draw with draw method:Ellipse2D.Double egg = new Ellipse2D.Double(5,10,15,20);g2.draw(egg);

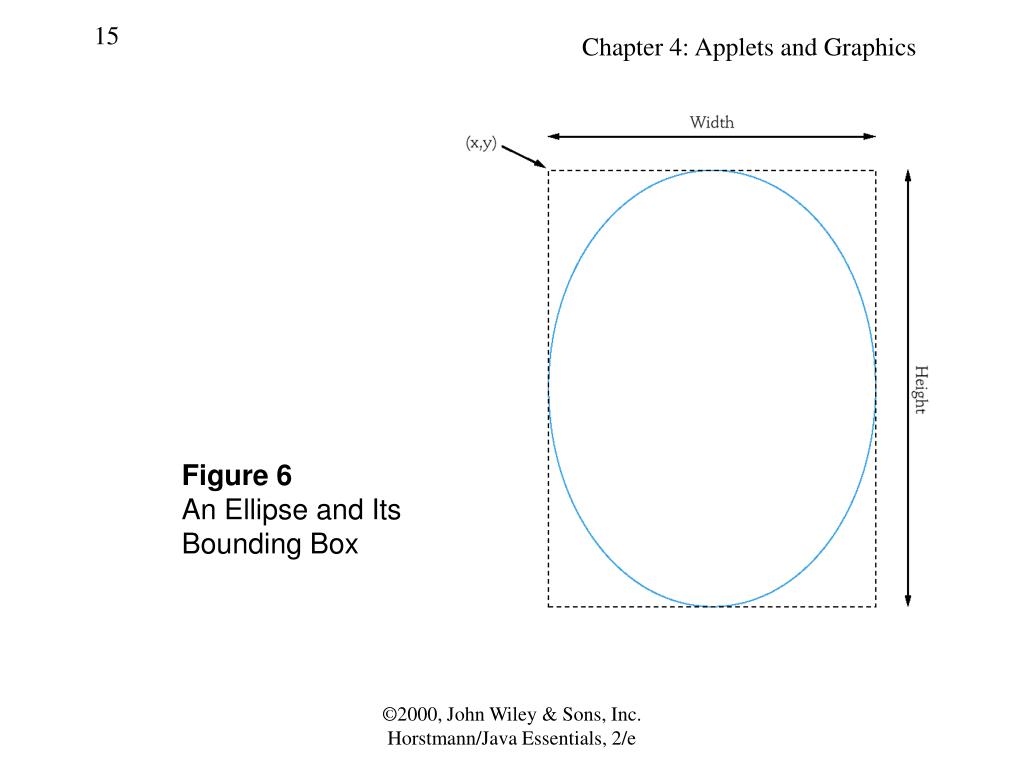

  15. Figure 6 An Ellipse and Its Bounding Box

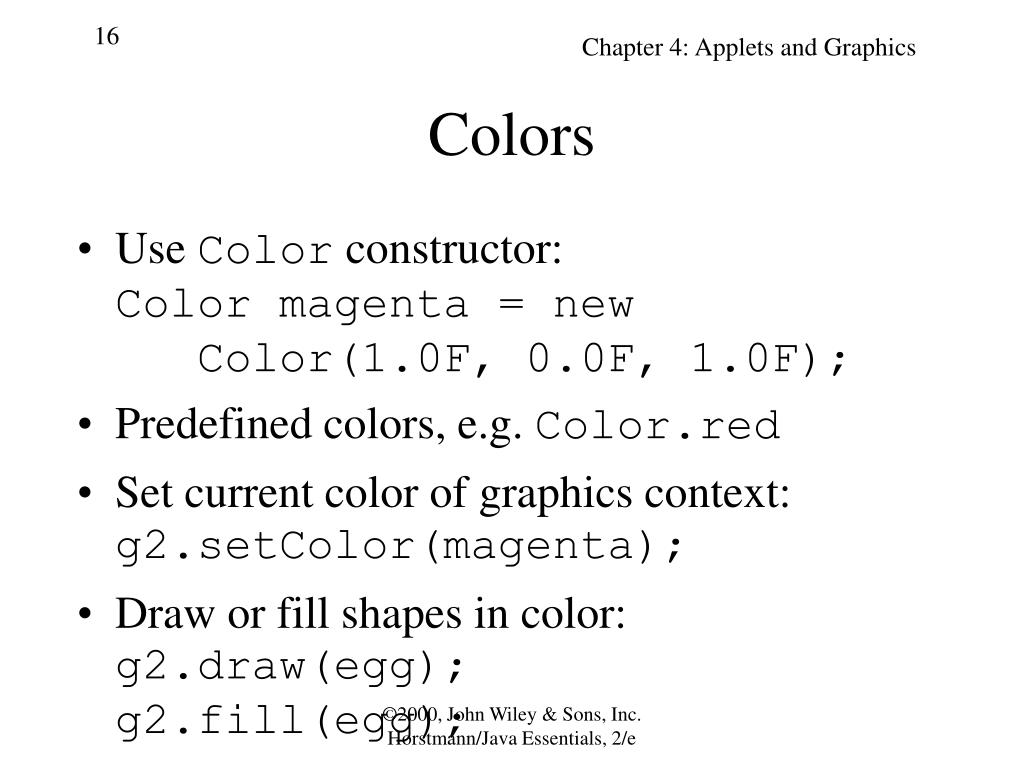

  16. Colors • Use Color constructor:Color magenta = new Color(1.0F, 0.0F, 1.0F); • Predefined colors, e.g. Color.red • Set current color of graphics context:g2.setColor(magenta); • Draw or fill shapes in color:g2.draw(egg);g2.fill(egg);

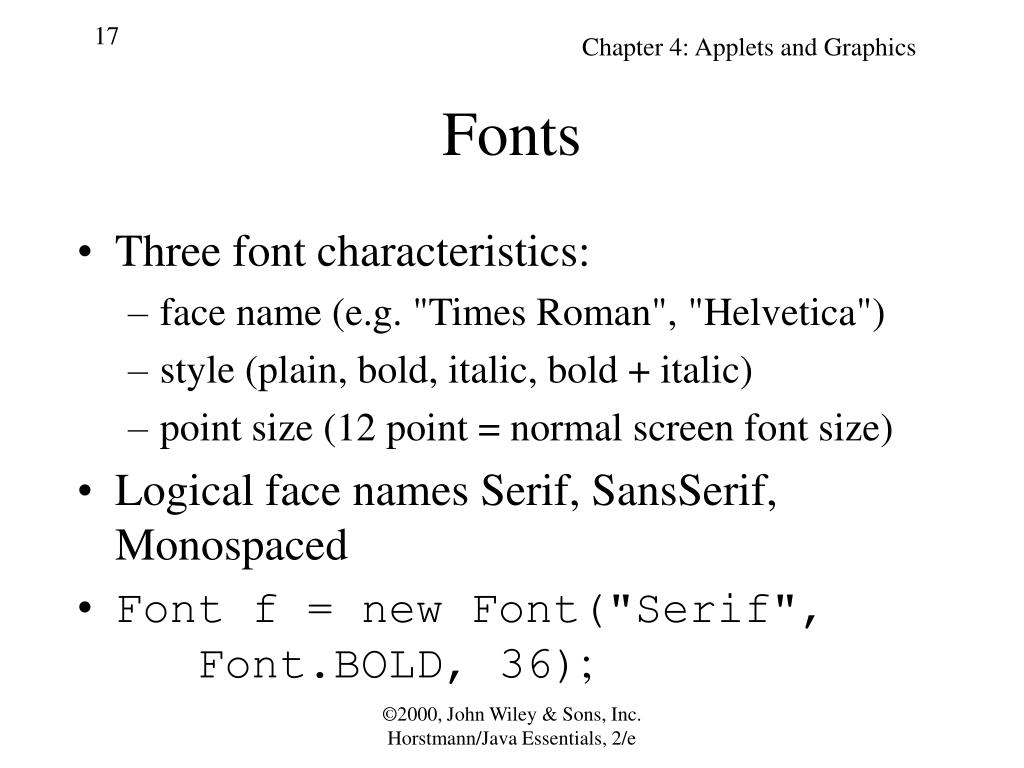

  17. Fonts • Three font characteristics: • face name (e.g. "Times Roman", "Helvetica") • style (plain, bold, italic, bold + italic) • point size (12 point = normal screen font size) • Logical face names Serif, SansSerif, Monospaced • Font f = new Font("Serif", Font.BOLD, 36);

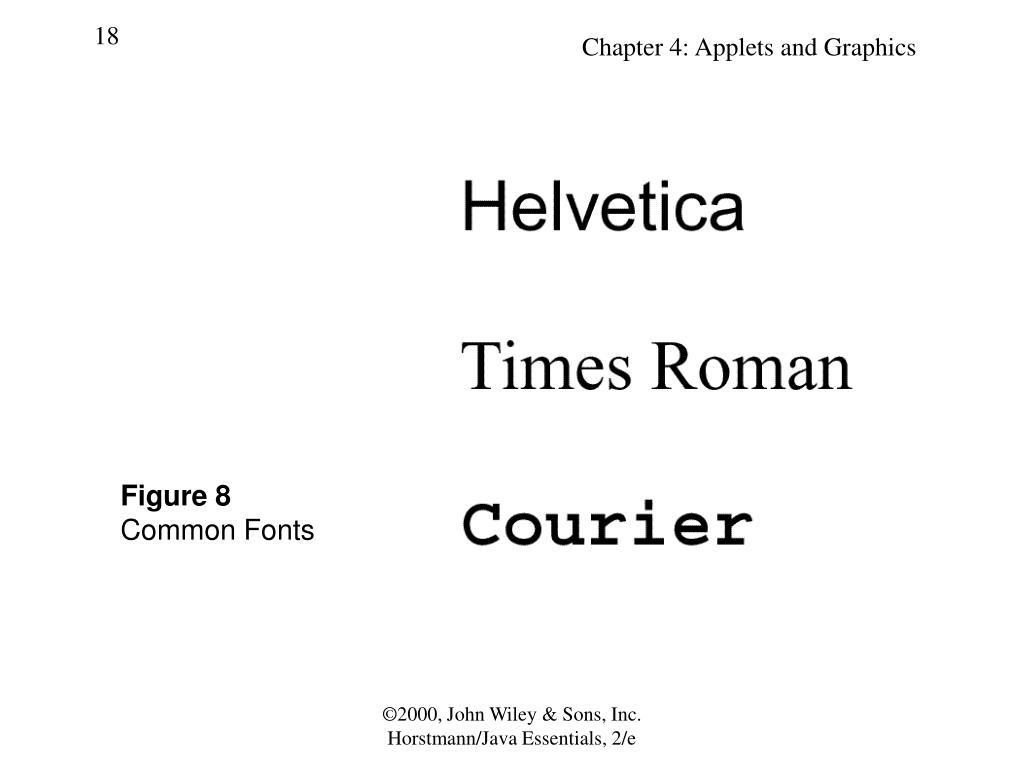

  18. Figure 8 Common Fonts

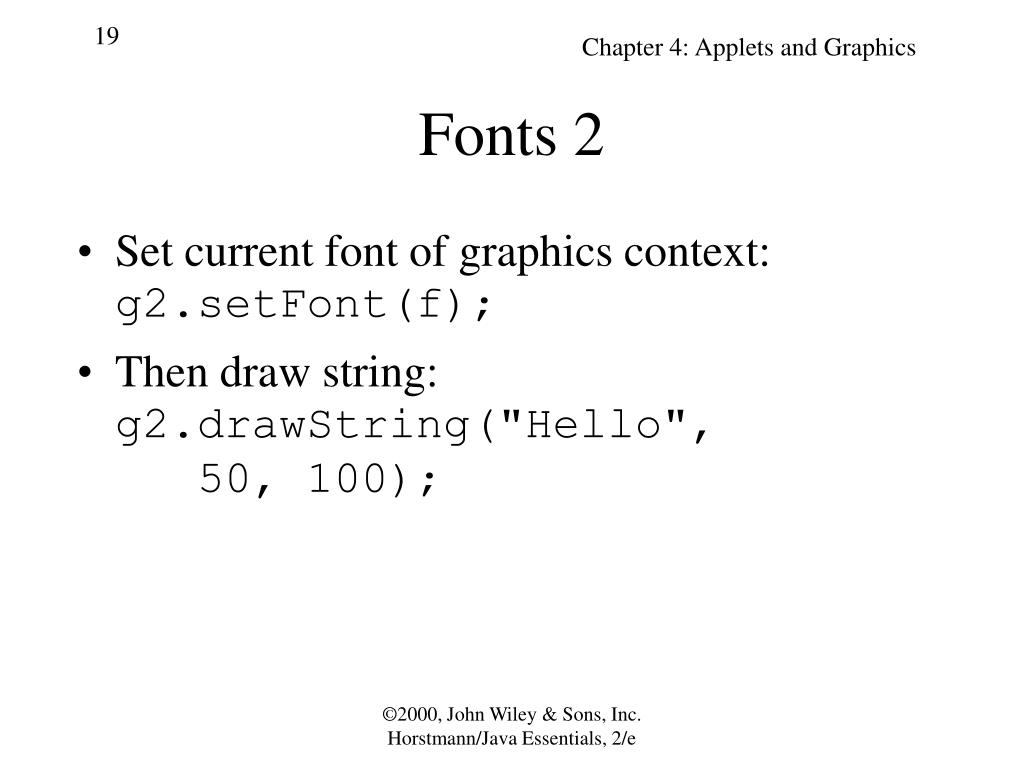

  19. Fonts 2 • Set current font of graphics context:g2.setFont(f); • Then draw string:g2.drawString("Hello", 50, 100);

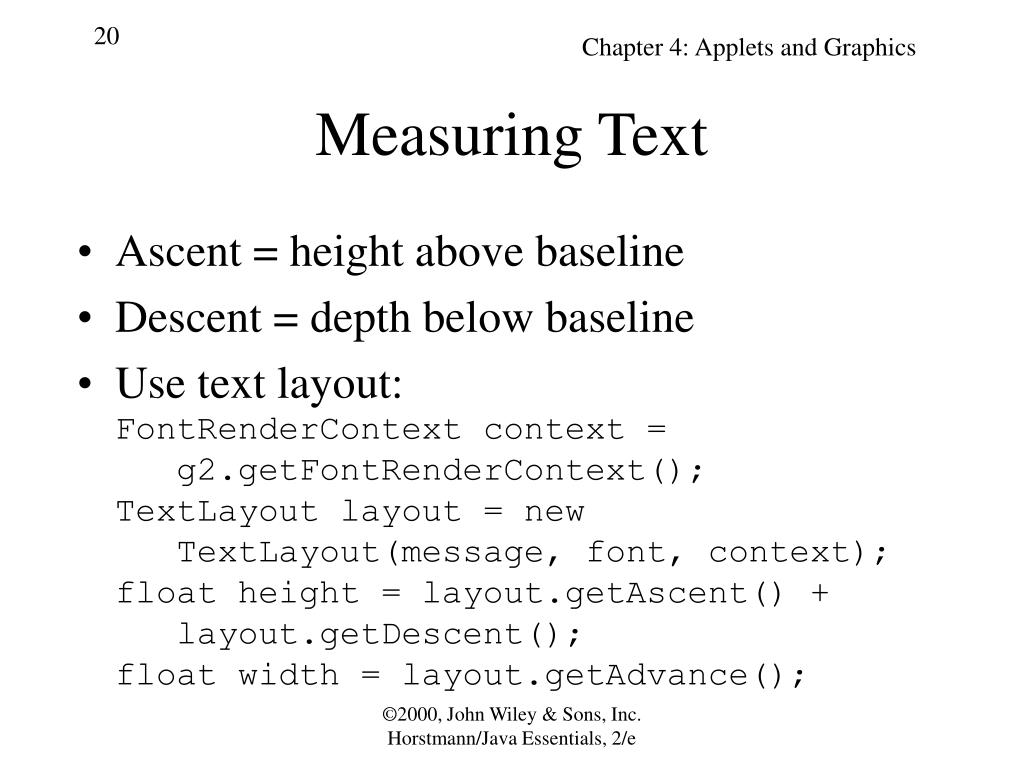

  20. Measuring Text • Ascent = height above baseline • Descent = depth below baseline • Use text layout:FontRenderContext context = g2.getFontRenderContext();TextLayout layout = new TextLayout(message, font, context);float height = layout.getAscent() + layout.getDescent();float width = layout.getAdvance();

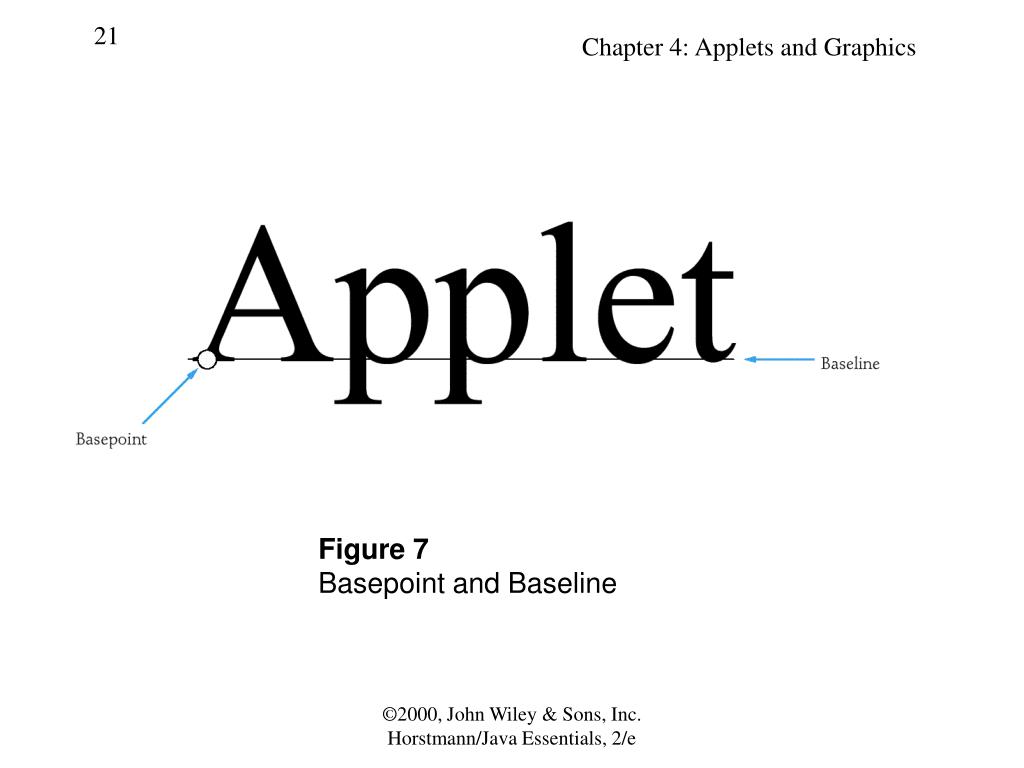

  21. Figure 7 Basepoint and Baseline

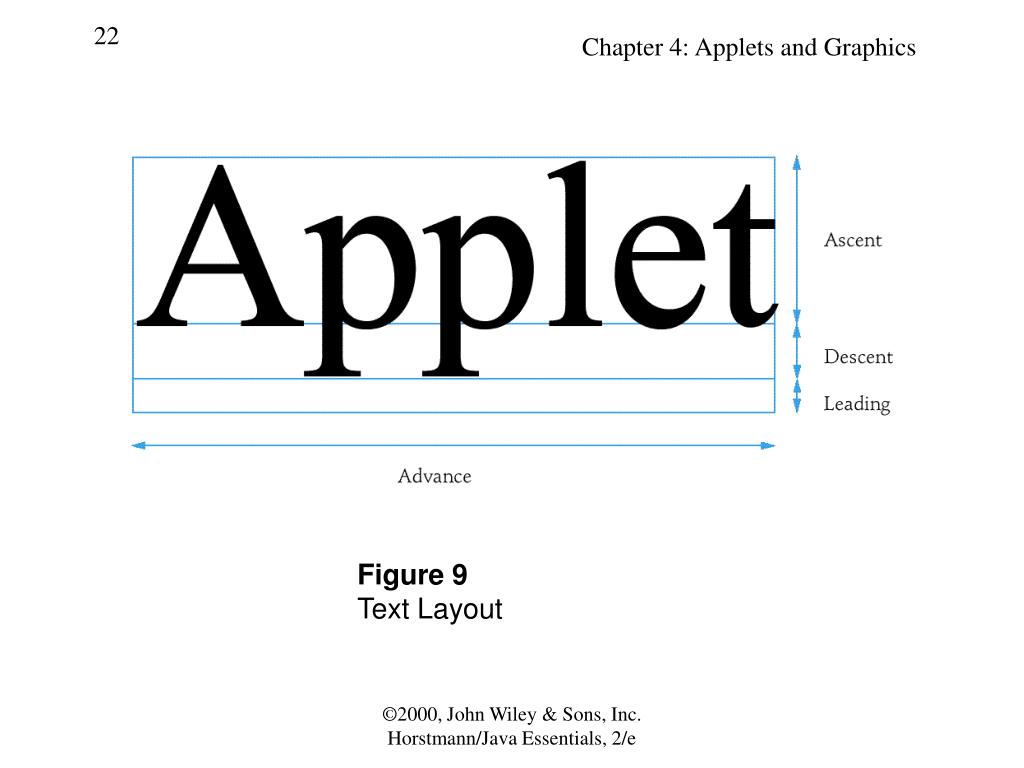

  22. Figure 9 Text Layout

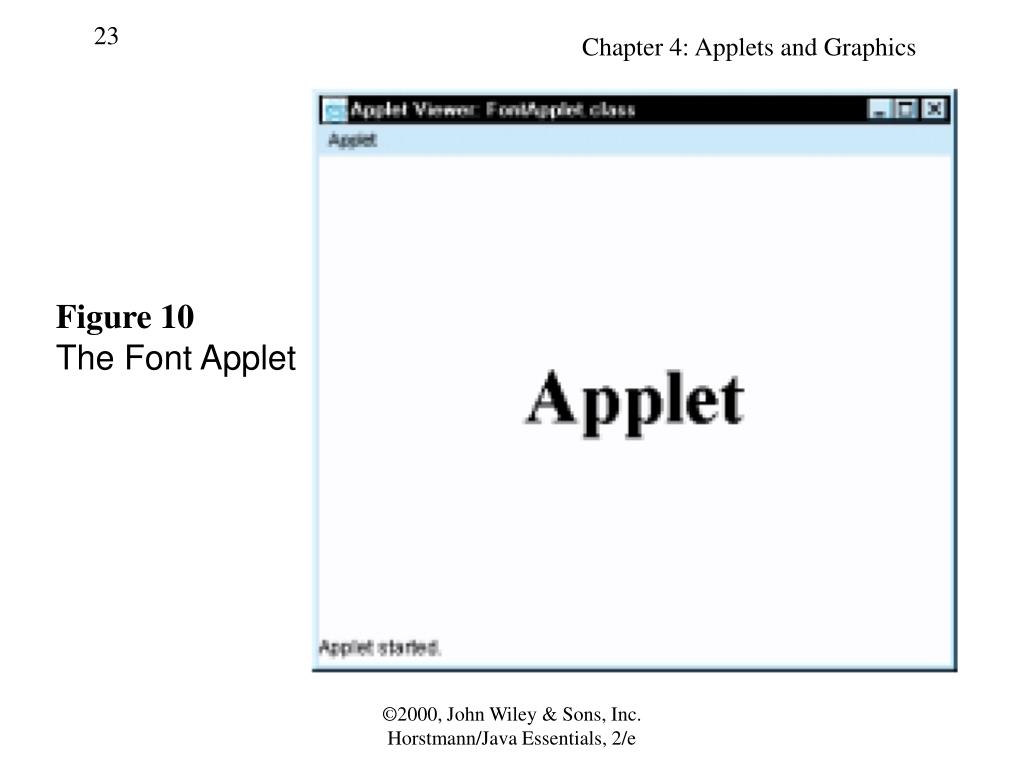

  23. Figure 10 The Font Applet

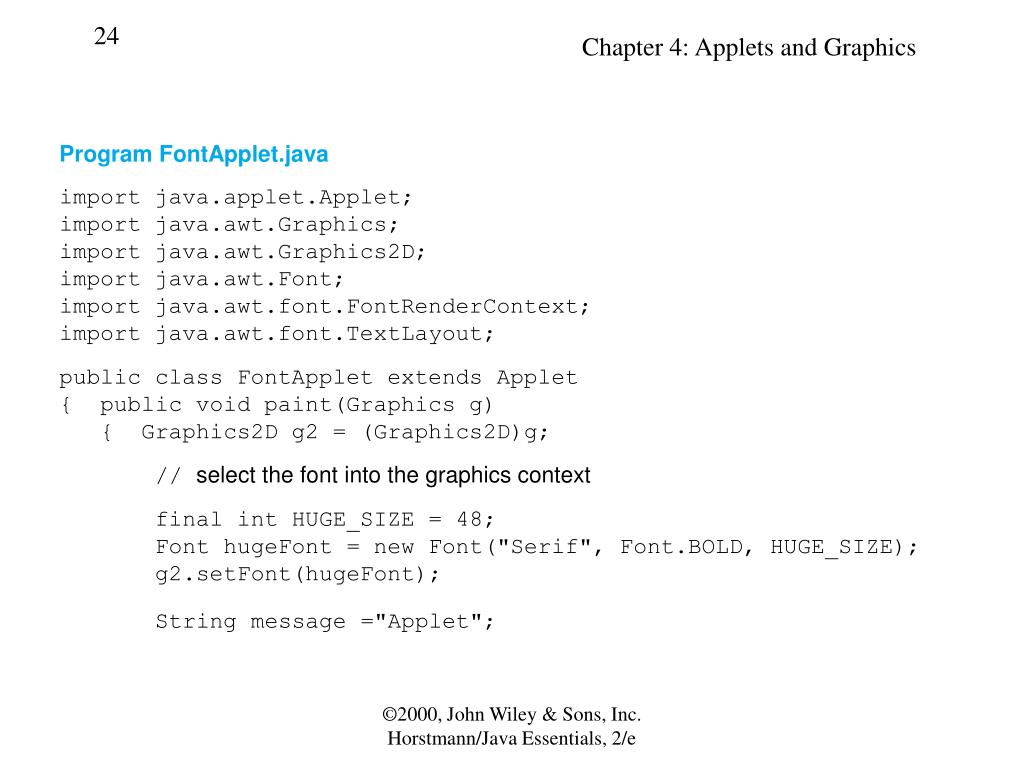

  24. Program FontApplet.java import java.applet.Applet; import java.awt.Graphics; import java.awt.Graphics2D; import java.awt.Font; import java.awt.font.FontRenderContext; import java.awt.font.TextLayout; public class FontApplet extends Applet { public void paint(Graphics g) { Graphics2D g2 = (Graphics2D)g; // select the font into the graphics context final int HUGE_SIZE = 48; Font hugeFont = new Font("Serif", Font.BOLD, HUGE_SIZE); g2.setFont(hugeFont); String message ="Applet";

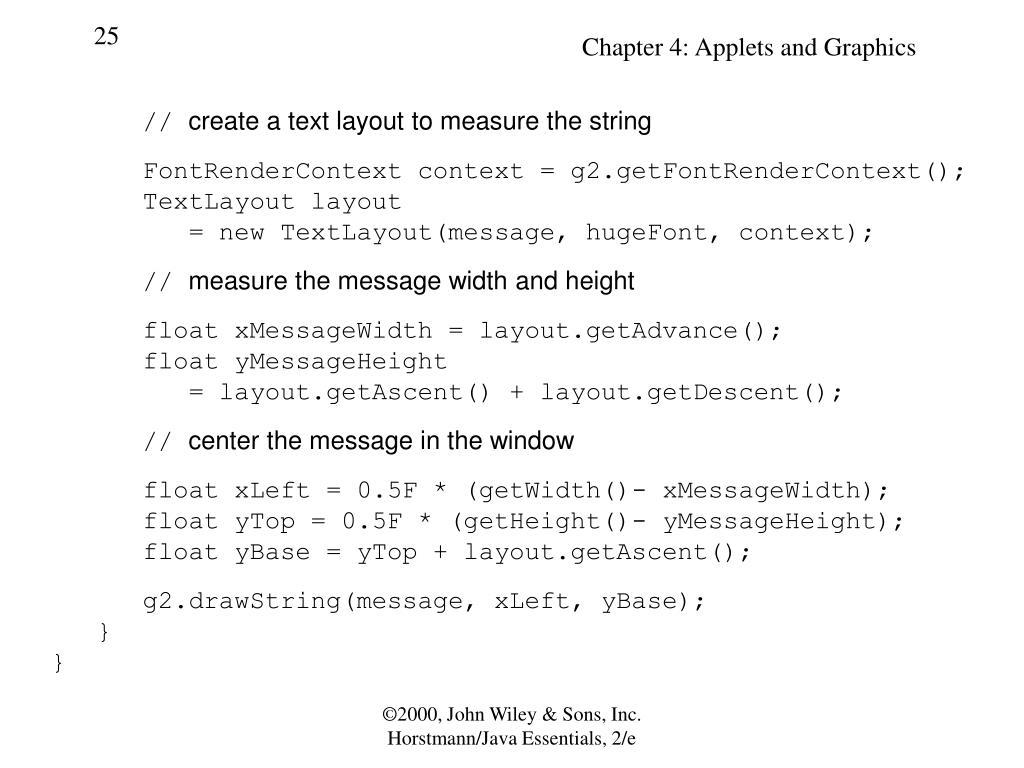

  25. // create a text layout to measure the string FontRenderContext context = g2.getFontRenderContext(); TextLayout layout = new TextLayout(message, hugeFont, context); // measure the message width and height float xMessageWidth = layout.getAdvance(); float yMessageHeight = layout.getAscent() + layout.getDescent(); // center the message in the window float xLeft = 0.5F * (getWidth()- xMessageWidth); float yTop = 0.5F * (getHeight()- yMessageHeight); float yBase = yTop + layout.getAscent(); g2.drawString(message, xLeft, yBase); } }

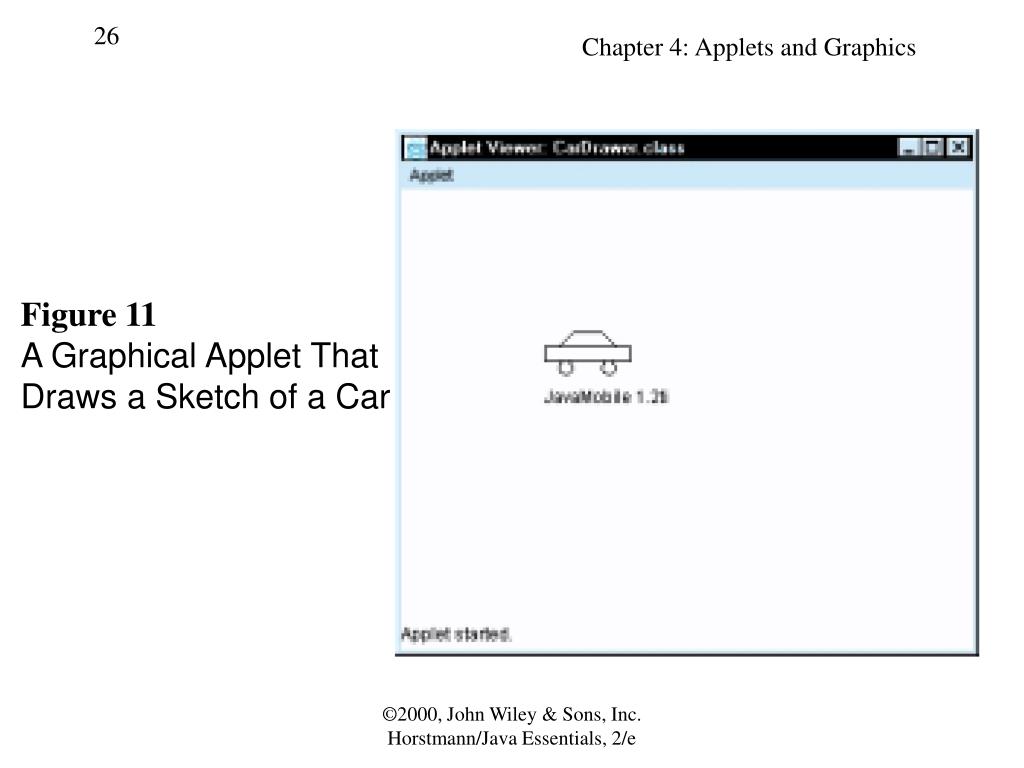

  26. Figure 11 A Graphical Applet That Draws a Sketch of a Car

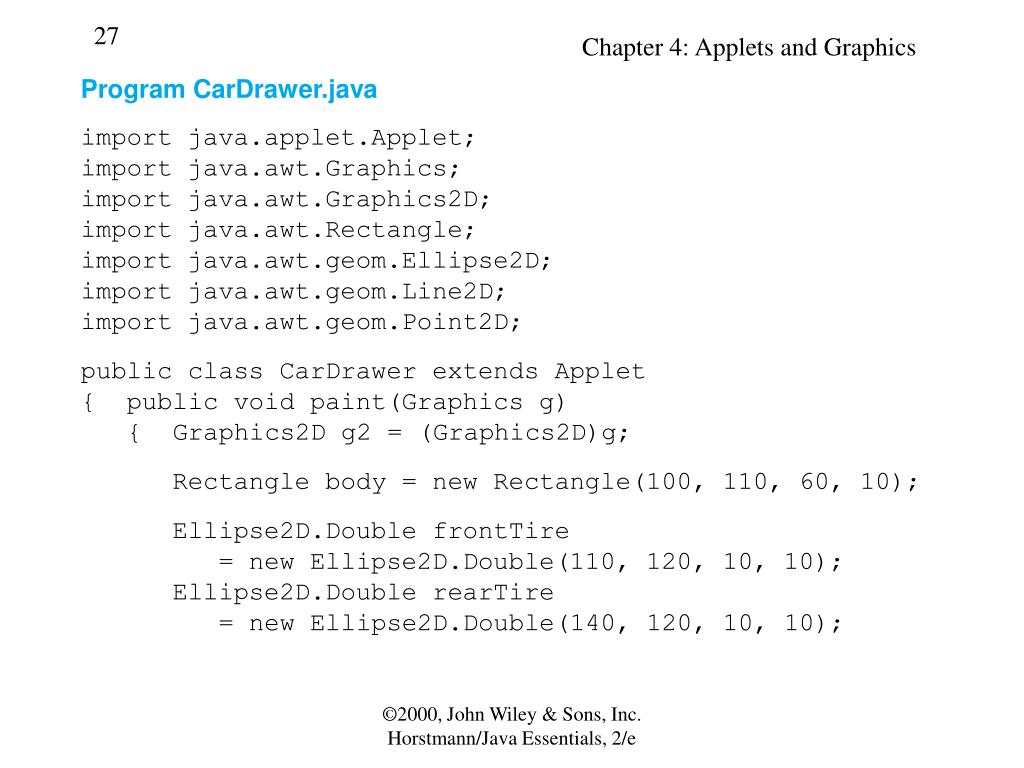

  27. Program CarDrawer.java import java.applet.Applet; import java.awt.Graphics; import java.awt.Graphics2D; import java.awt.Rectangle; import java.awt.geom.Ellipse2D; import java.awt.geom.Line2D; import java.awt.geom.Point2D; public class CarDrawer extends Applet { public void paint(Graphics g) { Graphics2D g2 = (Graphics2D)g; Rectangle body = new Rectangle(100, 110, 60, 10); Ellipse2D.Double frontTire = new Ellipse2D.Double(110, 120, 10, 10); Ellipse2D.Double rearTire = new Ellipse2D.Double(140, 120, 10, 10);

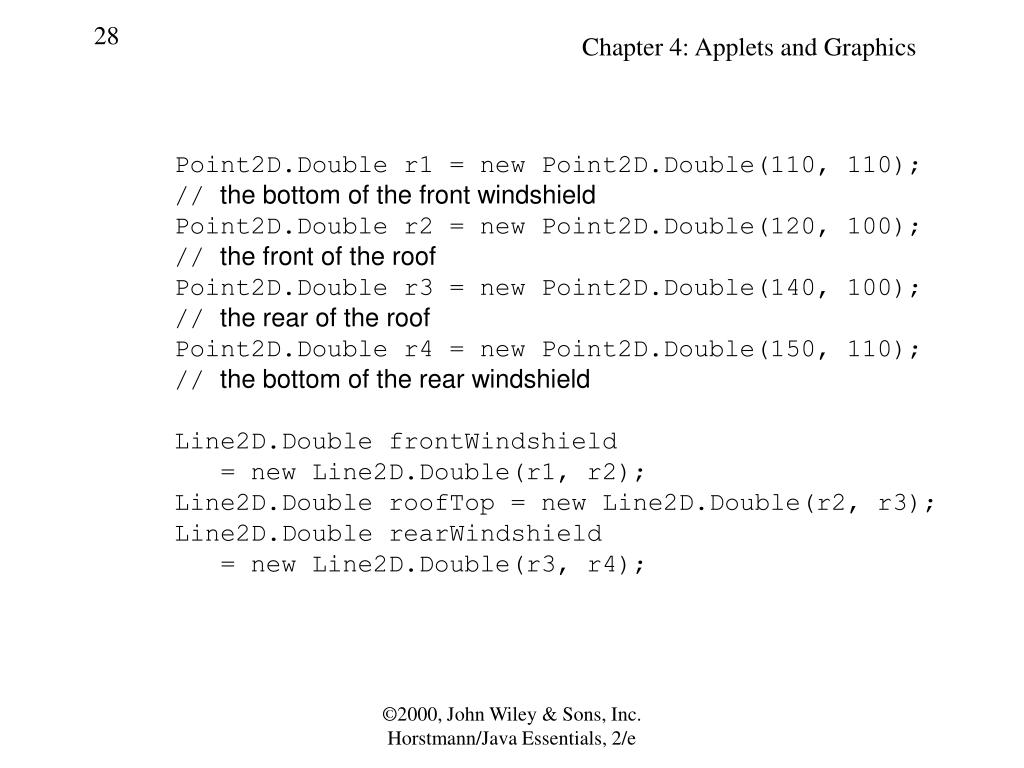

  28. Point2D.Double r1 = new Point2D.Double(110, 110); // the bottom of the front windshield Point2D.Double r2 = new Point2D.Double(120, 100); // the front of the roof Point2D.Double r3 = new Point2D.Double(140, 100); // the rear of the roof Point2D.Double r4 = new Point2D.Double(150, 110); // the bottom of the rear windshield Line2D.Double frontWindshield = new Line2D.Double(r1, r2); Line2D.Double roofTop = new Line2D.Double(r2, r3); Line2D.Double rearWindshield = new Line2D.Double(r3, r4);

  29. g2.draw(body); g2.draw(frontTire); g2.draw(rearTire); g2.draw(frontWindshield); g2.draw(roofTop); g2.draw(rearWindshield); g2.drawString("JavaMobile 1.2ti", 100, 150); } }

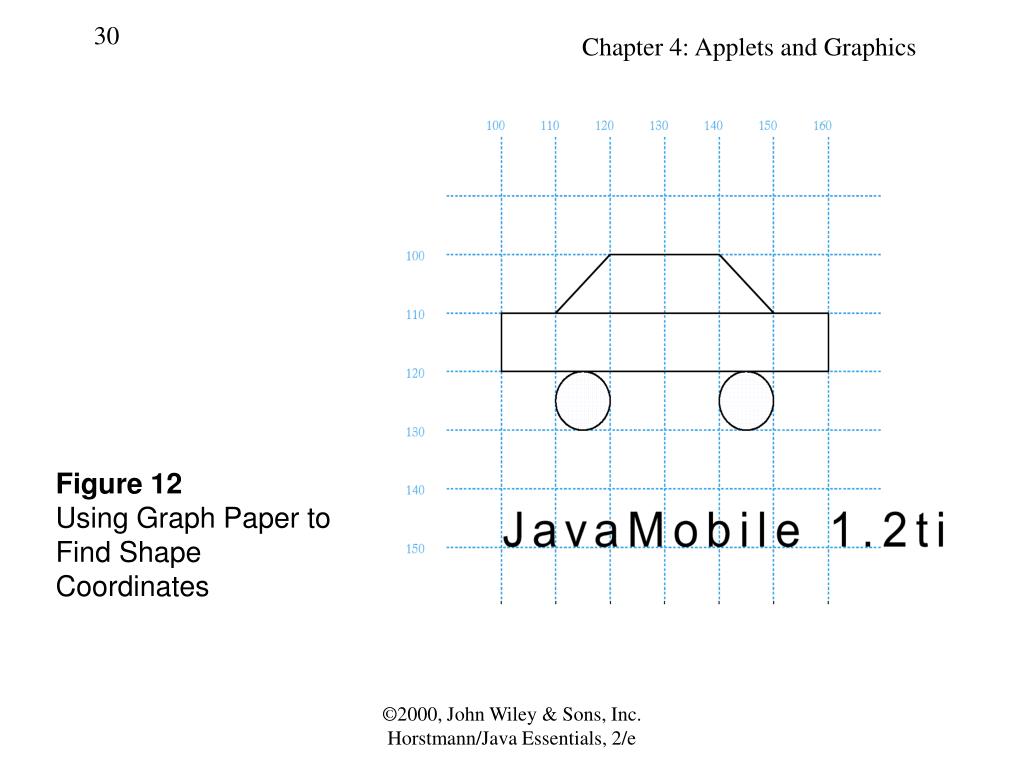

  30. Figure 12 Using Graph Paper to Find Shape Coordinates

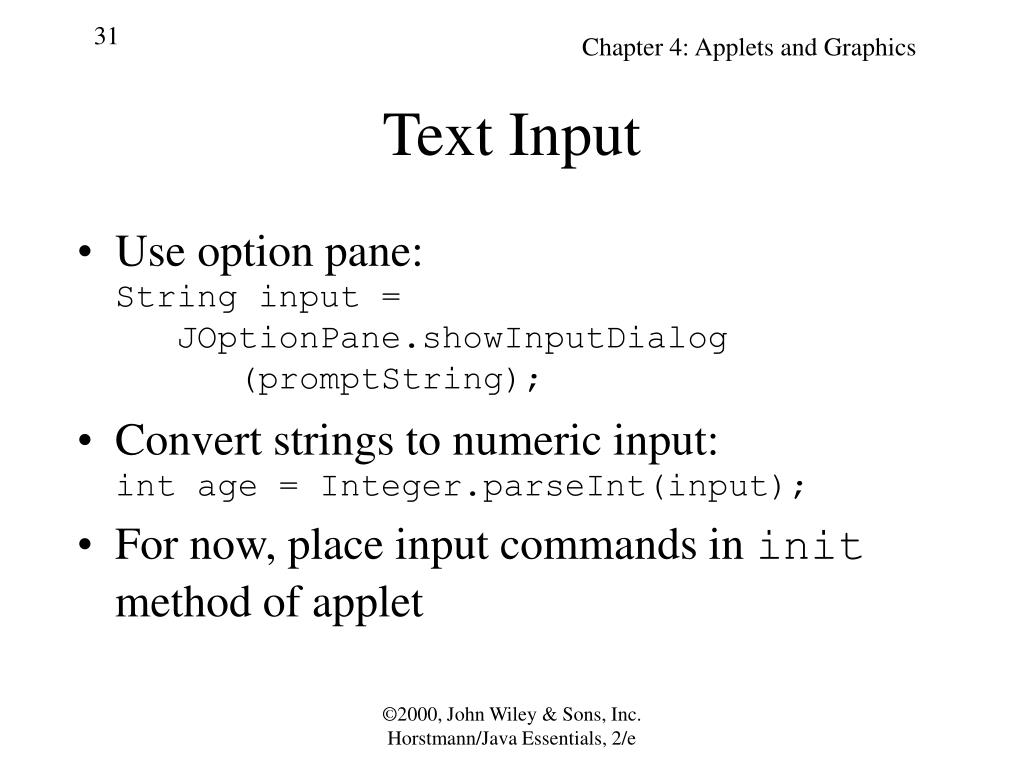

  31. Text Input • Use option pane:String input = JOptionPane.showInputDialog (promptString); • Convert strings to numeric input:int age = Integer.parseInt(input); • For now, place input commands in init method of applet

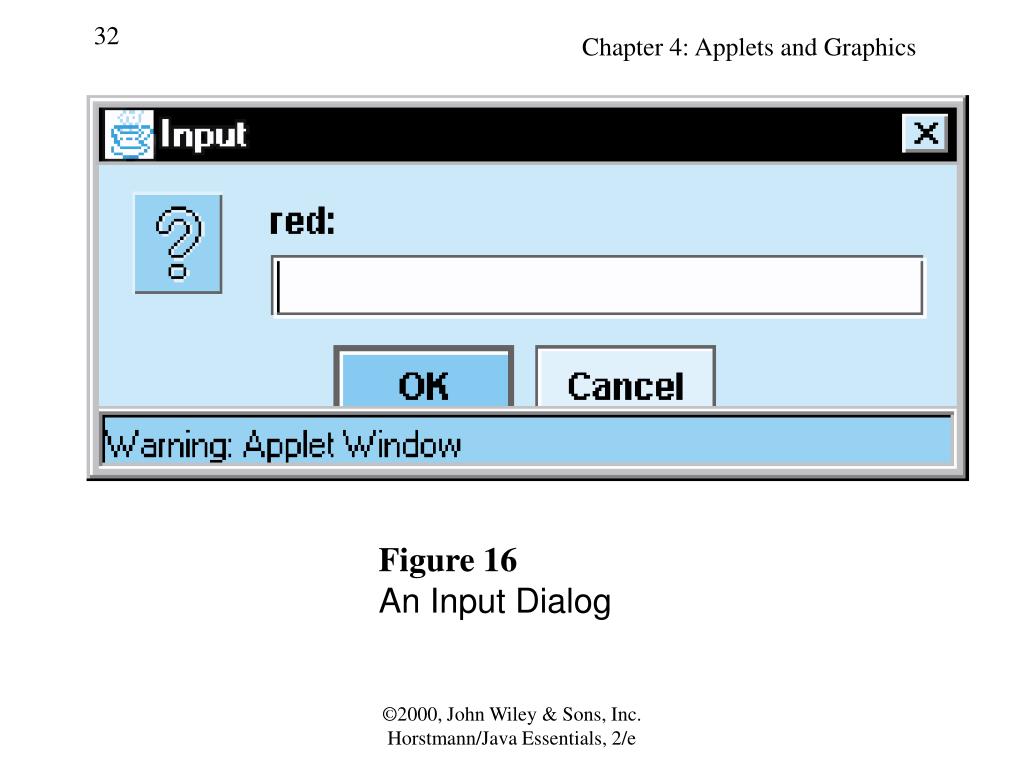

  32. Figure 16 An Input Dialog

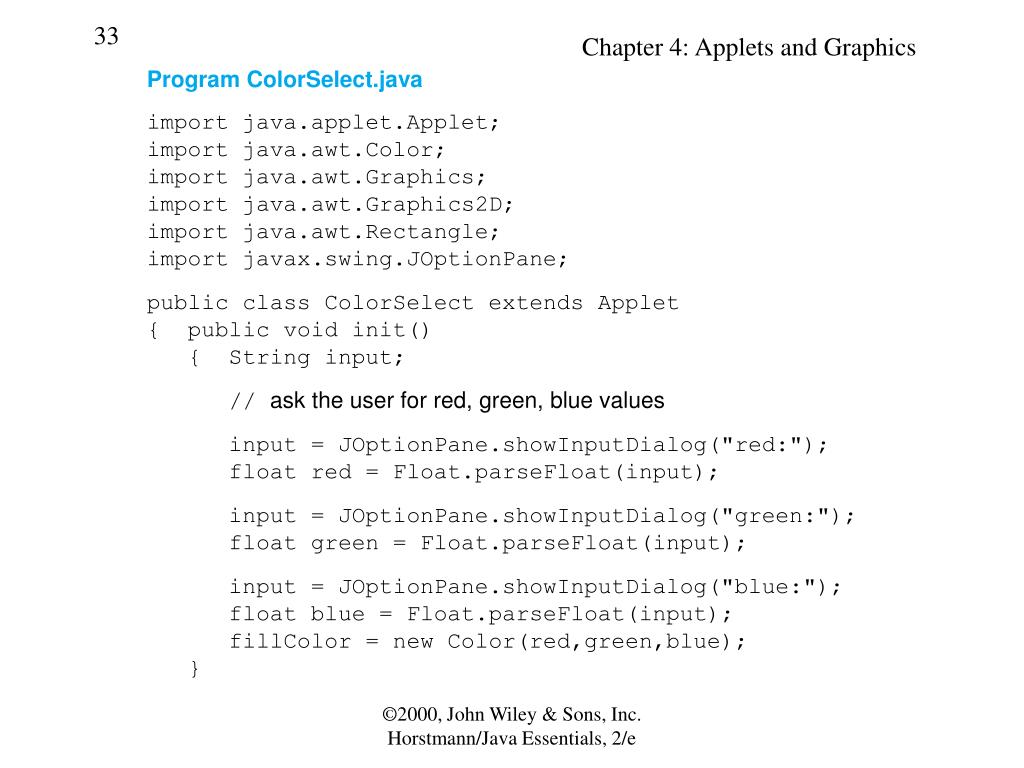

  33. Program ColorSelect.java import java.applet.Applet; import java.awt.Color; import java.awt.Graphics; import java.awt.Graphics2D; import java.awt.Rectangle; import javax.swing.JOptionPane; public class ColorSelect extends Applet { public void init() { String input; // ask the user for red, green, blue values input = JOptionPane.showInputDialog("red:"); float red = Float.parseFloat(input); input = JOptionPane.showInputDialog("green:"); float green = Float.parseFloat(input); input = JOptionPane.showInputDialog("blue:"); float blue = Float.parseFloat(input); fillColor = new Color(red,green,blue); }

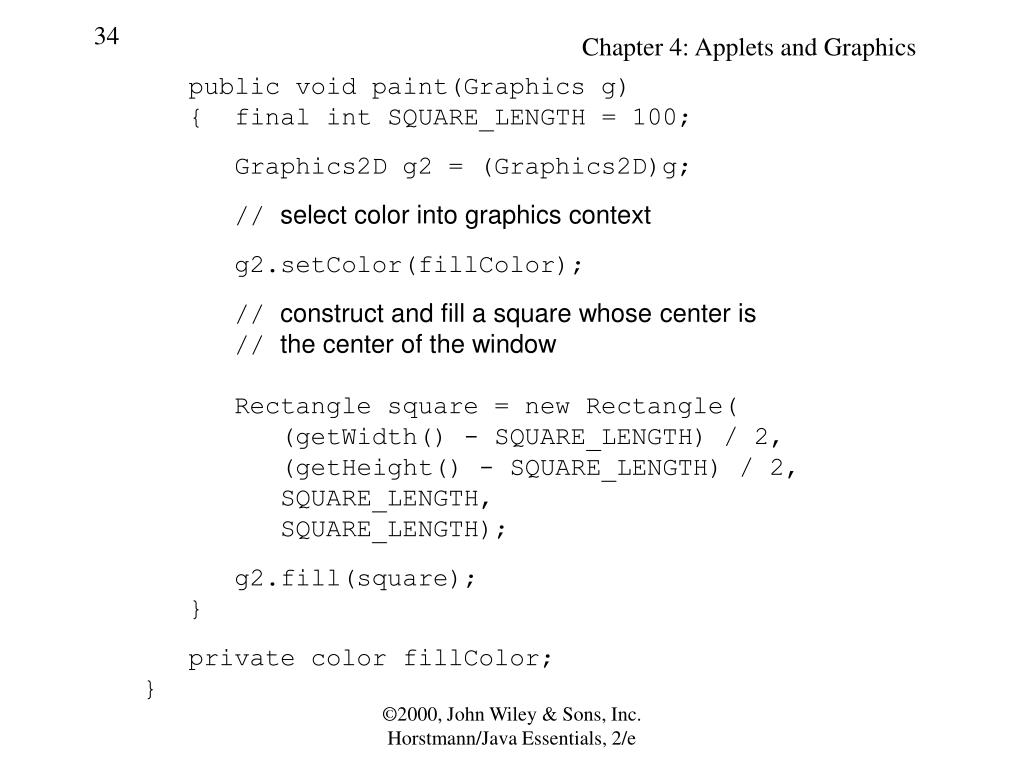

  34. public void paint(Graphics g) { final int SQUARE_LENGTH = 100; Graphics2D g2 = (Graphics2D)g; // select color into graphics context g2.setColor(fillColor); // construct and fill a square whose center is // the center of the window Rectangle square = new Rectangle( (getWidth() - SQUARE_LENGTH) / 2, (getHeight() - SQUARE_LENGTH) / 2, SQUARE_LENGTH, SQUARE_LENGTH); g2.fill(square); } private color fillColor; }

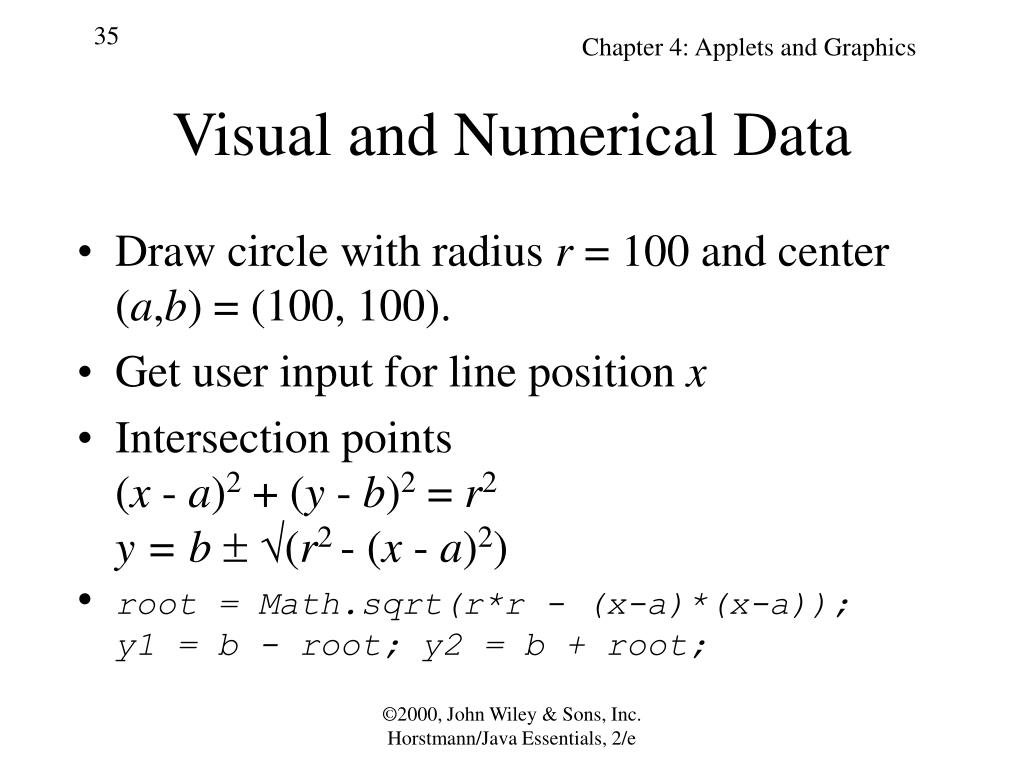

  35. Visual and Numerical Data • Draw circle with radius r = 100 and center (a,b) = (100, 100). • Get user input for line position x • Intersection points(x - a)2 + (y - b)2 = r2y = b ± Ö(r2 - (x - a)2) • root = Math.sqrt(r*r - (x-a)*(x-a));y1 = b - root; y2 = b + root;

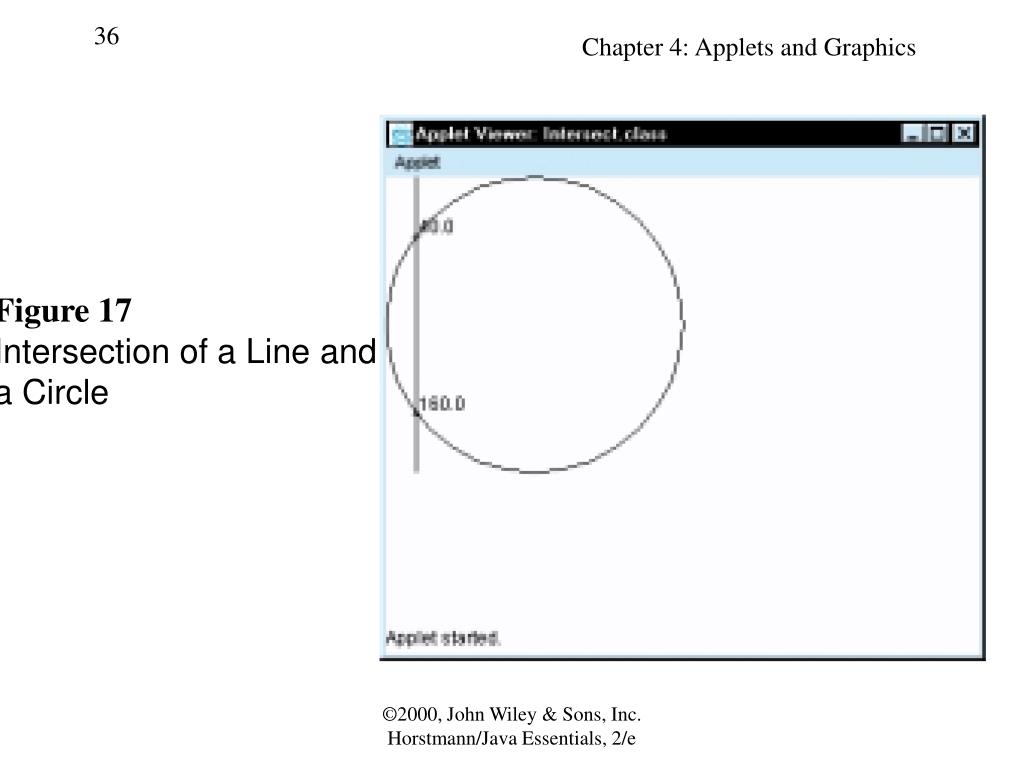

  36. Figure 17 Intersection of a Line and a Circle

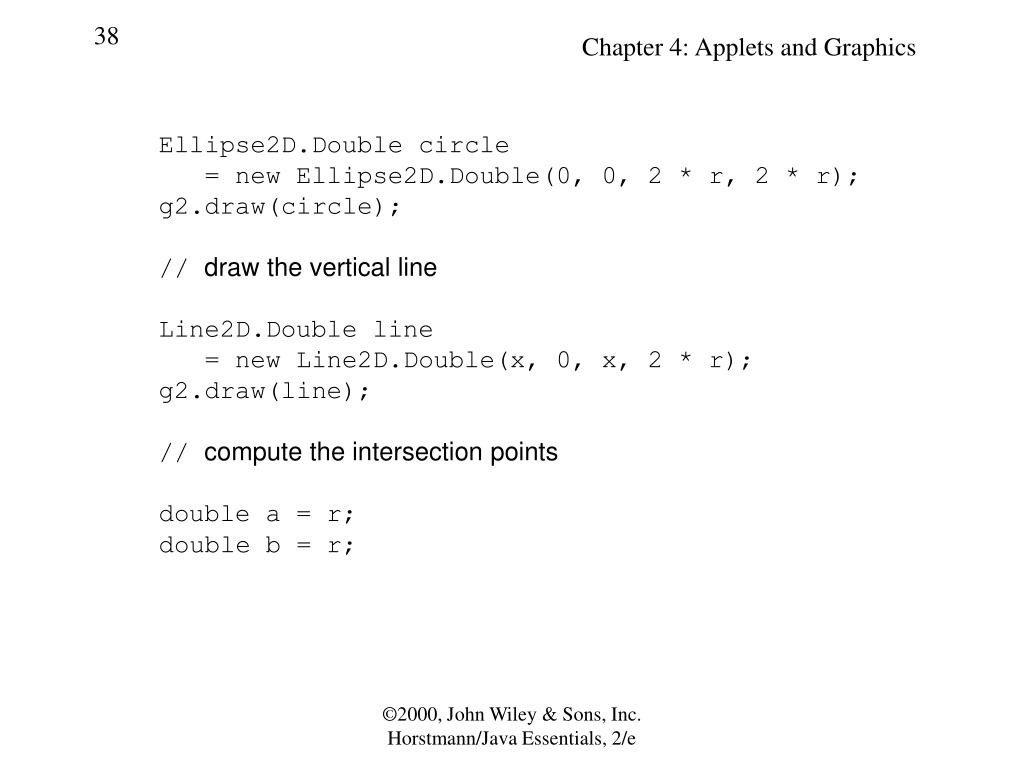

  37. Program Intersect.java import java.applet.Applet; import java.awt.Graphics; import java.awt.Graphics2D; import java.awt.geom.Ellipse2D; import java.awt.geom.Line2D; import javax.swing.JOptionPane; public class Intersect extends Applet { public void init() { String input = JOptionPane.showInputDialog("x:"); x = Integer.parseInt(input); } public void paint(Graphics g) { Graphics2D g2 = (Graphics2D)g; double r = 100; // the radius of the circle // draw the circle

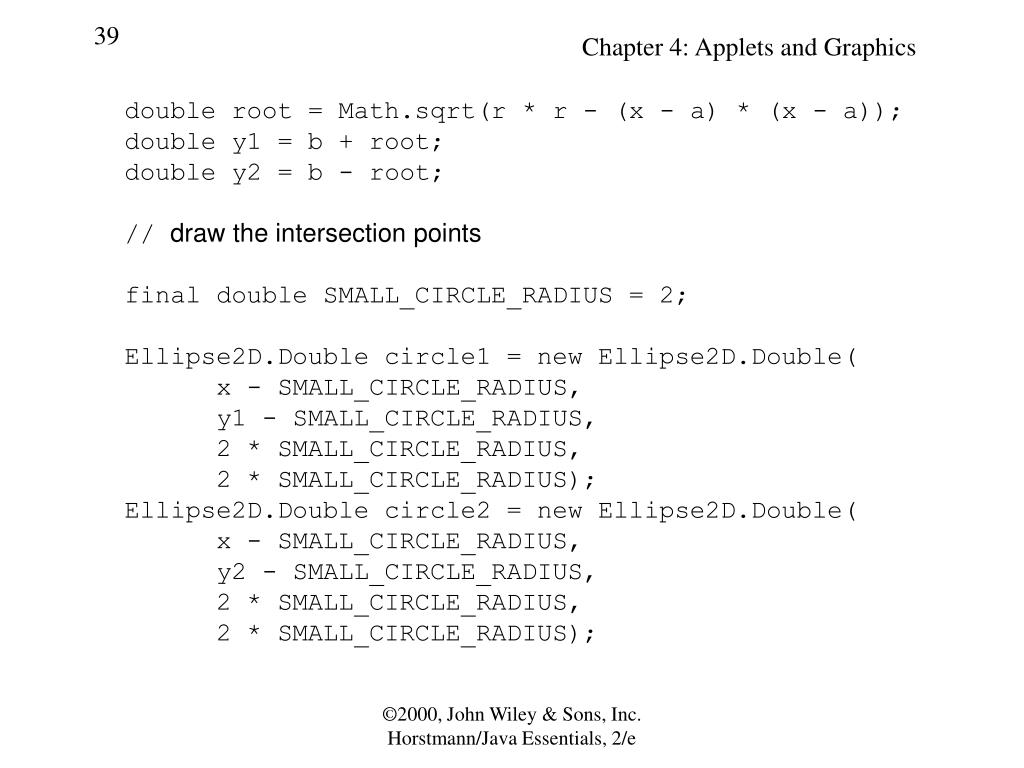

  38. Ellipse2D.Double circle = new Ellipse2D.Double(0, 0, 2 * r, 2 * r); g2.draw(circle); // draw the vertical line Line2D.Double line = new Line2D.Double(x, 0, x, 2 * r); g2.draw(line); // compute the intersection points double a = r; double b = r;

  39. double root = Math.sqrt(r * r - (x - a) * (x - a)); double y1 = b + root; double y2 = b - root; // draw the intersection points final double SMALL_CIRCLE_RADIUS = 2; Ellipse2D.Double circle1 = new Ellipse2D.Double( x - SMALL_CIRCLE_RADIUS, y1 - SMALL_CIRCLE_RADIUS, 2 * SMALL_CIRCLE_RADIUS, 2 * SMALL_CIRCLE_RADIUS); Ellipse2D.Double circle2 = new Ellipse2D.Double( x - SMALL_CIRCLE_RADIUS, y2 - SMALL_CIRCLE_RADIUS, 2 * SMALL_CIRCLE_RADIUS, 2 * SMALL_CIRCLE_RADIUS);

  40. g2.draw(circle1); g2.draw(circle2); // label the intersection points String label1 = "” + y1; String label2 = "” + y2; g2.drawString(label1, (float)x, (float)y1); g2.drawString(label2, (float)x, (float)y2); } private double x; }

  41. Unit Conversion • Pixel coordinates 0 . . . getWidth()-1, 0...getHeight()-1 • User coordinates xleft...xright, ytop...ybottom • Conversion formulaxpixel = (xuser - xleft)(width - 1) / (xright - xleft) • Note that usually ytop > ybottom • Use UnitConverter convenience class

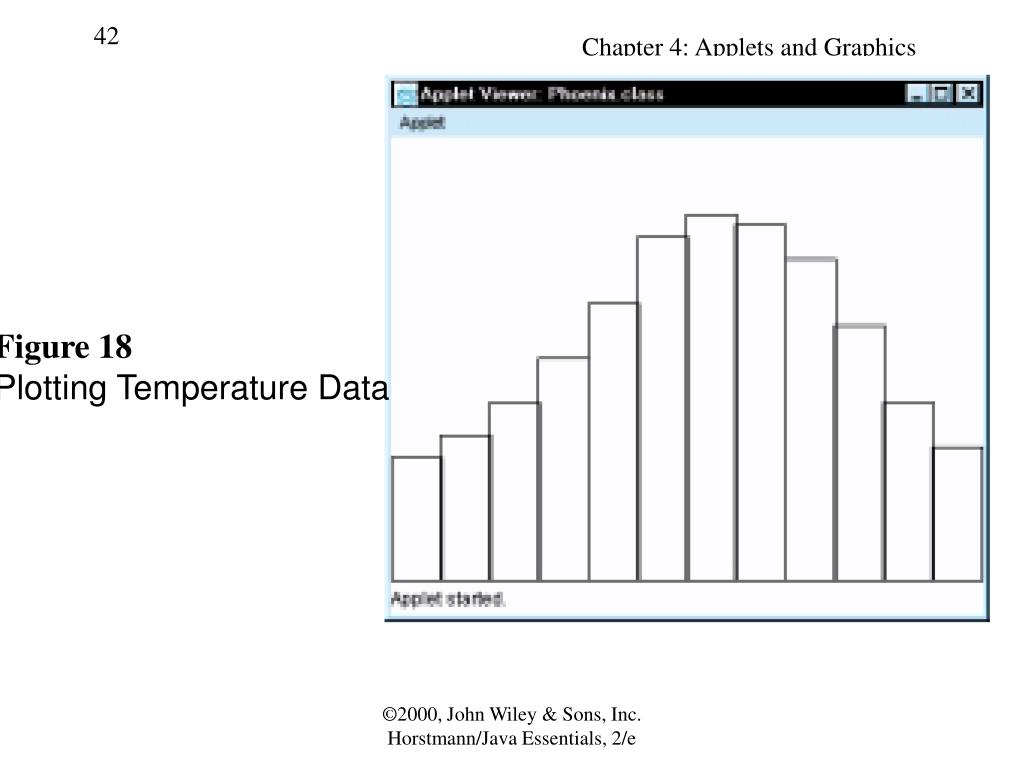

  42. Figure 18 Plotting Temperature Data

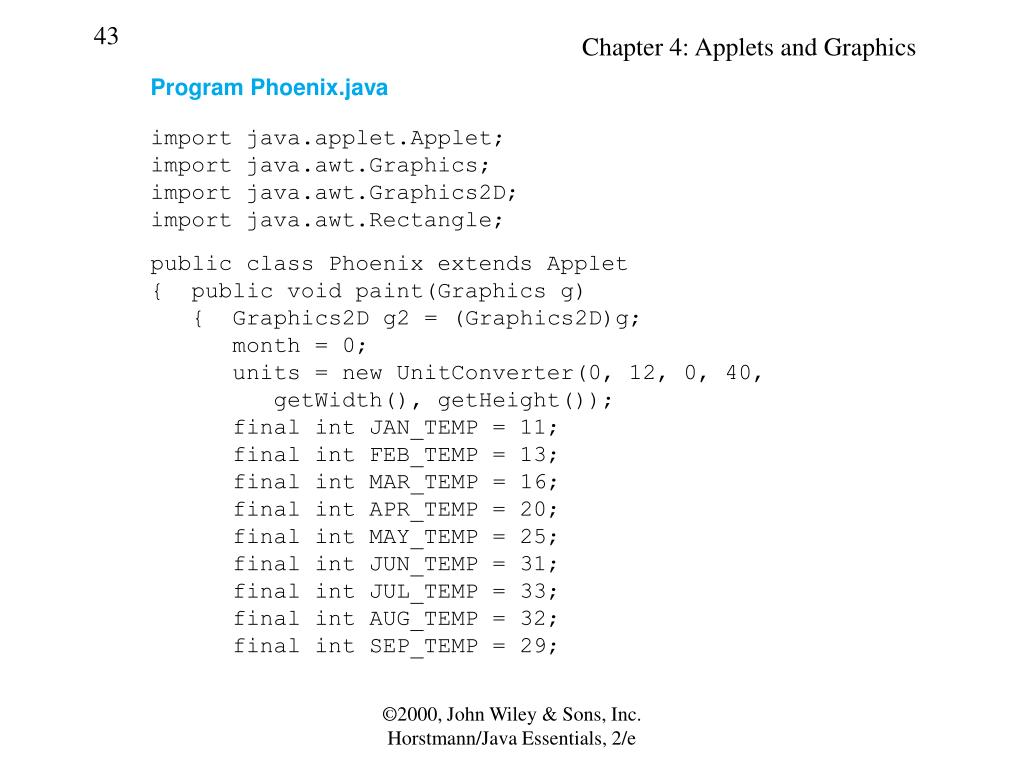

  43. Program Phoenix.java import java.applet.Applet; import java.awt.Graphics; import java.awt.Graphics2D; import java.awt.Rectangle; public class Phoenix extends Applet { public void paint(Graphics g) { Graphics2D g2 = (Graphics2D)g; month = 0; units = new UnitConverter(0, 12, 0, 40, getWidth(), getHeight()); final int JAN_TEMP = 11; final int FEB_TEMP = 13; final int MAR_TEMP = 16; final int APR_TEMP = 20; final int MAY_TEMP = 25; final int JUN_TEMP = 31; final int JUL_TEMP = 33; final int AUG_TEMP = 32; final int SEP_TEMP = 29;

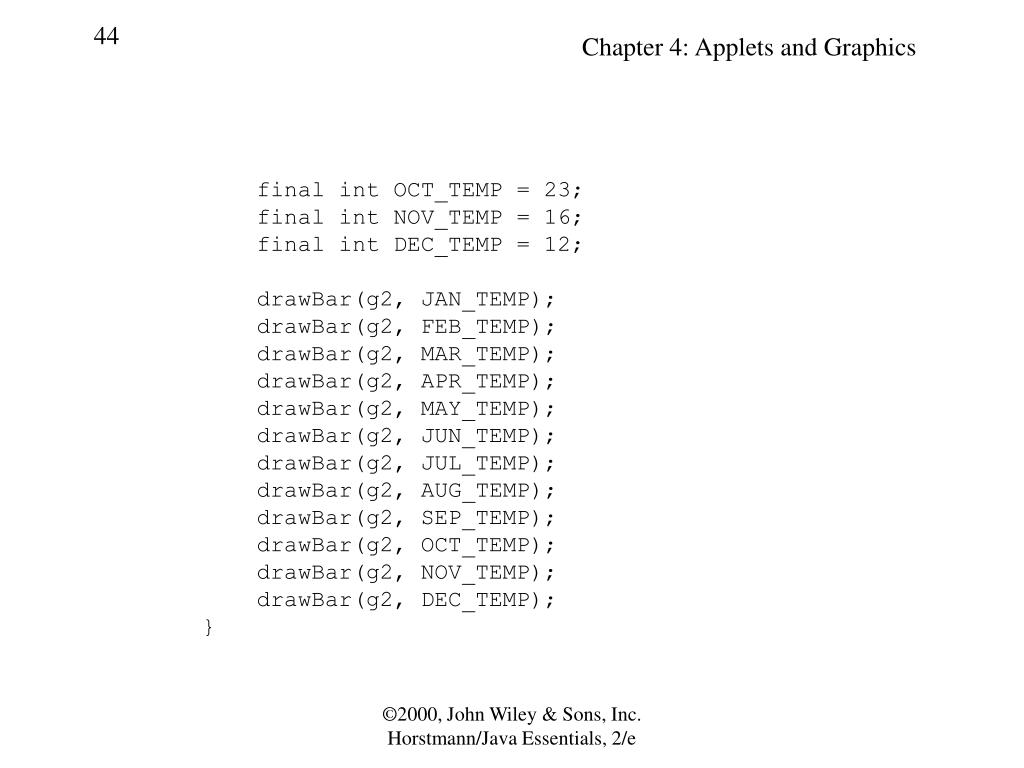

  44. final int OCT_TEMP = 23; final int NOV_TEMP = 16; final int DEC_TEMP = 12; drawBar(g2, JAN_TEMP); drawBar(g2, FEB_TEMP); drawBar(g2, MAR_TEMP); drawBar(g2, APR_TEMP); drawBar(g2, MAY_TEMP); drawBar(g2, JUN_TEMP); drawBar(g2, JUL_TEMP); drawBar(g2, AUG_TEMP); drawBar(g2, SEP_TEMP); drawBar(g2, OCT_TEMP); drawBar(g2, NOV_TEMP); drawBar(g2, DEC_TEMP); }

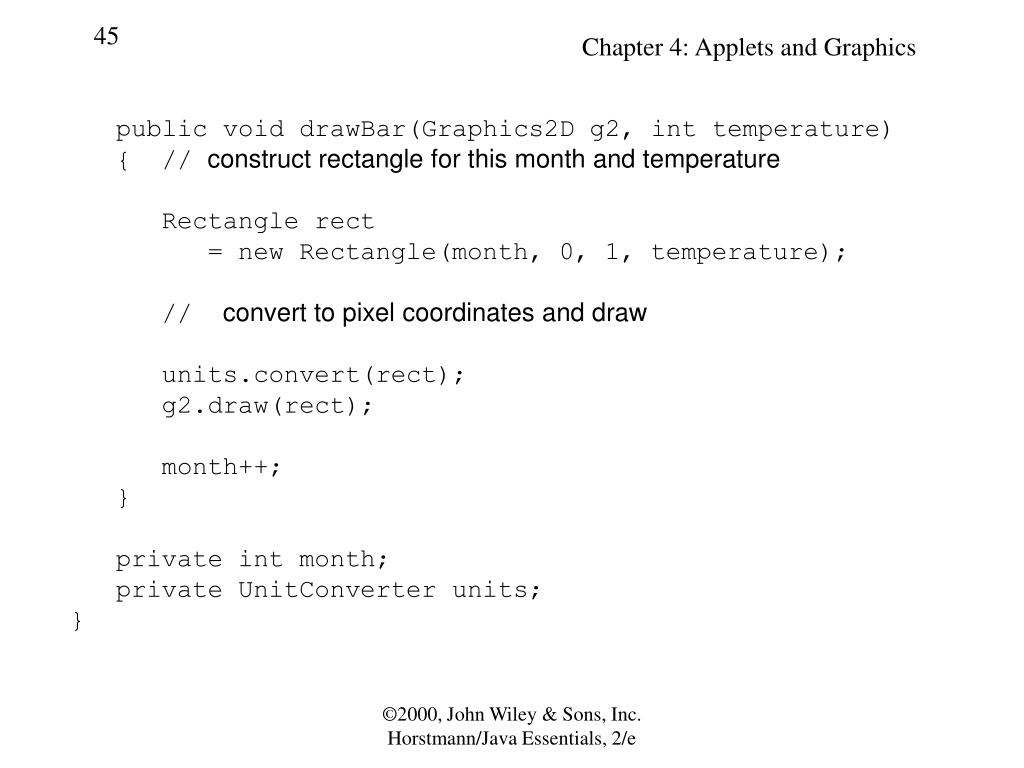

  45. public void drawBar(Graphics2D g2, int temperature) { // construct rectangle for this month and temperature Rectangle rect = new Rectangle(month, 0, 1, temperature); // convert to pixel coordinates and draw units.convert(rect); g2.draw(rect); month++; } private int month; private UnitConverter units; }

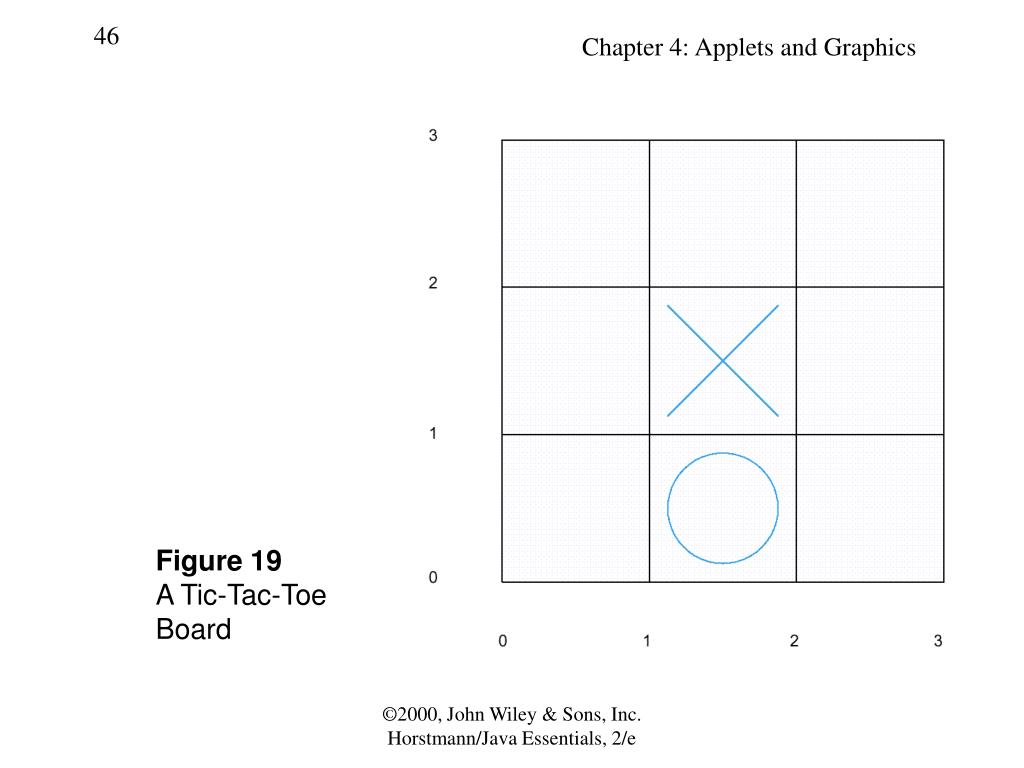

  46. Figure 19 A Tic-Tac-Toe Board
