  1. PRINCIPLES OF BIOCHEMISTRY Chapter 25 DNA Metabolism

  2. 25.1 DNA Replication 25.2 DNA Repair 25.3 DNA Recombination p.975

  3. Many of the seminal discoveries in DNA metabolism have been made with Escherichia coli, so its well-understood enzymes are generally used to illustrate the ground rules. A quick look at some relevant genes on the E. coli genetic map (Fig. 25–1)provides just a hint of the complexity of the enzymatic systems involved in DNA metabolism. p.975

  4. FIGURE 25-1 FIGURE 25–1 Map of the E. coli chromosome. p.976

  5. 25.1 Chromosomal Elements • Template: a structure that would allow molecules to be lined up in a specific order and joined to create a macromolecule with a unique sequence and function. DNA Replication Follows a Set of Fundamental Rules • DNA Replication Is SemiconservativeEach DNA strand serves as a template for the synthesis of a new strand, producing two new DNA molecules, each with one new strand and one old strand. This is semiconservative replication. The DNA isolated from these cells had a density about 1% greater than that of normal [14N]DNA (Fig. 25–2a). p.977

  6. FIGURE 25-2 FIGURE 25–2 The Meselson-Stahl experiment. p.977

  7. Replication Begins at an Origin and Usually Proceeds BidirectionallyThese tracks revealed that the intact chromosome of E. coli is a single huge circle, 1.7 mm long. Radioactive DNA isolated from cells during replication showed an extra loop (Fig. 25–3a). • One or both ends of the loop are dynamic points, termed replication forks, where parent DNA is being unwound and the separated strands quickly replicated. p.978

  8. FIGURE 25-3(a) FIGURE 25–3 Visualization of bidirectional DNA replication. p.978

  9. FIGURE 25-3(b) p.978

  10. The determination of whether the replication loops originate at a unique point in the DNA required landmarks along the DNA molecule. These were provided by a technique called denaturation mapping, developed by Ross Inman and colleagues. • The technique revealed that in this system the replication loops always initiate at a unique point, which was termed an origin. p.978

  11. DNA Synthesis Proceeds in a 5'→3'Direction and Is SemidiscontinuousOkazaki found that one of the new DNA strands is synthesized in short pieces, now called Okazaki fragments. • The continuous strand, or leading strand, is the one in which 5'→3' synthesis proceeds in the same direction as replication fork movement. The discontinuous strand, or lagging strand, is the one in which 5'→3' synthesis proceeds in the direction opposite to the direction of fork movement. p.979

  12. FIGURE 25-4 FIGURE 25–4 Defining DNA strands at the replication fork. p.979

  13. DNA Is Degraded by Nucleases • Exonucleasesdegrade nucleic acids from one end of the molecule. Many operate in only the 5'→3' or the 3'→5' direction, removing nucleotides only from the 5' or the 3' end, respectively, of one strand of a double-stranded nucleic acid or of a single-stranded DNA. • Endonucleasescan begin to degrade at specific internal sites in a nucleic acid strand or molecule, reducing it to smaller and smaller fragments. p.979

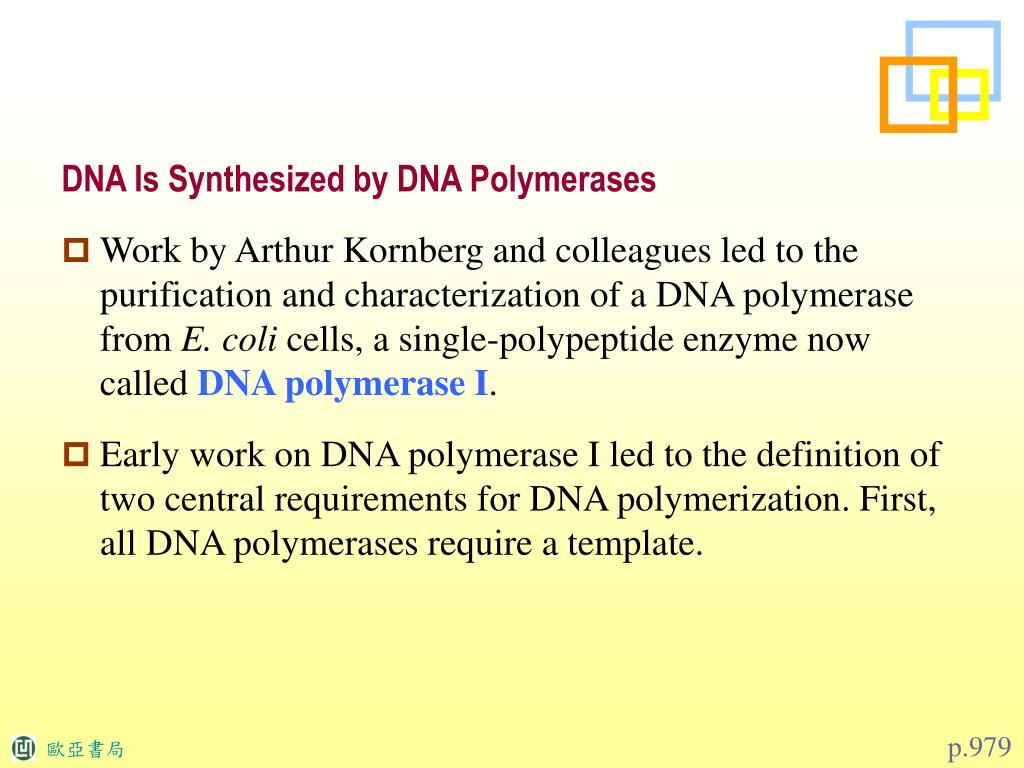

  14. DNA Is Synthesized by DNA Polymerases • Work by Arthur Kornberg and colleagues led to the purification and characterization of a DNA polymerase from E. coli cells, a single-polypeptide enzyme now called DNA polymerase I. • Early work on DNA polymerase I led to the definition of two central requirements for DNA polymerization. First, all DNA polymerases require a template. p.979

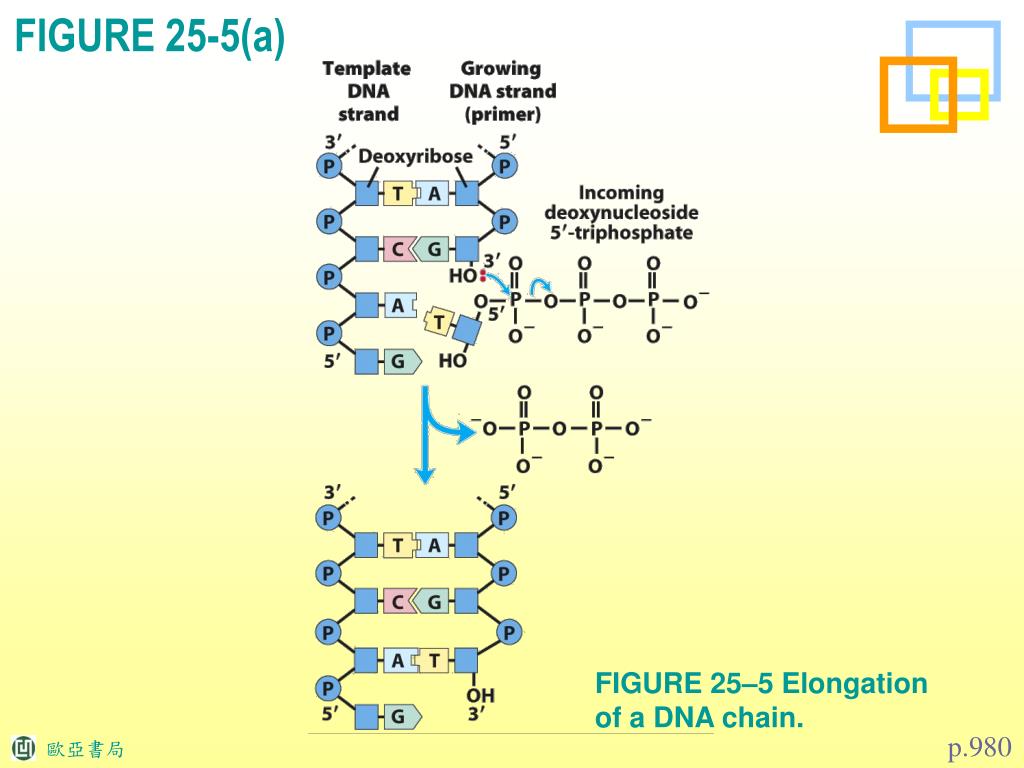

  15. FIGURE 25-5(a) FIGURE 25–5 Elongation of a DNA chain. p.980

  16. FIGURE 25-5(b) p.980

  17. Second, the polymerases require a primer. A primer is a strand segment (complementary to the template) with a free 3-hydroxyl group to which a nucleotide can be added; the free 3 end of the primer is called the primer terminus. • The average number of nucleotides added before a polymerase dissociates defines its processivity. p.980

  18. Replication Is Very Accurate • During polymerization, discrimination between correct and incorrect nucleotides relies not just on the hydrogen bonds that specify the correct pairing between complementary bases but also on the common geometry of the standard A=T and G≡C base pairs (Fig. 25–6). • One mechanism intrinsic to virtually all DNA polymerases is a separate 3'→5' exonuclease activity that double-checks each nucleotide after it is added. p.980

  19. FIGURE 25-6 FIGURE 25–6 Contribution of base-pair geometry to the fidelity of DNA replication. p.981

  20. This nuclease activity permits the enzyme to remove a newly added nucleotide and is highly specific for mismatched base pairs (Fig. 25–7). • The 3'→5' exonuclease activity removes the mispaired nucleotide, and the polymerase begins again. This activity, known as proofreading, is not simply the reverse of the polymerization reaction, because pyrophosphate is not involved. p.981

  21. FIGURE 25–7 Part 1 FIGURE 25–7 An example of error correction by the 3'→5'exonuclease activity of DNA polymerase I. p.981

  22. FIGURE 25–7 Part 2 p.981

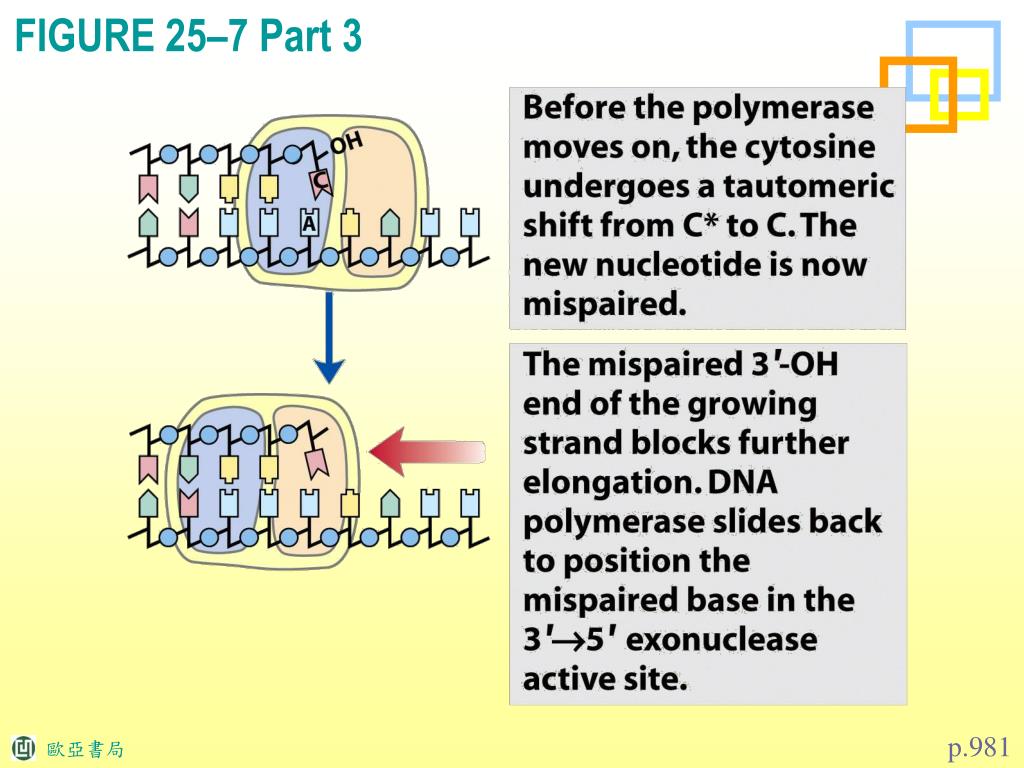

  23. FIGURE 25–7 Part 3 p.981

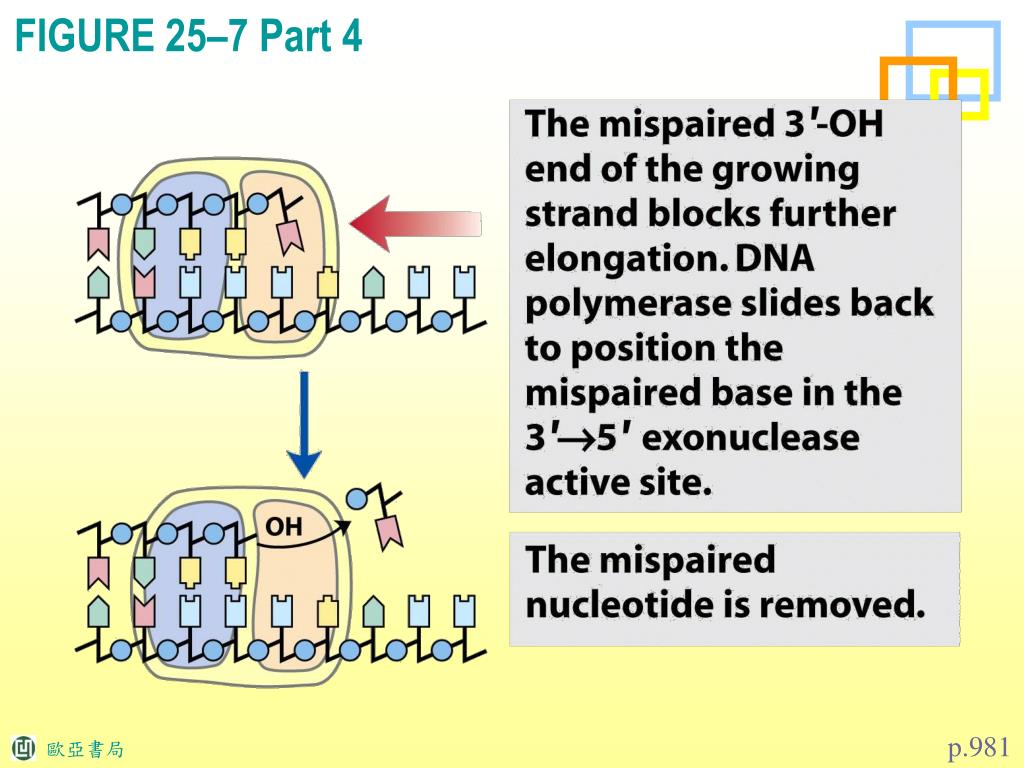

  24. FIGURE 25–7 Part 4 p.981

  25. FIGURE 25–7 Part 5 p.981

  26. E. coli Has at Least Five DNA Polymerases • A search for other DNA polymerases led to the discovery of E. coli DNA polymerase IIand DNA polymerase IIIin the early 1970s. • When the 5'→3' exonuclease domain is removed, the remaining fragment (Mr 68,000), the large fragmentor Klenow fragment(Fig. 25–8), retains the polymerization and proofreading activities. The 5'→3' exonuclease activity of intact DNA polymerase I can replace a segment of DNA (or RNA) paired to the template strand, in a process known as nick translation (Fig. 25–9). p.982

  27. FIGURE 25–8 FIGURE 25–8 Large (Klenow) fragment of DNA polymerase I. p.982

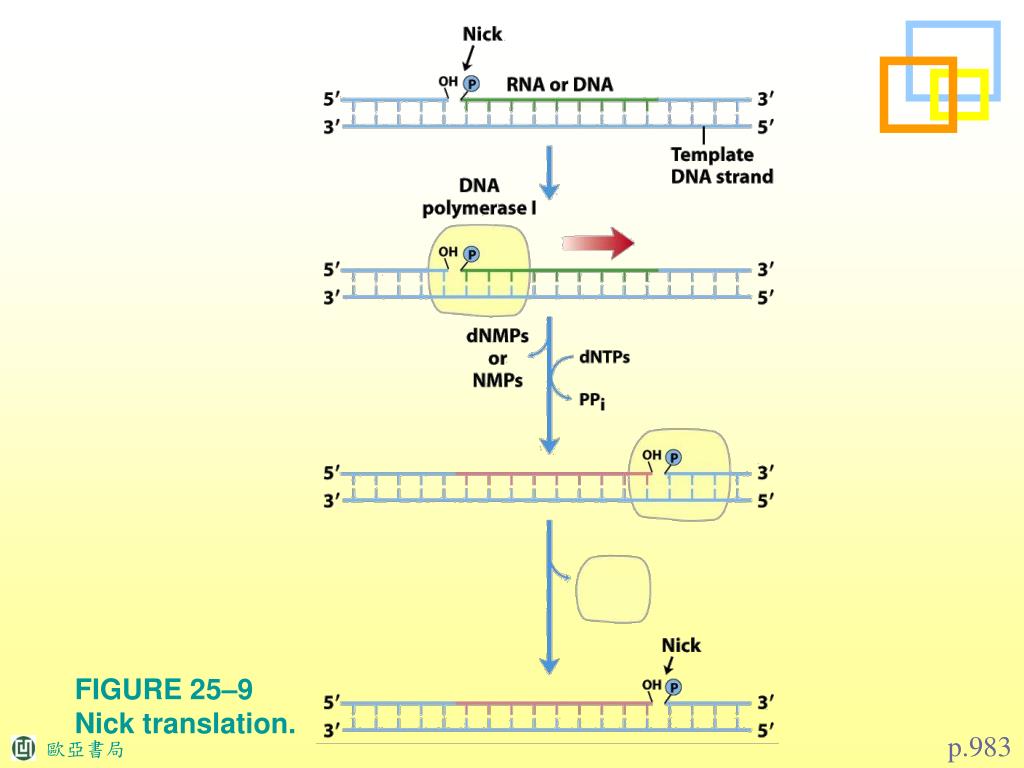

  28. FIGURE 25–9 FIGURE 25–9 Nick translation. p.983

  29. DNA Replication Requires Many Enzymes and Protein Factors • Replication in E. coli requires not just a single DNA polymerase but 20 or more different enzymes and proteins, each performing a specific task. The entire complex has been termed the DNA replicase systemor replisome. • Helicases : enzymes that move along the DNA and separate the strands. p.984

  30. Strand separation creates topological stress in the helical DNA structure, which is relieved by the action of topoisomerases. • Before DNA polymerases can begin synthesizing DNA, primers must be present on the template—generally short segments of RNA synthesized by enzymes known as primases. • After an RNA primer is removed and the gap is filled in with DNA, a nick remains in the DNA backbone in the form of a broken phosphodiester bond. These nicks are sealed by DNA ligases. p.984

  31. Replication of the E. coli Chromosome Proceeds in Stages • InitiationThe general arrangement of the conserved sequences is illustrated in Figure 25–11. Two types of sequences are of special interest: five repeats of a 9 bp sequence (R sites) that serve as binding sites for the key initiator protein DnaA, and a region rich in A=T base pairs called the DNA unwinding element (DUE). • Eight DnaA protein molecules, all in the ATP-bound state, assemble to form a helical complex encompassing the R and I sites in oriC (Fig. 25–12). p.985

  32. FIGURE 25-11 FIGURE 25–11 Arrangement of sequences in the E. coli replication origin, oriC. p.985

  33. FIGURE 25–12 FIGURE 25–12 Model for initiation of replication at the E. coli origin, oriC. p.985

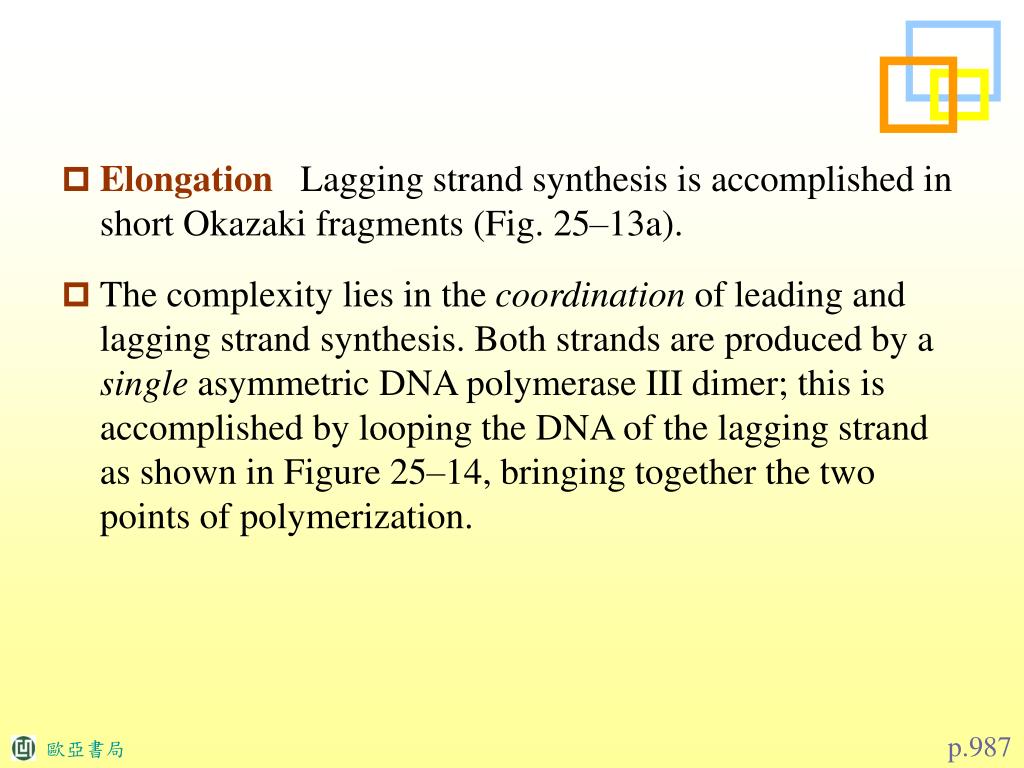

  34. ElongationLagging strand synthesis is accomplished in short Okazaki fragments (Fig. 25–13a). • The complexity lies in the coordination of leading and lagging strand synthesis. Both strands are produced by a single asymmetric DNA polymerase III dimer; this is accomplished by looping the DNA of the lagging strand as shown in Figure 25–14, bringing together the two points of polymerization. p.987

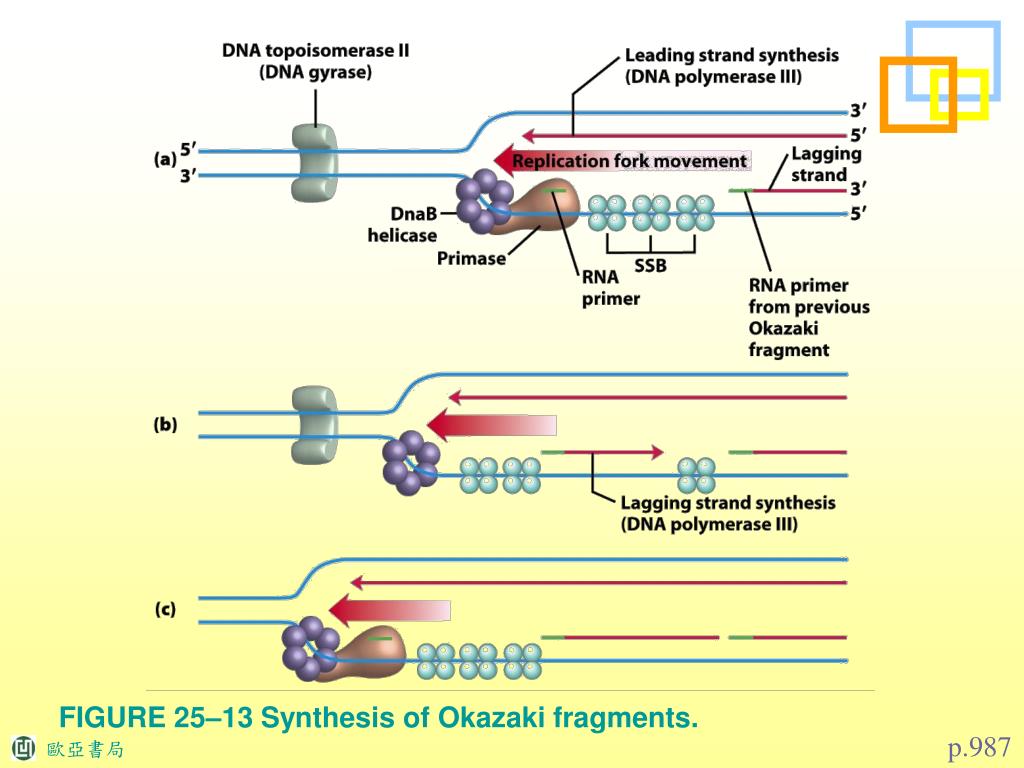

  35. FIGURE 25–13 FIGURE 25–13 Synthesis of Okazaki fragments. p.987

  36. FIGURE 25–14 Part 1 FIGURE 25–14 DNA synthesis on the leading and lagging strands. p.988

  37. FIGURE 25–14 Part 2 p.988

  38. FIGURE 25–14 Part 3 p.988

  39. FIGURE 25–14 Part 4 p.988

  40. The replisome promotes rapid DNA synthesis, adding ~1,000 nucleotides/s to each strand (leading and lagging). Once an Okazaki fragment has been completed, its RNA primer is removed and replaced with DNA by DNA polymerase I, and the remaining nick is sealed by DNA ligase (Fig. 25–16). • TerminationEventually, the two replication forks of the circular E. coli chromosome meet at a terminus region containing multiple copies of a 20 bp sequence called Ter (Fig. 25–18). p.989

  41. FIGURE 25–16 FIGURE 25–16 Final steps in the synthesis of lagging strand segments. p.989

  42. FIGURE 25-18 FIGURE 25–18 Termination of chromosome replication in E. coli. p.990

  43. FIGURE 25-19 FIGURE 25–19 Role of topoisomerases in replication termination. p.990

  44. Replication in Eukaryotic Cells Is Both Similar and More Complex • Yeast (Saccharomyces cerevisiae) has defined replication origins called autonomously replicating sequences (ARS), or replicators. • As in bacteria, the key event in the initiation of replication in all eukaryotes is the loading of the replicative helicase, a heterohexameric complex of minichromosome maintenance (MCM) proteins(MCM2 to MCM7). p.991

  45. The ring-shaped MCM2–7 helicase, functioning much like the bacterial DnaB helicase, is loaded onto the DNA by another six-protein complex called ORC (origin recognition complex)(Fig. 25–20). • DNA polymeraseαis typically a multisubunit enzyme with similar structure and properties in all eukaryotic cells. • DNA polymeraseδ is associated with and stimulated by proliferating cell nuclear antigen (PCNA; Mr 29,000), a protein found in large amounts in the nuclei of proliferating cells. p.991

  46. FIGURE 25-20 FIGURE 25–20 Assembly of a pre-replicative complex at a eukaryotic replication origin. p.991

  47. DNA polymerase ε, replaces DNA polymerase in some situations, such as in DNA repair. • The termination of replication on linear eukaryotic chromosomes involves the synthesis of special structures called telomeresat the ends of each chromosome. p.992

  48. 25.2DNA Repair • Most cells have only one or two sets of genomic DNA.Damaged proteins and RNA molecules can be quickly replacedby using information encoded in the DNA, but DNAmolecules themselves are irreplaceable. Mutations Are Linked to Cancer • A permanent change in the nucleotide sequence of DNA is called a mutation. • If the mutation affects nonessential DNA or if it has a negligible effect on the function of a gene, it is known as a silent mutation. p.993

  49. A simple test developed by Bruce Ames measures the potential of a given chemical compound to promote certain easily detected mutations in a specialized bacterial strain (Fig. 25–21). All Cells Have Multiple DNA Repair Systems • DNA repair is possible largely because the DNA molecule consists of two complementary strands. DNA damage in one strand can be removed and accurately replaced by using the undamaged complementary strand as a template. p.993

  50. FIGURE 25–21 FIGURE 25–21 Ames test for carcinogens, based on their mutagenicity. p.993
