  1. TRI-NATA Explorer 2008 Toxics Release Inventory (TRI) National Training Conference Washington, DC February 12, 2008 Ted Palma - EPA Office of Air Quality Planning and Standards Kim Balassiano - EPA OEI/OIAA Information Access Division

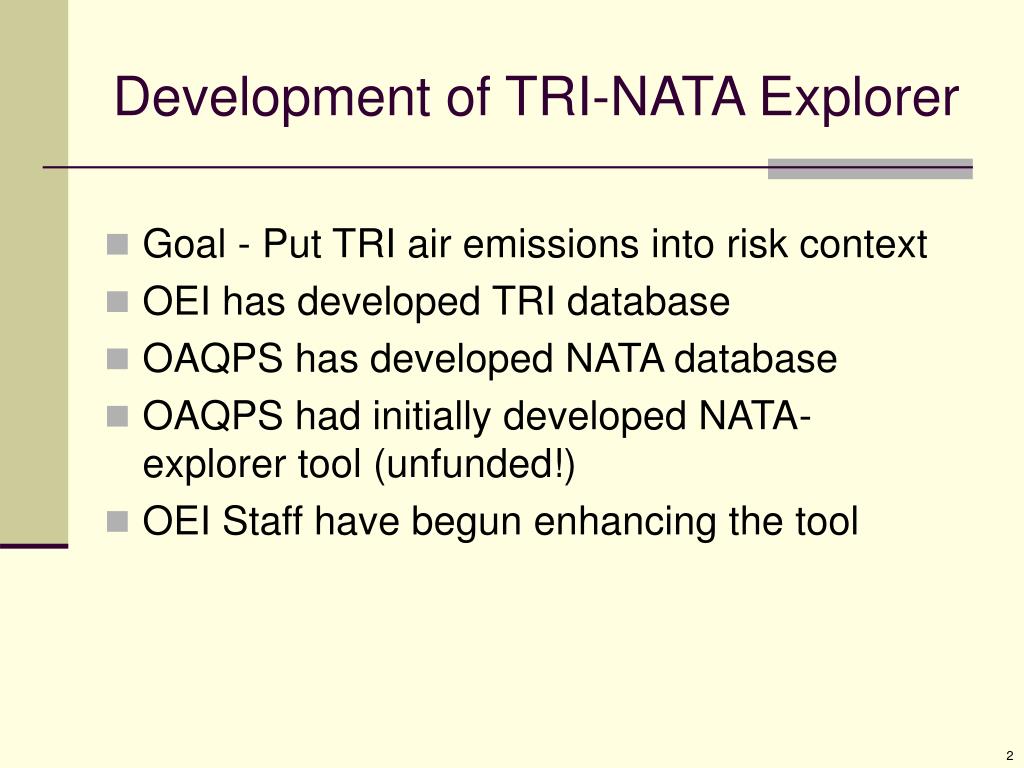

  2. Development of TRI-NATA Explorer • Goal - Put TRI air emissions into risk context • OEI has developed TRI database • OAQPS has developed NATA database • OAQPS had initially developed NATA-explorer tool (unfunded!) • OEI Staff have begun enhancing the tool

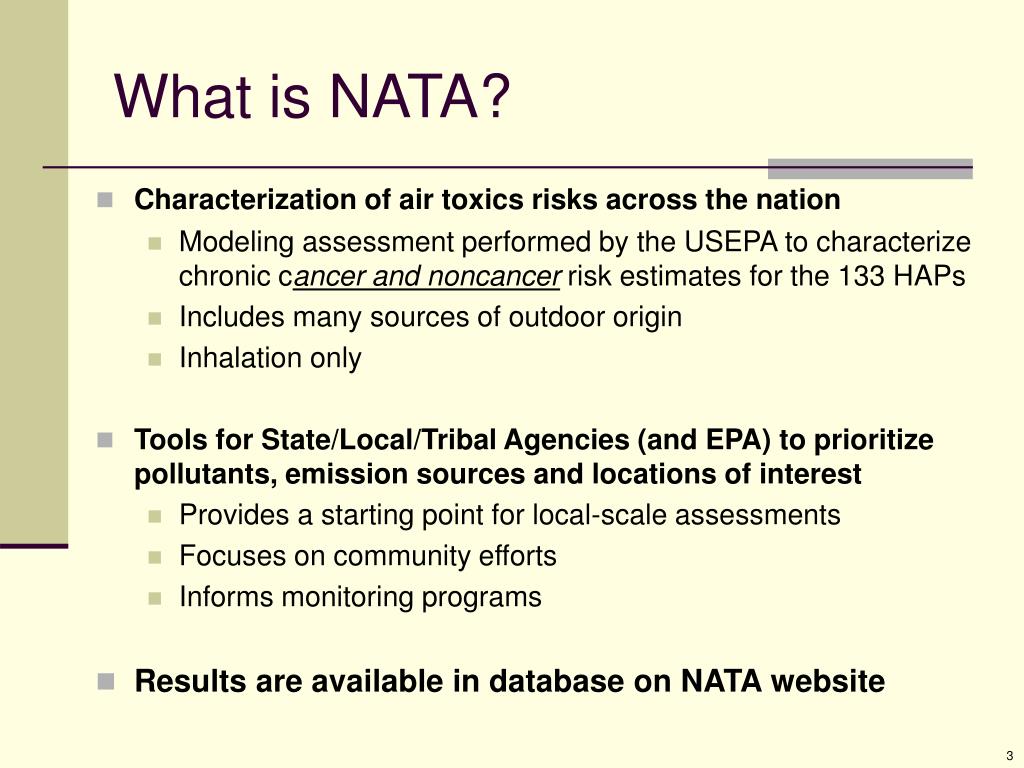

  3. What is NATA? • Characterization of air toxics risks across the nation • Modeling assessment performed by the USEPA to characterize chronic cancer and noncancer risk estimates for the 133 HAPs • Includes many sources of outdoor origin • Inhalation only • Tools for State/Local/Tribal Agencies (and EPA) to prioritize pollutants, emission sources and locations of interest • Provides a starting point for local-scale assessments • Focuses on community efforts • Informs monitoring programs • Results are available in database on NATA website

  4. NATA History • 1996 NATA • Based on 1996 NTI • Release May 2002 • 33 HAPs • 1999 NATA • Based on 1999 NEI • Released Feb 2006 • 177 HAPs • 2002 NATA • Will be based on 2002 NEI • Expected Release Early 2008

  5. Who currently uses NATA? • EPA • Data for standard setting • Risk and Technology Review • Area source rulemaking • MSAT Rule used NATA for current and projected risk levels • Air Toxics monitoring • NATTS Priority HAPs/Site locations • Support Urban monitoring efforts • Accountability Measures • GPRA, 112(k), PART • AQM Phase 1 ( Recommendation 1.5 Framework for Accountability) • Used to link Air Toxic to Criteria Program • Overlay “Hot Spots” with nonattainment areas (e.g. Detroit) • Evaluate the toxic components of PM • States • Many State Air Toxic Program set air toxic priorities using NATA • Identify gaps in emissions inventories and encourages inventory improvements • Communities • Serves as a starting point • Information and priority setting

  6. Improvements in the 2002 NATA • Inventory Improvements • Cr speciation • More tribal data • RTR review • Integration of HAPs and CAPs • QA/QC • Improved point source characterization • Model at census block using HEM3 (AERMOD) • Retain individual source contributions • Will group into source categories • Improved non-point source characterization • Area sources - grouped into 27 area source bins • Mobile sectors - grouped into 9 source bins • Updated exposure characterization approach • Using exposure ratios in lieu of running HAPEM • Allows us to retain individual facility and areas source category contribution to risk • Improved Background Characterization • Updated monitoring data (NATTS) • Improved regional representation

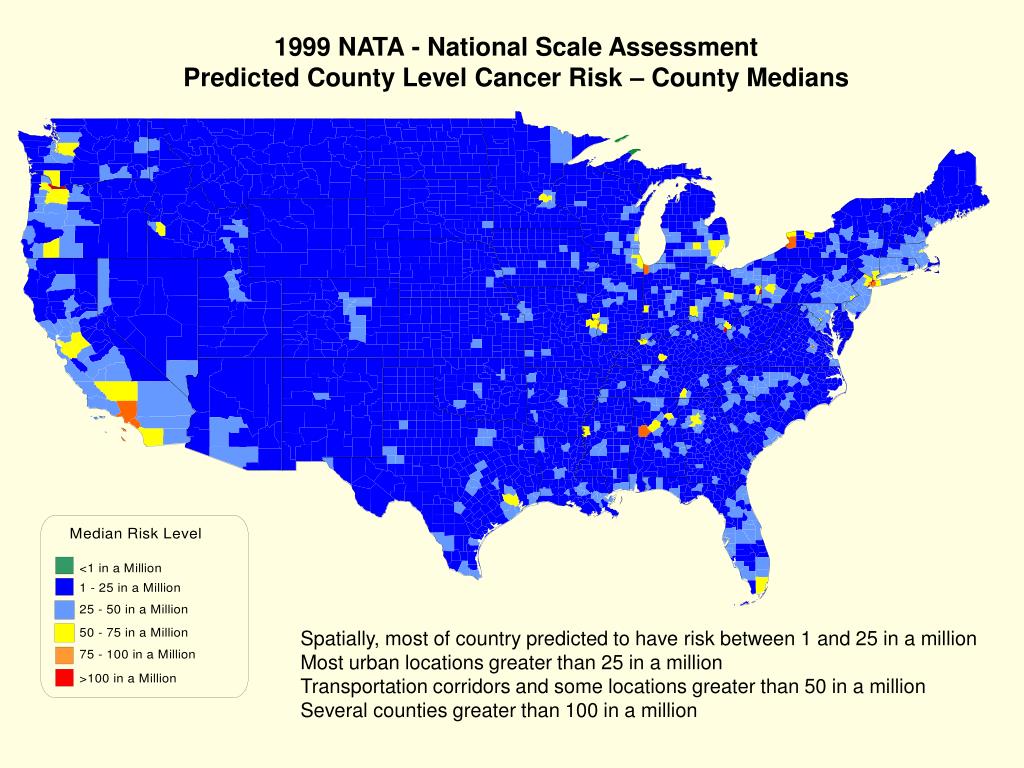

  7. 1999 NATA - National Scale Assessment Predicted County Level Cancer Risk – County Medians • Spatially, most of country predicted to have risk between 1 and 25 in a million • Most urban locations greater than 25 in a million • Transportation corridors and some locations greater than 50 in a million • Several counties greater than 100 in a million

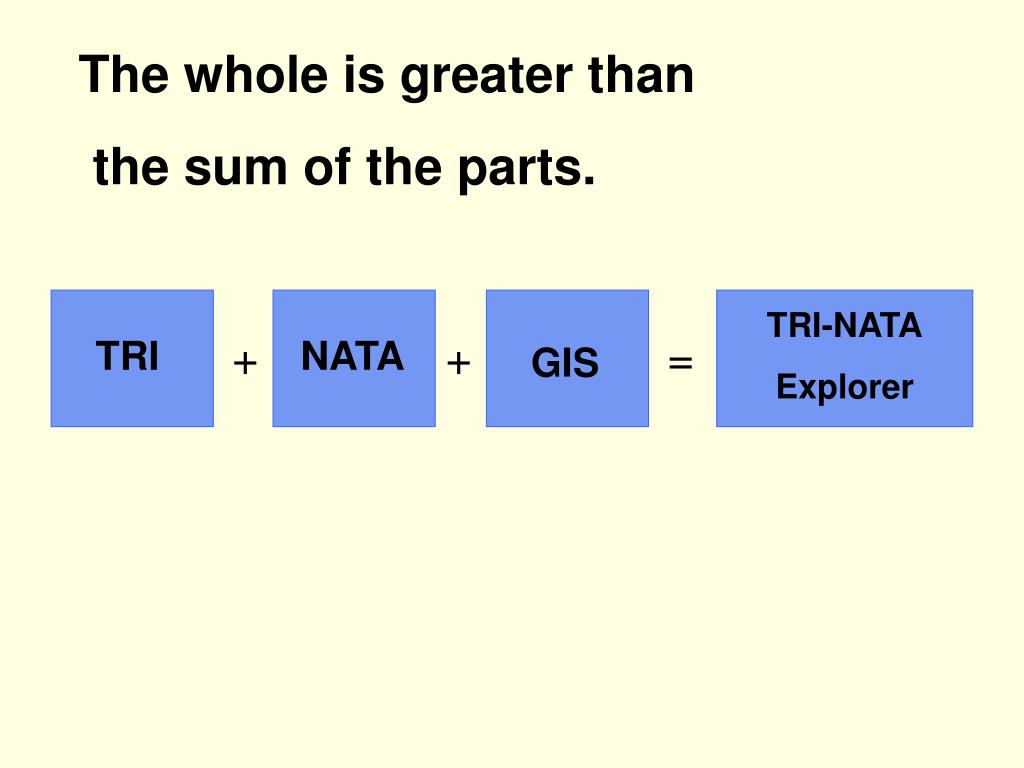

  8. The whole is greater than the sum of the parts. TRI-NATA Explorer + + = TRI NATA GIS

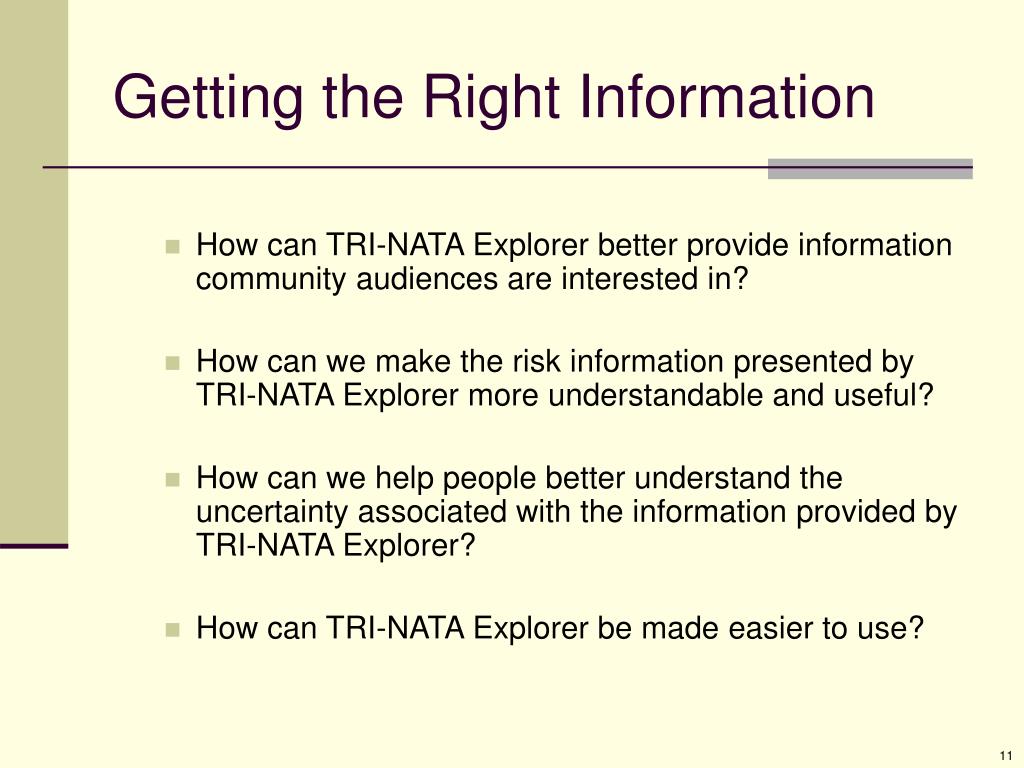

  9. Getting the Right Information • How can TRI-NATA Explorer better provide information community audiences are interested in? • How can we make the risk information presented by TRI-NATA Explorer more understandable and useful? • How can we help people better understand the uncertainty associated with the information provided by TRI-NATA Explorer? • How can TRI-NATA Explorer be made easier to use?

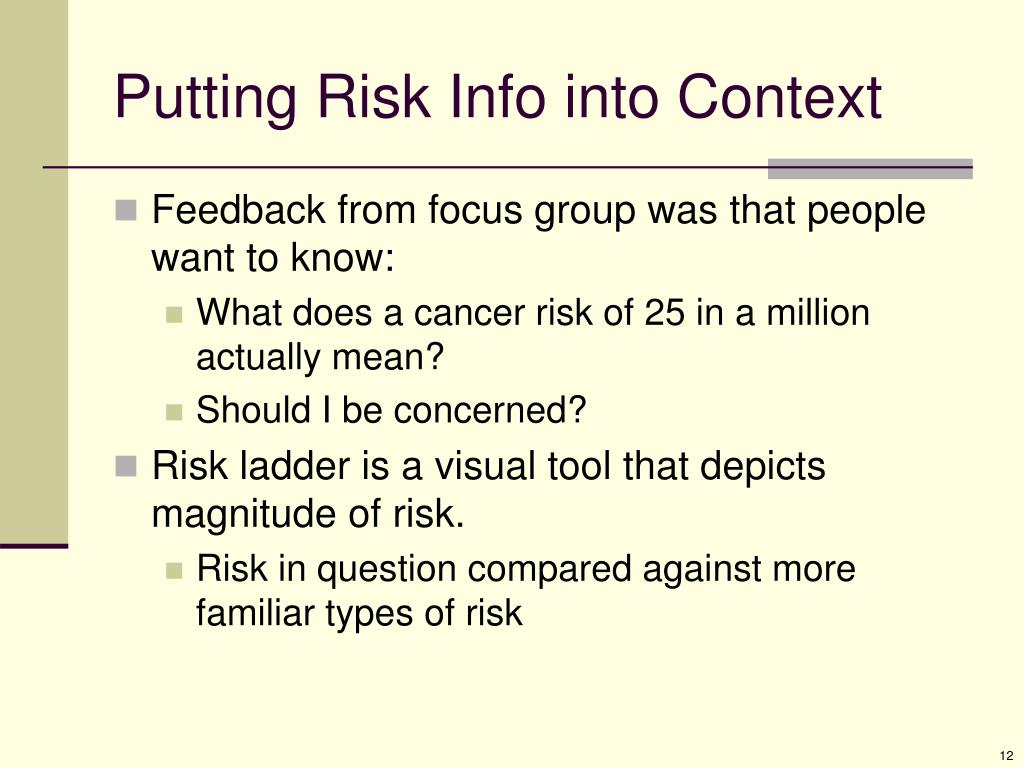

  10. Putting Risk Info into Context • Feedback from focus group was that people want to know: • What does a cancer risk of 25 in a million actually mean? • Should I be concerned? • Risk ladder is a visual tool that depicts magnitude of risk. • Risk in question compared against more familiar types of risk

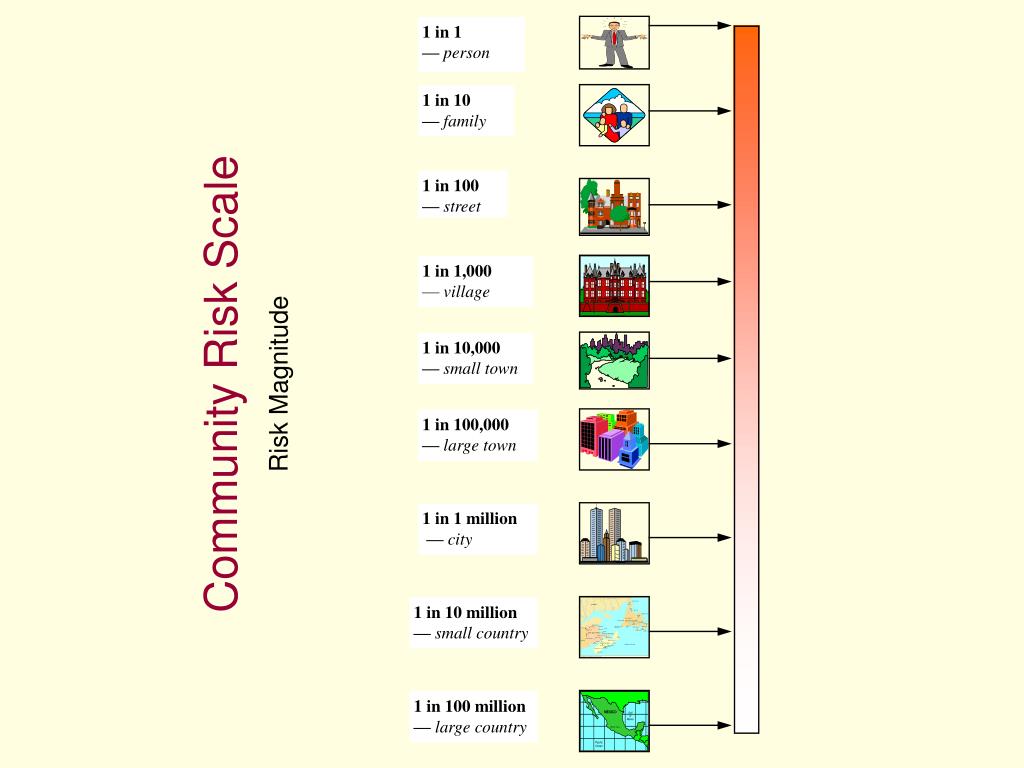

  11. 1 in 1 — person 1 in 10 — family 1 in 100 — street 1 in 1,000 — village Community Risk Scale Risk Magnitude 1 in 10,000 — small town 1 in 100,000 — large town 1 in 1 million — city 1 in 10 million — small country 1 in 100 million — large country

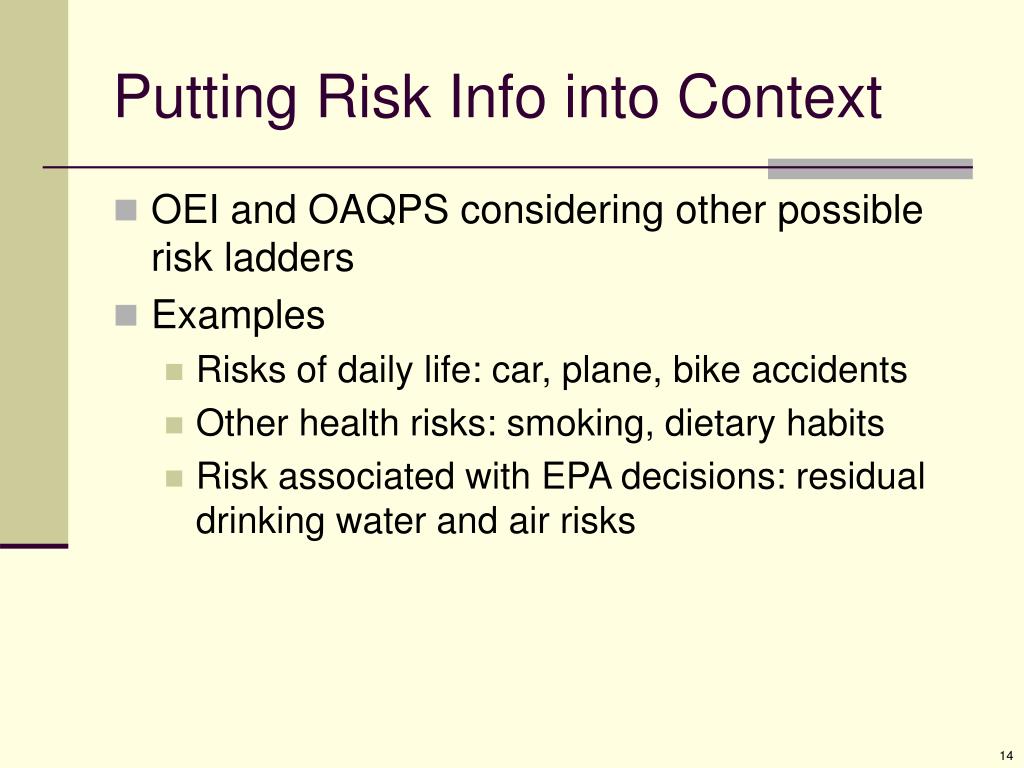

  12. Putting Risk Info into Context • OEI and OAQPS considering other possible risk ladders • Examples • Risks of daily life: car, plane, bike accidents • Other health risks: smoking, dietary habits • Risk associated with EPA decisions: residual drinking water and air risks

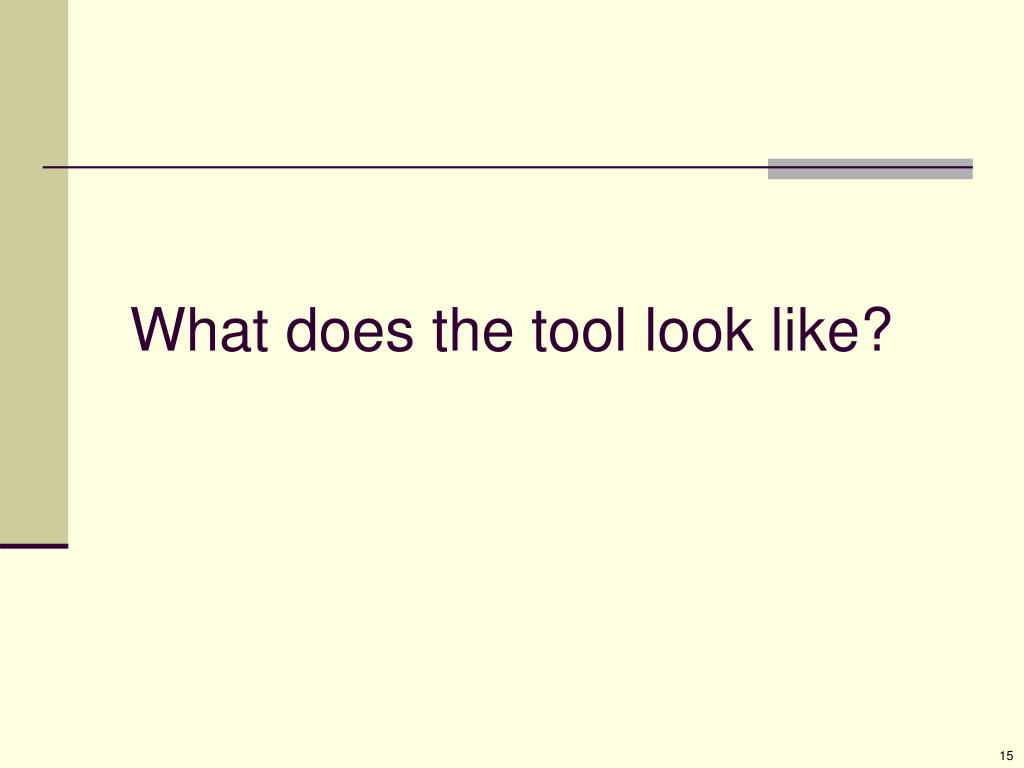

  13. What does the tool look like?

  14. Select Geography & Data

  15. Get Map

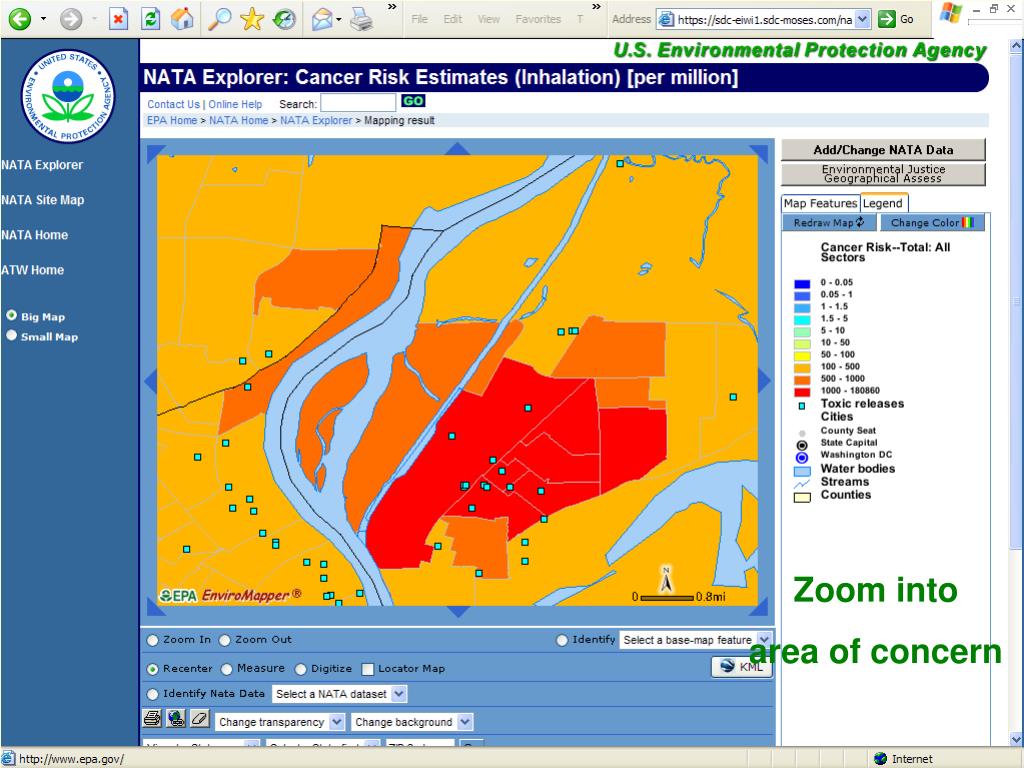

  16. Zoom into area of concern

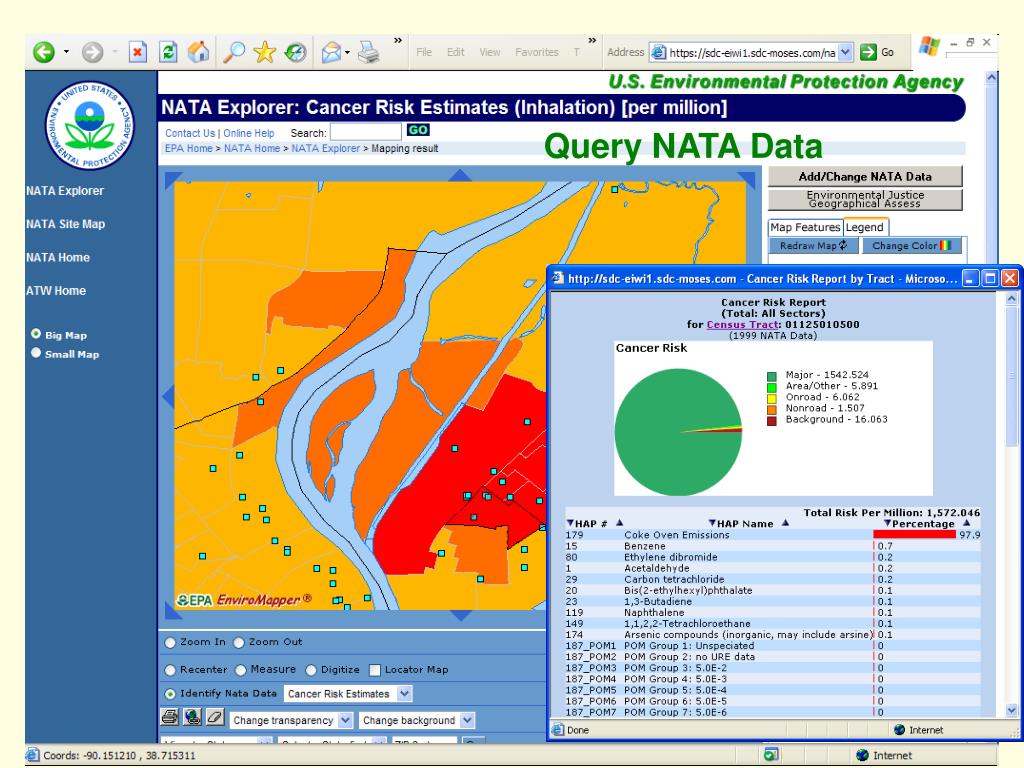

  17. Query NATA Data

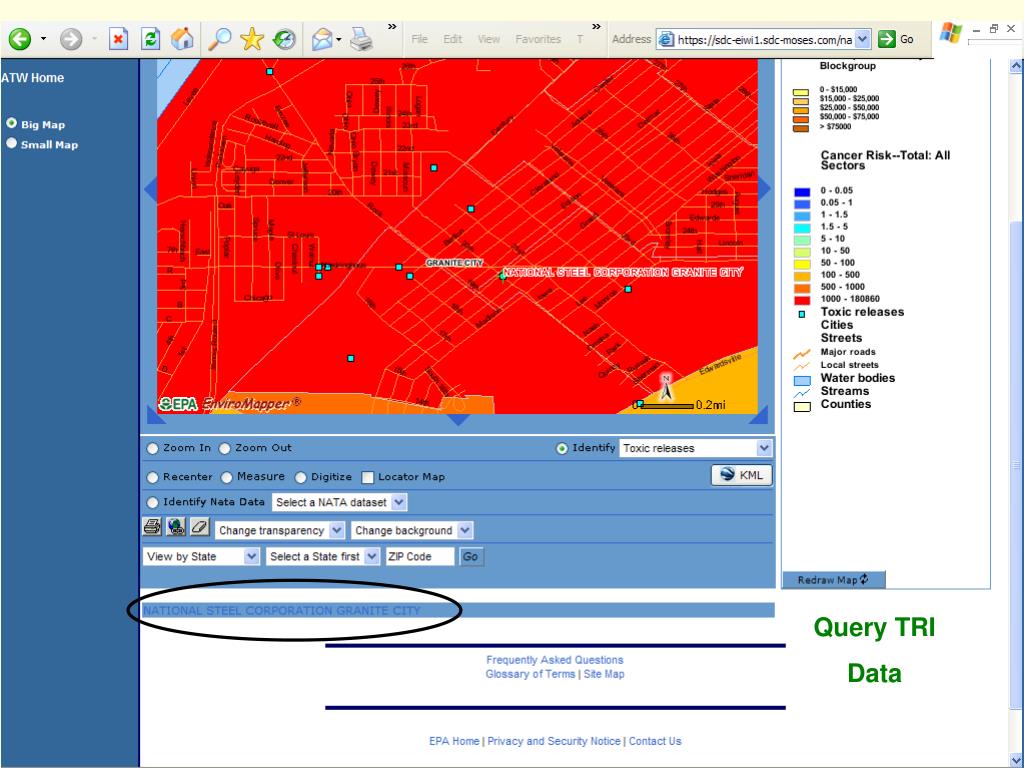

  18. Query TRI Data

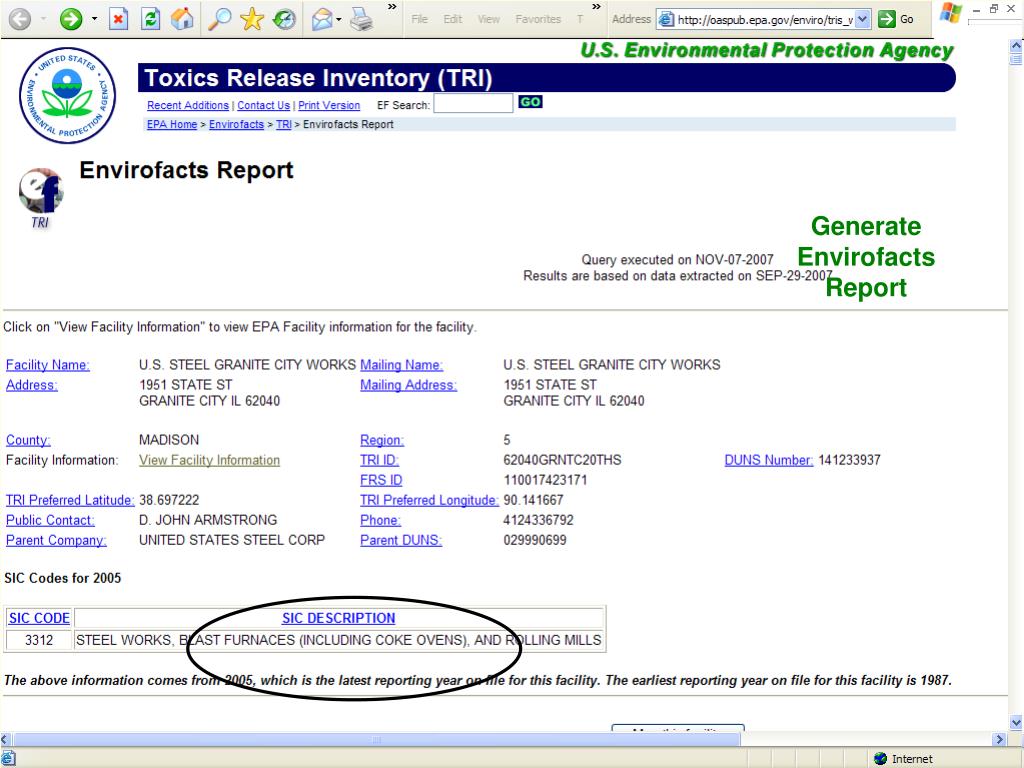

  19. Generate Envirofacts Report

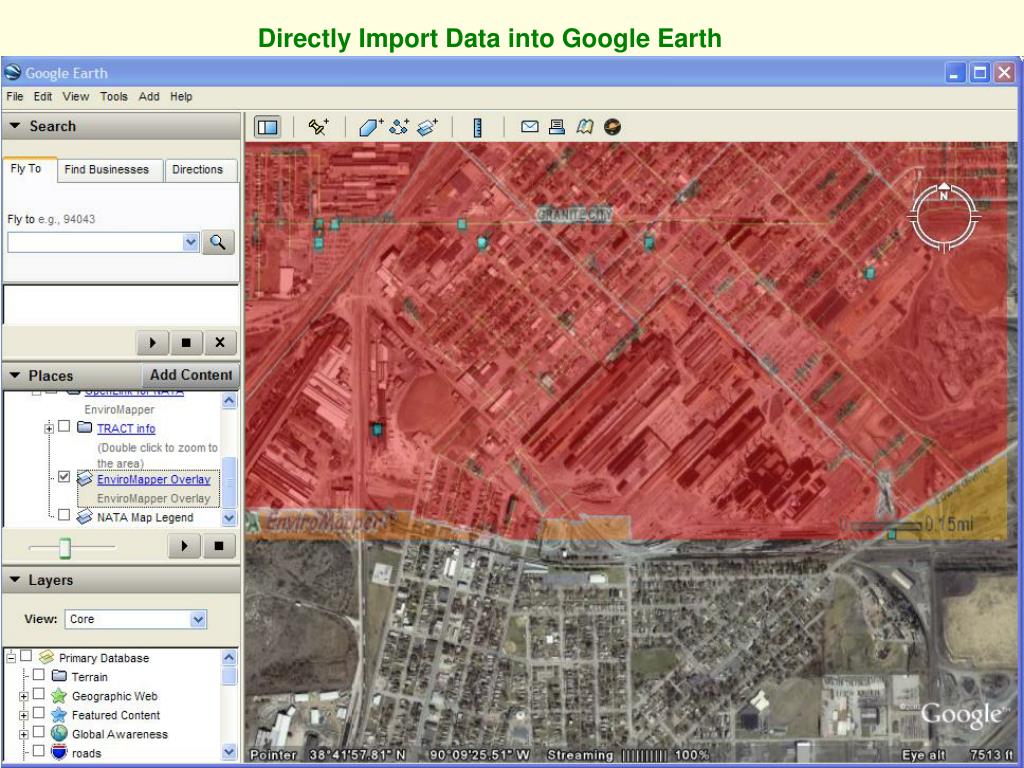

  20. Directly Import Data into Google Earth

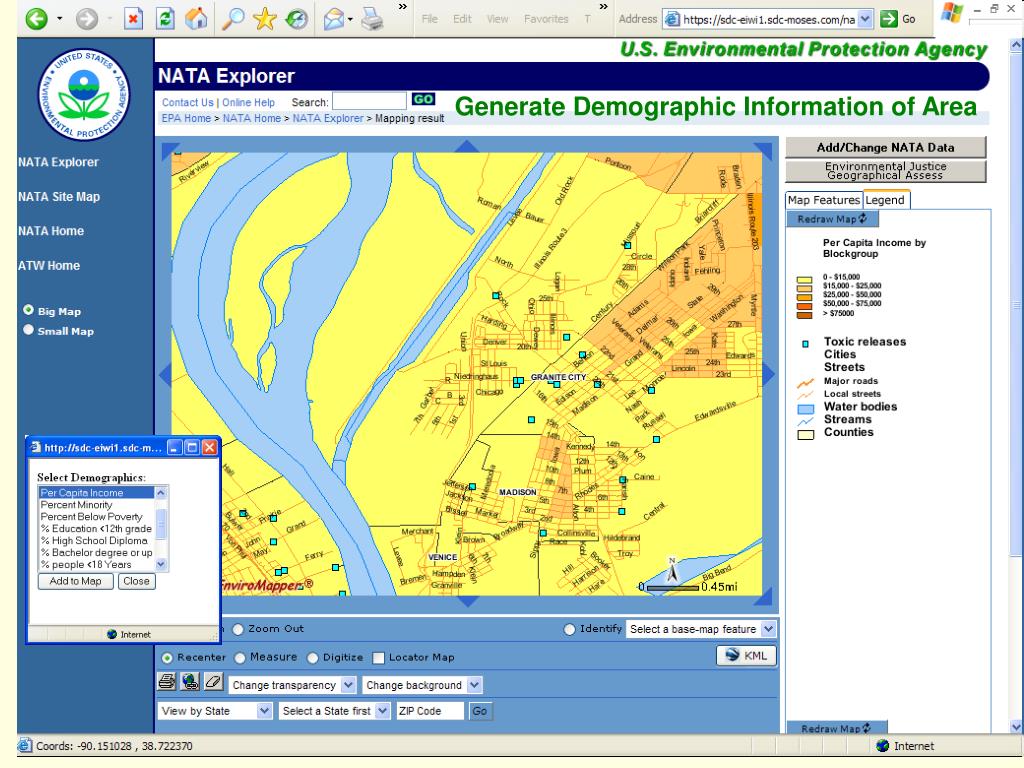

  21. Generate Demographic Information of Area

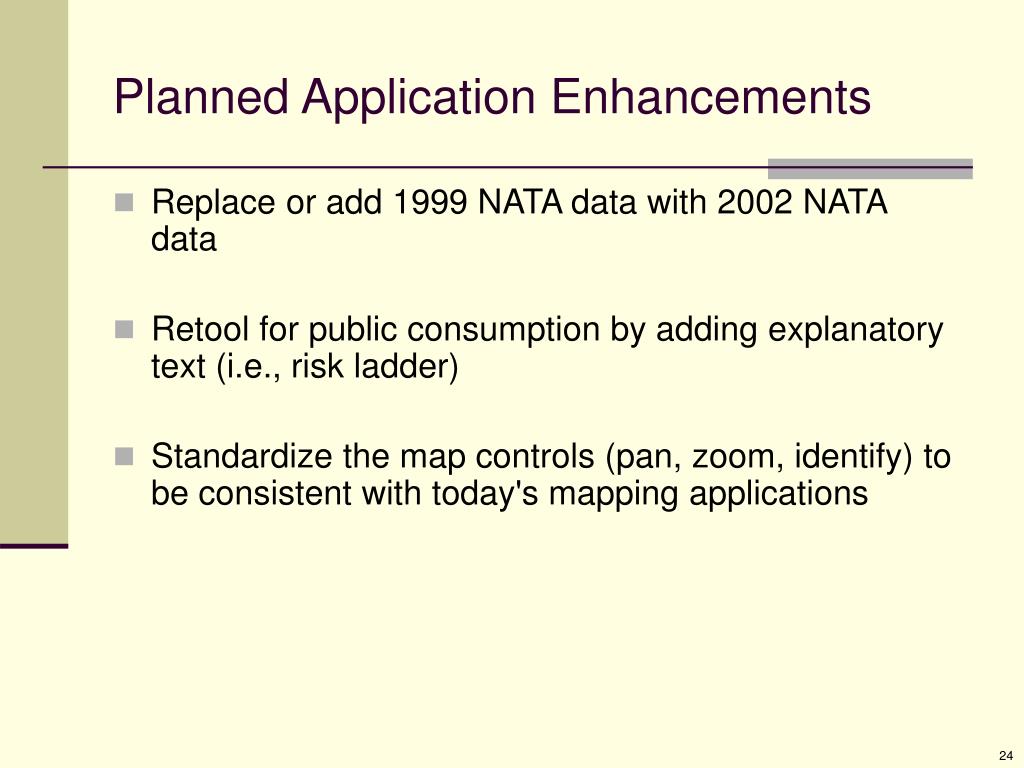

  22. Planned Application Enhancements • Replace or add 1999 NATA data with 2002 NATA data • Retool for public consumption by adding explanatory text (i.e., risk ladder) • Standardize the map controls (pan, zoom, identify) to be consistent with today's mapping applications

  23. TRI-NATA Explorer Tentative Schedule • Internal EPA Focus Group Review – September 2007 • Initial Software Enhancements - Fall 2007 • External Focus Group Review – Spring/Summer 2008 • Final Enhancements – Summer 2008 • Update with 2002 NATA – Summer 2008 • Public Release – Late 2008

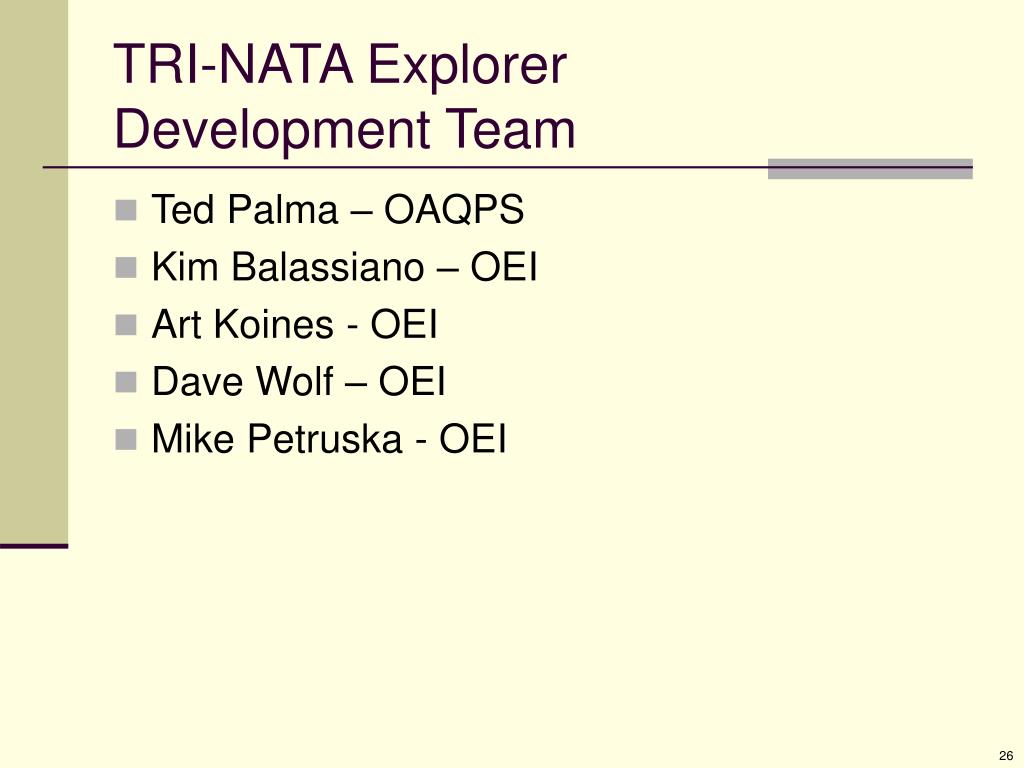

  24. TRI-NATA Explorer Development Team • Ted Palma – OAQPS • Kim Balassiano – OEI • Art Koines - OEI • Dave Wolf – OEI • Mike Petruska - OEI
