chapter 10 normalization of relational database

Chapter 10: Normalization of Relational DataBase

Csci455

Fall 2003

Csci455 Fall 2003

objectives
Objectives
  • Design Methodologies
  • Goodness of design
  • Define functional dependencies among columns of a table
  • The normalization process
  • Usefulness and limitations of normalization

Csci455 Fall 2003

design methodology
Design Methodology
  • Database system can be designed via
    • Bottom-up (design by synthesis)
    • Top-Down (design by analysis)

Csci455 Fall 2003

bottom up design
Bottom-up design
  • starts with the basic relationships among individual attributes
  • Uses these information to construct the relations
  • The approach is not scalable

Csci455 Fall 2003

top down design
Top-down design
  • Start with a number of groupings of attributes into relations
  • These attributes are obtained from conceptual design and ER mapping
  • Analyze each for possible refinement and/or decomposition

Csci455 Fall 2003

informal design guidelines for relational schemas
Informal Design Guidelines for Relational Schemas
  • Informal design metrics
    • Semantics of the related attributes
    • Reducing the redundant values in tuples
    • Minimizing the NULL values
    • Disallowing spurious tuples

Csci455 Fall 2003

semantics of the relation attributes
Semantics of the Relation Attributes
  • Based on the semantics of attributes or how the attributes values in a tuple relate to one another
    • a schema should capture facts about one entity or one relationship type
  • See fig 10.1

Csci455 Fall 2003

redundant information in tuples and update anomalies
Redundant Information in Tuples and Update Anomalies
  • The important objective of schema design
    • to minimize the storage space needed for base tables
    • to minimize unexpected side effects resulted from updates
  • Example
    • Compare relations in Fig10.2 with those in Fig.10.4

Csci455 Fall 2003

fig10 2
Fig10-2

Csci455 Fall 2003

fig10 3
Fig10-3

Csci455 Fall 2003

fig10 4
Fig10-4

Csci455 Fall 2003

update problems
Update problems
  • Insertion Anomalies
    • e.g., EMP_DEP fig 10.4
      • Inconsistency
        • e.g., insert Dnumber=6 for research
      • Null values
        • e.g., employee without dept.

Csci455 Fall 2003

deletion anomalies
Deletion Anomalies
  • Deletion Anomalies
    • Lost of information
      • E.g., delete from EMP_DEPT the last employee working for particular department

Csci455 Fall 2003

modification anomalies
Modification Anomalies
  • Modification Anomalies
    • Change for one, change for all
      • E.g., change dept. Mgr or dept. number
  • Recommendation 2
    • Design anomaly free database SCHEMAS

Csci455 Fall 2003

null values in tuples
Null Values in Tuples
  • Results from a set of attributes that do not apply to all tuples
    • E.g., Student Phone number
      • Hm-Ph, Wrk-Ph, Cll-Ph
      • Not every student has a cell phone or work phone
  • Recommendation:
    • As far as possible, avoid placing attributes in a base relation whose values may frequently be null

Csci455 Fall 2003

generation of spurious or invalid tuples
Generation of Spurious (or invalid) Tuples
  • Refers to the situation in which we decompose a relation say A into two undesirable relations, say A1 and A2;
  • Joining of A1 and A2 will result a relation that is different from original relation A
  • E.g., EMP_LOC and EMP_Proj1 in Figures10.5 and 10.6

Csci455 Fall 2003

fig10 5
Fig10-5

Csci455 Fall 2003

fig10 6
Fig10-6

Csci455 Fall 2003

recommendation
Recommendation
  • Design relation schema so that they can be JOINED with equality conditions on attributes that are either PKs or FKs in a way that guarantees no spurious tuples are generated

Csci455 Fall 2003

functional dependencies
Functional Dependencies
  • Important tools when analyzing a table for excessive redundancies
  • Comes from math where a function gives one value
    • E.g.
      • SSN {Ename, Address, Bdate}
      • DNO DMGRSSN

Csci455 Fall 2003

functional dependencies fd formal definition
Functional Dependencies (FD): Formal definition
  • X  Y
    • X (functionally) determines Y
    • Or Y functionally depends on X
    • X: left-hand-side (LHS) or determinant
    • For each X value, there is at most one Y value
  • Similar to candidate keys

Csci455 Fall 2003

more on fd
More on FD
  • The notion of dependency has to do with a schema-based dependency
  • FD is a semantic notation
  • FD is part of the process of understanding what the data means
    • e.g., SSNEname (i.e., each employee has exactly one name)

Csci455 Fall 2003

more on fd24

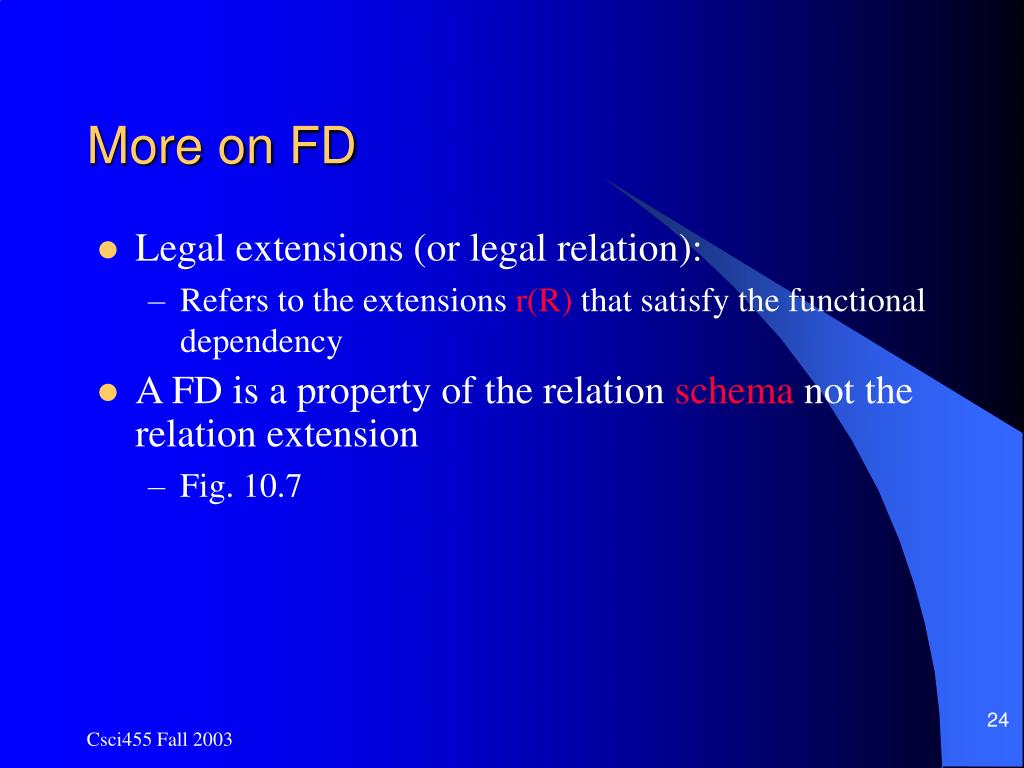

More on FD
  • Legal extensions (or legal relation):
    • Refers to the extensions r(R) that satisfy the functional dependency
  • A FD is a property of the relation schema not the relation extension
    • Fig. 10.7

Csci455 Fall 2003

fig10 7
Fig10-7

Csci455 Fall 2003

inference rules for fds
Inference Rules for FDs
  • IR1. Reflexive : If XY, then X Y
    • a formal statement of trivial dependencies; useful for derivations
  • IR2. Augmentation:{X  Y }|=XZ  YZ
    • if a dependency holds, then we can freely expand its left hand side
  • IR3. Transitivity:{X  Y,Y Z }|=X Z
    • the "most powerful" inference rule; useful in multi-step derivation
  • IR4. Decomposition, or Projection: {X YZ} |= X Y
    • we can remove attributes from the RHS of a dependency; applying this rule repeatedly can decompose FD into a set of dependencies

Csci455 Fall 2003

more on ir
More on IR
  • IR5. Union, or additive:
    • {X Y, X Z}|=X YZ
    • allows us to do composition (the reverse of IR4)
  • IR6. Pseudo-transitive :
    • {X Y, WY Z}|= WX Z
    • Similar to IR3
  • Armstrong's rules are complete and sound; general rules of inference on fds.

Csci455 Fall 2003

example
Example
  • The following set of FD can be inferred from EMP_PROJ:
    • F={ SSN  ENAME, PNUMBER  { PNAME, PLOCATION}, (SSN, PNUMBER) HOURS}
      • see Figure 10.3.b

Csci455 Fall 2003

introduction to normalization
Introduction to Normalization
  • Normalization theory:
    • built around the concept of normal forms
    • useful aid in the design process, but is not a panacea
    • a relation is in a particularly normal form if it satisfies a specified set of requirements or conditions.
      • E.g.,
        • a relation R is said to be in first normal form (1NF) iff all underlying domains contain atomic values

Csci455 Fall 2003

normal form
Normal Form
  • Type of Normal Forms
    • 1NF
    • 2NF
    • 3NF
    • BCNF
    • 4NF
    • 5NF (PJ/NF)
    • DKNF (absolute normal form)

Csci455 Fall 2003

first normal form 1nf
First Normal Form (1NF)
  • 1NF prevents
    • multi-valued attributes,
    • composite attributes
    • Or their combinations
  • See fig 10.8
  • See fig 10.9 (nested relation or multivalued composite attributes )

Csci455 Fall 2003

fig10 8
Fig10-8

Csci455 Fall 2003

fig10 9
Fig10-9

Csci455 Fall 2003

second normal form 2nf
Second Normal Form (2NF)
  • Based on the concepts of full functional dependency
  • Analogy to the traditional justice oath
    • Every non-key depends on a key, the whole key, and nothing but the key
  • A Relation R is in 2NF iff
    • it is in 1NF
    • and every nonkey attribute is fully depend on the PK
    • See fig 10.10.a

Csci455 Fall 2003

fig10 10
Fig10-10

Csci455 Fall 2003

third normal form
Third Normal Form
  • Based on the concepts of transitive dependency
  • A Relation R is in 3NF iff the nonkey attributes of R (if any) are
    • mutually independent, and
    • fully depend on the primary key of R
  • Or R is in 3NF iff it is in 2NF and every nonkey attribute is nontransitively dependent on the PK
  • See fig 10.10.b

Csci455 Fall 2003

interpretation of 3nf
Interpretation of 3NF
  • Formal Definition
    • R is in 3NF if, whenever a [nontrivial] functional dependency XY
      • X is super key or
      • Y is prime attribute of R
      • Trivial means Y X
  • e.g.,
    • LOTS2 in fig.10.11.b is 3NF
    • LOTS1 (FD4) is NOT 3NF

Csci455 Fall 2003

fig10 11
Fig10-11

Csci455 Fall 2003

boyce codd nf
Boyce/Codd NF
  • 3NF could not handle satisfactorily with the case of a relation that
    • had multiple CKs, where
      • those CKs were composite, and
      • the CKs overlapped (i.e., had at least one attribute in common
    • Fig.10.12.a
    • Fig.10.12.b

Csci455 Fall 2003

fig10 12
Fig10-12

Csci455 Fall 2003

boyce codd nf cont
Boyce/Codd NF (Cont’)
  • A relation R is in Boyce/Codd normal form (BCNF) iff every determinant is a CK
    • Each attribute MUST describe the key, the whole key, and nothing but the key
    • BCNF ensures that there is no redundancy that can be detected using FD information alone
    • Considered the most desirable NF

Csci455 Fall 2003

more on bcnf example
More on BCNF: Example
  • Consider a relation TEACH with
    • FD1: {Student, Course} Instructor
    • FD2: Instructor  Course
  • The relation is 3NF
  • Is it in BCNF?
    • No

Csci455 Fall 2003

fig10 13
Fig10-13

Csci455 Fall 2003

more on example
More on Example
  • Possible decompositions are
    • {Student, Instructor} and {Student, Course}
    • {Student, Instructor} and {Course, Student}
    • {Instructor, Course} and {Instructor, Student}
  • Which of the decomposition is better? Justify it.

Csci455 Fall 2003
