Ideal Gas Law

Ideal Gas Law. PV=nRT. Remember…. Boyle’s Law Charles’ Law: Combined Gas Law: (Units MUST Match Temp in Kelvin!!!).

natala
Download Presentation

Ideal Gas Law

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Ideal Gas Law PV=nRT

  2. Remember… • Boyle’s Law • Charles’ Law: • Combined Gas Law:(Units MUST Match Temp in Kelvin!!!)

  3. A gas with a volume of 350 ml is collected at 15o C and 120 kPa. If the temperature changes to 30o C, what pressure would be required to put this gas in a 300 ml container?

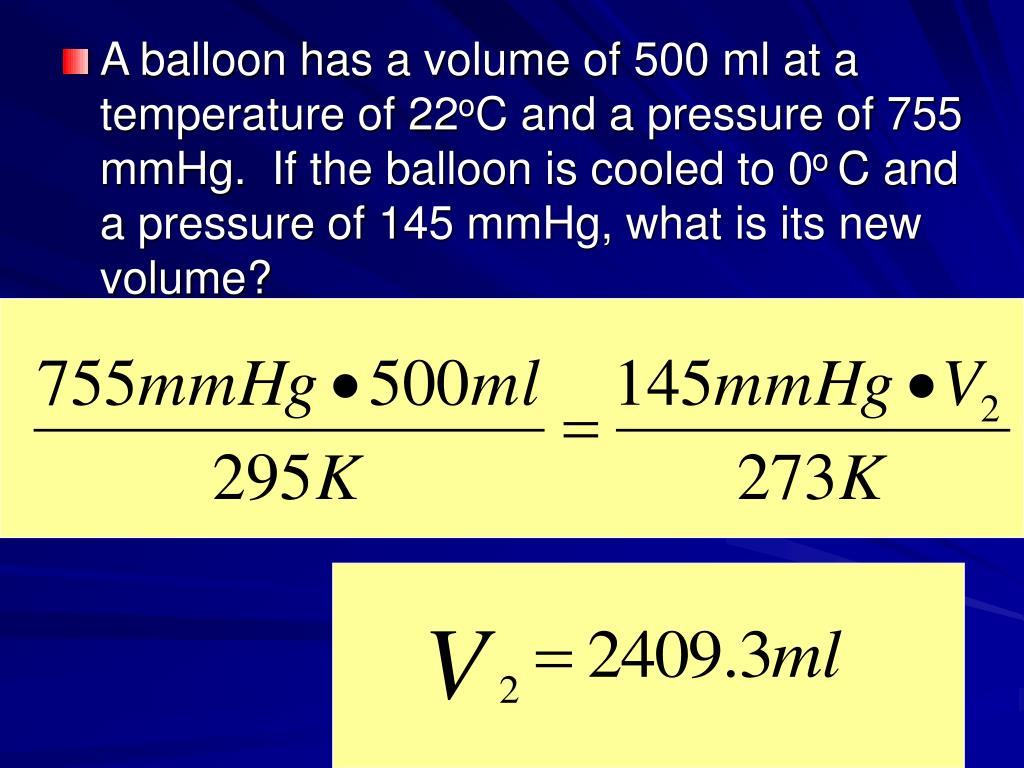

  4. A balloon has a volume of 500 ml at a temperature of 22oC and a pressure of 755 mmHg. If the balloon is cooled to 0o C and a pressure of 145 mmHg, what is its new volume?

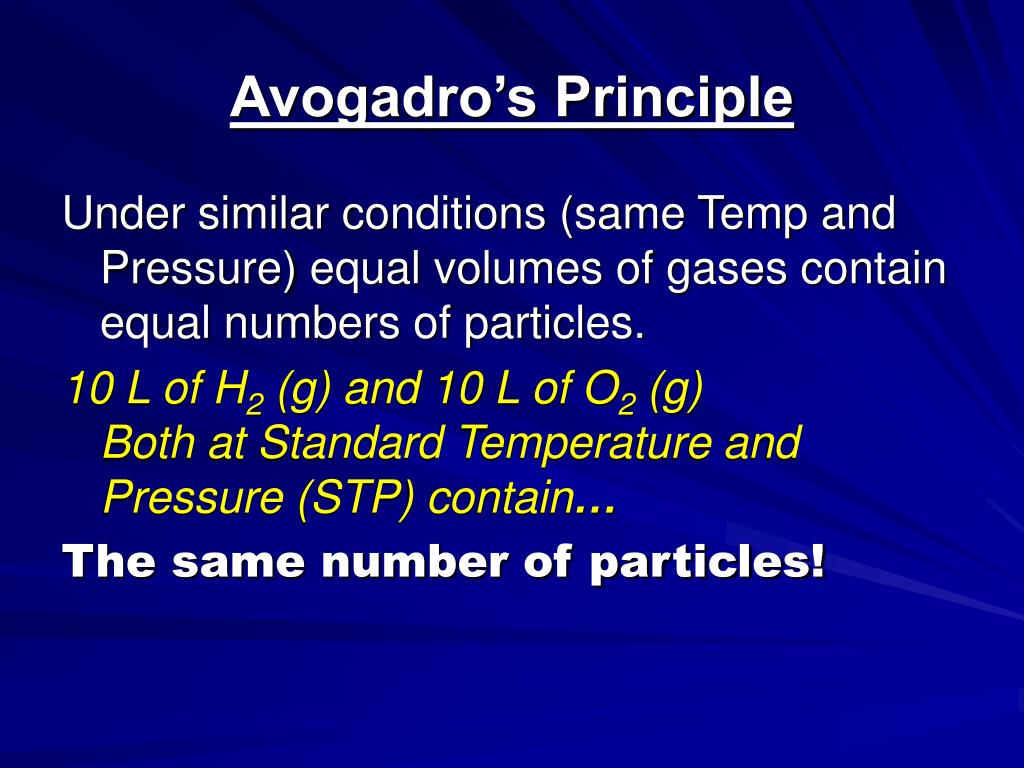

  5. Avogadro’s Principle Under similar conditions (same Temp and Pressure) equal volumes of gases contain equal numbers of particles. 10 L of H2 (g) and 10 L of O2 (g)Both at Standard Temperature and Pressure (STP) contain… The same number of particles!

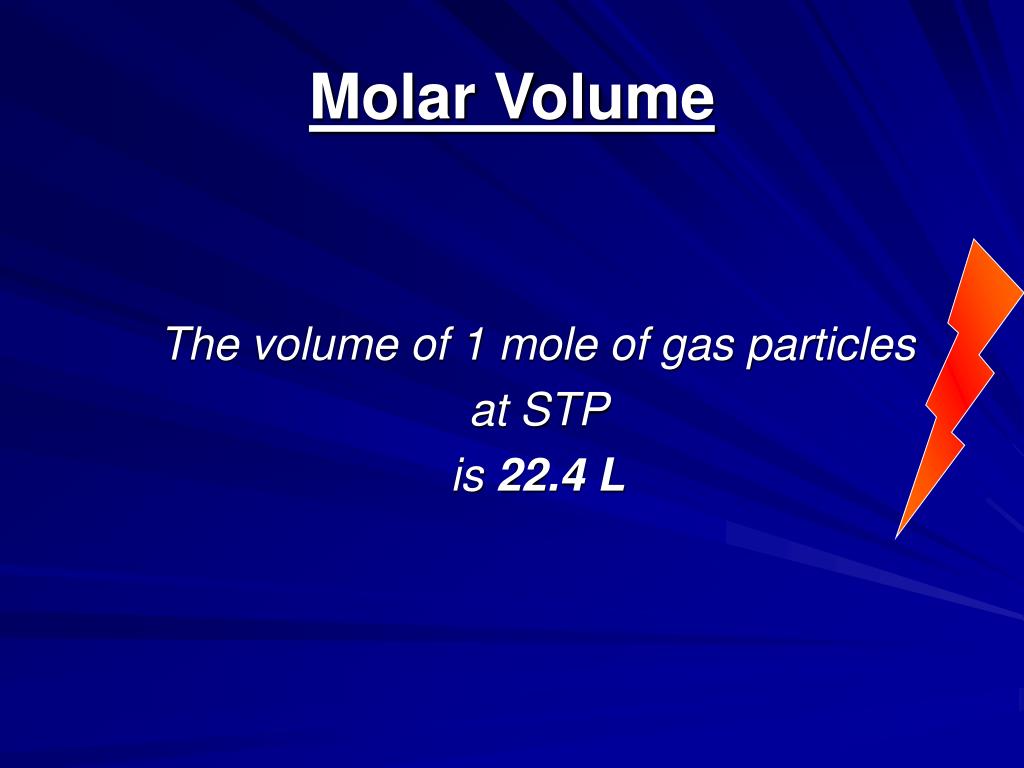

  6. Molar Volume The volume of 1 mole of gas particles at STP is 22.4 L

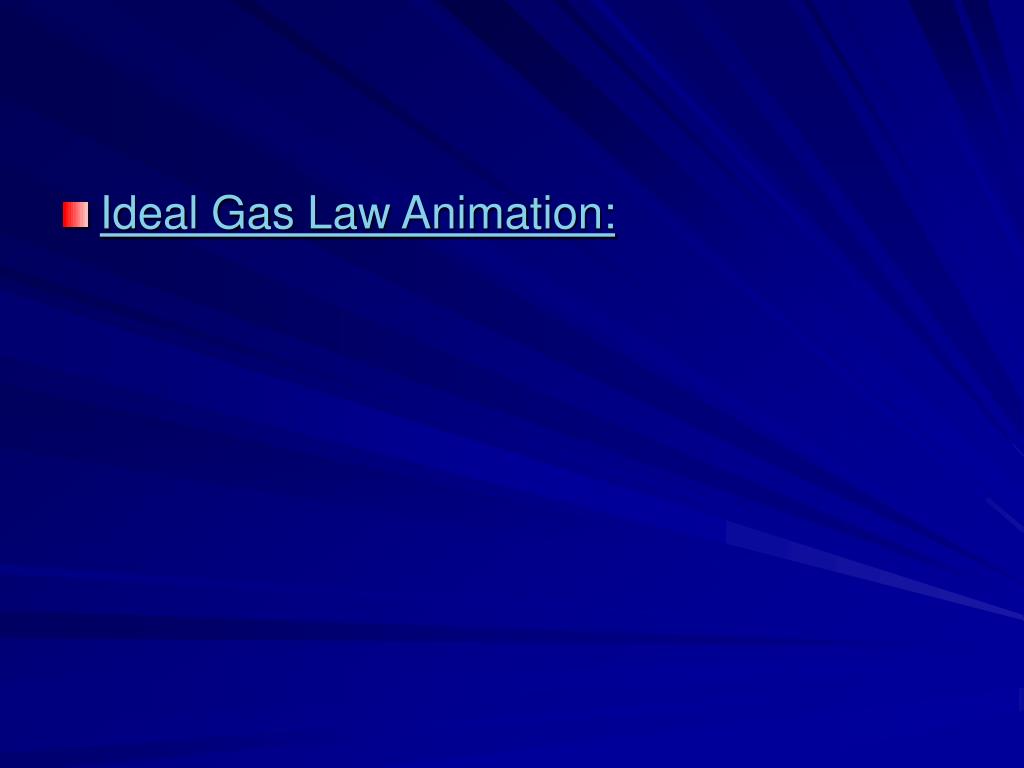

  7. Ideal Gas Law Animation:

  8. Try this: 1 mole of gas occupies 22.4 L at STP = __________ ml (22400) = ___________ moles of gas (1 mole) = ___________ particles (6.02 x 1023)

  9. How many particles in 11.2 dm3 of gas at STP? 0.5 moles = 3.01 x 1023 particles 22,400 cm3 of NH3 gas at STP weighs? = 22.4 L = 1 mole = 17 grams (add up MW) 44.8 L of NH3 at STP weighs? = 2 moles = 34 grams _____ grams = 1 mole of nitrogen gas = _____ L at STP? 28.00 22.4

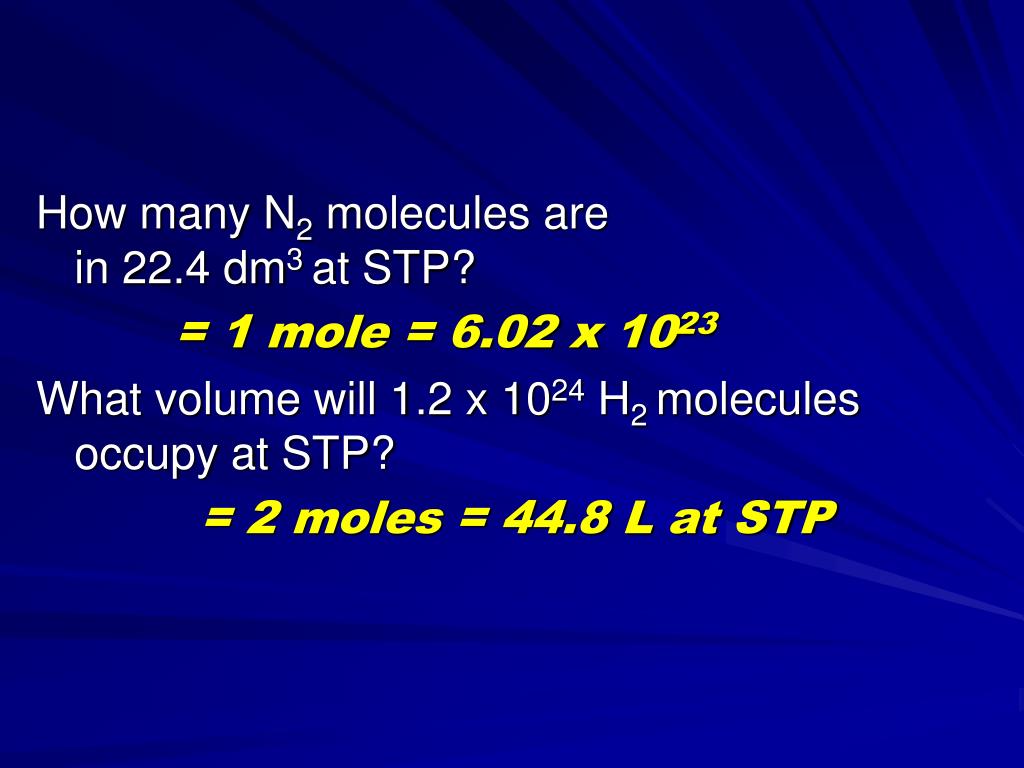

  10. How many N2 molecules are in 22.4 dm3 at STP? = 1 mole = 6.02 x 1023 What volume will 1.2 x 1024 H2 molecules occupy at STP? = 2 moles = 44.8 L at STP

  11. Ideal Gas EquationUse when NOT at STP!!! PV= nRT P = Pressure (in kPa) V = Volume (in Liters or dm3) n = number of moles T = Temperature (in Kelvin) R =8.31 L• kPa mole • K

  12. Development of R in

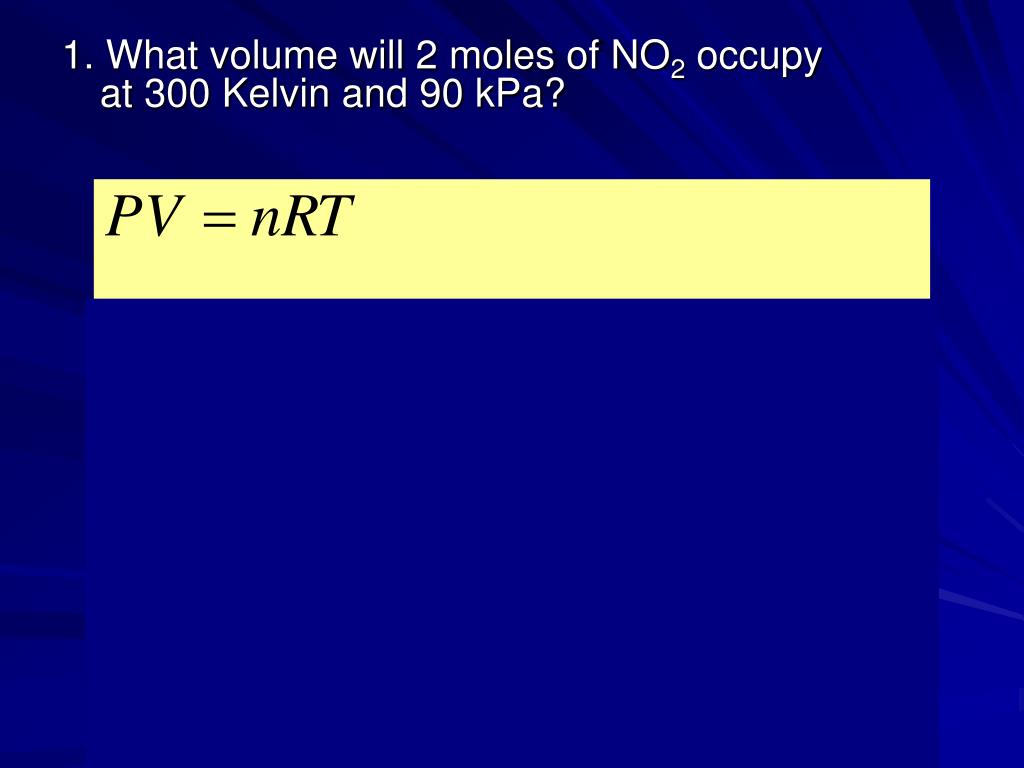

  13. 1. What volume will 2 moles of NO2 occupy at 300 Kelvin and 90 kPa?

  14. What will be the temp of 2 grams of H2 if 5000 cm3 is at 5 atm?

  15. Finding Molecular Weight of a Gas • Remember: MW = grams / moles • Converting grams to moles • Divide grams by the molecular weight

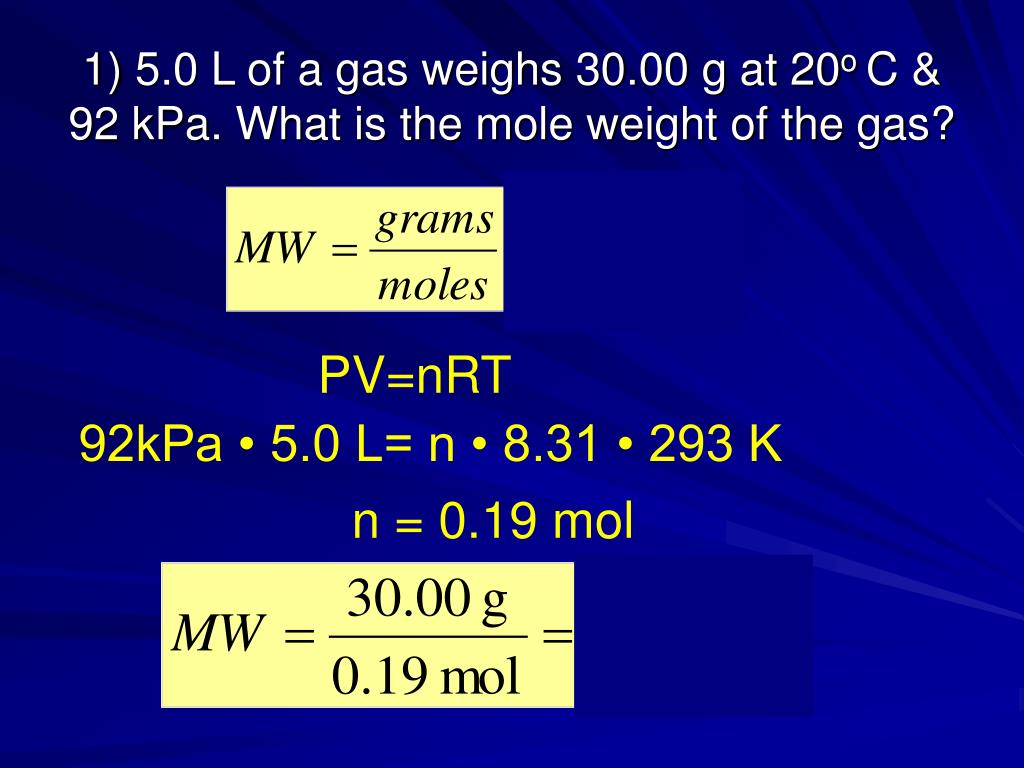

  16. 1) 5.0 L of a gas weighs 30.00 g at 20o C & 92 kPa. What is the mole weight of the gas? PV=nRT 92kPa • 5.0 L= n • 8.31 • 293 K n = 0.19 mol

  17. 2)If the mole weight of a gas is 26 g/mol and 18.00 g of the gas is 30 L at 21o C, what is the pressure of the gas? PV= nRT P x 30 L=0.69 mol x 8.31 x 294 K P = 56.2kPa

  18. Stoichiometry • Solving Steps. • Balance the Equation • Change grams to moles • Use mole ratio to solve • Change moles to volumes

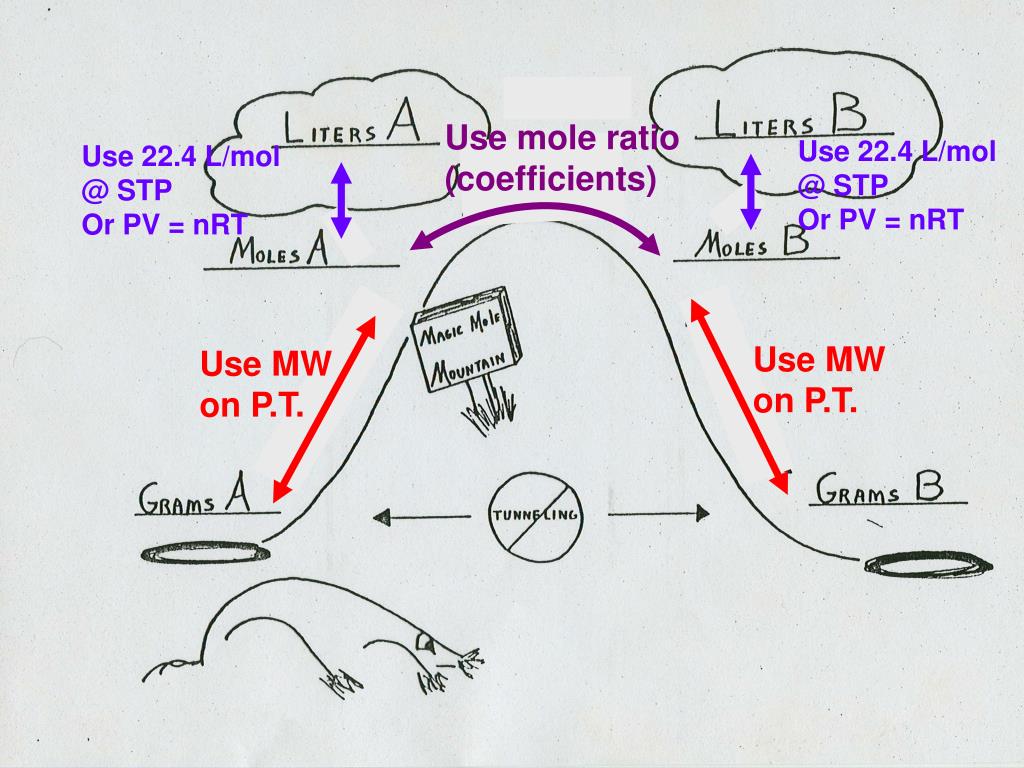

  19. Use MW on P.T. Use MW on P.T. Use mole ratio (coefficients) Use 22.4 L/mol @ STP Or PV = nRT Use 22.4 L/mol @ STP Or PV = nRT

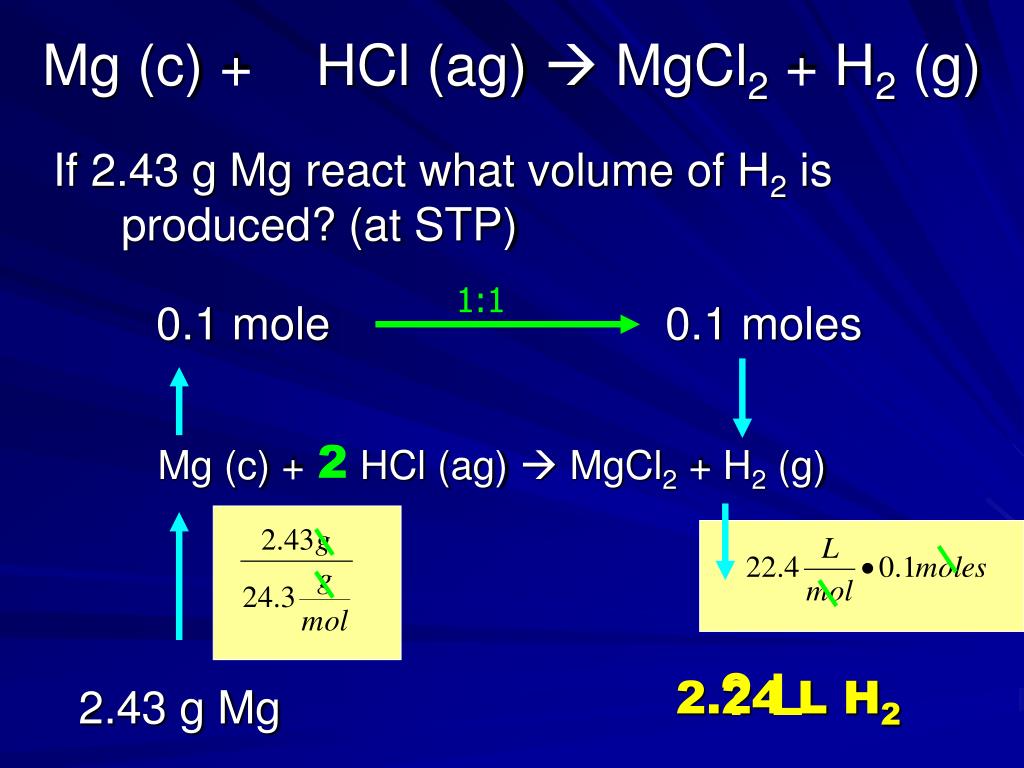

  20. Mg (c) + HCl (ag)  MgCl2 + H2 (g) If 2.43 g Mg react what volume of H2 is produced? (at STP) 1:1 0.1 mole 0.1 moles 2 Mg (c) + HCl (ag)  MgCl2 + H2 (g) ? L 2.24 L H2 2.43 g Mg

  21. Mg (c) +2 HCl (ag)  MgCl2 + H2 (g) If 2.43 g Mg react what volume of H2 is produced at 40oC and 85 kPa? 1:1 0.1 mole 0.1 moles 2 Mg (c) + HCl (ag)  MgCl2 + H2 (g) ? L 3.06 L H2 2.43 g Mg

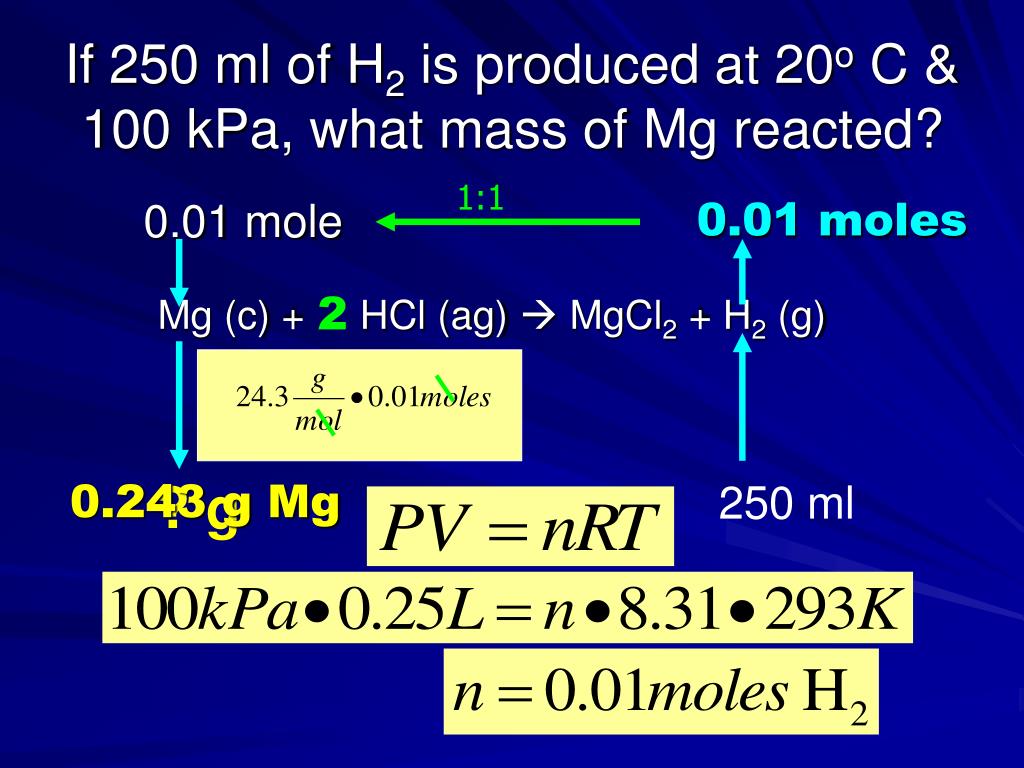

  22. If 250 ml of H2 is produced at 20o C & 100 kPa, what mass of Mg reacted? 1:1 0.01 mole 0.01 moles 2 Mg (c) + HCl (ag)  MgCl2 + H2 (g) ? g 0.243 g Mg 250 ml

  23. Liters B Use mole ratio (coefficients) Volume to Volume THE MOLE RATIO IS THE SAME AS THE VOLUME RATIO. Liters A

  24. Burning of methane: What vol. of oxygen is needed to completely burn 1 L of methane? 1:2 1.0 L 2.0 L CH4 + O2 CO2 (g) + H2O (l) 2 2

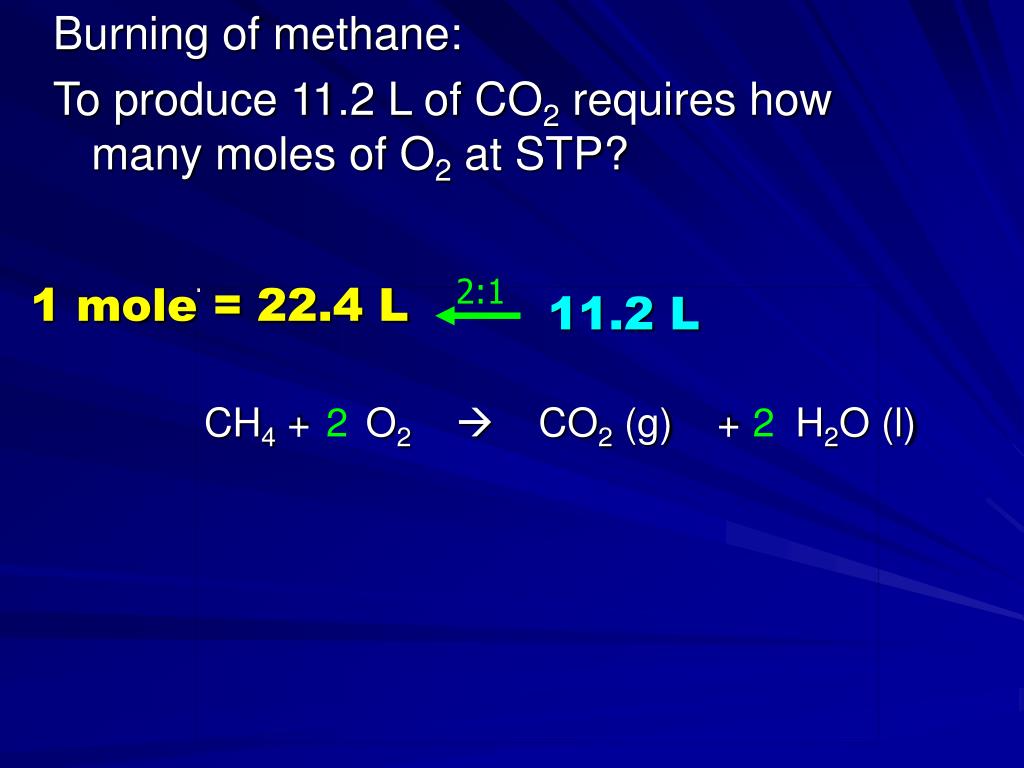

  25. Burning of methane: To produce 11.2 L of CO2 requires how many moles of O2 at STP? 2:1 1 mole = 22.4 L 11.2 L CH4 + O2 CO2 (g) + H2O (l) 2 2
