  1. Provider Bridge support for Drop Precedence Arjan de Heer IEEE802.1 Interim meeting January 2004

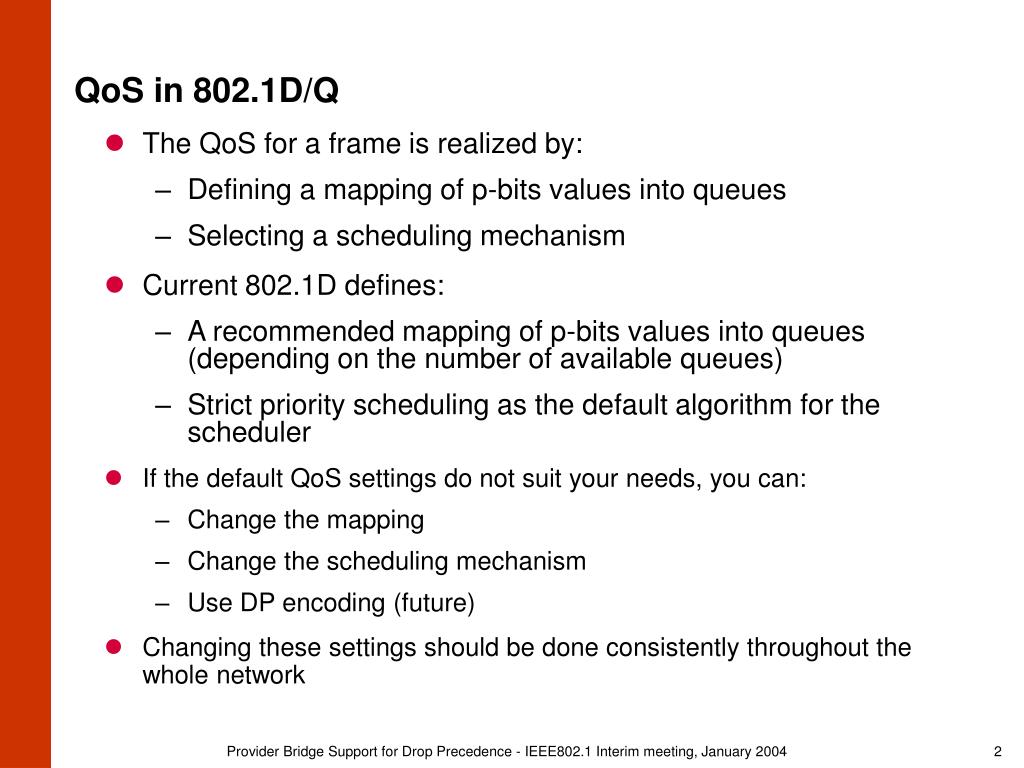

  2. QoS in 802.1D/Q • The QoS for a frame is realized by: • Defining a mapping of p-bits values into queues • Selecting a scheduling mechanism • Current 802.1D defines: • A recommended mapping of p-bits values into queues (depending on the number of available queues) • Strict priority scheduling as the default algorithm for the scheduler • If the default QoS settings do not suit your needs, you can: • Change the mapping • Change the scheduling mechanism • Use DP encoding (future) • Changing these settings should be done consistently throughout the whole network Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  3. Dropping Precedence • Dropping Precedence is not supported in current standards, there are two options on the table: • Encode the DP in the p-bits • Encode the DP in the CFI bit • Whatever option is chosen, the default configuration of the bridge should remain according to the current 802.1D/Q, to ensure proper interworking in default configuration • CFI bit set to 0, when adding tag • Ignore CFI bit (should be 0) on received frames • Perform recommended p-bits to queue mapping Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  4. Using p-bits or CFI bit? • backwards compatibility with ‘default’ bridges is used as an argument used to advocate for both options • Maintaining desired levels of Service using your own QoS scheme, while connecting bridges in default configuration is most unlikely • So what is the benefit of this backwards compatibility? • Support both encoding in p-bits and in CFI bit in the standard • Interworking should be simple • Interworking is guaranteed by the requirement that a bridge using the CFI bit must suppor p-bits/CFI bit remapping at all of its ports • Default re-mapping sets CFI bit to 0 (or does not change anything?) Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  5. Using CFI-bit • Current proposal: CFI=0 (low DP, green frame), CFI=1 (high DP, yellow frame) • The reason for this is that it gives green frames a higher chance to get through a non-standard bridge that does drop frames with CFI=1. • New proposal: CFI=1 indicates low DP (green frame), CFI=0 indicates high DP (yellow frame) • Without provisioning a bridge only sees frames with CFI=0 (like normal bridges), they are all treated the same by a non DP bridge • Suppose we have a DP aware (CFI bit) network supporting several services • we add a bridges that support DP encoding in P-bits at the edge • But we forget to program the re-mapping table at the CFI bridge • ‘CFI’ bridge will only receive yellow frames (CFI=0) from CFI/DPI ‘p-bits’ bridge, least impact on existing services Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  6. Using p-bits • Encoding DP in p-bits requires one to: • Combine two p-bit values in one priority • Define which value indicates Low DP and which High DP • Any pair of values can be combined, and any of the two can be used to indicate low DP • This requires provisioning: • To map both p-bits values into the same queue • For the queue, what value indicates the high DP (yellow frame) and what value indicates the low DP (green frame) Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  7. Current p-bits proposal • Current proposal: • Combine p-bit values such that the chance to get reordering because of bridges in default mode is minimized • This implies combining 1 and 2. However this has the disadvantage that this class is treated with the least priority by default • Reordering still possible, depending of number queues in ‘default’ bridge Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  8. New p-bits proposal • Use LSB p-bit to indicate dropping precedence, set is low DP (green frame), reset is high DP (yellow frame). • Combining 0&1, 2&3, 4&5, 6&7 with the lower value indicating high DP (yellow) • Simple to implement • Marking always means setting bit to 0 • queues that use DP, simply look at the last bit • Similar to use of CFI bit • But this may lead to reordering when not provisioning part of the network. Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  9. Proposal • Default mapping of priorities into queues remains the same • Bridges that support CFI bit DP encoding must support remapping of the CFI and DP bit at each port. By default this table does always set CFI bit to 0. • Each queue can be provisioned to take DP into account: • This can mean either look at LSB p-bit or CFI bit • Default is not to look at it • DPbit=1 indicates low DP (green frame) • Optionally: To support other encodings of DP in p-bits, each queue can be provisioned with a value for high and a value for low DP. Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  10. Standard • Provider Bridge may support DP • If supported, DP must be provisionable per queue • Default should be no support of DP for all queues • May support encoding in p-bits or CFI bit • If encoding in p-bits • Must support using the LSB for DP encoding • May support other encodings • LSB/CFI=1 indicates low DP (green), LSB/CFI=0 indicates high DP (yellow) • Provider Bridge may have priority + CFI bit re-map table at each port • Default table does always set CFI to 0 • If DP is encoded in CFI bit, the provider bridge must have such a table Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  11. If preventing problems with existing bridges is important • CFI-bit encoding • CFI=0 low DP (green frame), CFI=1 high DP (yellow) frame • Still mandatory Priority/CFI re-mapping table at each port • P-bit encoding • Support combination of 1&2, 0&3, 4&5, 6&7 with lower value indicating higher DP(yellow frames). • DP encoding different from proposal from last meeting, but this gives green frames higher priority if ending up in different queue than yellow frames • May support other encodings Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004

  12. If preventing problems with existing bridges is important • Provider Bridge may support DP • If supported, DP must be provisionable per queue • Default should be no support of DP for all queues • May support encoding in p-bits or CFI bit • If encoding in p-bits • Must support the combination of 1&2, 0&3, 4&5, 6&7 with the lower value indicating the higher DP (yellow frame) • May support other encodings • If encoding using CFI bit CFI=0 indicates low DP (green frame), CFI=1 indicates high DP (yellow frame) • Provider Bridge may have priority + CFI bit re-map table at each port • Default table does always set CFI to 0 • If DP is encoded in CFI bit, the provider bridge must have such a table Provider Bridge Support for Drop Precedence - IEEE802.1 Interim meeting, January 2004
