computer networks with internet technology

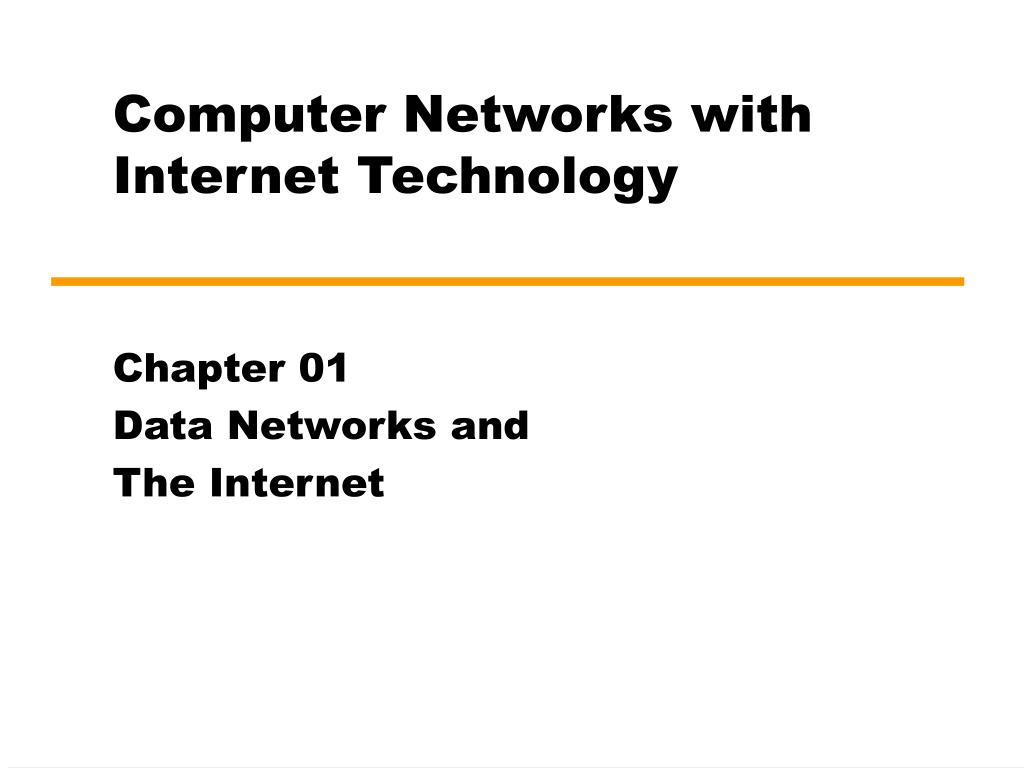

Computer Networks with Internet Technology

Chapter 01

Data Networks and

The Internet

data networks
Data Networks
  • Communication by transmitting data intermediate switching nodes
  • Switching nodes not concerned with content
  • End devices referred to as stations
    • Computers, terminals, telephones, etc.
  • Nodes connected in some topology by transmission links
  • Station attaches to node
  • Collection of nodes is a communications network
circuit switching
Circuit Switching
  • Dedicated path between two stations
    • Connected sequence of links between nodes
    • E.g telephone network
  • Communication involves three phases
    • Circuit establishment
    • Data transfer
    • Circuit disconnect
circuit establishment
Circuit Establishment
  • Station A to node 4 requesting connection to station E
  • Circuit from A to 4 usually dedicated line
  • Node 4 finds next leg to node 6
  • Based on routing information, availability, cost, node 4 selects circuit to node 5
  • Allocates a free channel
    • TDM [time-division multiplexing]
    • FDM [frequency-division multiplexing]
  • Node 4 requests connection to E
  • And so on
data transfer
Data Transfer
  • Data may be digital (e.g., terminal to host) or analog (e.g., voice)
  • Signaling and transmission may each be digital or analog
  • Path is A-4 circuit, internal switching through 4, 4-5 channel, internal switching through 5, 5-6 channel, internal switching through 6, 6-E circuit
  • Generally, full duplex (data in both directions)
circuit disconnect
Circuit Disconnect
  • Connection terminated
    • Usually by one of the stations
  • Signals to 4, 5, and 6 to de-allocate resources
circuit switching notes
Circuit Switching - Notes
  • Connection established before data transmission begins
  • Channel capacity must be available and reserved.
  • Nodes must have capacity to handle connection
  • Switches must have intelligence to make allocations and devise route
  • Can be inefficient
    • Capacity dedicated for duration of connection
      • Even if no data are being transferred
    • For voice, utilization high, but still doesn’t approach 100%
    • For terminal connection, may be idle most of the time
    • Delay prior to data transfer for call establishment
    • Once circuit established, network transparent to users
    • Data transmitted at fixed rate
      • No delay other than propagation
      • Delay at node negligible
packet switching
Packet Switching
  • 1970
  • Evolved substantially since
  • Basic technology fundamentally the same today
  • One of few effective technologies for long-distance data communications
  • Frame relay and ATM (see later) variations
  • Carries directly to Internet
  • Advantages: flexibility, resource sharing, robustness, responsiveness
  • Cost: elaborate algorithms to cope with time delay and overhead penalties of network operation
packet switching circuit switching issues
Packet Switching – Circuit Switching Issues
  • Designed for voice
  • Resources dedicated to particular call
  • For voice, high utilization
    • Most of the time, someone is talking
  • For data
    • Line idle much of the time
    • Constant data rate
      • Limits interconnection of variety of host computers and terminals
packet switching basic operation
Packet Switching – Basic Operation
  • Data are transmitted in short blocks, called packets
  • Typical upper bound 1000 octets (bytes)
  • Longer messages broken up into series of packets
    • Each packet contains part (or all for short message) of user's data plus some control information
    • Control information includes network routing
    • At each node, packet is received, stored briefly, and passed on to the next node
  • Transmitting computer sends message as sequence of packets
  • Packet includes control information including destination station
  • Packets sent to node to which sending station attaches
  • Node stores packet briefly, determines next leg of route, and queues packet to go out on that link
  • When link is available, packet is transmitted to next node
  • All packets eventually work their way through network
packet switching advantages
Packet Switching – Advantages
  • Line efficiency greater
    • Node-to-node link dynamically shared by many packets
  • Data-rate conversion
    • Each station connects to its node at its proper data rate
    • Nodes act as buffers
  • Packets accepted, even under heavy traffic, but delivery delay increases
    • Circuit switching networks would block new connections
  • Priorities can be used
packet switching disadvantages
Packet Switching – Disadvantages
  • Delay
    • Transmission delay equal to length of packet divided by incoming channel rate
    • Variable delay due to processing and queuing
  • Packets may vary in length
    • May take different routes
    • May be subject to varying delays
    • Overall packet delay can vary substantially (jitter)
    • Not good for real-time applications like voice and real-time video
  • Overheads including address of destination, sequencing information added to packet
    • Reduces capacity available for user data
  • More processing required at node
switching technique datagram
Switching Technique –Datagram
  • Datagram: each packet treated independently
    • No reference to packets that have gone before
    • Each node chooses next node on path
    • Packets with same destination address do not follow same route
    • May arrive out of sequence
    • Exit node or destination restores packets to original order
    • Packet may be destroyed in transit
    • Either exit node or destination detects loss and recovers
  • Call setup avoided
  • For an exchange of a few packets, datagram quicker
  • More flexible.
    • E.g. Routing away from the congestion
    • Delivery is inherently more reliable
      • If a node fails, subsequent packets may be re-routed
switching technique virtual circuit
Switching Technique –Virtual Circuit
  • Preplanned route established before packets sent
  • All packets follow same route
  • Similar to circuit in circuit-switching network
    • Hence virtual circuit
  • Each packet has virtual circuit identifier
    • Nodes on route know where to direct packets
    • No routing decisions
  • Not dedicated path, as in circuit switching
    • Packet still buffered at node and queued for output
    • Routing decision made oncefor that virtual circuit
  • Network may provide services related to virtual circuit
    • Sequencing and error control
  • Packets should transit more rapidly
  • If node fails, all virtual circuits through node lost
  • Adaptive routing
    • Routing decisions change as conditions on network change
  • Failure of node or trunk
  • Congestion
    • Route around congestion
  • Requires exchange of network state information
    • Tradeoff between quality of information and overhead
frame relay
Frame Relay
  • Considerable overhead in packet-switching schemes to compensate for errors
    • Additional bits added to packet for redundancy
    • Additional processing at stations and nodes to detect and recover from errors
  • Modern systems more reliable
    • Any remaining errors caught in systems above packet-switching logic
  • Original packet-switching networks data rate 64 kbps
  • Frame relay networks up to 2 Mbps
  • Strip out most error control overhead
  • Uses variable-length packets (frames)
asynchronous transfer mode atm or cell relay
Asynchronous Transfer ModeATM or Cell Relay
  • Little overhead for error control
  • Fixed-length packets (cells)
  • Processing overhead reduced
  • Designed to work at 10s, 100s of Mbps, and Gbps
  • Small, fixed-size cells are efficient
    • Can offer constant-data-rate channel using packet-switching
  • Also evolution from circuit switching
  • Allows definition of multiple virtual channels
    • Data rates dynamically defined at virtual channel setup
    • Extends circuit switching to allow multiple channels with data rates set on demand
local area networks lan
Local Area NetworksLAN
  • Small scope
    • Typically single building or a cluster of buildings
    • Leads to different technical solutions
  • Usually LAN owned by same organization that owns attached devices
    • For WANs, a significant fraction of the network assets are not owned.
    • May be a substantial capital investment for both purchase and maintenance.
    • Network management responsibility falls on owner
  • Data rates of LANs typically much greater than WANs
  • Most common are switched LANs and wireless LANs
    • E.g. Ethernet, ATM, Fibre Channel, WiFi (802.11)
      • More later
metropolitan area networks man

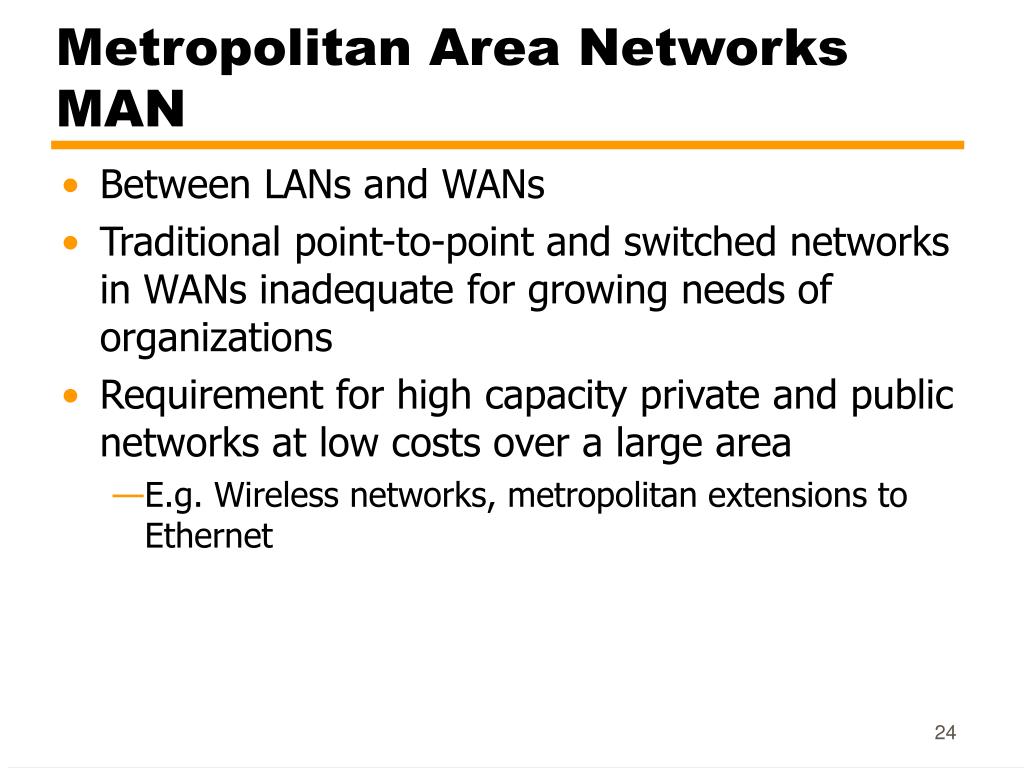

Metropolitan Area NetworksMAN
  • Between LANs and WANs
  • Traditional point-to-point and switched networks in WANs inadequate for growing needs of organizations
  • Requirement for high capacity private and public networks at low costs over a large area
    • E.g. Wireless networks, metropolitan extensions to Ethernet
the internet history 1 background
The Internet History (1) - Background
  • Evolved from ARPANET, 1969 Advanced Research Projects Agency (ARPA),U.S. Department of Defense
  • First operational packet-switching network
  • Began in four locations: UCLA, University of Santa Barbara, the University of Utah, and SRI (Stanford Research Institute)
  • Today tens of millions of hosts
  • Hundreds of millions of users
  • Nearly 200 countries
  • Number of connections growing exponentially
  • Allowed devices from different manufacturers and with different data rates to communicate
  • Used adaptive routing
the internet history 2 applications
The Internet History (2) - Applications
  • Telnet provided common denominator terminal
    • Software written support “Telnet terminal,”
    • Any terminal could interact with any computer
  • File Transport Protocol (FTP) offered similar open functionality
    • Transparent transfer of files from one computer to another
    • Overcomes different word sizes, different bit orders and different word formats
  • First “killer app” was electronic mail
    • Previously all single computer systems
    • 1972, Ray Tomlinson of Bolt Beranek and Newman (BBN)
    • Distributed mail service across network using multiple computers
    • 1973 three quarters of all ARPANET traffic was e-mail
the internet history 3 tcp ip
The Internet History (3) – TCP/IP
  • Packet-switching applied to tactical radio communication (packet radio) and satellite communication (SATNET)
    • Different communication environments
    • Certain parameters, e.g. maximum packet size, different
  • Vint Cerf and Bob Kahn of ARPA developed protocols for communicating across arbitrary, multiple, packet-switched networks (internetting)
  • May 1974 Transmission Control Protocol
  • Refined by ARPANET community
  • Major contributions from participants from European Networks, such as Cyclades (France), and EIN
  • Leading to TCP and IP
  • Basis for TCP/IP protocol suite
  • 1982-1983, ARPANET switched from NCP to TCP/IP
  • Many networks connected using TCP/IP
  • Use of ARPANET restricted to ARPA contractors
the internet history 4 national science foundation
The Internet History (4) – National Science Foundation
  • Extended support to other computer research groups
    • CSNET in 1980-1981
  • 1986, extended Internet support to general research community
    • NSFNET backbone
    • Originally designed to interconnect six NSF funded supercomputer centers across USA and to supercomputer users
  • Eventually, interconnection through NSF backbone to regional packet switched networks across USA
  • In 1990 ARPANET was shut down
the internet history 5 acceptable use policies
The Internet History (5) – Acceptable Use Policies
  • In many countries (including United States until 1995) national governments subsidized the Internet backbone
  • Acceptable use policies limited commercial activities
    • Research and educational (and of course government) use only
    • The “culture” of the Internet imposed additional informal limitations on commercial uses
the internet history 6 internet interconnection points
The Internet History (6) – Internet Interconnection Points
  • 1991 almost all commercial TCP/IP service in USA provided by:
  • General Atomics
    • Operated CERFnet (a California regional network)
  • Performance Systems International
    • PSINet (commercial spin-off from New York’s NYSERnet)
  • UUNET Technologies
    • Commercial Internet service provider that owned Alternet
  • Did not use NSF backbone on own networks
    • Not subject to Acceptable Use Policy
  • Communication between their networks did use NSF backbone
    • Under the policy
the internet history 7 cix
The Internet History (7) –CIX
  • Commercial Information Interchange
  • Originally mechanism to interchange traffic at a West Coast router
  • Each network’s customers access customers on others’ networks at no extra charge
  • 1996, CIX had 147 member networks
  • No settlements
    • No traffic based fees for use
  • Similar interconnection point (1994) in England
    • London Internet Exchange (LINX)
    • 1996, it had 24 member networks
  • 1991, U.S. government said it would no longer subsidize Internet after 1995
  • Mandated network access points
  • Now three, New York, Chicago, and San Francisco
  • Metropolitan area exchanges, MAE East and MAE West
  • U.S. part of Internet opened to commercial activity
the internet history 8 the world wide web
The Internet History (8) –The World Wide Web
  • Spring 1989, at CERN (the European Laboratory for Particle Physics)
  • Englishman Tim Berners‑Lee proposed a distributed hypermedia technology to exchange research findings over Internet
  • 1991 prototype World Wide Web (WWW or the Web) developed at CERN using NeXT computer as a platform
  • End of 1991, limited release of line-oriented browser or reader
  • Explosive growth came with first graphically oriented browser, Mosaic, 1993
    • NCSA Center, University of Illinois
    • Mark Andreasson and others
    • Two million copies delivered over Internet
    • Now ubiquitous
the internet history 9 what is the web
The Internet History (9) –What is the Web
  • Internationally distributed collection of multimedia files supported by clients (users) and servers (information providers)
  • Each file addressed in consistent manner using its Uniform Resource Locator (URL)
  • Viewed by clients using browsers
    • E.g. Netscape Navigator, Microsoft’s Internet Explorer
    • There are others!
    • Usually graphical display and support for multimedia
    • Move from file to file by clicking with mouse highlighted text or image (link)
    • Layout of display controlled by Hypertext Markup Language (HTML)
    • Embedded commands in text files
    • Specify fonts, colors, images and their placement and links
  • Hypertext Transfer Protocol (HTTP)
    • Protocol used in TCP/IP networks for fetching WWW files
    • More later
the internet history 10 the internet today
The Internet History (10) –The Internet Today
  • Users connect through an Internet service provider (ISP)
  • Home users
    • Major online services such as America Online and Compuserve
    • Connect to ISPs over phone lines using modems at 56.6 kbps
    • OK for e-mail but marginal for graphics-intensive Web surfing
    • New alternatives include ISDN, ADSL, and cable modem
  • Work users
    • Workstations or PCs connected to LANs
    • LAN connects through trunks to ISP
    • T-1 or T-3 connection for large organizations
    • Smaller organizations may use 56 kbps or ISDN connections
  • ISPs connected by "wholesalers,“
    • Network service providers
  • They interconnect using Internet connection points
  • T-3 rates or ATM connections
the internet history 11 commercial use
The Internet History (11) –Commercial Use
  • Acceptable Use Policy limited early commercial use to research and educational
    • Some informational activities that could be considered marketing went on
  • First commercial applications were mainly informational
    • Sales, marketing, public relations
  • Electronic data interchange (EDI)
    • Intercompany invoices, billing, etc.
    • Designed for dedicated WAN
  • America Online, bulletin board type services dealing with technical and usage problems
the internet history 12 direct sales
The Internet History (12) –Direct Sales
  • Initially Internet did not support online transactions well
    • No easy to use graphical user interface
      • World Wide Web not commonly available until 1993
      • Initially little support for submitting information (forms) to server
    • No security
    • No effective payment systems
    • Credit card?
    • People uncomfortable sending credit card numbers over Internet
    • If information not encrypted it is easy to “listen in”
    • Several files of customer's credit card numbers on merchant’s computers have been compromised
  • Privacy concerns
    • “data mining,”
      • Collecting customer transaction information to improve targeting of marketing
  • Implementation of Internet technologies within a corporate organization, rather than for external connection to the global Internet
  • Rapid prototyping and deployment of new services
  • Scales effectively
  • Virtually no user or developer training required
    • Services and user interfaces familiar from Internet
  • All platforms with complete interoperability
  • Open architecture
    • Lots of add-on applications available
  • Range of distributed computing architectures
    • Few central servers or many distributed servers
  • Support of "legacy" information sources
    • databases, word processing documents, groupware
  • Range of media types (audio, video, interactive applications)
  • Inexpensive to start
intranets and the web
Intranets and the Web
  • Web has become universal information interface
  • Management-employee communication
  • Job-related information
  • Departmental- and project-level information and services.
    • Set up Web pages to disseminate information and maintain project data
  • Easy to develop Web pages for specific needs
  • Connect Web service to database
    • Ease of administration
    • Deployment
    • Development speed
    • Flexible information presentation
    • Limited functionality
    • Stateless operation
other intranet technologies electronic mail
Other Intranet TechnologiesElectronic Mail
  • Electronic Mail
    • Most heavily used network application in corporate world
    • Attach documents multimedia to mail messages
    • Electronic mailing list
      • Alias with multiple destinations
other intranet technologies network news or usenet
Other Intranet TechnologiesNetwork News or USENET
  • Collection of electronic bulletin boards
  • Work in similar way to Internet mailing lists
  • Subscribe to news group to you receive all messages posted to that group
  • May post message that available to all subscribers
  • Mechanics different from e-mail lists
  • Distributed network of sites that collect and broadcast news group entries
  • Need access to USENET node
  • Messages are archived at news sites
    • Organized by subject matter (thread)
  • Readily adapted to form an intranet news service
  • Makes use of TCP/IP protocols and applications
    • Especially the Web
  • Provides outside clients access to corporate resources
    • Suppliers and customers
    • Through the Internet or other networks
  • Security
    • Resources available to outside parties
    • Privacy and authentication concerns must be addressed
  • Access
    • Long-distance dial-up access
    • Internet access to intranet with security
      • Authentication of users and encryption of communications
    • Internet access to an external server
      • Duplicates some intranet data
    • Internet access to external server that originates database queries to internal servers
    • Virtual private network (VPN)
required reading
Required Reading
  • Stallings, W. [2003], Computer Networks with Internet Technology, Prentice Hall, Upper Saddle River NJ. Chapter 1
  • Web site for book:
  • Any and all links from this site
