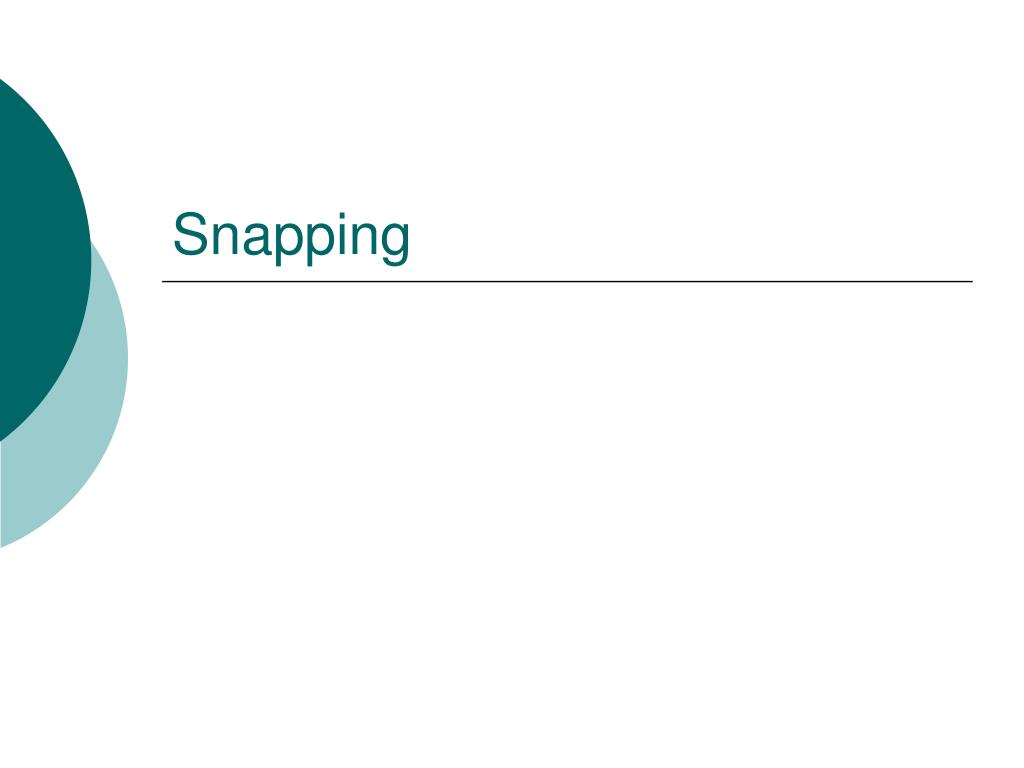

Snapping

Loading in 2 Seconds...

play fullscreen
1 / 9

Snapping - PowerPoint PPT Presentation


  • 110 Views
  • Uploaded on

Snapping . Snapping Environment. First start an edit session. Choose Options. The Snapping Dialog box appears. This is where you set all of the snapping options. Setting the Snapping Tolerance.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Snapping' - nani


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
snapping environment
Snapping Environment
  • First start an edit session.
  • Choose Options.
  • The Snapping Dialog box appears.
  • This is where you set all of the snapping options.
setting the snapping tolerance
Setting the Snapping Tolerance
  • The snapping toleranceis the distance within which the pointer or a feature is snapped to another location.

Outside the snapping tolerance.

Within the snapping tolerance.

sticky move tolerance
Sticky Move Tolerance
  • Determines how far you have to move a feature before it actually moves.
  • Good for reducing accidental moves of features while editing.
snapping environment5
Snapping Environment

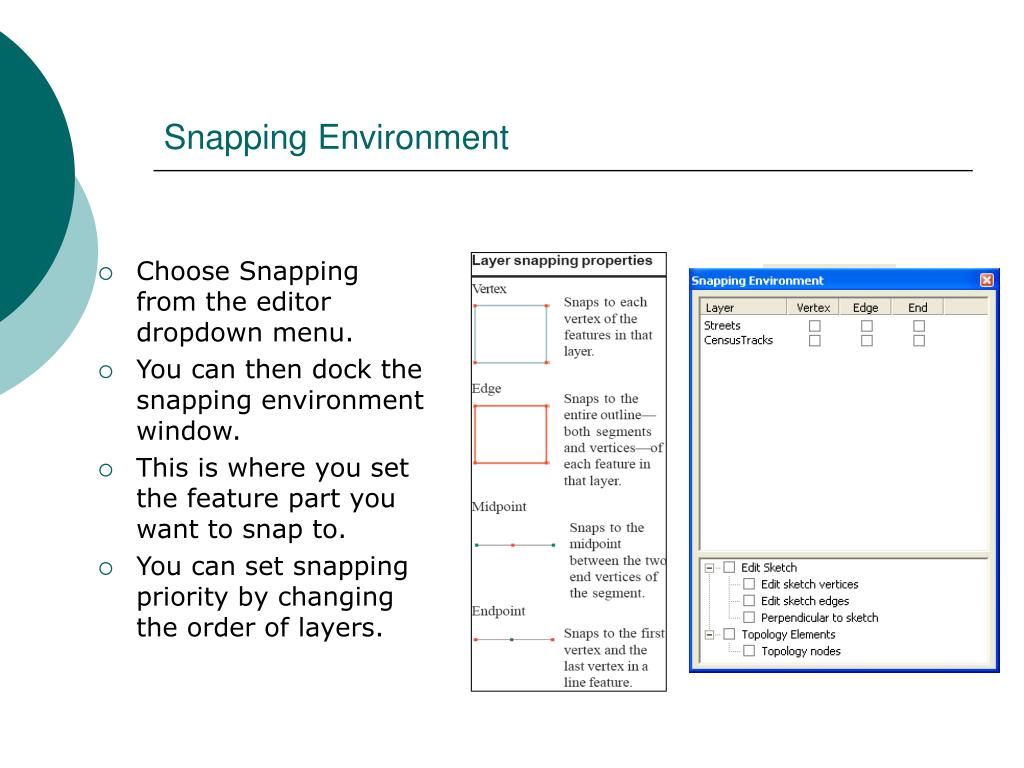

  • Choose Snapping from the editor dropdown menu.
  • You can then dock the snapping environment window.
  • This is where you set the feature part you want to snap to.
  • You can set snapping priority by changing the order of layers.
snapping environment6

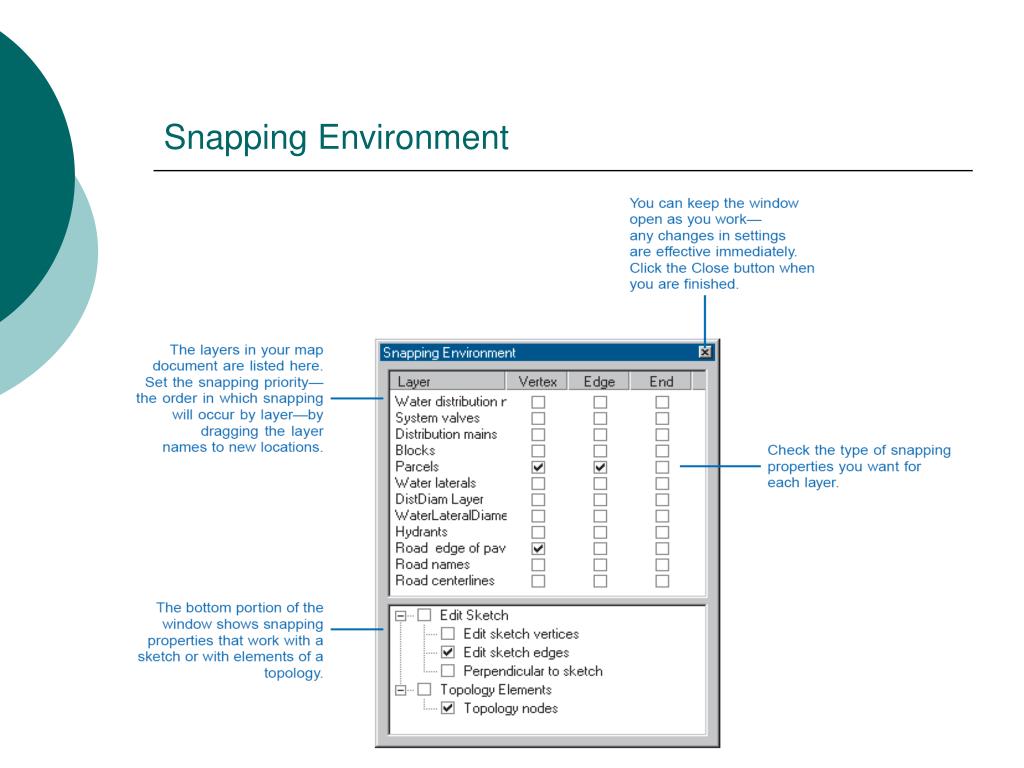

Snapping Environment
  • Choose Snapping from the Editor menu.
snap to feature
Snap To Feature
  • Apart from settings in the snapping environment, you can also snap to specific layers.
  • Access this by getting your sketch tool from the Editor toolbar.
  • Place your cursor over the feature you would like to snap to and right click.
  • Choose Snap to Feature and select one of the options.
  • The result of snapping to the midpoint.
helpful shortcut keys

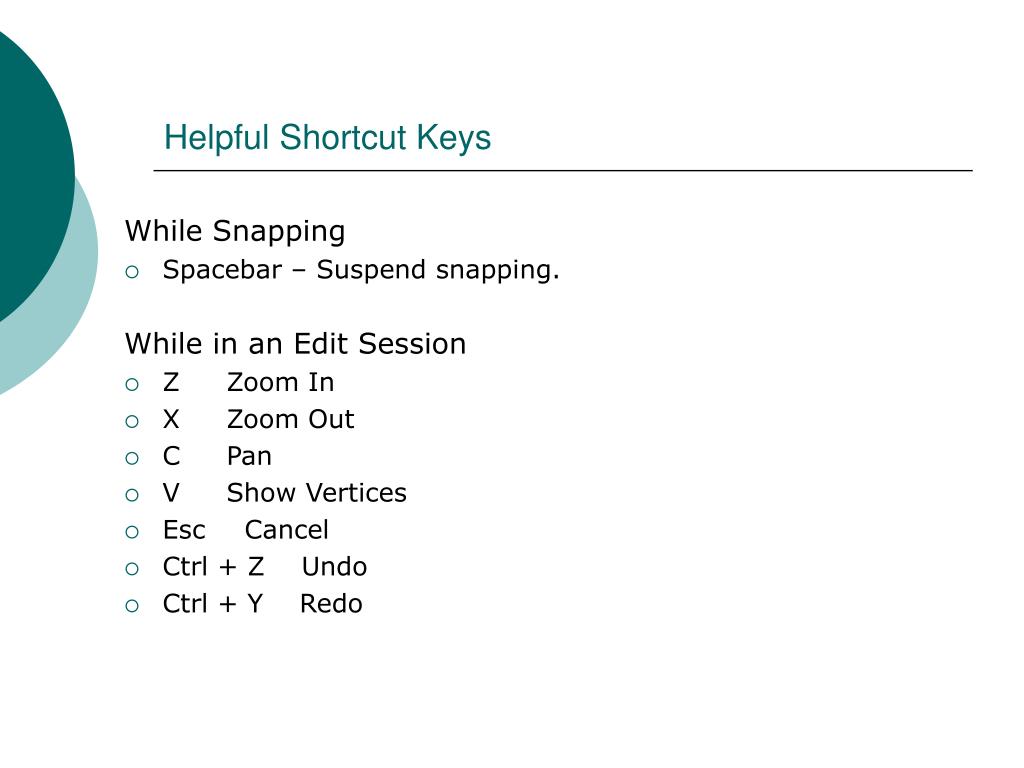

Helpful Shortcut Keys

While Snapping

  • Spacebar – Suspend snapping.

While in an Edit Session

  • Z Zoom In
  • X Zoom Out
  • C Pan
  • V Show Vertices
  • Esc Cancel
  • Ctrl + Z Undo
  • Ctrl + Y Redo
more info

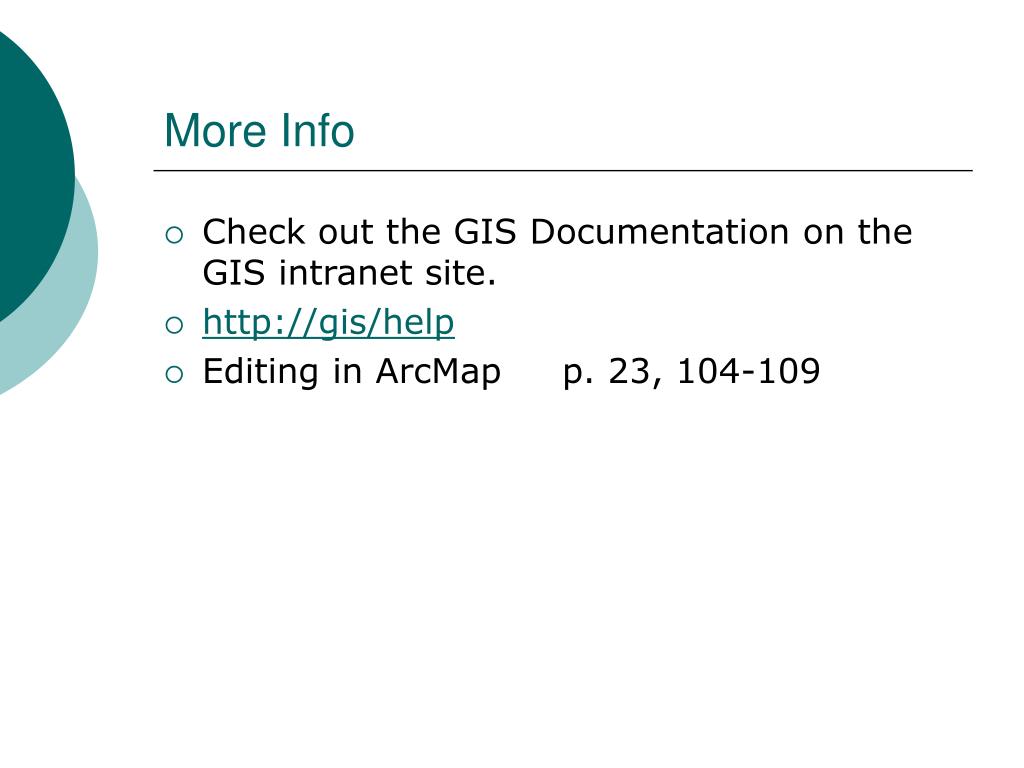

More Info
  • Check out the GIS Documentation on the GIS intranet site.
  • http://gis/help
  • Editing in ArcMap p. 23, 104-109
