  1. Data Storage Systems Midhet Dizdar IST 402 - Spring 2005 Tuesday, March 29, 2005

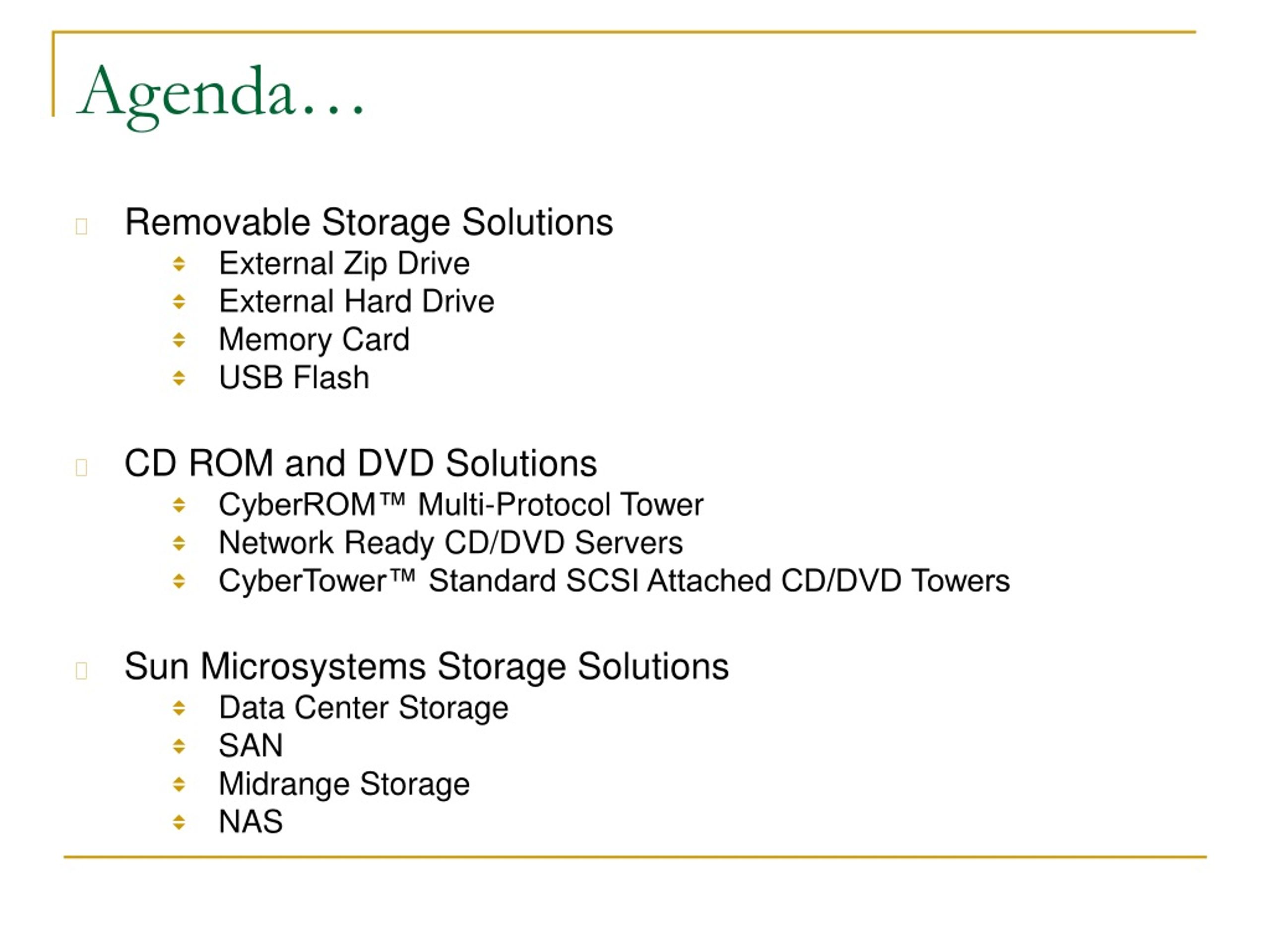

  2. Agenda… • Removable Storage Solutions • External Zip Drive • External Hard Drive • Memory Card • USB Flash • CD ROM and DVD Solutions • CyberROM™ Multi-Protocol Tower • Network Ready CD/DVD Servers • CyberTower™ Standard SCSI Attached CD/DVD Towers • Sun Microsystems Storage Solutions • Data Center Storage • SAN • Midrange Storage • NAS

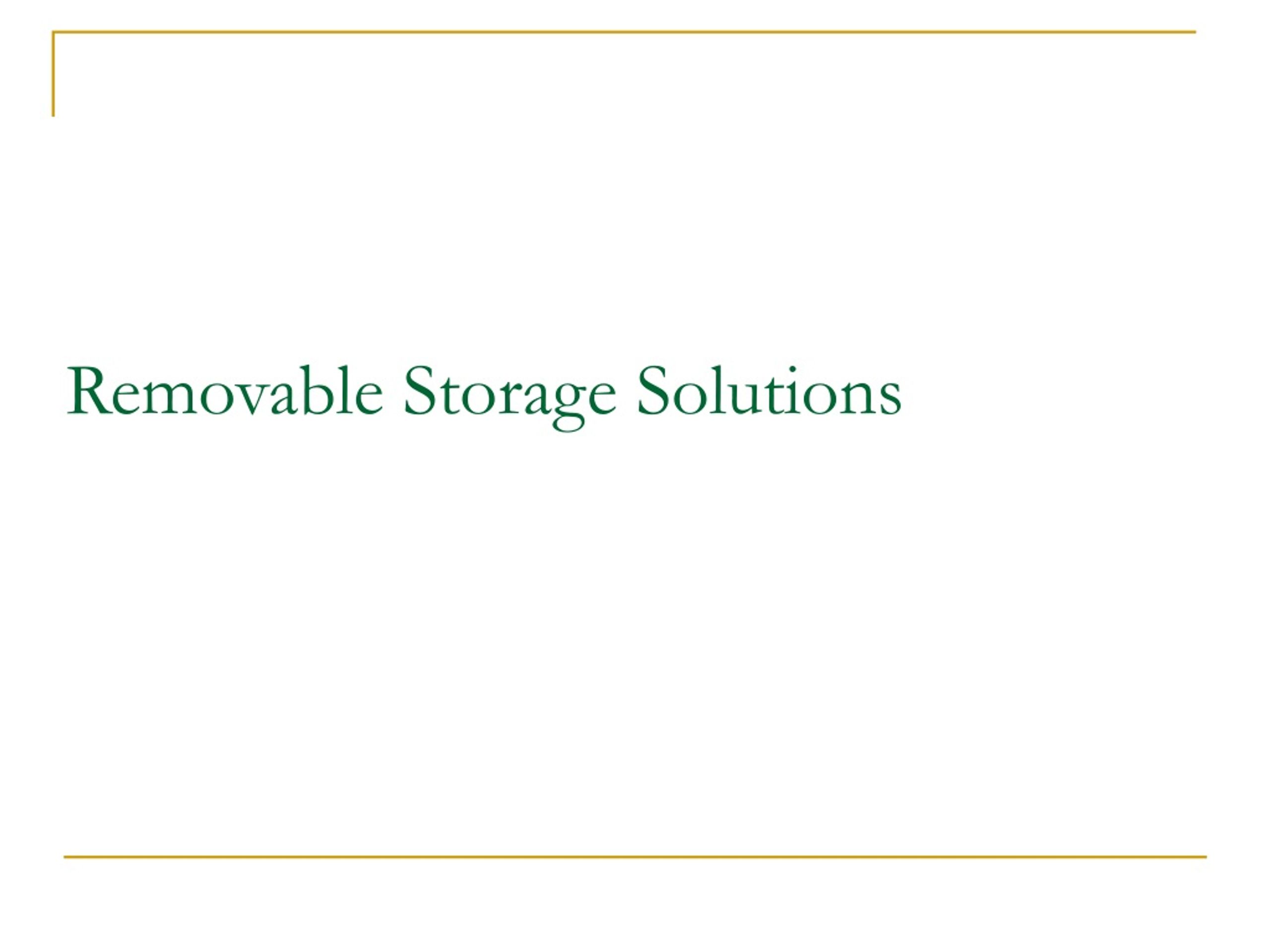

  3. Removable Storage Solutions

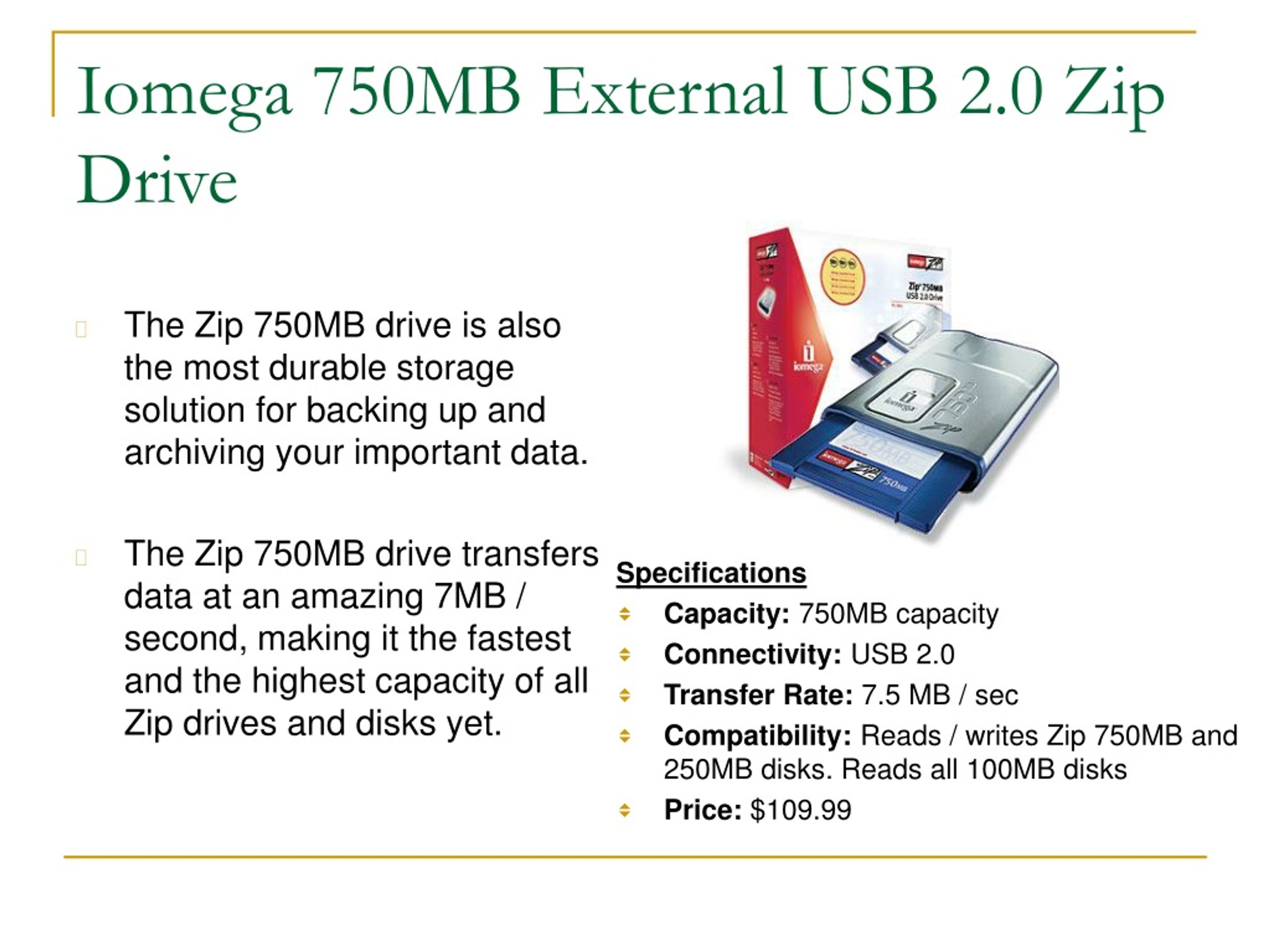

  4. Iomega 750MB External USB 2.0 Zip Drive • The Zip 750MB drive is also the most durable storage solution for backing up and archiving your important data. • The Zip 750MB drive transfers data at an amazing 7MB / second, making it the fastest and the highest capacity of all Zip drives and disks yet. Specifications • Capacity: 750MB capacity • Connectivity: USB 2.0 • Transfer Rate: 7.5 MB / sec • Compatibility: Reads / writes Zip 750MB and 250MB disks. Reads all 100MB disks • Price: $109.99

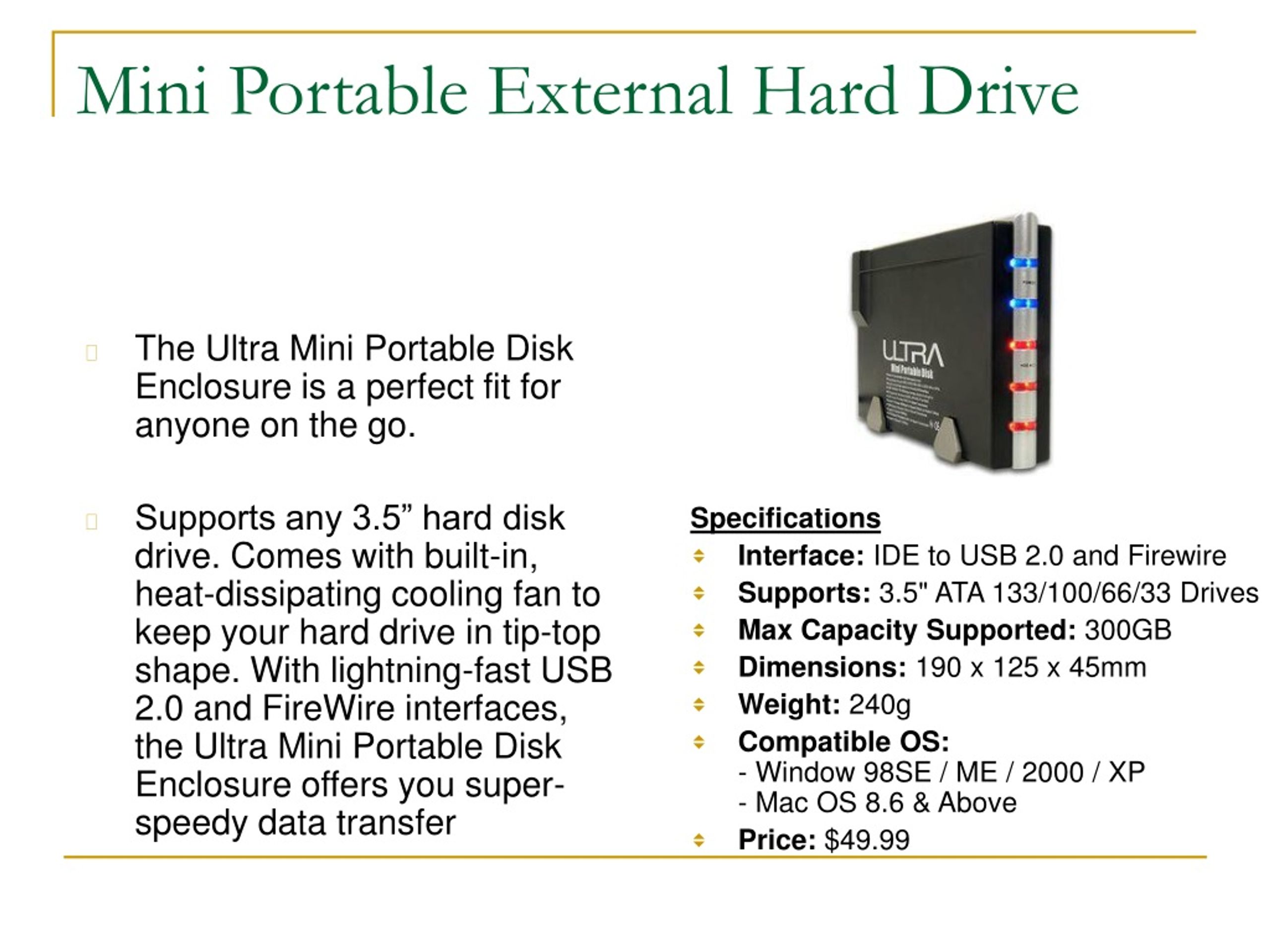

  5. Mini Portable External Hard Drive • The Ultra Mini Portable Disk Enclosure is a perfect fit for anyone on the go. • Supports any 3.5” hard disk drive. Comes with built-in, heat-dissipating cooling fan to keep your hard drive in tip-top shape. With lightning-fast USB 2.0 and FireWire interfaces, the Ultra Mini Portable Disk Enclosure offers you super-speedy data transfer Specifications • Interface: IDE to USB 2.0 and Firewire • Supports: 3.5" ATA 133/100/66/33 Drives • Max Capacity Supported: 300GB • Dimensions: 190 x 125 x 45mm • Weight: 240g • Compatible OS: - Window 98SE / ME / 2000 / XP- Mac OS 8.6 & Above • Price: $49.99

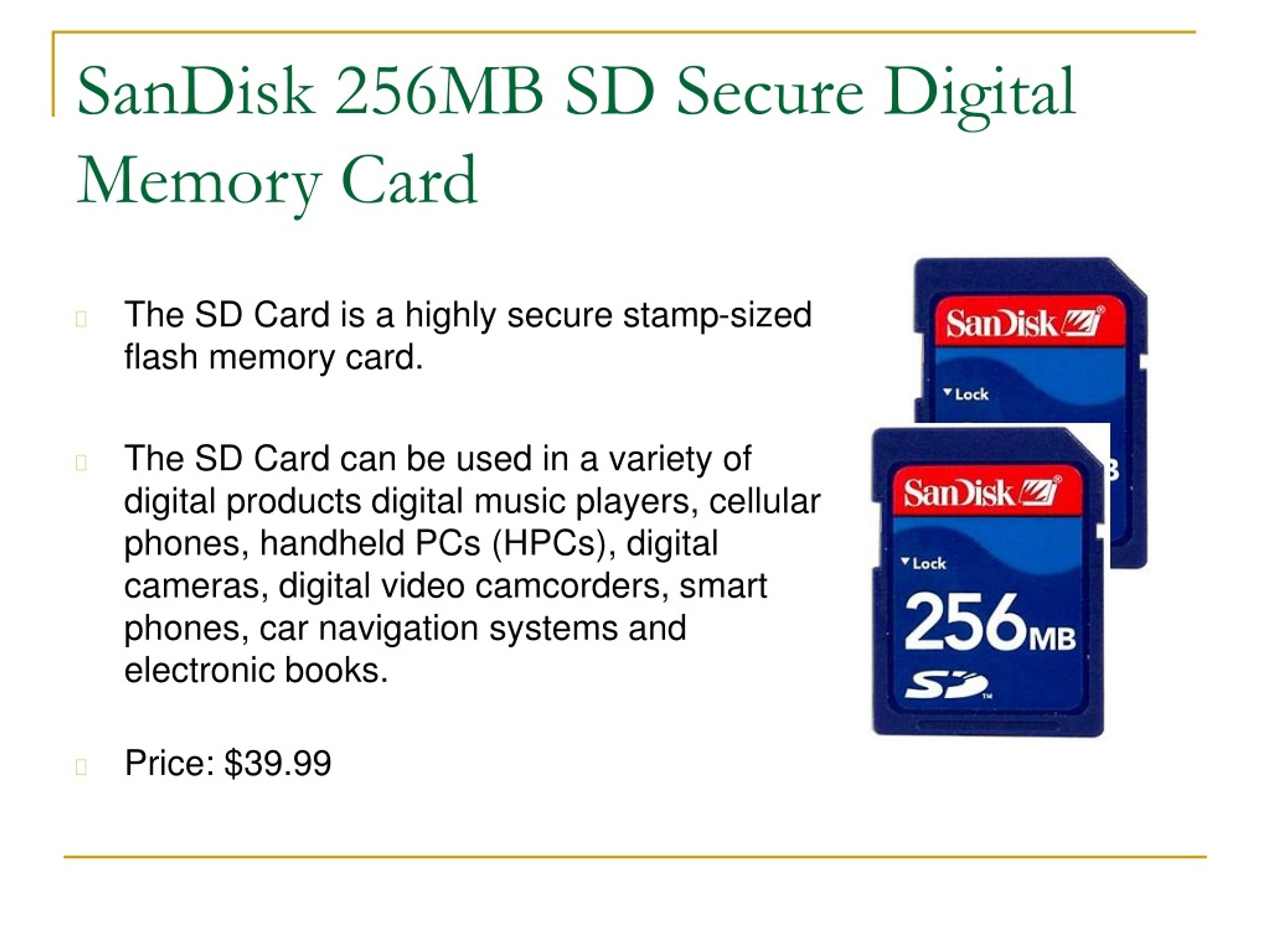

  6. SanDisk 256MB SD Secure Digital Memory Card • The SD Card is a highly secure stamp-sized flash memory card. • The SD Card can be used in a variety of digital products digital music players, cellular phones, handheld PCs (HPCs), digital cameras, digital video camcorders, smart phones, car navigation systems and electronic books. • Price: $39.99

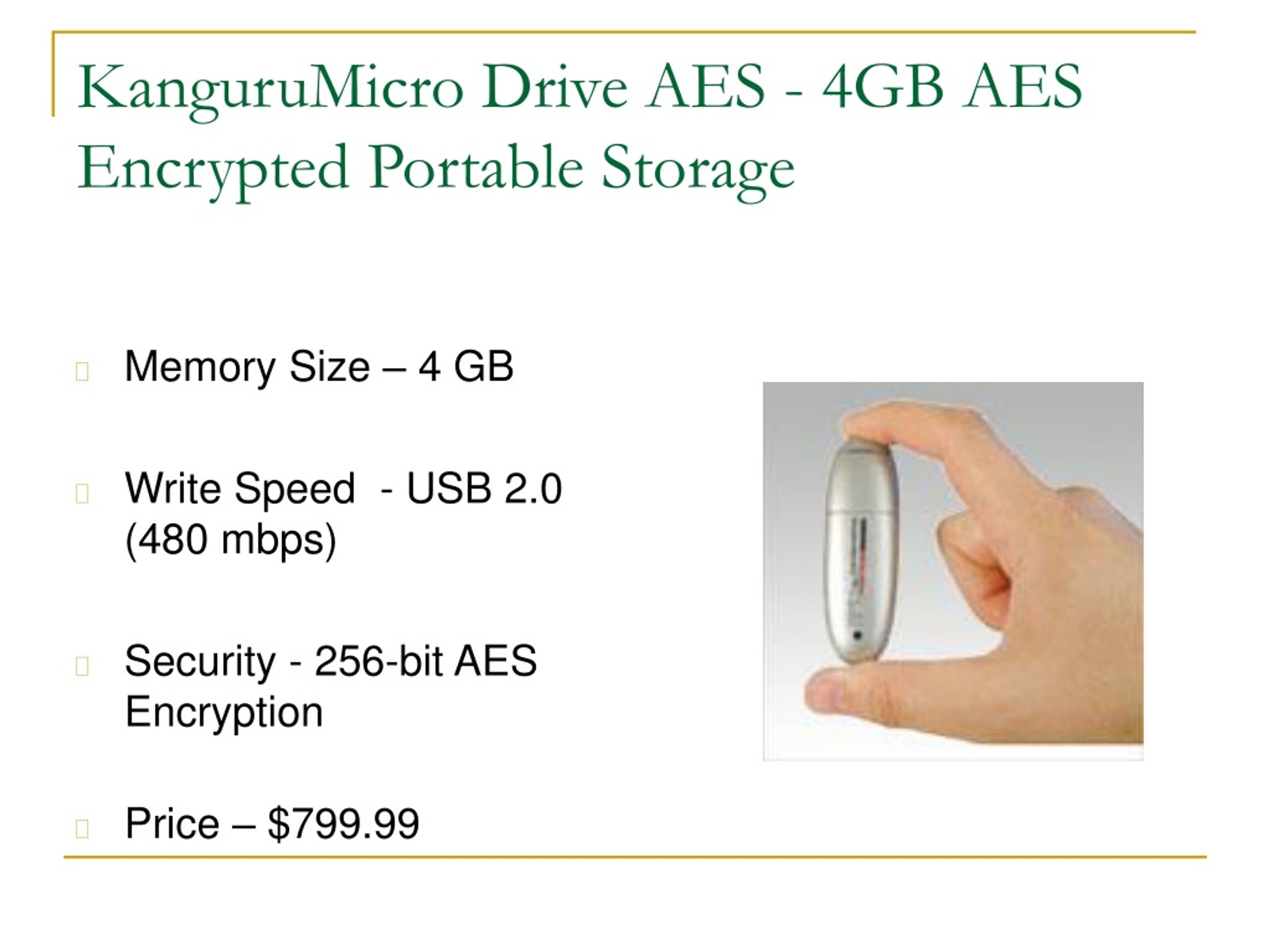

  7. KanguruMicro Drive AES - 4GB AES Encrypted Portable Storage • Memory Size – 4 GB • Write Speed - USB 2.0 (480 mbps) • Security - 256-bit AES Encryption • Price – $799.99

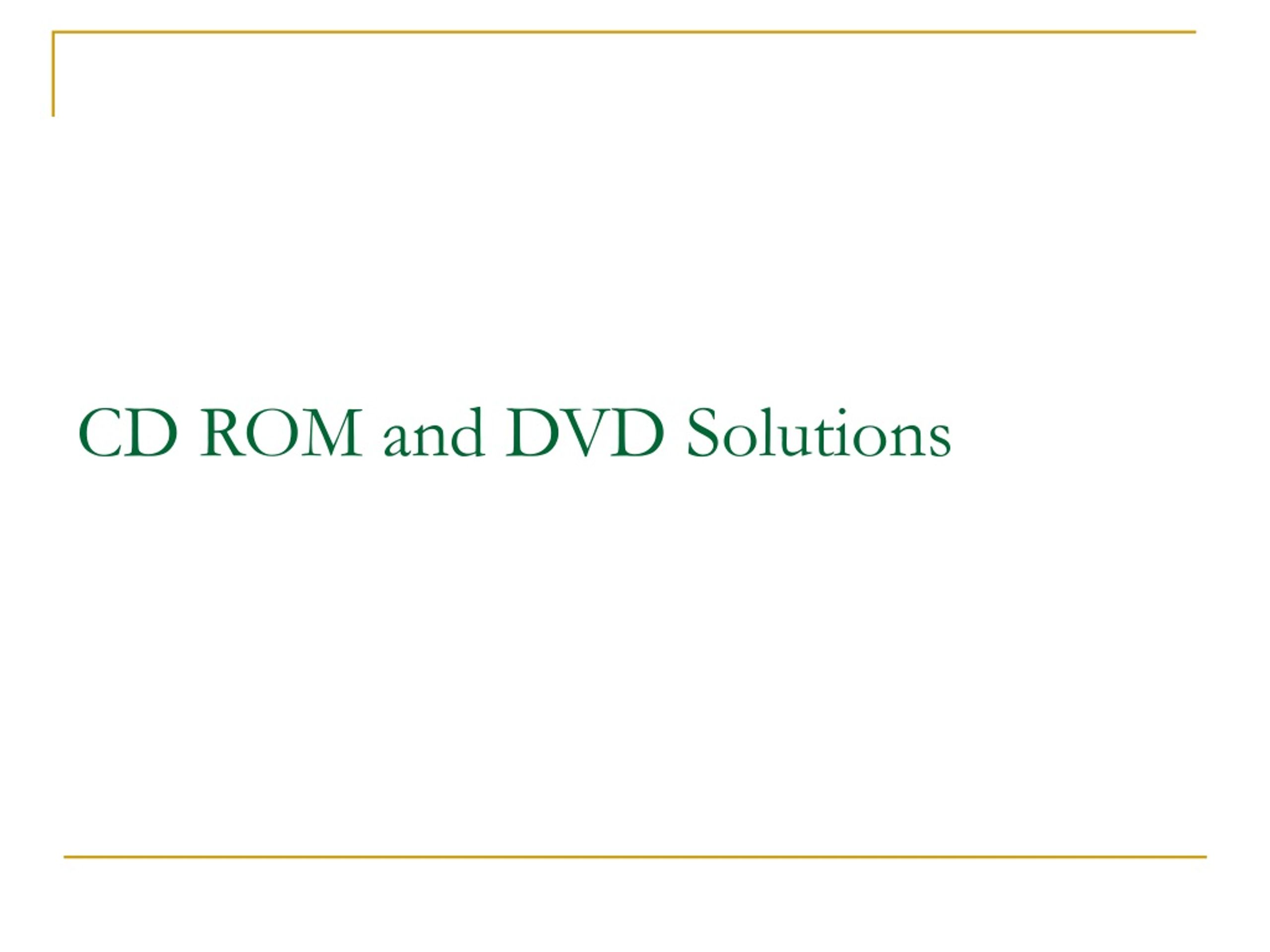

  8. CD ROM and DVD Solutions

  9. CyberROM™ Multi-Protocol Tower • Provides you with a flexible and cost effective method for sharing CD's and DVD's over multiple networks simultaneously. • CyberData Systems' MultiProtocol CyberROM systems are integrated with the new Storpoint CD+ engine from Axis and operate independently from the file server.

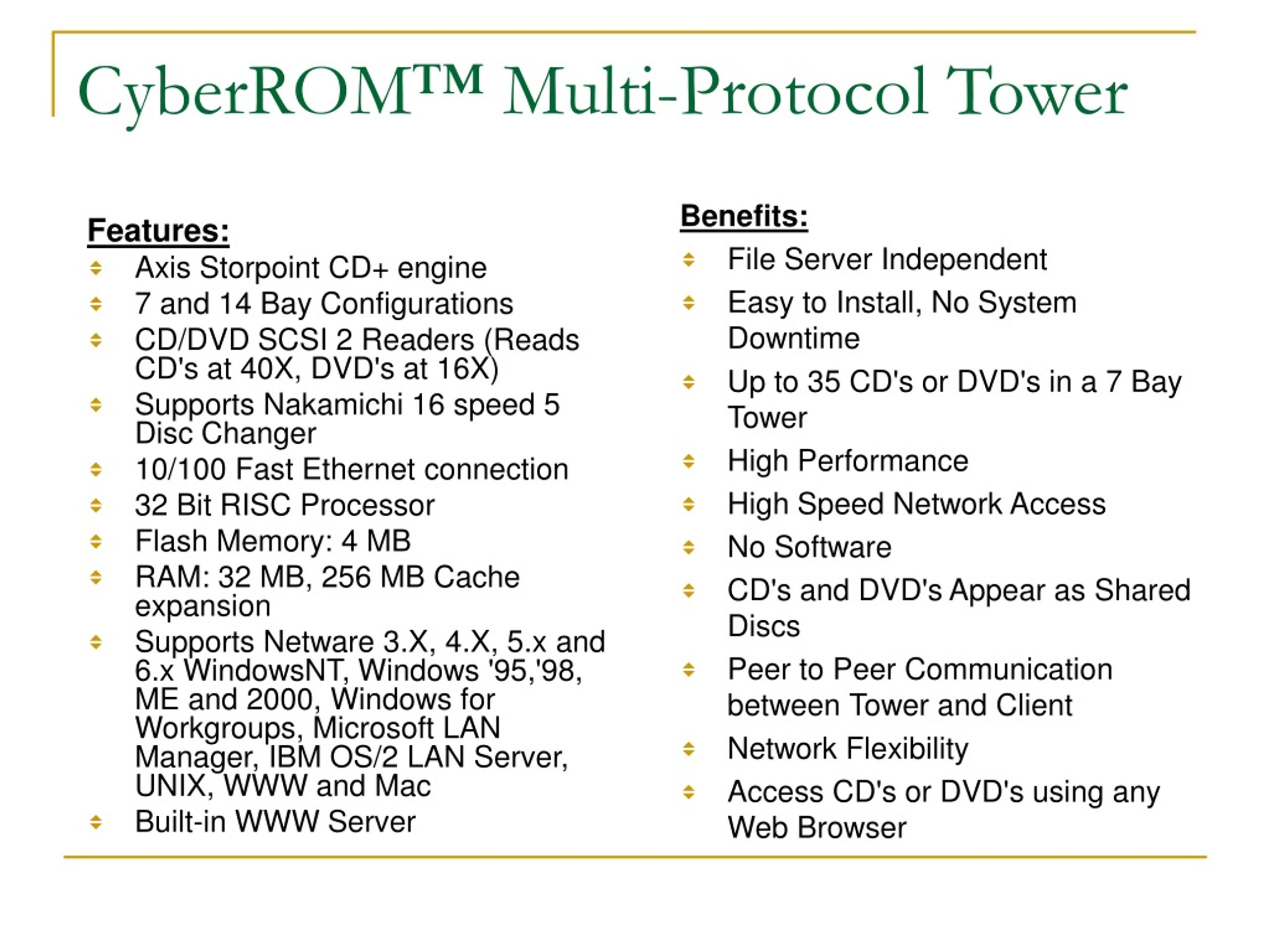

  10. CyberROM™ Multi-Protocol Tower Benefits: • File Server Independent • Easy to Install, No System Downtime • Up to 35 CD's or DVD's in a 7 Bay Tower • High Performance • High Speed Network Access • No Software • CD's and DVD's Appear as Shared Discs • Peer to Peer Communication between Tower and Client • Network Flexibility • Access CD's or DVD's using any Web Browser Features: • Axis Storpoint CD+ engine • 7 and 14 Bay Configurations • CD/DVD SCSI 2 Readers (Reads CD's at 40X, DVD's at 16X) • Supports Nakamichi 16 speed 5 Disc Changer • 10/100 Fast Ethernet connection • 32 Bit RISC Processor • Flash Memory: 4 MB • RAM: 32 MB, 256 MB Cache expansion • Supports Netware 3.X, 4.X, 5.x and 6.x WindowsNT, Windows '95,'98, ME and 2000, Windows for Workgroups, Microsoft LAN Manager, IBM OS/2 LAN Server, UNIX, WWW and Mac • Built-in WWW Server

  11. Network Ready CD/DVD Servers - CyberROM-SP+ • The CyberROM-SP+ is a High Performance Scalable CD/DVD Server which integrates CD/DVD ROM and hard disk technologies into a network attached server independent configuration. • CyberROM-SP+ enables you to create a mirror image of each CD or DVD onto a hard disk. To the client the image looks like a CD/DVD on the network. However, data is accessed from hard disk, a much higher performance storage medium.

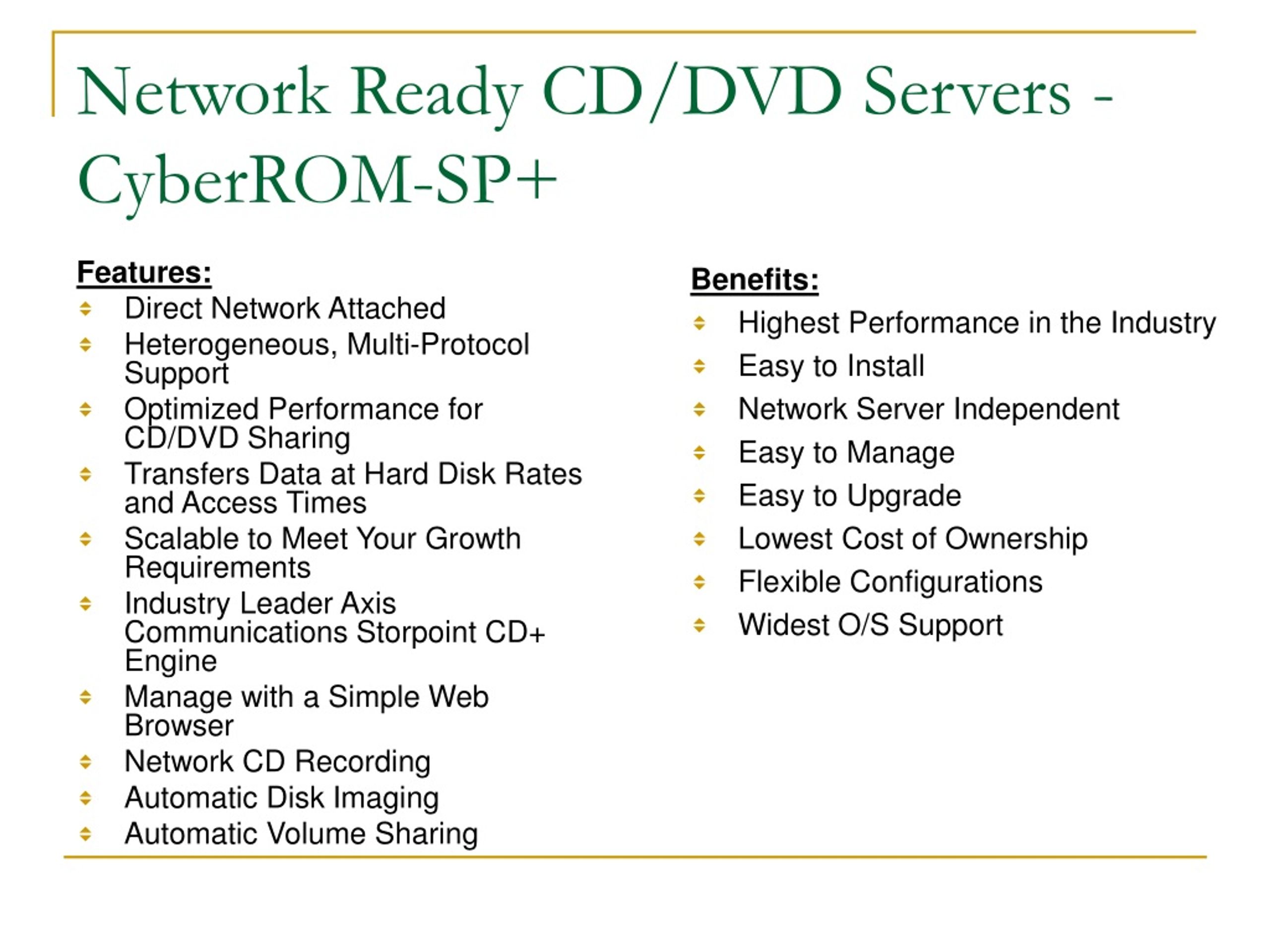

  12. Network Ready CD/DVD Servers - CyberROM-SP+ Features: • Direct Network Attached • Heterogeneous, Multi-Protocol Support • Optimized Performance for CD/DVD Sharing • Transfers Data at Hard Disk Rates and Access Times • Scalable to Meet Your Growth Requirements • Industry Leader Axis Communications Storpoint CD+ Engine • Manage with a Simple Web Browser • Network CD Recording • Automatic Disk Imaging • Automatic Volume Sharing Benefits: • Highest Performance in the Industry • Easy to Install • Network Server Independent • Easy to Manage • Easy to Upgrade • Lowest Cost of Ownership • Flexible Configurations • Widest O/S Support

  13. CyberTower™ Standard SCSI Attached CD/DVD Towers • Provides an on-line access for up to 21 CD/DVD readers (up to 98 GB of Data) in a single cabinet . • In addition, with the introduction of the new Nakamichi 16X, 5 disc changer with an on-line capacity that can be expanded to a total of 175 CD discs. That's a total on line capacity of 112 GB available to the network.

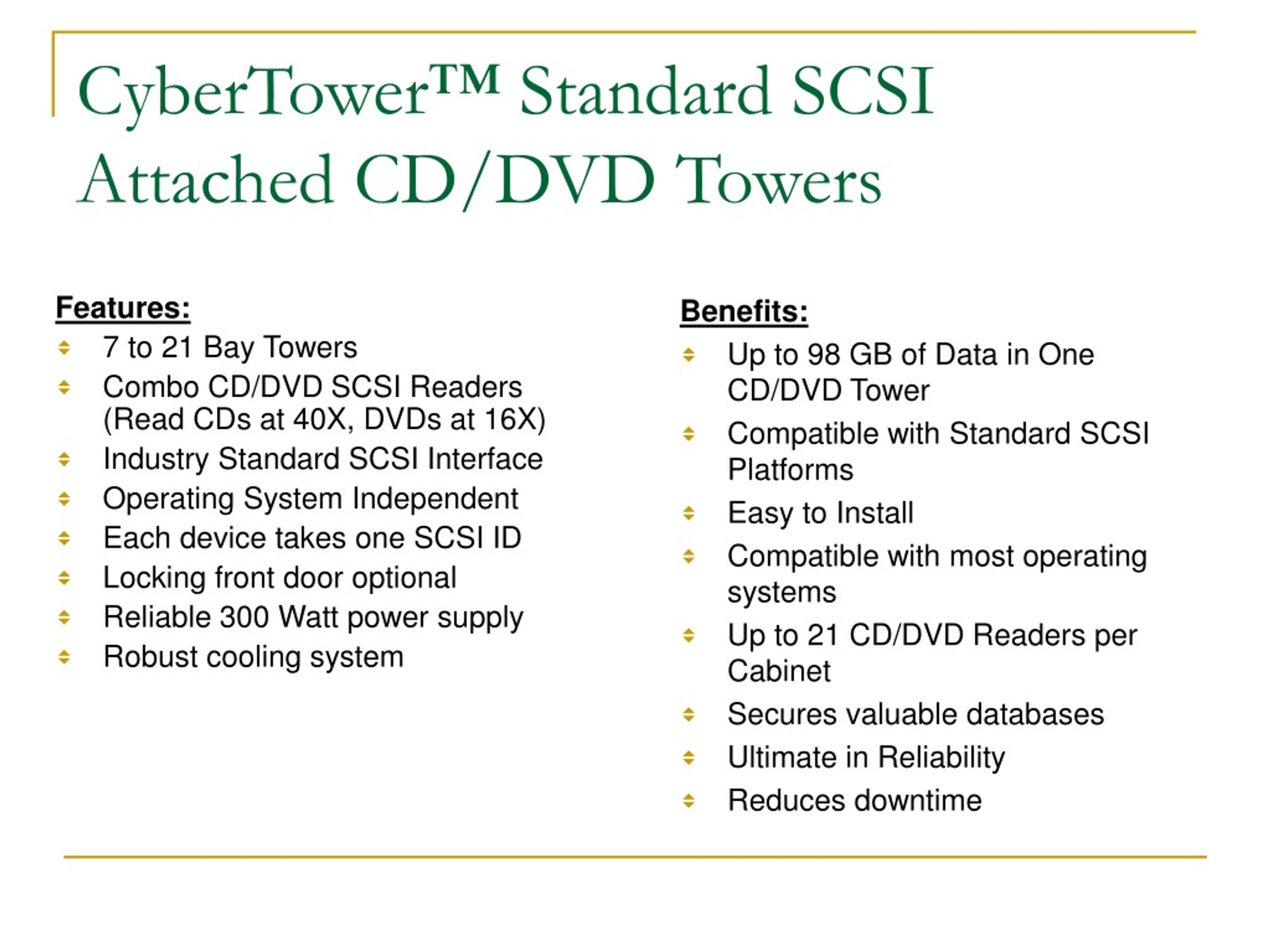

  14. CyberTower™ Standard SCSI Attached CD/DVD Towers Features: • 7 to 21 Bay Towers • Combo CD/DVD SCSI Readers (Read CDs at 40X, DVDs at 16X) • Industry Standard SCSI Interface • Operating System Independent • Each device takes one SCSI ID • Locking front door optional • Reliable 300 Watt power supply • Robust cooling system Benefits: • Up to 98 GB of Data in One CD/DVD Tower • Compatible with Standard SCSI Platforms • Easy to Install • Compatible with most operating systems • Up to 21 CD/DVD Readers per Cabinet • Secures valuable databases • Ultimate in Reliability • Reduces downtime

  15. Sun Microsystems Storage Solutions

  16. Sun Microsystems Storage Solutions Data Center Storage • Massive scalability, extreme availability and exceptional performance for high-end data centers. • Ideal for enterprise SANs, storage consolidation and heterogeneous sharing of centralized storage. • Up to 330 TB • From $275,000.00* Sun StorEdge 9990 System

  17. Sun Microsystems Storage Solutions SAN – Storage Area Network • Massive-capacity, high-reliability, high-performance storage in a centrally managed package and includes a complete suite of infrastructure software and management tools. • Scale capacity on demand. • From $105,200.00* Sun StorEdge Open SAN Architecture

  18. Sun Microsystems Storage Solutions Midrange Storage • These high-density, high-availability data storage systems are well suited for mission-critical environments with modular, networked architectural designs. • Up to 65.4 TB • From $28,995.00* Sun StorEdge 6920 System

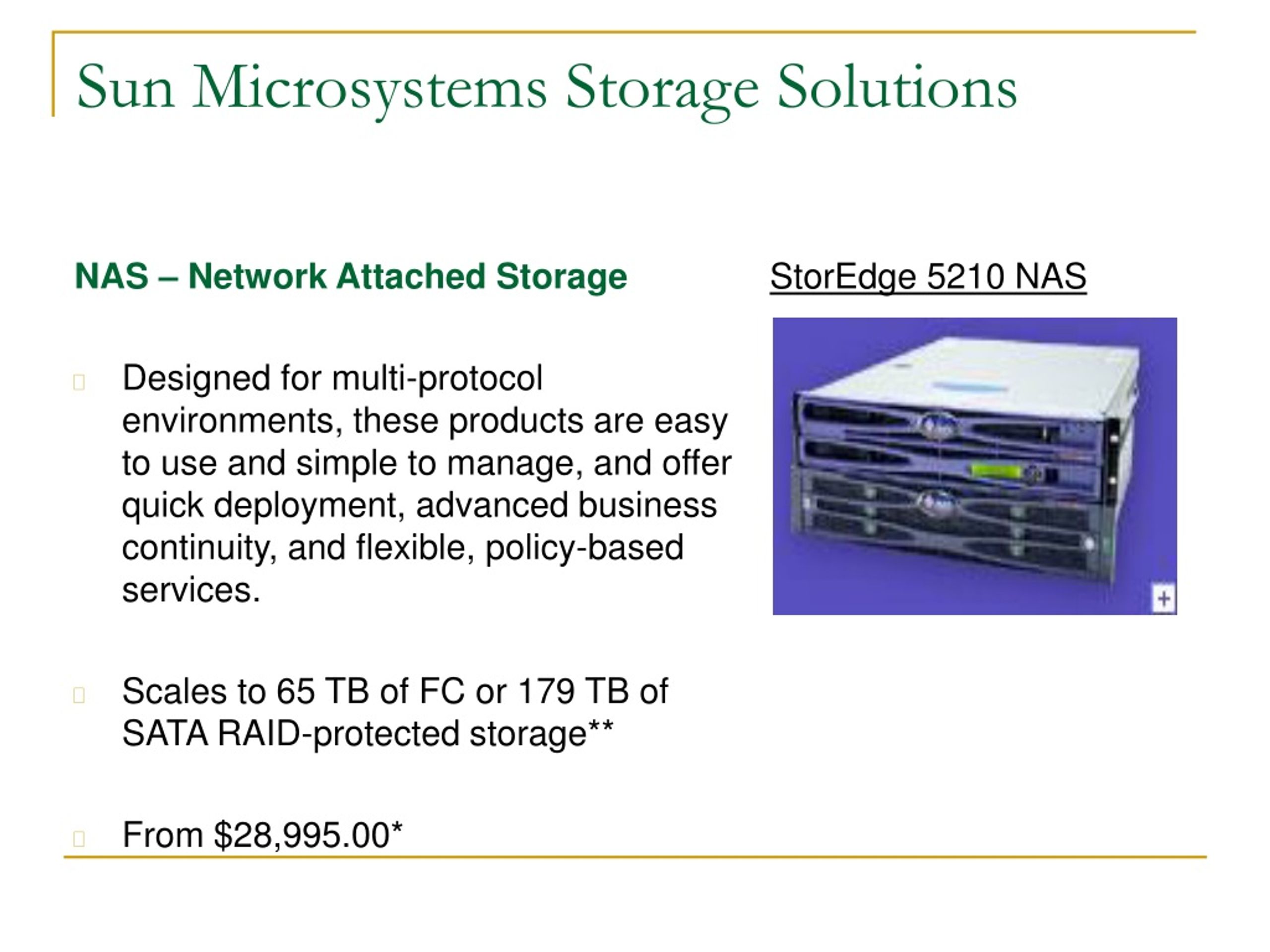

  19. Sun Microsystems Storage Solutions NAS – Network Attached Storage • Designed for multi-protocol environments, these products are easy to use and simple to manage, and offer quick deployment, advanced business continuity, and flexible, policy-based services. • Scales to 65 TB of FC or 179 TB of SATA RAID-protected storage** • From $28,995.00* StorEdge 5210 NAS

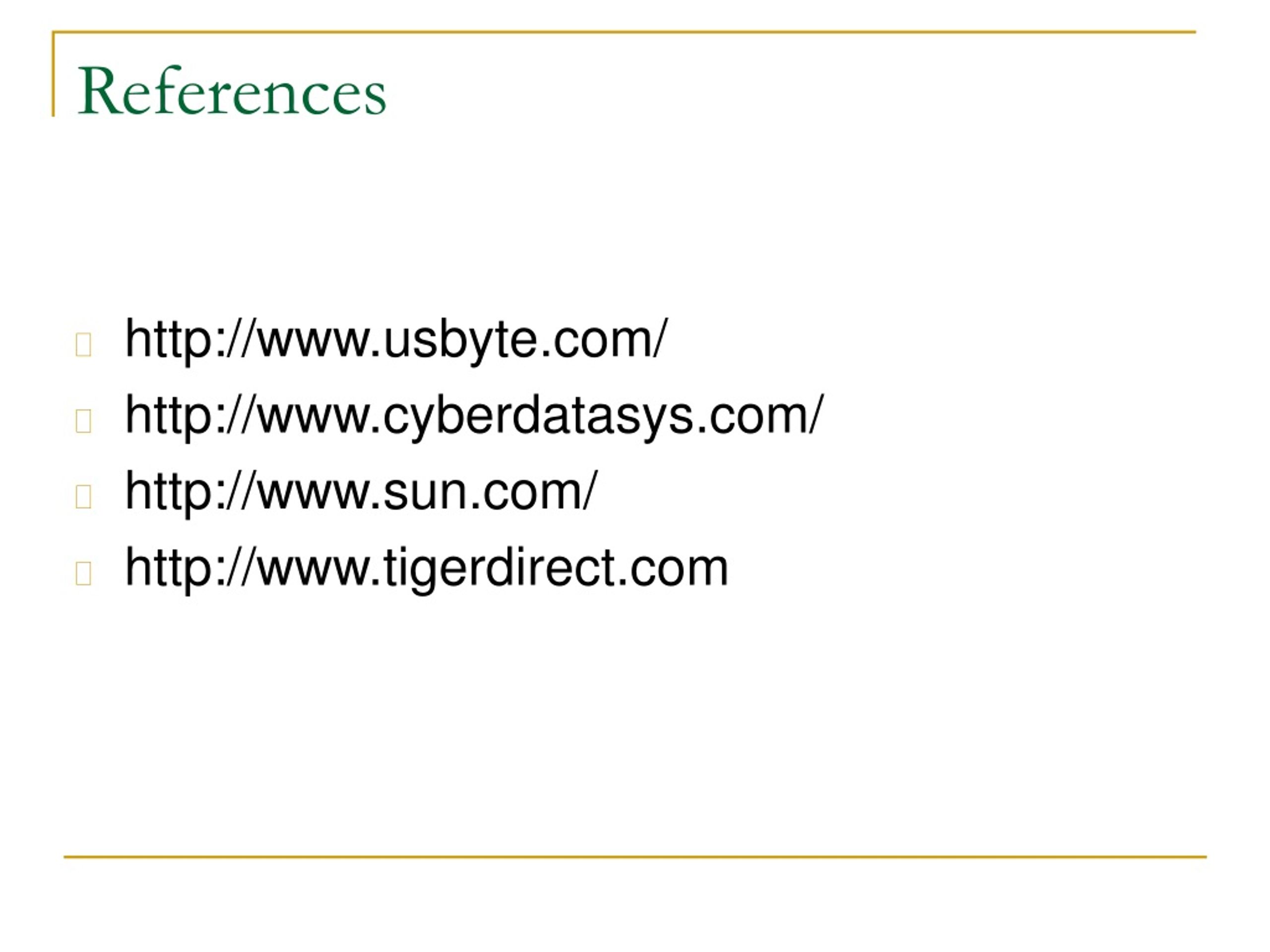

  20. References • http://www.usbyte.com/ • http://www.cyberdatasys.com/ • http://www.sun.com/ • http://www.tigerdirect.com

  21. QUESTIONS? QUESTIONS? COMMENTS? COMMENTS?

  22. Thank You!!!
