Single Site. Channel 1. Dispatcher 1. Ethernet / Internet. Dispatcher 2. Channel 2. TRBOnet. RadioServer. Dispatcher 3. Channel N. Internet/Ethernet Radio channel. www.TRBOnet.com. Multi Site. Site 1. TRBOnet. Agent 1. Dispatcher 1. Ethernet / Internet. Dispatcher 2. Site 2.

nan
Download Presentation

Ethernet / Internet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

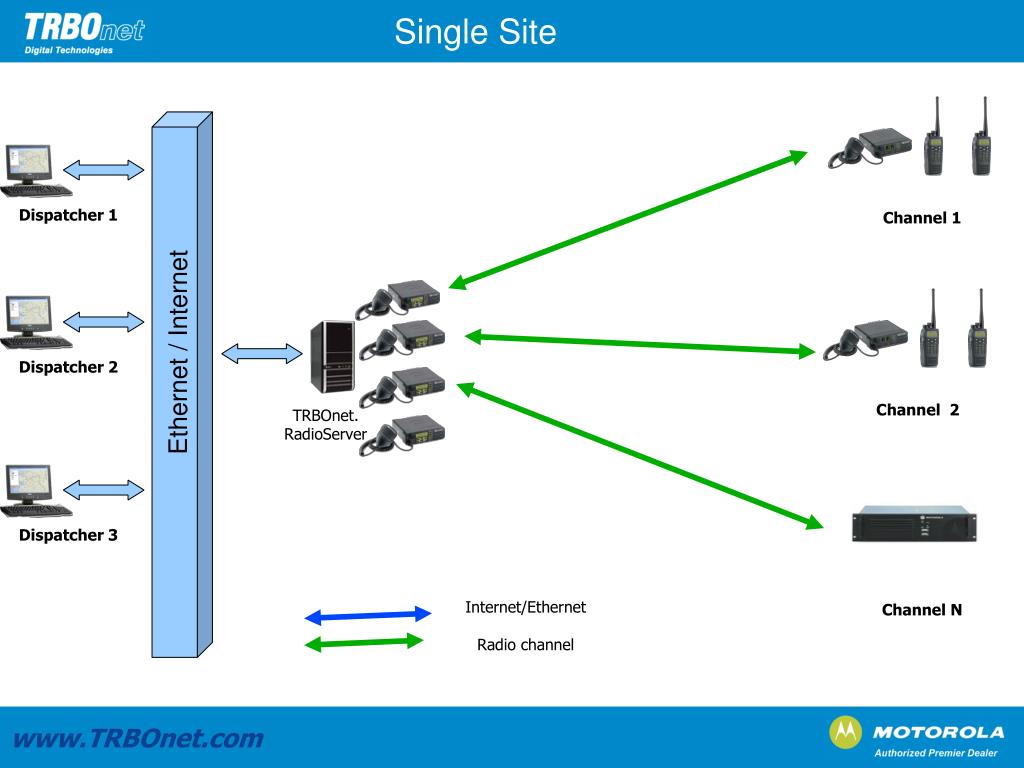

  1. Single Site Channel 1 Dispatcher 1 Ethernet / Internet Dispatcher 2 Channel 2 TRBOnet. RadioServer Dispatcher 3 Channel N Internet/Ethernet Radio channel www.TRBOnet.com

  2. Multi Site Site 1 TRBOnet. Agent 1 Dispatcher 1 Ethernet / Internet Dispatcher 2 Site 2 TRBOnet. Agent 2 TRBOnet. RadioServer Dispatcher N TRBOnet. Agent N Site N Internet/Ethernet Radio channel www.TRBOnet.com

  3. Mixed: Conventional, IP Site, Capacity Channel TRBOnet.Agent1 Dispatcher 1 Ethernet / Internet Dispatcher 2 IP Site Connect TRBOnet. Agent 2 TRBOnet. RadioServer Dispatcher N TRBOnet.Agent N Capacity Plus Internet/Ethernet Radio channel www.TRBOnet.com

  4. Two Talk Channels TimeSlot 1 – Voice + GPS Talk Channel 1 TimeSlot 1 – Voice + GPS DR3000 Repeater TimeSlot 2 –Voice + GPS TimeSlot 2 Voice + GPS TRBOnet.Agent Or RadioServer Talk Channel 2 www.TRBOnet.com

  5. GPS Revert TimeSlot 1 – Voice and control commands Talk Channel 1 DR3000 Repeater TimeSlot 2 - GPS only TimeSlot 2 GPS Revert TRBOnet.Agent Or RadioServer www.TRBOnet.com

  6. Single Site with N repeaters DR3000 Repeater DR3000 Repeater TRBOnet.Agent Or RadioServer DR3000 Repeater www.TRBOnet.com

  7. Cross Patch TRBOnet.Agent London TRBOnet. RadioServer Berlin TRBOnet.Agent Paris Internet/Ethernet Radio channel www.TRBOnet.com

  8. Single PC: Audio Config Line In Microphone Audio Output Master Radio SoundCard 1 SoundCard 2 www.TRBOnet.com

  9. Remote Dispatcher PC: Audio Config www.TRBOnet.com
